Model Whirlpool KBFS20EVWH2 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $146.06

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

Door, Refrigerator (Black) WPL 13024048BQ Contact Us For Availability

1

Door, Refrigerator (White) WPL 13024048WQ Contact Us For Availability

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.51

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $52.39

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $42.74

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

3

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $11.17

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $64.71

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $11.97

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.86

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $51.68

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

6

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

6

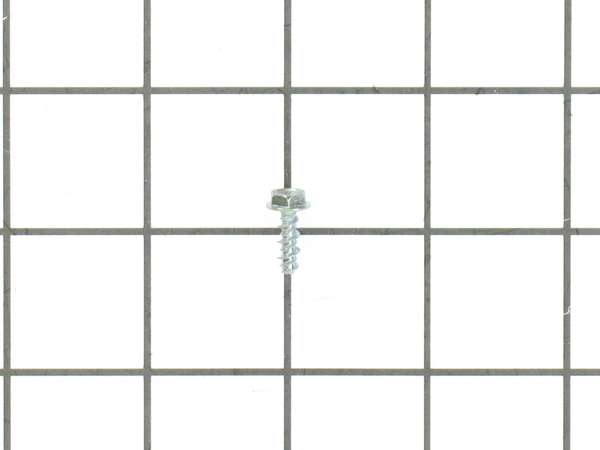

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $10.64

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $44.78

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $90.41

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $51.03

7

W10911102 Whirlpool Refrigerator Wire Harness Backorder WPL W10911102 $49.90

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $5.88

7

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $15.92

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $145.32

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $121.03

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $50.57

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $6.43

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

9

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $196.14

9

Handle, Door (Black) WPL W10119643 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $84.64

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $87.91

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $16.76

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $59.18

MOUNT, HANDLE WPL 12691403 Contact Us For Availability

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.89

WP12463911 Whirlpool Refrigerator Glass Shelf Backorder WPL WP12463911 $193.38

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $37.17

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $77.32

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $127.86

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.58

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $49.54

WPW10289498 Whirlpool Refrigerator Cantilever Backorder WPL WPW10289498 $70.46

W10217485 Whirlpool Refrigerator Cover Backorder WPL W10217485 $17.39

W11402028 Whirlpool Refrigerator Mat Backorder WPL W11402028 $37.80

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $45.66

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.19

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $67.83

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $65.32

COVER, LEFT HINGE (WHITE) WPL W10217484 Contact Us For Availability

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $56.56

Backorder WPL W11750607 $29.70

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $155.02

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $165.75

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $63.77

12655102AP Whirlpool Refrigerator Door Hinge Backorder WPL 12655102AP $57.85

12655103ED Whirlpool Door Hinge Backorder WPL 12655103ED $54.53

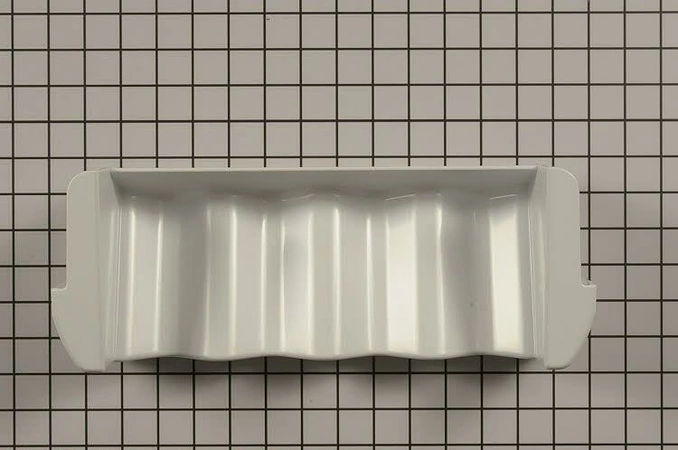

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $67.46

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.87

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $105.50

CLIP, EVAP MOTOR WPL 10623002 Contact Us For Availability

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.49

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $37.68

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $5.73

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $62.84

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $16.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

12626911ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626911ED $56.87

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $67.18

WPW10281115 Whirlpool Refrigerator Bracket Backorder WPL WPW10281115 $31.95

WPW10281116 Whirlpool Bracket Backorder WPL WPW10281116 $31.95

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $50.20

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $16.76

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $93.94

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $73.06

W11658403 Whirlpool Slide In Stock WPL W11658403 $90.73

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $4.19

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $11.22

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

Dispenser WPL 12706909SP Contact Us For Availability

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.05

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

WPW10284692 Whirlpool Refrigerator Bracket Backorder WPL WPW10284692 $51.12

WPW10284693 Whirlpool Mounting Bracket Backorder WPL WPW10284693 $51.07

12028601W Whirlpool Refrigerator Hinge Bushin Backorder WPL 12028601W $10.35

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.42

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.71

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.65

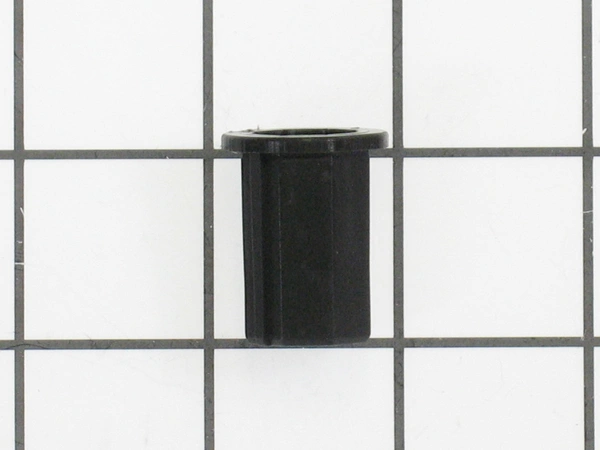

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $4.19

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $65.52

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $44.34

Dam (Left Side) WPL 12225602 Contact Us For Availability

Door, Right (Black) WPL 13024047BQ Contact Us For Availability

Door, Right (White) WPL 13024047WQ Contact Us For Availability

24

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $53.79

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $65.34

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

W11690160 Whirlpool Grommet Backorder WPL W11690160 $3.07

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $51.53

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $55.66

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $9.16

26

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $38.41

26

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.64

W10208593 Whirlpool Refrigerator Valve Cover Backorder WPL W10208593 $14.39

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.11

CLIP, WATERLINE WPL B8390302SP Contact Us For Availability

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

30

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $36.15

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $93.71

31

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $51.89

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $33.54

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

32

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $17.13

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $3.51

W10150061 Whirlpool Refrigerator Divider Backorder WPL W10150061 $34.75

W10296541 Whirlpool Refrigerator Wire Cover Backorder WPL W10296541 $21.18

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.41

INSULATION, SOUND WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.15

40

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $14.98

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $123.26

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $16.90

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $65.28

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
