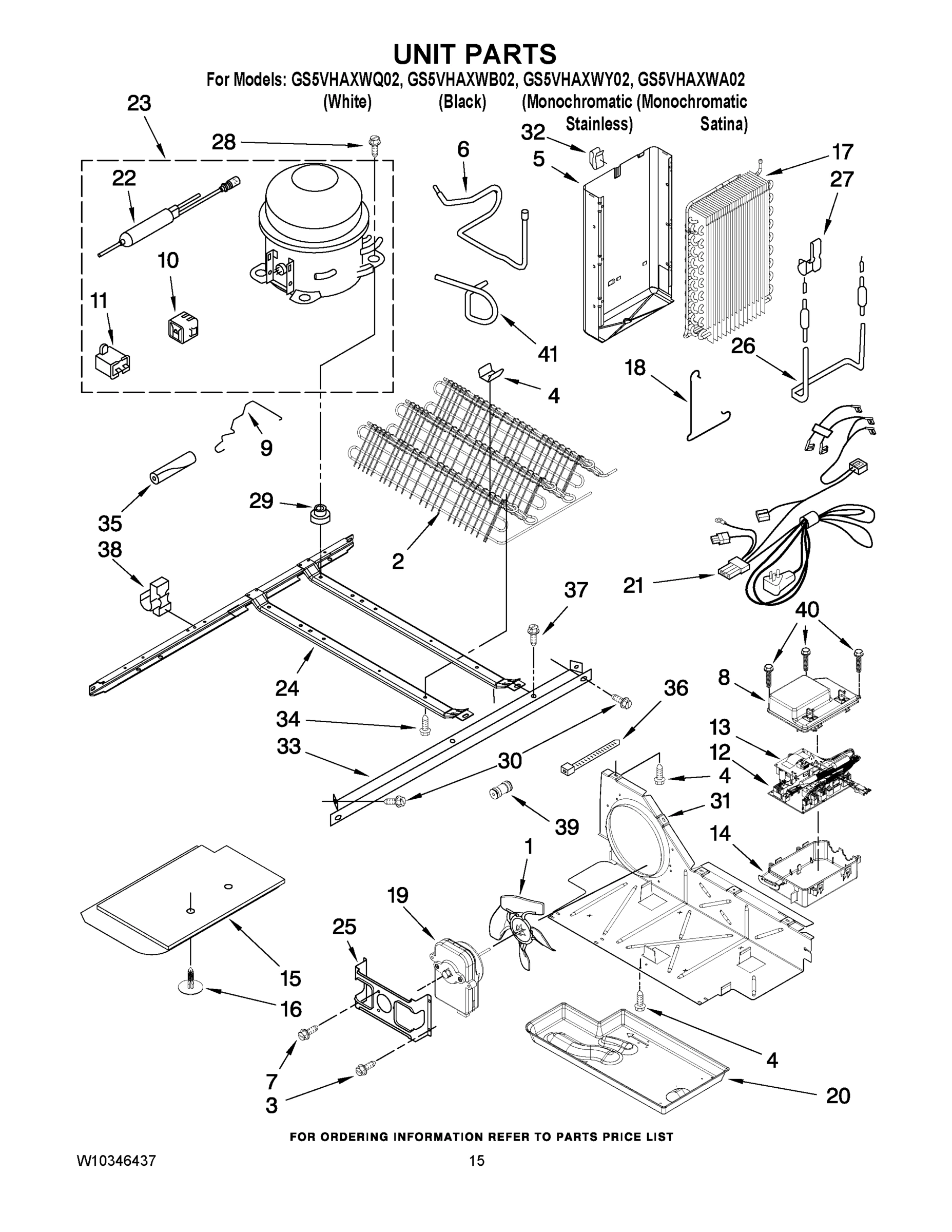

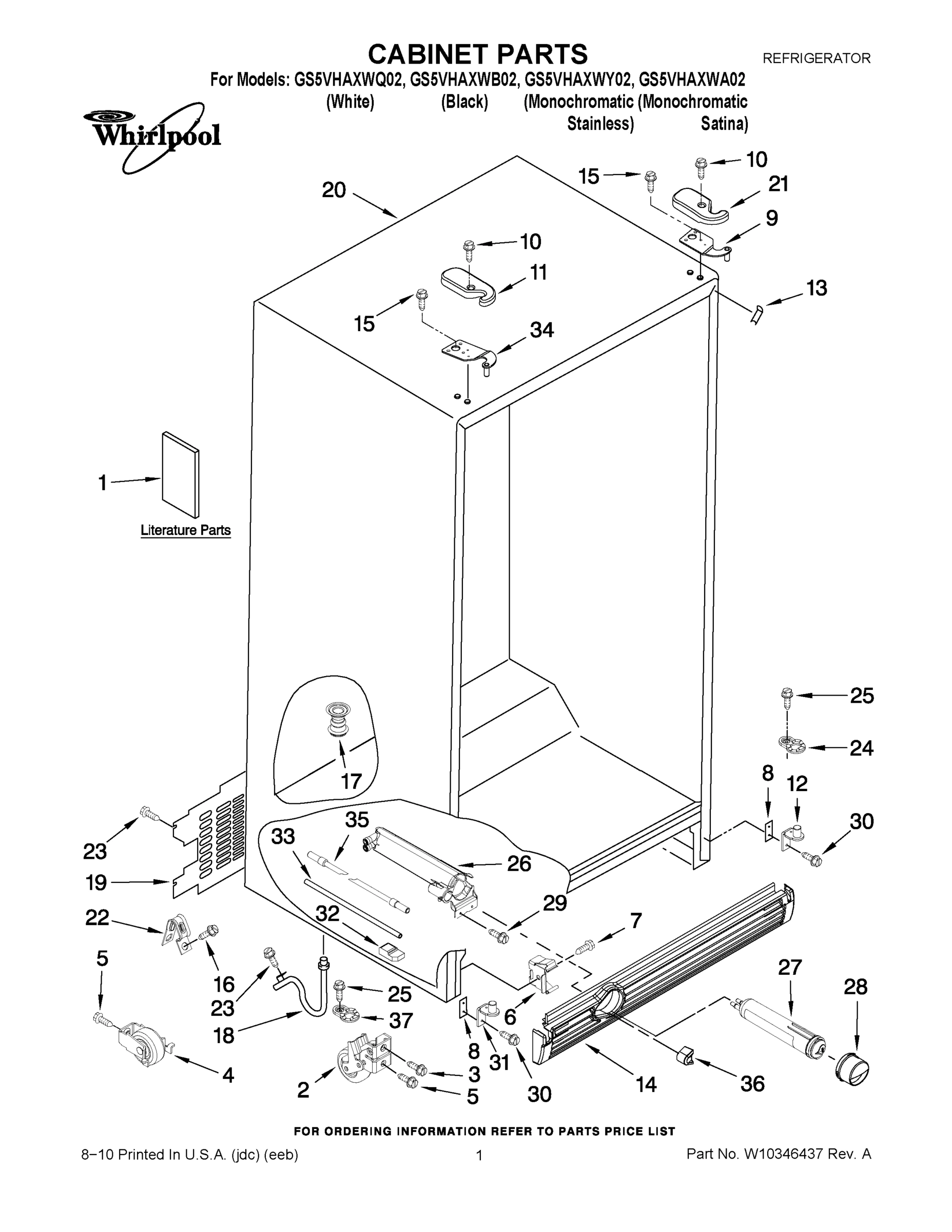

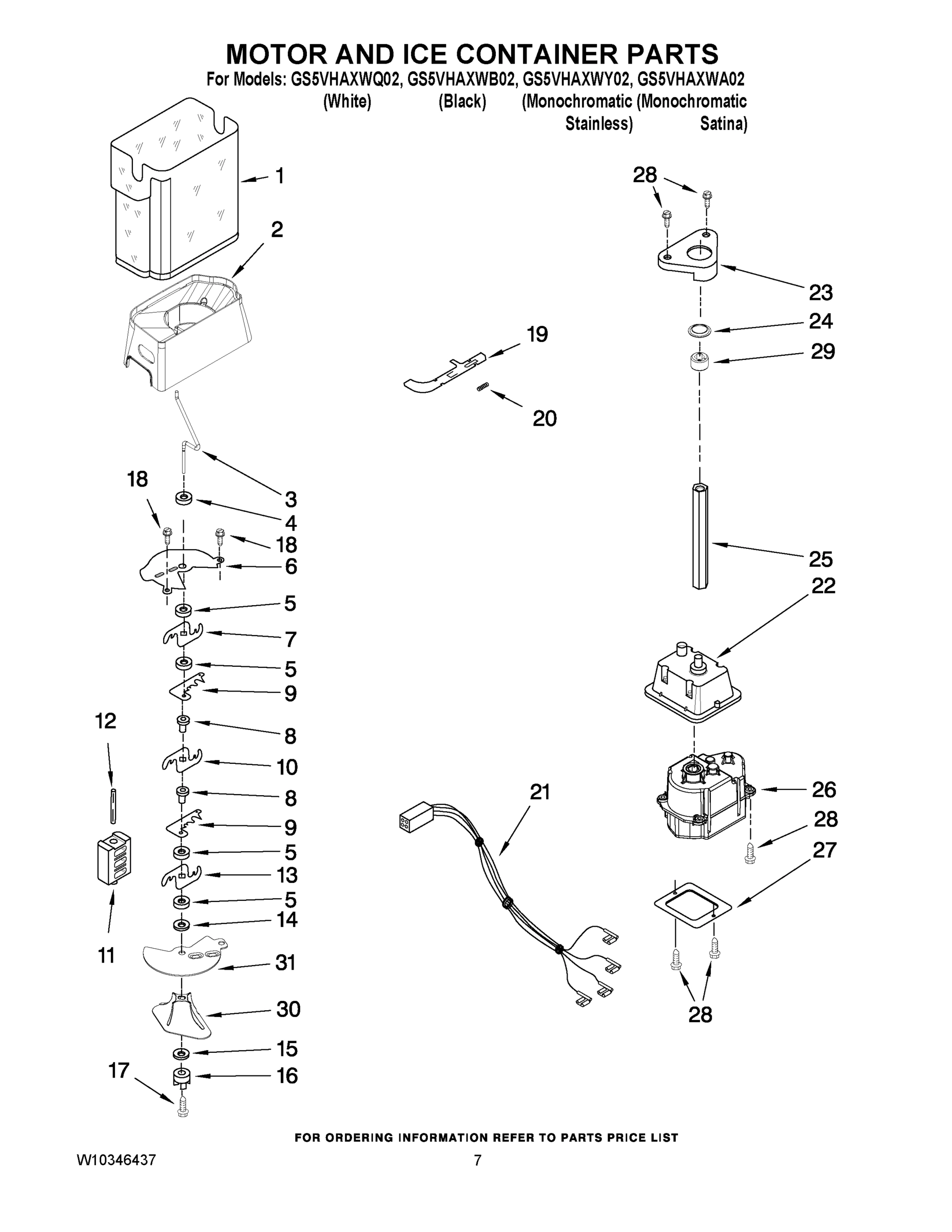

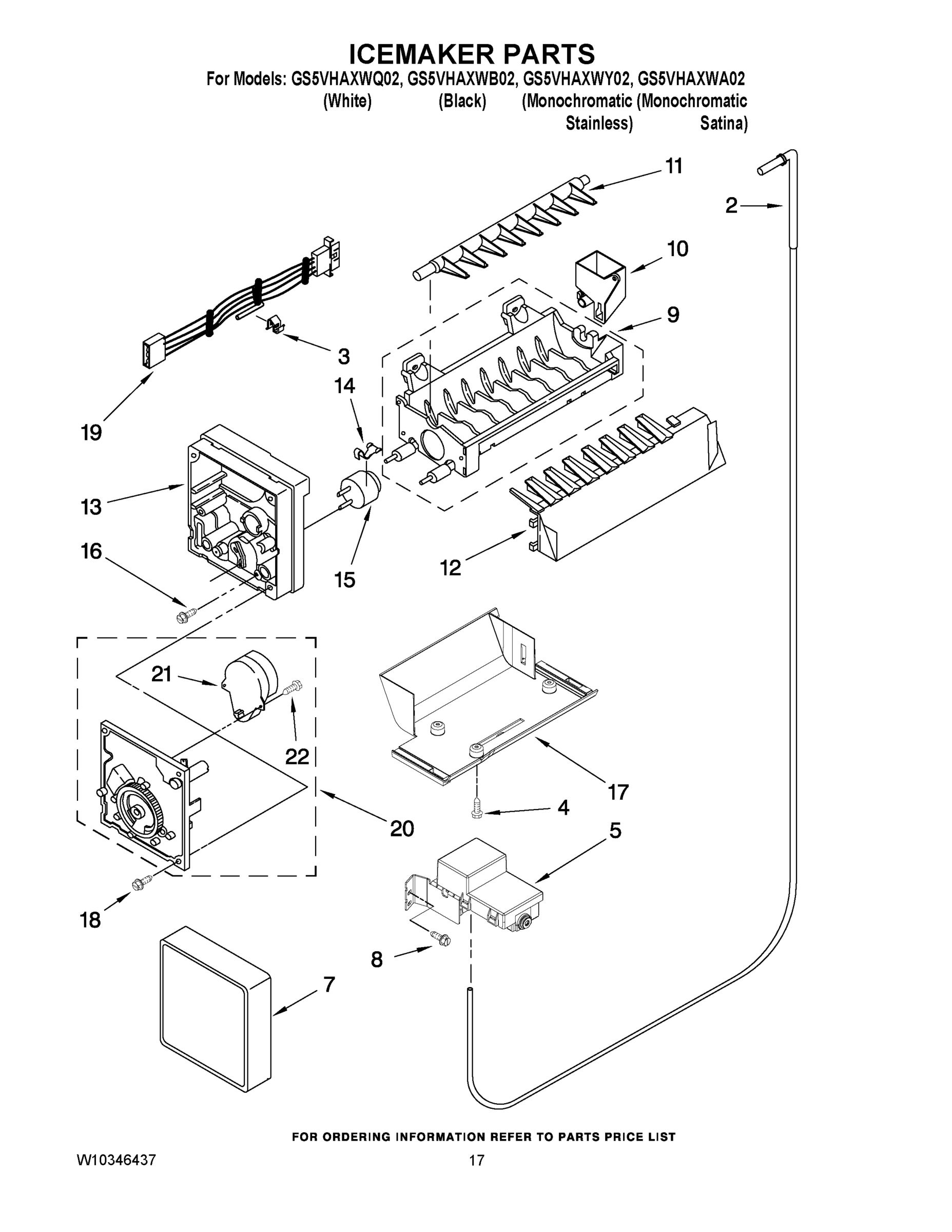

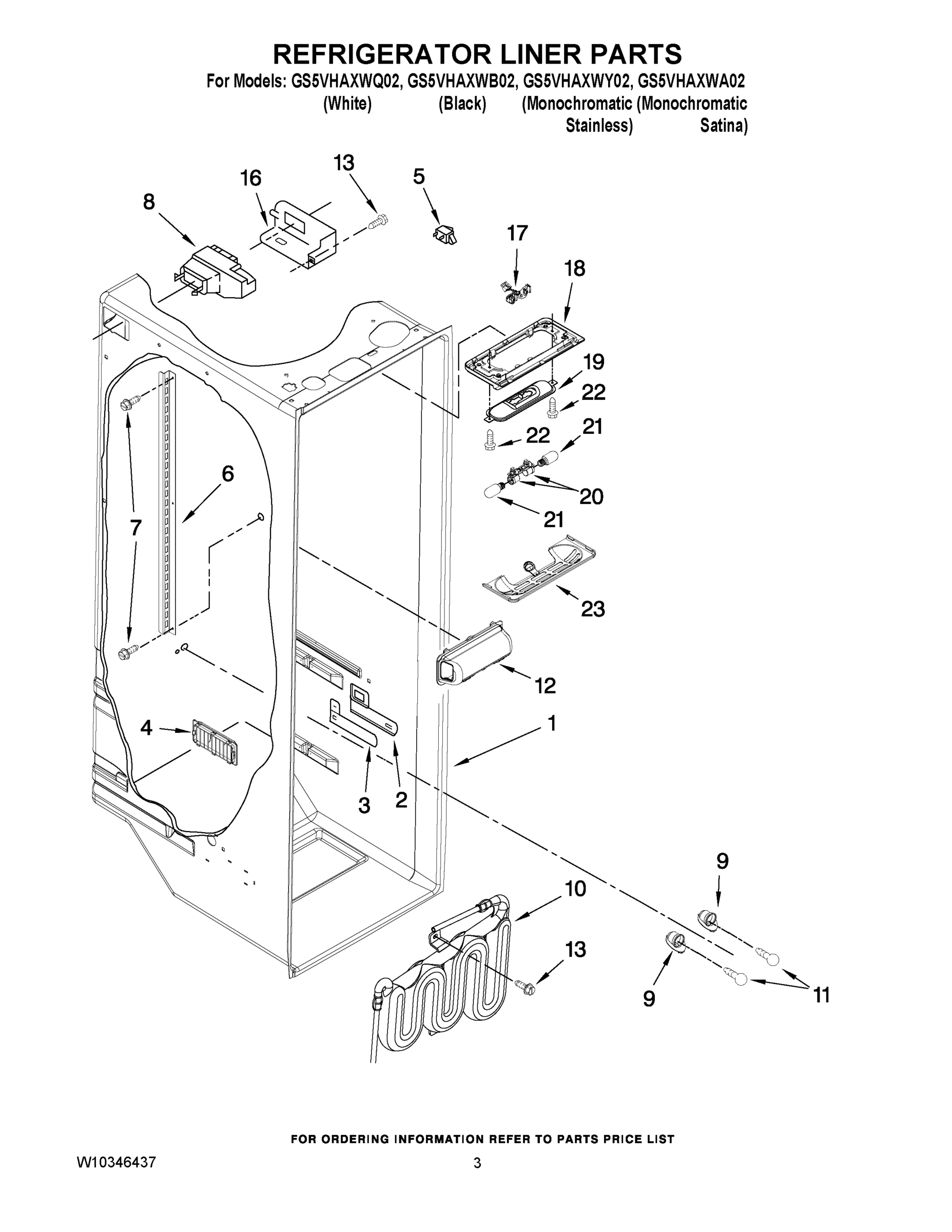

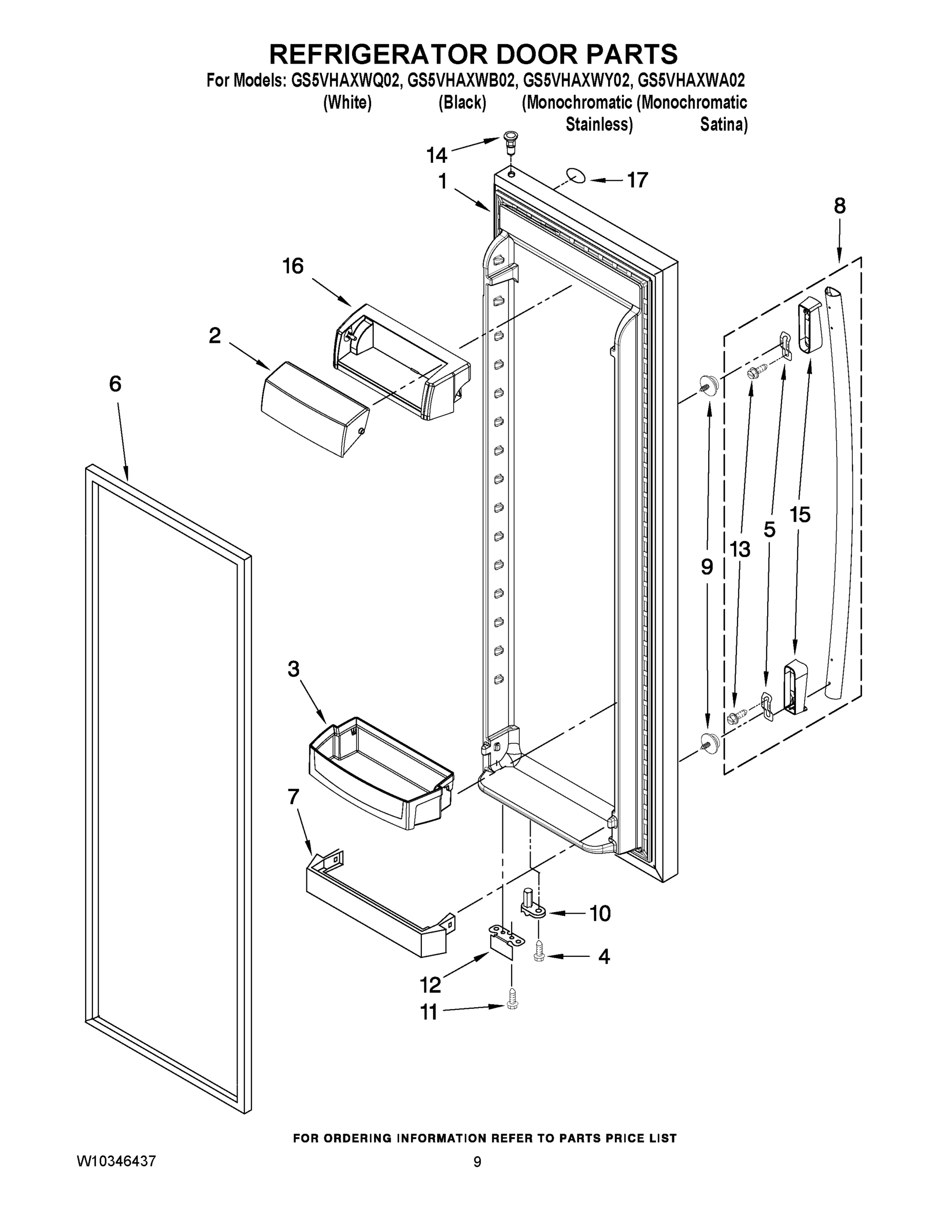

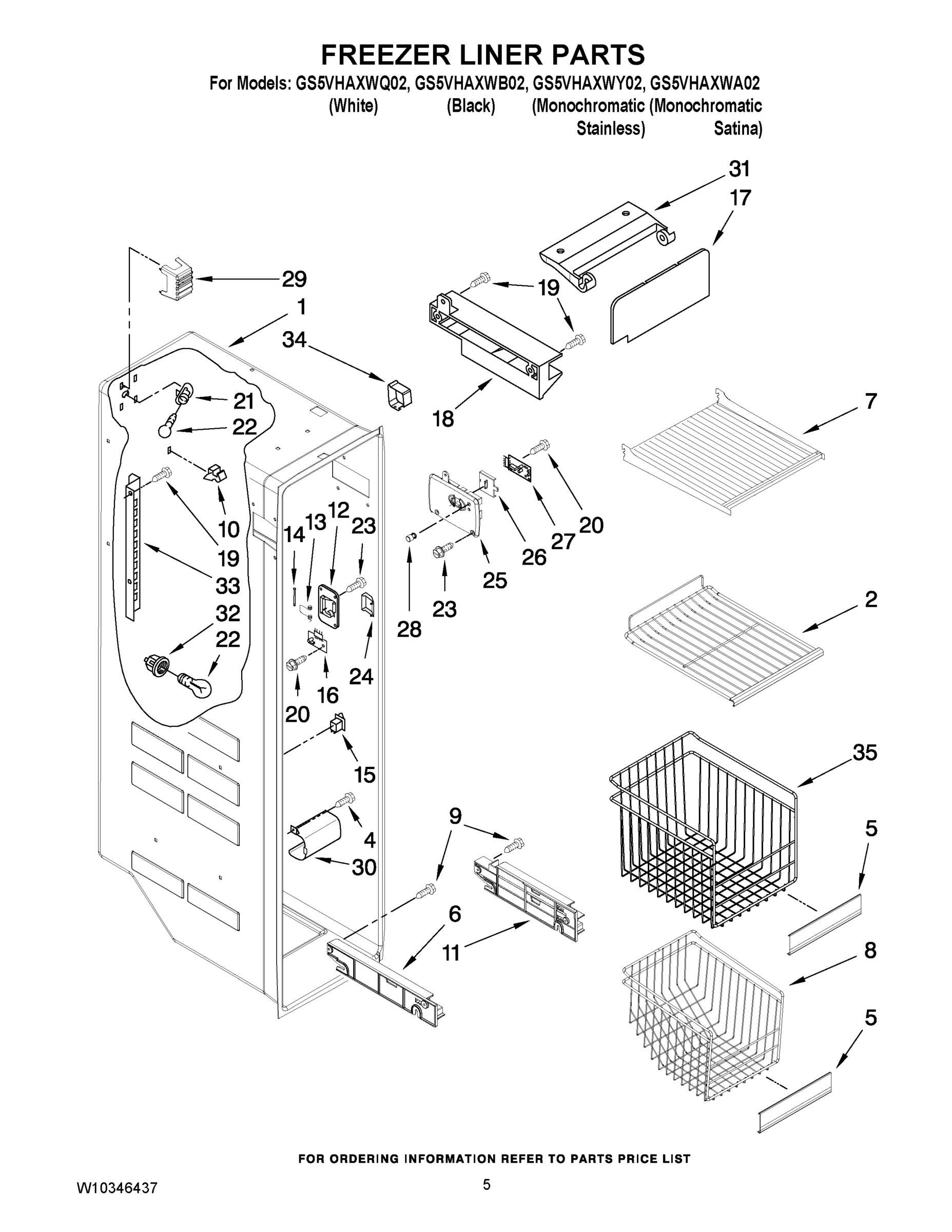

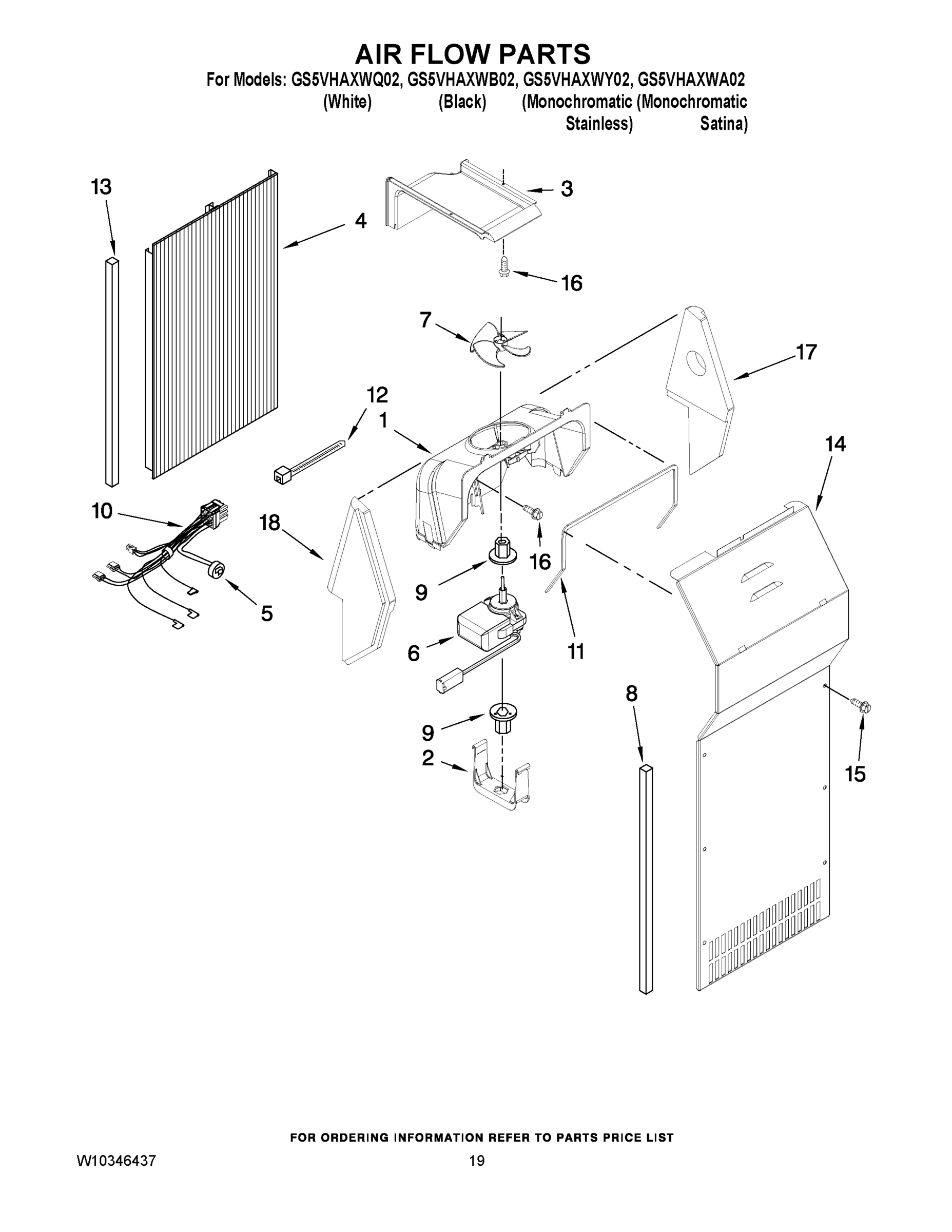

Model Whirlpool GS5VHAXWB02 REFRIGERATOR – Common Parts &amp; Diagrams

1

Ice Bin WPL W10174539 Contact Us For Availability

2

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $255.27

2

W11700295 Whirlpool Refrigerator Retainer Backorder WPL W11700295 $11.60

2

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $37.24

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $70.79

3

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $63.63

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

4

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $56.08

5

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $90.09

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $16.85

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

6

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $252.65

6

WPW10236142 Whirlpool Refrigerator Evaporator In Stock WPL WPW10236142 $146.06

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $56.83

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $40.56

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $139.68

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

8

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $127.18

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

8

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $31.62

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

8

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.89

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $146.06

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Disp (Black) WPL W10139700 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $64.24

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $51.53

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.44

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $14.30

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.73

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $60.16

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $43.81

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $37.17

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $8.13

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $49.07

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $36.53

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $44.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.00

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $290.41

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $44.13

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $88.69

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $6.96

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $5.88

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $41.18

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $40.12

COVER, EVAPORATOR (INCLUDES No.8) WPL 2206314 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $10.90

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $5.91

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $50.57

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $41.92

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $39.20

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $5.76

Lever, Water (Apollo Grey) WPL W10155162 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $104.79

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.57

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $104.45

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $49.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $17.95

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $16.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

Spacer, Switch WPL 625834 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $57.97

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $55.72

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.46

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.19

20

Control, Elek WPL 2321751 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $93.94

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.03

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.92

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.79

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

22

Enclosure, Motor WPL 2322488 Contact Us For Availability

23

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.19

23

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $58.49

23

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $6.29

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.14

24

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.40

25

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

25

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

25

Cover, Receiver WPL W10173569 Contact Us For Availability

26

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.44

26

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.34

26

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.52

27

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

28

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.59

28

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $32.84

28

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $5.84

29

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $32.21

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.77

30

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $31.49

31

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.40

31

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $3.22

33

LIGHT LADDER (LEFT SIDE) WPL 2198609 Contact Us For Availability

33

LIGHT LADDER (RIGHT SIDE) WPL 2198610 Contact Us For Availability

34

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.28

34

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

34

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

35

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

35

Basket, Square WPL 2301190 Contact Us For Availability

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $15.50

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.46

37

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $12.14

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

39

UNION WPL W10271542 Contact Us For Availability

100

W11512149 Whirlpool Ice Maker Assembly In Stock WPL W11512149 $100.57

100

Ice Container (Complete) WPL W10174536 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $16.58

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
