Model Whirlpool GS5SHGXLL01 REFRIGERATOR – Common Parts & Diagrams
07 - FREEZER DOOR PARTS

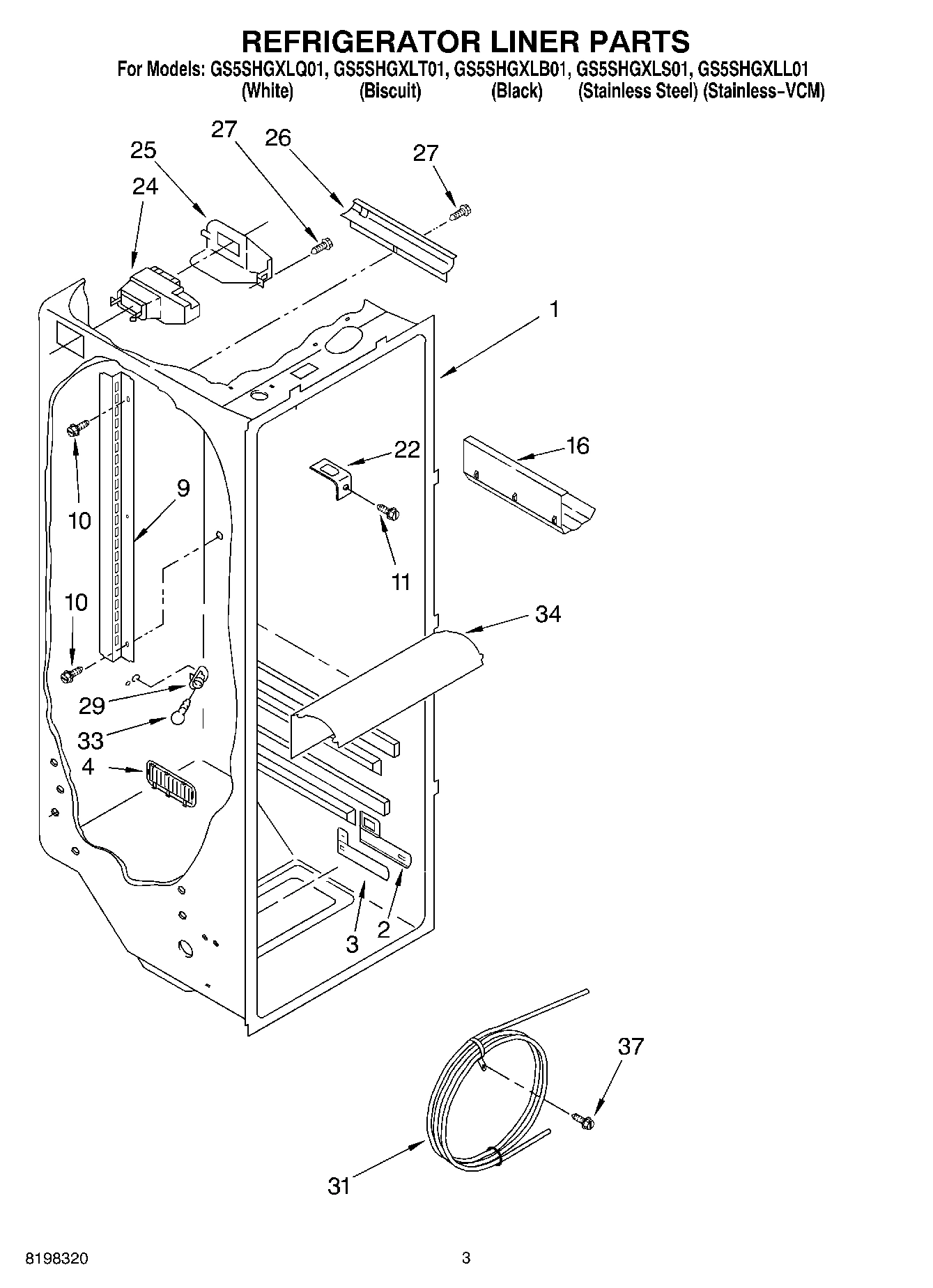

02 - REFRIGERATOR LINER PARTS

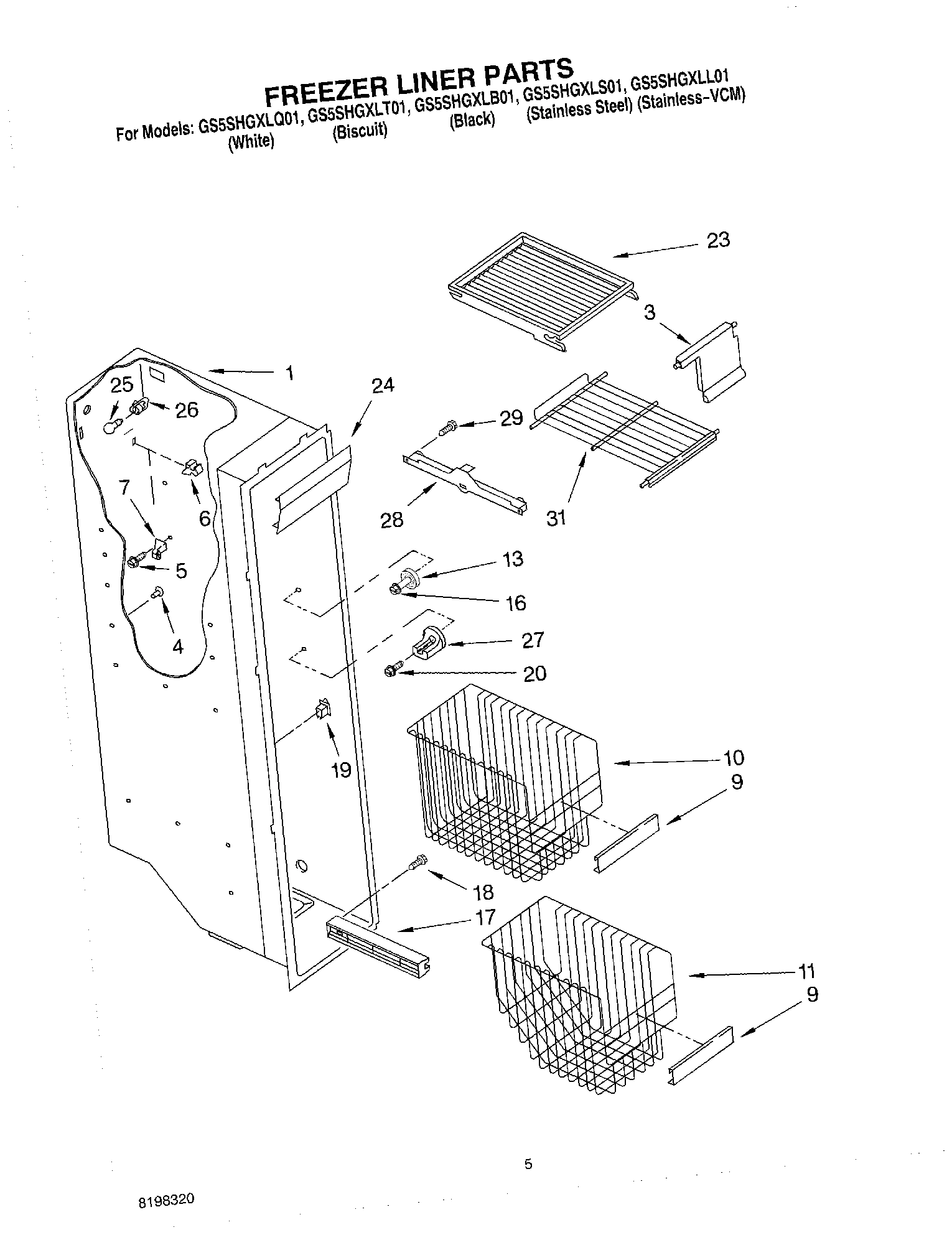

04 - FREEZER LINER PARTS

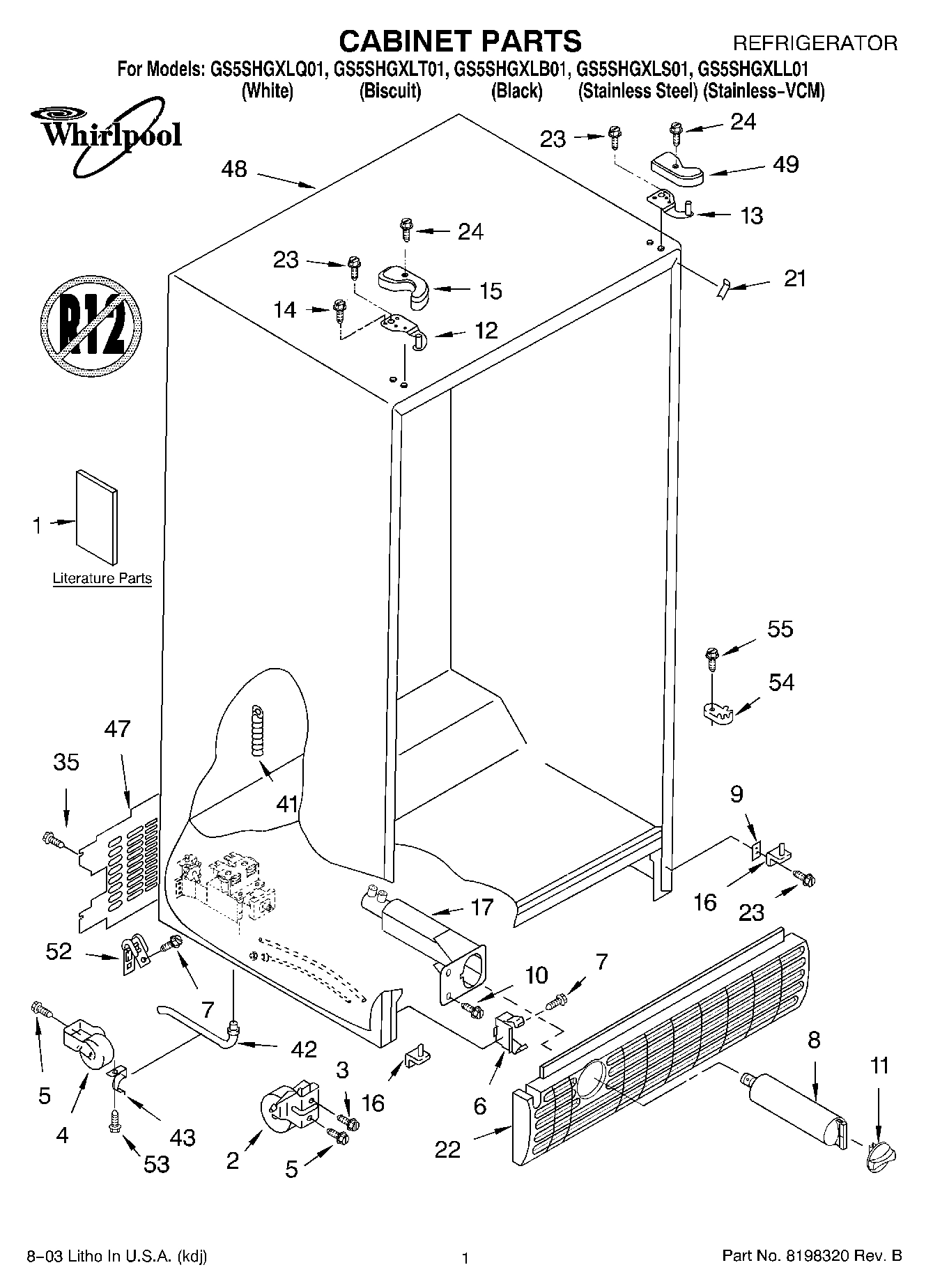

01 - CABINET PARTS

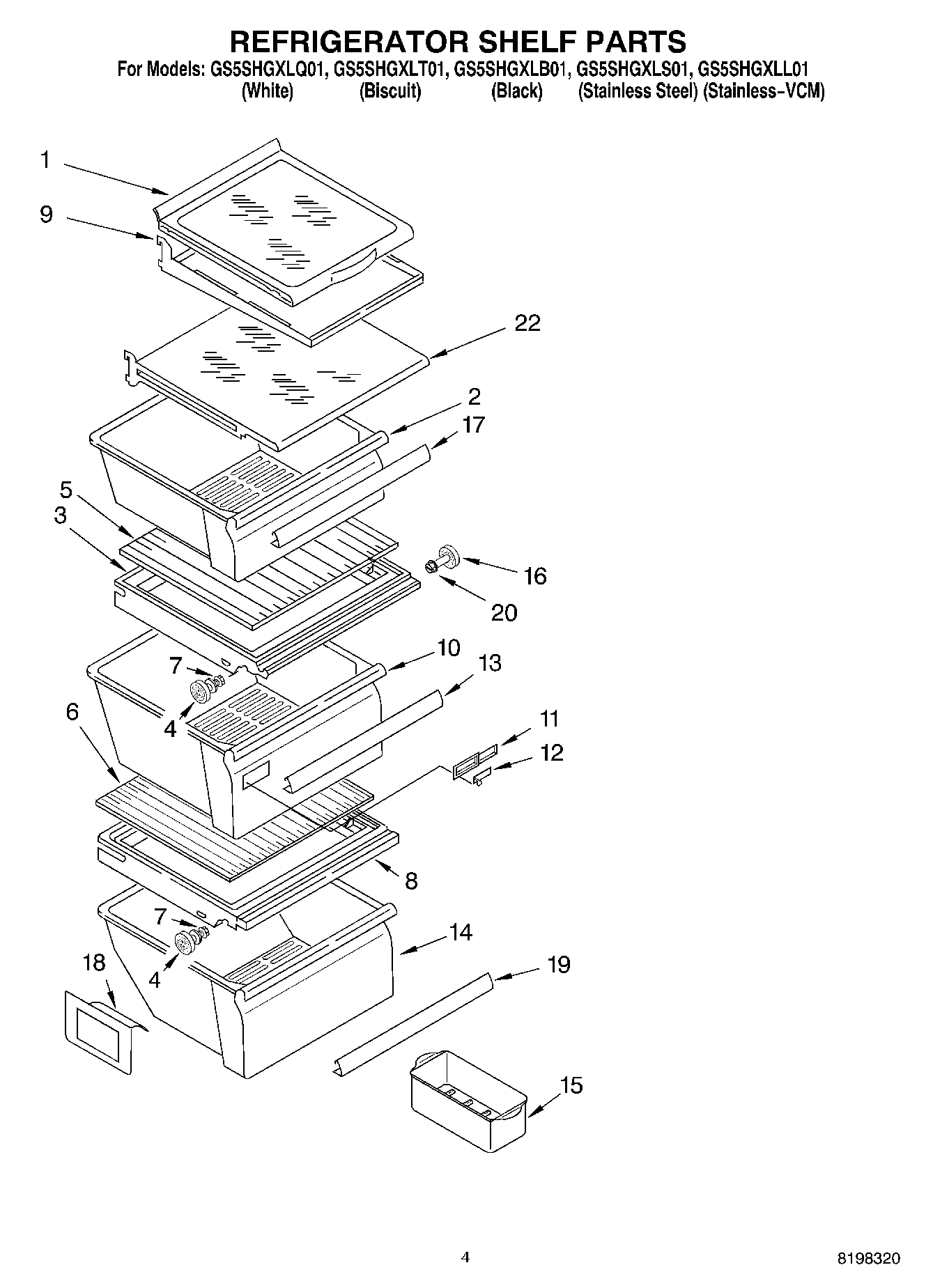

03 - REFRIGERATOR SHELF PARTS

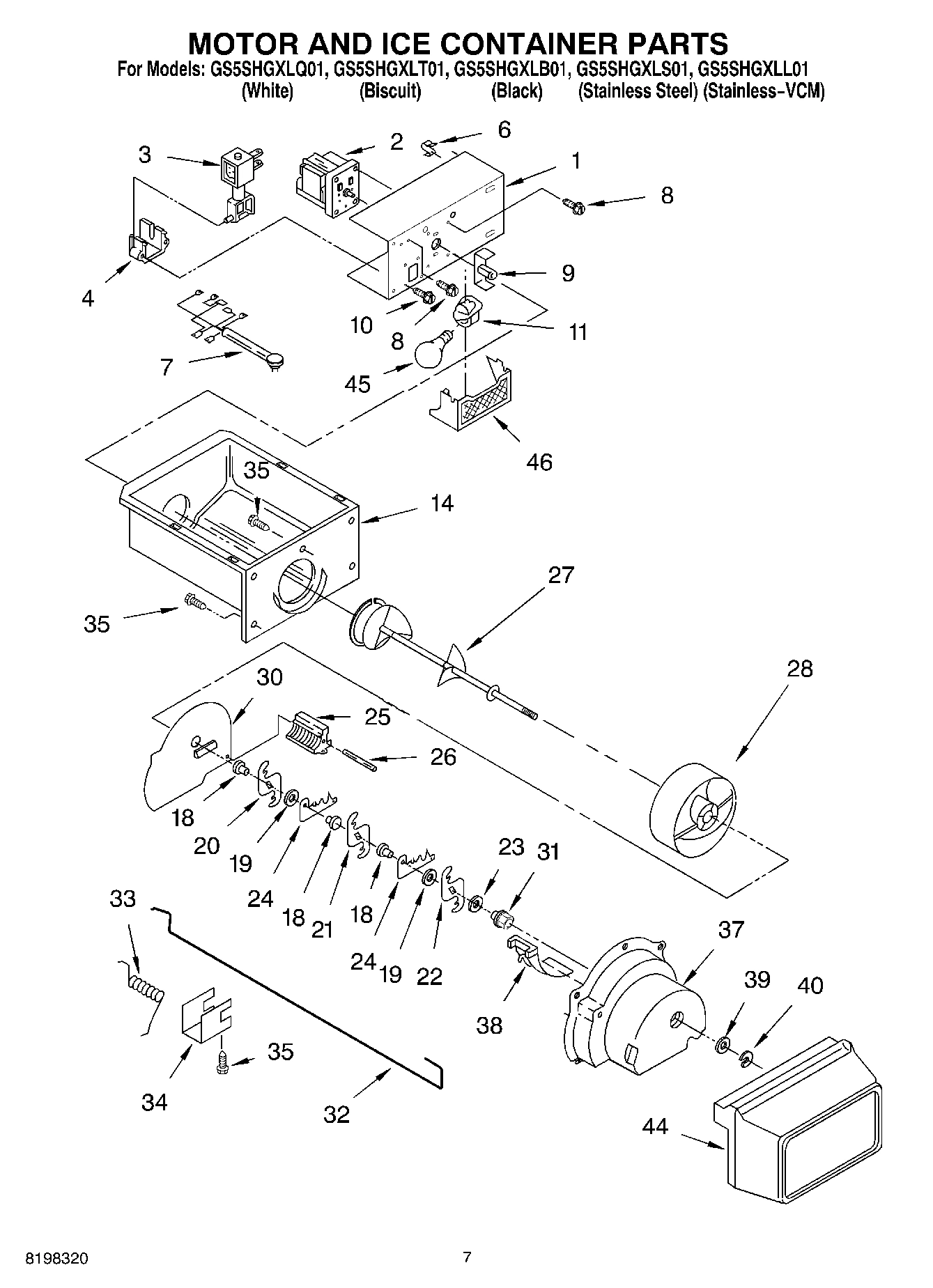

05 - MOTOR AND ICE CONTAINER PARTS

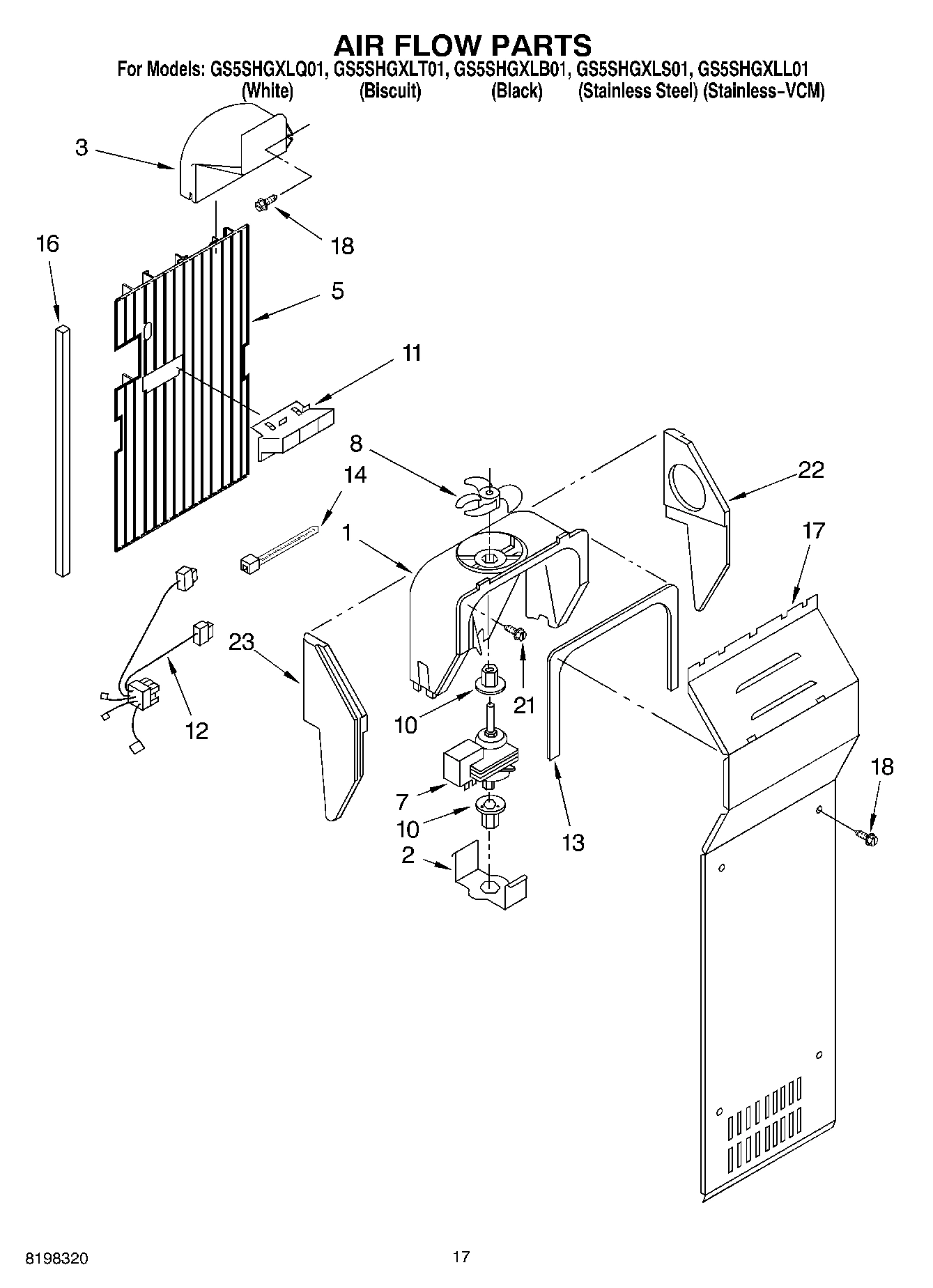

10 - AIR FLOW PARTS

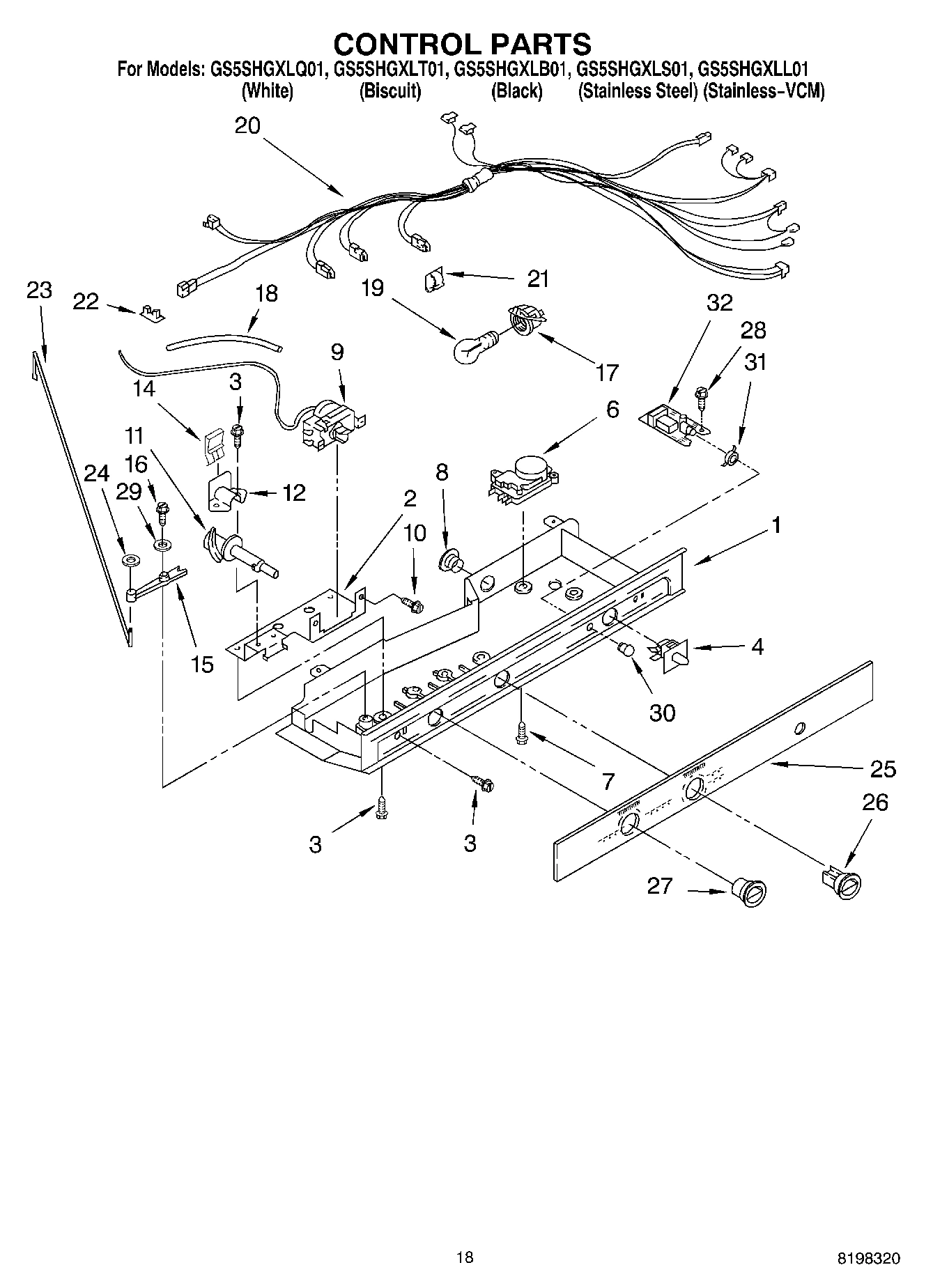

11 - CONTROL PARTS

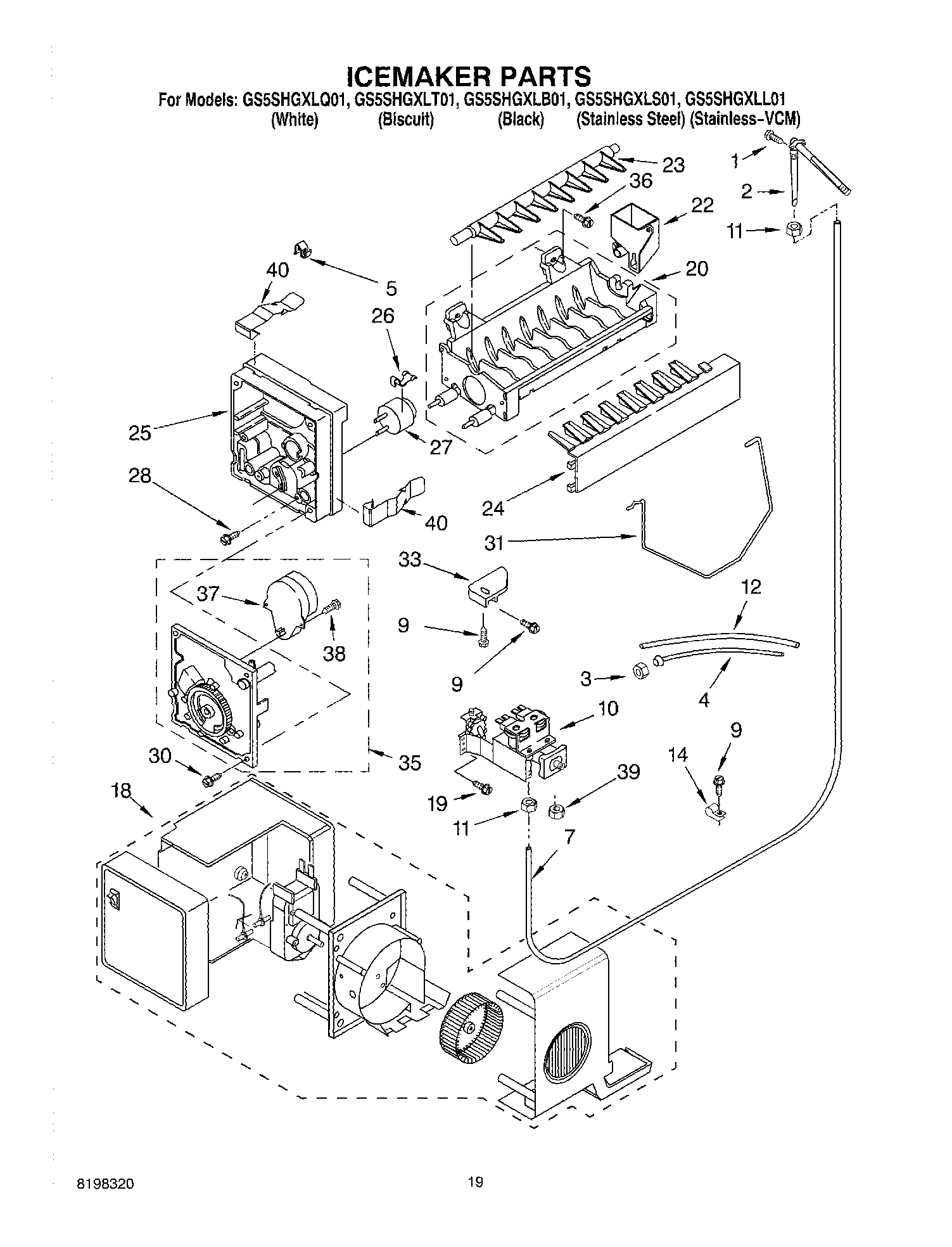

12 - ICEMAKER PARTS - PARTS NOT ILLUSTRATED

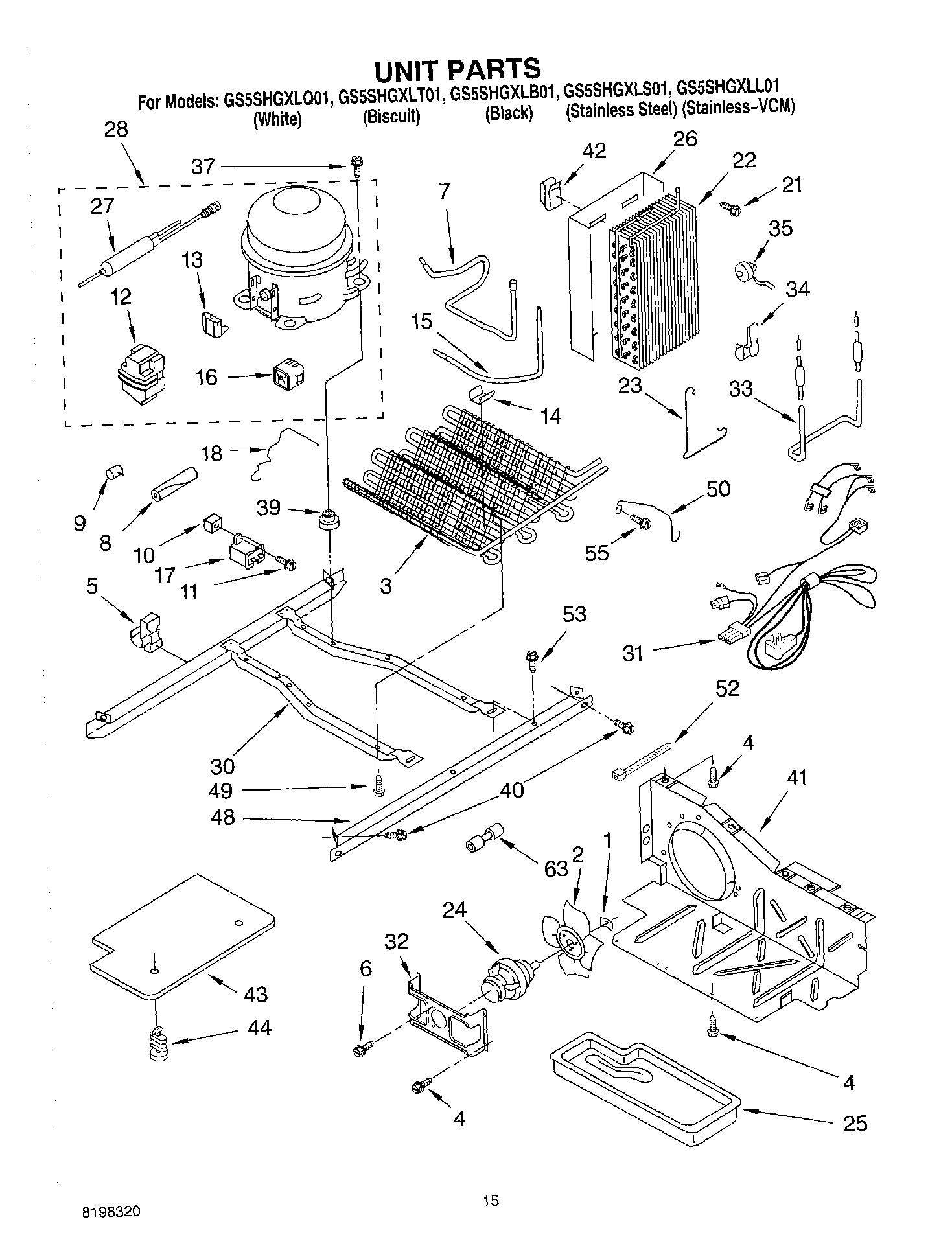

09 - UNIT PARTS

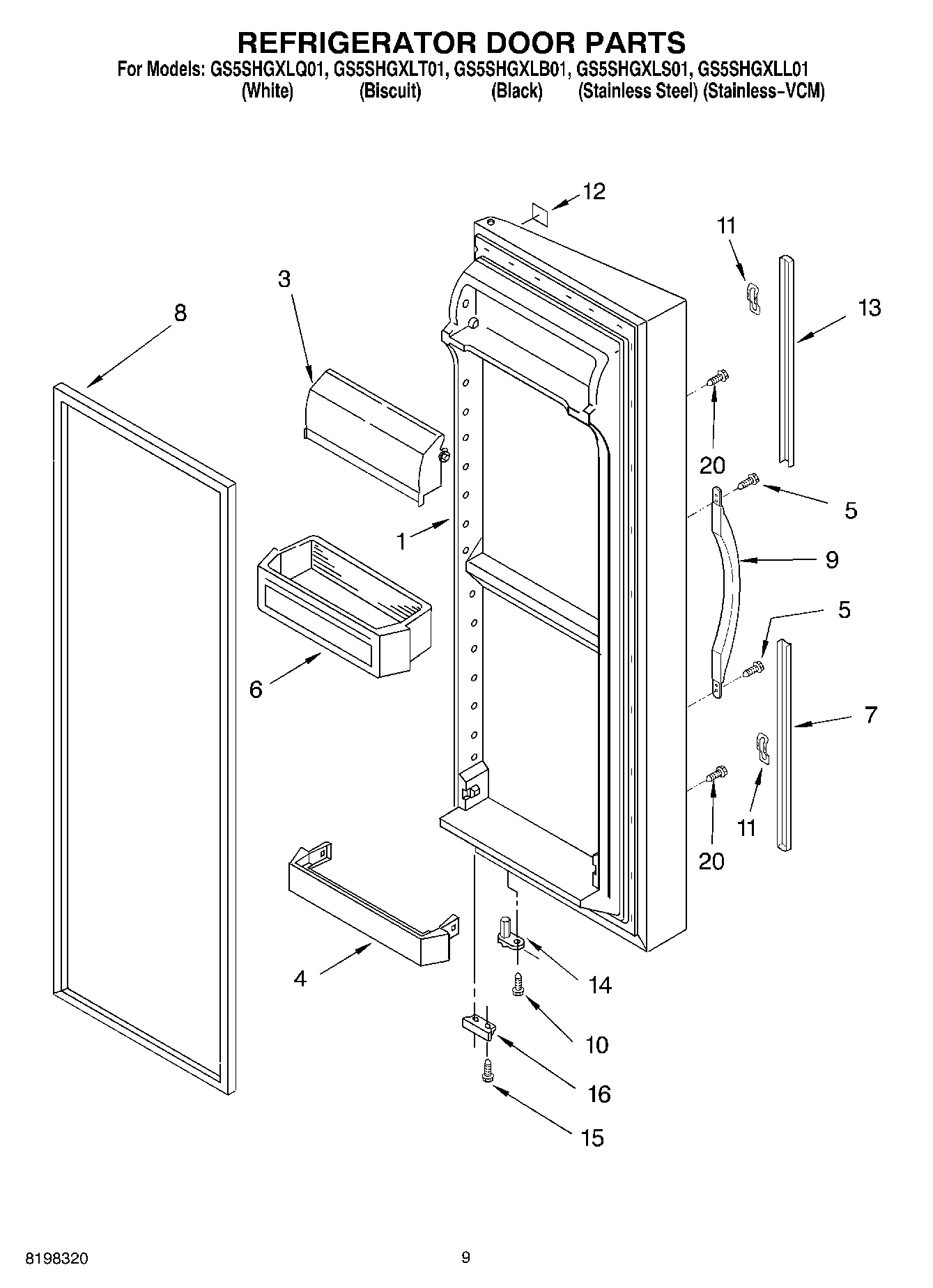

06 - REFRIGERATOR DOOR PARTS

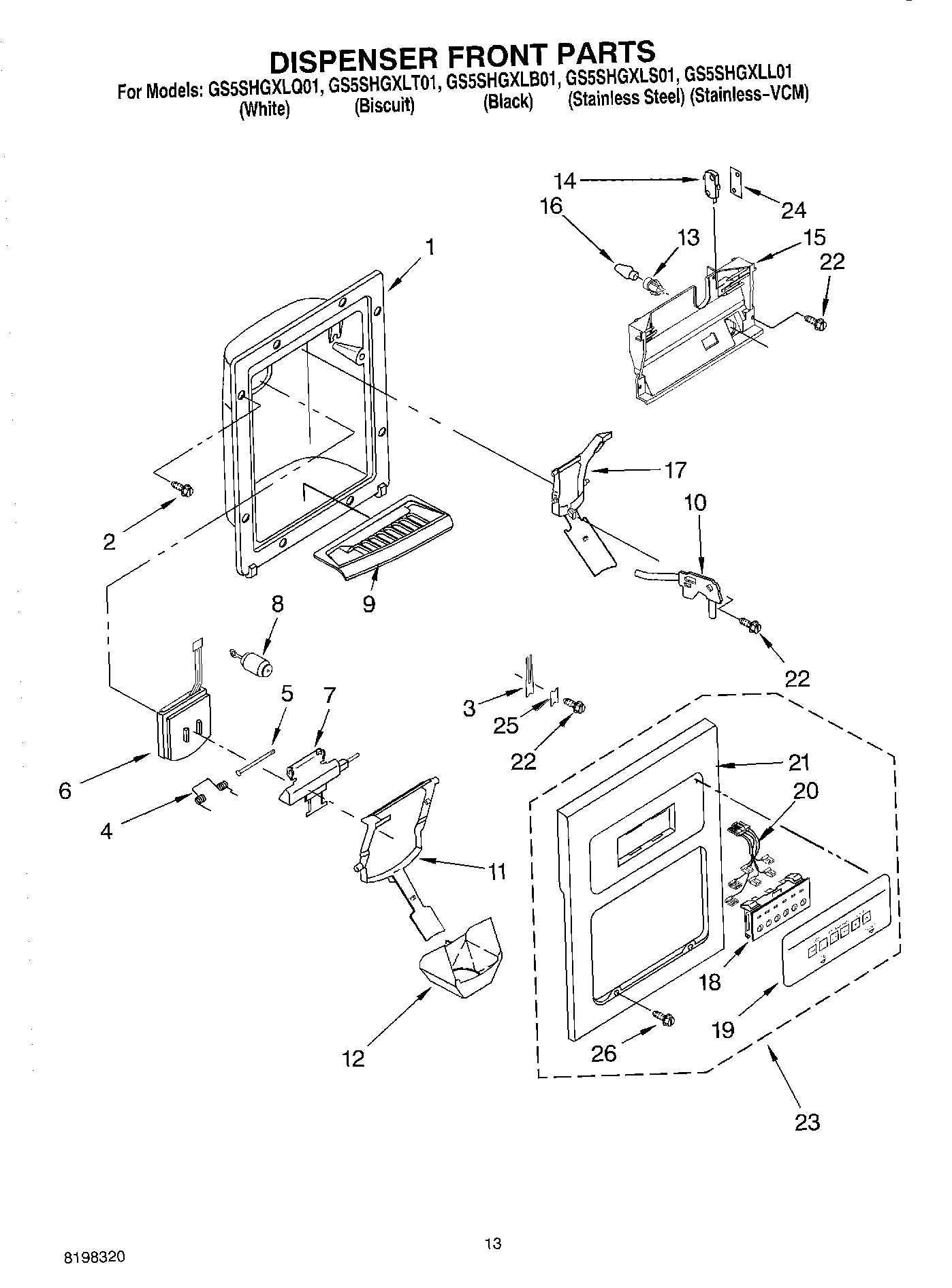

08 - DISPENSER FRONT PARTS
Common parts from model Whirlpool GS5SHGXLL01 REFRIGERATOR
WPL ARI70718A9 WPL ARI70718A9 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Black) WPL 2207026B Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Stainles WPL 2207026LB Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Stainles WPL 2207026SB Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Biscuit) WPL 2207026T Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2207026W Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI70714A2 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
7
TUBE, SUCTION WPL 2205765 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2217186B Contact Us For Availability
7
Extension, Bottom (Biscuit) WPL 2217186T Contact Us For Availability
7
Extension, Bottom (White) WPL 2217186W Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Shim (1) WPL 2209697 Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Handle, Center (Biscuit) WPL 2217185T Contact Us For Availability
9
Handle, Center (White) WPL 2217185W Contact Us For Availability
10
Screw Grommet WPL 509812 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
13
Extension, Top (Black) WPL 2217187B Contact Us For Availability
13
Extension, Top (Biscuit) WPL 2217187T Contact Us For Availability
13
Extension, Top (White) WPL 2217187W Contact Us For Availability
15
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Start Device, Combination (Start Relay and Ov WPL 2220475 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability
17
Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability
18
Switch Assembly (Not Available Order 23) WPL ARI70715A2 Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order 23 WPL ARI70716A5 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Front Cover, Housing (Not Available Order 23 WPL ARI70717A8 Contact Us For Availability
22
Grille (Biscuit) WPL 2198468T Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220387B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220387T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220387W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
30
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
31
Unit, Harness WPL 2187510 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
39
Nut, Compression WPL 1129179 Contact Us For Availability
40
Clip, Icemaker WPL 2204881 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI70719A5 Contact Us For Availability
63
and Optional Parts WPL ARI70720A3 Contact Us For Availability
63
WPL ARI70721A4 WPL ARI70721A4 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
100
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
100
WPL ARI70722A8 WPL ARI70722A8 Contact Us For Availability
100
WPL ARI70723A2 WPL ARI70723A2 Contact Us For Availability
100
WPL ARI70724A6 WPL ARI70724A6 Contact Us For Availability
100
WPL ARI70725A3 WPL ARI70725A3 Contact Us For Availability
× ![]()
