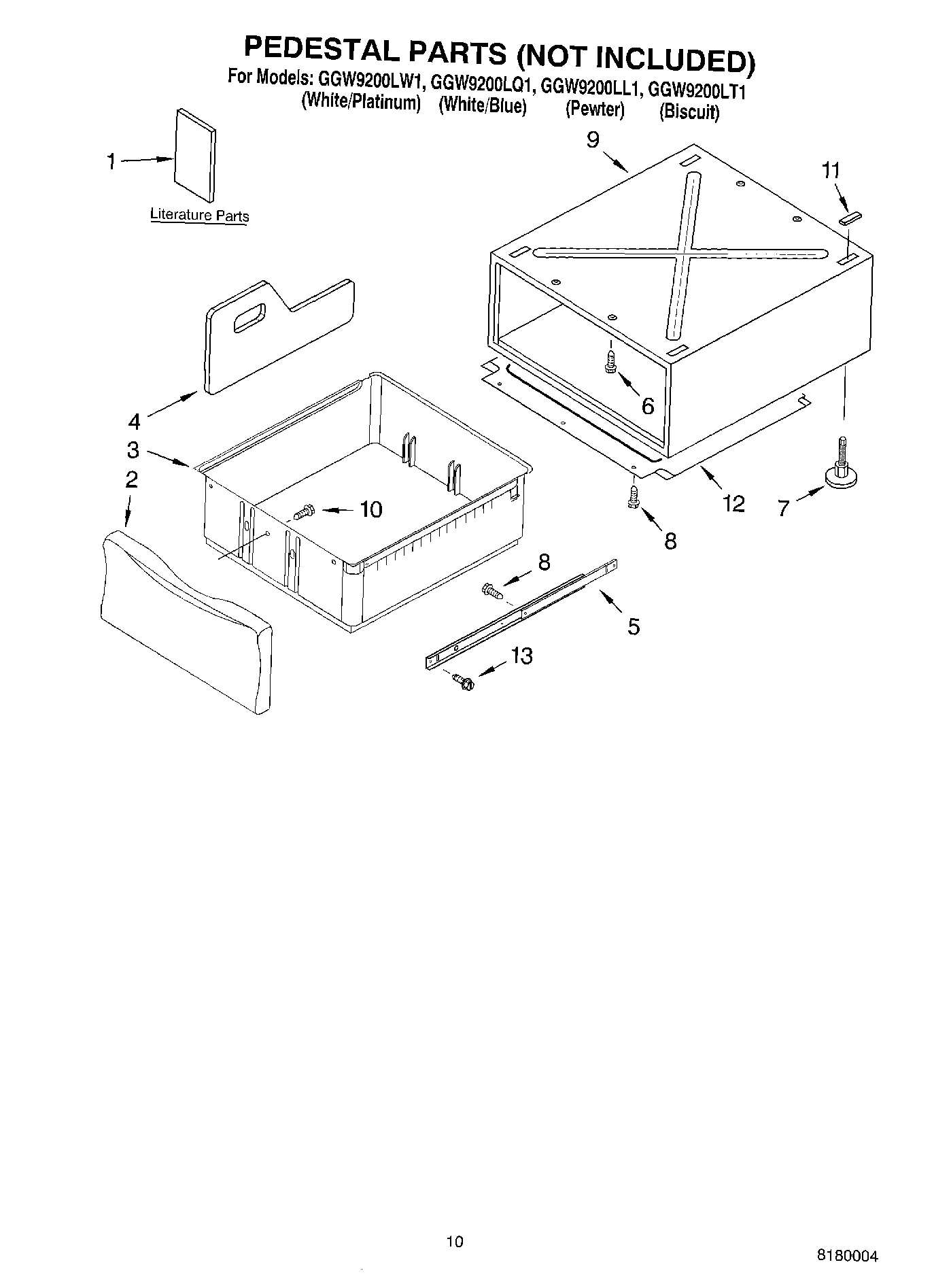

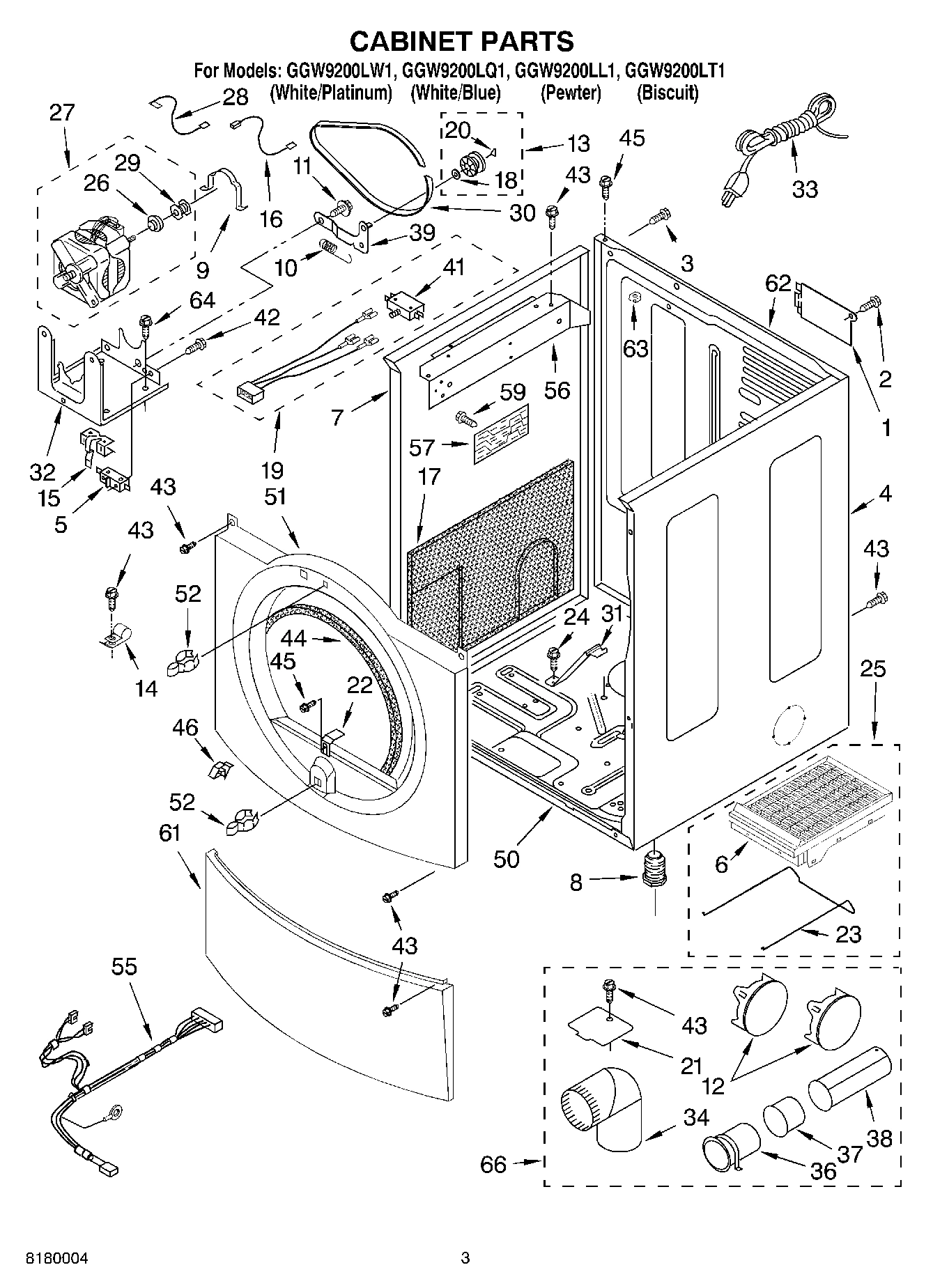

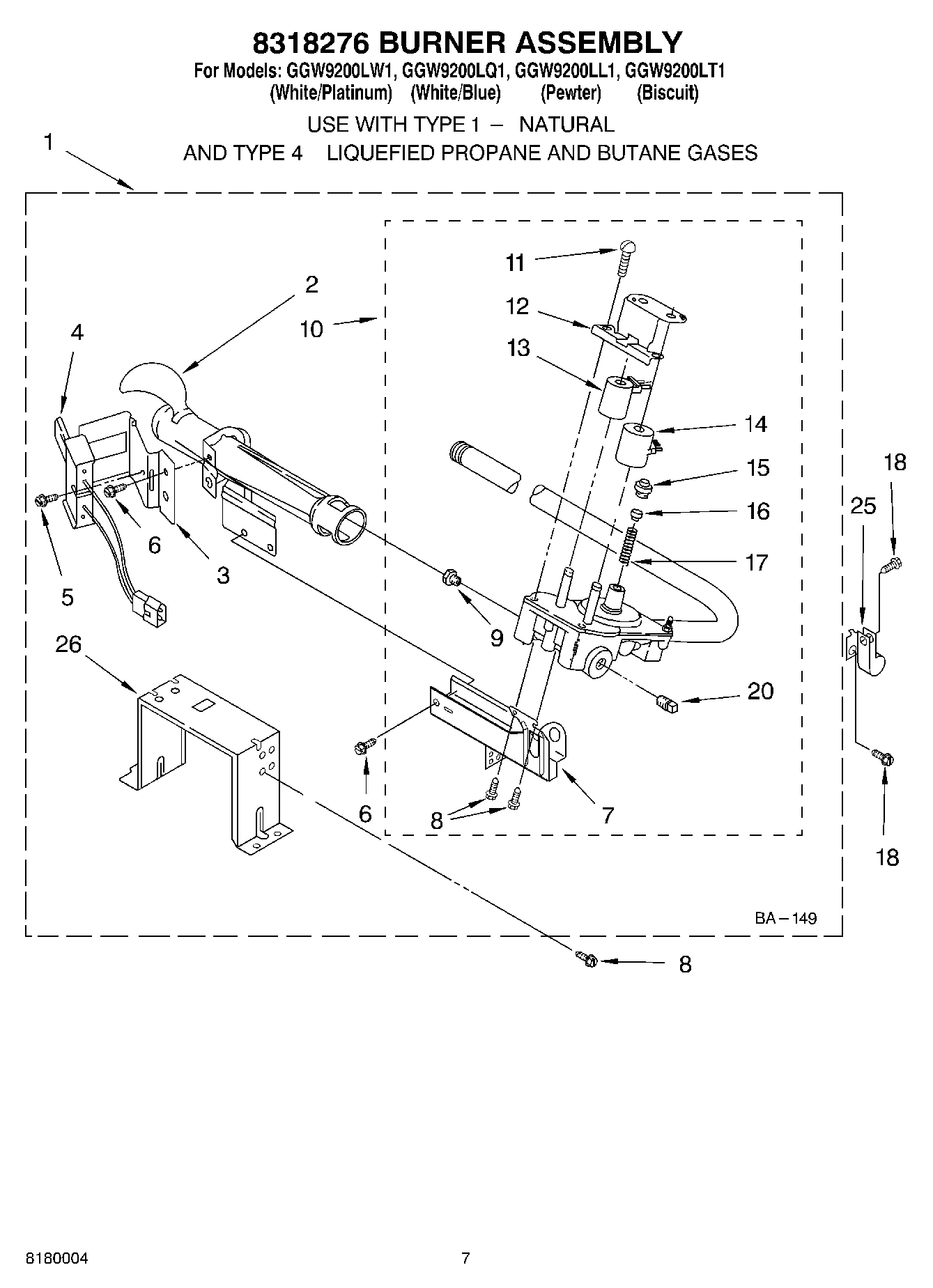

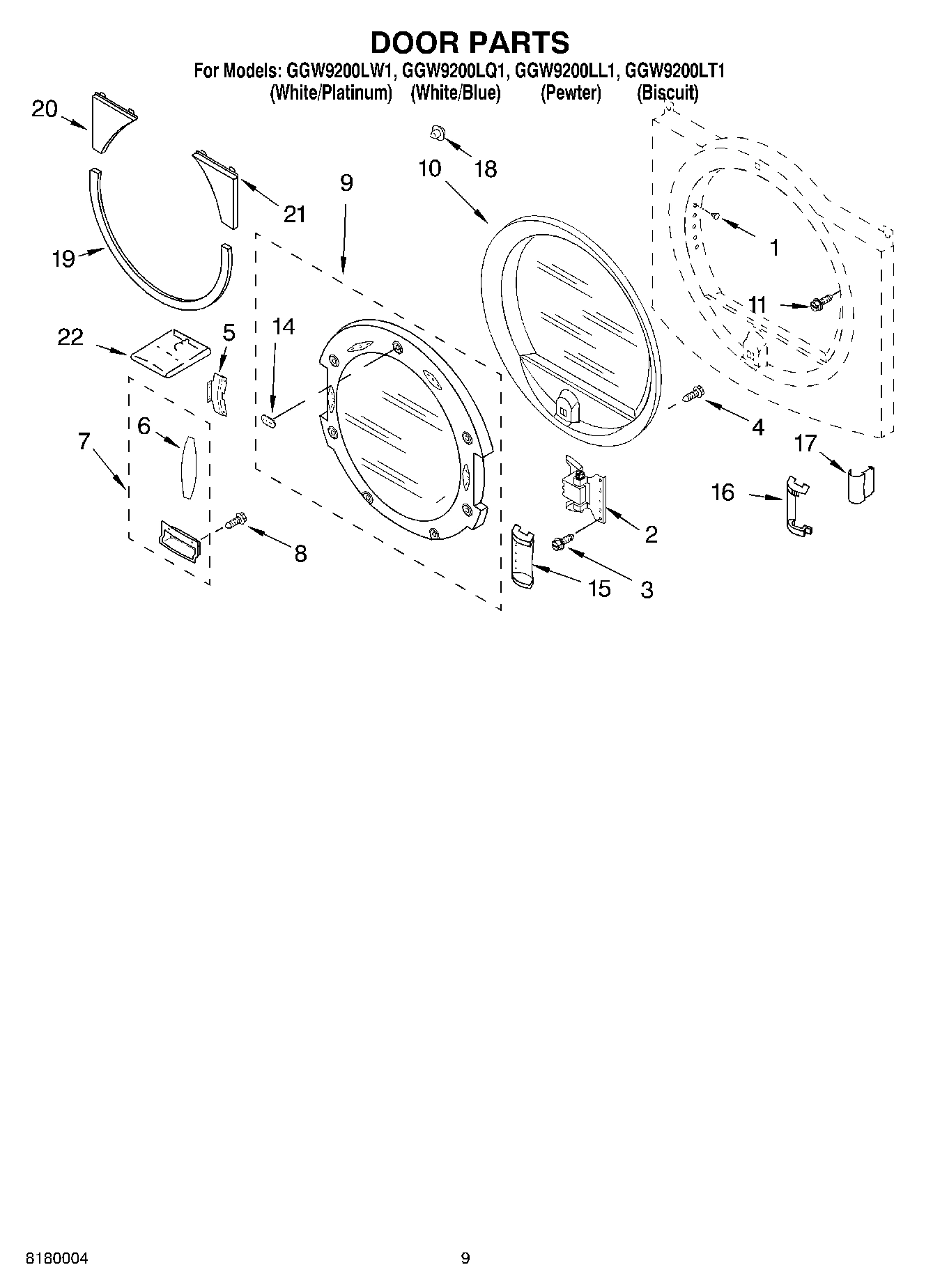

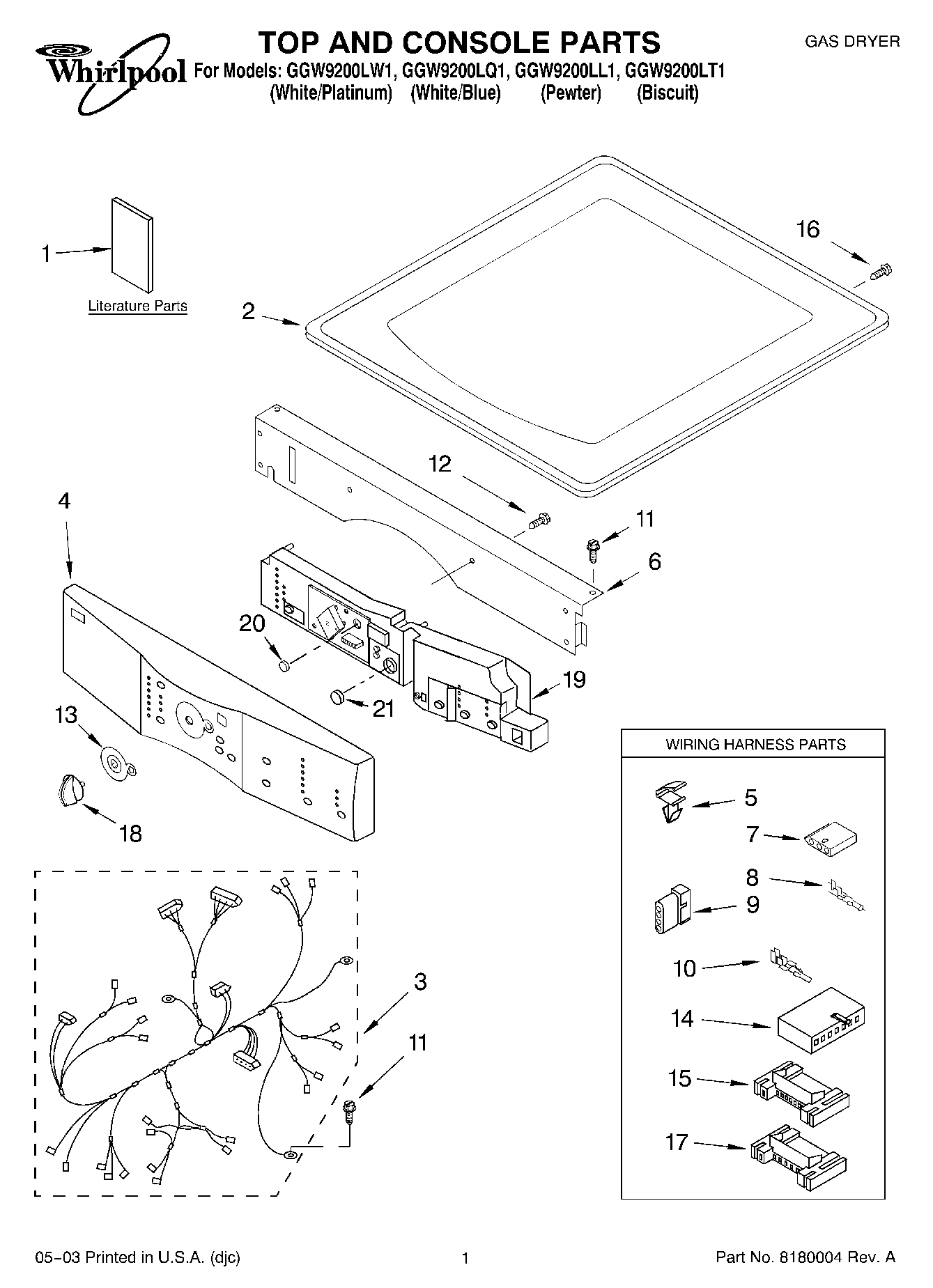

Model Whirlpool GGW9200LW1 GAS DRYER – Common Parts &amp; Diagrams

1

W10819767 Whirlpool Cover Backorder WPL W10819767 $70.98

1

WP3404413 Whirlpool Plug Backorder WPL WP3404413 $4.82

1

Literature Parts (Installation Instructions) WPL LIT8537141 Contact Us For Availability

1

Literature Parts (Parts List) WPL LIT8537342 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

2

Drawer Front Assembly (White) WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly (Biscuit) WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly (Graphite) WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly (Pewter) WPL 8537908 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Drawer Bin WPL 8537883 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Divider, Drawer (Set Of 2) WPL 8537875 Contact Us For Availability

4

Front Panel (White) WPL 8562167 Contact Us For Availability

4

Front Panel (Biscuit) WPL 8562168 Contact Us For Availability

4

Panel, Side (R.H.) (Pewter) WPL 8562169 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $67.75

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $6.99

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $8.99

7

Handle, Door Assembly (LH) (Platinum) WPL 8529932 Contact Us For Availability

7

Handle, Door Assembly (LH) (Pewter) WPL 3980210 Contact Us For Availability

7

Handle, Door Assembly (LH) (Blue) WPL 8529931 Contact Us For Availability

7

Handle, Door Assembly (LH) (Blue) WPL 8529933 Contact Us For Availability

7

Handle, Door Assembly (LH) (Platinum) WPL 8529934 Contact Us For Availability

7

Panel, Side (L.H.) (White) WPL 8519209 Contact Us For Availability

7

Panel, Side (L.H.) (Biscuit) WPL 8519210 Contact Us For Availability

7

Panel, Side (L.H.) (Pewter) WPL 8519216 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

Door Assembly (Outer) (Biscuit) WPL 3977873 Contact Us For Availability

9

Door Assembly (Outer) (Pewter) WPL 3980079 Contact Us For Availability

9

Door Assembly (Outer) (Blue) WPL 8541573 Contact Us For Availability

9

Door Assembly (Outer) (Platinum) WPL 8541574 Contact Us For Availability

9

Cabinet (Not Serviced) WPL ARI148749A Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $246.68

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

Door Assembly (Inner) WPL 8519309 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

Pad (4) WPL 8537863 Contact Us For Availability

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

Pan, Bottom WPL 8537853 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

13

3400618 Whirlpool Screw Backorder WPL 3400618 $4.41

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $57.09

14

Badge, Assembly WPL 8529540 Contact Us For Availability

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Filler Handle (LH) (Platinum) WPL 8528289 Contact Us For Availability

Filler Handle (LH) (Platinum) WPL 8528287 Contact Us For Availability

Filler Handle (LH) (Biscuit) WPL 3979772 Contact Us For Availability

Filler Handle (LH) (Pewter) WPL 3980082 Contact Us For Availability

Filler Handle (LH) (Pewter) WPL 3980101 Contact Us For Availability

Filler Handle (LH) (Biscuit Filler Handle (RH WPL 3979771 Contact Us For Availability

Filler Handle (LH) (Blue) WPL 8528286 Contact Us For Availability

Filler Handle (LH) (Blue) WPL 8528288 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Wire, Belt Switch WPL 3394081 Contact Us For Availability

WPL 8528291 WPL 8528291 Contact Us For Availability

Cover-Hinge, Stationary (LH) (Biscuit Cover-H WPL 3979777 Contact Us For Availability

Cover-Hinge, Stationary (LH) ( WPL 3979778 Contact Us For Availability

WPL 3980083 WPL 3980083 Contact Us For Availability

WPL 3980100 WPL 3980100 Contact Us For Availability

WPL 8528290 WPL 8528290 Contact Us For Availability

WPL 8528292 WPL 8528292 Contact Us For Availability

WPL 8528293 WPL 8528293 Contact Us For Availability

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $151.69

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

WPL 3979779 WPL 3979779 Contact Us For Availability

WPL 3980084 WPL 3980084 Contact Us For Availability

WPL 8528294 WPL 8528294 Contact Us For Availability

WPL 8528295 WPL 8528295 Contact Us For Availability

Sound Panel WPL 8528076 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

WPL 25197190301 WPL 25197190301 Contact Us For Availability

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $83.88

User Interface (Platinum) WPL 8530589 Contact Us For Availability

User Interface (Pewter) WPL 3980189 Contact Us For Availability

WPL 8533766 WPL 8533766 Contact Us For Availability

WPL 8533767 WPL 8533767 Contact Us For Availability

WPL 8533768 WPL 8533768 Contact Us For Availability

WPL 8533769 WPL 8533769 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

Button, Start WPL 8530591 Contact Us For Availability

WPL 3979783 WPL 3979783 Contact Us For Availability

WPL 3980088 WPL 3980088 Contact Us For Availability

WPL 8529525 WPL 8529525 Contact Us For Availability

WPL 8529526 WPL 8529526 Contact Us For Availability

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $5.99

WPL 3979784 WPL 3979784 Contact Us For Availability

WPL 3980090 WPL 3980090 Contact Us For Availability

WPL 8529527 WPL 8529527 Contact Us For Availability

WPL 8529528 WPL 8529528 Contact Us For Availability

8530072 Whirlpool Door Kit Backorder WPL 8530072 $25.17

Ramp, Door WPL 8529053 Contact Us For Availability

WPL 3979303 WPL 3979303 Contact Us For Availability

WPL 3979304 WPL 3979304 Contact Us For Availability

WPL 3979770 WPL 3979770 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $51.16

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

Bracket, Support WPL 3389889 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI148748A Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $193.97

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $62.94

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.01

36

WP8563747 Whirlpool Exhaust Pipe In Stock WPL WP8563747 $61.06

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $52.61

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $59.08

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

50

Base, Cabinet WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

WPL 3979765 WPL 3979765 Contact Us For Availability

WPL 3980074 WPL 3980074 Contact Us For Availability

WPL 8519227 WPL 8519227 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

55

WPL 8299929 WPL 8299929 Contact Us For Availability

56

WPL 8519273 WPL 8519273 Contact Us For Availability

57

WPL 3980062 WPL 3980062 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

WPL 3980095 WPL 3980095 Contact Us For Availability

61

WPL 8519233 WPL 8519233 Contact Us For Availability

61

WPL 8519234 WPL 8519234 Contact Us For Availability

62

WPL 8519219 WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $15.74

WPL 799344 WPL 799344 Contact Us For Availability

WPL ARI148746A WPL ARI148746A Contact Us For Availability

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95
