Model Whirlpool ED5HVEXVL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

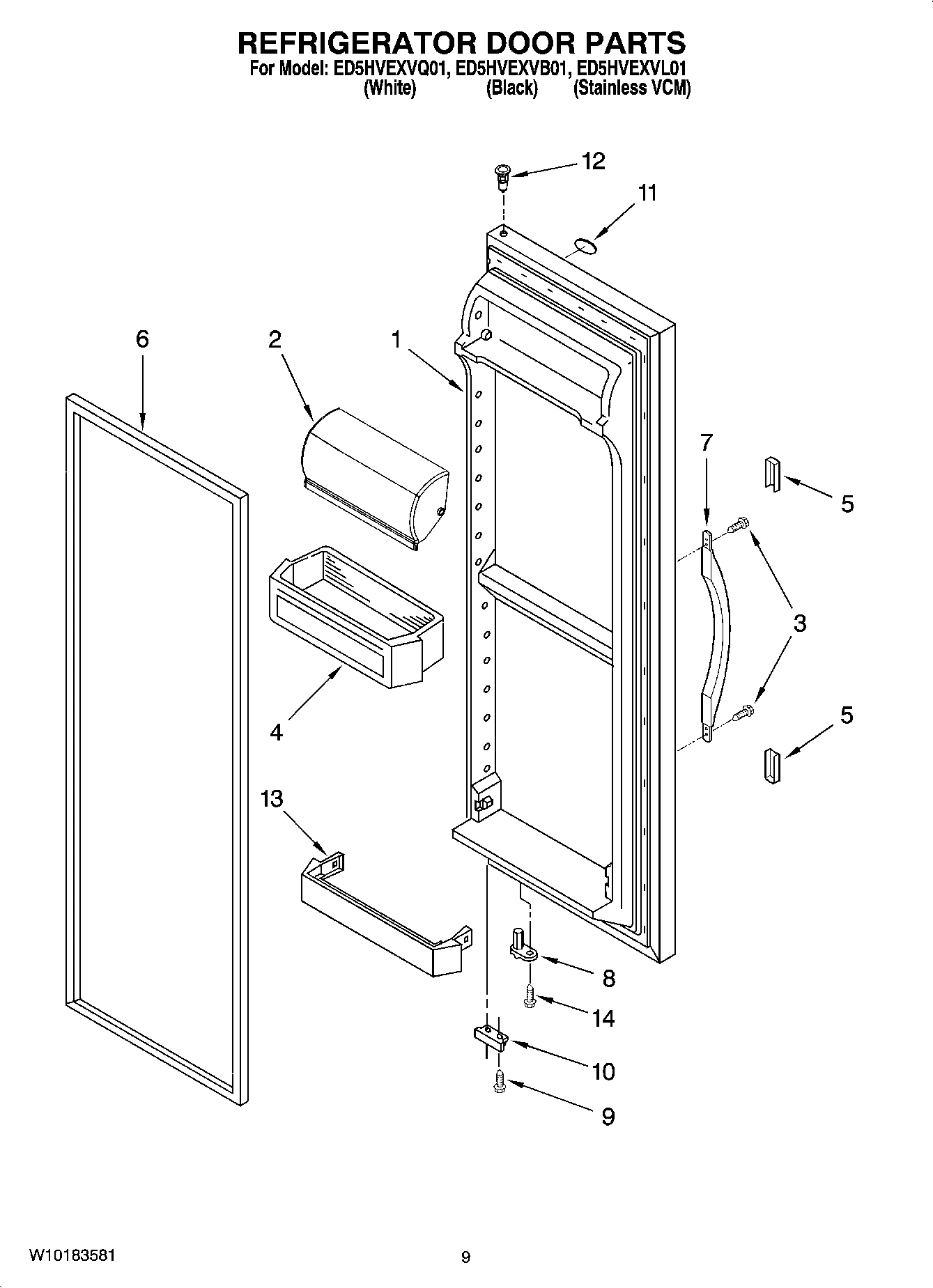

REFRIGERATOR DOOR (INCLUDES ITEM 6) )(BLACK) WPL 2206825B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206825LG Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 6) )(WHITE) WPL 2206825W Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI35482A5 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

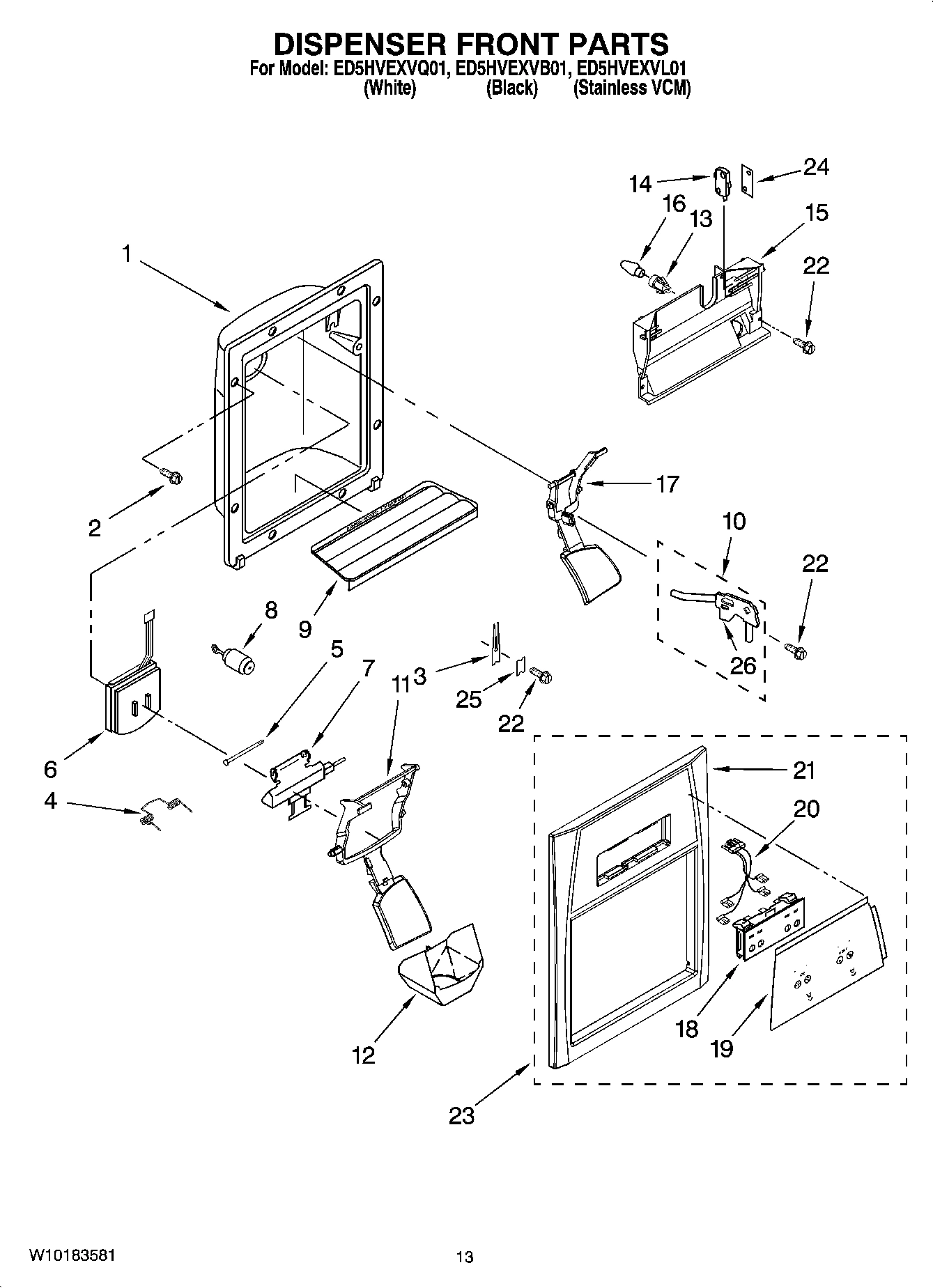

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

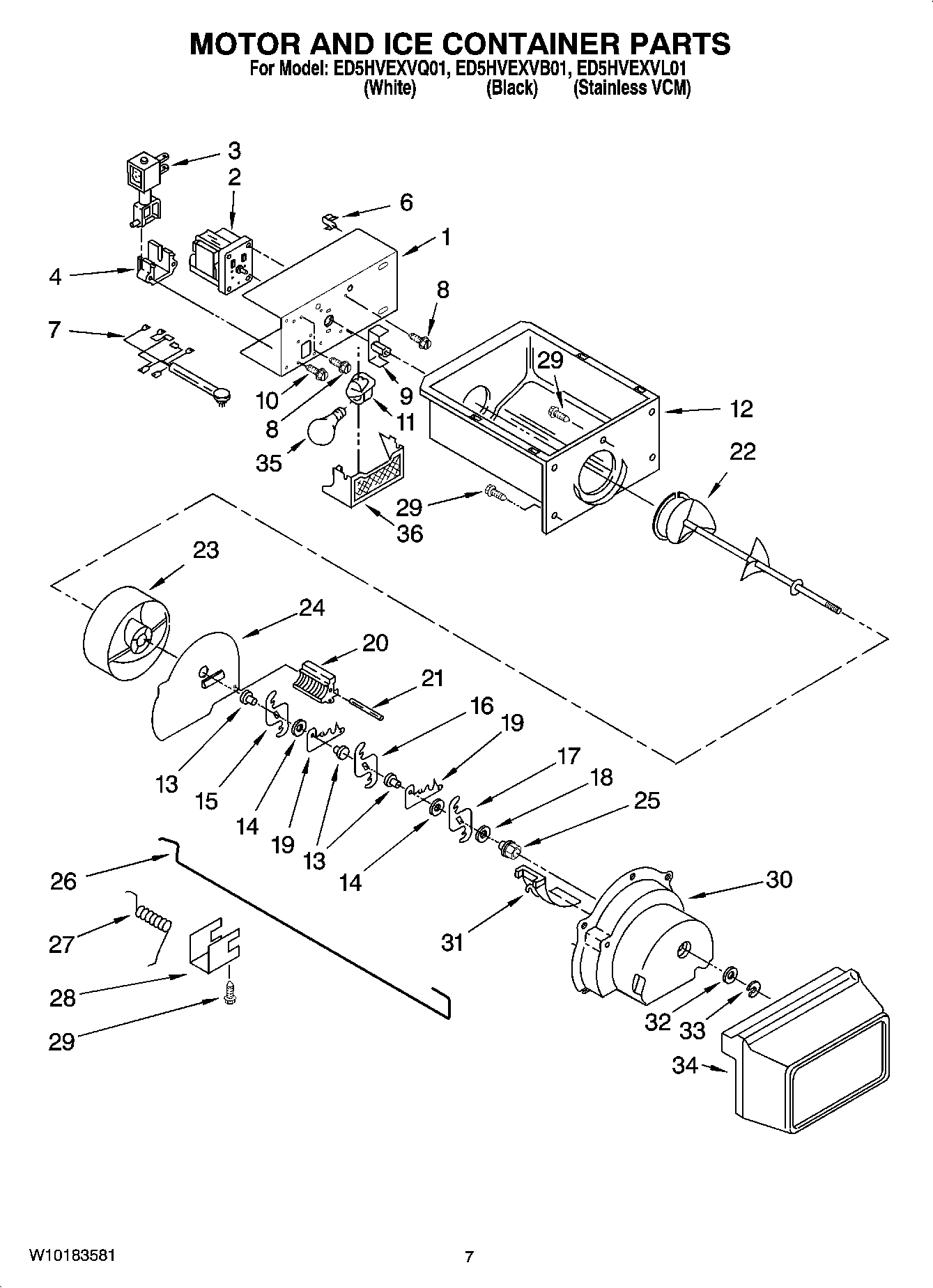

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $29.87

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

Extension, Handle Top (Black) WPL 2193353B Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $59.25

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $148.73

6

Grommet WPL 2176134 Contact Us For Availability

7

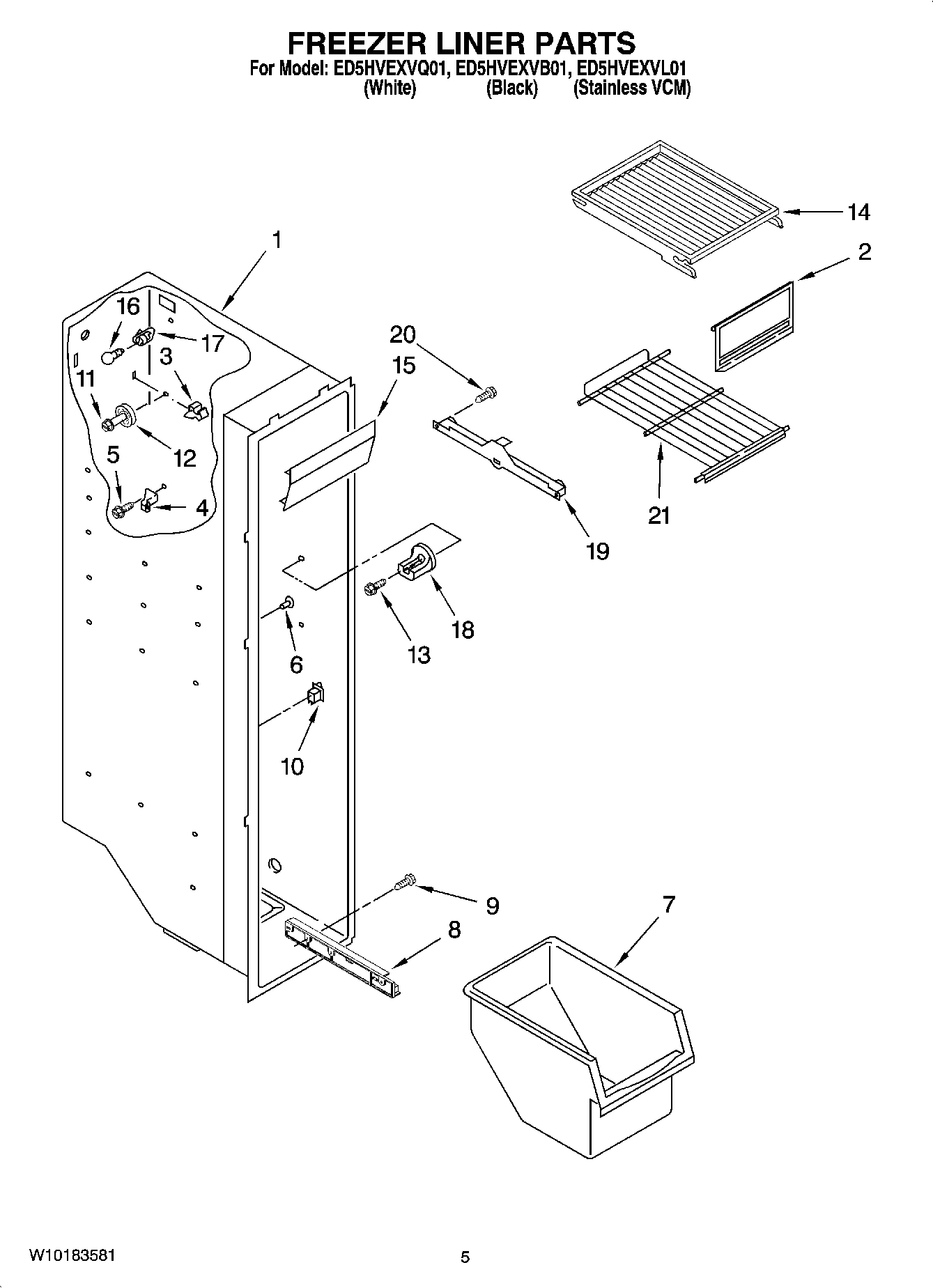

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $89.22

7

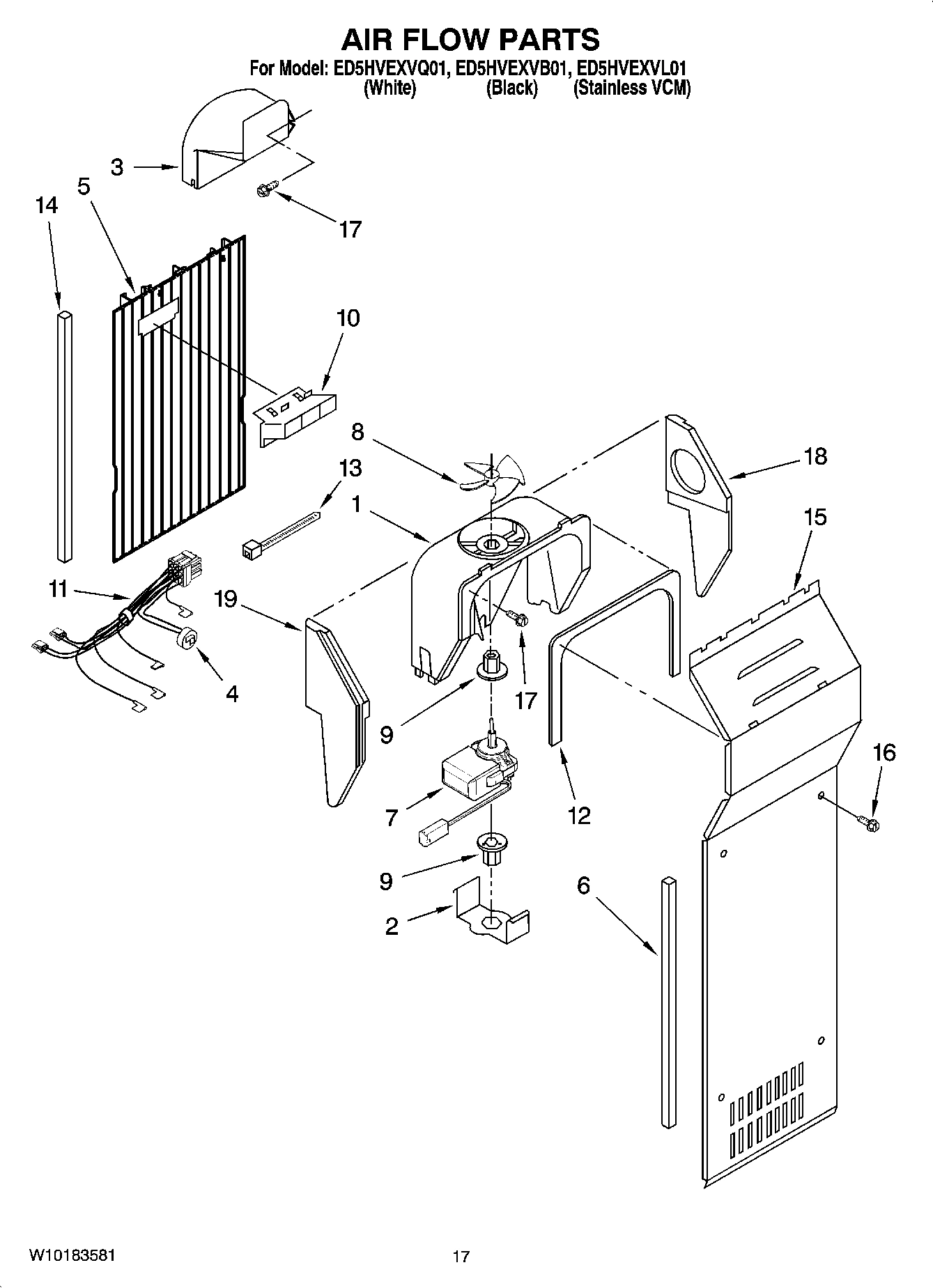

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Shelf Ladder WPL 2319866 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

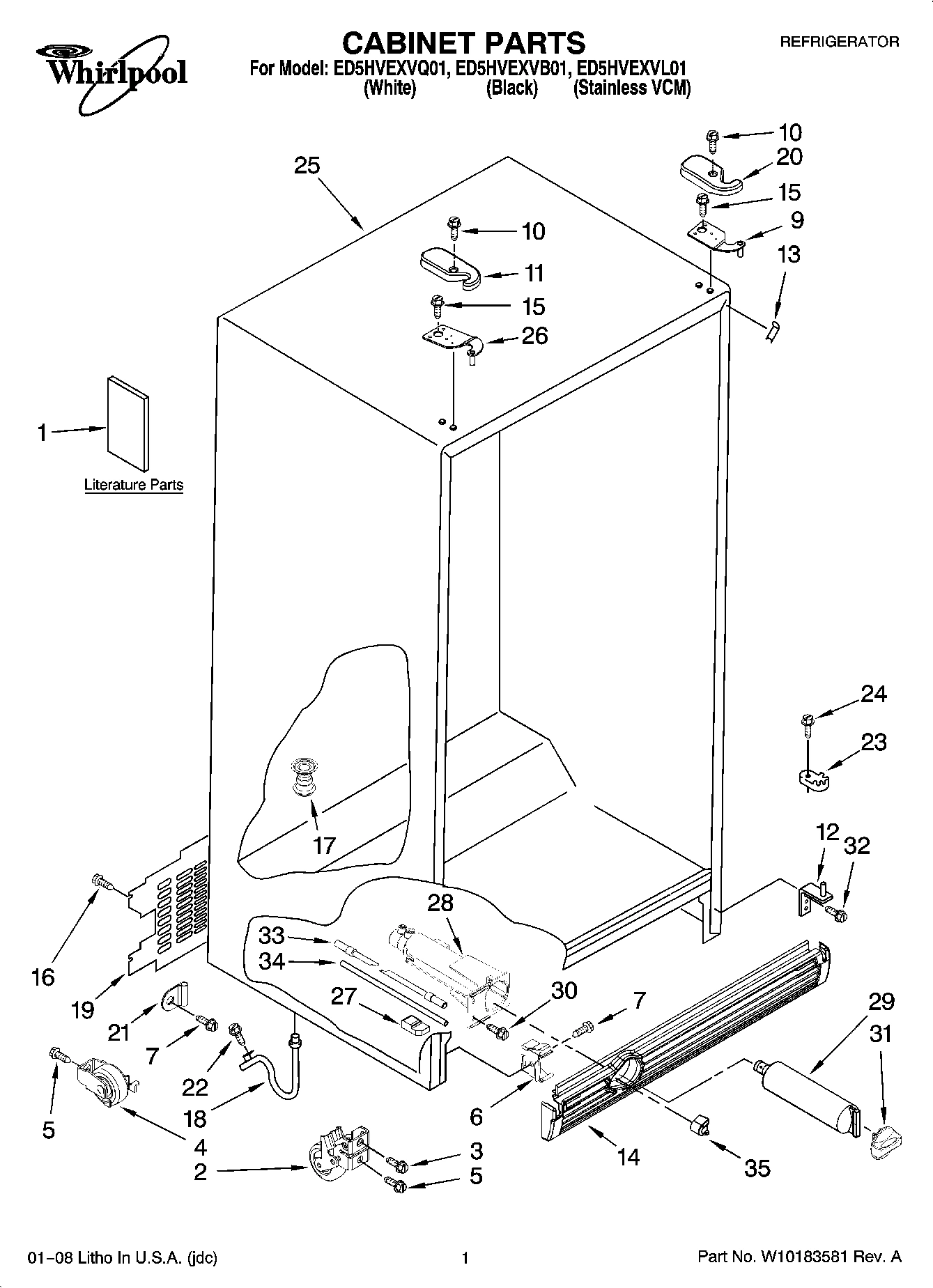

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $61.47

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $64.64

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $60.74

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

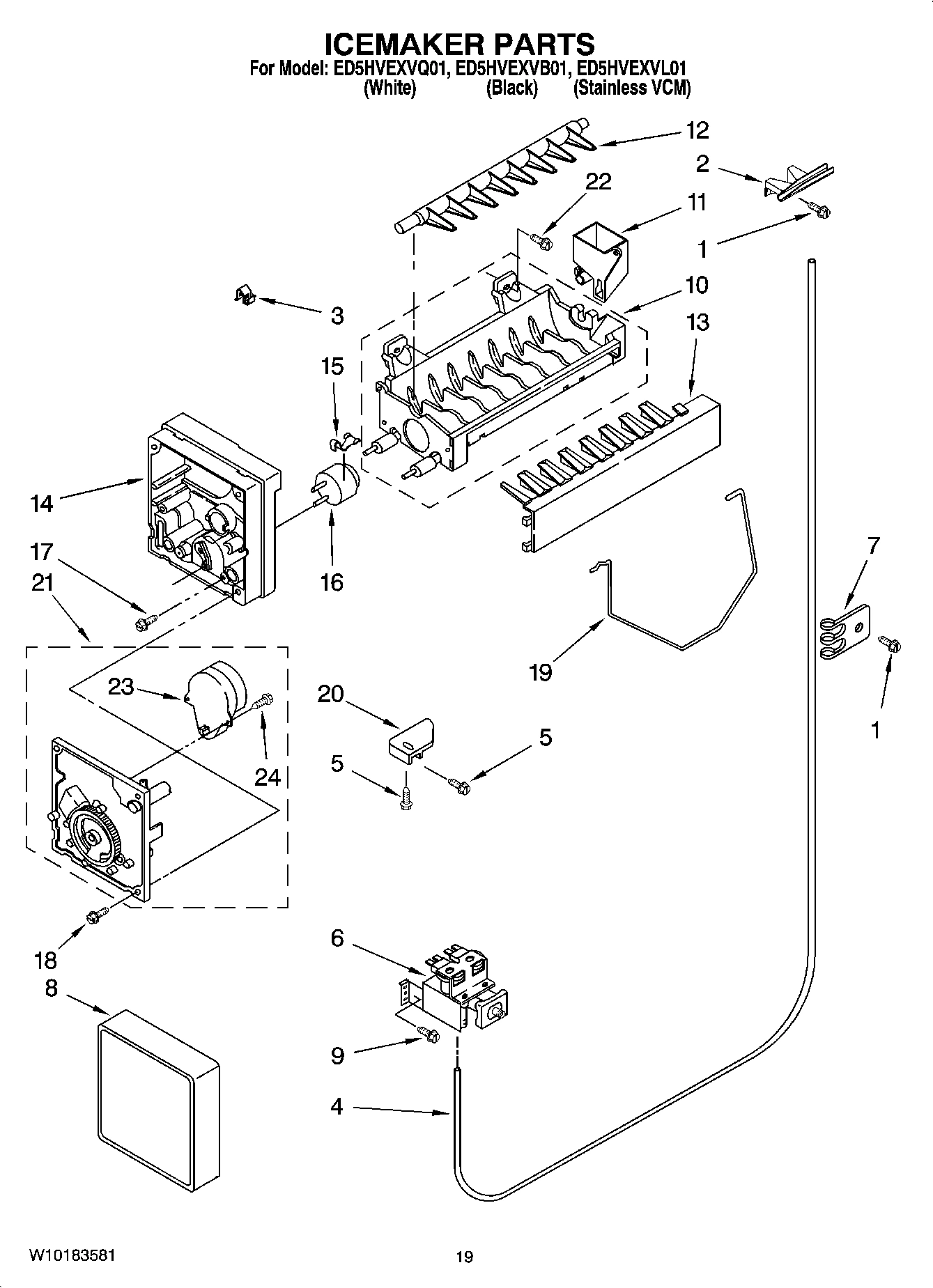

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $64.51

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Pivot Arm WPL 1110559 Contact Us For Availability

15

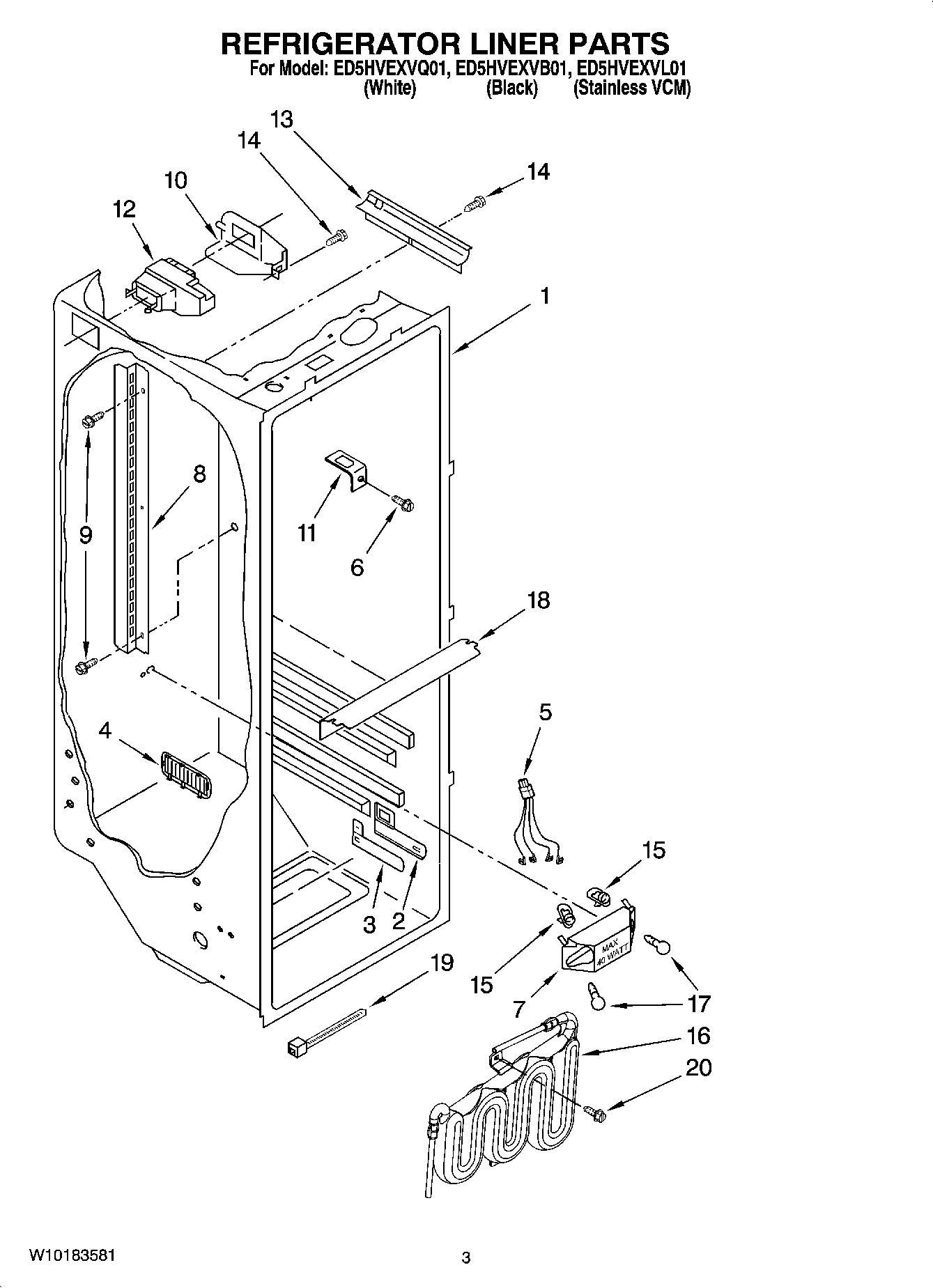

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

15

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clamp WPL 2161324 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

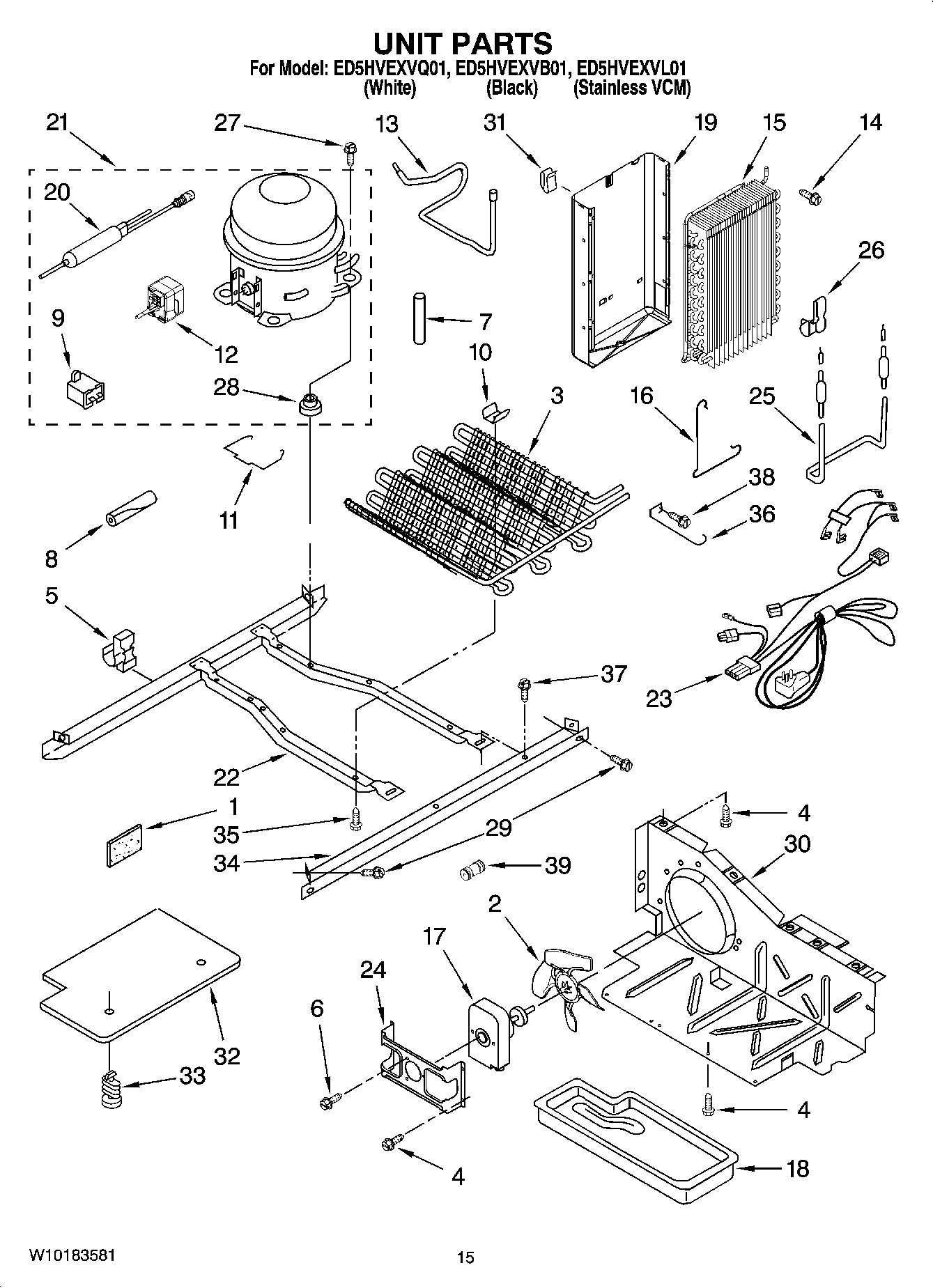

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $63.15

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Extension Tube WPL 2304937 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Switch Assembly (Not Available Order 23) WPL ARI35483A4 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

Overlay, Front Cover (Not Available, Order 23 WPL ARI35484A4 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

Shelf (2) WPL 2174268K Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI35485A9 Contact Us For Availability

22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

22

NLA:SCREW Backorder WPL WPW10141645 $4.82

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

Fastener, Push-On WPL 489285 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL W10168731 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL W10168732 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

Cabinet, (Not A Serviceable Part) WPL ARI35479A6 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Knob, Air Control WPL 2197871 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

27

Block, Housing Support WPL 2260519 Contact Us For Availability

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.97

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

31

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

31

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.99

32

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

32

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

33

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $25.54

33

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

34

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $51.99

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

38

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89
