Model Whirlpool CG2101XMW1 COMMERCIAL GAS DRYER – Common Parts & Diagrams

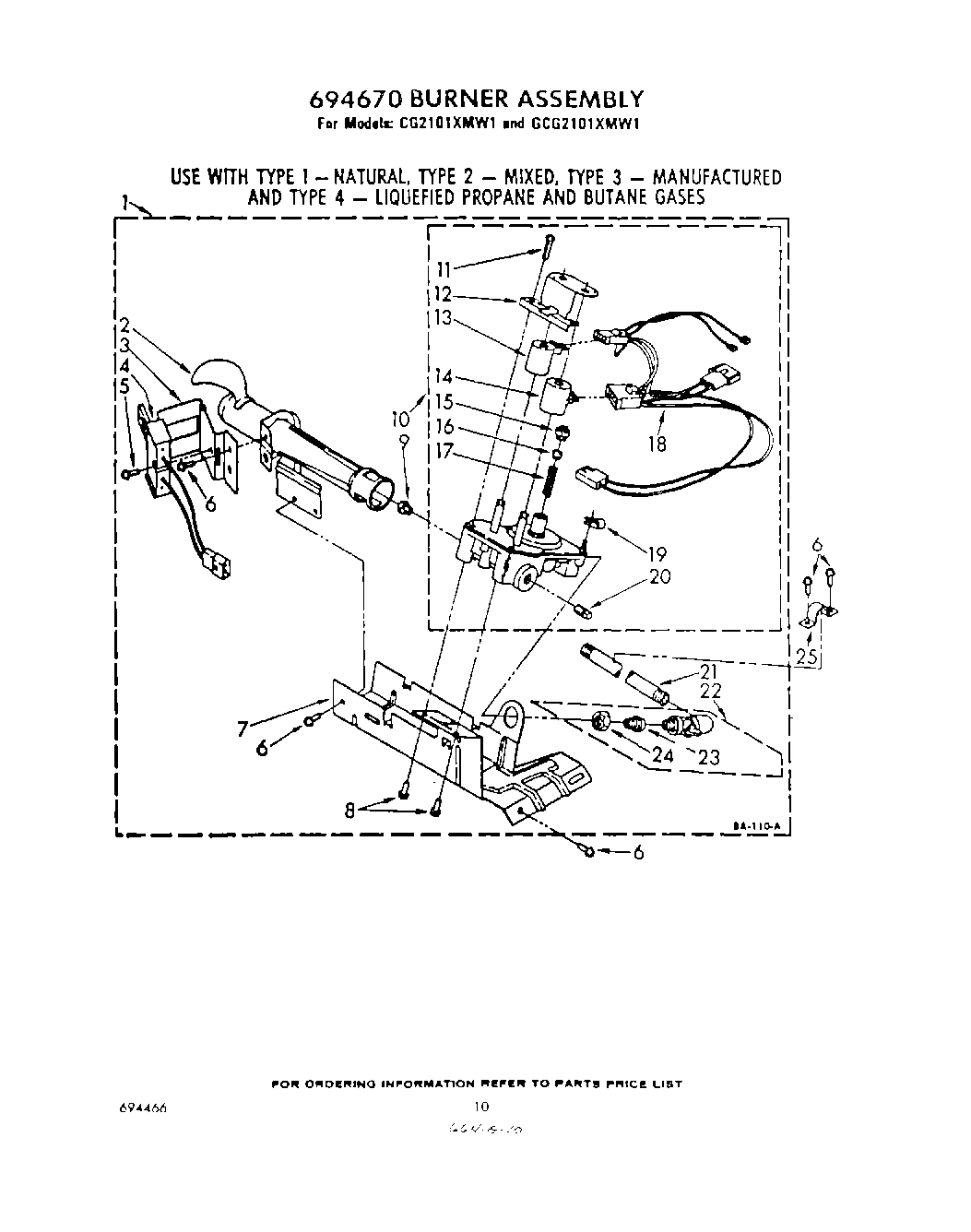

07 - 694670 BURNER

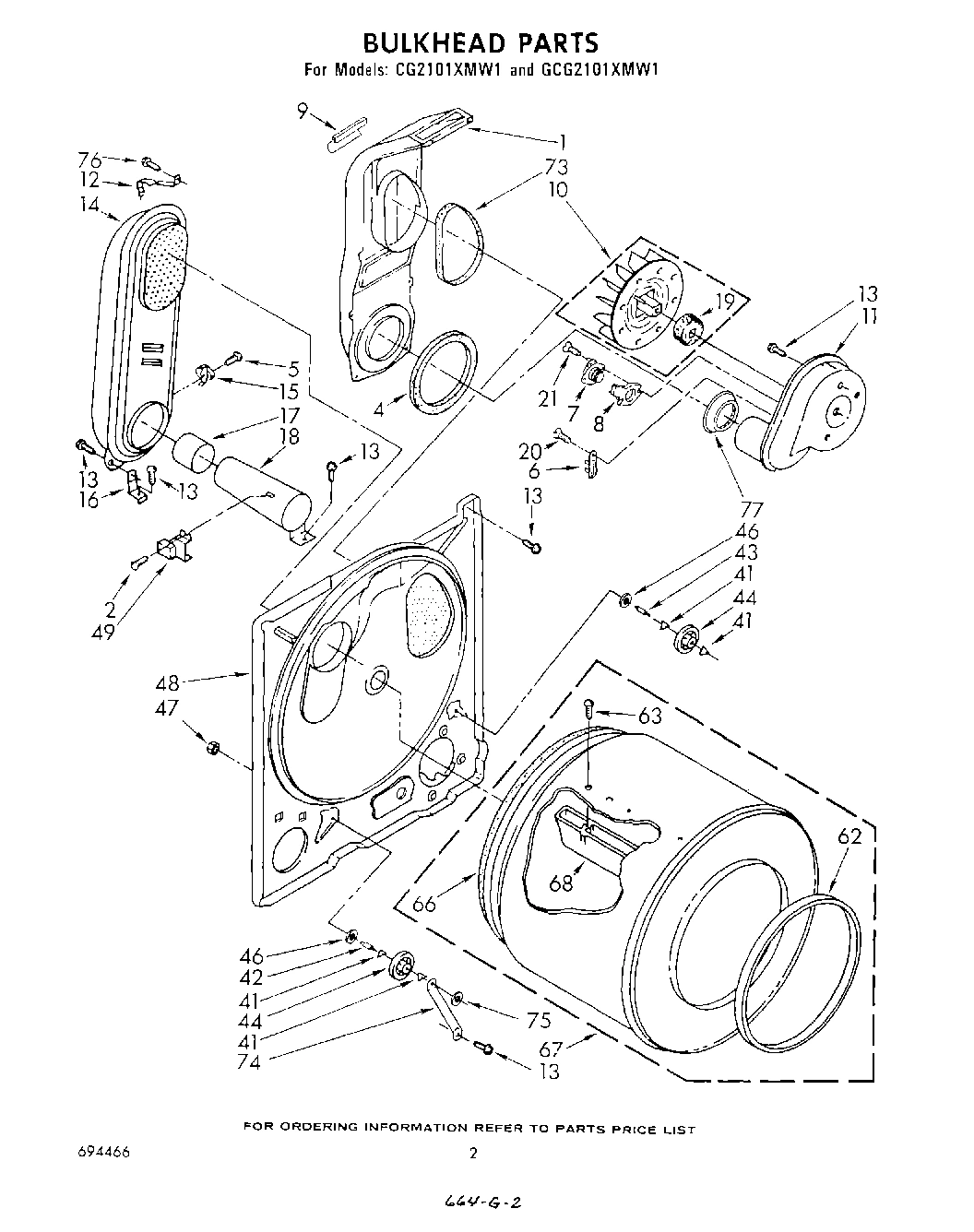

02 - BULKHEAD, LITERATURE AND OPTIONAL

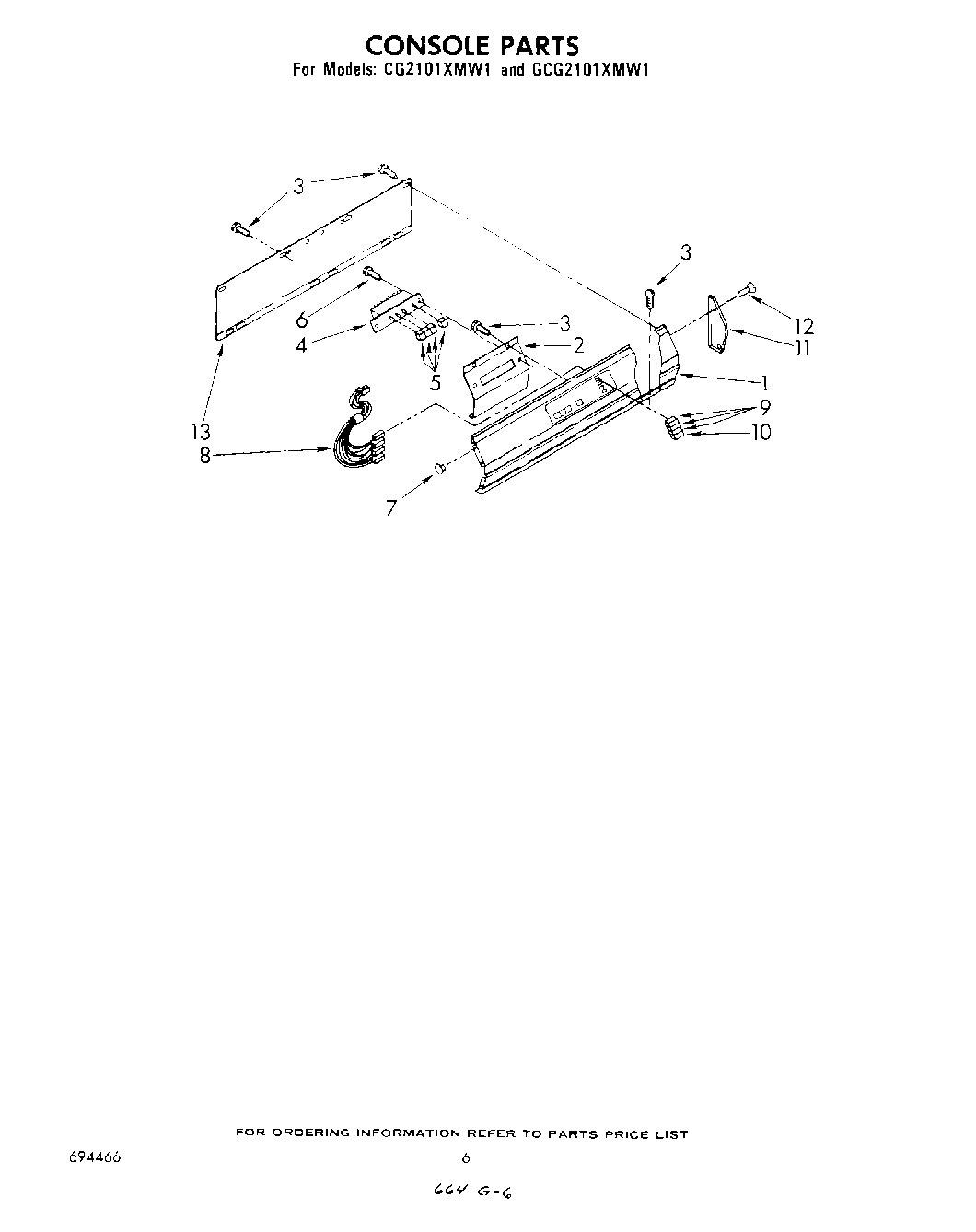

04 - CONSOLE

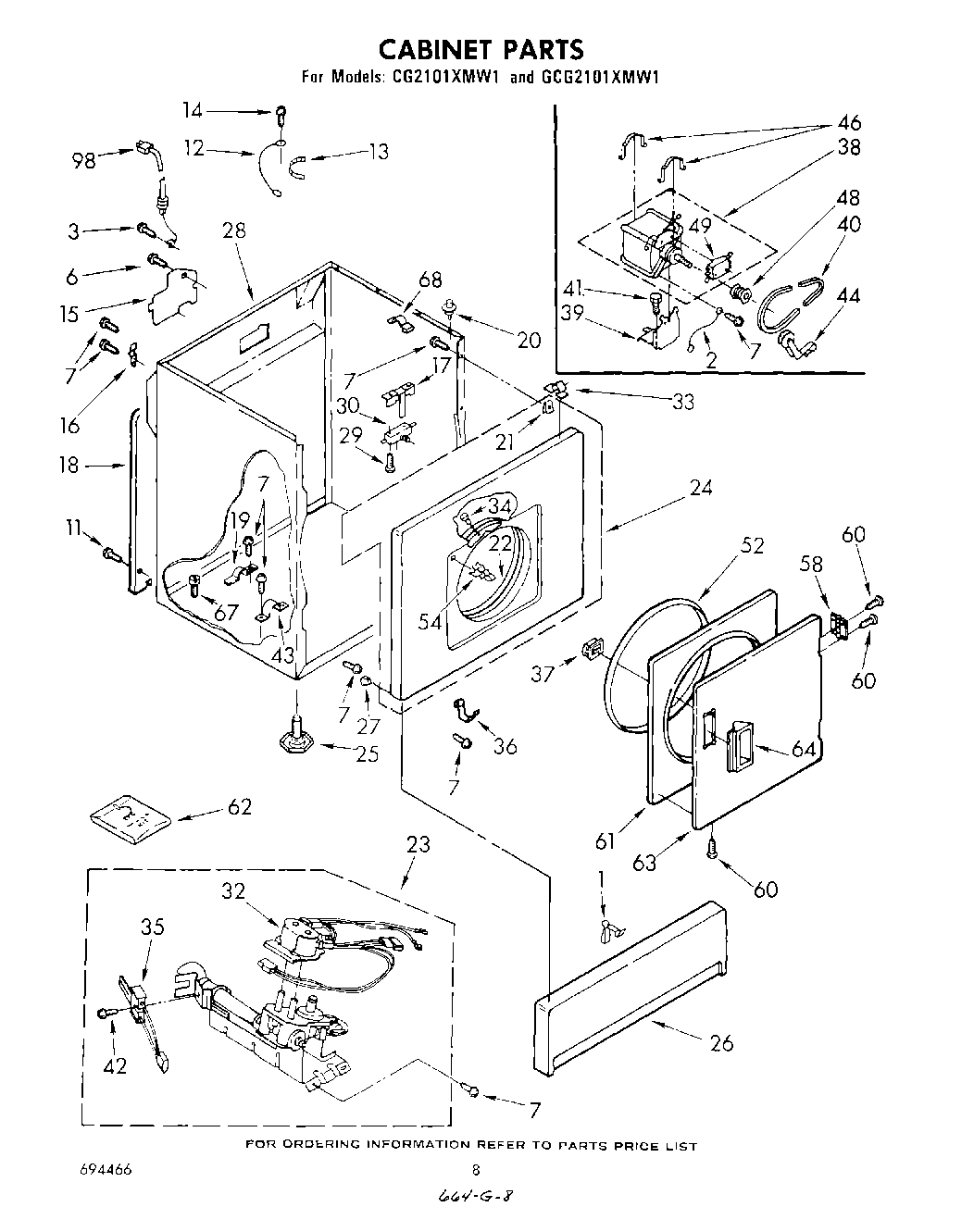

06 - CABINET

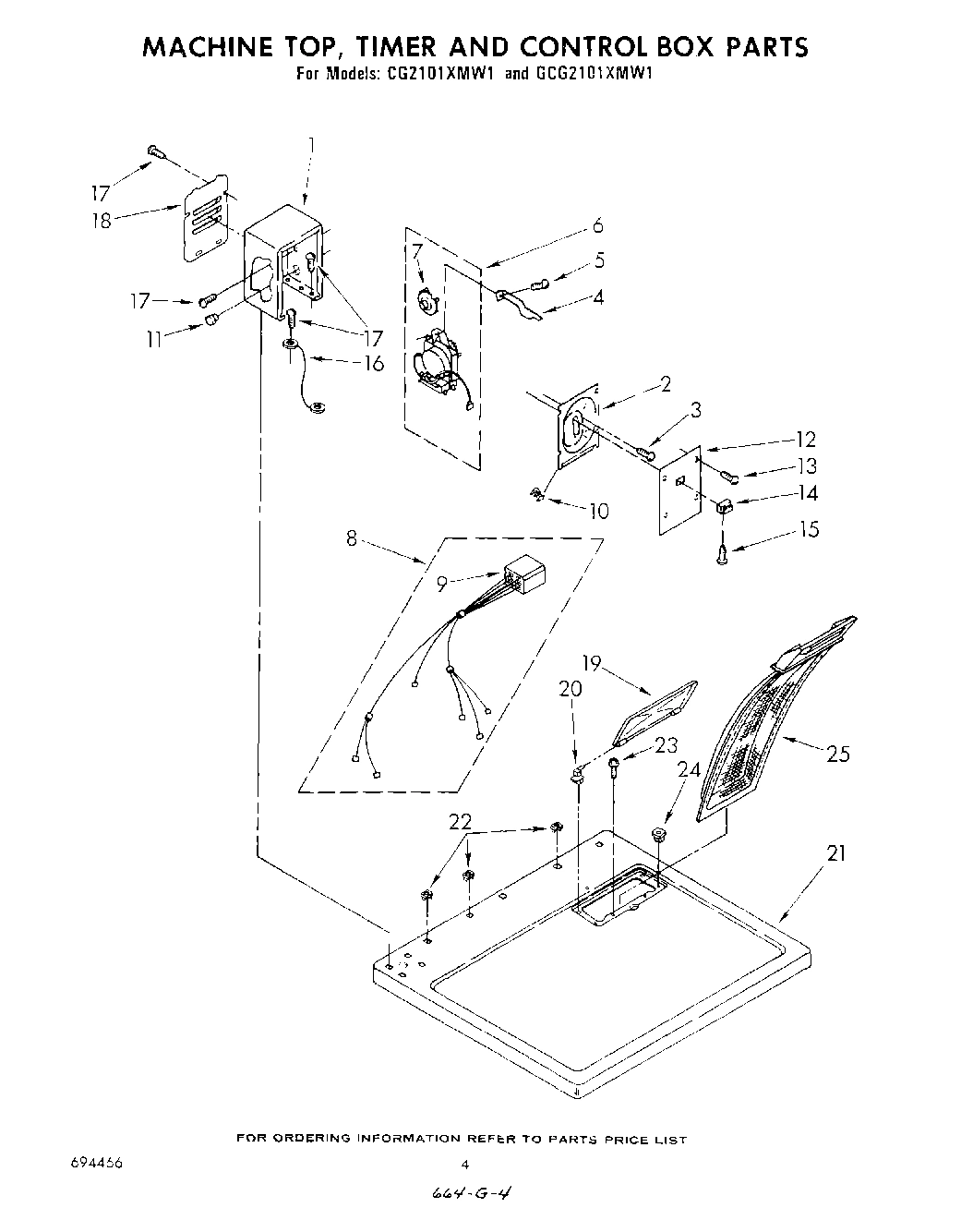

03 - MACHINE TOP, TIMER AND CONTROL BOX

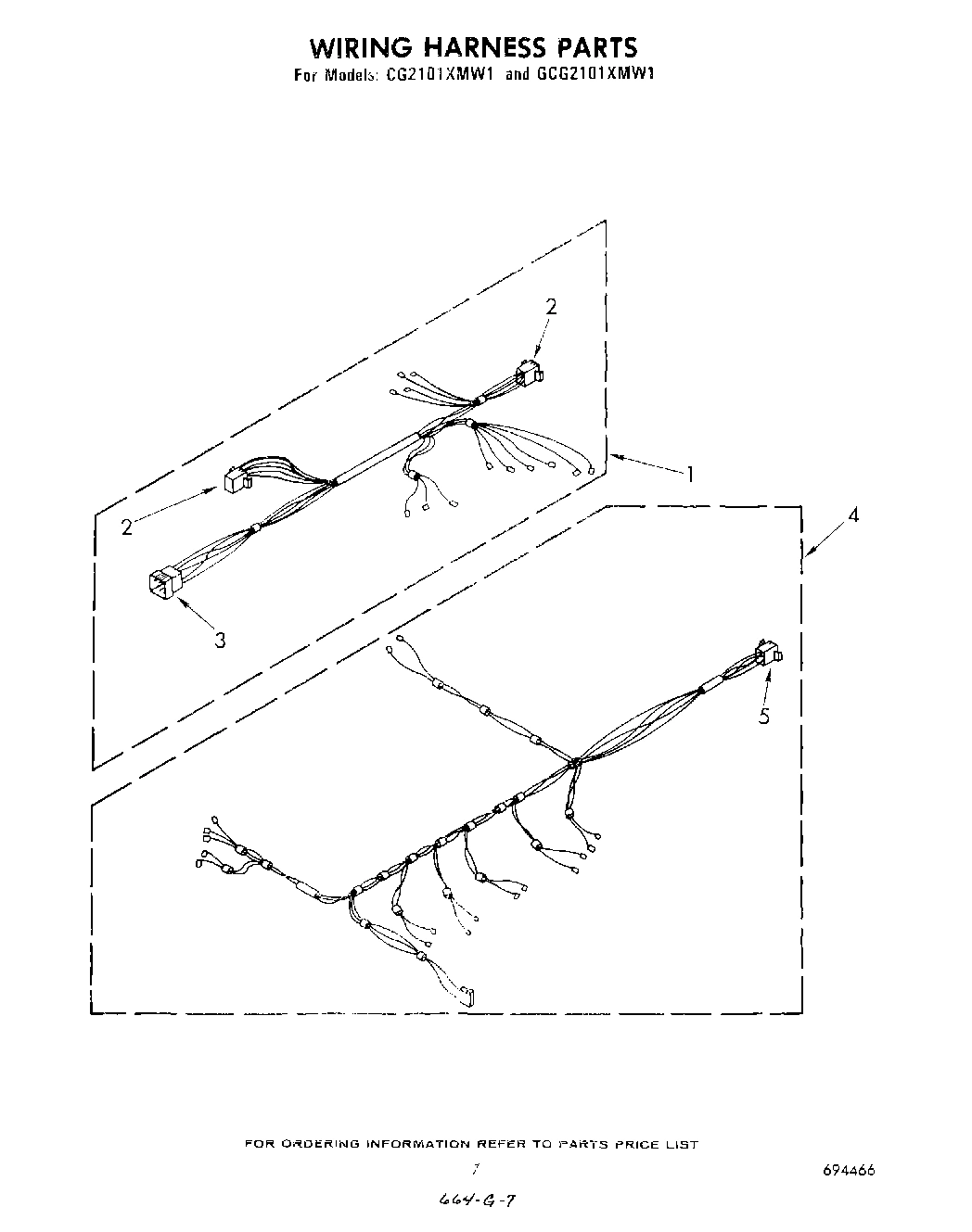

05 - WIRING HARNESS
Common parts from model Whirlpool CG2101XMW1 COMMERCIAL GAS DRYER
1
Billboard, Console WPL 695007 Contact Us For Availability
1
Clip, Toe Panel WPL 341776 Contact Us For Availability
1
Box, Control (White) WPL 694870 Contact Us For Availability
1
Harness, Console WPL 695576 Contact Us For Availability
2
Bracket, Control WPL 386567 Contact Us For Availability
2
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
2
Plate, Timer Mounting WPL 386791 Contact Us For Availability
2
Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability
3
Cap, Terminal (9 Way) (Uses Terminal 94613) WPL 94612 Contact Us For Availability
4
Switch, Pushbutton WPL 693987 Contact Us For Availability
4
Lever, Timer WPL 694583 Contact Us For Availability
4
Harness, Wiring (Lower) WPL 695514 Contact Us For Availability
5
Pushbutton (4) WPL 385798 Contact Us For Availability
5
Screw, Lever To Timer WPL 98831 Contact Us For Availability
5
Plug, Terminal (9 Way) (Uses Terminal 94614) WPL 94611 Contact Us For Availability
7
Plug, Button WPL 54690 Contact Us For Availability
8
Lights, Indicator WPL 358742 Contact Us For Availability
8
Harness, Timer WPL 695569 Contact Us For Availability
9
Lens, Amber (3) WPL 301006 Contact Us For Availability
9
Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability
10
Lens, Yellow (1) WPL 358741 Contact Us For Availability
10
Clip, Grounding WPL 690853 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
11
Cap, End (R.H.) WPL 385800 Contact Us For Availability
11
Bushing, Snap WPL 352481 Contact Us For Availability
12
Wire, Ground WPL 364089 Contact Us For Availability
12
Cover, Control Box WPL 694568 Contact Us For Availability
13
Panel, Rear Billboard WPL 386370 Contact Us For Availability
13
Strap, Ground WPL 22965 Contact Us For Availability
14
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
14
Button, Timer Set WPL 386276 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability
15
Screw, 6-32 x 1/4 WPL 310410 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Wire, Ground WPL 340025 Contact Us For Availability
18
Panel, Rear WPL 347736 Contact Us For Availability
18
Panel, Control Box Rear WPL 295871 Contact Us For Availability
19
Seal, Blower WPL 694630 Contact Us For Availability
19
Cover, Lint Screen WPL 688150 Contact Us For Availability
20
Locator, Top (1) WPL 356837 Contact Us For Availability
20
Locator, Top (2) WPL 98669 Contact Us For Availability
21
Top (White) WPL 695009 Contact Us For Availability
22
Nut, Push-In (8) WPL 98219 Contact Us For Availability
23
Burner Assembly (60 Hz.) (Refer to Pages 10 & WPL 694670 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
24
Front Panel Assembly (White) WPL 693202 Contact Us For Availability
26
Panel, Toe (White) WPL 237035 Contact Us For Availability
27
Clip, Toe Panel (2) WPL 696232 Contact Us For Availability
28
Cabinet (White) WPL 690847 Contact Us For Availability
43
Clamp, Pipe (Front) WPL 695885 Contact Us For Availability
48
Bulkhead WPL 387227 Contact Us For Availability
62
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
WPL 343826 WPL 343826 Contact Us For Availability
74
Bracket, Support Shaft WPL 348945 Contact Us For Availability
77
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
77
Instructions, Multi-Venting WPL 348772 Contact Us For Availability
77
Leveler (Thinner) WPL 350941 Contact Us For Availability
77
Instructions, Installation WPL 687455 Contact Us For Availability
77
List, Service Parts WPL 694466 Contact Us For Availability
× ![]()
