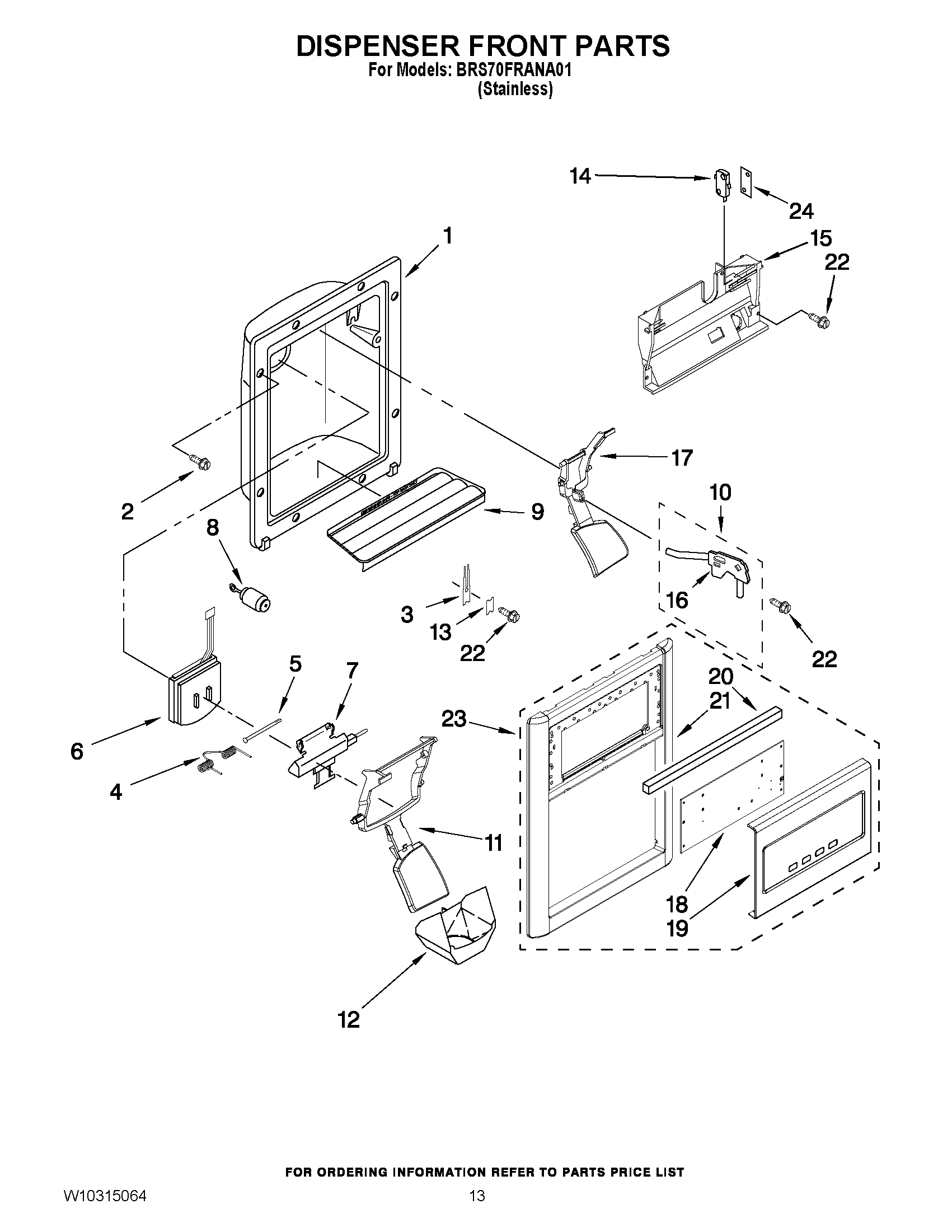

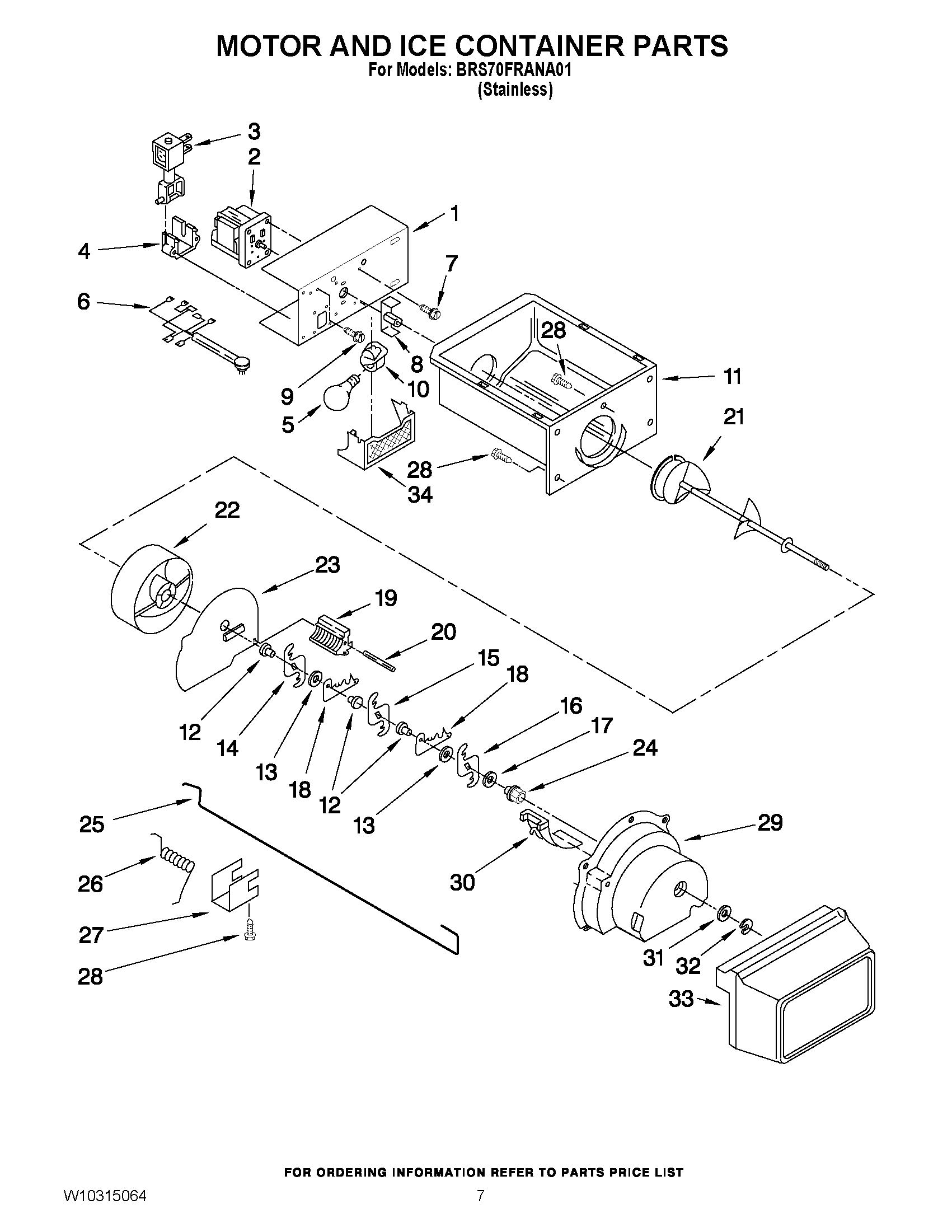

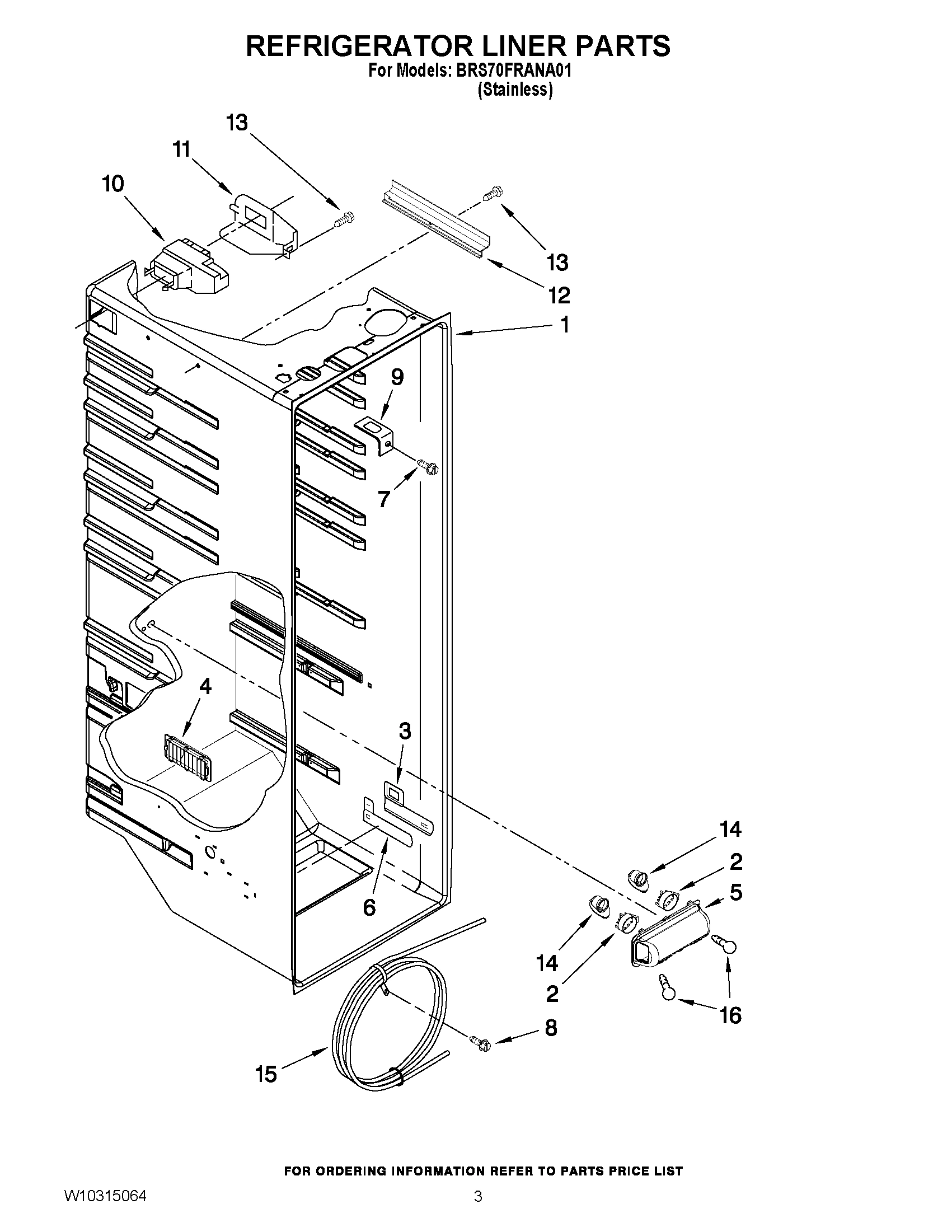

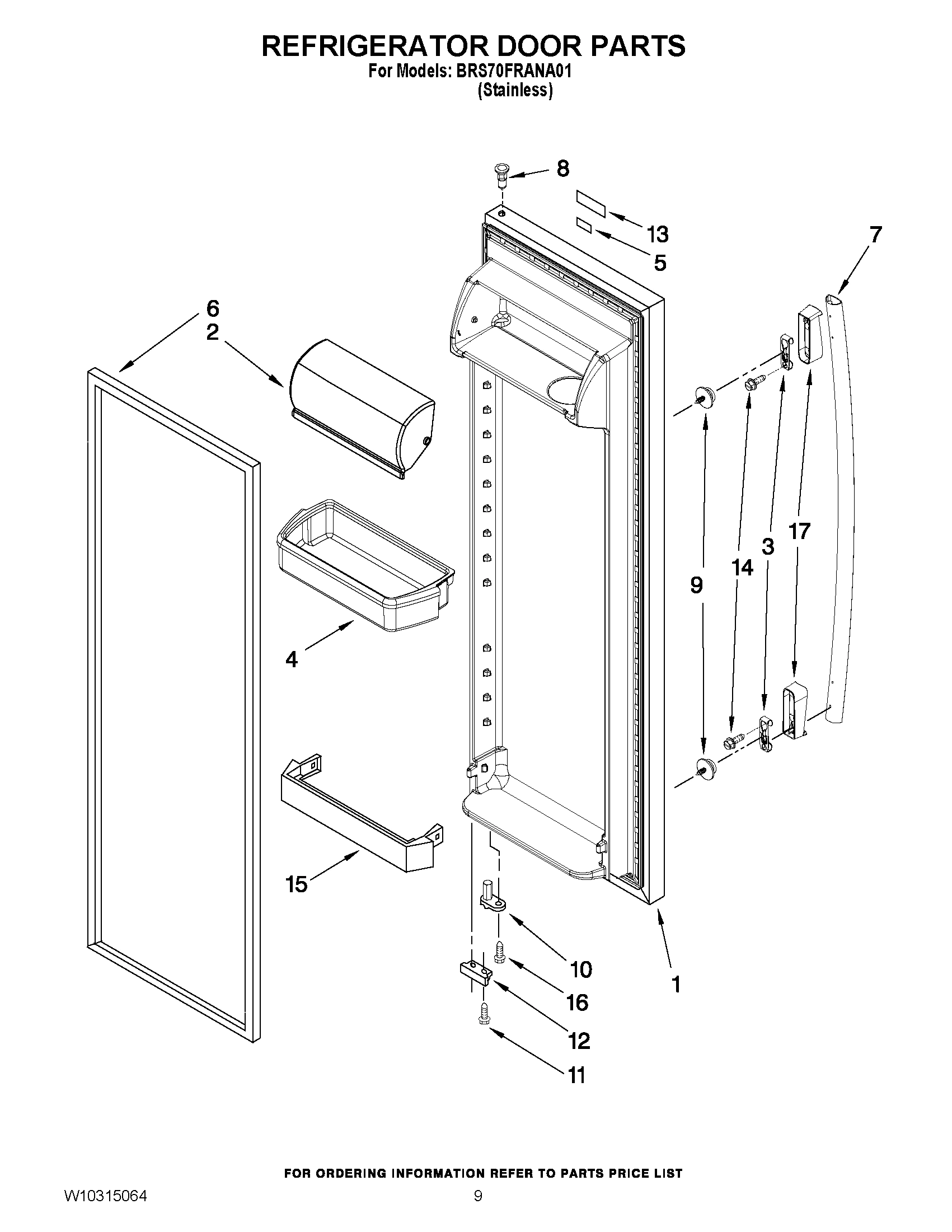

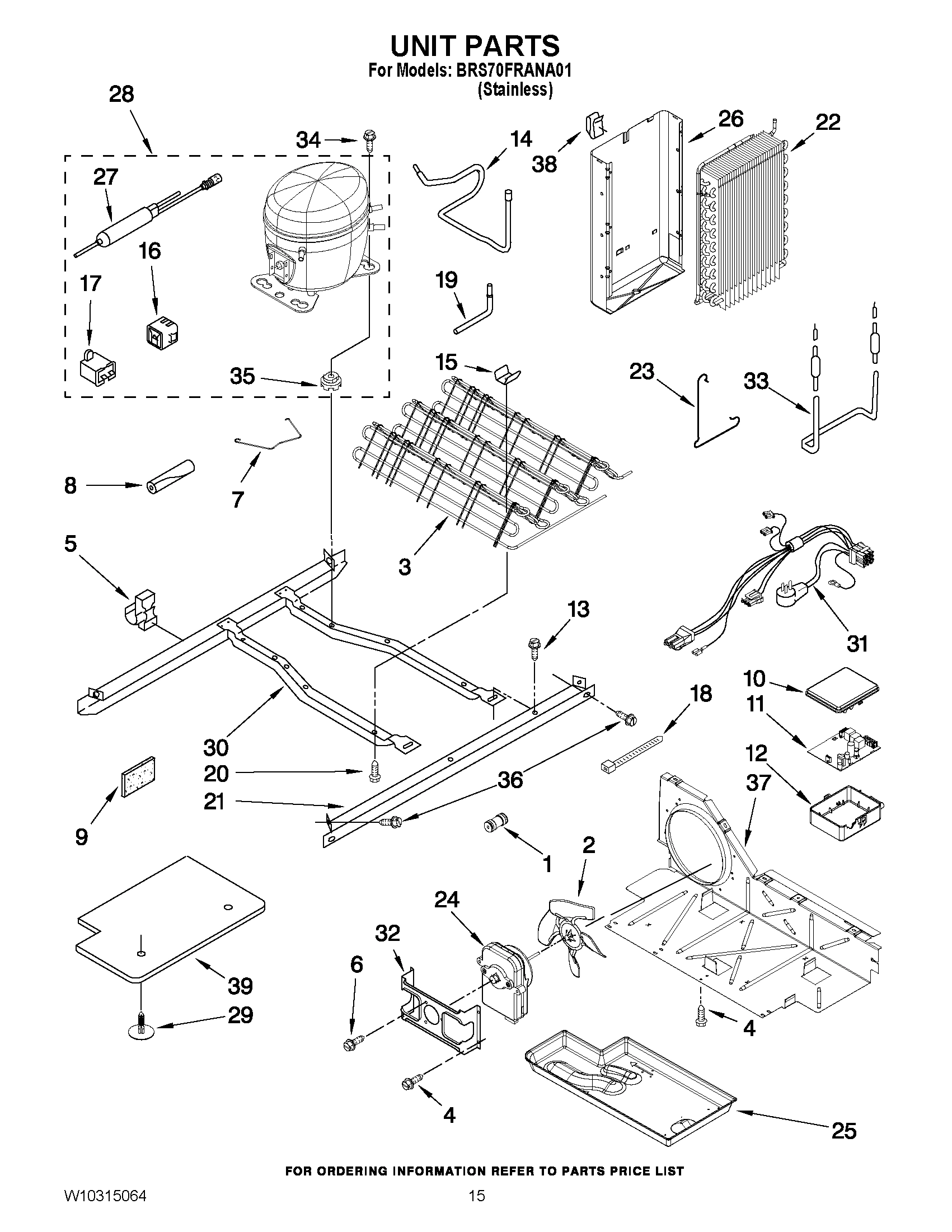

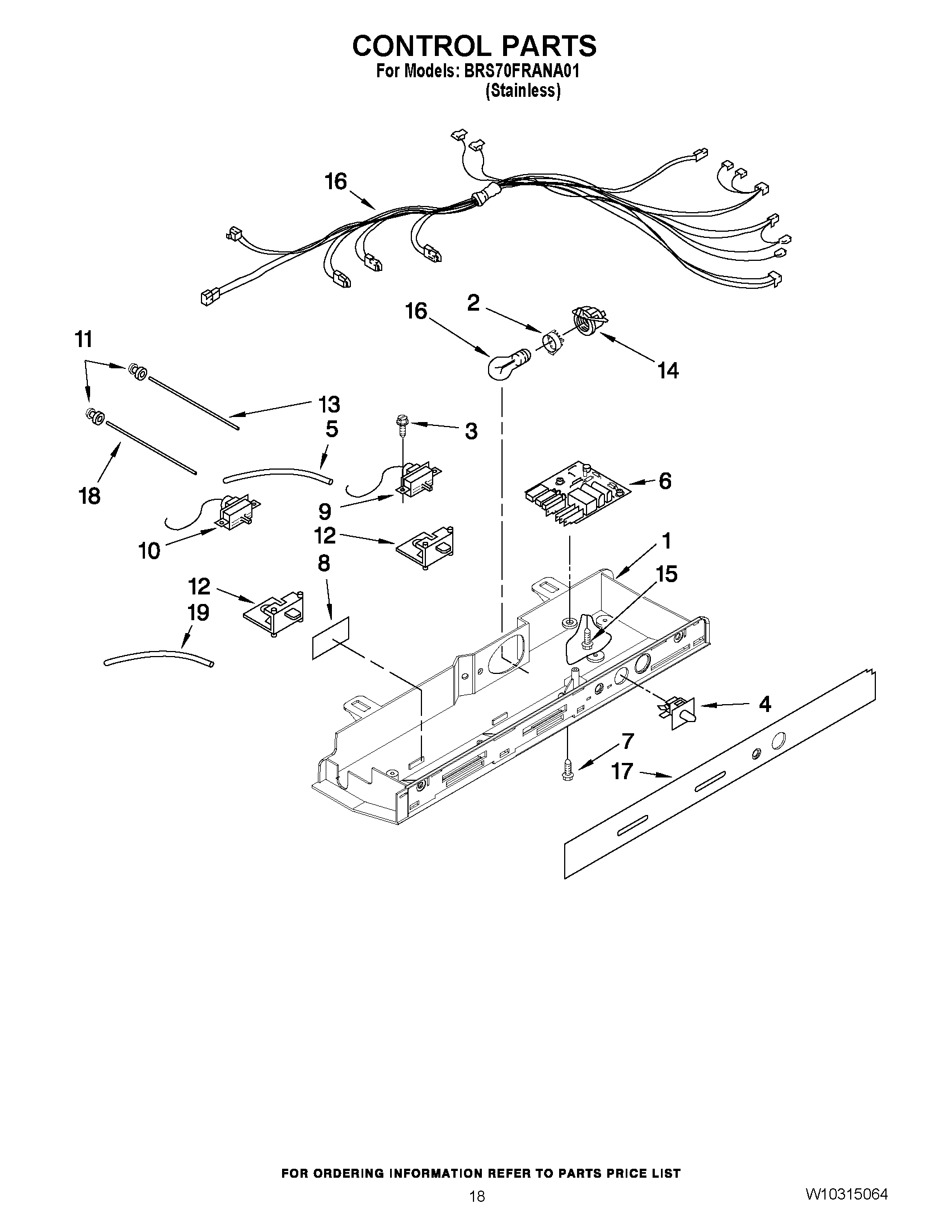

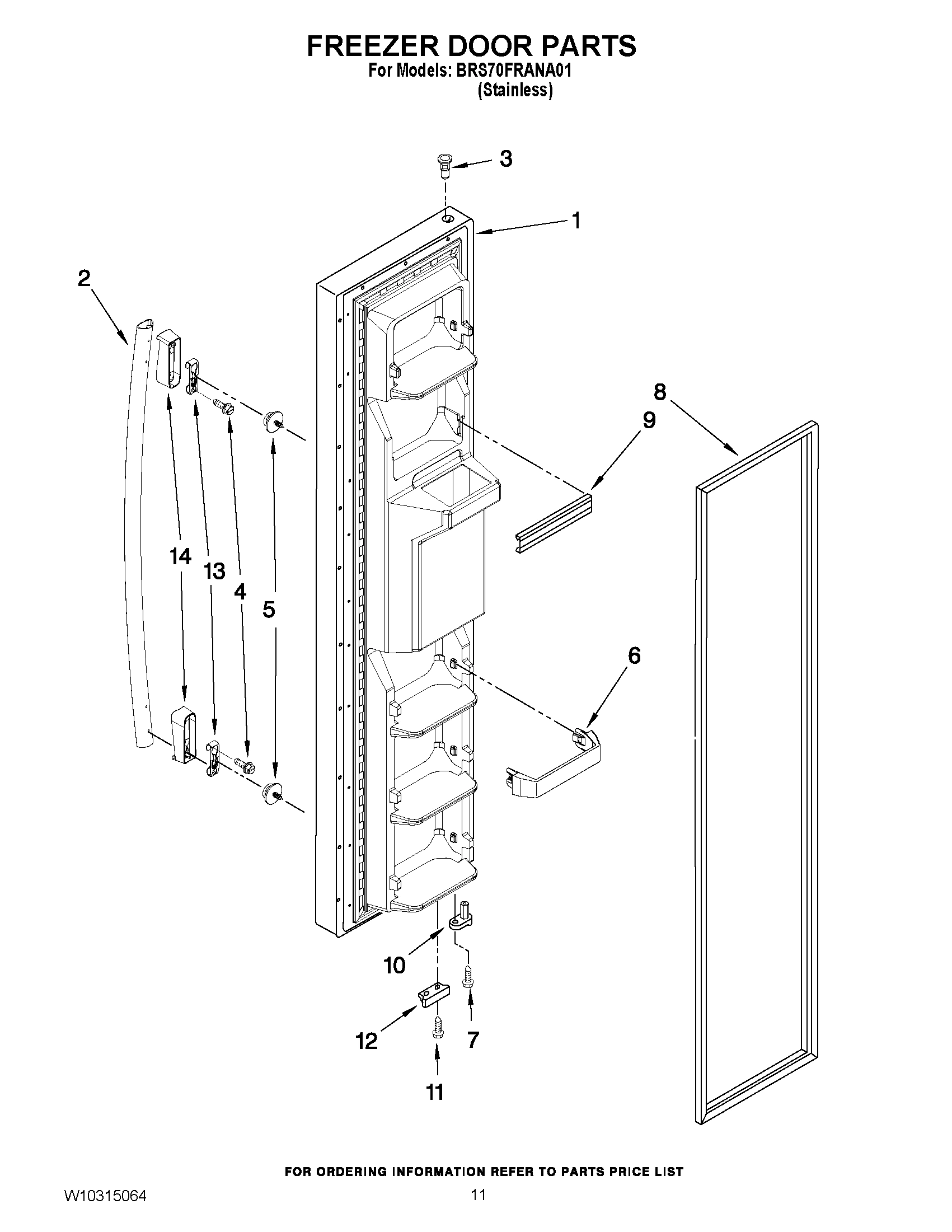

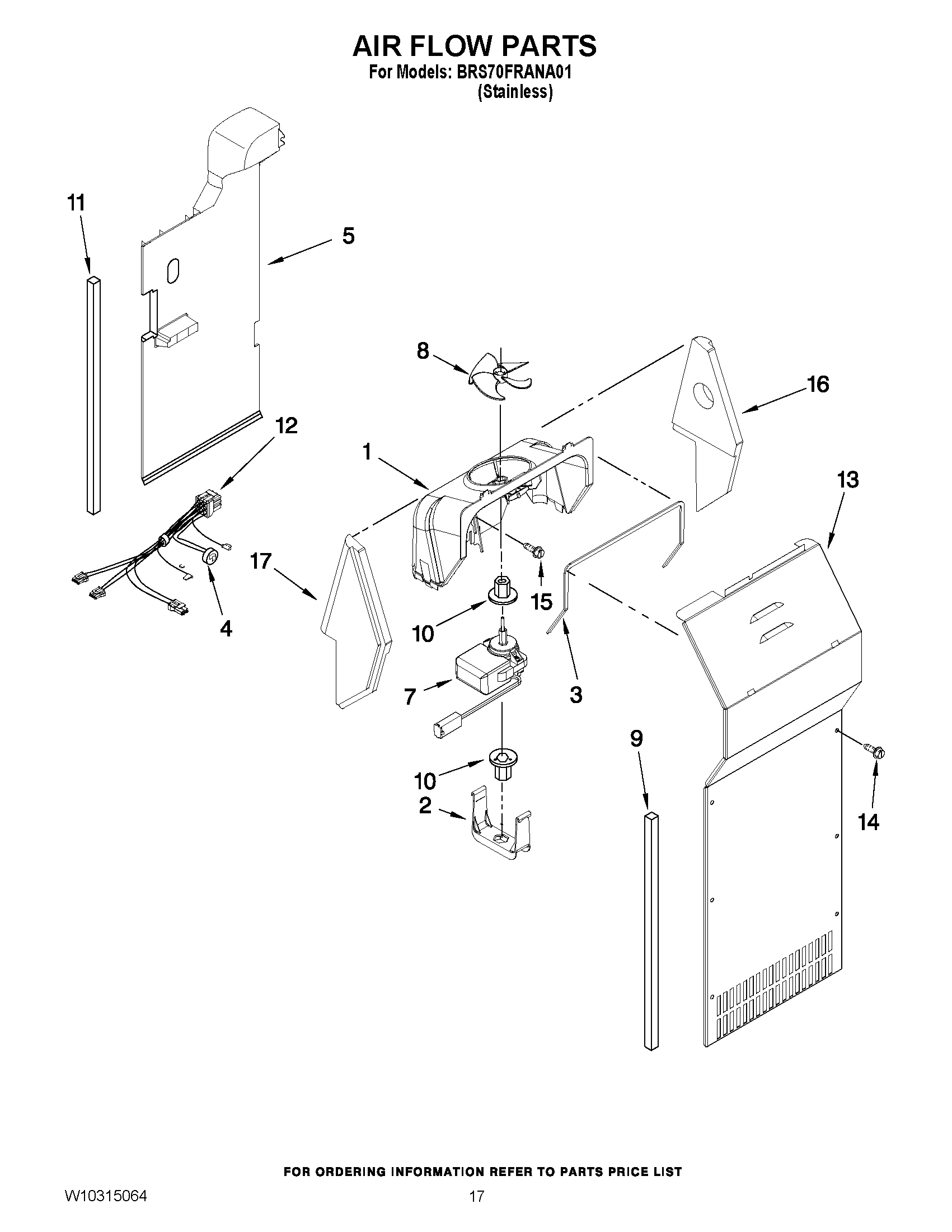

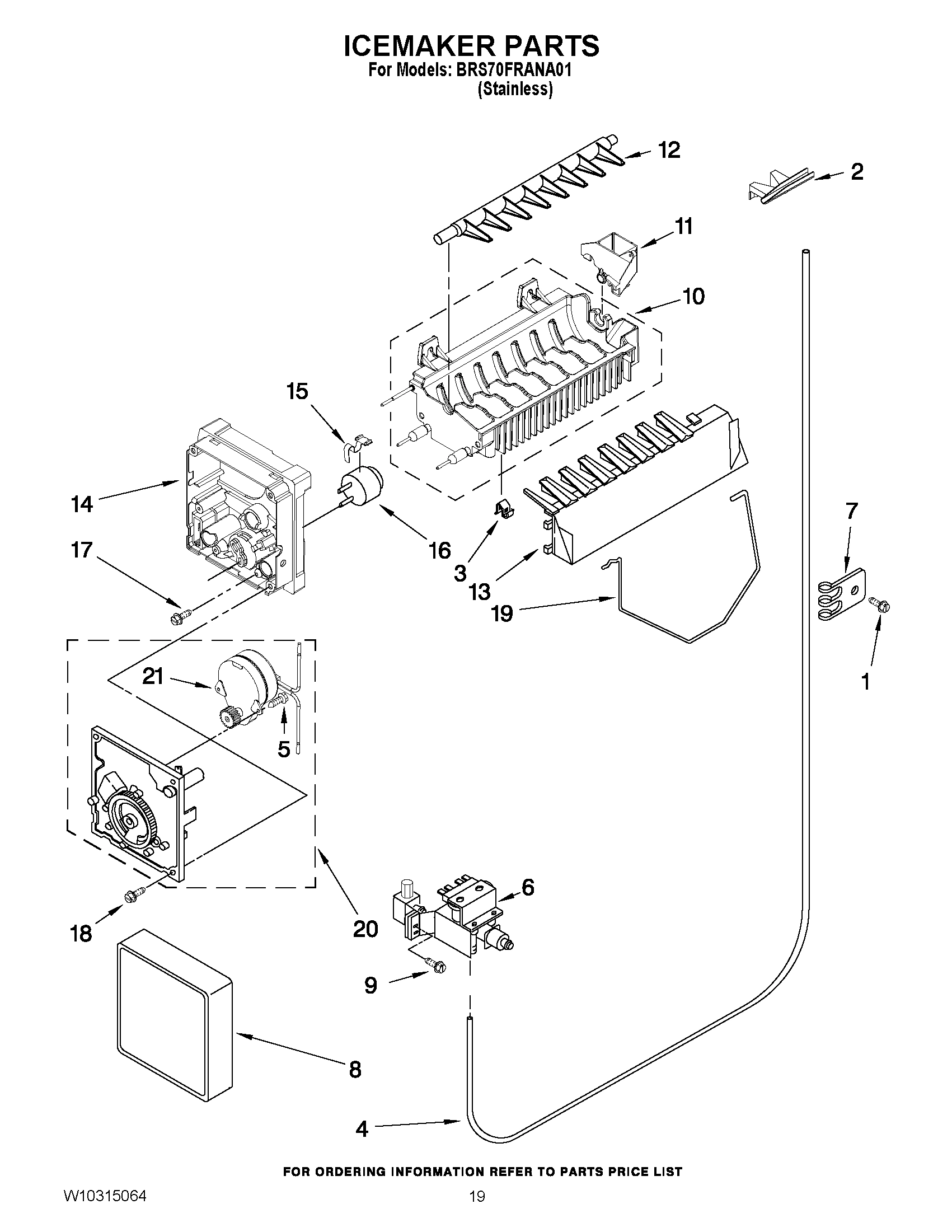

Model Whirlpool BRS70FRANA01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLES WPL W10310140 Contact Us For Availability

2

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $8.89

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.93

2

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.70

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

Cover, Crisper WPL W10160318 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

4

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

5

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

5

W10756902 Whirlpool Refrigerator Air Duct Backorder WPL W10756902 $76.58

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

Nameplate, Side-By-Side WPL 2321228 Contact Us For Availability

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $239.48

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $171.99

6

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

7

WPW10257118K Whirlpool Refrigerator Handle Backorder WPL WPW10257118K $135.78

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $54.59

9

WP2321305 Whirlpool Thermostat Backorder WPL WP2321305 $172.67

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $5.82

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP2321289 Whirlpool Refrigerator Thermostat Backorder WPL WP2321289 $164.42

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

Crisper Pan Asm WPL W10216365 Contact Us For Availability

Water Fitting Assembly (Includes Water Tube) WPL 2318280 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $6.79

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $64.64

Elec. Control WPL 2322547 Contact Us For Availability

Grommet WPL 2172906 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

HARNS-WIRE Backorder WPL W10122957 $56.10

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10317556 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10317556 $63.99

Bracket, Door Stop WPL 2321218AP Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $61.99

Light Bar (RC) WPL 2179920 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

Cover, Evaporator WPL W10194476 Contact Us For Availability

Nameplate WPL 2321226 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

4389654 Whirlpool Screw Backorder WPL 4389654 $8.89

W10267047 Whirlpool Screw Backorder WPL W10267047 $8.89

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Light Lens WPL W10154839 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $14.99

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10728484 Whirlpool Refrigerator Dispenser Co In Stock WPL W10728484 $46.51

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $58.99

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

2310117 Whirlpool Wire Harness Backorder WPL 2310117 $140.92

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $4.82

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $73.99

Screw WPL W10191952 Contact Us For Availability

Screw WPL W10029760 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

ESCUTCHEON Backorder WPL W10239827 $73.40

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $63.15

Cap, Corner (Right Side) WPL 2223286 Contact Us For Availability

ENDCAP, HANDLE WPL W10127772 Contact Us For Availability

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Window, Crisper WPL 2174076 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

WIRE BASKET, UPPER WPL W10130296 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

BIN-FREEZR Backorder WPL W10130287 $191.67

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

21

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $38.71

21

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

21

FRONT COVER, HOUSING (NOT AVAILABLE, ORDER No WPL NP Contact Us For Availability

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $117.44

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $119.75

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $17.99

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

Eyelet, Roller WPL 2174478 Contact Us For Availability

Screw WPL W10029740 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WPW10289522 Whirlpool Front Cover Backorder WPL WPW10289522 $169.83

Clamp WPL 2161324 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $91.15

26

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

27

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.97

27

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $218.99

28

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $242.93

29

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $36.91

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

33

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $17.54

34

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

36

DOOR CLOSER, LOWER CAM FC WPL 2223751 Contact Us For Availability

37

Air Baffle WPL W10163483 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
