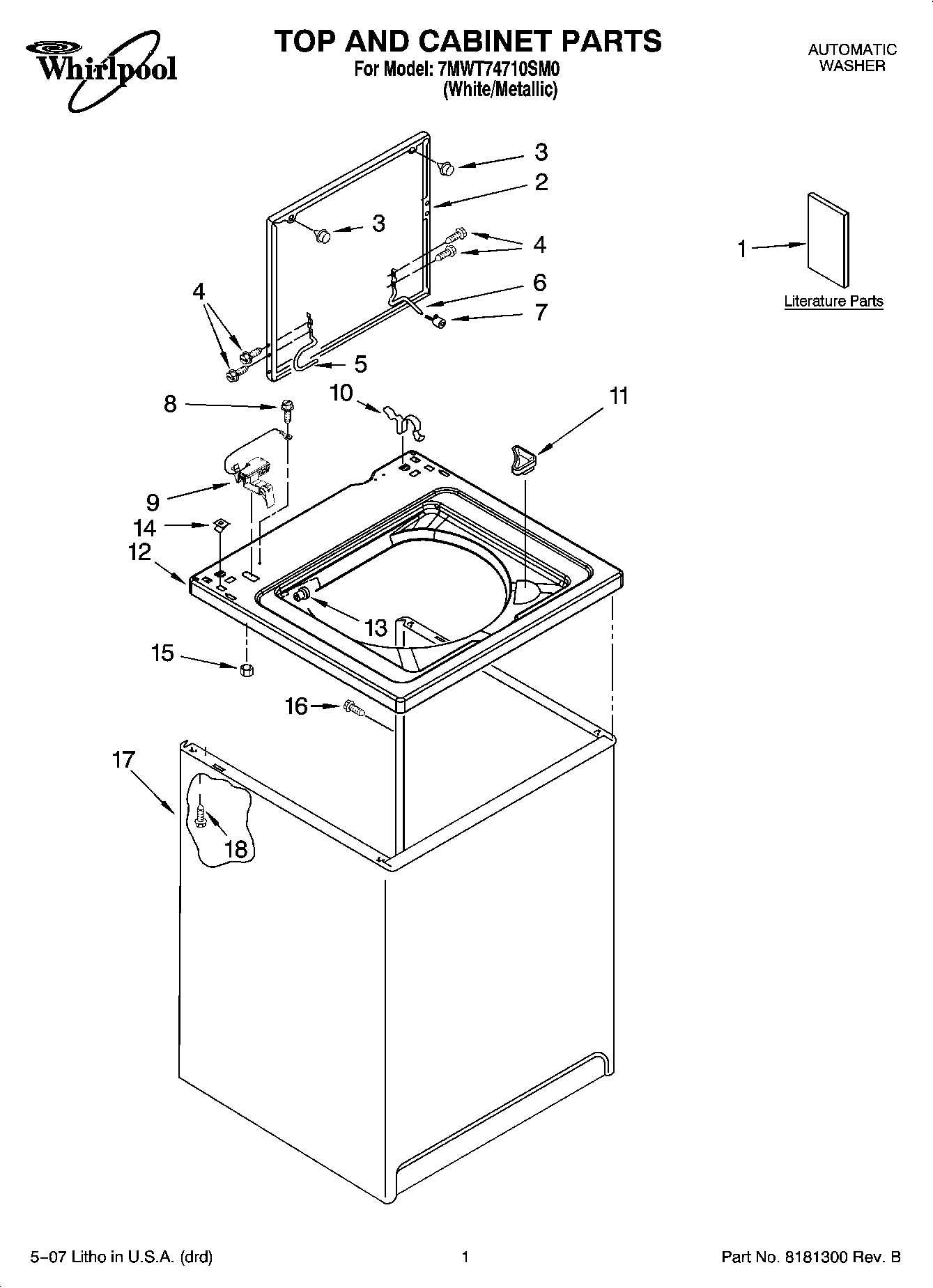

Model Whirlpool 7MWT74710SM0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

4

Support & Brake, Tub WPL 8575214 Contact Us For Availability

5

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

7

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring (Includes Item 7) WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

9

WP3949208 Whirlpool Timer In Stock WPL WP3949208 $229.07

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $88.90

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $53.47

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

13

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

13

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

13

Bracket, Control WPL 3948814 Contact Us For Availability

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP8559419 Whirlpool Power Cord Backorder WPL WP8559419 $88.87

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.96

Tub WPL 63125 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Strain Relief, Power Cord WPL 8559337 Contact Us For Availability

16

285459 Whirlpool Washer Base Backorder WPL 285459 $243.38

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

17

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

18

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

19

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

19

Medallion WPL 3400985 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

22

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

27

Clamp, Hose WPL 8541667 Contact Us For Availability

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

34

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.99

35

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

38

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

39

Panel, Console (Includes Item 19) WPL 8543008 Contact Us For Availability

40

Retainer, Harness WPL 3349557 Contact Us For Availability

41

Knob, Timer WPL 8566022 Contact Us For Availability

42

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $34.58

43

Knob, Control WPL 8565944 Contact Us For Availability

44

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

45

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

48

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

49

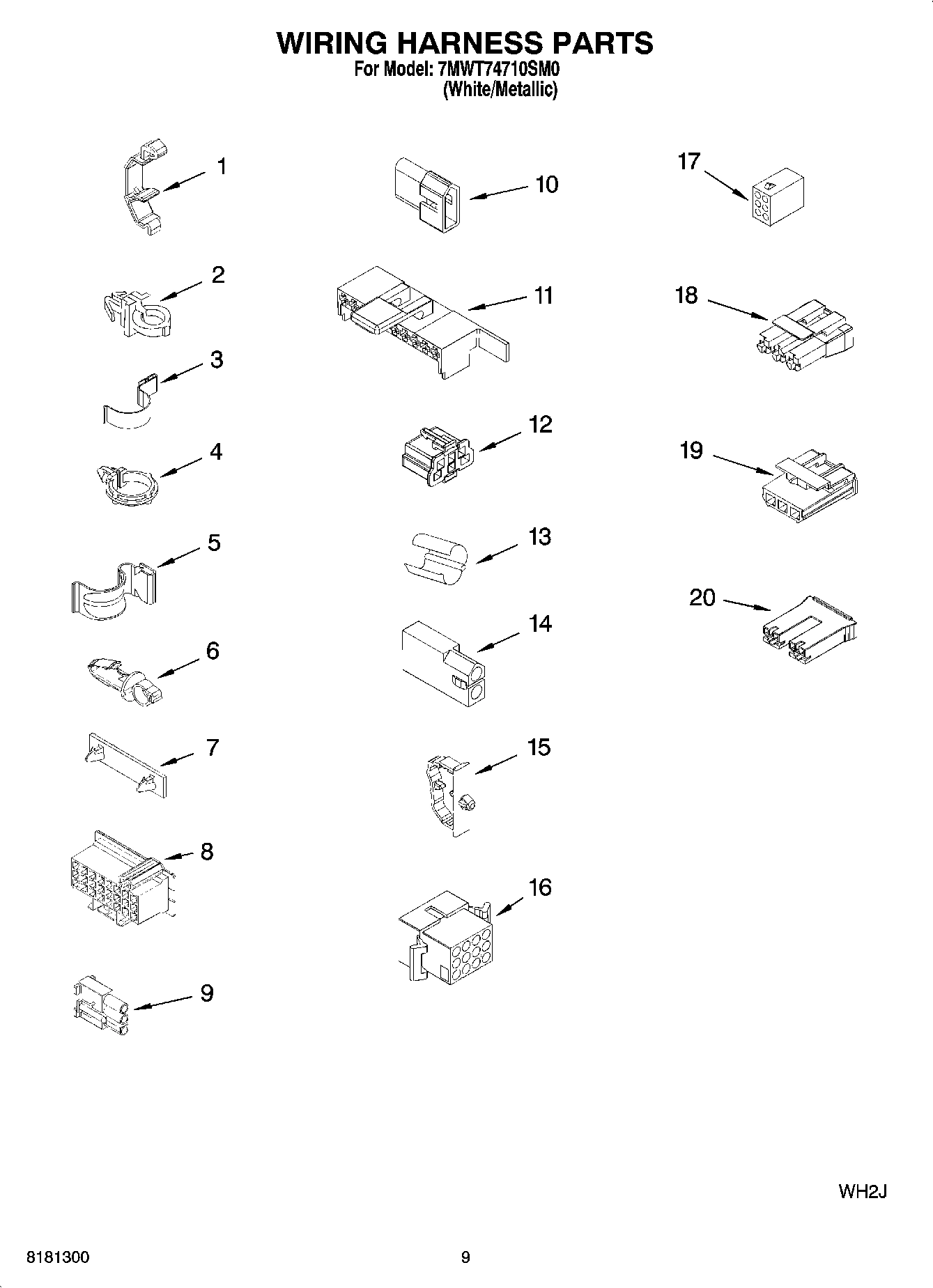

Harness, Wiring (For Detail See Pages 9 & 10) WPL 3958105 Contact Us For Availability
