Model 7MLSR8523MT0 – Common Parts & Diagrams

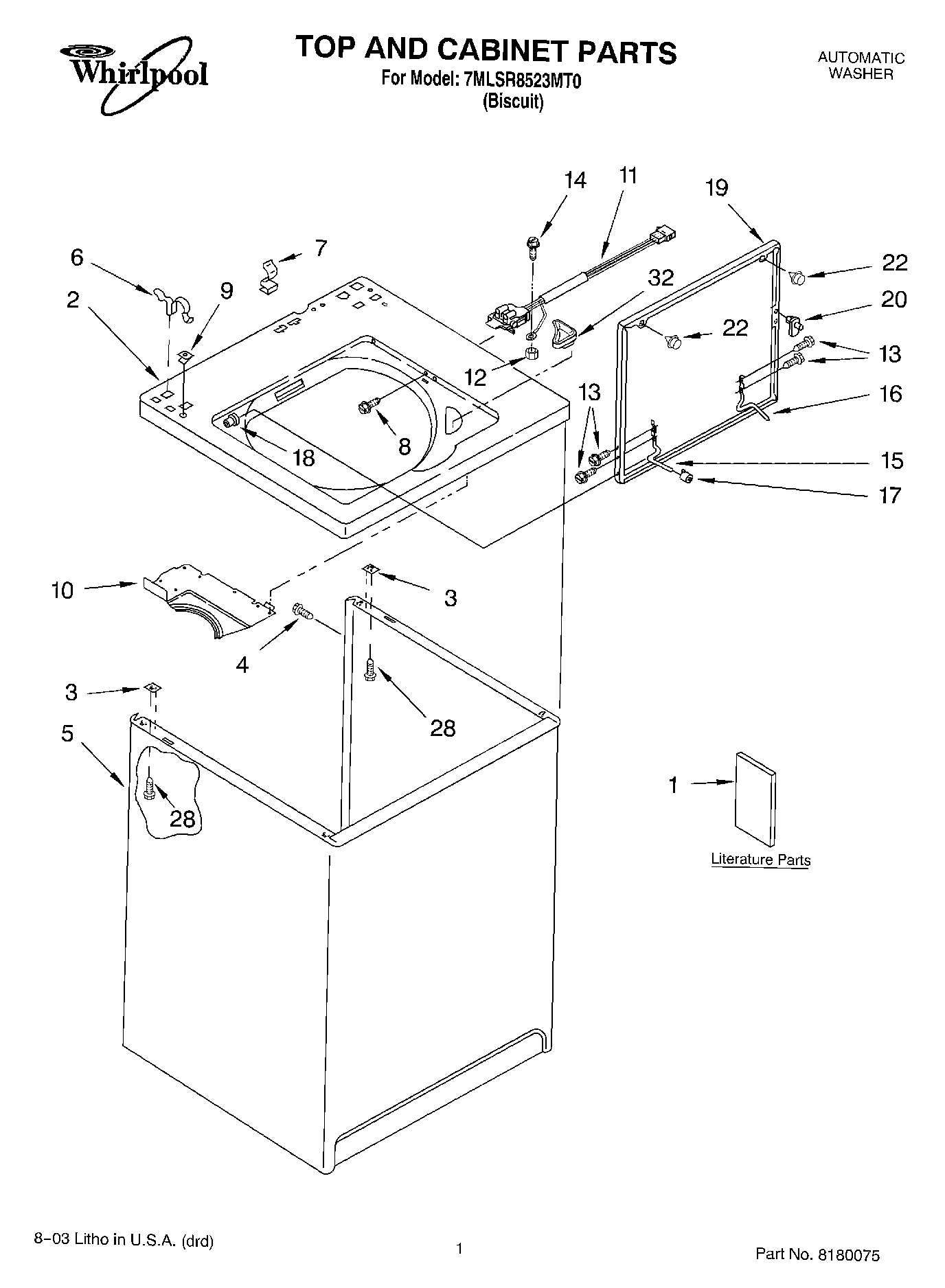

01 - TOP AND CABINET PARTS

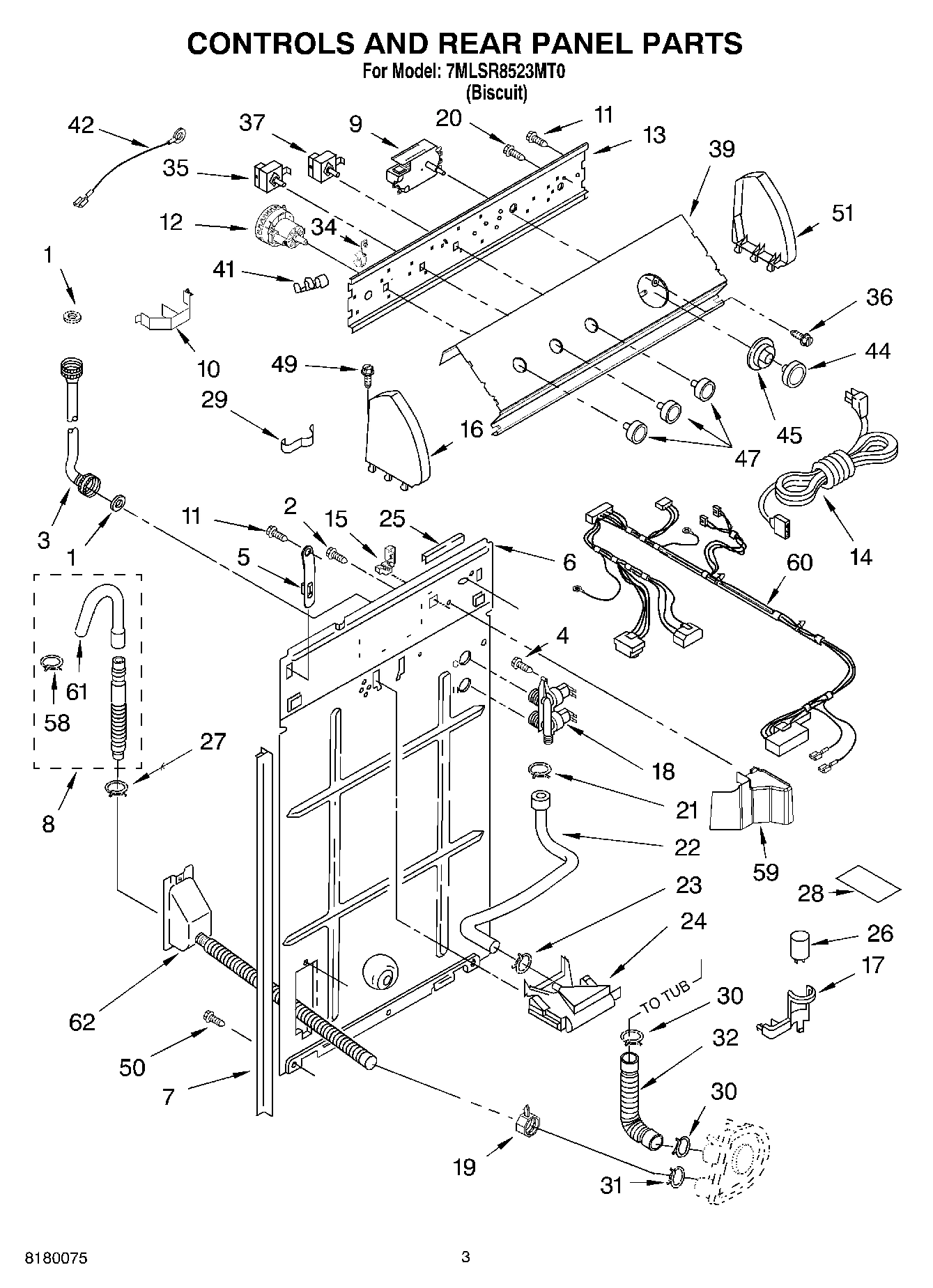

02 - CONTROLS AND REAR PANEL PARTS

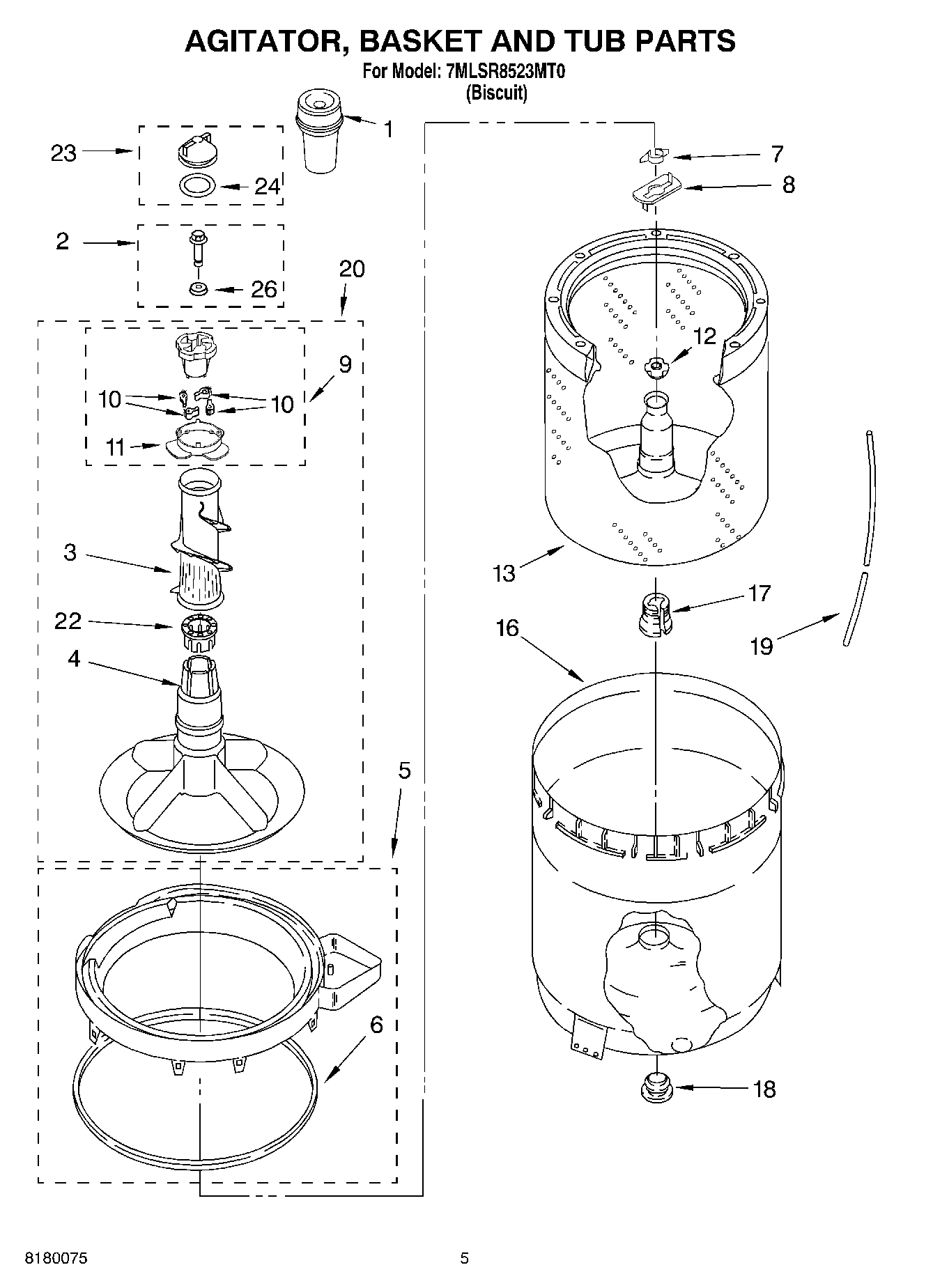

03 - AGITATOR, BASKET AND TUB PARTS

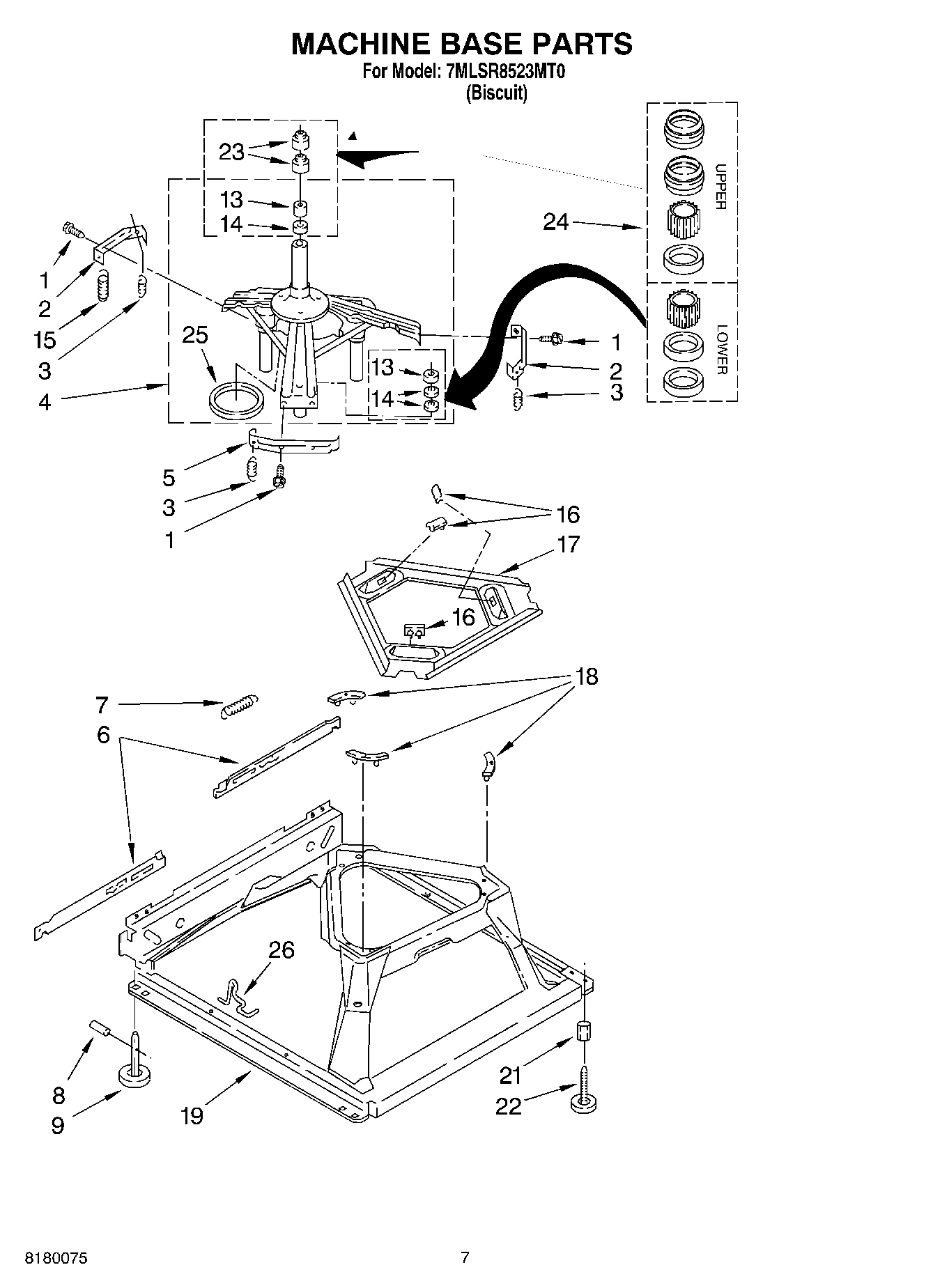

04 - MACHINE BASE PARTS

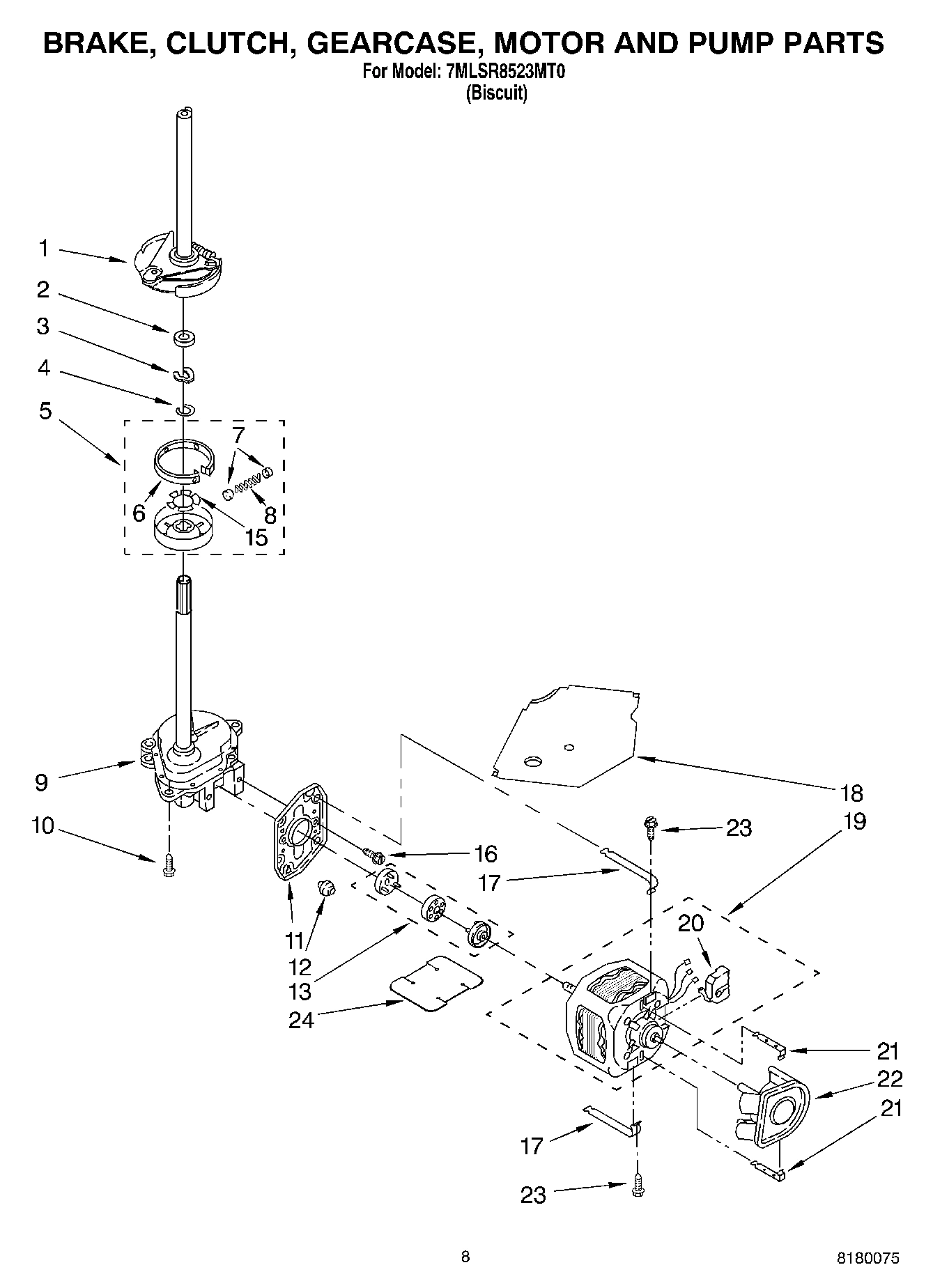

05 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
06 - WIRING HARNESS PARTS

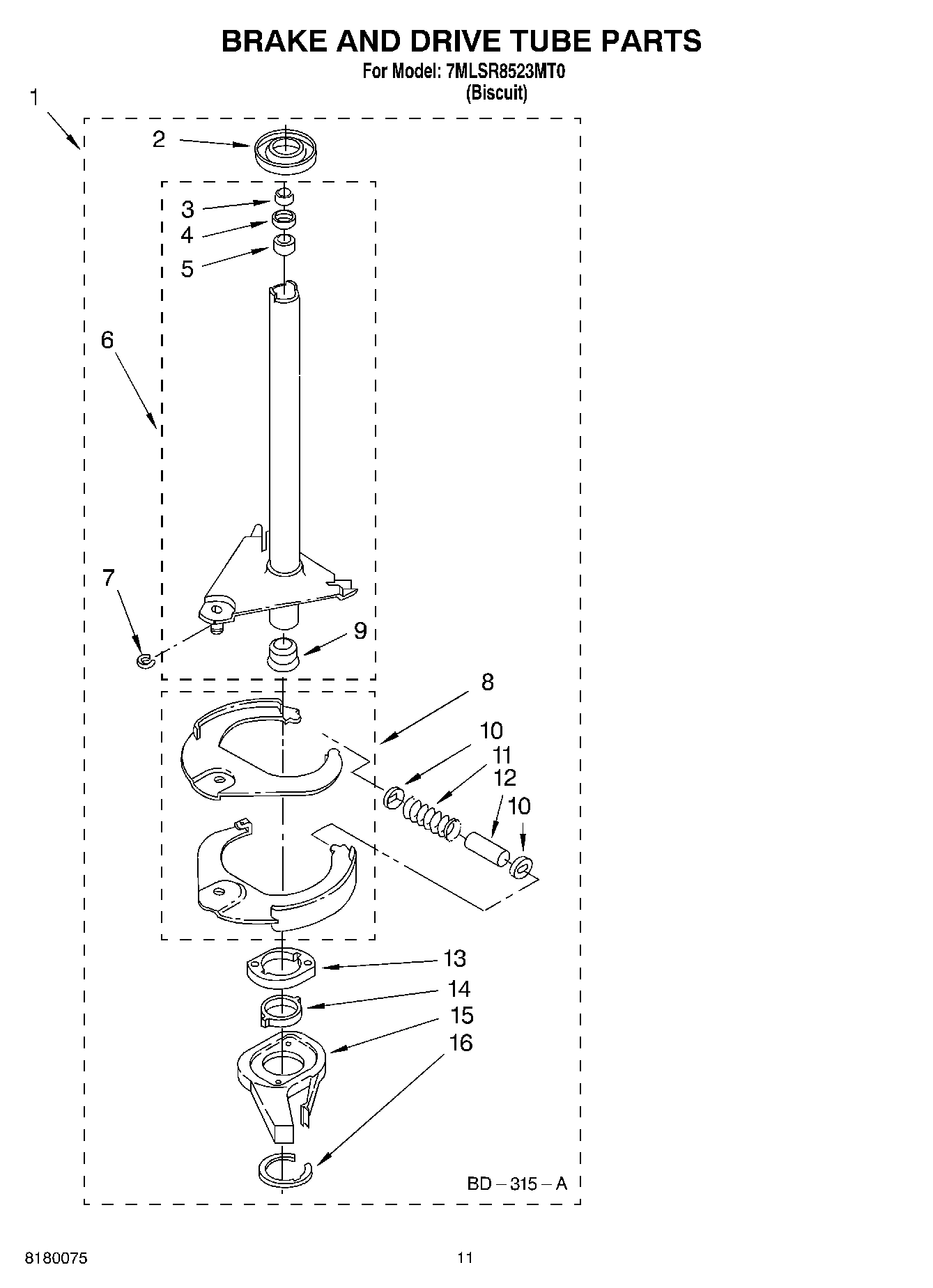

07 - BRAKE AND DRIVE TUBE PARTS
08 - GEARCASE PARTS

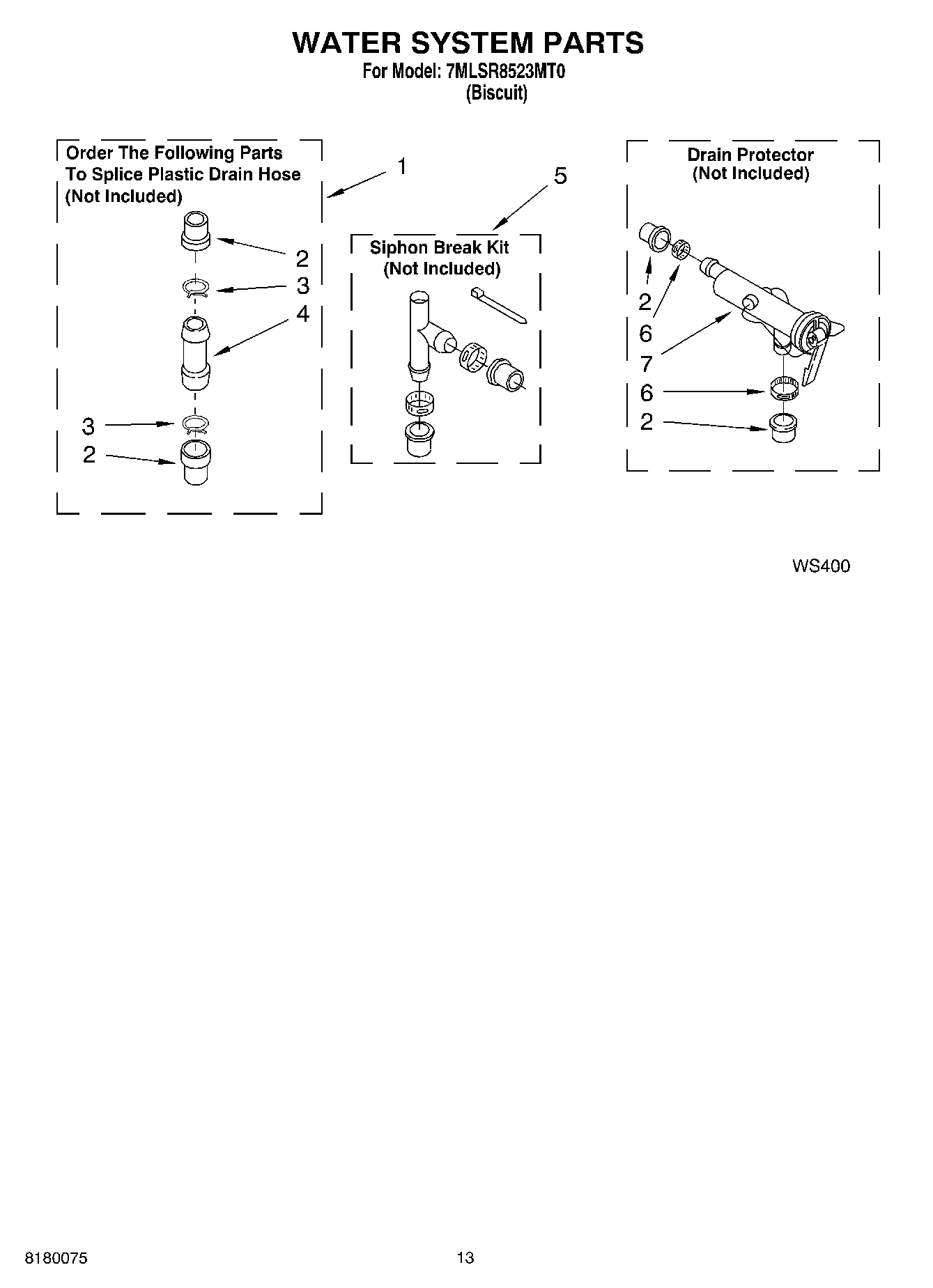

09 - WATER SYSTEM PARTS
10 - MISCELLANEOUS PARTS OPTIONAL PARTS (NOT INCLUDED)
