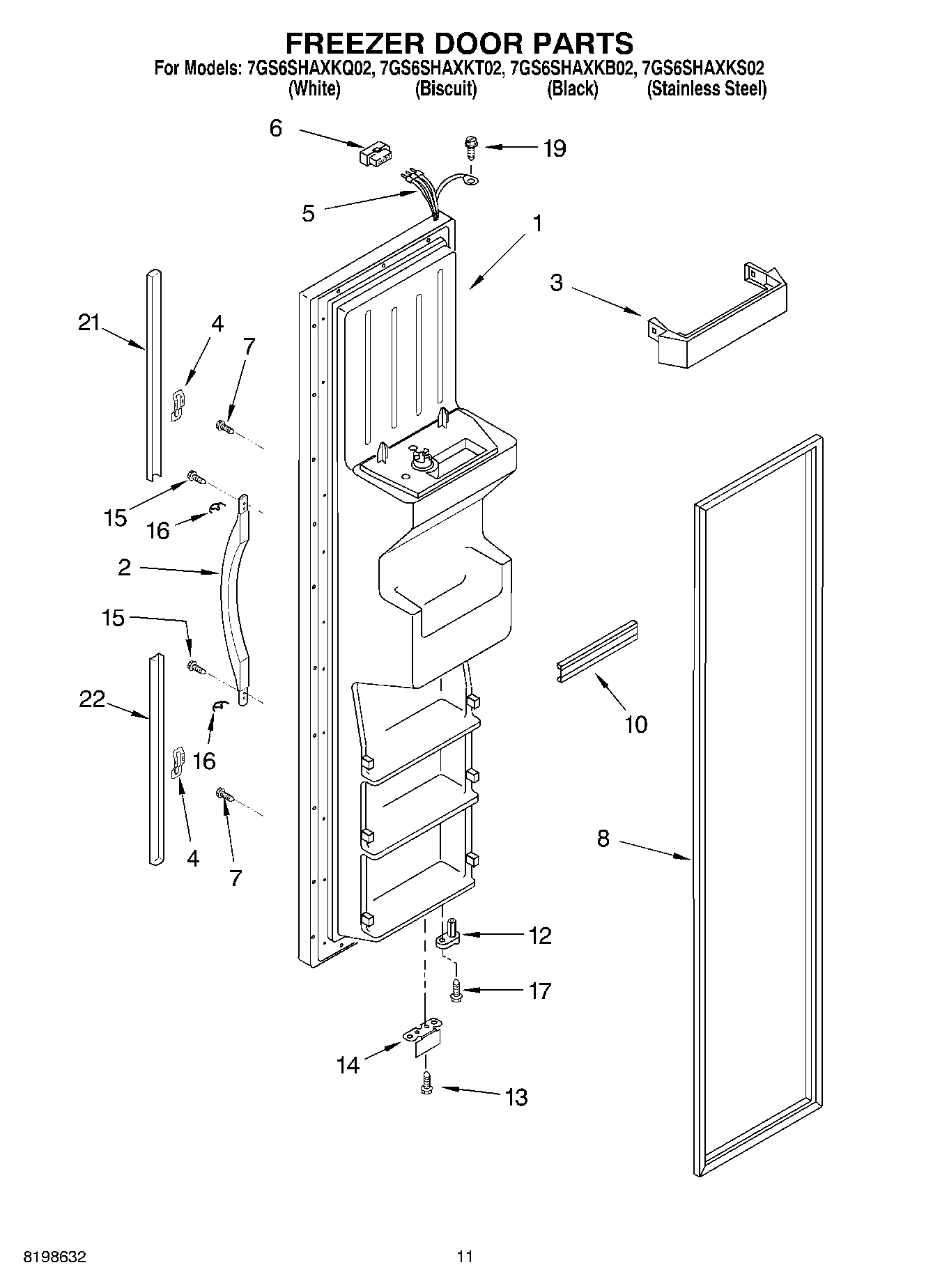

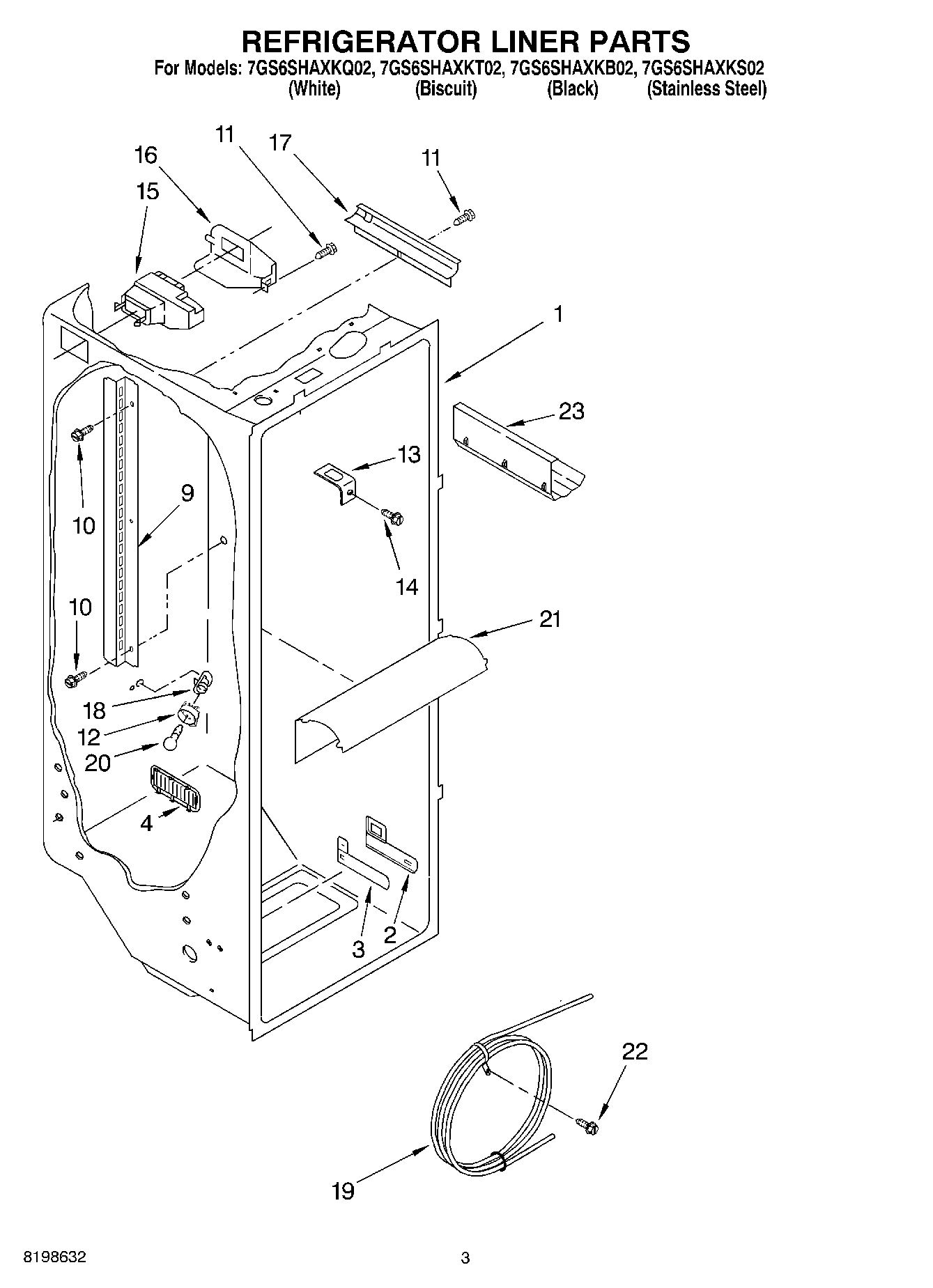

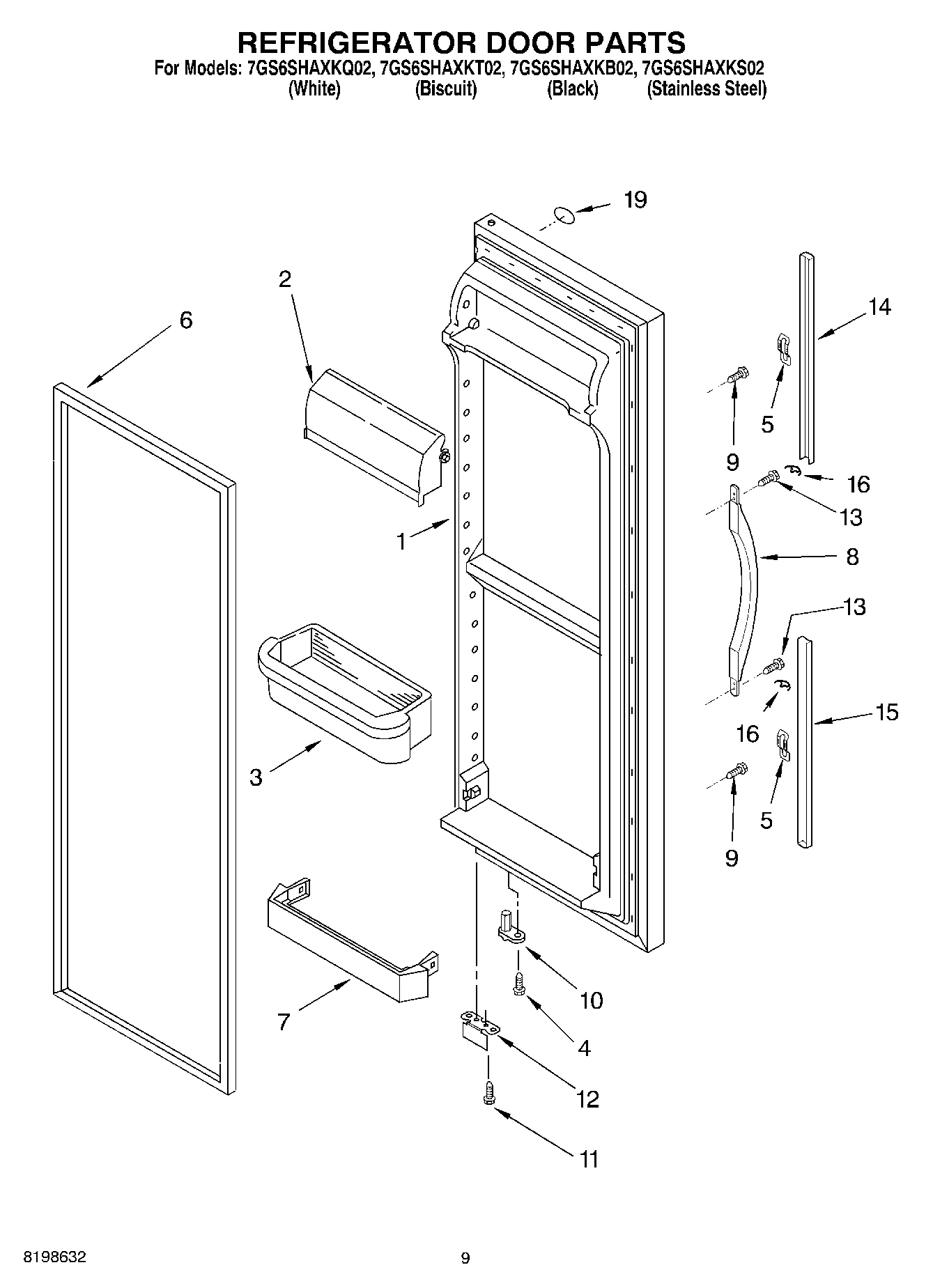

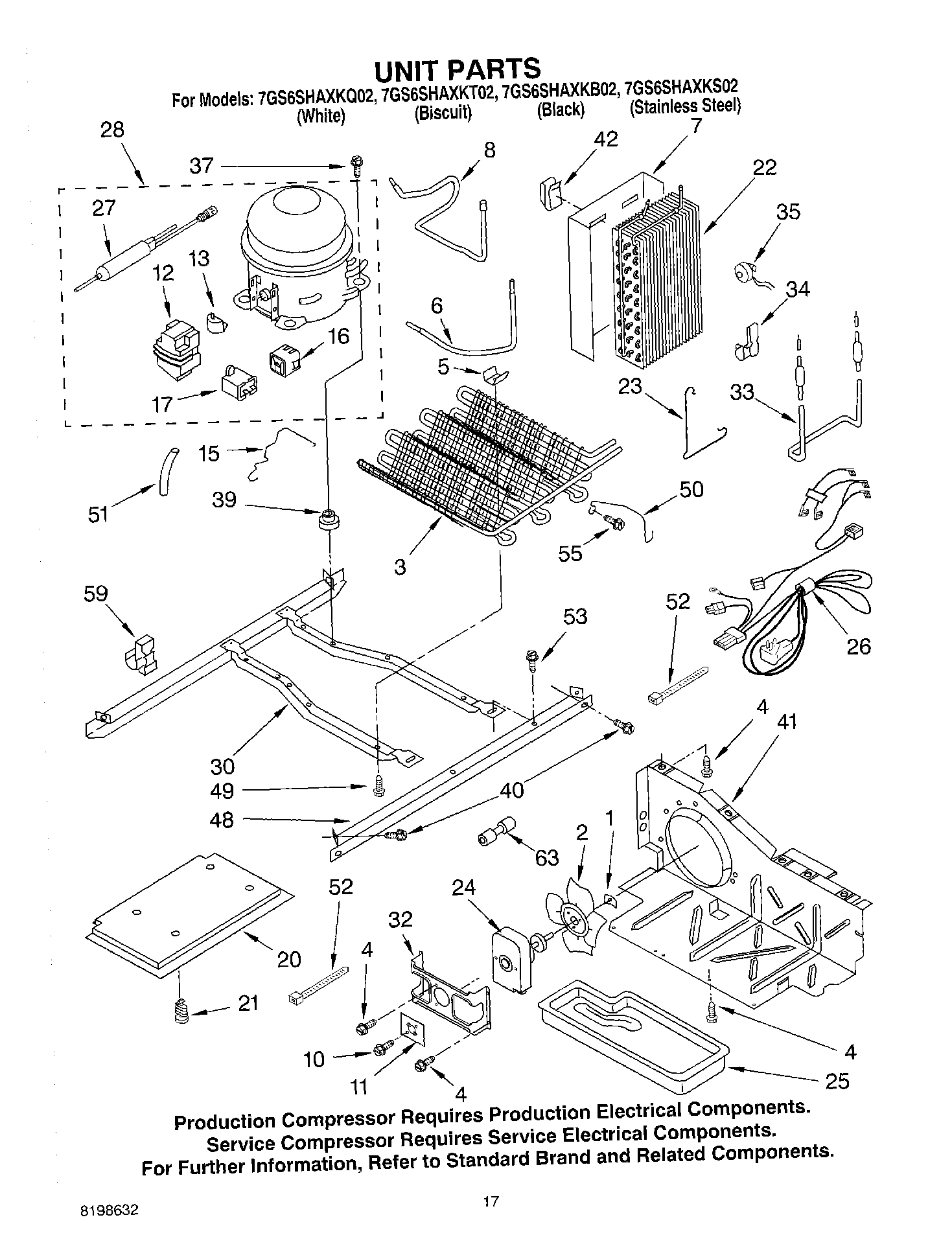

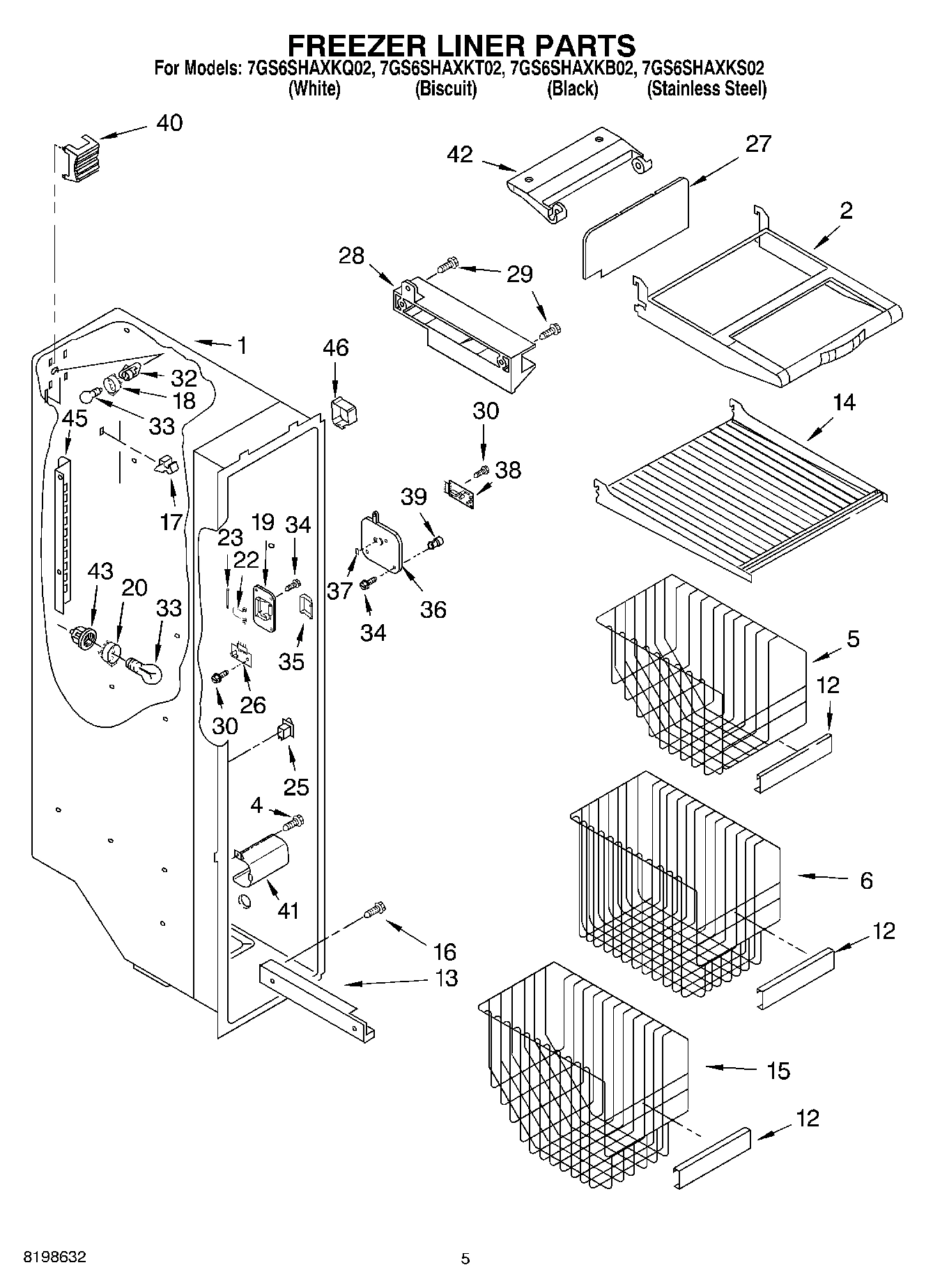

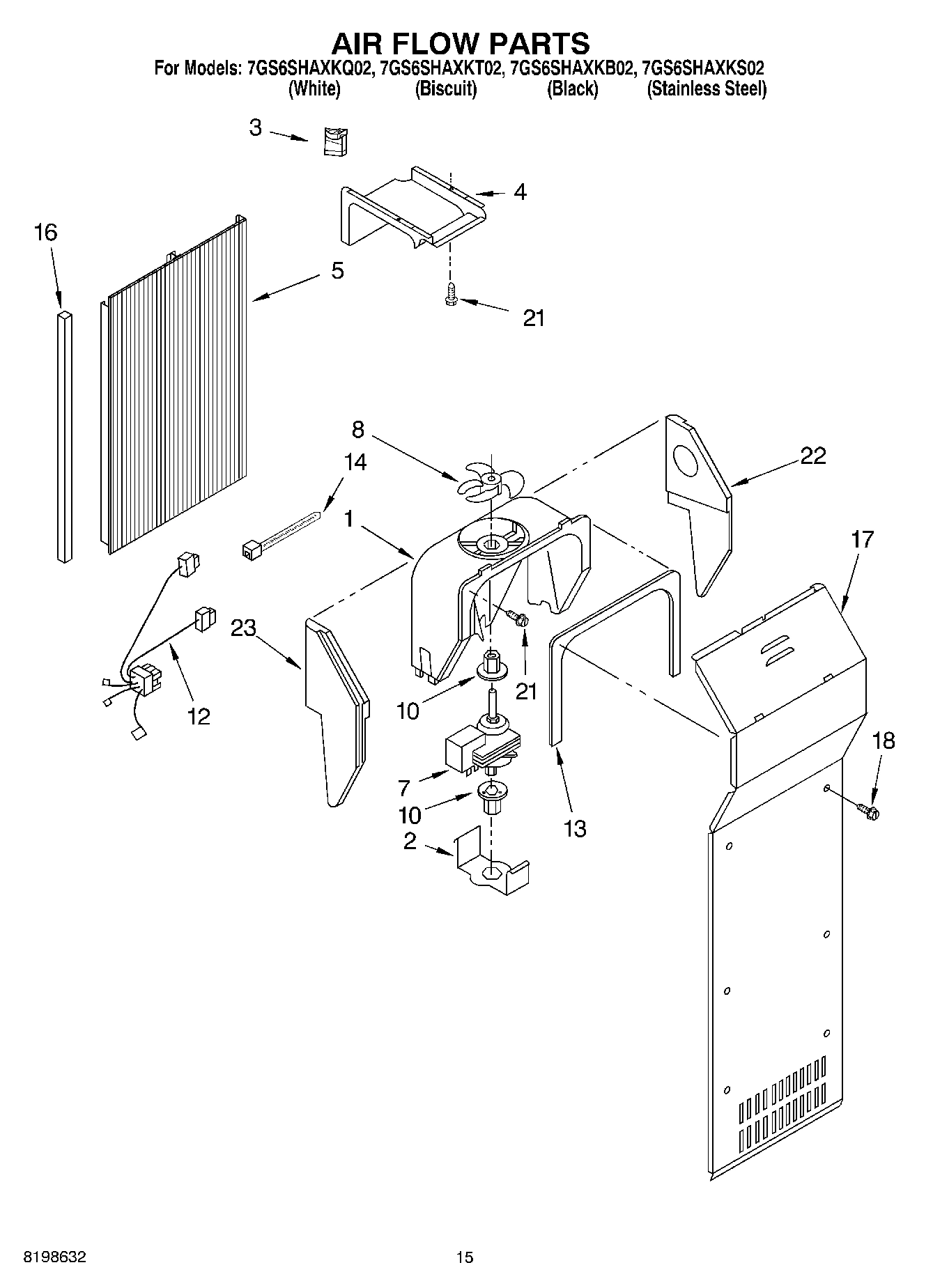

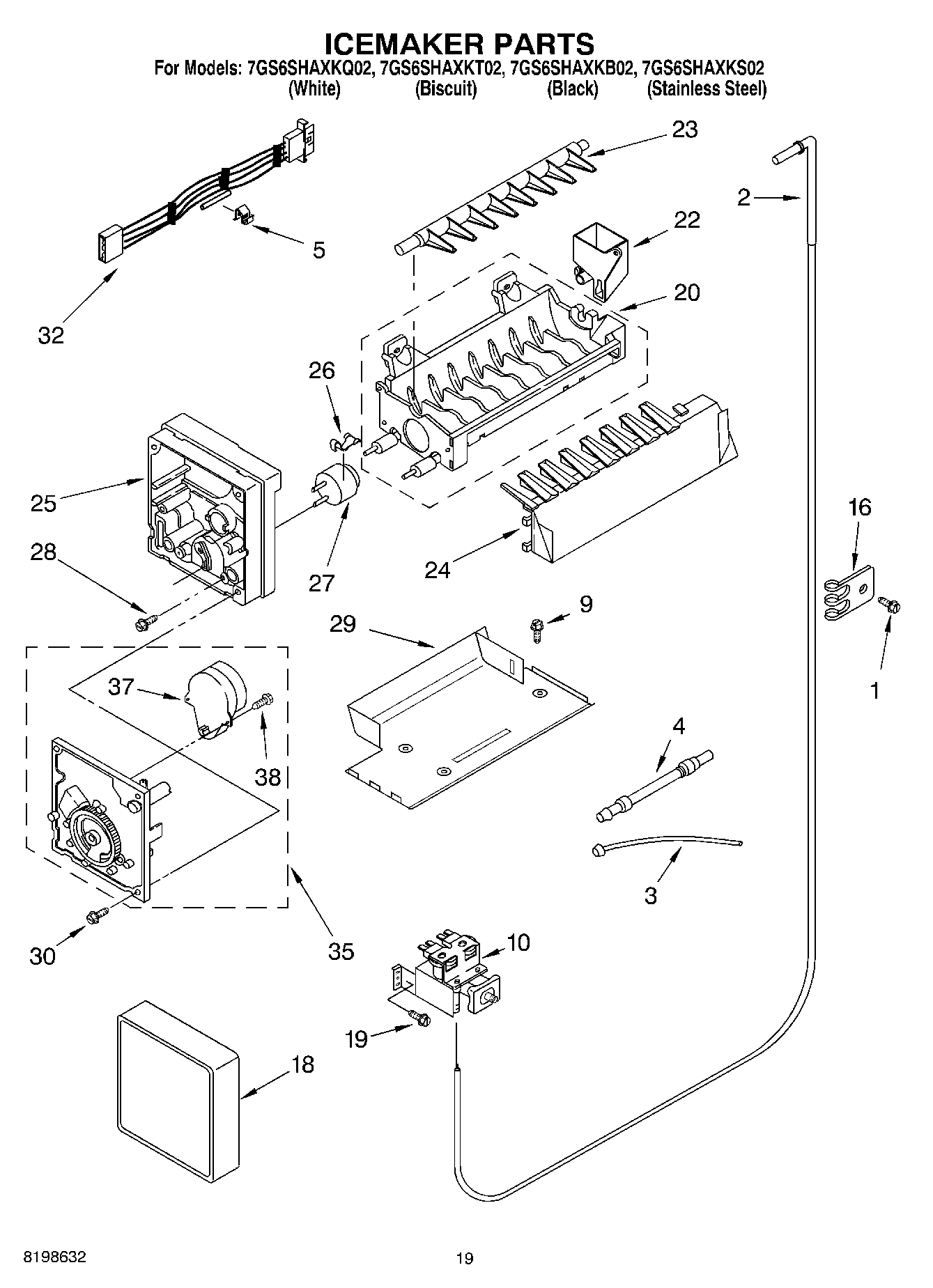

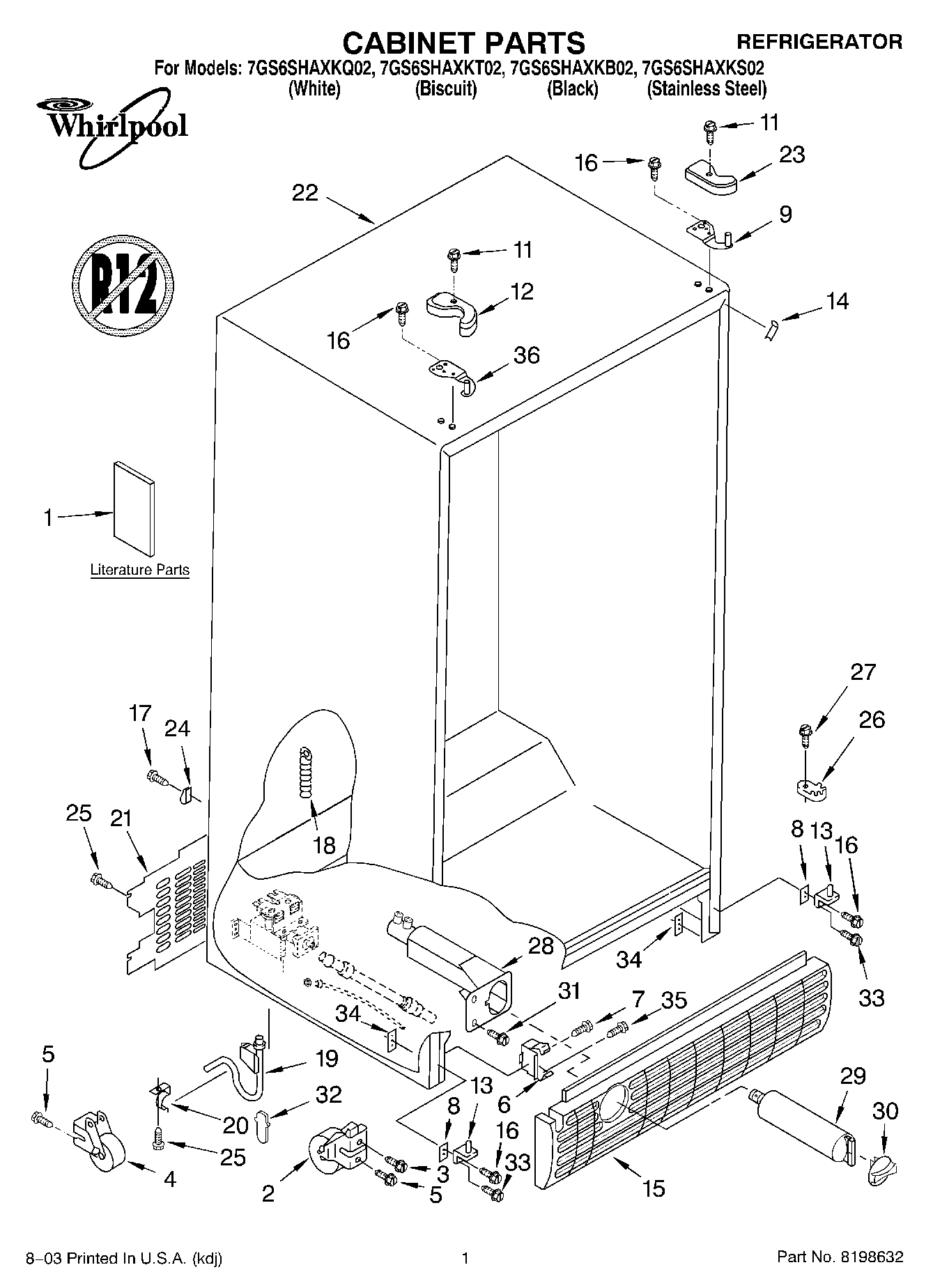

Model Whirlpool 7GS6SHAXKT02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Shelf, Flip-Up WPL 2204485 Contact Us For Availability

1

Control Box WPL 2216013 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $280.46

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $57.99

7

Heat Shield And Drain Pan WPL 2256150 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Cover, Meat Pan WPL 2217039 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $45.74

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability

Bracket, Insert WPL 2216997 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $6.89

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.90

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Start Device, Combination (Start Relay and Ov WPL 2220475 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $65.67

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

18

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Nameplate WPL 2220214 Contact Us For Availability

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $126.86

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Escutcheon, Control Box WPL 2212073 Contact Us For Availability

WP2187605 Whirlpool Wire Harness Backorder WPL WP2187605 $236.92

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Frame, Shelf WPL 2195975 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Knob, Air Control WPL 2197871 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

33

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI17461A2 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI17462A1 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
