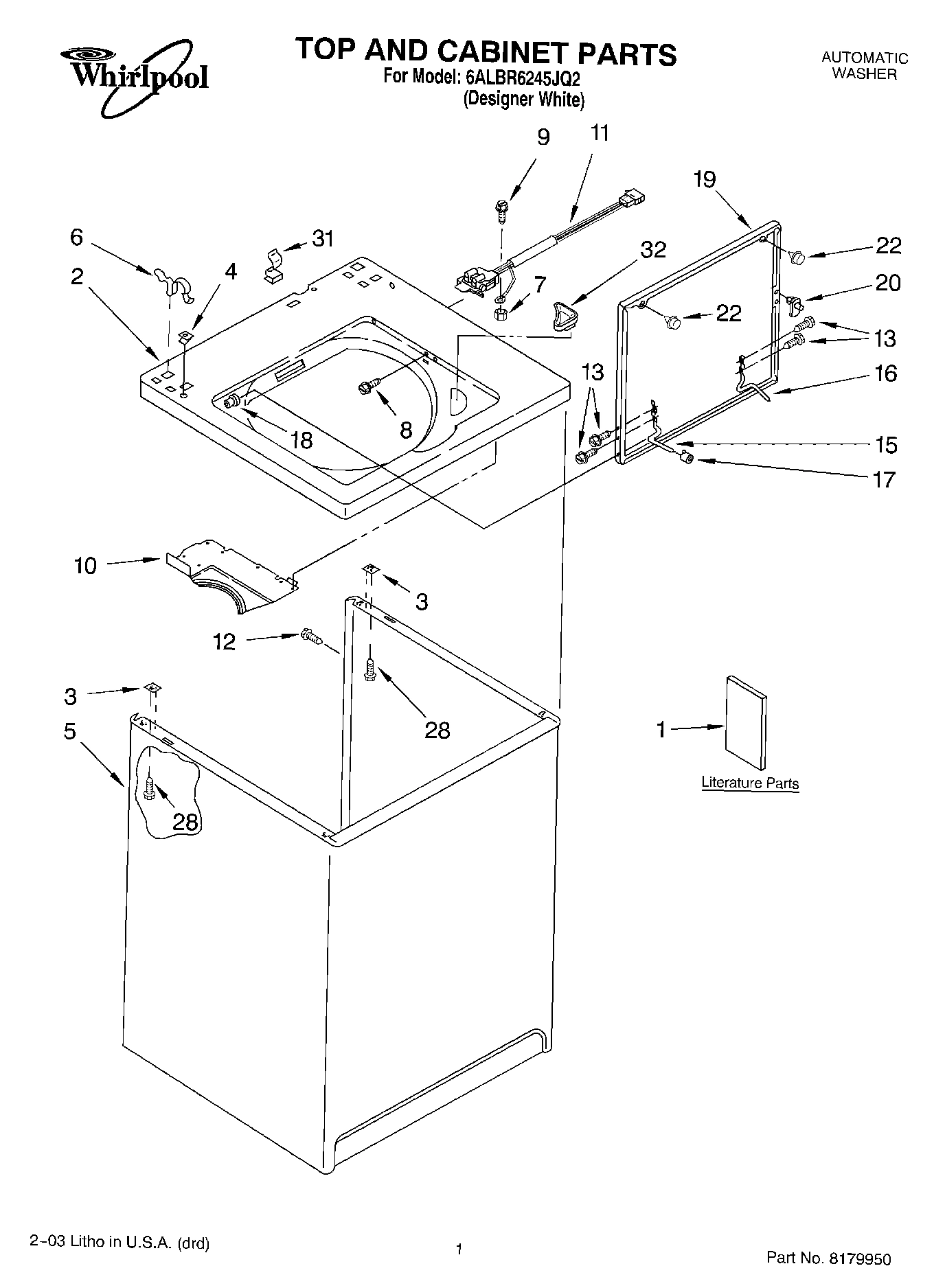

Model Whirlpool 6ALBR6245JQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Hose, Sensor (Lower) WPL 3363509 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Tub Ring & Gasket WPL 3950568 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 8318407 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

8

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

8

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

8

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

8

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

8

Balance Ring (Includes 7) WPL 387868 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

3363395 Whirlpool Gearcase Backorder WPL 3363395 $263.92

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3954170 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

(Kit-Adapter) (Includes. Item) (20. And 27.) WPL 285750 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $53.47

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285852A Whirlpool Washer Direct Drive Heavy D In Stock WPL 285852A $18.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

Bracket, Control WPL 3948814 Contact Us For Availability

BASKET WPL 8312681 Contact Us For Availability

8316060 Whirlpool Shield Backorder WPL 8316060 $49.60

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Tub WPL 63125 Contact Us For Availability

Cord, Power WPL 8541694 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $178.51

285459 Whirlpool Washer Base Backorder WPL 285459 $243.38

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

WP3363190 Whirlpool Drive Motor Backorder WPL WP3363190 $266.82

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $19.64

20

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $5.13

20

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

Hose, Sensor (Upper) WPL 3363516 Contact Us For Availability

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

Assembly, Drain Hose WPL 8317941 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

27

Agitator, Asy (Complete) WPL 3350829 Contact Us For Availability

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $75.73

Clamp, Hose WPL 3976395 Contact Us For Availability

29

Sensor, Inline WPL 3352282 Contact Us For Availability

29

Clamp, Capacitor WPL 3949496 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

33

Shield, ATC WPL 8316039 Contact Us For Availability

34

WPW10110247 Whirlpool Electronic Control Boar Backorder WPL WPW10110247 $81.52

35

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $107.37

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

Screw, Ground WPL 3179795 Contact Us For Availability

38

3407160 Whirlpool Transformer Backorder WPL 3407160 $166.73

39

Panel, Console WPL 8314873 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $32.71

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $36.18

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

52

Switch, Rotary WPL 3950353 Contact Us For Availability

55

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

58

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

60

Harness, Wiring (For Detail See Pages 9 & WPL 3956192 Contact Us For Availability
