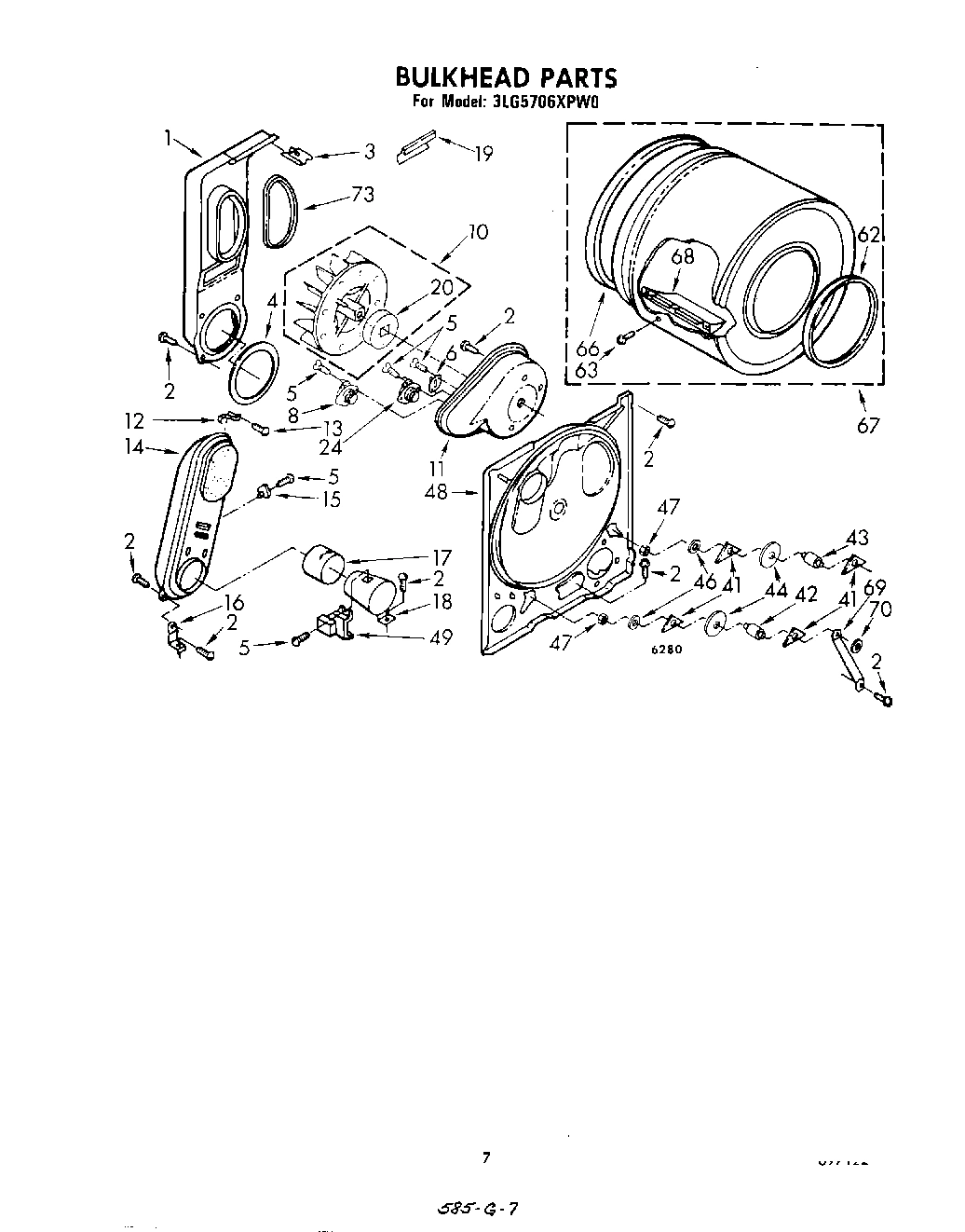

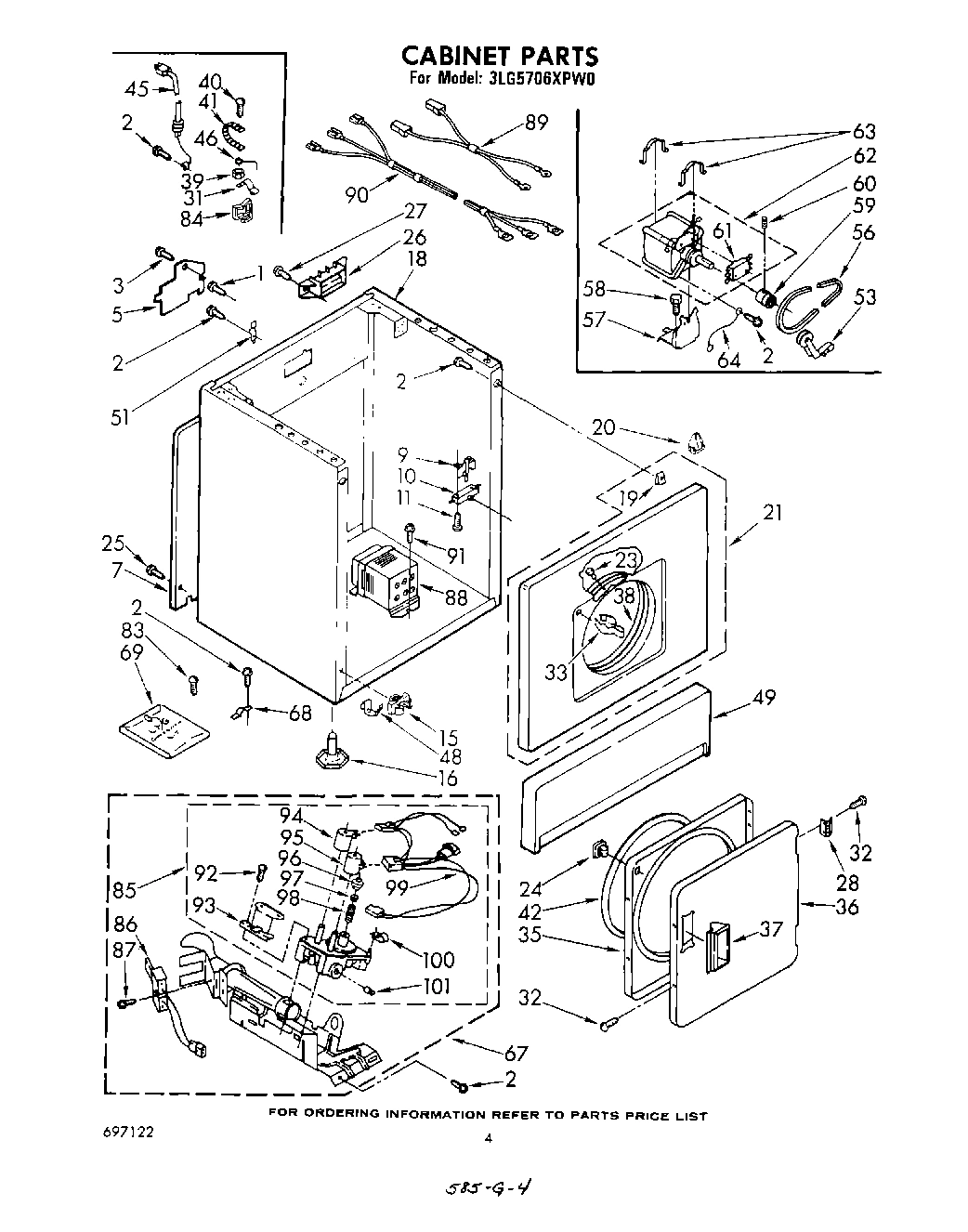

Model Whirlpool 3LG5706XPW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $197.13

1

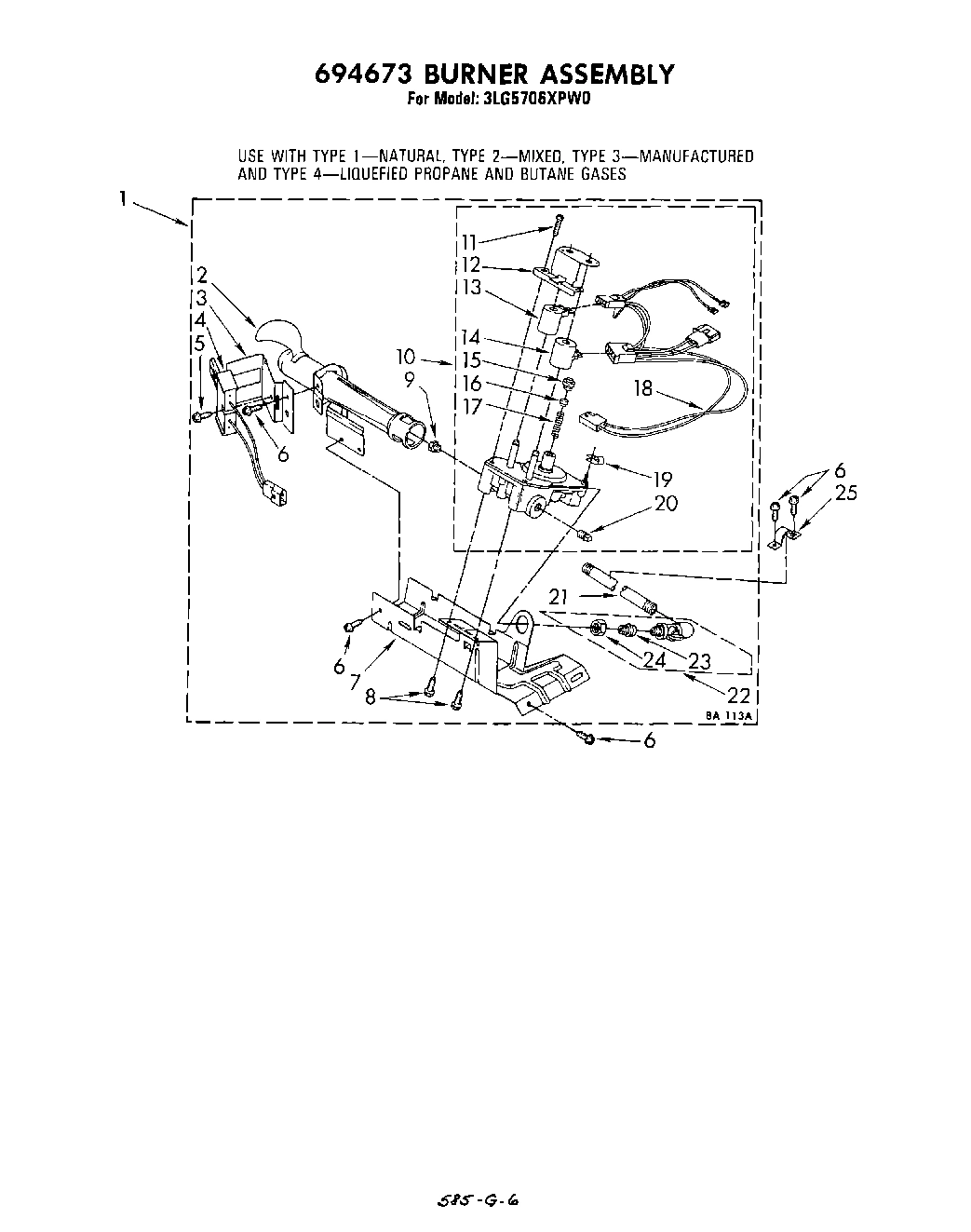

Burner Assembly 50 Hz. (Type 1, 2 & 3) (White WPL 694673 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

3

98460 Whirlpool Nut Backorder WPL 98460 $8.89

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $11.99

7

Panel, Rear WPL 347736 Contact Us For Availability

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Orifice, Burner (Type 3) WPL 234661 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 234870 Contact Us For Availability

9

Orifice, Burner (Type 4 (Butane)) WPL 299372 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

SCREEN WPL 339392 Contact Us For Availability

Valve, Gas 50 Hz. (Complete) WPL 695082 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

11

Housing, Blower WPL 348494 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

13

WP307930 Whirlpool Coil Valve Backorder WPL WP307930 $75.51

14

WPY307931 Whirlpool Valve Coil Backorder WPL WPY307931 $82.62

Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Clip, Toe Panel (2) WPL 696232 Contact Us For Availability

Thermostat, 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

20

Seal, Blower WPL 694630 Contact Us For Availability

Timer Assembly 50 Hz. WPL 687951 Contact Us For Availability

Upper Front Panel (White) WPL 693202 Contact Us For Availability

Upper Front Panel (Almond) WPL 693203 Contact Us For Availability

Upper Front Panel (Golden Harvest) WPL 693206 Contact Us For Availability

Upper Front Panel (Toast) WPL 695261 Contact Us For Availability

Upper Front Panel (Platinum) WPL 695262 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Harness, Wiring WPL 696320 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

24

Nut, Compression WPL 233076 Contact Us For Availability

25

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

25

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $33.61

27

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

35

280077 Whirlpool Door Backorder WPL 280077 $116.66

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695214 Contact Us For Availability

Door, Front (Platinum) WPL 695215 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

Switch, Push-To-Start WPL 660936 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

Insulation, Dryer WPL 685870 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

Wire, Ground WPL 685449 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

48

Timer Knob Assembly WPL 695555 Contact Us For Availability

48

Bulkhead WPL 685775 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

Panel, Toe (White) WPL 237035 Contact Us For Availability

Pan WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695958 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

W11618508 Whirlpool Drive Motor Backorder WPL W11618508 $213.59

60

WPL 690046 WPL 690046 Contact Us For Availability

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

62

WPL 693715 WPL 693715 Contact Us For Availability

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

695237 Whirlpool Gas LP Conversion Backorder WPL 695237 $86.72

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

Receptacle, Latching WPL 691707 Contact Us For Availability

79

Switch, Temperature WPL 348687 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability

84

WPL 688412 WPL 688412 Contact Us For Availability

88

W10851673 Whirlpool Transformer Backorder WPL W10851673 $292.27

89

WPL 345450 WPL 345450 Contact Us For Availability

90

WPL 349849 WPL 349849 Contact Us For Availability

91

WPL 90723 WPL 90723 Contact Us For Availability

96

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

97

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

98

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83
