Model Whirlpool 3CSP2761BW1 ELECTRIC DRYER – Common Parts & Diagrams
07 - 3402609 BURNER ASSEMBLY

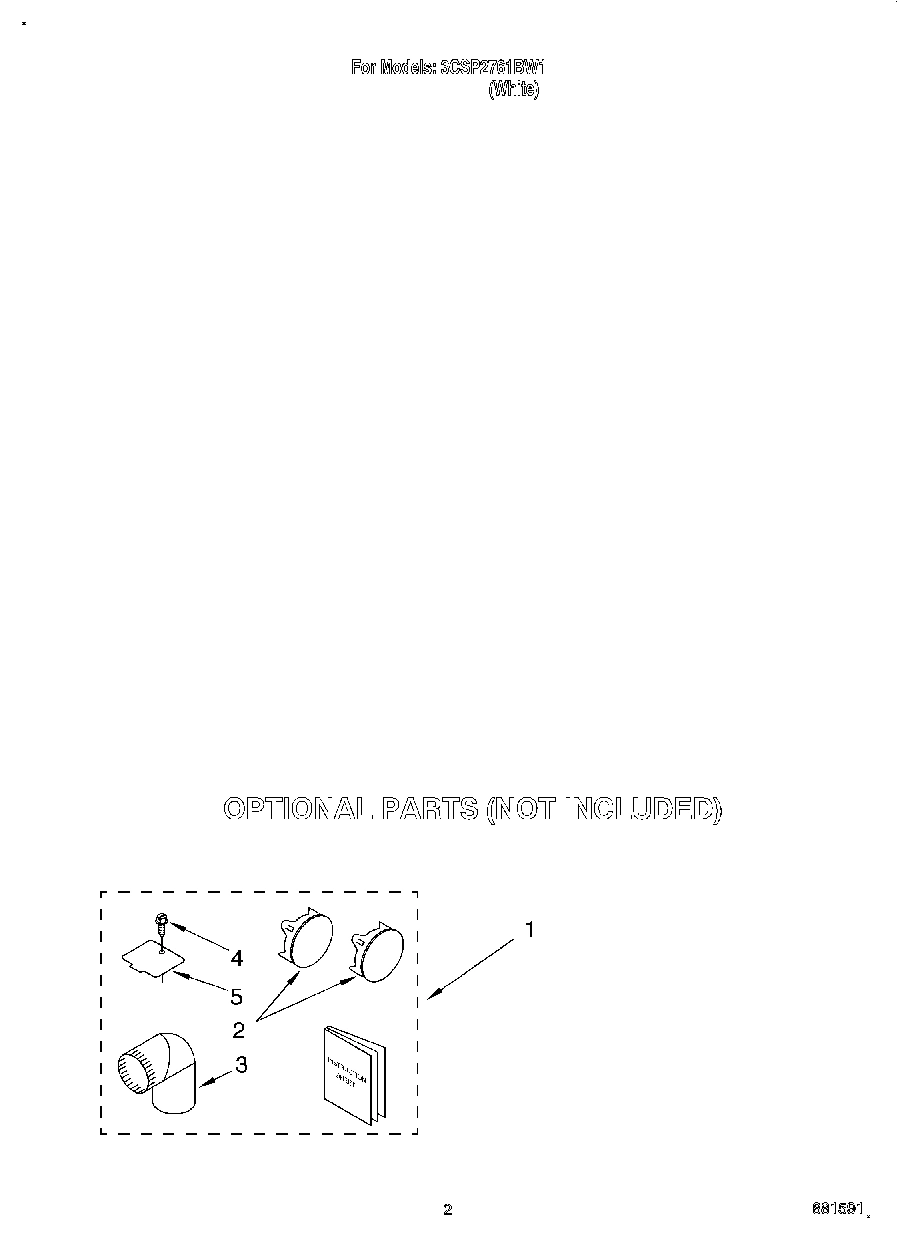

02 - OPTIONAL

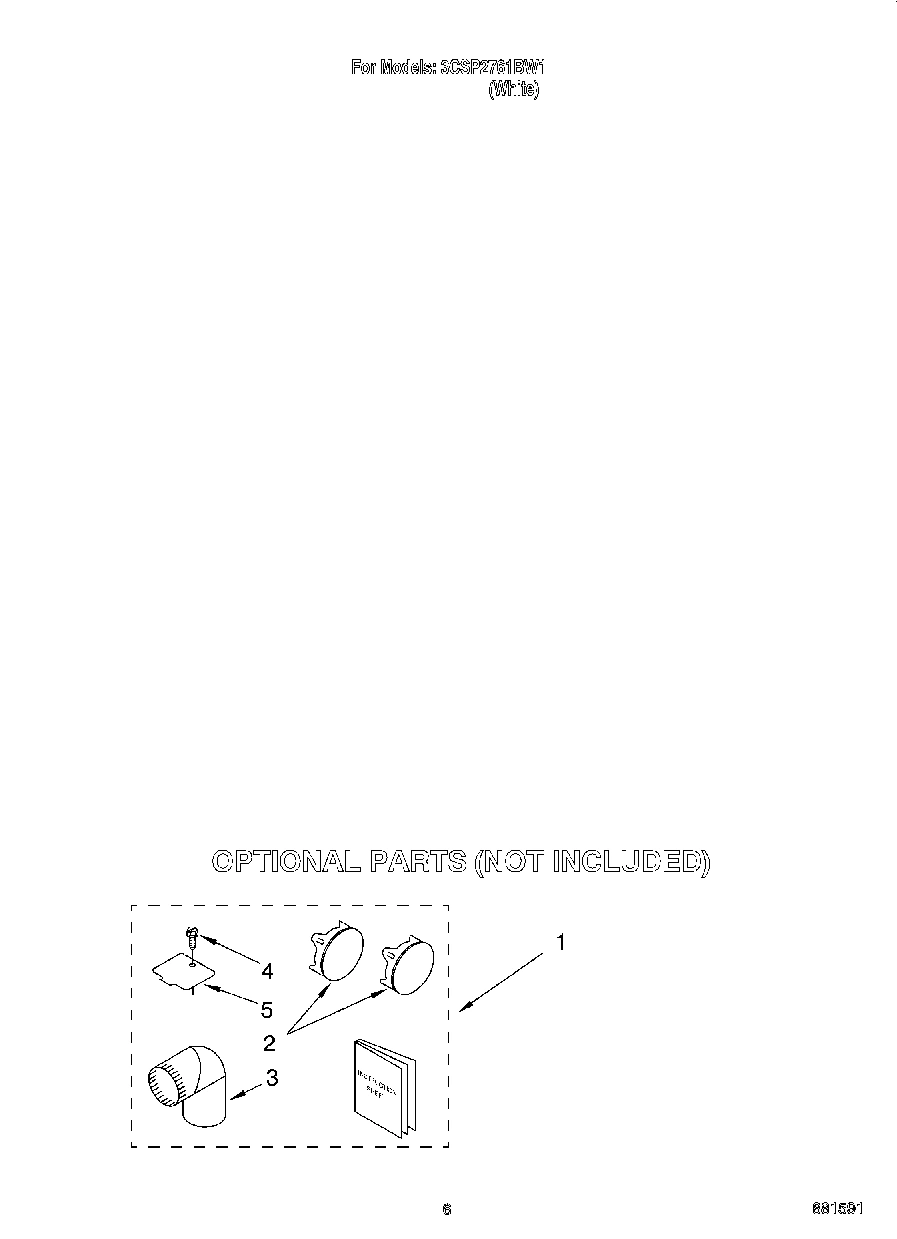

05 - OPTIONAL

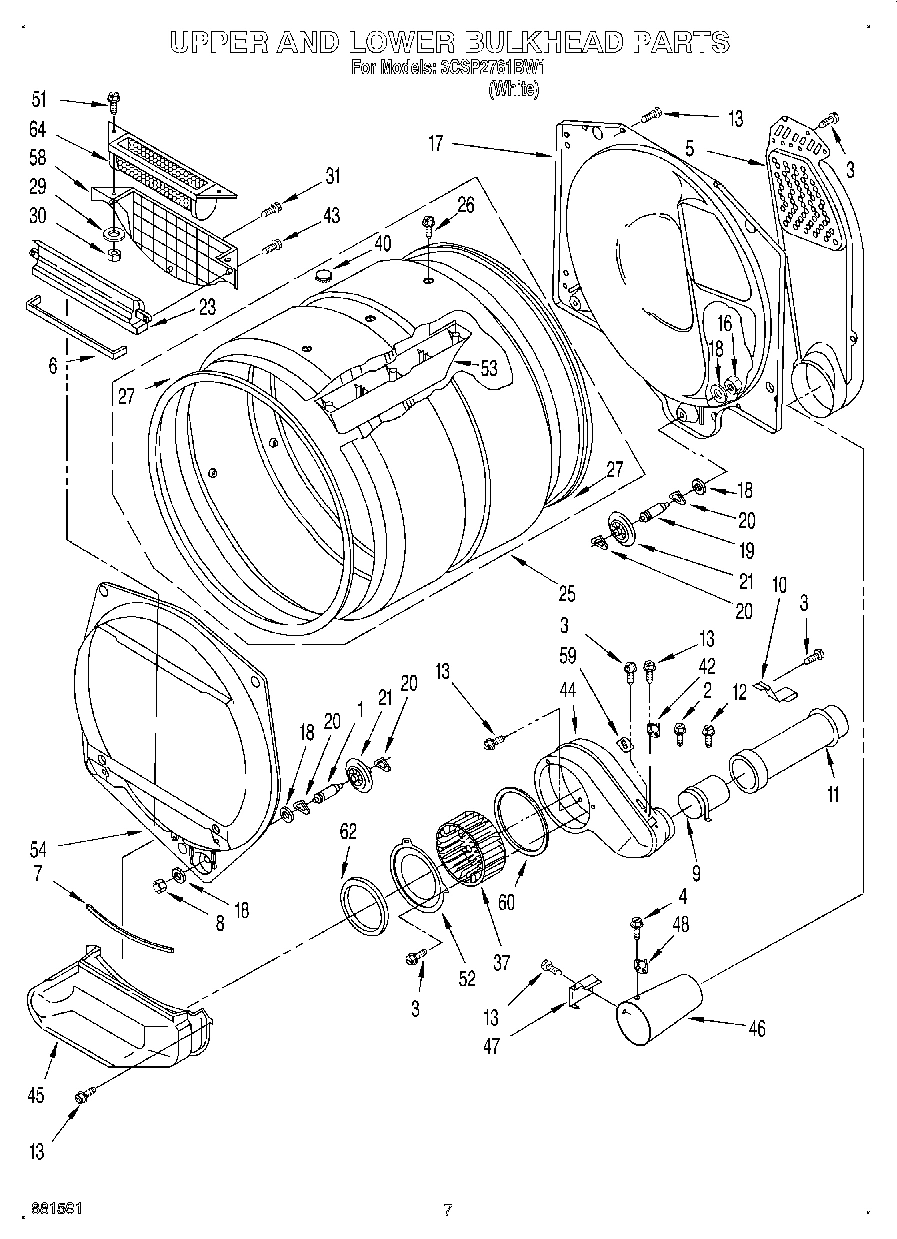

06 - UPPER AND LOWER BULKHEAD, LIT/OPTIONAL

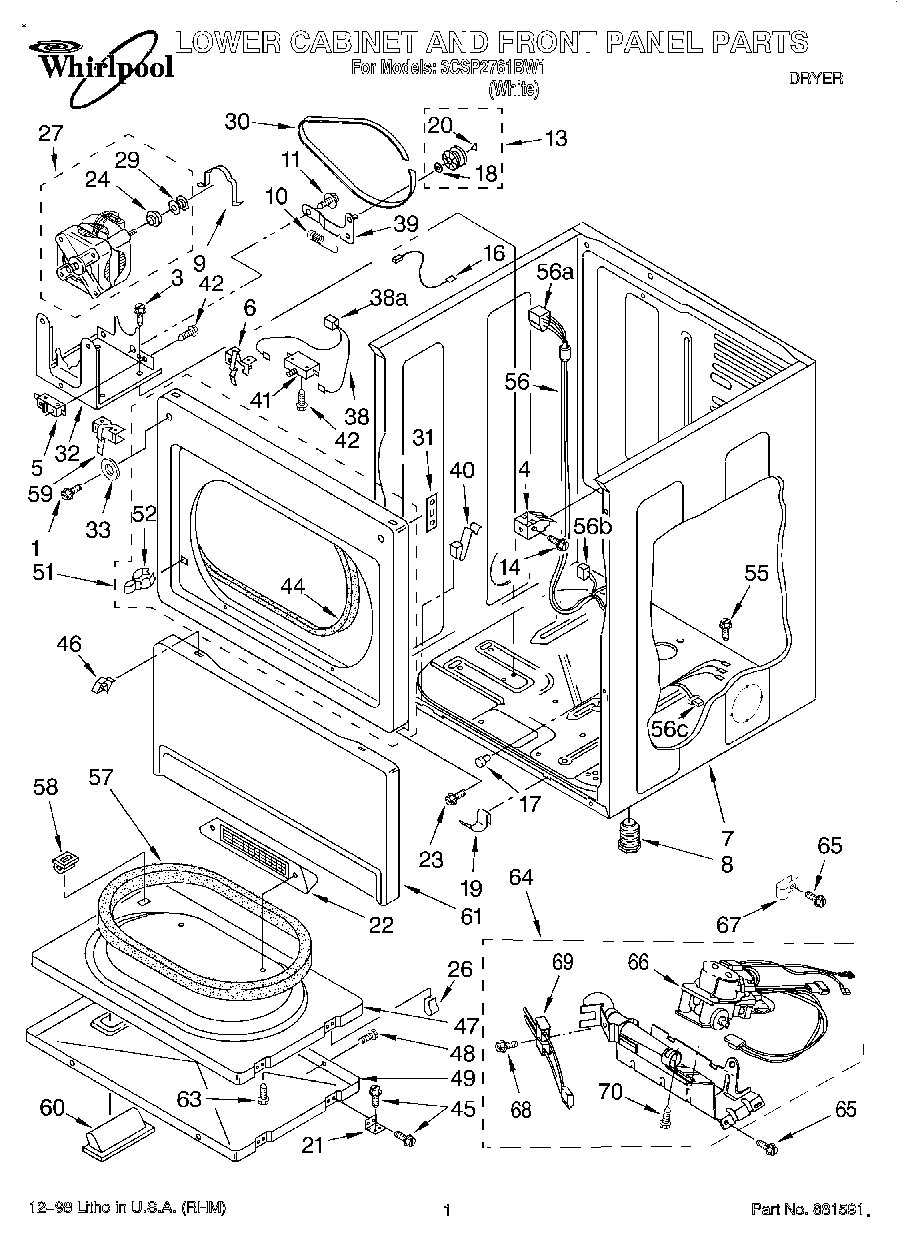

01 - LOWER CABINET AND FRONT PANEL

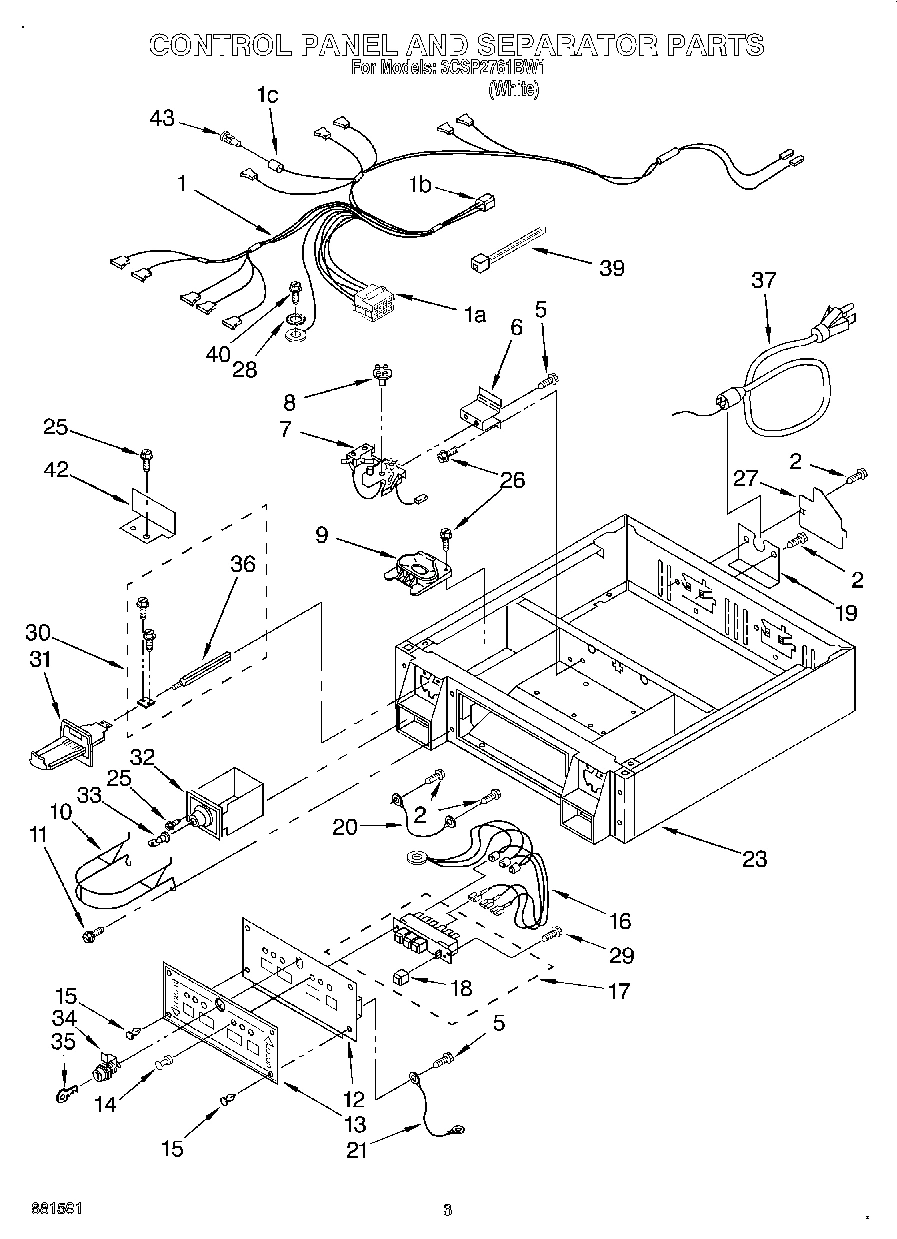

03 - CONTROL PANEL AND SEPARATOR

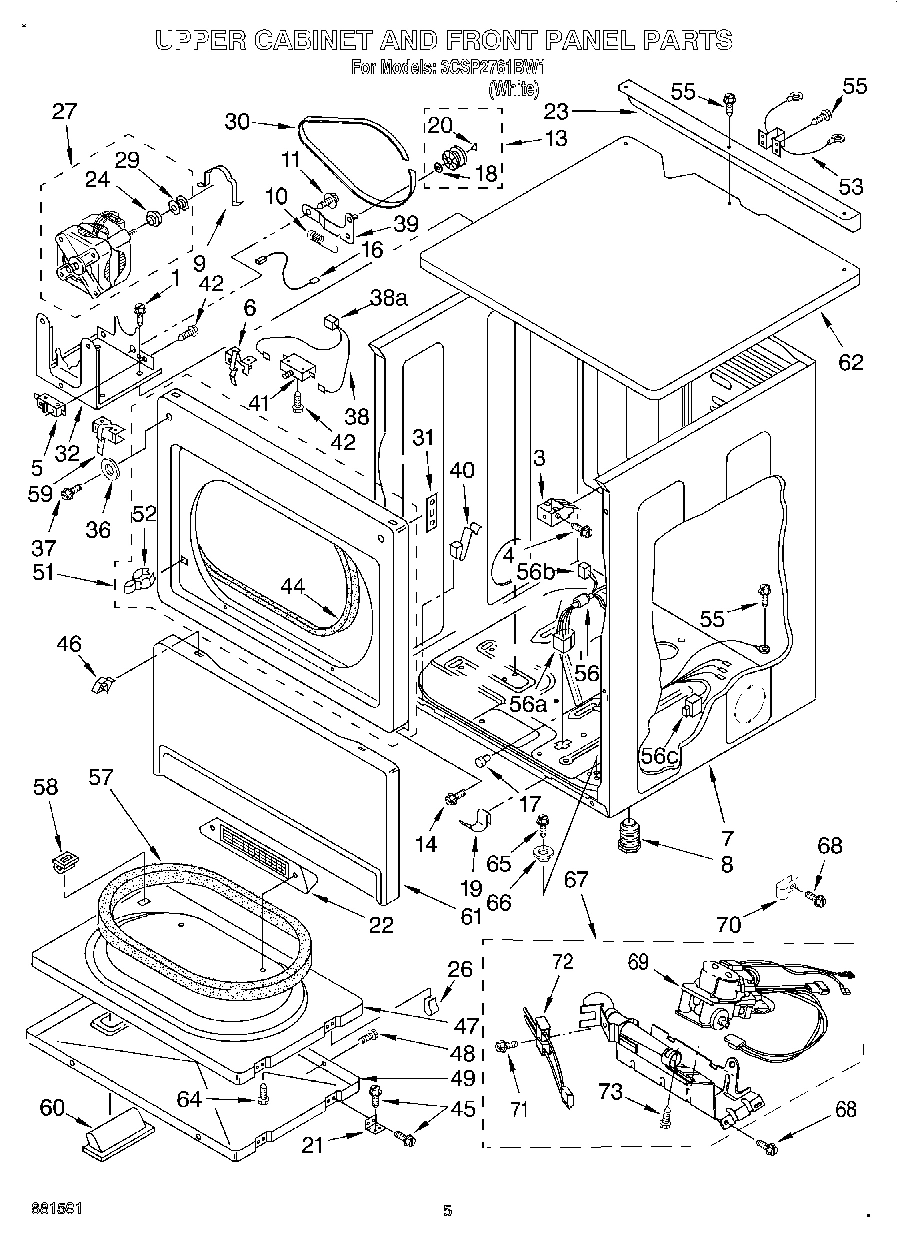

04 - UPPER CABINET AND FRONT PANEL
Common parts from model Whirlpool 3CSP2761BW1 ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (U WPL 799344 Contact Us For Availability
1
Harness, Wire (2) WPL 3404474 Contact Us For Availability
1A
Receptacle (2) (Uses Terminals 94614) WPL 385826 Contact Us For Availability
1C
Receptacle WPL 351296 Contact Us For Availability
7
Timer (Includes 4-Pin Cam) (2) WPL 3389669 Contact Us For Availability
7
Cabinet (Upper) WPL 3402264 Contact Us For Availability
9
Funnel, Coin (2) WPL 3389224 Contact Us For Availability
10
Protector, Slide (2) WPL 3389232 Contact Us For Availability
11
Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability
12
Panel, Control WPL 3389625 Contact Us For Availability
13
Insert, Decorative WPL 3390036 Contact Us For Availability
14
Lens, Light (6) WPL 3389520 Contact Us For Availability
15
Rivet (4) WPL 356388 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Indicator, Light (2) WPL 3401760 Contact Us For Availability
17
Switch, Pushbutton (2) WPL 3394078 Contact Us For Availability
18
Button, Pushbutton (8) WPL 3348587 Contact Us For Availability
19
Relief, Strain (2) 10-24 x 1/2 WPL 3390189 Contact Us For Availability
20
Strut WPL 3393463 Contact Us For Availability
21
Wire, Ground WPL 340025 Contact Us For Availability
22
Valve & Union Shut-Off WPL 697441 Contact Us For Availability
22
Grill WPL 3389507 Contact Us For Availability
23
Collar WPL 3402754 Contact Us For Availability
23
Bracket, Angle WPL 3393423 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Wire, Motor WPL 3387376 Contact Us For Availability
26
Screw (8) WPL 98437 Contact Us For Availability
26
Nut, ``U`` (4) WPL 3389249 Contact Us For Availability
28
Retainer, Terminal (2) WPL 3390443 Contact Us For Availability
30
Slide Extension Bag Assembly WPL ARI140022A Contact Us For Availability
31
Slide Mechanism (When Ordering, Specify Numbe WPL ARI140023A Contact Us For Availability
32
Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI140024A Contact Us For Availability
33
Key, Money Box (When Ordering, Specify Vender WPL ARI140025A Contact Us For Availability
34
Security Lock & Cam Assembly WPL ARI140026A Contact Us For Availability
35
Key, Service Door WPL ARI140027A Contact Us For Availability
36
Washer WPL 3392186 Contact Us For Availability
36
Bolt, Slide Mechanism WPL ARI140028A Contact Us For Availability
37
Cord, Power WPL 3387258 Contact Us For Availability
40
Clip, Lint Duct WPL 3388600 Contact Us For Availability
43
Plug WPL 351297 Contact Us For Availability
47
Door, Rear WPL 3393685 Contact Us For Availability
51
Upper Front Panel WPL 3393081 Contact Us For Availability
53
Cable WPL 3388580 Contact Us For Availability
56
Harness (Lower) WPL 3404478 Contact Us For Availability
56
Harness (Upper) WPL 3404477 Contact Us For Availability
56A
Plug, Multi- Terminal (Uses Terminals 94613) WPL 3390423 Contact Us For Availability
56B
Receptacle (Use Terminals 94614 And 94613) WPL 717252 Contact Us For Availability
56C
Receptacle, (Uses Terminal 94614) WPL 3389967 Contact Us For Availability
58
Cover, Lint Screen WPL 3389515 Contact Us For Availability
64
Screen, Lint WPL 3389509 Contact Us For Availability
64
Screw, 11-16 x 7/8 WPL 697777 Contact Us For Availability
66
Bushing WPL 3389233 Contact Us For Availability
67
Burner Assembly 50 Hz. (Refer To Parts P WPL 3402609 Contact Us For Availability
× ![]()
