Model Whirlpool 3CSP2760BN0 ELECTRIC DRYER – Common Parts & Diagrams

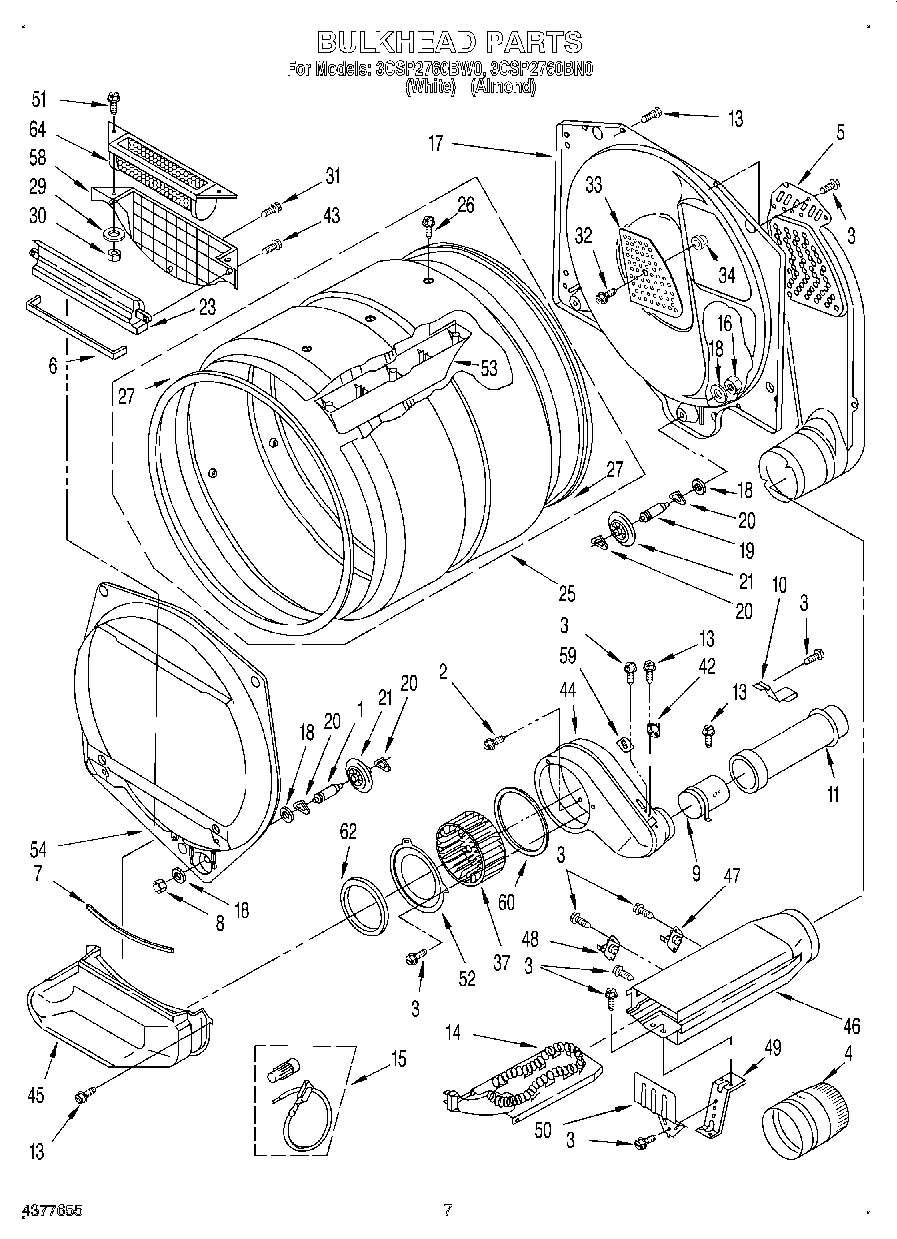

04 - BULKHEAD, LIT/OPTIONAL

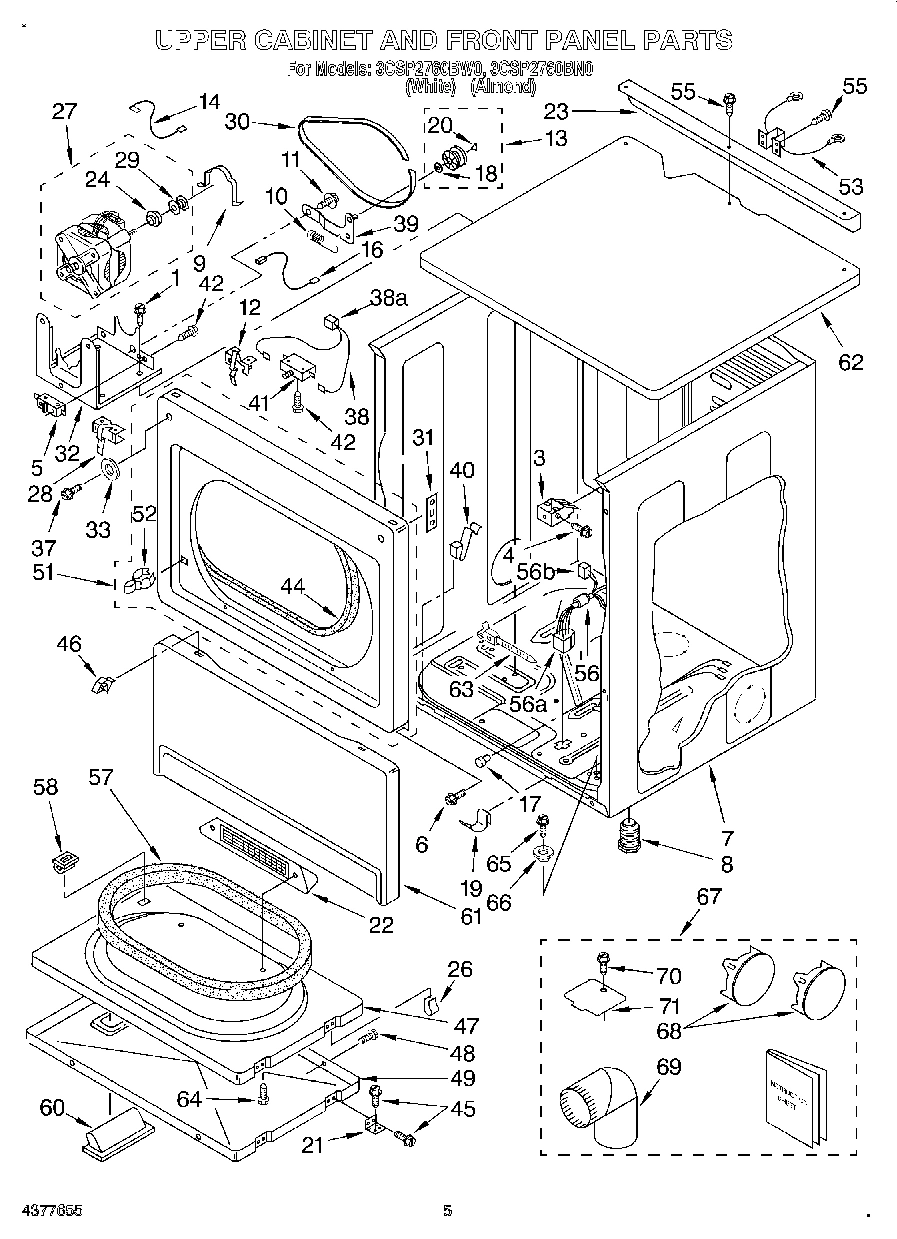

03 - UPPER CABINET AND FRONT PANEL

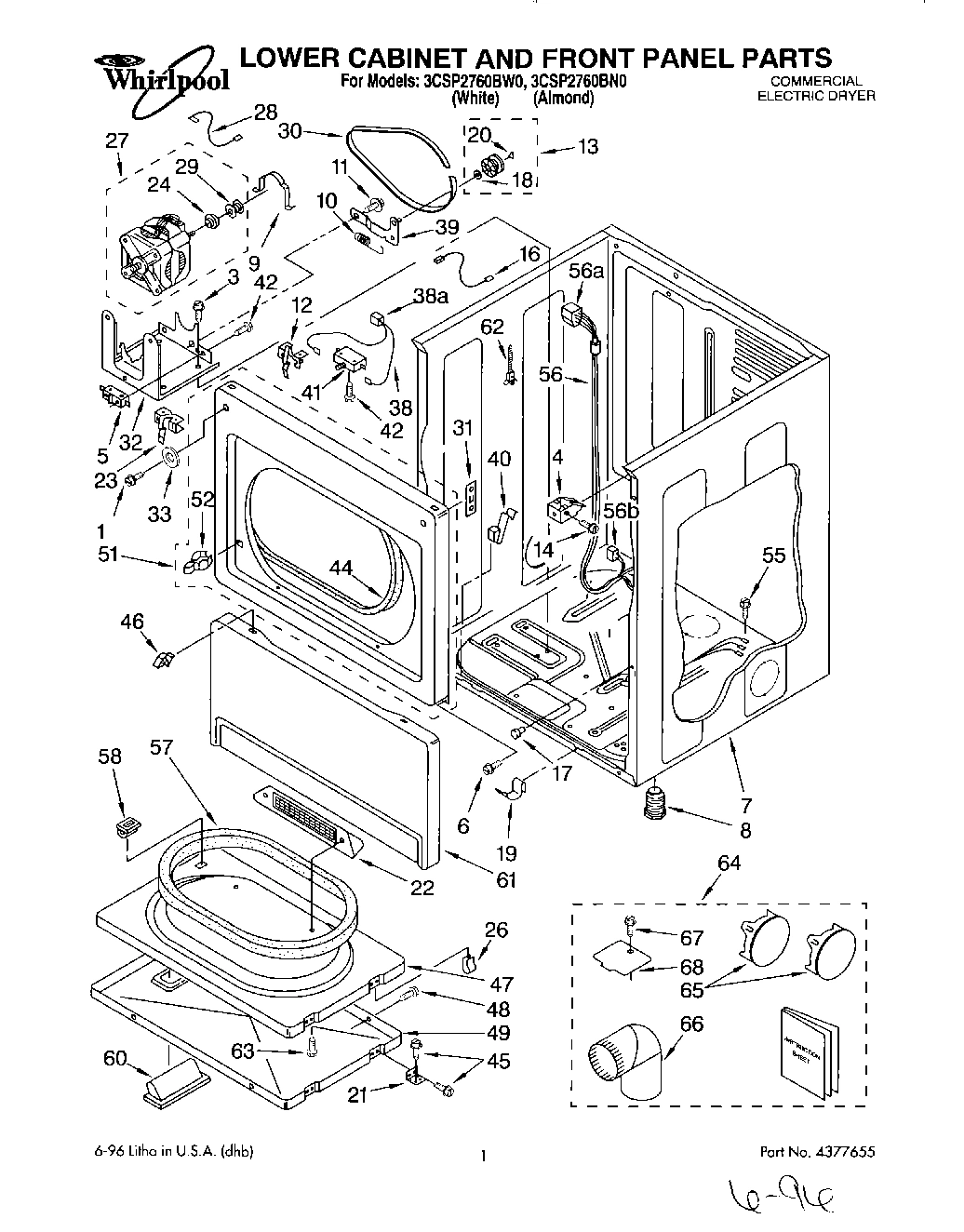

01 - LOWER CABINET AND FRONT PANEL

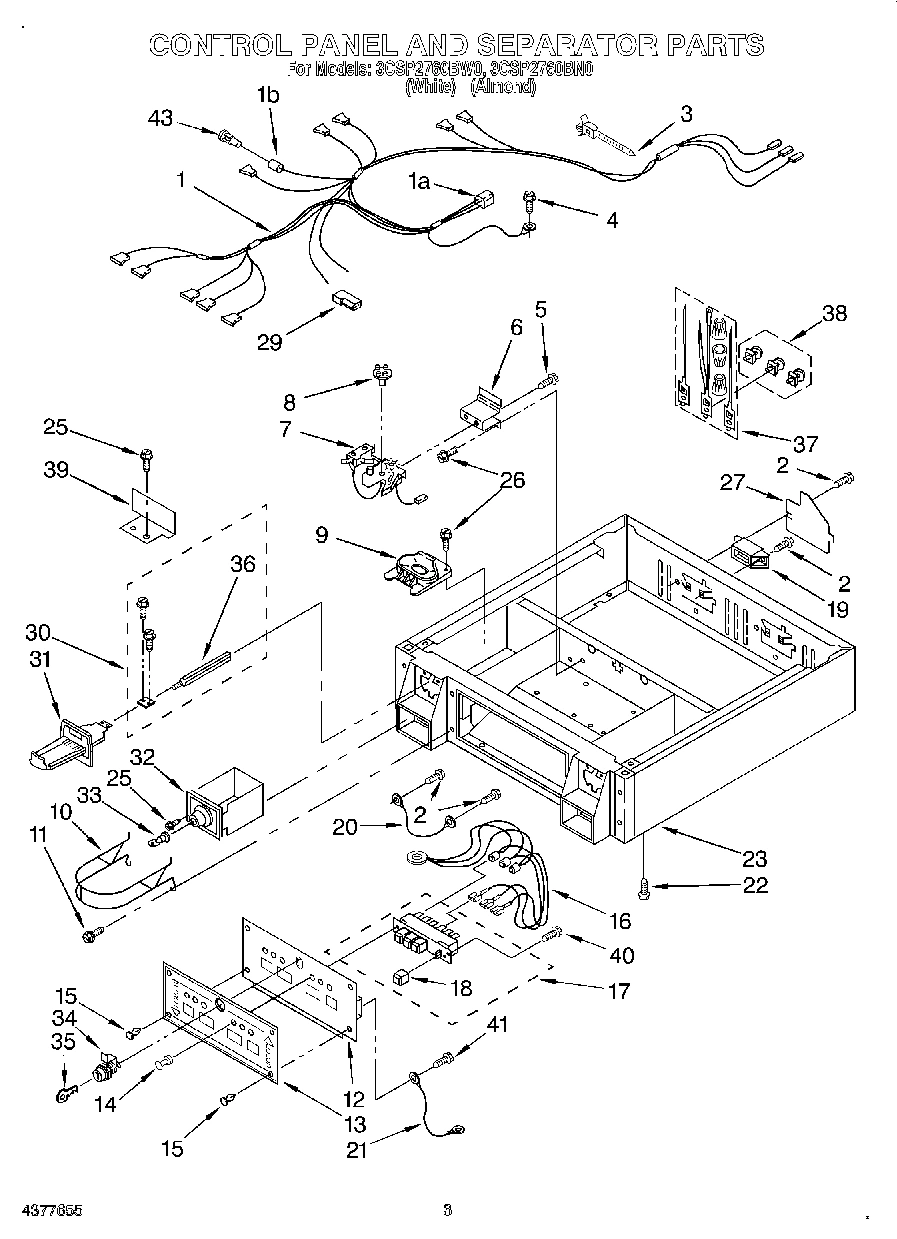

02 - CONTROL PANEL AND SEPARATOR
Common parts from model Whirlpool 3CSP2760BN0 ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
1
Receptacle (2) (Uses Terminals (2) WPL 692998 Contact Us For Availability
1
Harness, Wire (2) 1A WPL 3404473 Contact Us For Availability
1
Receptacle (Uses Terminals WPL 351296 Contact Us For Availability
1
Terminal (2) WPL 693164 Contact Us For Availability
1
Terminal (3) WPL 693166 Contact Us For Availability
1
Terminal (2) WPL 693167 Contact Us For Availability
7
Cabinet, Lower (White) WPL 3402264 Contact Us For Availability
7
Cabinet, Lower (Almond) WPL 3402265 Contact Us For Availability
7
Timer (Includes 4-Pin Cam) (2) WPL 3389669 Contact Us For Availability
9
Funnel, Coin (2) WPL 3389224 Contact Us For Availability
10
Protector, Slide (2) WPL 3389232 Contact Us For Availability
11
Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability
12
Panel, Control WPL 3389625 Contact Us For Availability
13
Insert, Decorative WPL 3390036 Contact Us For Availability
14
Lens, Light (6) WPL 3389520 Contact Us For Availability
15
Rivet (4) WPL 356388 Contact Us For Availability
16
Wire, Belt Switch WPL 3394081 Contact Us For Availability
16
Indicator, Light (2) WPL 3401760 Contact Us For Availability
17
Switch, Pushbutton (2) WPL 3401851 Contact Us For Availability
18
Button, Pushbutton (8) WPL 3348587 Contact Us For Availability
20
Strut WPL 3393463 Contact Us For Availability
21
Wire, Ground WPL 340025 Contact Us For Availability
22
Grill WPL 3391611 Contact Us For Availability
23
Collar (White) WPL 3402385 Contact Us For Availability
23
Collar (Almond) WPL 3402386 Contact Us For Availability
26
Nut, ``U`` (4) WPL 3389249 Contact Us For Availability
26
Screw (8) WPL 98437 Contact Us For Availability
29
Receptacle (Uses Terminals WPL 717252 Contact Us For Availability
30
Slide Extension Bag Assembly WPL ARI11728A7 Contact Us For Availability
31
Slide Mechanism (When Ordering, Specify Numbe WPL ARI11729A3 Contact Us For Availability
32
Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI11730A8 Contact Us For Availability
33
Washer (2) WPL 3392186 Contact Us For Availability
33
Key, Money Box (When Ordering, Specify Vender WPL ARI11731A5 Contact Us For Availability
34
Security Lock & Cam Assembly WPL ARI11732A1 Contact Us For Availability
35
Key WPL ARI11733A5 Contact Us For Availability
36
WPL ARI11734A1 WPL ARI11734A1 Contact Us For Availability
38
Harness, Door Switch 38A WPL 3389967 Contact Us For Availability
40
Clip, Lint Duct WPL 3388600 Contact Us For Availability
43
WPL 351297 WPL 351297 Contact Us For Availability
47
Door, Rear WPL 3393681 Contact Us For Availability
49
Door, Front (Almond) WPL 3387873 Contact Us For Availability
51
Lower Front Panel (White) WPL 3393081 Contact Us For Availability
53
Cable WPL 3388580 Contact Us For Availability
56
Harness (Upper) WPL 3404475 Contact Us For Availability
56
Terminal (2) WPL 693163 Contact Us For Availability
56
Terminal (2) WPL 693168 Contact Us For Availability
56
(3) WPL 963165 Contact Us For Availability
56
Harness (Lower) WPL 3404476 Contact Us For Availability
56A
Plug, Mult- Terminal (Uses Terminals 3388387 WPL 692997 Contact Us For Availability
60
WPL 3389523 WPL 3389523 Contact Us For Availability
61
WPL 697216 WPL 697216 Contact Us For Availability
62
WPL 3389352 WPL 3389352 Contact Us For Availability
63
WPL 697777 WPL 697777 Contact Us For Availability
66
WPL 3389233 WPL 3389233 Contact Us For Availability
66
WPL 279731 WPL 279731 Contact Us For Availability
× ![]()
