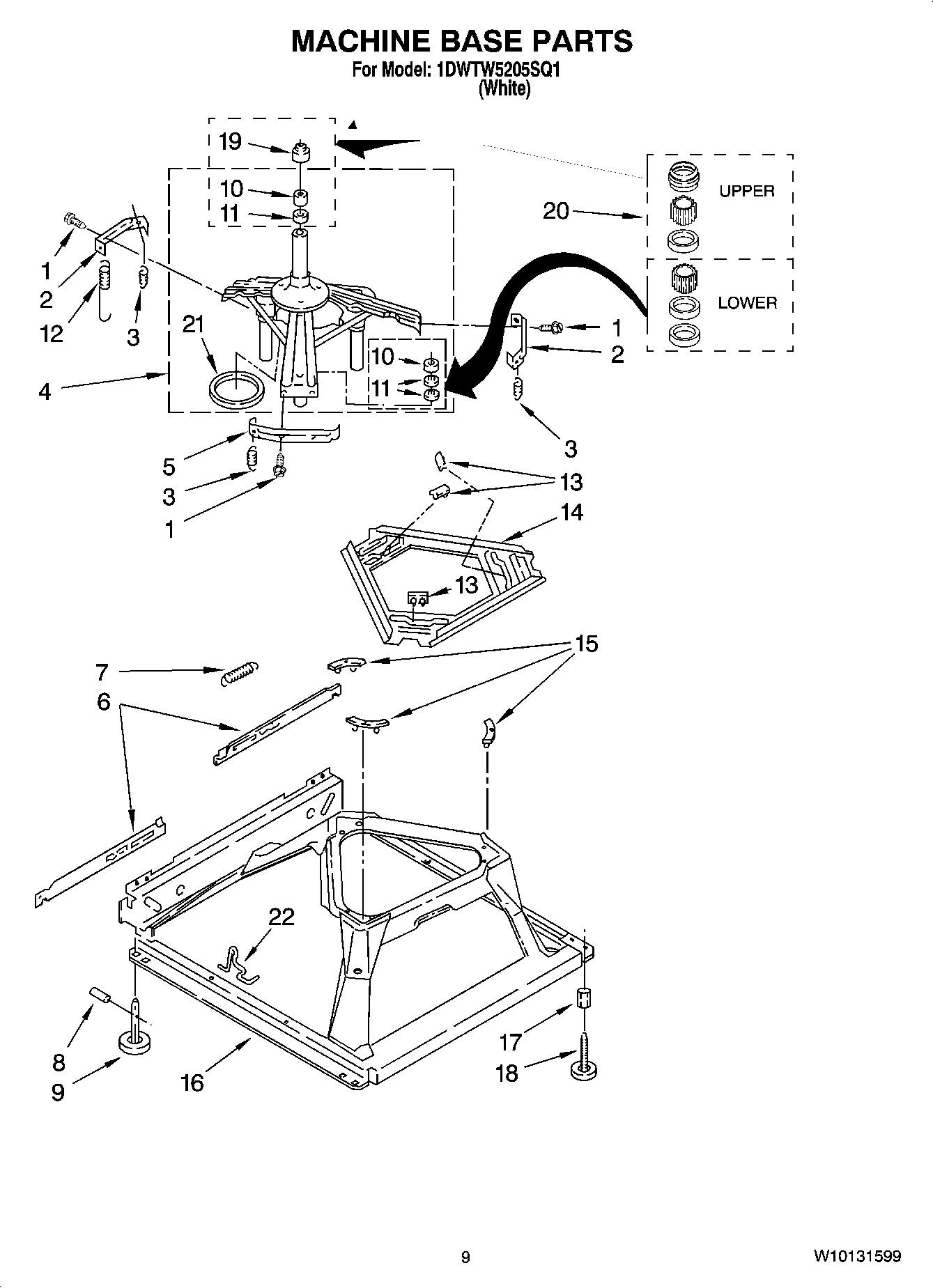

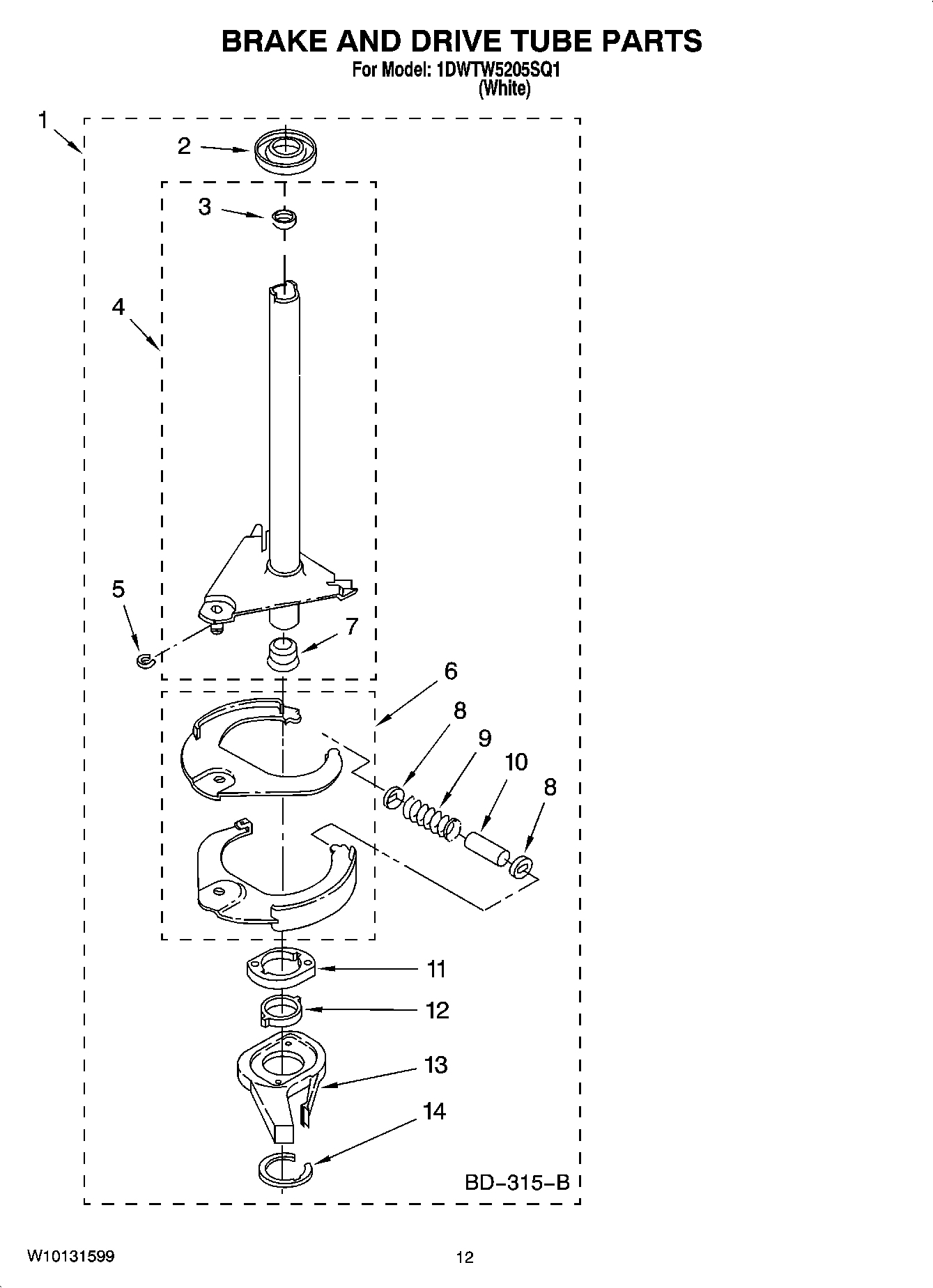

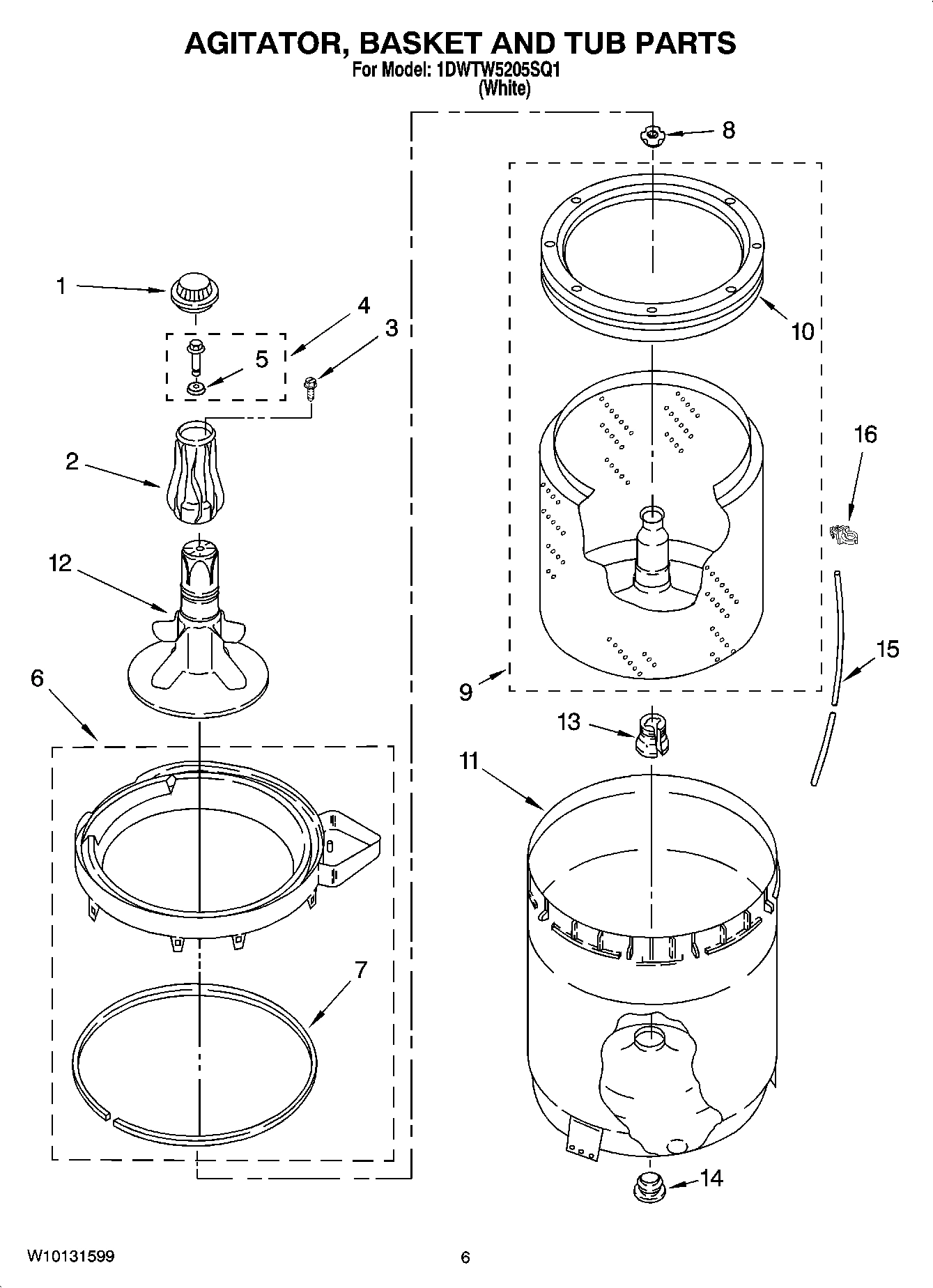

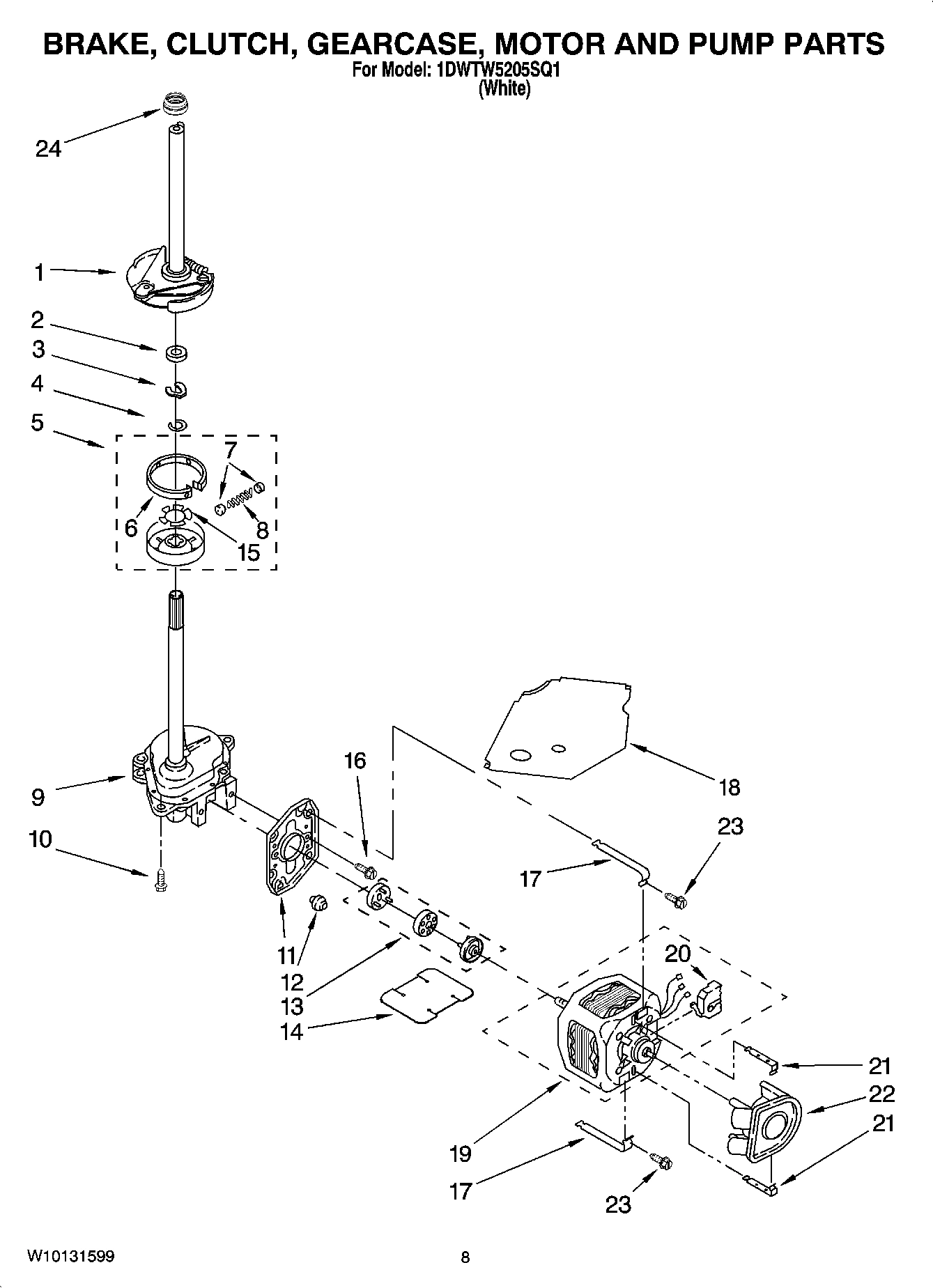

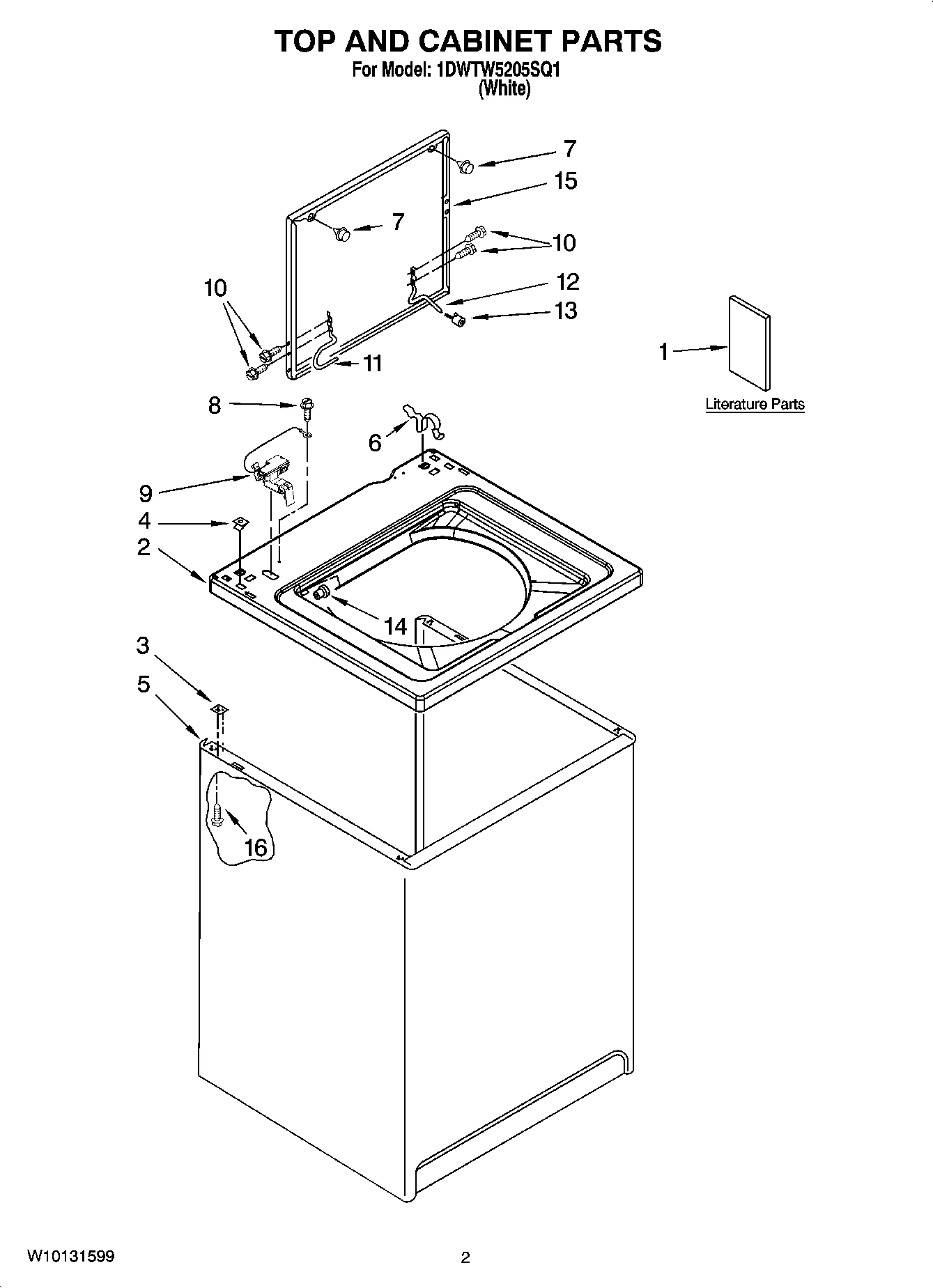

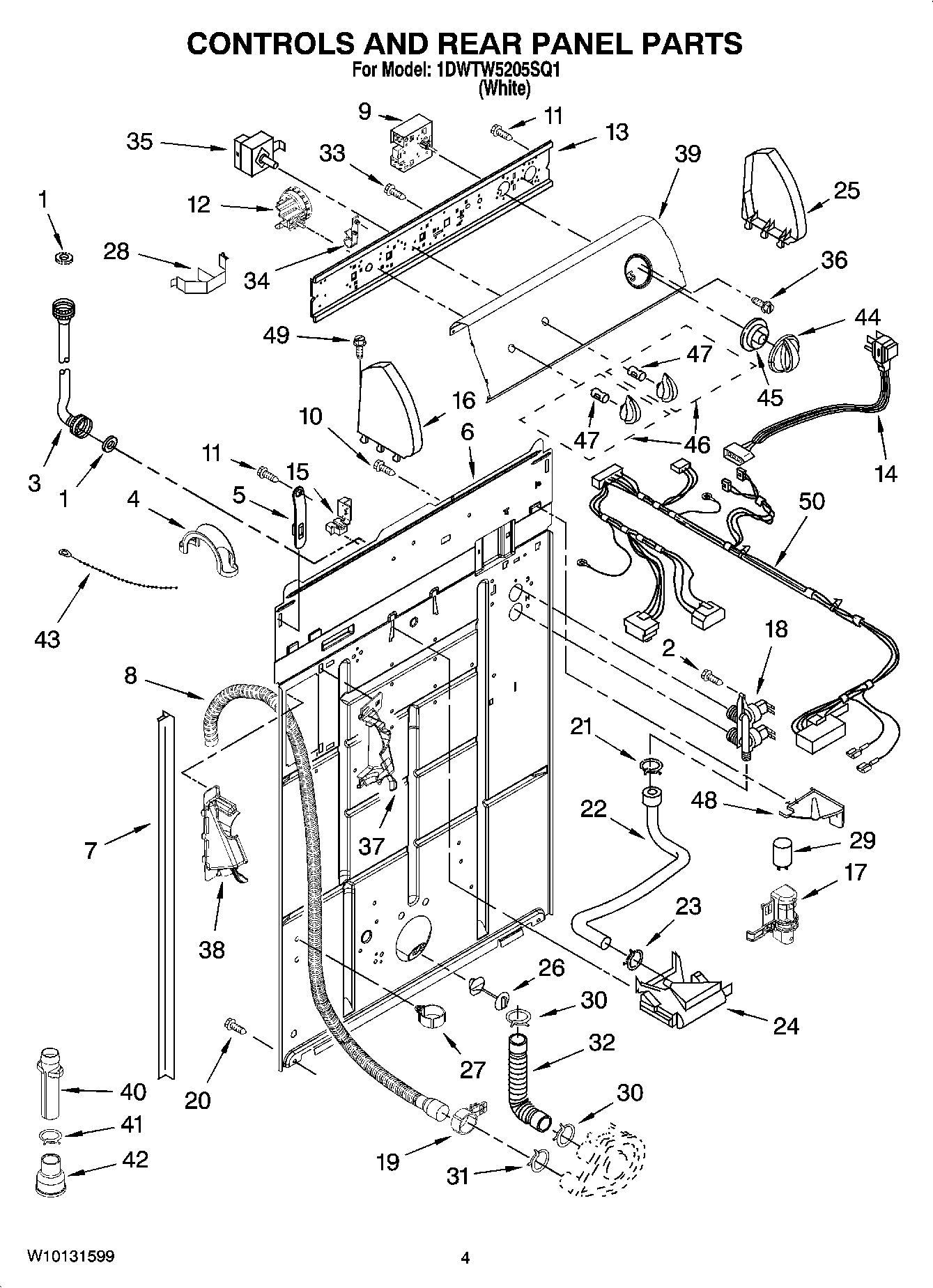

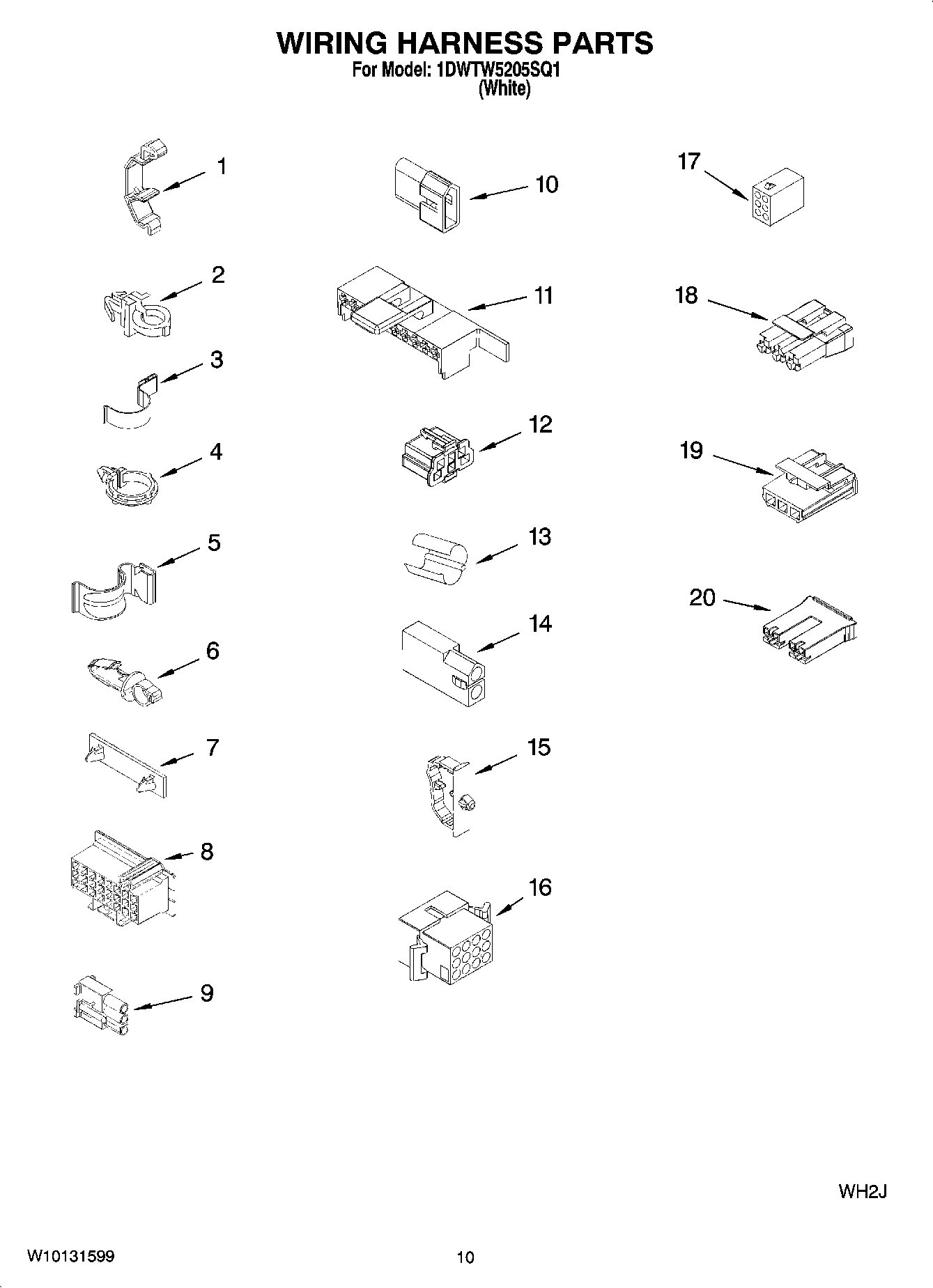

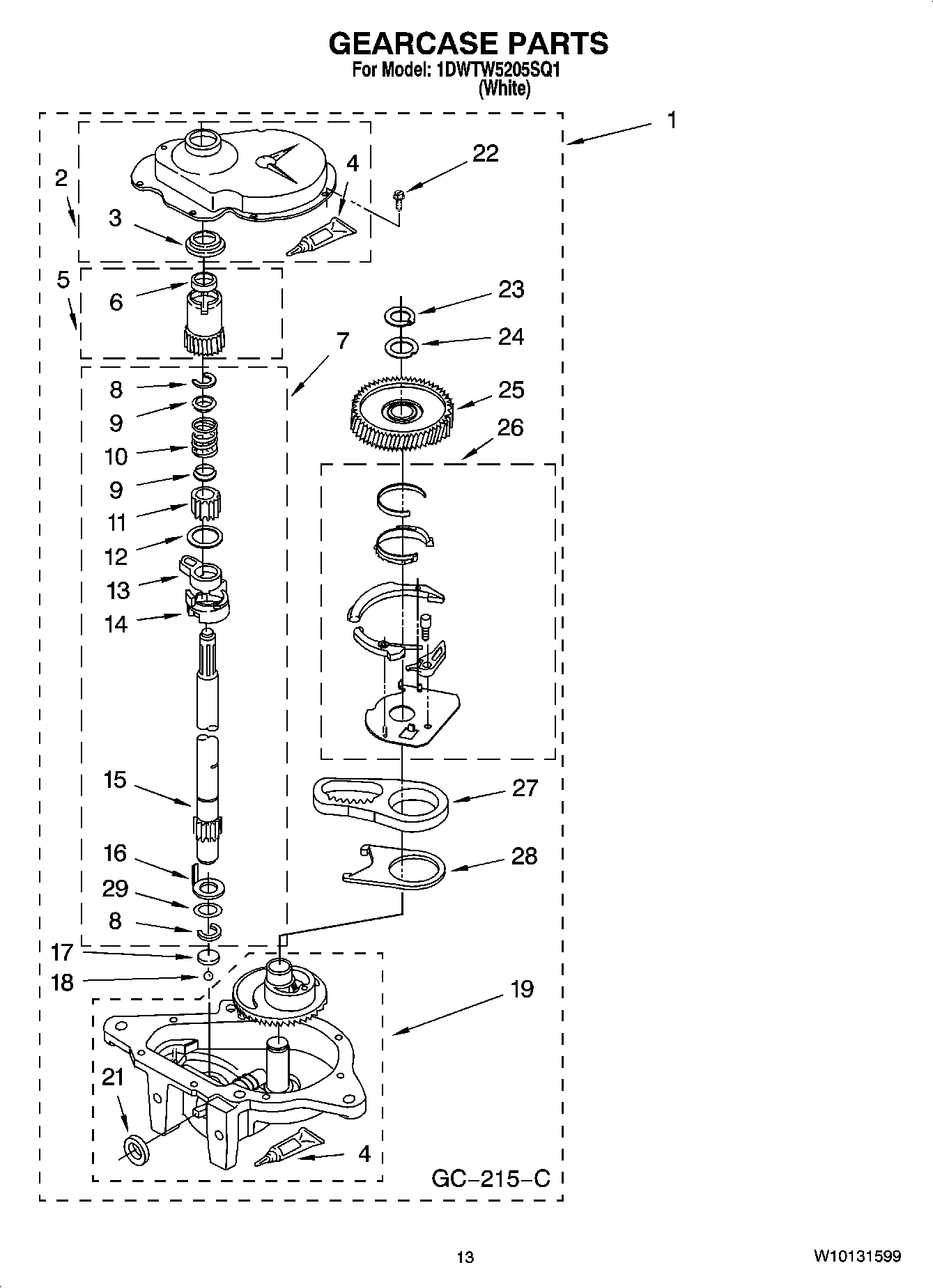

Model Whirlpool 1DWTW5205SQ1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Retainer, Harness WPL 3349557 Contact Us For Availability

1

Wiring Diagram WPL 8565144 Contact Us For Availability

1

Installation Instructions WPL W10044800 Contact Us For Availability

1

Use & Care Guide WPL W10096500 Contact Us For Availability

1

Repair Parts List WPL W10131599 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

2

TOP WPL 8318068 Contact Us For Availability

2

Extension, Agitator WPL 64210 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

8

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $217.99

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

9

WP8542050 Whirlpool Timer In Stock WPL WP8542050 $242.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $119.89

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Block, Disconnect WPL 3347243 Contact Us For Availability

Agitator WPL 64214 Contact Us For Availability

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

13

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

13

Protector WPL 63523 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Connector, 2-Way WPL 717252 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $217.71

Clip, Harness WPL 3352944 Contact Us For Availability

16

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $42.00

16

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

16

Block, Disconnect (12-Way) WPL 3390423 Contact Us For Availability

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Clip, Capacitor WPL 8318046 Contact Us For Availability

Receptacle, 6 Way WPL 3347730 Contact Us For Availability

18

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

19

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

19

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

BLOCK, CONNECTOR (RED WPL 3354926 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

22

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

24

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

29

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

38

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.99

41

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

44

Knob, Timer WPL 8566022 Contact Us For Availability

45

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $34.58

46

Knob, Control WPL 8565944 Contact Us For Availability

47

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

48

Shield, Suds WPL 8539874 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82
