Whirlpool 110.97502800 Gas Dryer (Kenmore 11097502800) Parts List

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

1

Wire Harness WPL 3392107 Contact Us For Availability

View on Model

1A

Connector WPL 385826 Contact Us For Availability

View on Model

1B

Receptacle WPL 717252 Contact Us For Availability

View on Model

1C

Receptacle WPL 3392653 Contact Us For Availability

View on Model

1D

Light WPL 3392654 Contact Us For Availability

View on Model

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

View on Model

3

Cable Tie WPL 3389969 Contact Us For Availability

View on Model

4

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

View on Model

4

3391846 Whirlpool Clip In Stock WPL 3391846 $14.02

View on Model

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $56.81

View on Model

6

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

View on Model

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

View on Model

7

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $180.66

View on Model

7A

Cabinet WPL 3389385 Contact Us For Availability

View on Model

7B

Cabnt Al WPL 3389386 Contact Us For Availability

View on Model

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

View on Model

8

WP689172 Whirlpool Leveling Feet Backorder WPL WP689172 $57.92

View on Model

8A

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $5.69

View on Model

8B

WP339855 Whirlpool Cam Backorder WPL WP339855 $4.82

View on Model

8C

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

9

Funnel WPL 3389224 Contact Us For Availability

View on Model

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

View on Model

10

Protector WPL 3389232 Contact Us For Availability

View on Model

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

View on Model

11

Screw WPL 342043 Contact Us For Availability

View on Model

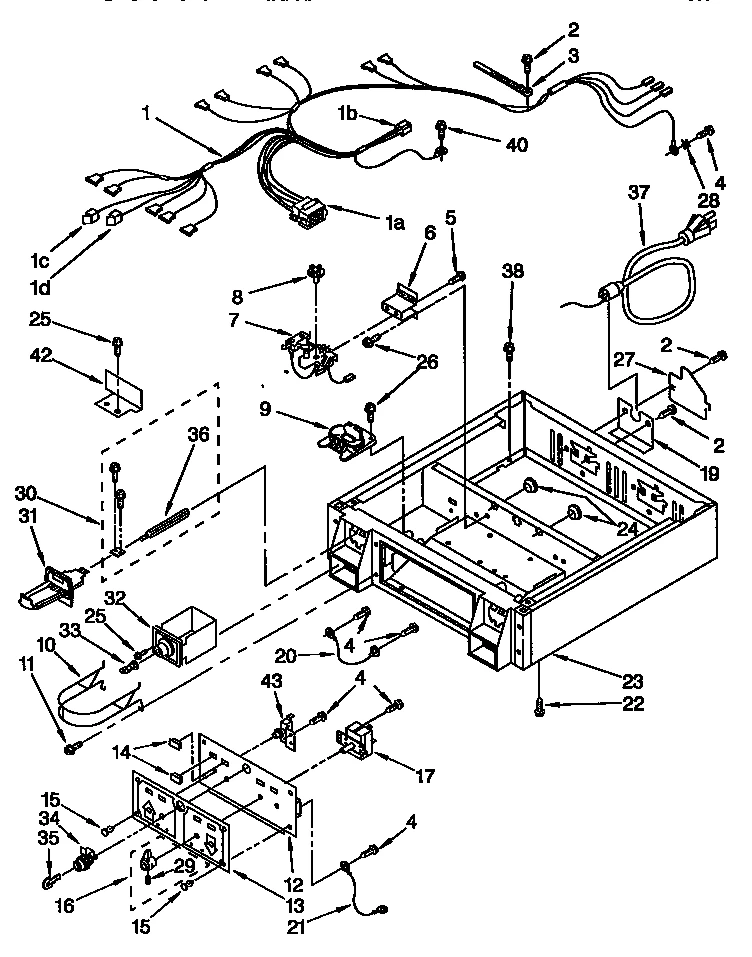

12

Control Panel WPL 3391955 Contact Us For Availability

View on Model

12A

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

View on Model

12B

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

View on Model

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

View on Model

13

Insert WPL 3391956 Contact Us For Availability

View on Model

14

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

View on Model

14A

Light Lens WPL 3349304 Contact Us For Availability

View on Model

14B

Light Lens WPL 3349305 Contact Us For Availability

View on Model

15

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

View on Model

15

Rivet WPL 356388 Contact Us For Availability

View on Model

16

Laundry Appliance Timer Knob WPL 359575 Contact Us For Availability

View on Model

16

Wire WPL 3387377 Contact Us For Availability

View on Model

17

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

View on Model

17

W10330141 Whirlpool Switch A & H Backorder WPL W10330141 $129.28

View on Model

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

View on Model

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

View on Model

19

Relief Stirrer WPL 3390189 Contact Us For Availability

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

20

Strut Wire WPL 3390895 Contact Us For Availability

View on Model

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $60.12

View on Model

21

Ground Wire WPL 340025 Contact Us For Availability

View on Model

22

Outer Grille WPL 3389507 Contact Us For Availability

View on Model

22

Screw WPL 122007 Contact Us For Availability

View on Model

23

Bracket WPL 3393423 Contact Us For Availability

View on Model

23A

Collar W WPL 3399183 Contact Us For Availability

View on Model

23B

Collar Al WPL 3399184 Contact Us For Availability

View on Model

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

View on Model

24

Bushing WPL 3390057 Contact Us For Availability

View on Model

25

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

View on Model

26

Push Nut WPL 3389249 Contact Us For Availability

View on Model

26

Screw WPL 98437 Contact Us For Availability

View on Model

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $42.20

View on Model

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

28

Retainer WPL 3390443 Contact Us For Availability

View on Model

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $39.91

View on Model

29

Screw WPL 3349585 Contact Us For Availability

View on Model

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

View on Model

30

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $7.17

View on Model

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

View on Model

33

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

View on Model

34

WP3349091 Whirlpool Lock Cam Mechanism Backorder WPL WP3349091 $103.62

View on Model

34

WP3391943 Whirlpool Foot Boot Backorder WPL WP3391943 $4.82

View on Model

35

4396669 Whirlpool Washer Dryer Door Key In Stock WPL 4396669 $9.47

View on Model

36

Washer WPL 3392186 Contact Us For Availability

View on Model

37

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $60.20

View on Model

37

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

View on Model

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

View on Model

38

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

View on Model

38

Wire Harness WPL 3389967 Contact Us For Availability

View on Model

38A

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

View on Model

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.19

View on Model

40

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

View on Model

40

Clip WPL 3388600 Contact Us For Availability

View on Model

41

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $33.33

View on Model

42

3390424 Whirlpool Extension In Stock WPL 3390424 $48.77

View on Model

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $4.82

View on Model

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

View on Model

43

Dryer Push-to-Start Switch WPL 3388231 Contact Us For Availability

View on Model

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

View on Model

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $5.16

View on Model

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

View on Model

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

View on Model

47

Door WPL 3393685 Contact Us For Availability

View on Model

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $51.41

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

View on Model

48B

Panel Al WPL 3387873 Contact Us For Availability

View on Model

49A

W11663440 Whirlpool Door Backorder WPL W11663440 $169.55

View on Model

51

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.82

View on Model

51A

Panel WPL 3393081 Contact Us For Availability

View on Model

51B

279723 Whirlpool Panel Assembly Backorder WPL 279723 $245.74

View on Model

53

Cable Assembly WPL 3388580 Contact Us For Availability

View on Model

54

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

View on Model

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $138.45

View on Model

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

View on Model

56

Wire Harness WPL 3392109 Contact Us For Availability

View on Model

56

Wire Harness WPL 3392108 Contact Us For Availability

View on Model

56A

Connector WPL 3390423 Contact Us For Availability

View on Model

56C

Receptacle WPL 691707 Contact Us For Availability

View on Model

57

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $91.47

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

58

Dryer Lint Screen Cover WPL 3389515 Contact Us For Availability

View on Model

59

Wire WPL 3387376 Contact Us For Availability

View on Model

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

View on Model

60A

3389522 Whirlpool Handle Backorder WPL 3389522 $57.04

View on Model

60B

Handle Al WPL 3389523 Contact Us For Availability

View on Model

61A

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $157.17

View on Model

61B

Toepnl Al WPL 697216 Contact Us For Availability

View on Model

62B

Top Al WPL 3389352 Contact Us For Availability

View on Model

64

Dryer Lint Screen WPL 3389509 Contact Us For Availability

View on Model

64

Screw WPL 697777 Contact Us For Availability

View on Model

66

Bushing WPL 3389233 Contact Us For Availability

View on Model

67

Gas Burner WPL 3387617 Contact Us For Availability

View on Model

69

279923 Whirlpool Gas Valve In Stock WPL 279923 $142.44

View on Model

70

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

View on Model

71

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

View on Model

72

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

View on Model

73

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model
