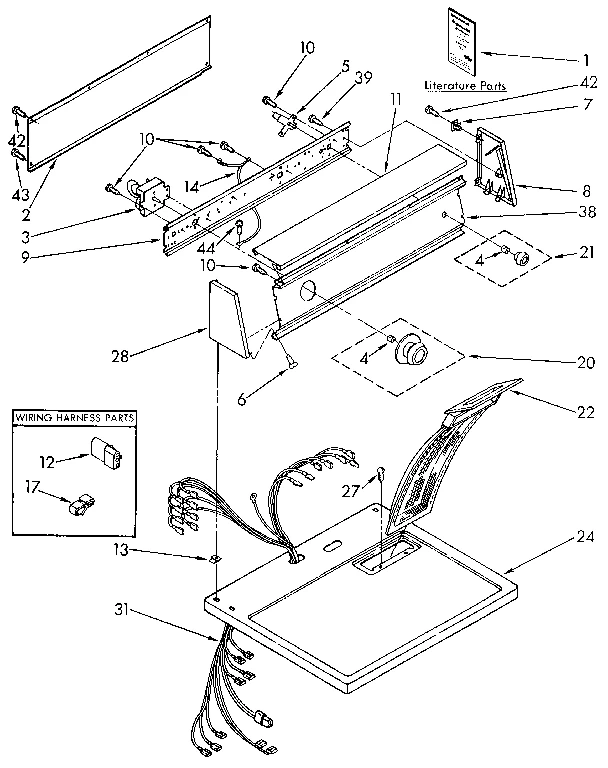

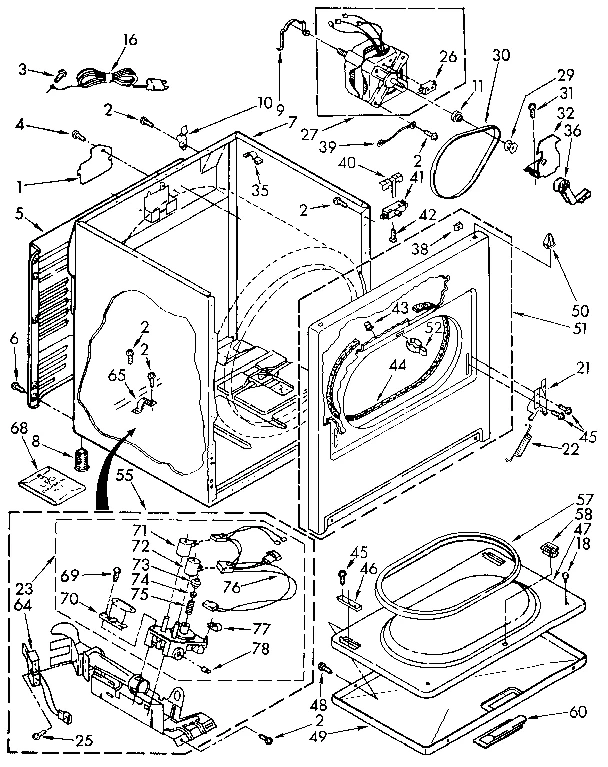

Whirlpool 110.97272800 Dryer (Kenmore 11097272800) Parts List

1

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

1A

Wiring Diagram WPL LIT3394745 Contact Us For Availability

View on Model

1B

Energy Guide WPL LIT3392322 Contact Us For Availability

View on Model

1C

Owner's Manual WPL LIT3388872 Contact Us For Availability

View on Model

1D

Installation Instructions WPL LIT3395321 Contact Us For Availability

View on Model

1E

Operating Instructions WPL LIT3394996 Contact Us For Availability

View on Model

1F

Service Parts List WPL LIT3395219 Contact Us For Availability

View on Model

1H

Washer Service Manual WPL LIT787206 Contact Us For Availability

View on Model

1I

Serv Manul WPL LIT787207 Contact Us For Availability

View on Model

2

Panel WPL 697267 Contact Us For Availability

View on Model

3

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $172.25

View on Model

4

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

View on Model

5

Switch WPL 693169 Contact Us For Availability

View on Model

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

8

End Cap WPL 388209 Contact Us For Availability

View on Model

9

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

9

Bracket WPL 3394057 Contact Us For Availability

View on Model

10

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

10

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

View on Model

11

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

View on Model

11

Control Panel WPL 3349270 Contact Us For Availability

View on Model

12

Receptacle WPL 691707 Contact Us For Availability

View on Model

13

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

View on Model

13

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

View on Model

14

Wire WPL 3387000 Contact Us For Availability

View on Model

17

Clip WPL 689180 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

20

Knob WPL 696847 Contact Us For Availability

View on Model

21

WP3352875 Whirlpool Knob Backorder WPL WP3352875 $1.50

View on Model

21A

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $49.07

View on Model

22

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $25.61

View on Model

22A

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $39.87

View on Model

22B

Dryer Lint Filter WPL 689467 Contact Us For Availability

View on Model

23

279923 Whirlpool Gas Valve In Stock WPL 279923 $142.44

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

24A

Top (White) WPL 685958 Contact Us For Availability

View on Model

24B

Top WPL 689475 Contact Us For Availability

View on Model

24C

Top (Almond) WPL 689473 Contact Us For Availability

View on Model

25

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

View on Model

28

End Cap WPL 388203 Contact Us For Availability

View on Model

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $39.91

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

31

Wire Harness WPL 3395185 Contact Us For Availability

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $80.94

View on Model

35

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

36

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

38

Control Panel WPL 3395103 Contact Us For Availability

View on Model

39

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

View on Model

39

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

39

Wire WPL 690236 Contact Us For Availability

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

View on Model

41

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

View on Model

42

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

43

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

View on Model

44

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $55.94

View on Model

44

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

View on Model

47

WP695737 Whirlpool Door Backorder WPL WP695737 $169.53

View on Model

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

View on Model

49A

WP3393549 Whirlpool Door Assembly In Stock WPL WP3393549 $114.49

View on Model

49B

Natural Gas Door WPL 3393553 Contact Us For Availability

View on Model

49C

Door Al WPL 3393550 Contact Us For Availability

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

51A

279443 Whirlpool Primary Panel Backorder WPL 279443 $275.00

View on Model

51B

Panel WPL 695622 Contact Us For Availability

View on Model

51C

Panel (Almond) WPL 695621 Contact Us For Availability

View on Model

52

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $109.12

View on Model

55

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $111.01

View on Model

55

Burner WPL 694670 Contact Us For Availability

View on Model

57

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $45.31

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

60A

WP348721 Whirlpool Handle In Stock WPL WP348721 $45.66

View on Model

60B

Handle WPL 689459 Contact Us For Availability

View on Model

60C

Handle (Almond) WPL 689457 Contact Us For Availability

View on Model

64

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

View on Model

65

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

View on Model

68

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

View on Model

68A

Conversion Kit WPL 279243 Contact Us For Availability

View on Model

69

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

View on Model

70

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

View on Model

72

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

View on Model

73

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

View on Model

74

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

View on Model

75

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

View on Model

76

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

View on Model

77

Clip WPL 694510 Contact Us For Availability

View on Model

78

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model
