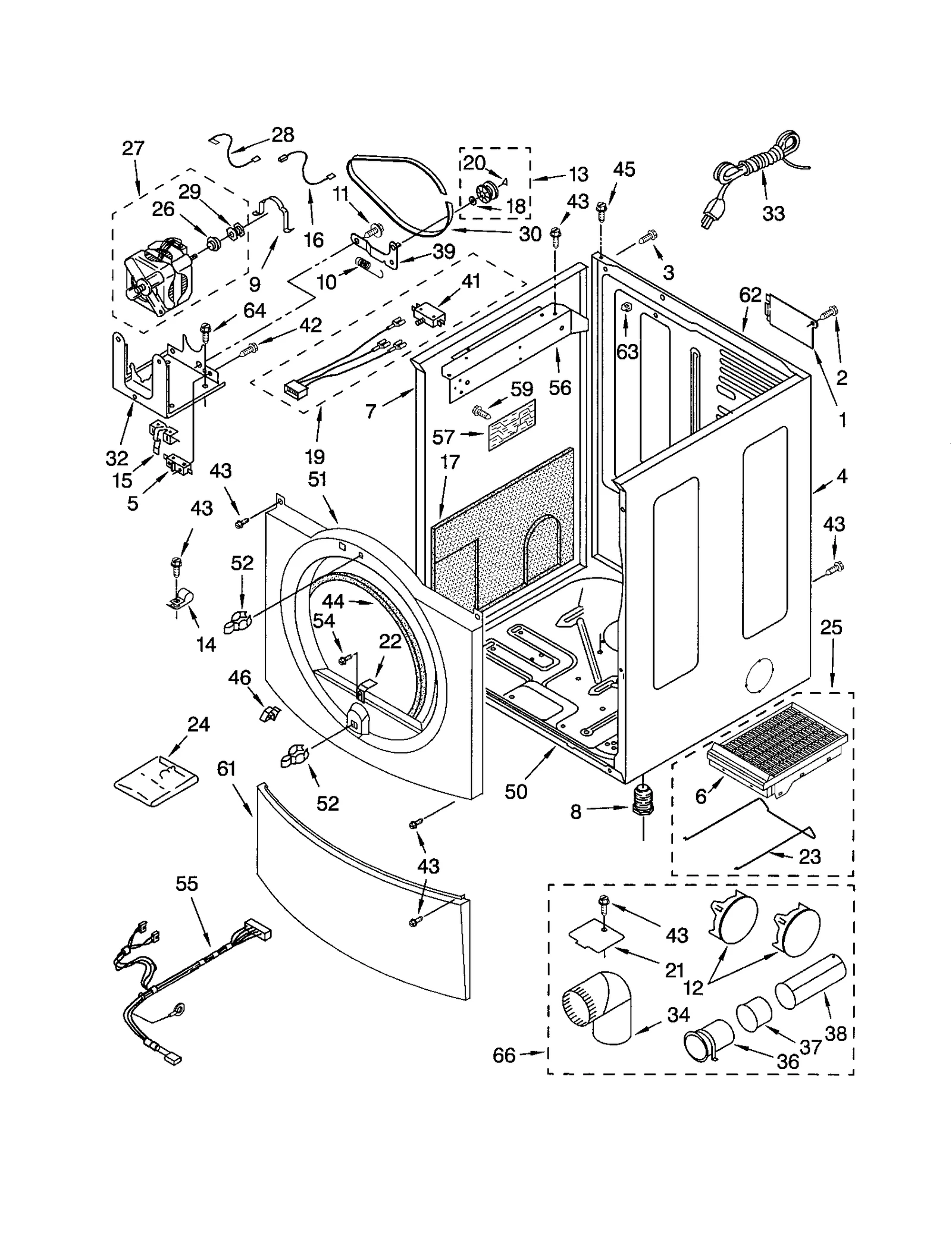

Model Whirlpool 110.92834100 Dryer (Kenmore 11092834100) – Common Parts &amp; Diagrams

1

WP3404413 Whirlpool Plug Backorder WPL WP3404413 $4.82

1

Wiring Diagram WPL LIT3976605 Contact Us For Availability

1A

Plug WPL 3404415 Contact Us For Availability

1A

Owner's Manual WPL LIT8519320 Contact Us For Availability

1B

Plug WPL 3404416 Contact Us For Availability

1B

Technical Sheet WPL LIT8529960 Contact Us For Availability

1C

Parts List WPL LIT8519494 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

2

Door Hinge WPL 8519361 Contact Us For Availability

2

Top WPL 8519251 Contact Us For Availability

2A

Top WPL 8519252 Contact Us For Availability

2B

Top WPL 8519253 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Dryer Cover WPL 8519482 Contact Us For Availability

3

Dryer Wire Harness WPL 8299927 Contact Us For Availability

3A

Dryer Door Hinge Cover WPL 8519483 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Dryer Control Panel Assembly WPL 8529879 Contact Us For Availability

4

Dryer Screw WPL 9742177 Contact Us For Availability

4A

Dryer Control Panel Assembly WPL 8529880 Contact Us For Availability

4B

Dryer Control Panel WPL 8529881 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Screw WPL 342043 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $3.92

6

Dryer Door Handle Pad WPL 8519336 Contact Us For Availability

6

Bracket WPL 8519271 Contact Us For Availability

7

WP8559751 Whirlpool Handle In Stock WPL WP8559751 $34.11

7

Washer Terminal Connector WPL 353424 Contact Us For Availability

7

Sears Canada Bracket WPL 3389871 Contact Us For Availability

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw WPL 3400224 Contact Us For Availability

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Dryer Door Handle Screw Hole Plug (Graphite) WPL 8519373 Contact Us For Availability

9A

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9A

Dryer Door Handle Screw Hole Plug (Black) WPL 8519374 Contact Us For Availability

9B

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $263.47

10

Door WPL 8519309 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

WP8519326 Whirlpool Door Assembly Backorder WPL WP8519326 $235.79

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

12A

Dryer Door Outer Frame (Black) WPL 8519327 Contact Us For Availability

13

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

13

Window WPL 8519448 Contact Us For Availability

13A

Window WPL 8519449 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

14

8529007 Whirlpool Plug Backorder WPL 8529007 $55.15

14

Dryer 7-Circuit Wire Harness Connector WPL 3936150 Contact Us For Availability

15

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

Hex Nut WPL 3387709 Contact Us For Availability

Screw WPL 8281225 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $77.75

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.89

19

Wire WPL 8519455 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $104.07

22

Ramp WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $38.13

23

Support WPL 8521961 Contact Us For Availability

24

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.87

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

26

Bracket WPL 3389889 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $37.02

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

28

Connector WPL 697779 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

30

Bracket WPL 8519221 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $64.16

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

Receptacle WPL 717252 Contact Us For Availability

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.64

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

38

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $106.28

45

Duct Lint WPL 8530036 Contact Us For Availability

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $103.46

47

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $9.66

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $65.26

53

Drum Baffle WPL 697693 Contact Us For Availability

54

Bulkhead WPL 8519245 Contact Us For Availability

55

Dryer Wire Harness WPL 8299929 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $18.68

60.

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $37.28

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

NI

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

NI01

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

NI02

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

NI03

Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability

NI04

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

NI05

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

NI06

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

NI07

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

NI08

Paint (White) WPL 799344 Contact Us For Availability

NI09

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability

NI10

Paint (Graphite) WPL 8171358 Contact Us For Availability

NI11

Hold-Down Kit WPL 8529894 Contact Us For Availability

NI12

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72
