Model Whirlpool 110.91551210 Washer (Kenmore 11091551210) – Common Parts &amp; Diagrams

1

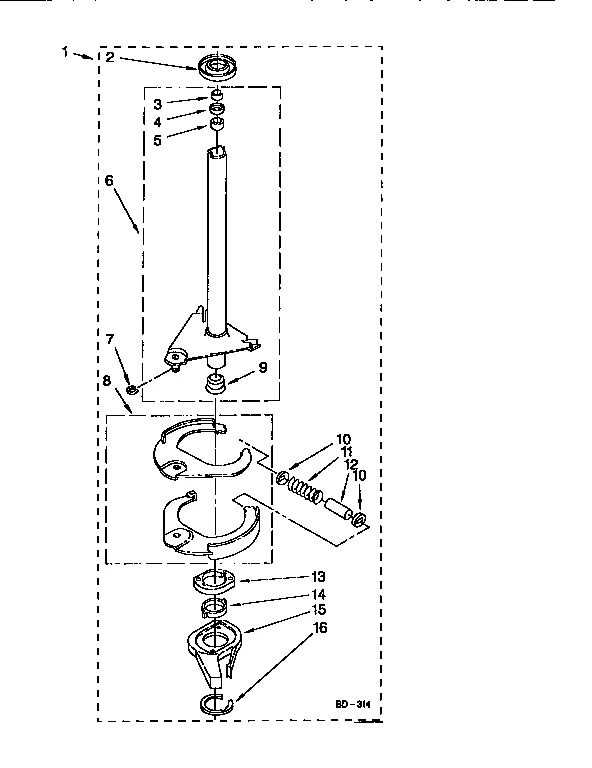

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP3356467 Whirlpool Washer Water Level Switch Backorder WPL WP3356467 $125.67

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Temperature Switch WPL 661538 Contact Us For Availability

3A

Temperature Switch WPL 3347117 Contact Us For Availability

3B

Temperature Switch WPL 3348352 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

Bracket WPL 3948814 Contact Us For Availability

5

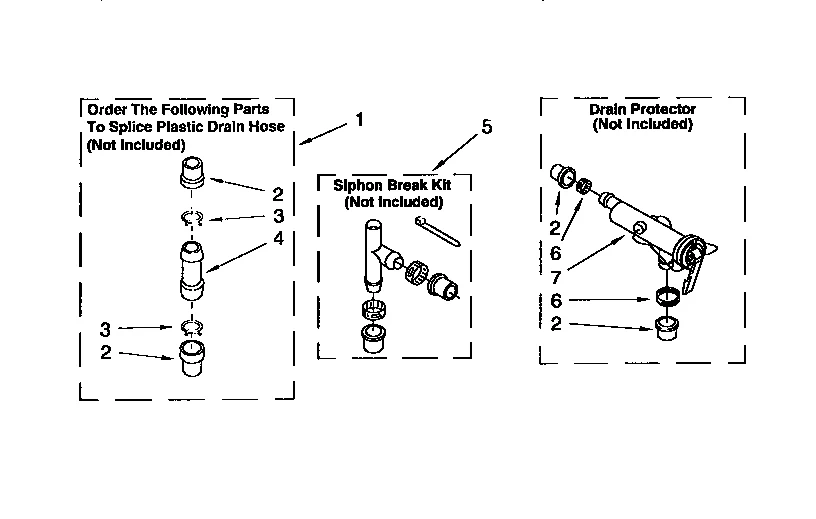

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

Hinge Panel WPL 387402 Contact Us For Availability

5

Bracket WPL 64065 Contact Us For Availability

5

Spacer WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $200.68

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $81.03

7

Endcap Wht WPL 388204 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $91.39

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8

Retaining Ring WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

9

Control Knob WPL 3398390 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

End Cap (White) WPL 388210 Contact Us For Availability

Spring WPL 62676 Contact Us For Availability

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

11

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

11

Washer Terminal Connector WPL 353424 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Washer Outer Tub WPL 63125 Contact Us For Availability

GROMMET, MOTOR (4) WPL 63691 Contact Us For Availability

Dial WPL 3946477 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

WP3362625 Whirlpool Timer Knob In Stock WPL WP3362625 $37.03

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

16

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

16

Washer WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP661598 Whirlpool Timer Backorder WPL WP661598 $313.90

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19

Gear Case WPL 389230 Contact Us For Availability

20

Switch WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

23

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

23

Clip WPL 3355454 Contact Us For Availability

23

Retainer Ring WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP21365 Whirlpool Washer Backorder WPL WP21365 $7.12

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

Washer WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

Control Panel WPL 3361893 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

59

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 2850208 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipping Kit WPL 334496 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
