Whirlpool 110.89519800 Gas Dryer (Kenmore 11089519800) Parts List

1

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

View on Model

1

Ground Strap WPL 22965 Contact Us For Availability

View on Model

2

Rear Panel WPL 4319401 Contact Us For Availability

View on Model

2

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

View on Model

3

WP348726 Whirlpool Base Assembly Backorder WPL WP348726 $191.17

View on Model

4

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

View on Model

4

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

View on Model

4

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

5

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $85.84

View on Model

5

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

View on Model

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

6

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

View on Model

7

696541 Whirlpool Base Backorder WPL 696541 $64.59

View on Model

7

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

View on Model

7

WP696426 Whirlpool Wheel In Stock WPL WP696426 $45.05

View on Model

8

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

View on Model

8

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

View on Model

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

View on Model

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

View on Model

9

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.94

View on Model

9

Clip WPL 694510 Contact Us For Availability

View on Model

10

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

View on Model

10

Ground Wire WPL 364089 Contact Us For Availability

View on Model

11

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

View on Model

11

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

12

8066051 Whirlpool Motor Pulley Backorder WPL 8066051 $81.61

View on Model

12

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

View on Model

13

Screw WPL 132848 Contact Us For Availability

View on Model

13

Base WPL 694669 Contact Us For Availability

View on Model

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

14

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

View on Model

15

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $49.14

View on Model

15

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

View on Model

15

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

View on Model

16A

Panel WPL 4319382 Contact Us For Availability

View on Model

16B

Panel Al WPL 4319406 Contact Us For Availability

View on Model

17

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $10.13

View on Model

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

18

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.82

View on Model

18

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $16.64

View on Model

19

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

20

345335 Whirlpool Cover Backorder WPL 345335 $75.27

View on Model

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

View on Model

24

279900 Whirlpool Box O/S1 Backorder WPL 279900 $228.97

View on Model

25

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

View on Model

26

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

26

345325 Whirlpool Gusset Backorder WPL 345325 $61.38

View on Model

27

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $56.95

View on Model

27

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

View on Model

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.70

View on Model

28

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

View on Model

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $48.41

View on Model

29

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

View on Model

30

Screw WPL 690372 Contact Us For Availability

View on Model

30A

Panel WPL 4319403 Contact Us For Availability

View on Model

30B

ALMOND (WHEN ORDERING ANY OF THE ABOVE PANELS WPL 4319409 Contact Us For Availability

View on Model

31

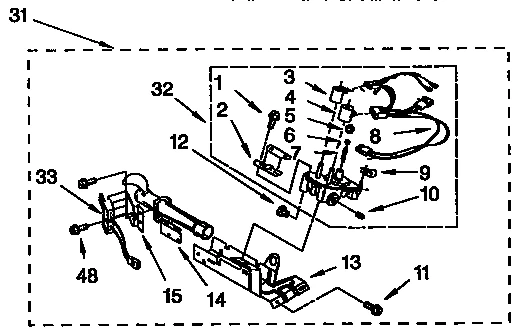

Gas Burner WPL 4319410 Contact Us For Availability

View on Model

32

279923 Whirlpool Gas Valve In Stock WPL 279923 $154.83

View on Model

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $58.55

View on Model

33

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $35.70

View on Model

33

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.06

View on Model

35

Door Hinge WPL 9830792 Contact Us For Availability

View on Model

36

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $53.21

View on Model

36A

Door (White) WPL 693039 Contact Us For Availability

View on Model

36B

Door (Almond) WPL 693040 Contact Us For Availability

View on Model

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $36.95

View on Model

38

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $7.14

View on Model

38

345396 Whirlpool Clip Backorder WPL 345396 $54.31

View on Model

39

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

View on Model

40

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

View on Model

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $44.60

View on Model

41

Door WPL 4319397 Contact Us For Availability

View on Model

42

Washer WPL 4319307 Contact Us For Availability

View on Model

42A

Door WPL 4319327 Contact Us For Availability

View on Model

42B

Door Al WPL 4319333 Contact Us For Availability

View on Model

43A

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $46.14

View on Model

43B

Door Handle (Almond) WPL 4319334 Contact Us For Availability

View on Model

44

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

View on Model

45

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

View on Model

46

Seal WPL 9830394 Contact Us For Availability

View on Model

46

Power Cord WPL 4319443 Contact Us For Availability

View on Model

48

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

View on Model

48

Wire Harness WPL 9831099 Contact Us For Availability

View on Model

52

Support WPL 686768 Contact Us For Availability

View on Model

53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $9.54

View on Model

55

Support WPL 686767 Contact Us For Availability

View on Model

56

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

56

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

View on Model

58

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

View on Model

69

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

View on Model

70

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.04

View on Model

NI

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

Spray Th WPL 350941 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model
