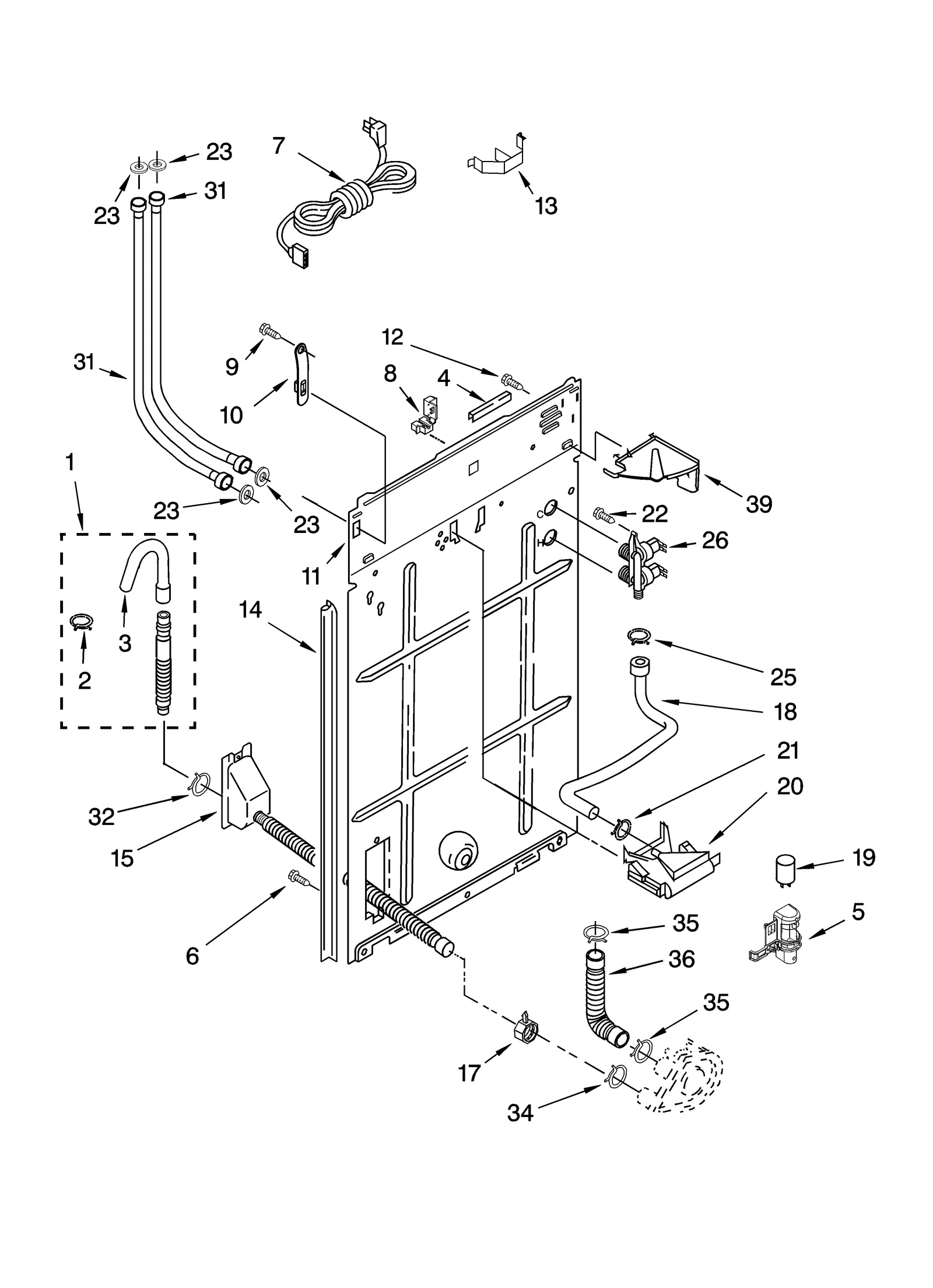

Model Whirlpool 110.26322500 Washer (Kenmore 11026322500) – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Replacement Part WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket WPL 64065 Contact Us For Availability

5

Washer Capacitor Strap WPL 8318046 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $50.26

7

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $81.03

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $138.46

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.92

8

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10816321 Whirlpool Knob Backorder WPL W10816321 $39.65

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $217.79

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $50.11

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

Washer Terminal Connector WPL 353424 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $127.80

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

13

Washer Timer Knob (Gray and White) WPL 3956786 Contact Us For Availability

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

15

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

Washer Drain Hose Support Clip WPL 3976395 No Longer Available

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $44.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

19

WP8546681 Whirlpool Timer In Stock WPL WP8546681 $288.87

19

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

Washer Motor Switch WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

Connector WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

Clip WPL 3355454 Contact Us For Availability

27

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

31A

3805FF Supco 5' Reinforced Rubber Washer Fill In Stock SEA 3805FF $8.31

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

39

Shield WPL 8539874 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability
