Model Whirlpool 110.22932102 Washer (Kenmore 11022932102) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Replacement Part WPL 3976252 Contact Us For Availability

1

Owner's Manual WPL LIT8526119 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1A

Wiring Diagram WPL LIT8541915 Contact Us For Availability

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

1B

Energy Guide WPL LIT8528414 Contact Us For Availability

1C

Parts List WPL LIT8541852 Contact Us For Availability

1D

(338471) (ALT.) WPL N/P Contact Us For Availability

1E

Repair Manual WPL LIT4314044 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top WPL 8519751 Contact Us For Availability

2A

Top WPL 8519752 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8537434 Whirlpool Agitator Cam Backorder WPL WP8537434 $68.84

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

4

Sound Absorber, Cabinet WPL 3976348 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8299642 Whirlpool Clutch In Stock WPL WP8299642 $71.73

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket WPL 64065 Contact Us For Availability

5A

Cabinet WPL 3953669 Contact Us For Availability

6

W10817888 Whirlpool Lining In Stock WPL W10817888 $58.61

6

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Protector WPL 303294 Contact Us For Availability

7

Washer Cover WPL 8055325 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

8

Relief Stirrer WPL 3952821 Contact Us For Availability

8

Lid Switch Screw WPL 3400611 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

9

Washer Control Knob (Gray and White) WPL 3402576 Contact Us For Availability

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $137.92

Washer Terminal Connector WPL 353424 Contact Us For Availability

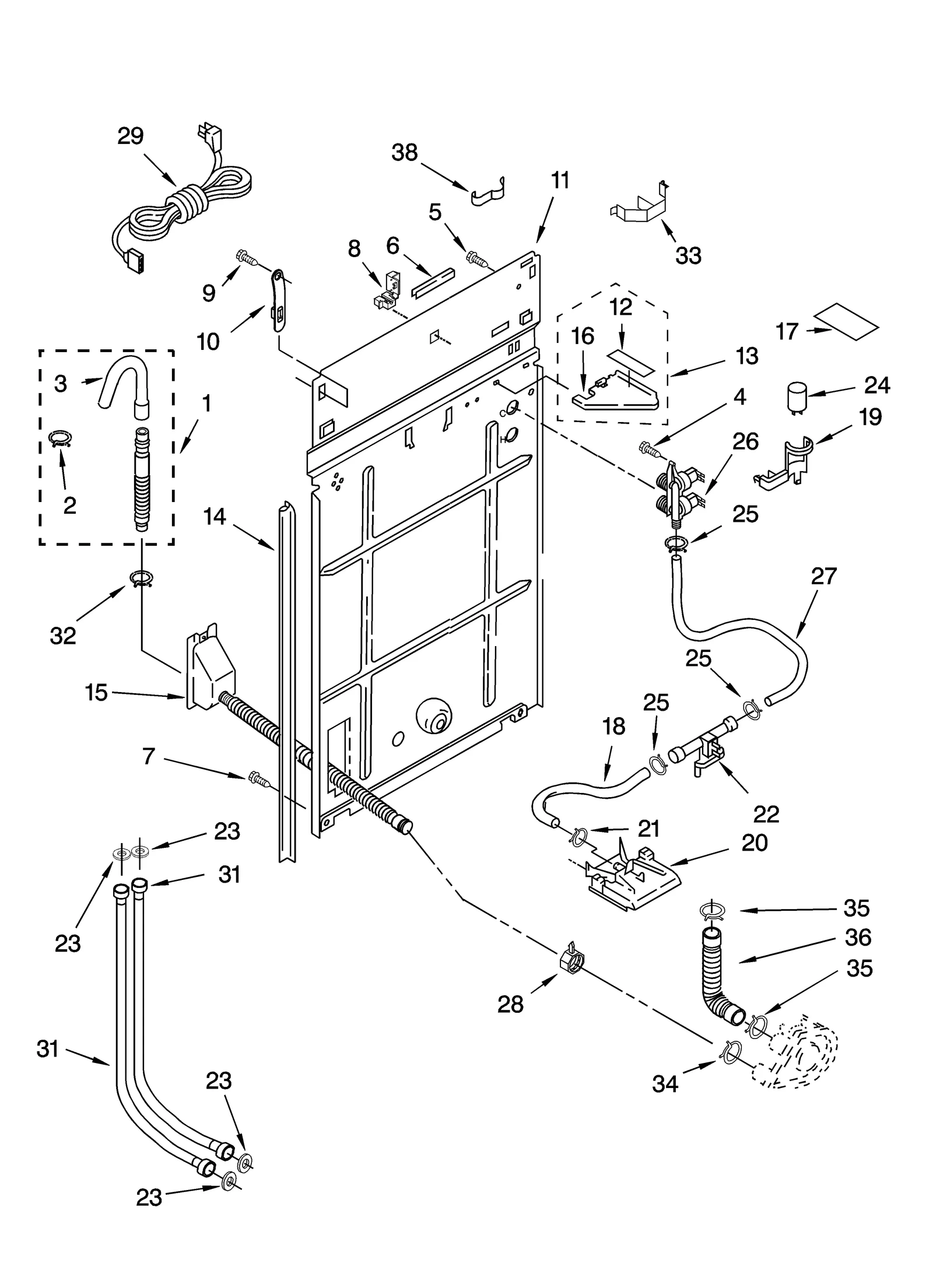

Rear Panel WPL 3356472 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP8054468 Whirlpool Agitator Auger Backorder WPL WP8054468 $183.48

Washer Timer Dial WPL 3949432 Contact Us For Availability

Extension Shield WPL 3950829 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Washer Timer Knob (Gray and White) WPL 3948416 Contact Us For Availability

Washer Outer Tub WPL 8283125 Contact Us For Availability

Shield-sud WPL 3950830 Contact Us For Availability

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

Hinge Washer WPL 8055257 Contact Us For Availability

Receptacle WPL 717252 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Harness Clip WPL 3352944 Contact Us For Availability

Shield Valve WPL 3348424 Contact Us For Availability

Hinge Washer WPL 8055256 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

Washer Lid Hinge Bearing WPL 8319539 Contact Us For Availability

Connector WPL 3390423 Contact Us For Availability

Shield WPL 3976286 Contact Us For Availability

18

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

Connector WPL 3347730 Contact Us For Availability

WP3955340 Whirlpool Timer Assembly Backorder WPL WP3955340 $266.14

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $5.30

Washer Drive Motor WPL 8541504 Contact Us For Availability

Connector WPL 3349494 Contact Us For Availability

Clip WPL 8318201 Contact Us For Availability

Lid WPL 8526149 Contact Us For Availability

19A

Lid WPL 8526150 Contact Us For Availability

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

Washer Bleach Dispenser WPL 8519517 Contact Us For Availability

Washer Motor Switch WPL 8529896 Contact Us For Availability

Washer Water Temperature Control Board WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $12.98

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

Washer Lid Seal WPL 8054939 Contact Us For Availability

21A

Washer Lid Seal WPL 8283532 Contact Us For Availability

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

22

Connector WPL 3360056 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

23

Washer Cold Water Inlet Valve Wire Connector WPL 3354925 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $54.90

Washer Bleach Dispenser Hose WPL 3948705 Contact Us For Availability

Connector WPL 3354926 Contact Us For Availability

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

27

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

WP8055228 Whirlpool Washer In Stock WPL WP8055228 $15.56

28

Washer Drain Hose Support Clip WPL 3976395 No Longer Available

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

WP3954573 Whirlpool Cycle Switch Backorder WPL WP3954573 $156.16

29

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

29

Power Cord WPL 661661 Contact Us For Availability

30

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

33

Retainer WPL 8055003 Contact Us For Availability

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability
