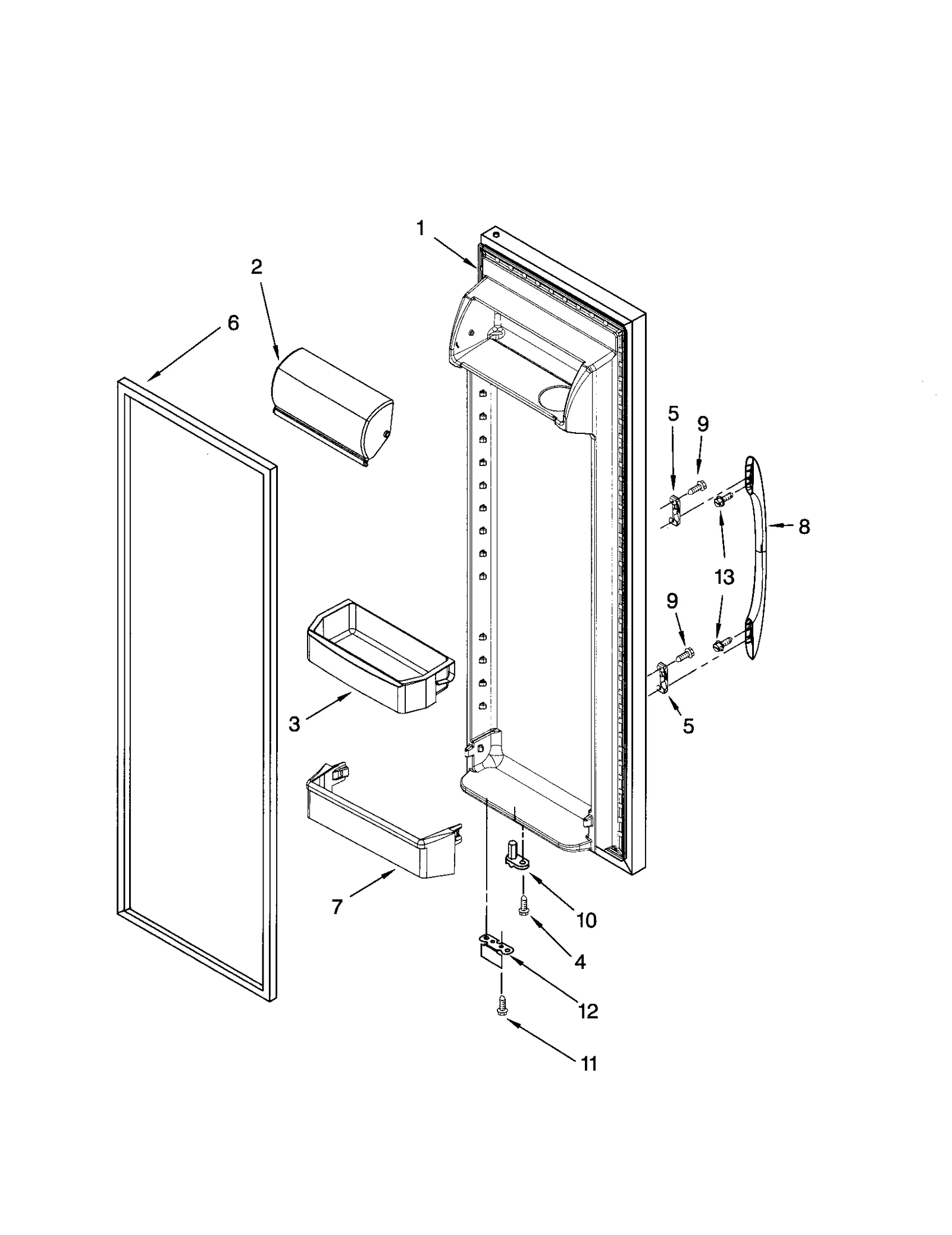

Model Whirlpool 106.56864601 Refrigerator (Kenmore 10656864601) – Common Parts &amp; Diagrams

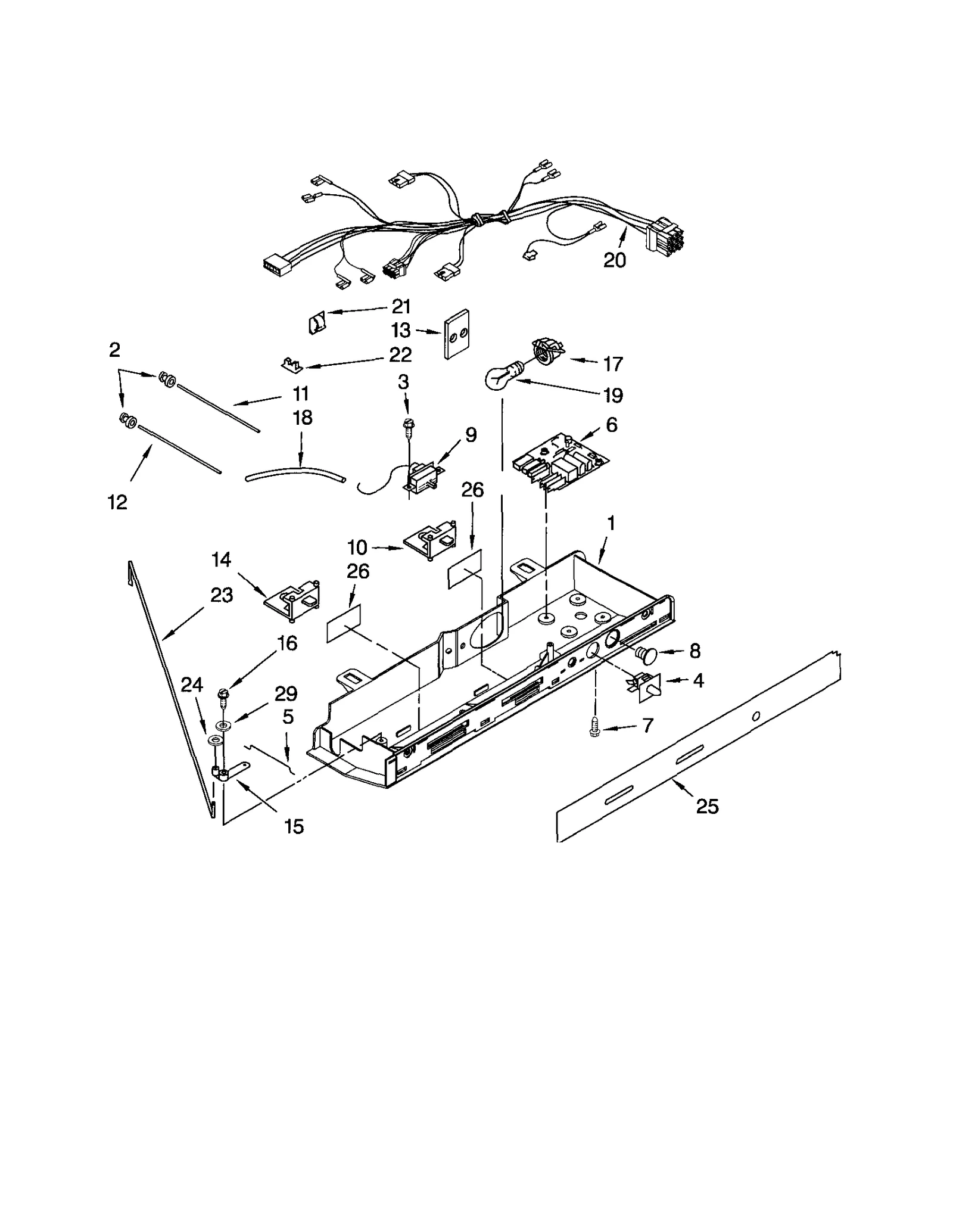

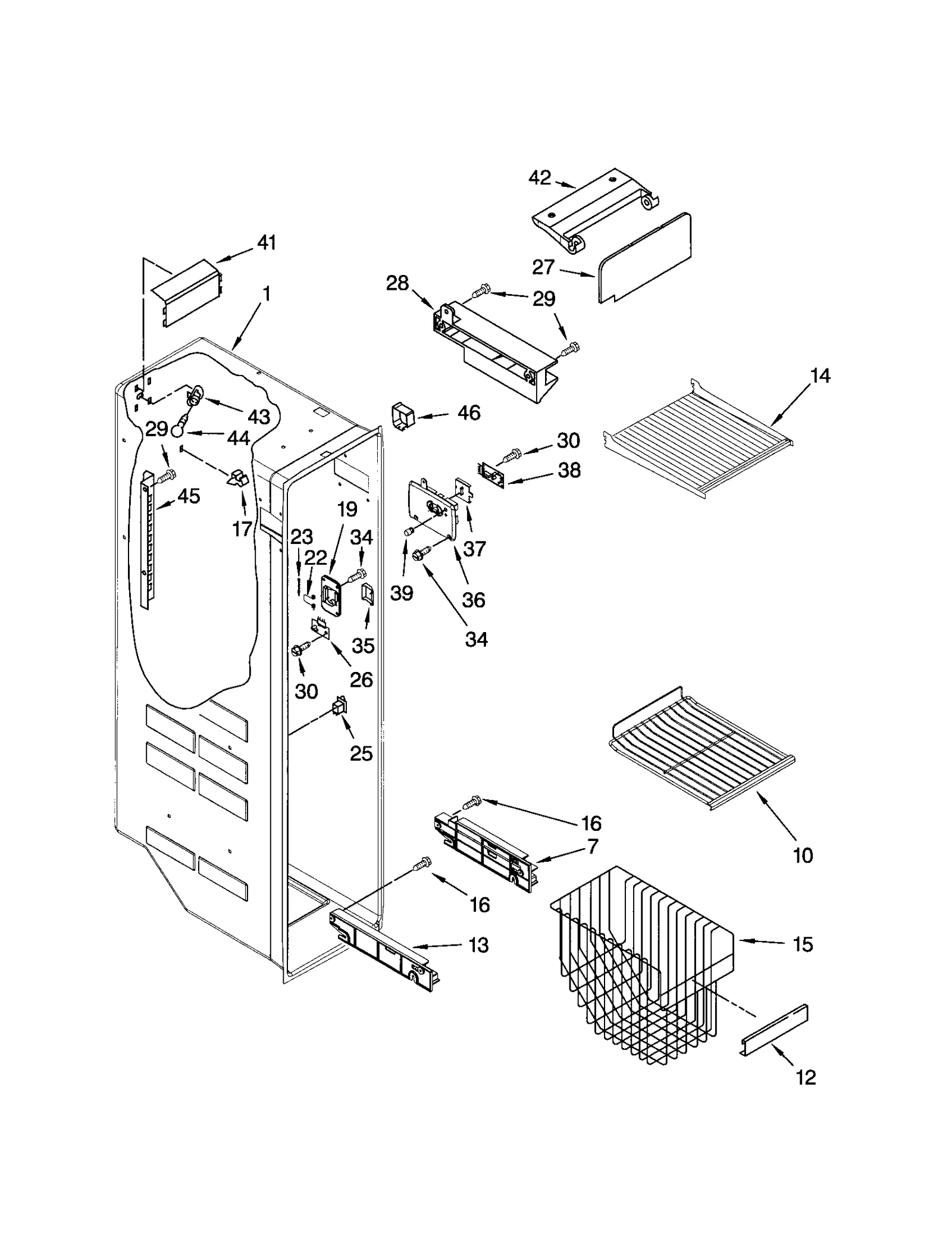

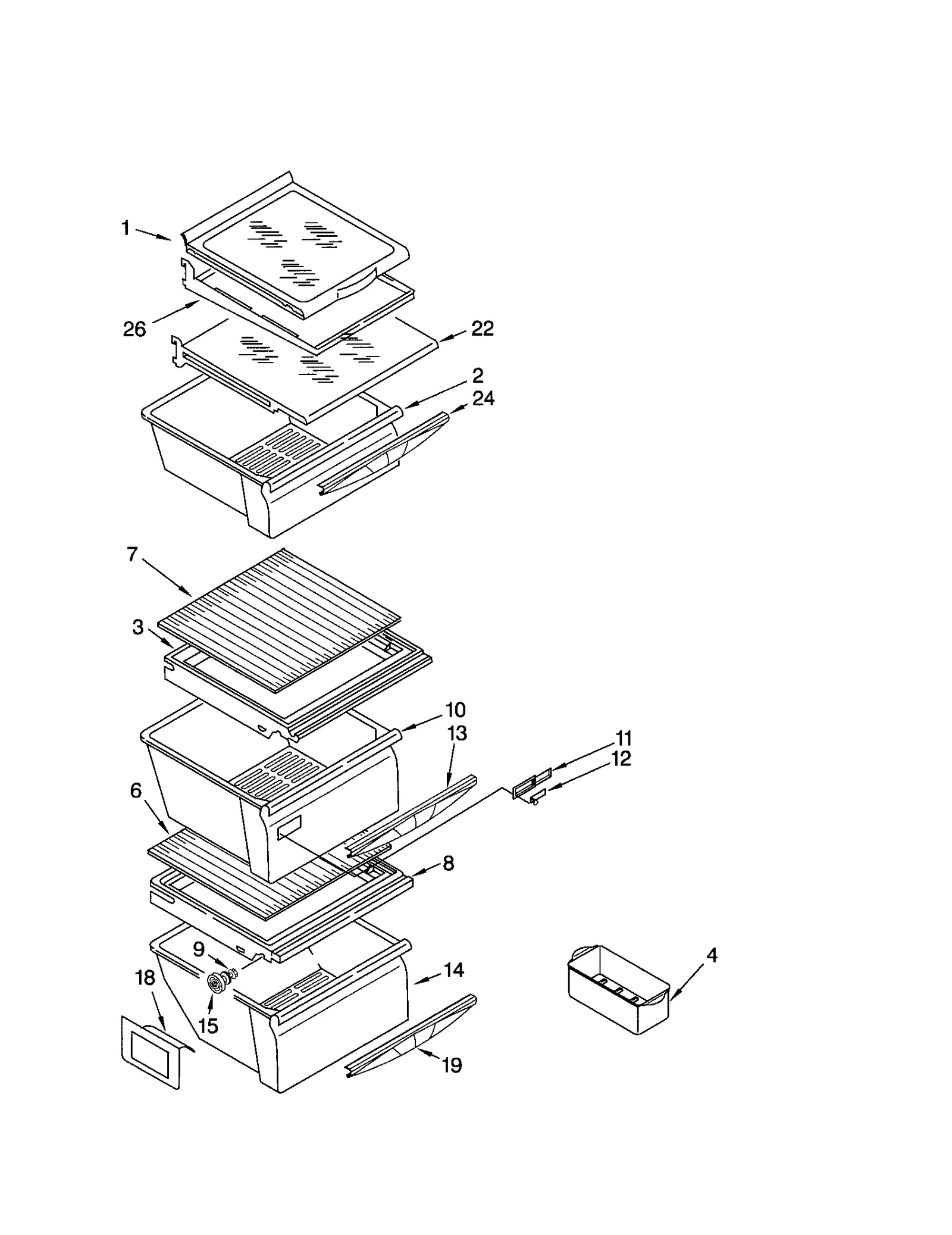

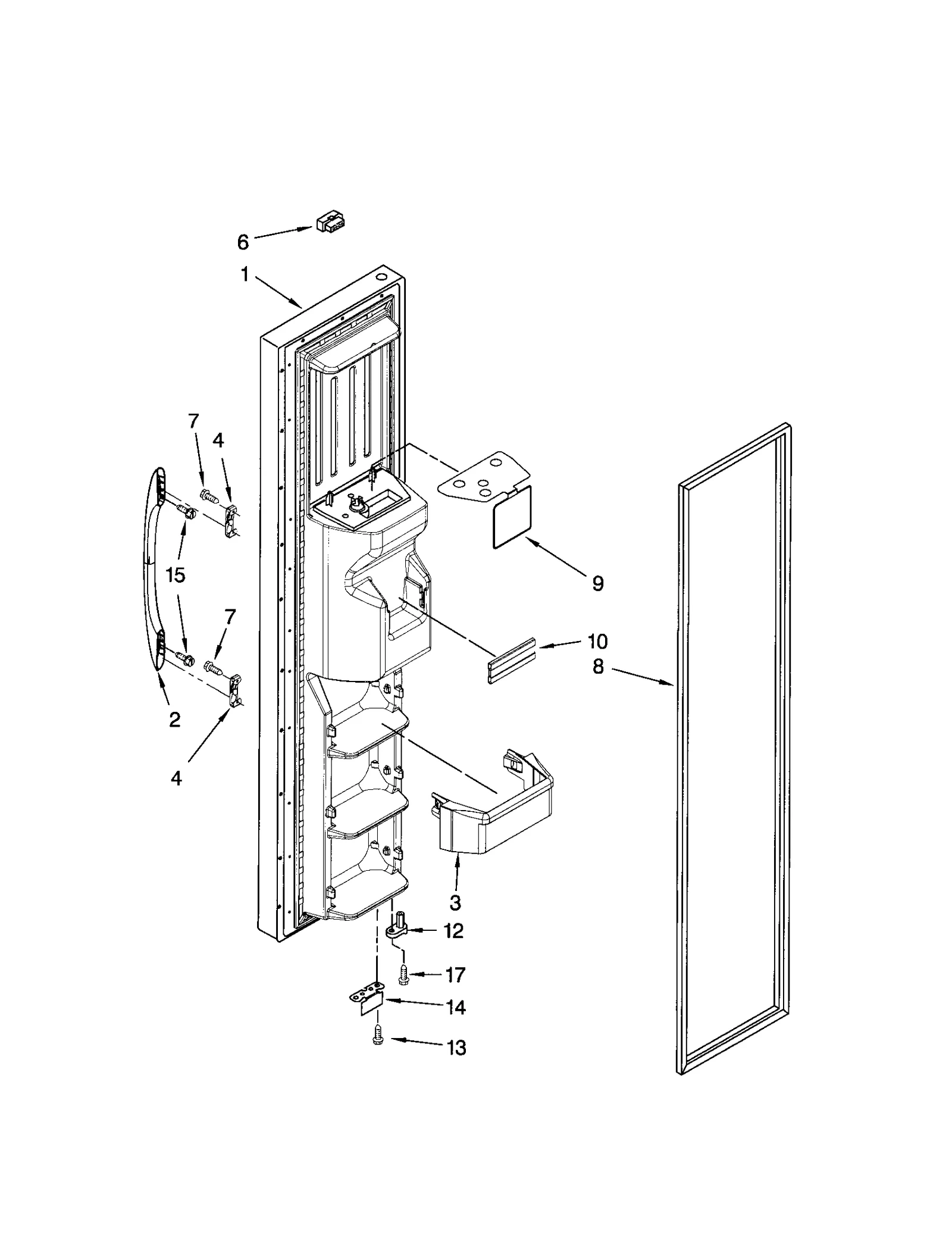

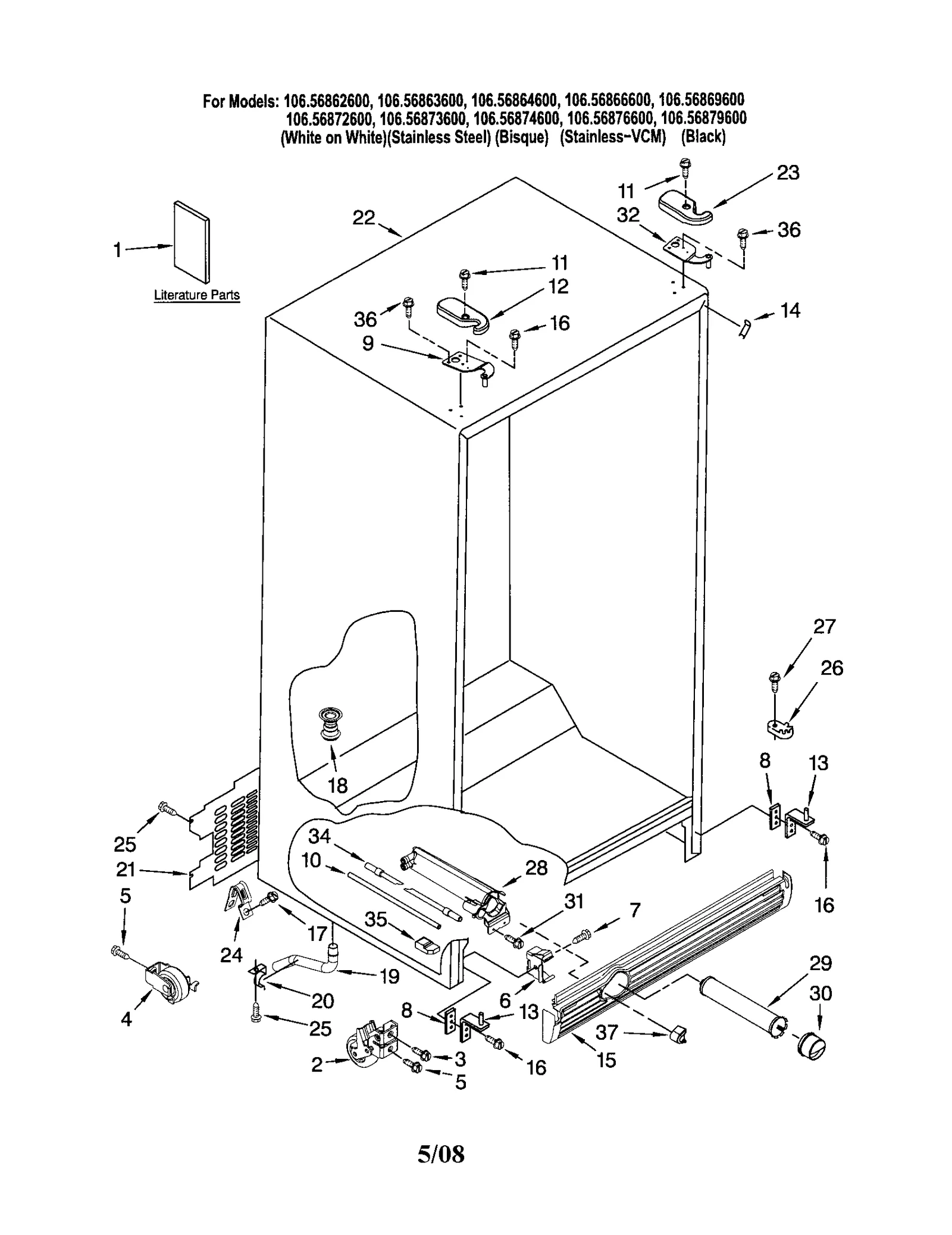

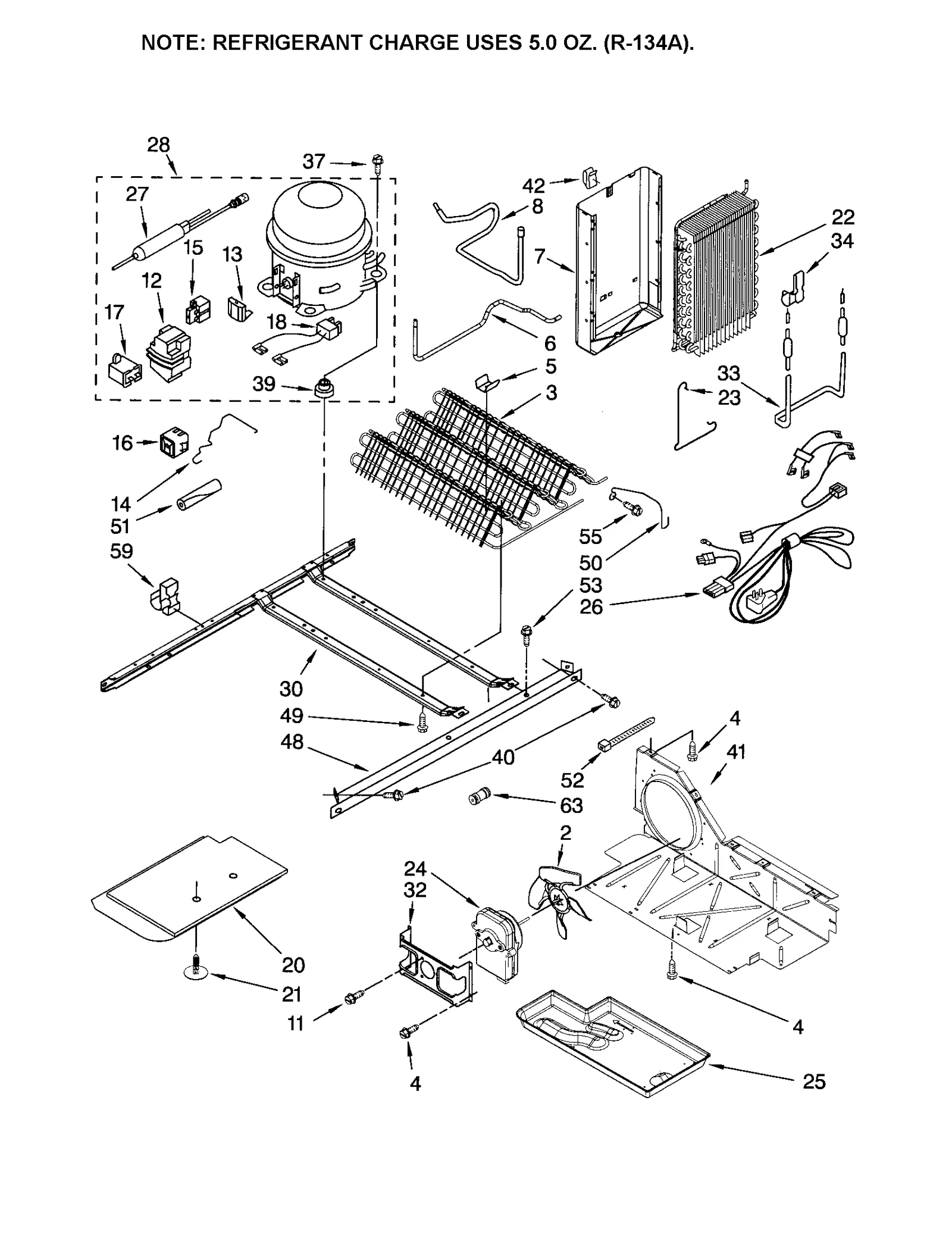

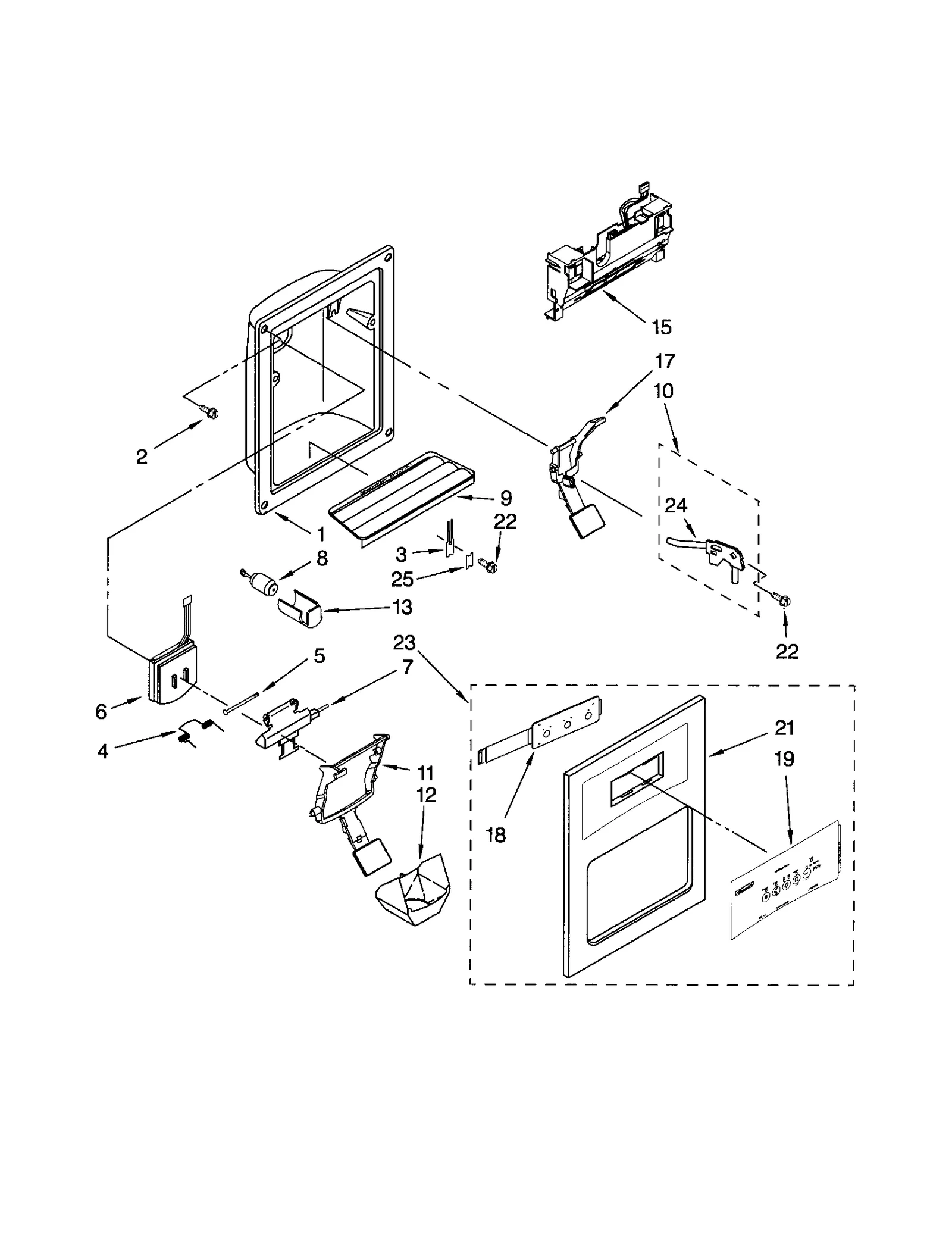

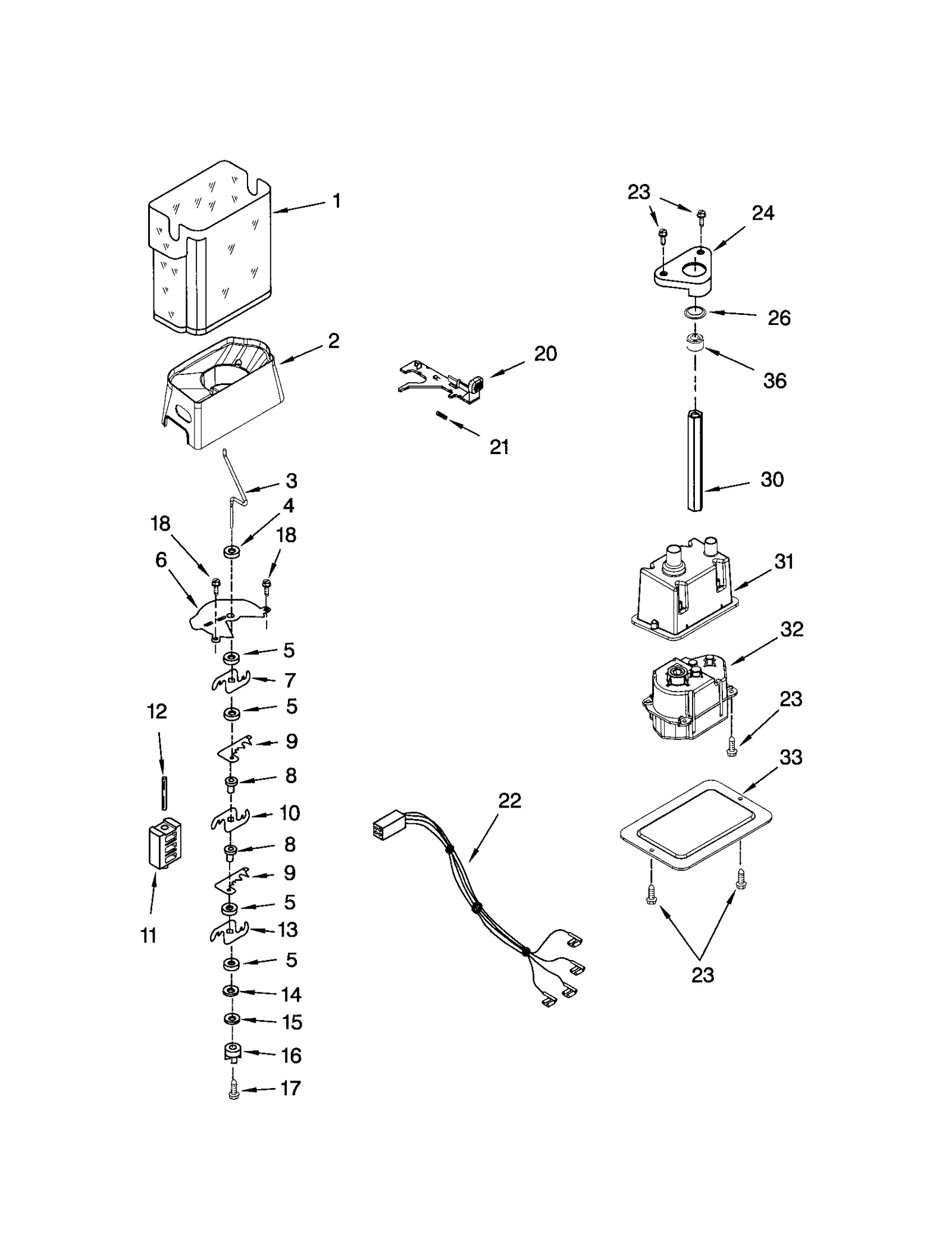

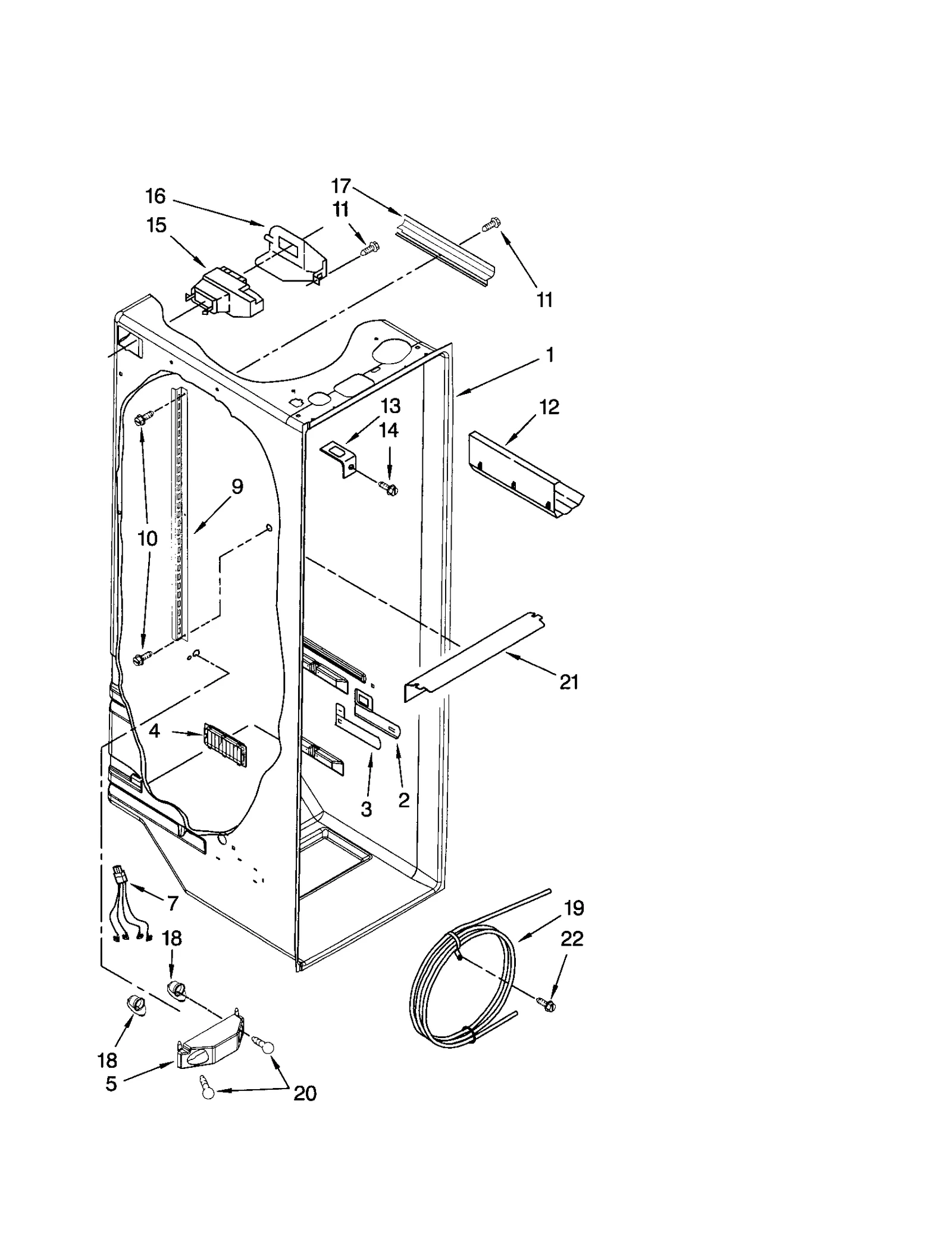

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $227.38

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.72

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2B

Refrigerator Door Handle (Black) WPL 2319714B Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $222.63

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $76.47

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Refrigerator Ice Dispenser Auger Washer WPL 2258220 Contact Us For Availability

5

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $177.37

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $12.74

7

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $125.66

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $145.73

7

Refrigerator Shield WPL 2304288 Contact Us For Availability

7A

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $128.13

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $60.78

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

Refrigerator Shim WPL 2209697 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $61.16

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

9

Refrigerator Ice Crusher Fixed Blade WPL 2257020 Contact Us For Availability

9

Refrigerator Barrier WPL 2304896 Contact Us For Availability

9B

Refrigerator Dispenser Drip Tray WPL 2206908B Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $117.48

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $76.20

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

Refrigerator Shelf Wire WPL 2211743K Contact Us For Availability

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $6.83

Refrigerator Fresh-Food Control Light Pipe WPL 2179920 Contact Us For Availability

Refrigerator Ice Dispenser Blade Rest WPL 2198602 Contact Us For Availability

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $64.45

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $91.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

12B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.92

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $106.42

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Refrigerator Dispenser Ice Chute Door Motor S WPL 2252127 Contact Us For Availability

Refrigerator Freezer Drawer Slide Rail, Right WPL 2301289 Contact Us For Availability

13A

Refrigerator Freezer Drawer Slide Rail, Left WPL 2301290 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

Refrigerator Door Stop Bracket WPL 2200082 Contact Us For Availability

Clip WPL 2255199 Contact Us For Availability

Refrigerator Freezer Wire Shelf WPL 2212343K Contact Us For Availability

14A

Refrigerator Door Stop (Black) WPL 2200082B Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

Refrigerator Door Handle Mounting Screw WPL 8533920 Contact Us For Availability

Refrigerator Start Relay WPL 2183454 Contact Us For Availability

Refrigerator Freezer Basket WPL 2301193 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W11629923 Whirlpool Coupling In Stock WPL W11629923 $23.13

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.59

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

17A

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $86.55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

COVER, EMITTER WPL 21958587 Contact Us For Availability

20

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $353.07

20

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $153.06

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

22

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

23A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

23B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $53.90

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $81.87

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $58.40

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $303.28

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.77

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $224.45

27

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $55.46

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

27A

DRIER SERVICE WPL 23174845 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $358.95

28

Refrigerator Ice Maker Cover Bracket, Right WPL 2212321 Contact Us For Availability

29

Refrigerator Ice Maker Mounting Bracket WPL 2212317 Contact Us For Availability

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $178.10

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

32

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $96.51

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $86.68

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $92.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.25

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $42.66

36

Refrigerator Control Board Cover WPL 2198698 Contact Us For Availability

37

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

37

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.82

39A

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

2212376 Whirlpool Light Lens Backorder WPL 2212376 $66.60

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $68.27

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

42

Exchange Clip WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

45

Refrigerator Ladder WPL 2212315 Contact Us For Availability

45A

Refrigerator Ladder WPL 2212316 Contact Us For Availability

46

Refrigerator Shield WPL 2219878 Contact Us For Availability

48

Rail Unit WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Fan Guard WPL 2260516 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Ice Maker Wire Harness Clamp WPL 2208280 Contact Us For Availability

63

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $29.71

NI01

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

NI02

285006 Whirlpool Spray In Stock WPL 285006 $52.65

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

NI03

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

NI04

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

NI04

Refrigerator Service Valve WPL 978028 Contact Us For Availability

NI05

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

NI07

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

NI08

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

NI10

Pnt-blk-qrt WPL 799340 Contact Us For Availability

NI11

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI12

Paint, Bsq WPL 4392900 Contact Us For Availability

NI13

Paint (Graphite) WPL 8171358 Contact Us For Availability

NI14

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $24.24

NI15

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

NI16

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI17

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

NI18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

NI19

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

NI20

Adhesive WPL 542639 Contact Us For Availability

NI21

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

NI22

Epoxy WPL 799833 Contact Us For Availability

NI23

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

NI24

Refrigerator Cleaner WPL 2217061 Contact Us For Availability

NI25

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
