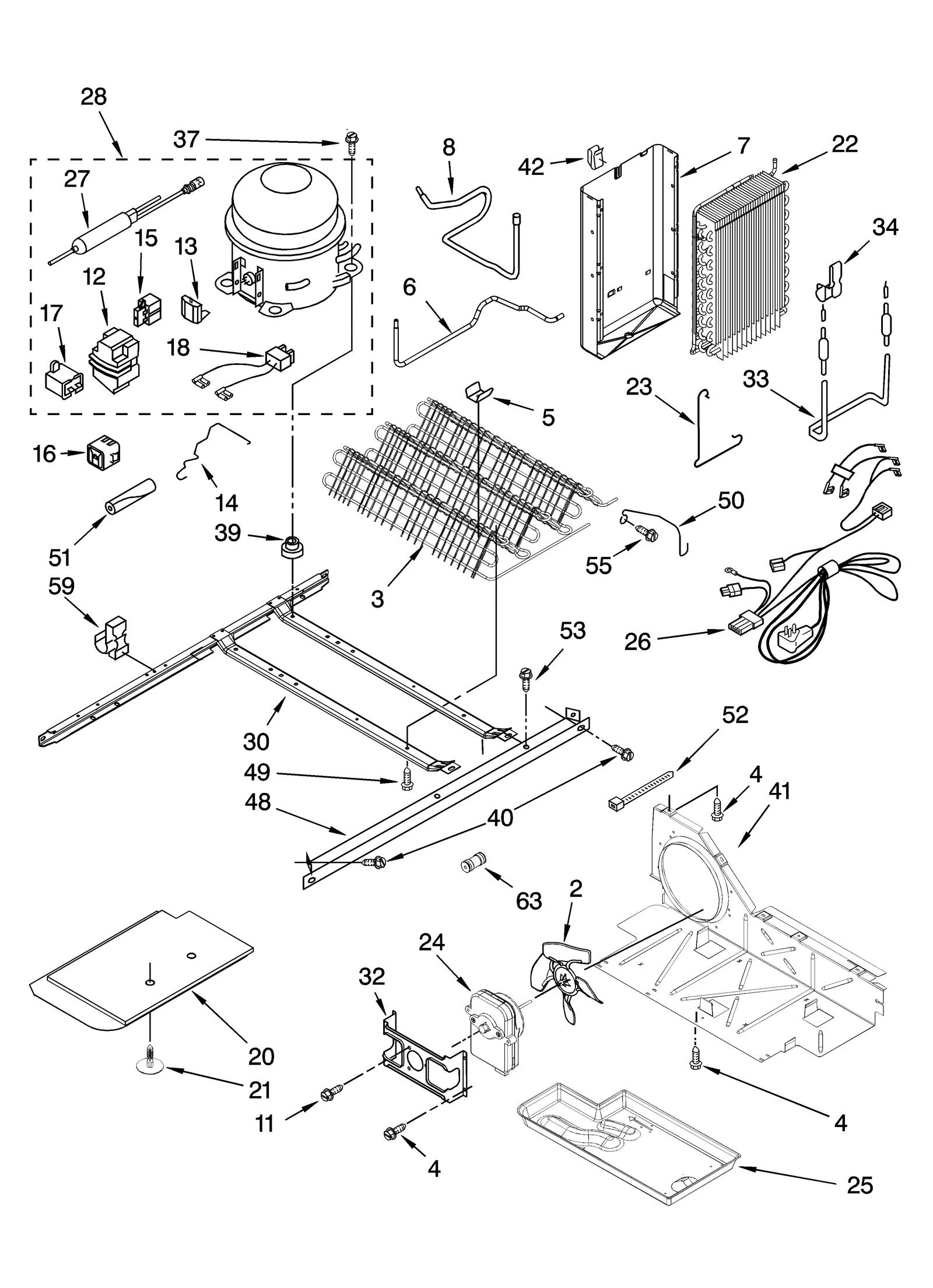

Model Whirlpool 106.56839601 Side-By-Side Refrigerator (Kenmore 10656839601) – Common Parts &amp; Diagrams

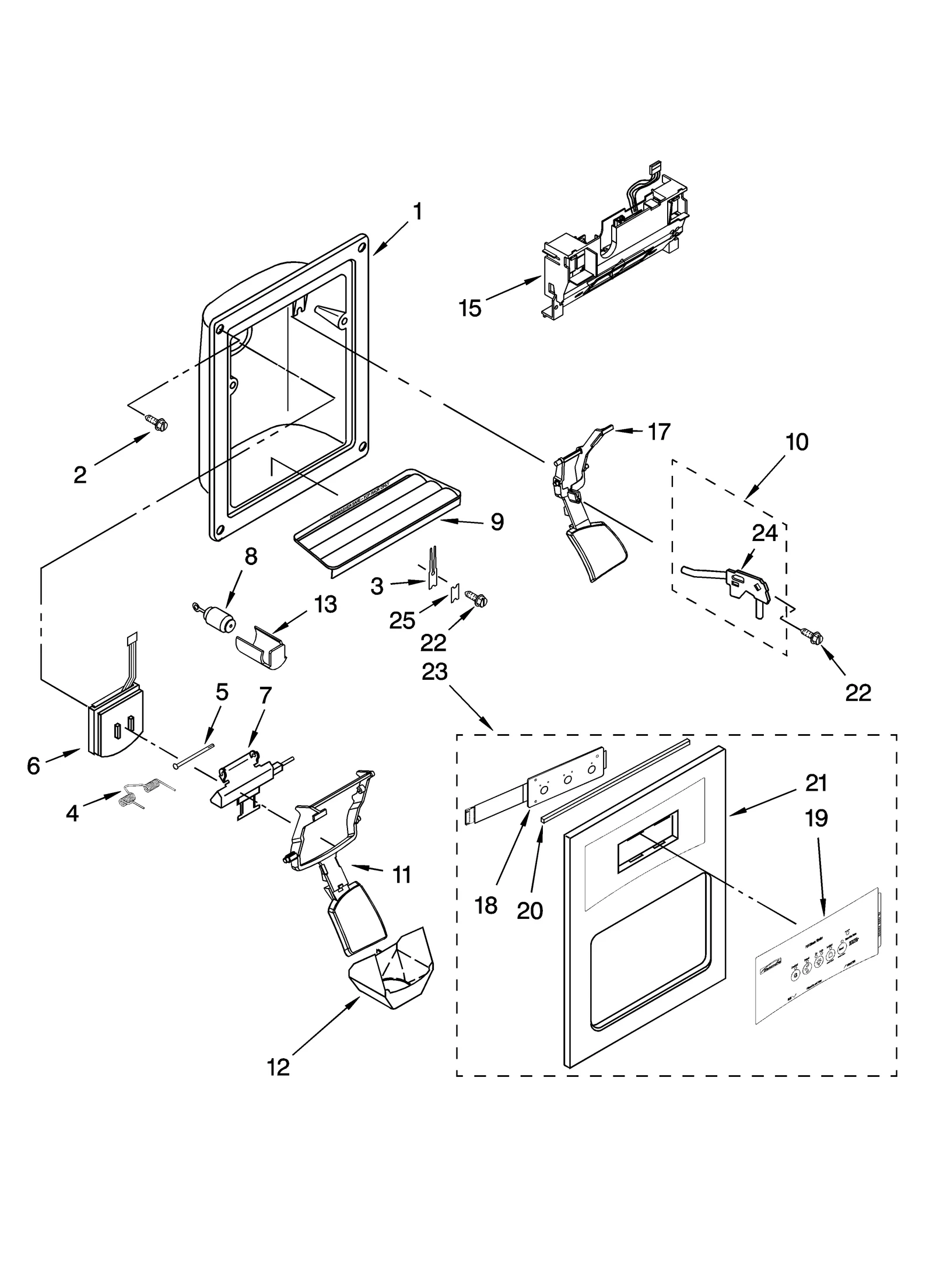

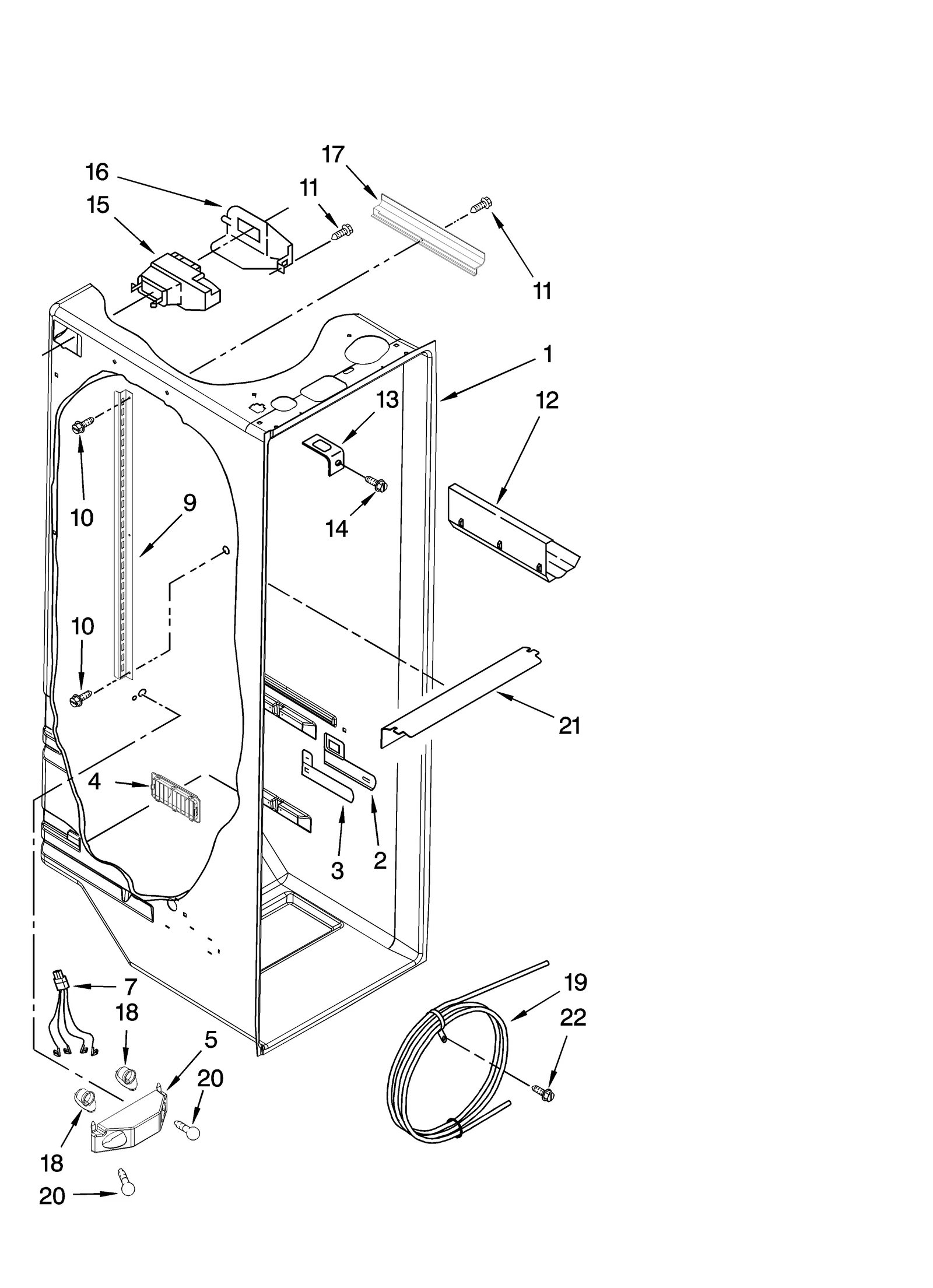

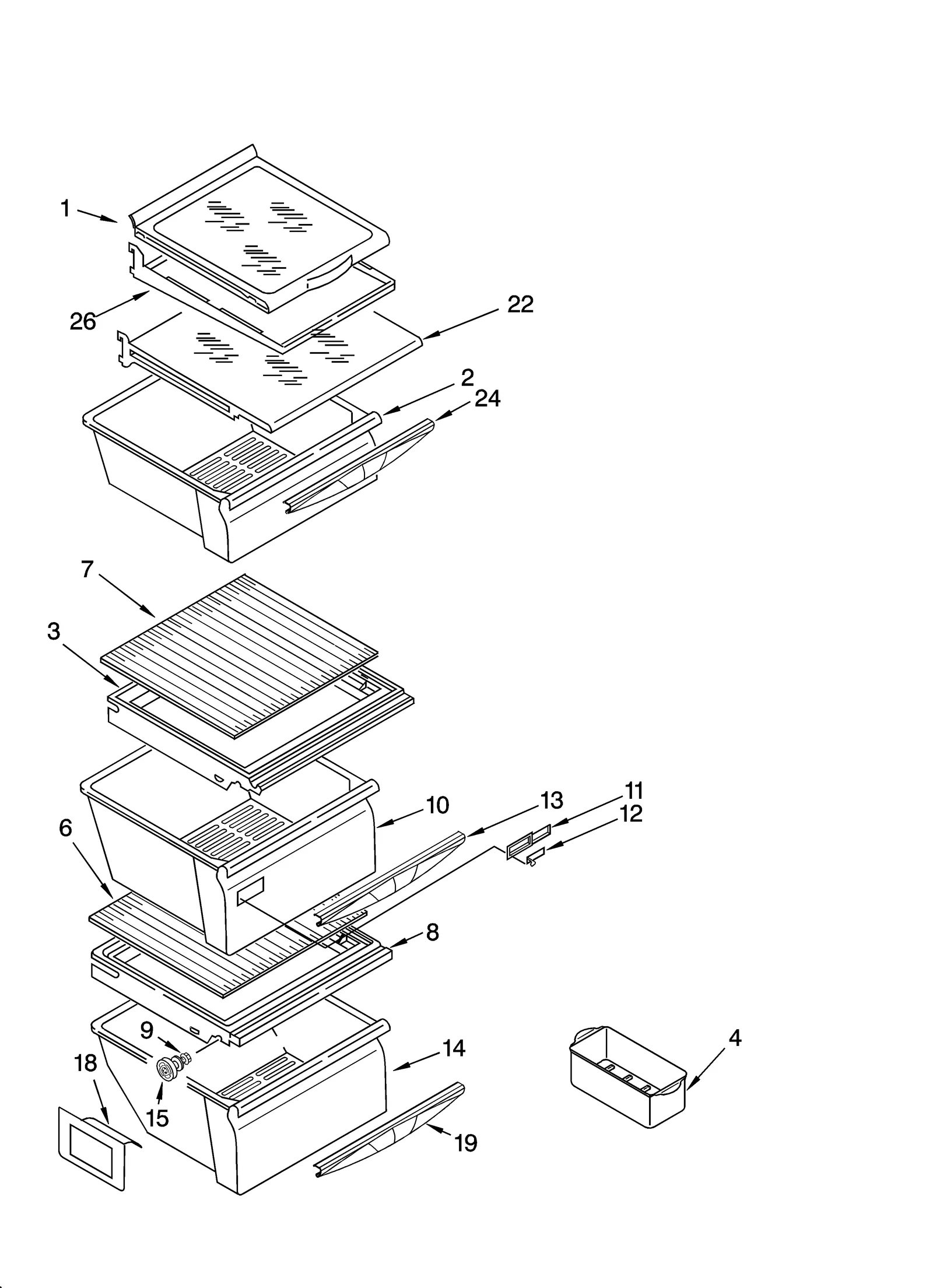

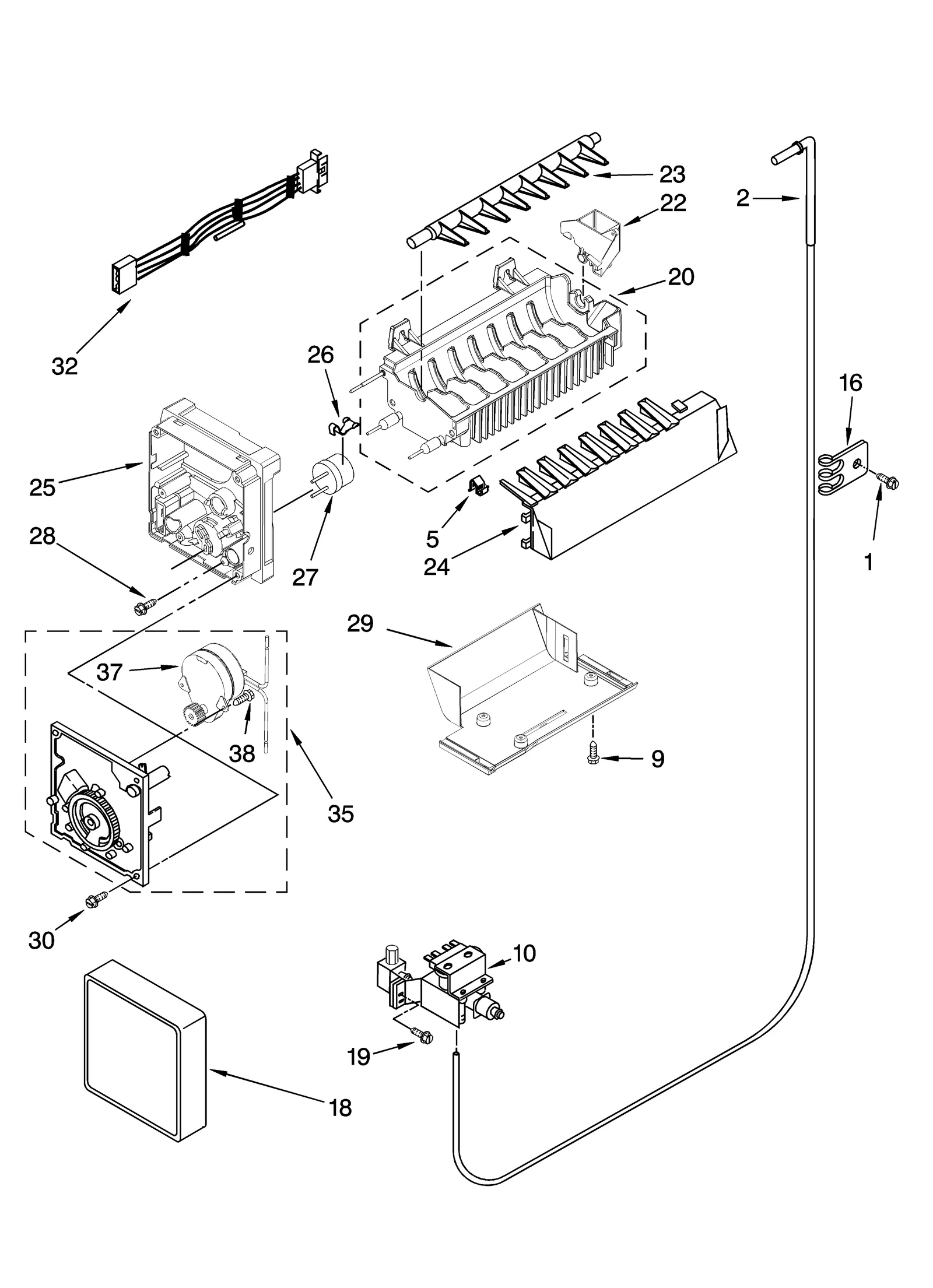

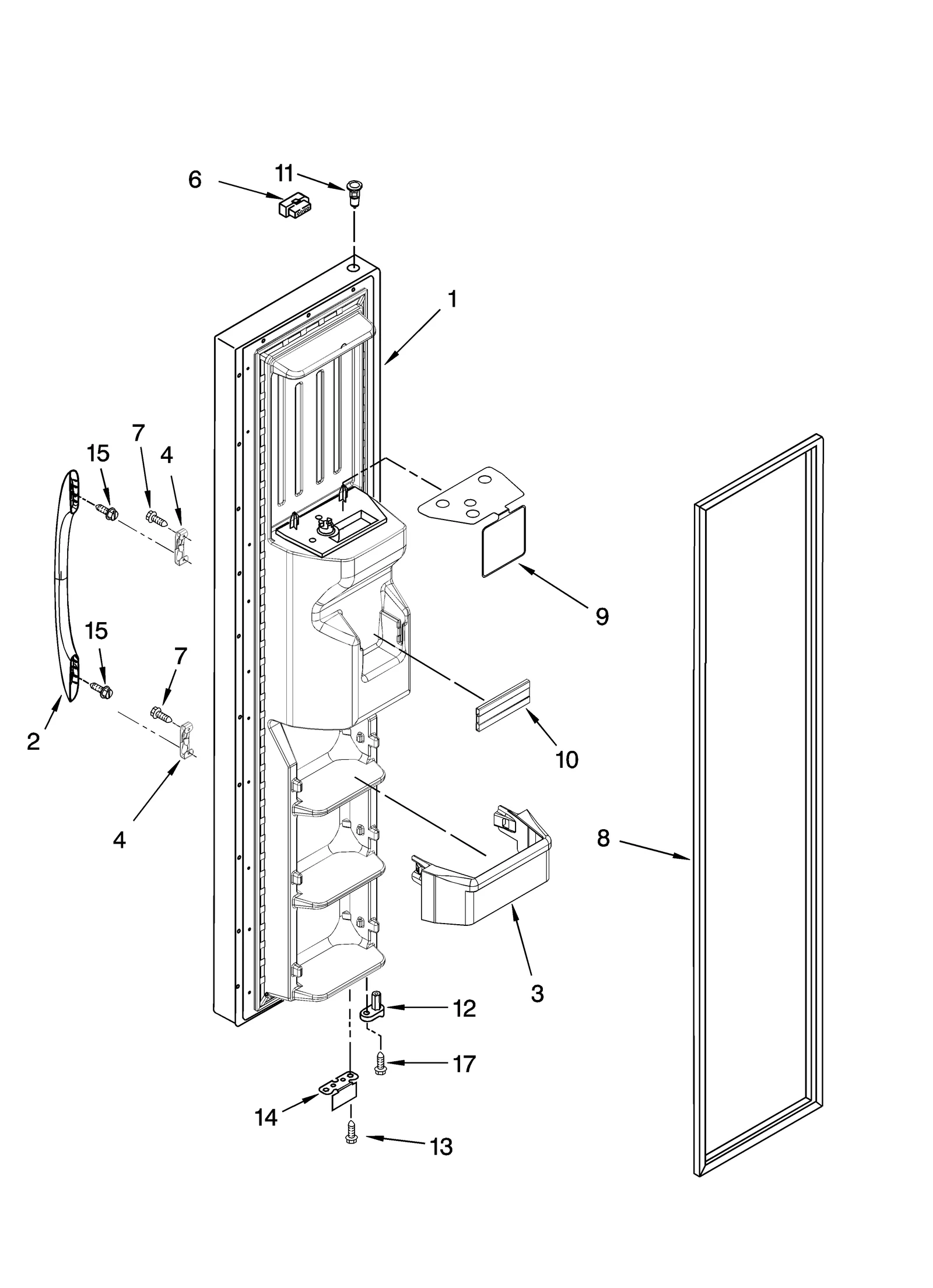

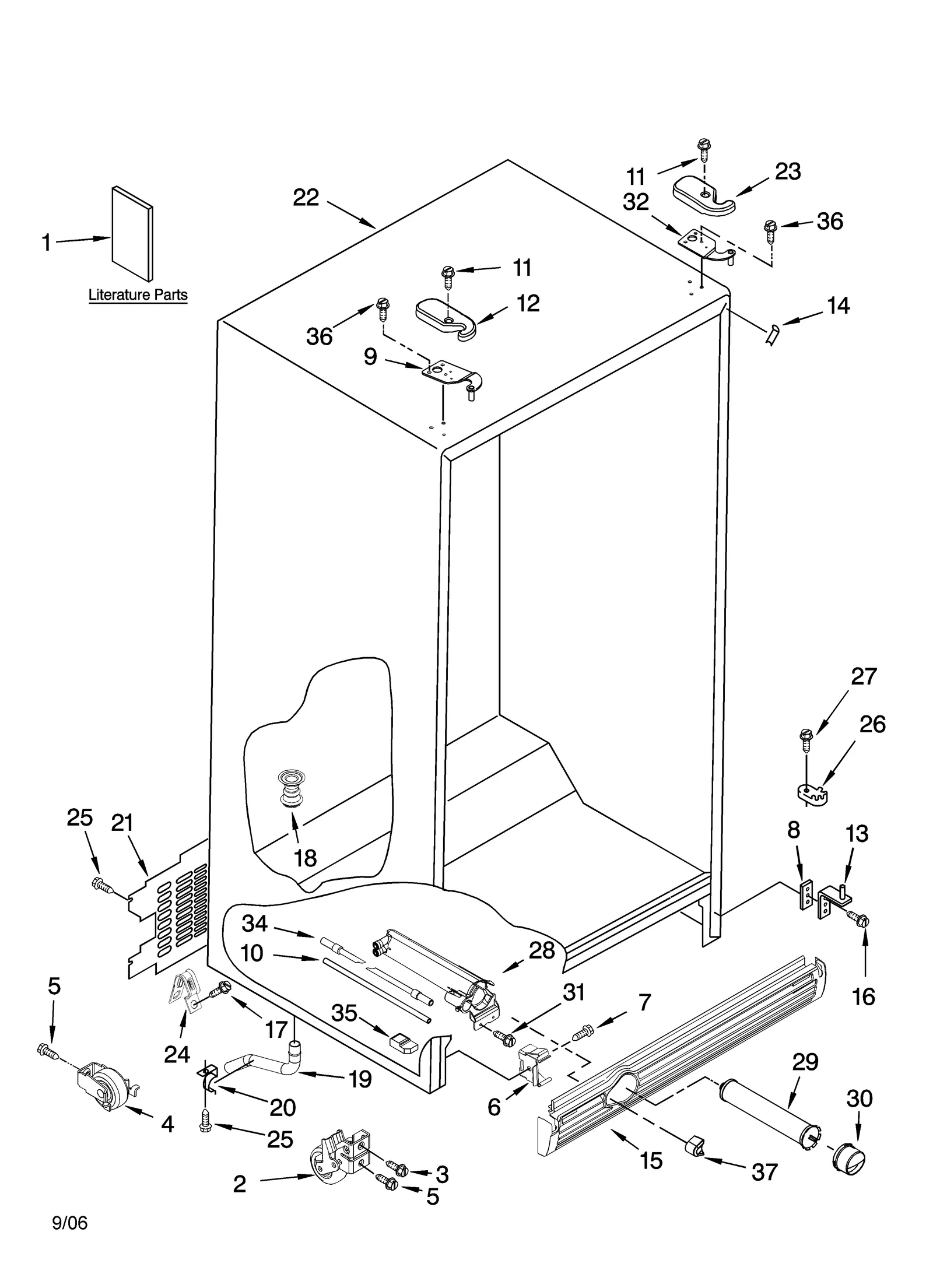

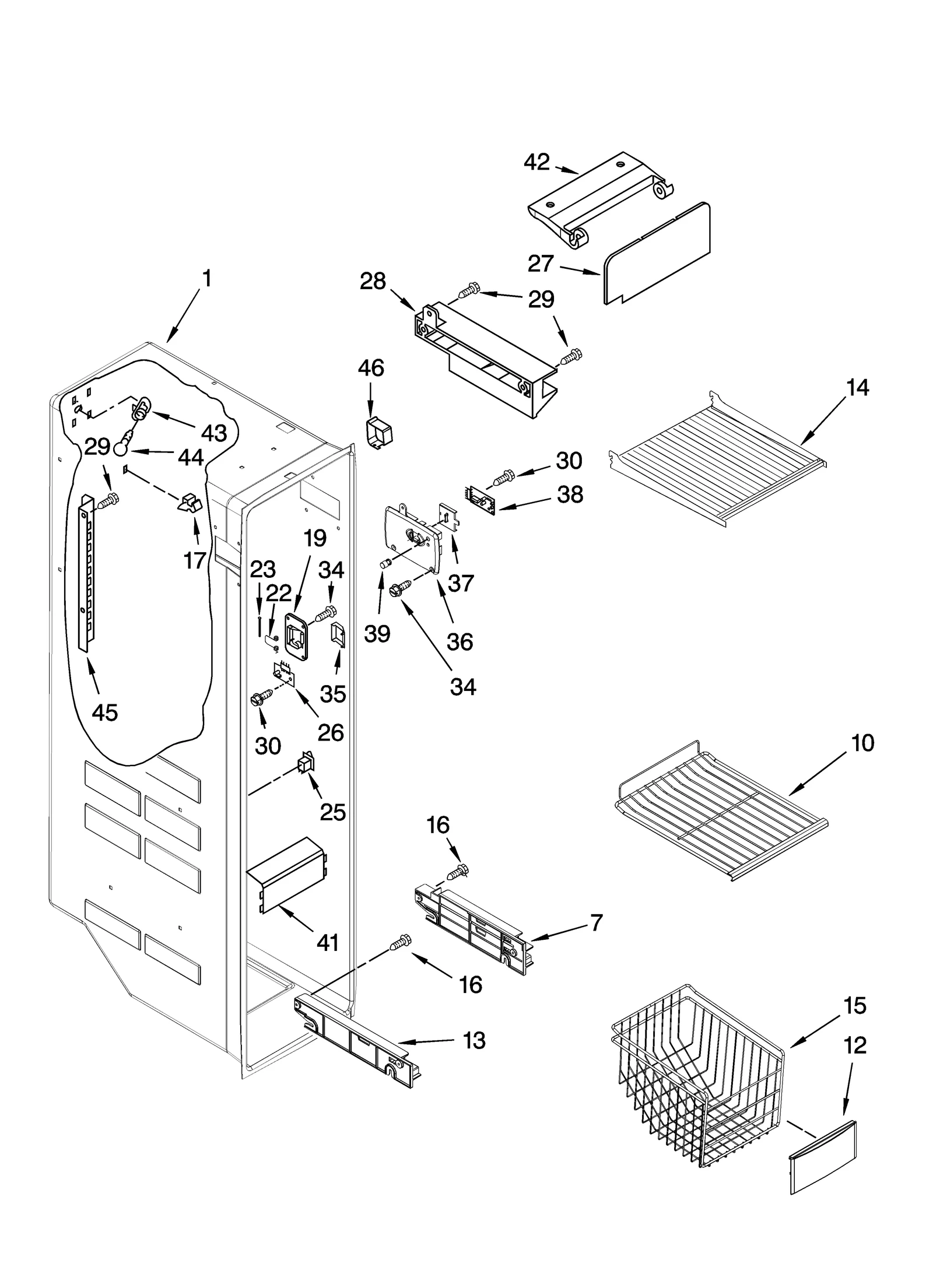

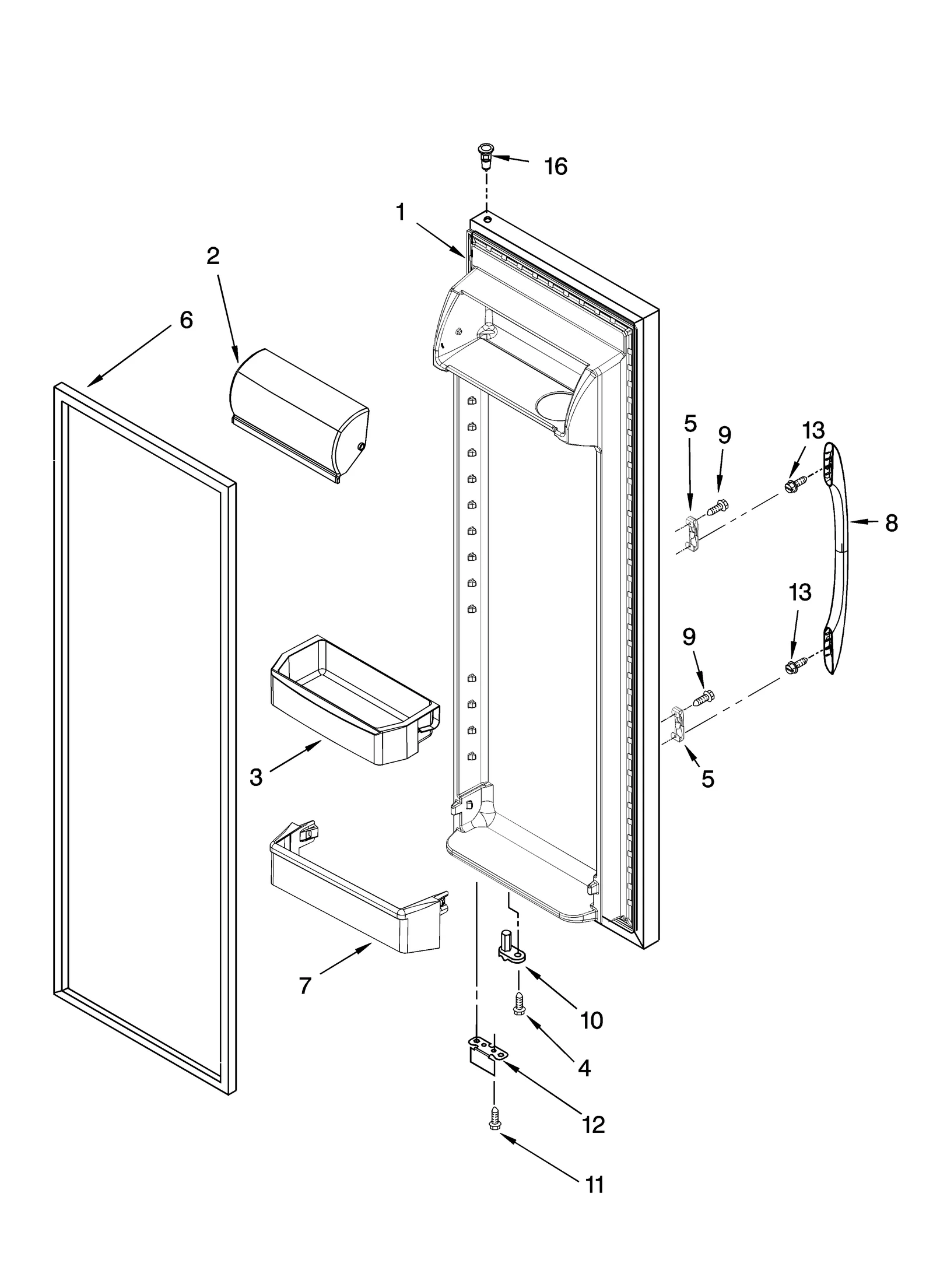

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1A

Refrigerator Energy Guide WPL 2318652 Contact Us For Availability

1B

Refrigerator Energy Guide WPL 2318686 Contact Us For Availability

1C

Refrigerator Owner's Manual WPL 2318592 Contact Us For Availability

1D

Refrigerator Technical Sheet WPL 2305869 Contact Us For Availability

1E

Refrigerator Technical Sheet WPL 2220407 Contact Us For Availability

1F

Refrigerator Installation Instructions WPL 2261037 Contact Us For Availability

1G

Refrigerator Installation Instructions WPL 2304845 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $148.38

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.72

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

Refrigerator Cabinet Roller WPL 2174748 Contact Us For Availability

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $126.77

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $177.37

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $12.74

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $60.78

8

Refrigerator Shim WPL 2209697 Contact Us For Availability

8B

Refrigerator Door Handle (Black) WPL 2319714B Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.36

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $61.16

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

9B

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $39.17

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $117.48

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $76.20

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $76.73

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Refrigerator Fresh-Food Control Light Pipe WPL 2179920 Contact Us For Availability

11A

Refrigerator Door Hinge Bushing WPL 2301049 Contact Us For Availability

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

12A

Refrigerator Cover WPL 2203408T Contact Us For Availability

12B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.92

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $56.99

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $106.42

Refrigerator Dispenser Ice Chute Door Motor S WPL 2252127 Contact Us For Availability

Refrigerator Freezer Drawer Slide Rail, Right WPL 2301289 Contact Us For Availability

Refrigerator Door Handle Mounting Screw WPL 8533920 Contact Us For Availability

13A

Refrigerator Freezer Drawer Slide Rail, Left WPL 2301290 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $51.97

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Refrigerator Trim Cap WPL 2196094 Contact Us For Availability

14A

Refrigerator Filler WPL 2196150 Contact Us For Availability

14B

Refrigerator Filler WPL 2196097 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Refrigerator Bracket WPL 2252162 Contact Us For Availability

Refrigerator Grille WPL 2260501W Contact Us For Availability

15A

Refrigerator Grille WPL 2260501T Contact Us For Availability

15B

Refrigerator Grille WPL 2260501B Contact Us For Availability

16

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

16

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $51.14

17A

Refrigerator Water Dispenser Level (Bisque) WPL 2212035 Contact Us For Availability

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $59.86

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $71.95

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $86.55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $17.07

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

20

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $153.06

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

21

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $95.55

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Refrigerator Cantilever Shelf WPL 2206370 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

Refrigerator Cover (White) WPL 2315408W Contact Us For Availability

23A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

23A

Refrigerator Cover WPL 2315408T Contact Us For Availability

23B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

23B

Refrigerator Cover (Black) WPL 2315408B Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $53.90

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $81.87

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

25

NLA:SCREW Backorder WPL WPW10141645 $4.82

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.10

26

Refrigerator Crisper Drawer Shelf Frame WPL 2195975 Contact Us For Availability

27

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $72.35

28

Refrigerator Ice Maker Cover Bracket, Right WPL 2212321 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

29

Refrigerator Ice Maker Mounting Bracket WPL 2212317 Contact Us For Availability

30

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.20

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

30A

Refrigerator Water Filter Cap (Bisque) WPL 2260502T Contact Us For Availability

30B

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.93

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

32

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $96.51

34

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $92.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.25

35

Refrigerator Insulation WPL 2260519 Contact Us For Availability

37

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

37B

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $55.63

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.82

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $157.86

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $24.24

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability

Refrigerator Cleaner WPL 2217061 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability
