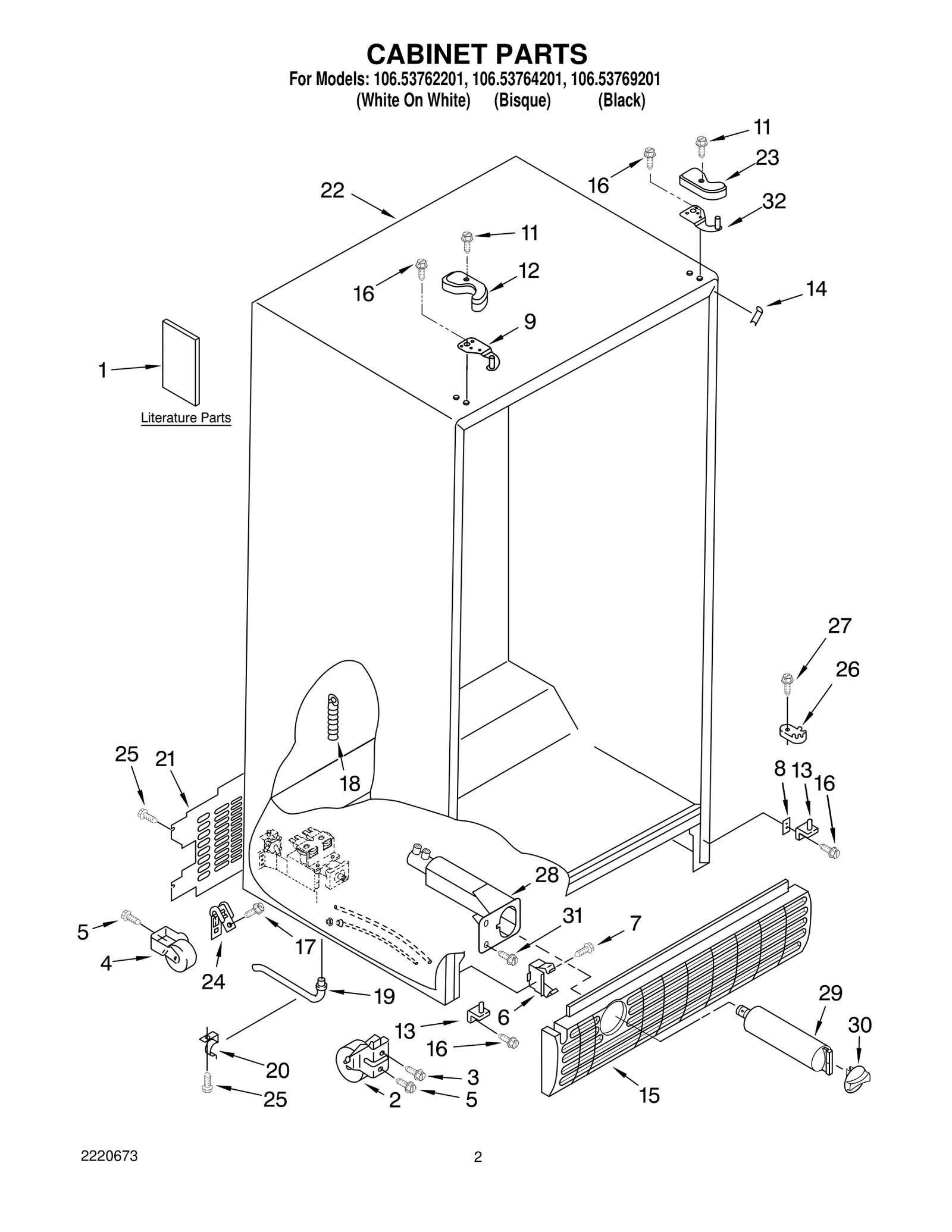

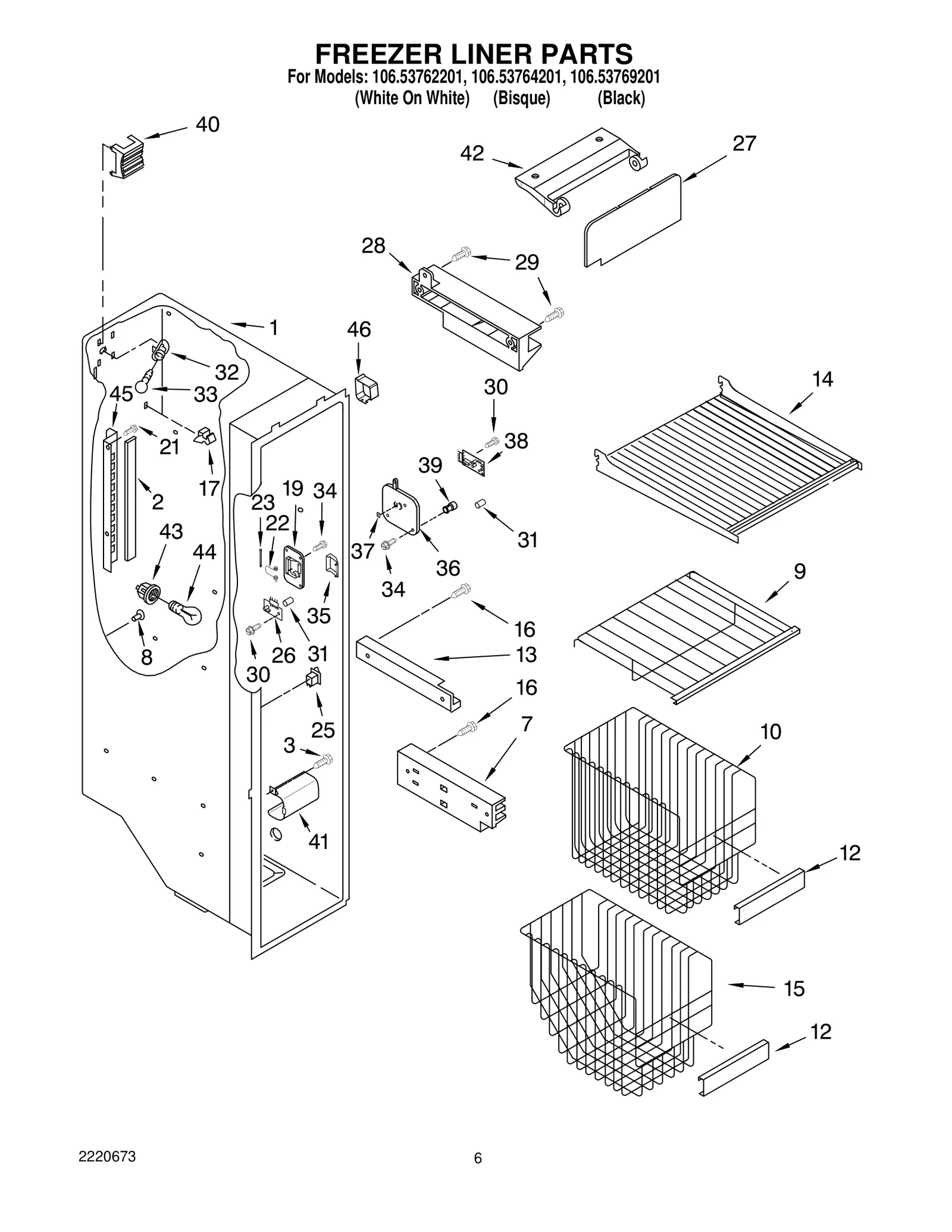

Model Whirlpool 106.53762201 Refrigerator – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

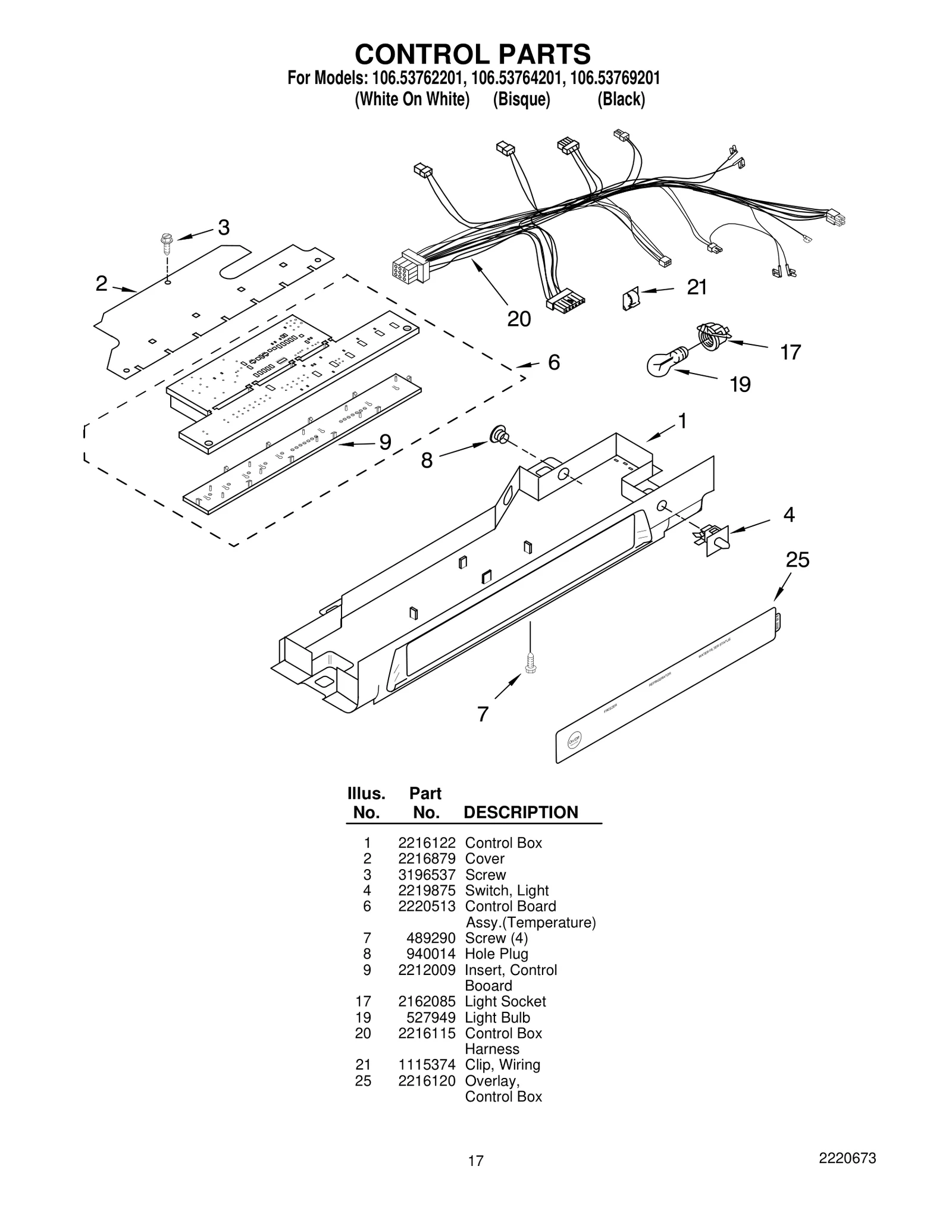

Control Box WPL 2216122 Contact Us For Availability

2

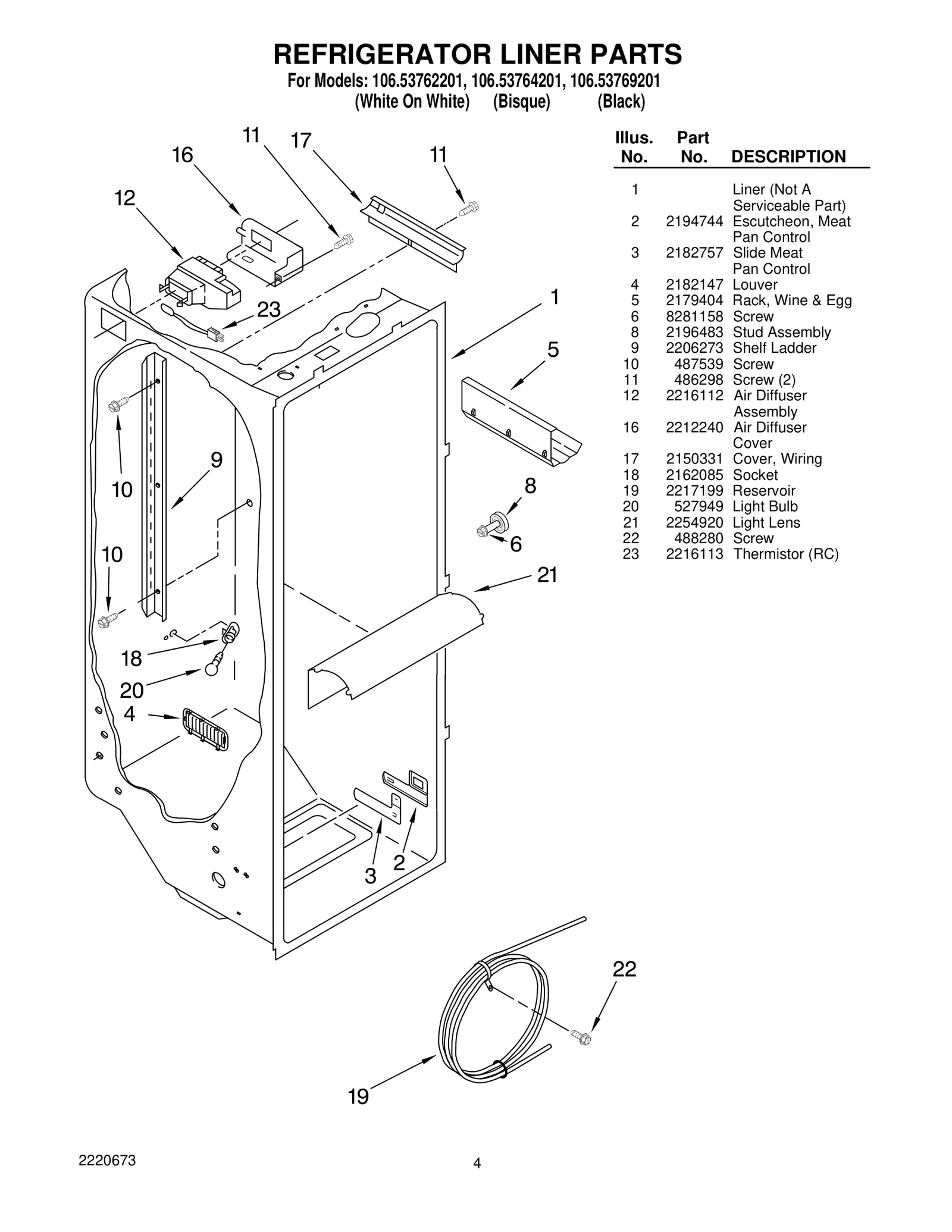

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.72

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

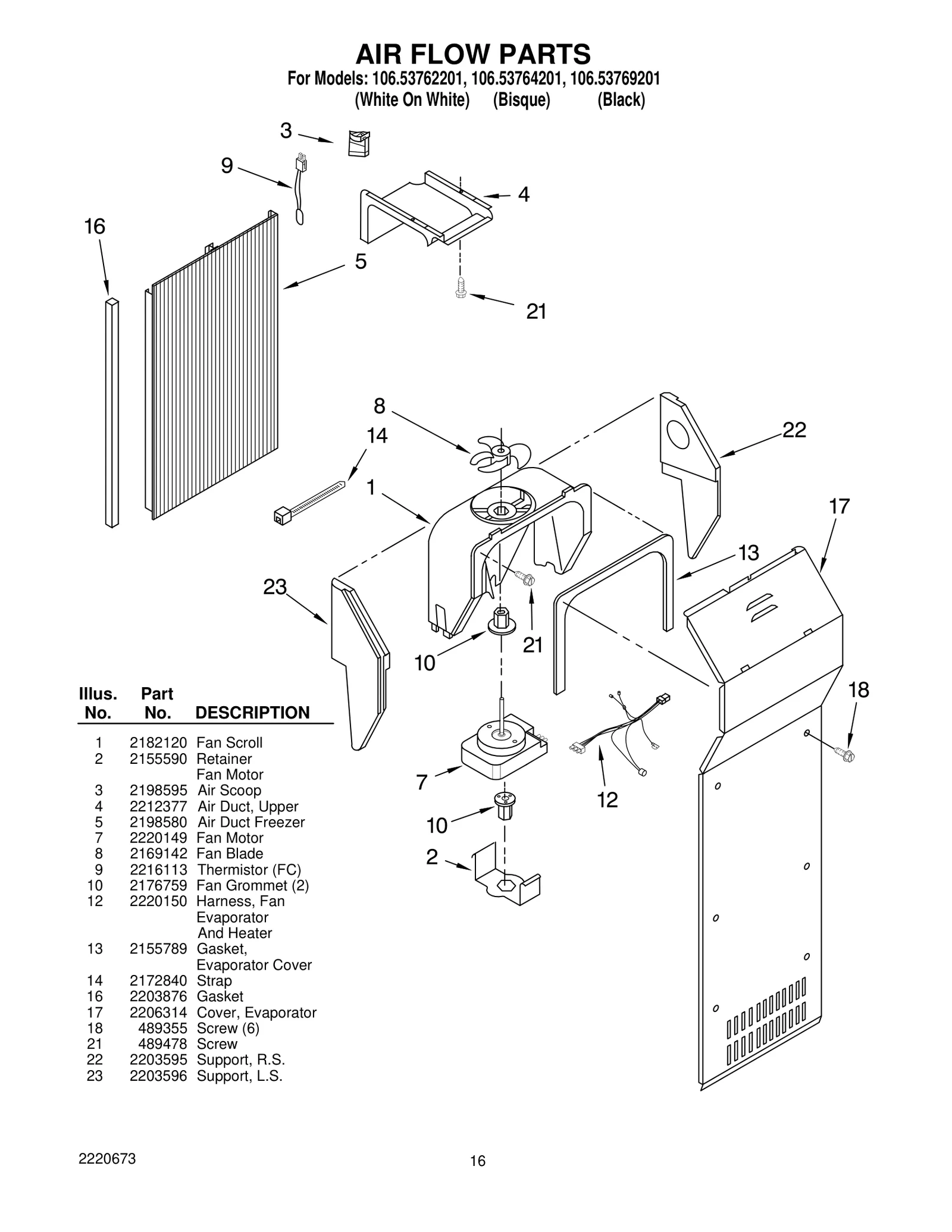

Retainer Fan Motor WPL 2155590 Contact Us For Availability

2

Cover WPL 2216879 Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $22.96

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $5.30

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

3

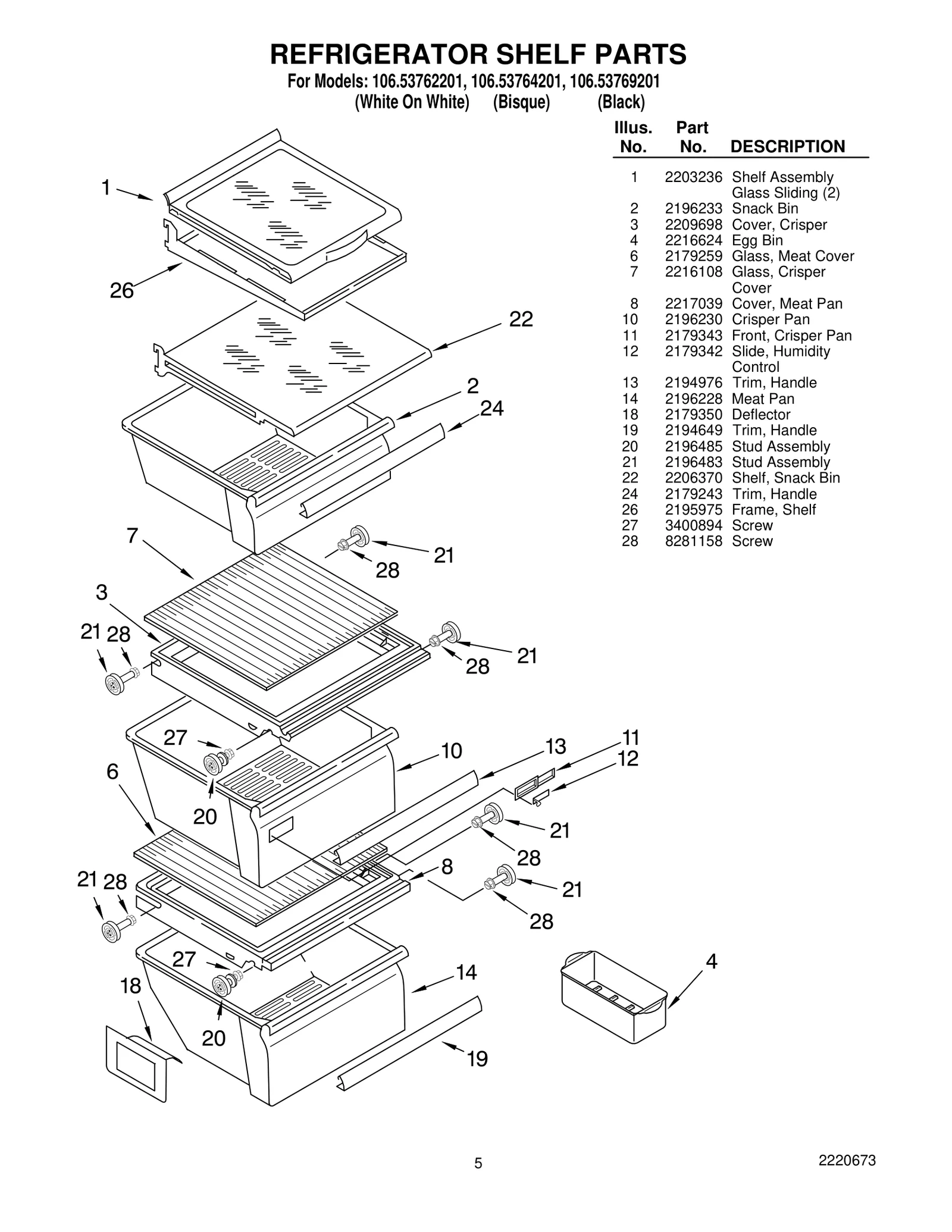

Shelf Bin (3) WPL 2203872 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $45.77

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $96.51

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Control Board Assy.(Temperature) WPL 2220513 Contact Us For Availability

6

Nut, Compression WPL 2200083 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

8

Tube Suction WPL 2205765 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

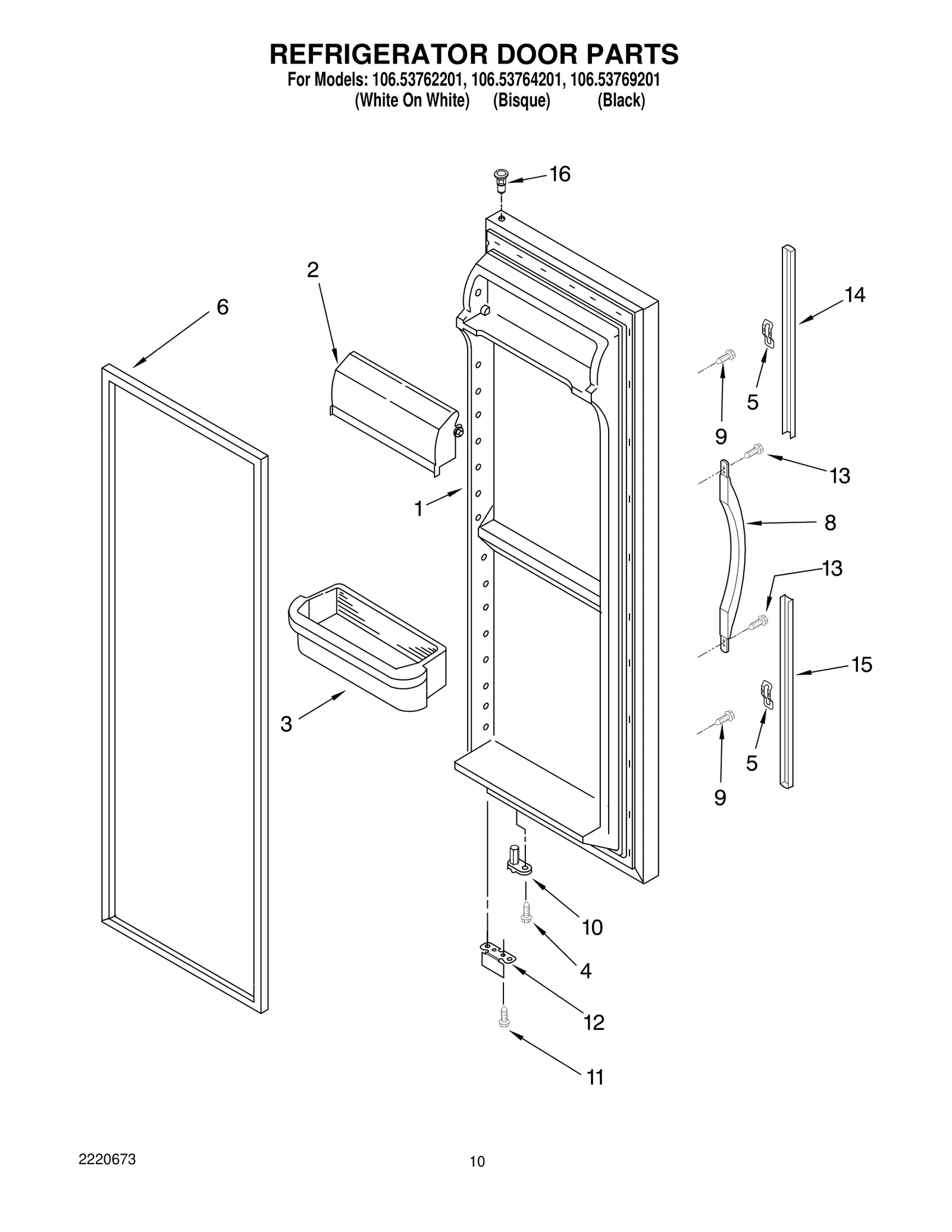

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

9

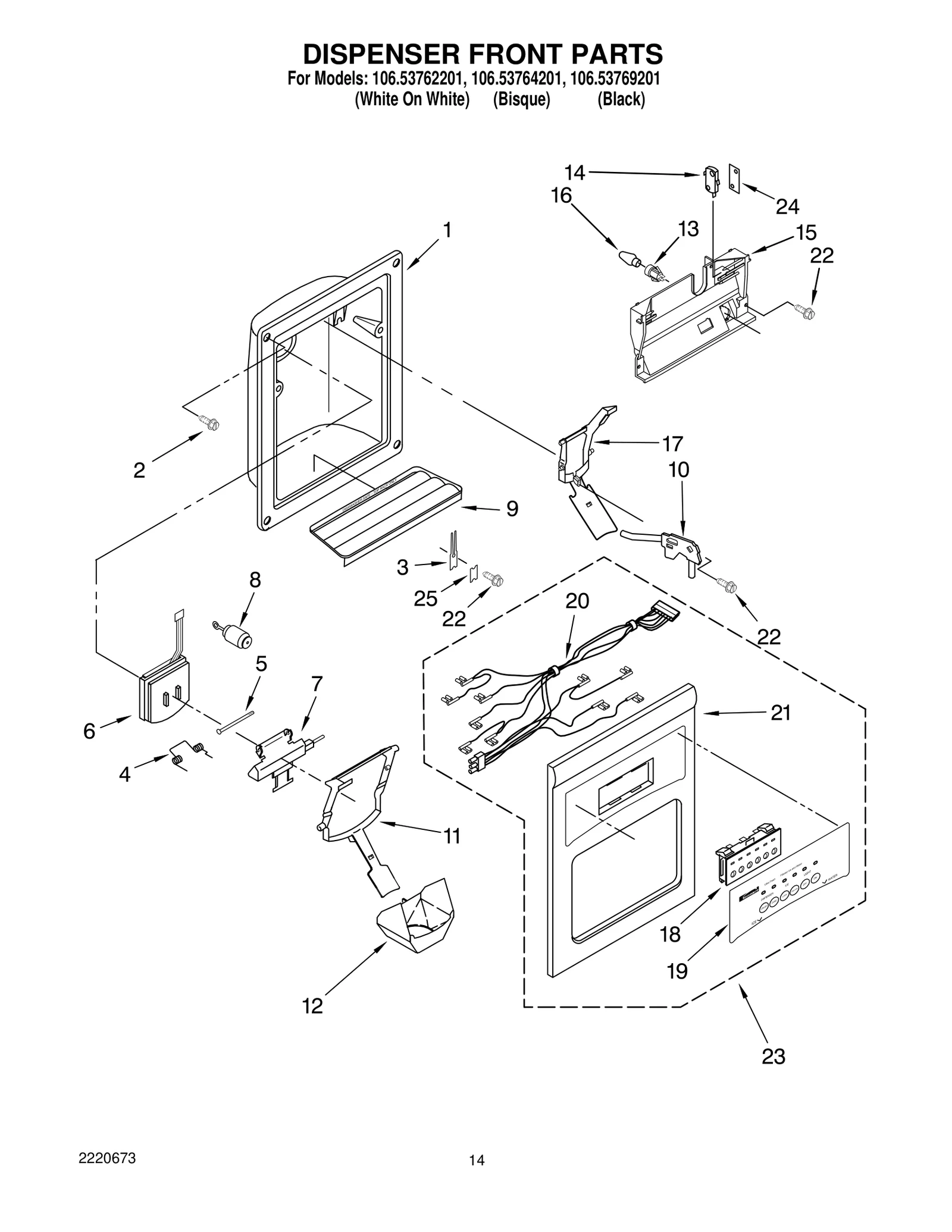

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.08

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $47.45

9

WP2206670W Whirlpool Dispenser Tray Backorder WPL WP2206670W $58.02

9

Insert, Control Booard WPL 2212009 Contact Us For Availability

10

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

10

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $76.67

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Block, Blade WPL 2198602 Contact Us For Availability

Bracket, Insert WPL 2216997 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $69.36

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $149.54

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $72.32

13

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $22.31

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $76.45

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

14

Filler, Wrapper — White WPL 2196094 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

15

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

15

Grille — Bisque WPL 2198468T Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $61.18

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $23.61

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

Start−Device, Combination (Start Relay and WPL 2212194 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $45.27

Cover, Evaporator WPL 2206314 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $71.95

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Screw Grommet WPL 509812 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

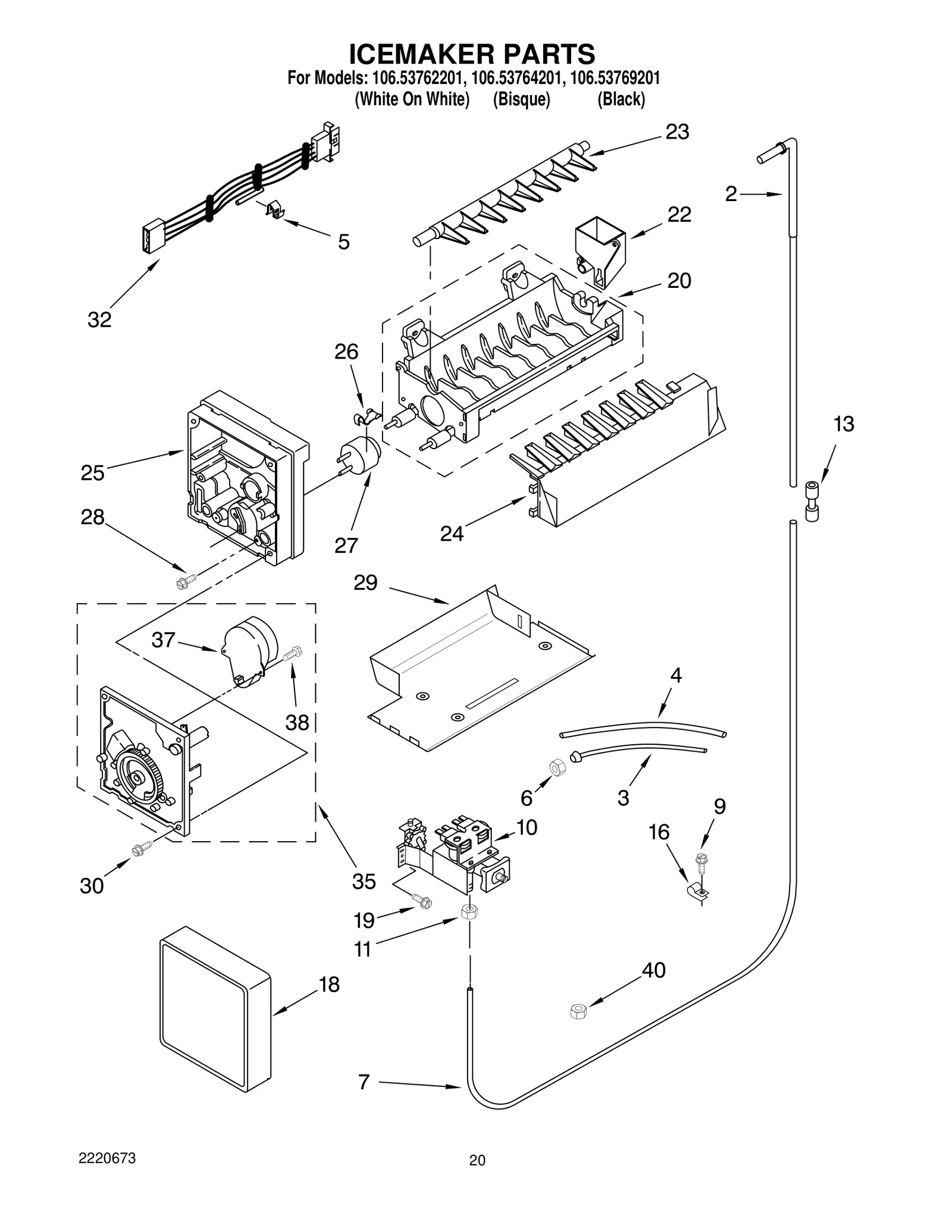

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

Control Box Harness WPL 2216115 Contact Us For Availability

Unit Cover, Bottom WPL 2200468 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Light Lens WPL 2254920 Contact Us For Availability

Trim, Door−Top — White WPL 2194707W Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $242.95

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Trim, Door−Bottom — White WPL 2194705W Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.92

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

W10181323 Whirlpool Refrigerator Condenser Fa In Stock WPL W10181323 $170.89

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $60.85

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $24.59

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $58.40

Overlay, Control Box WPL 2216120 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.77

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Harness, Unit WPL 2187425 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $29.43

WP2212370 Whirlpool Washer In Stock WPL WP2212370 $14.75

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $33.67

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $398.16

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $57.30

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $14.26

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $75.26

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $197.70

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $35.58

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.35

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $38.88

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $66.78

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $95.20

32

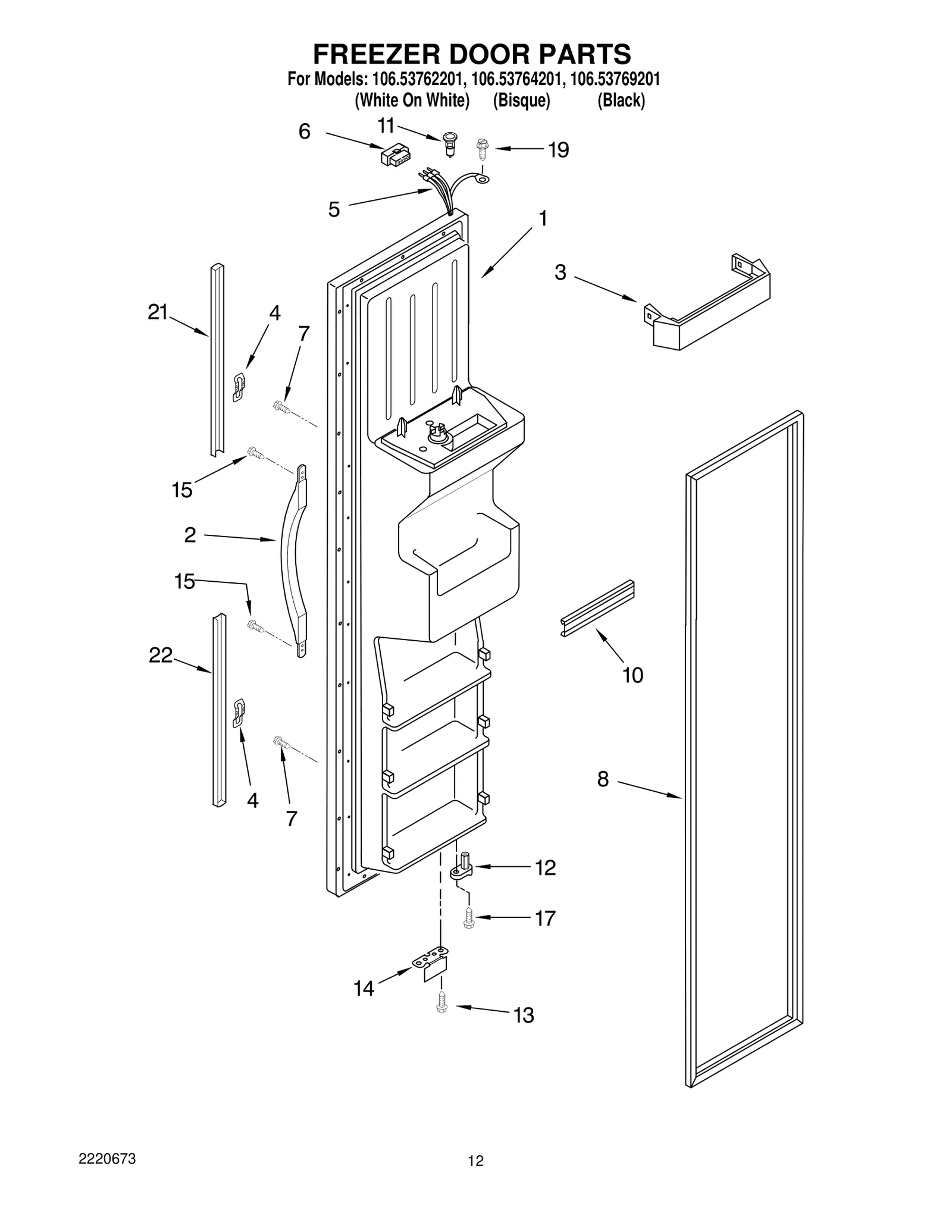

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $40.64

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

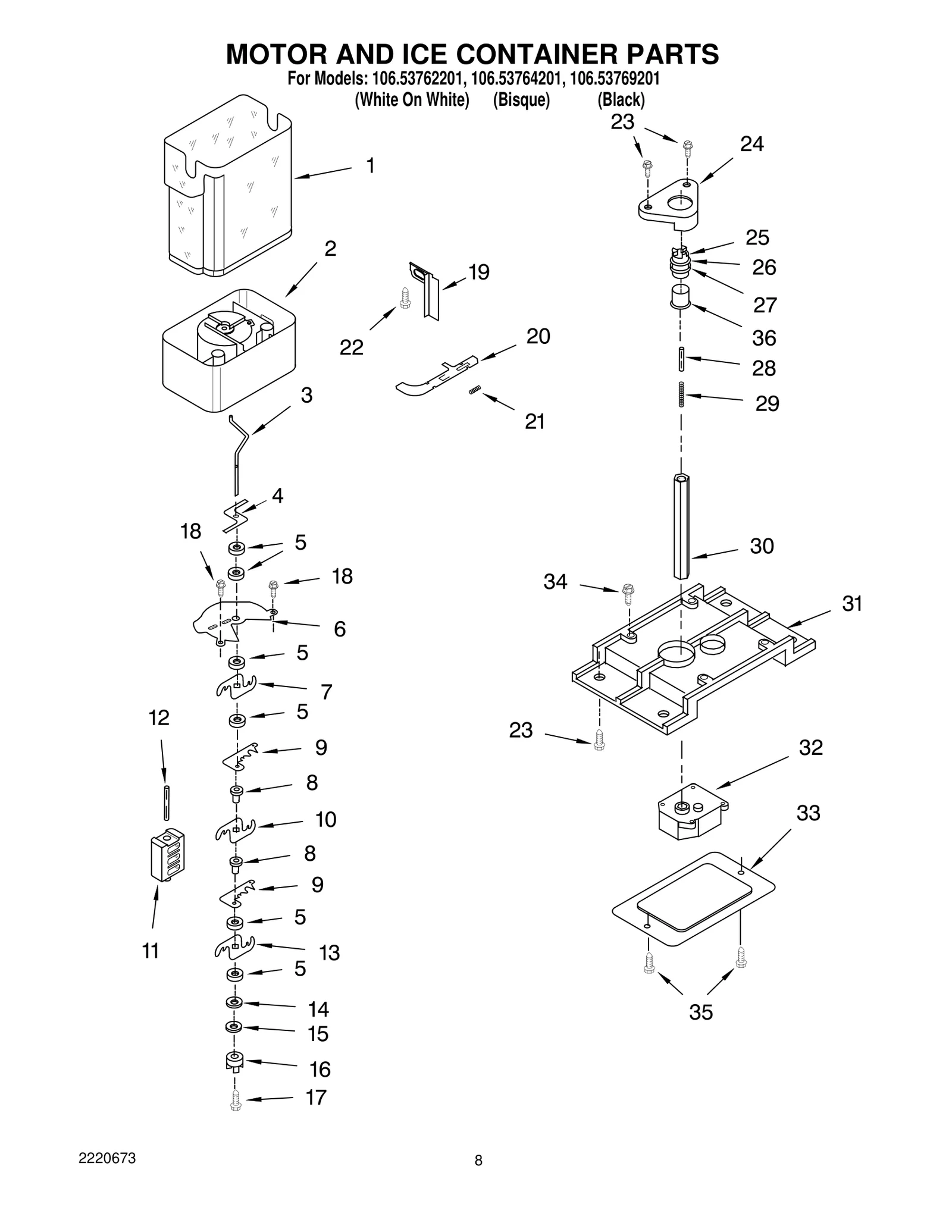

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.25

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $33.84

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.82

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $68.27

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

42

Clip, Heat WPL 2155547 Contact Us For Availability

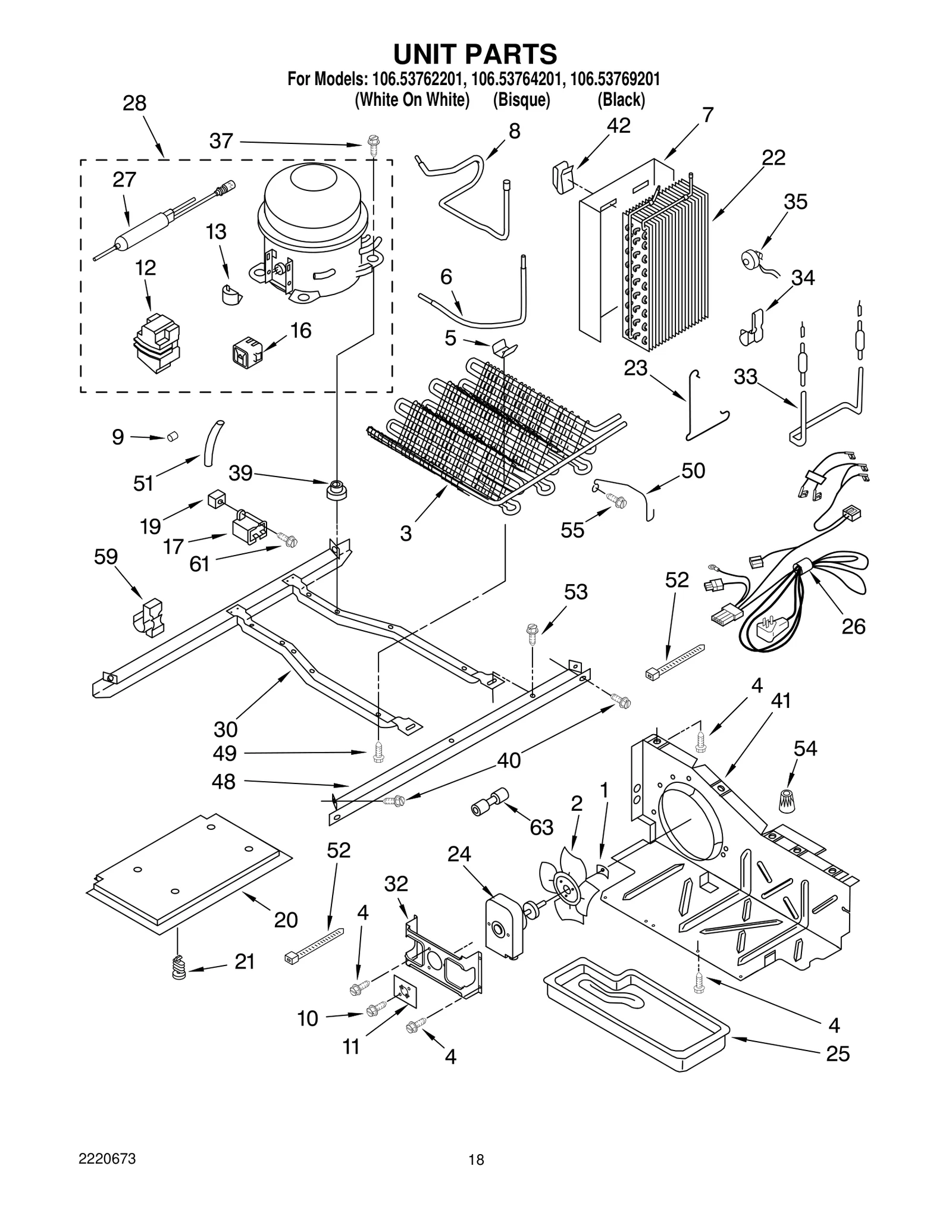

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $58.23

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $29.71

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

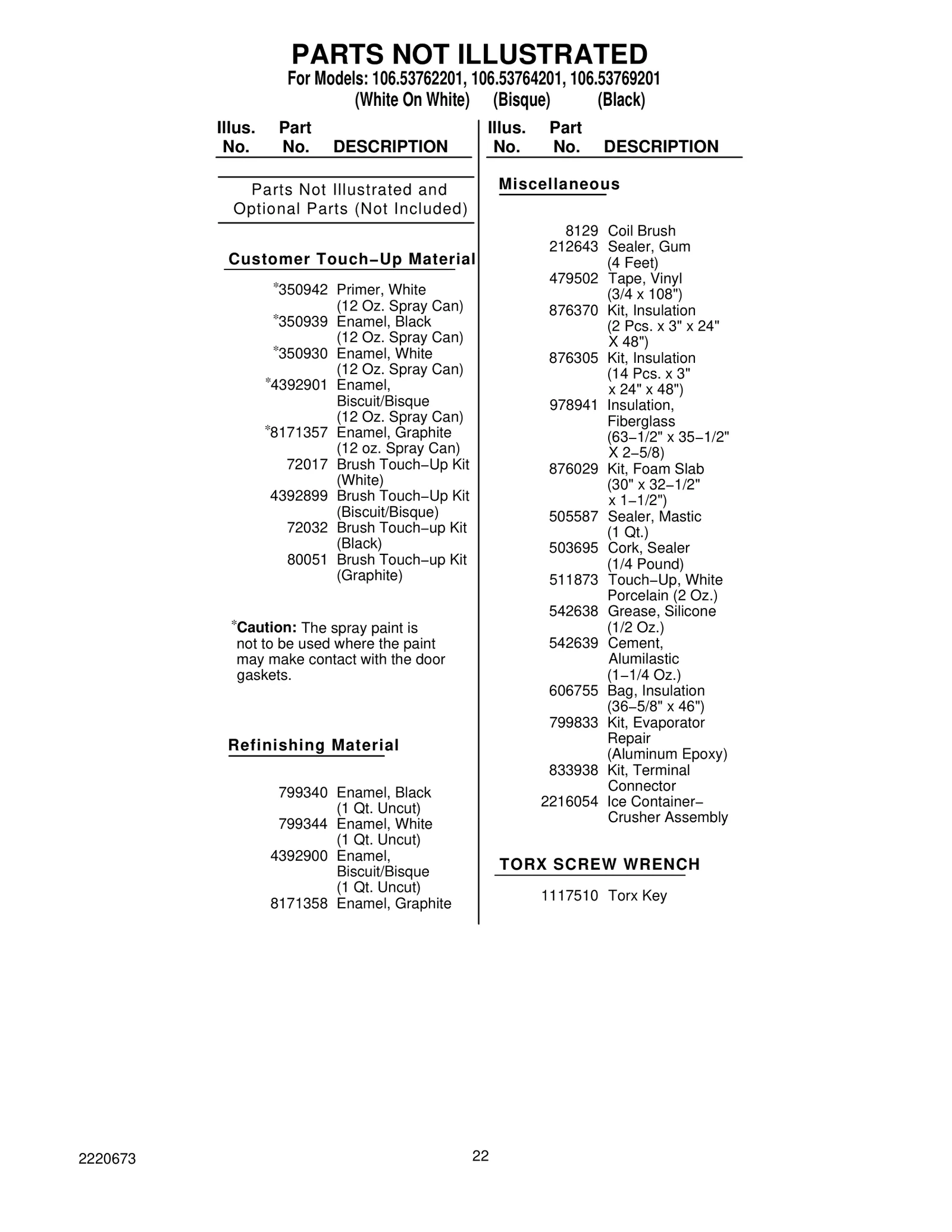

OPT-1

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-2

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-5

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

OPT-6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-8

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-9

Brush Touch−up Kit WPL 80051 Contact Us For Availability

OPT-10

Enamel, Black WPL 799340 Contact Us For Availability

OPT-11

Enamel, White WPL 799344 Contact Us For Availability

OPT-12

Enamel, WPL 4392900 Contact Us For Availability

OPT-13

Enamel, Graphite WPL 8171358 Contact Us For Availability

OPT-14

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $24.24

OPT-15

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-16

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-18

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-20

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-21

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-22

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-23

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-24

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-25

Cement, WPL 542639 Contact Us For Availability

OPT-26

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

OPT-27

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-28

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-29

Ice Container− WPL 2216054 Contact Us For Availability

OPT-30

Torx Key WPL 1117510 Contact Us For Availability
