Model Whirlpool TGDL200AN0 GAS DRYER – Common Parts & Diagrams
03 - CABINET
05 - BULKHEAD
04 - 694670 BURNER ASSEMBLY

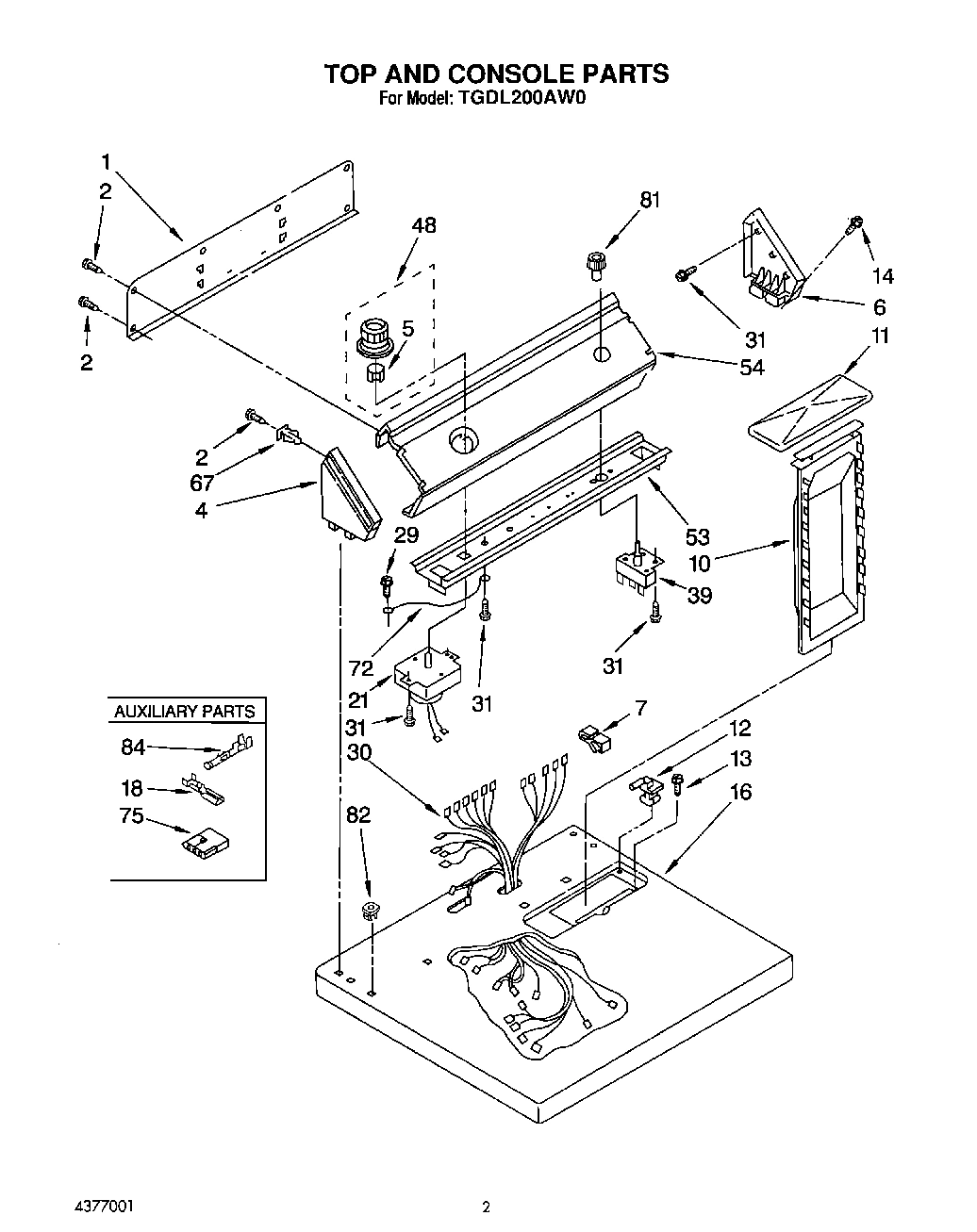

02 - TOP AND CABINET, LIT/OPTIONAL
Common parts from model Whirlpool TGDL200AN0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Instructions, Installation WPL LIT3395325 Contact Us For Availability
Guide, Use & Care WPL LIT3396299 Contact Us For Availability
List, Service Parts WPL LIT4377001 Contact Us For Availability
Automatic Washer (Belt Drive) WPL LIT677813 Contact Us For Availability
Dryer WPL LIT677818 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 694670 Contact Us For Availability
1
Panel, Rear Console WPL 3397545 Contact Us For Availability
4
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
4
Cap, End (L.H.) WPL 3358014 Contact Us For Availability
6
Cap, End (R.H.) WPL 3357996 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
7
Clip, Retainer WPL 689180 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
15
(Alt.) WPL 341196 Contact Us For Availability
15
(Alt.) WPL 338471 Contact Us For Availability
15
Thermostat, 205~F (96.1~C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
19
Clip, Harness WPL 694510 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
23
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
25
Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability
30
Harness, Wiring WPL 3396218 Contact Us For Availability
37
Handle, Door (Almond) WPL 689308 Contact Us For Availability
39
(Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
(Alt.) WPL 692021 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
48
Timer Knob Assembly WPL 3391828 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control WPL 3397300 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 691707 Contact Us For Availability
81
Knob, Push-To-Start WPL 3397279 Contact Us For Availability
× ![]()
