Model Speed Queen SWT521*N Washer – Common Parts & Diagrams

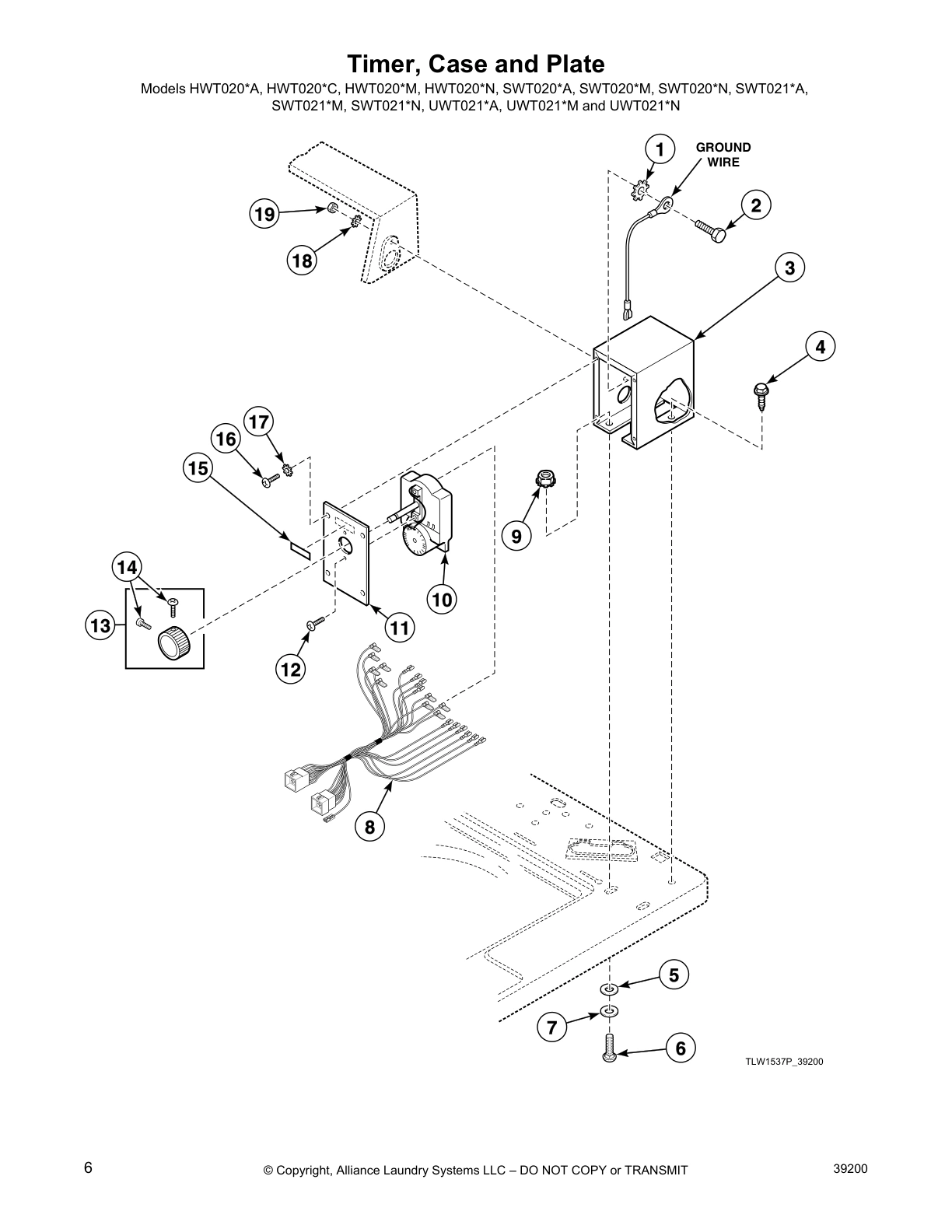

Timer, Case and Plate

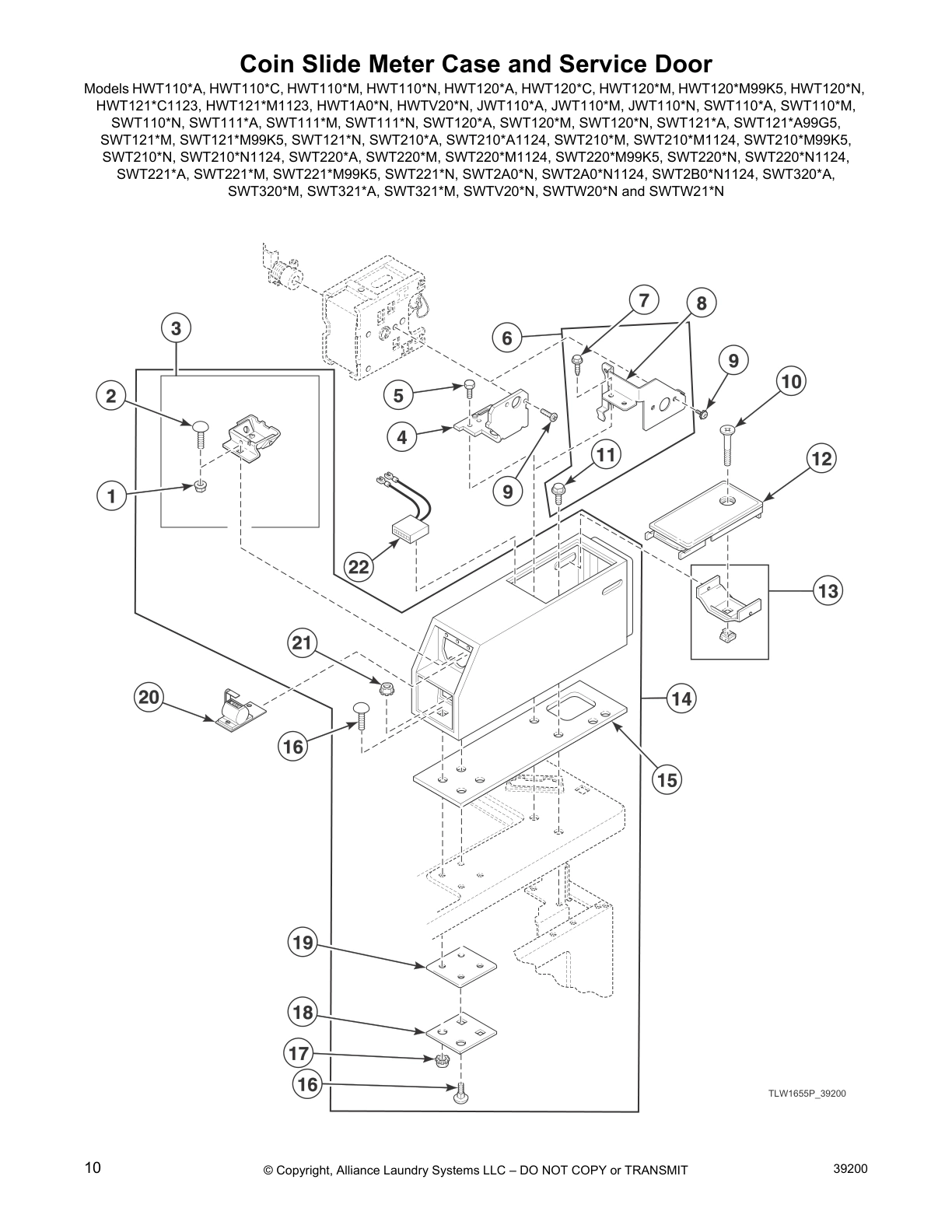

Coin Slide Meter Case and Service Door

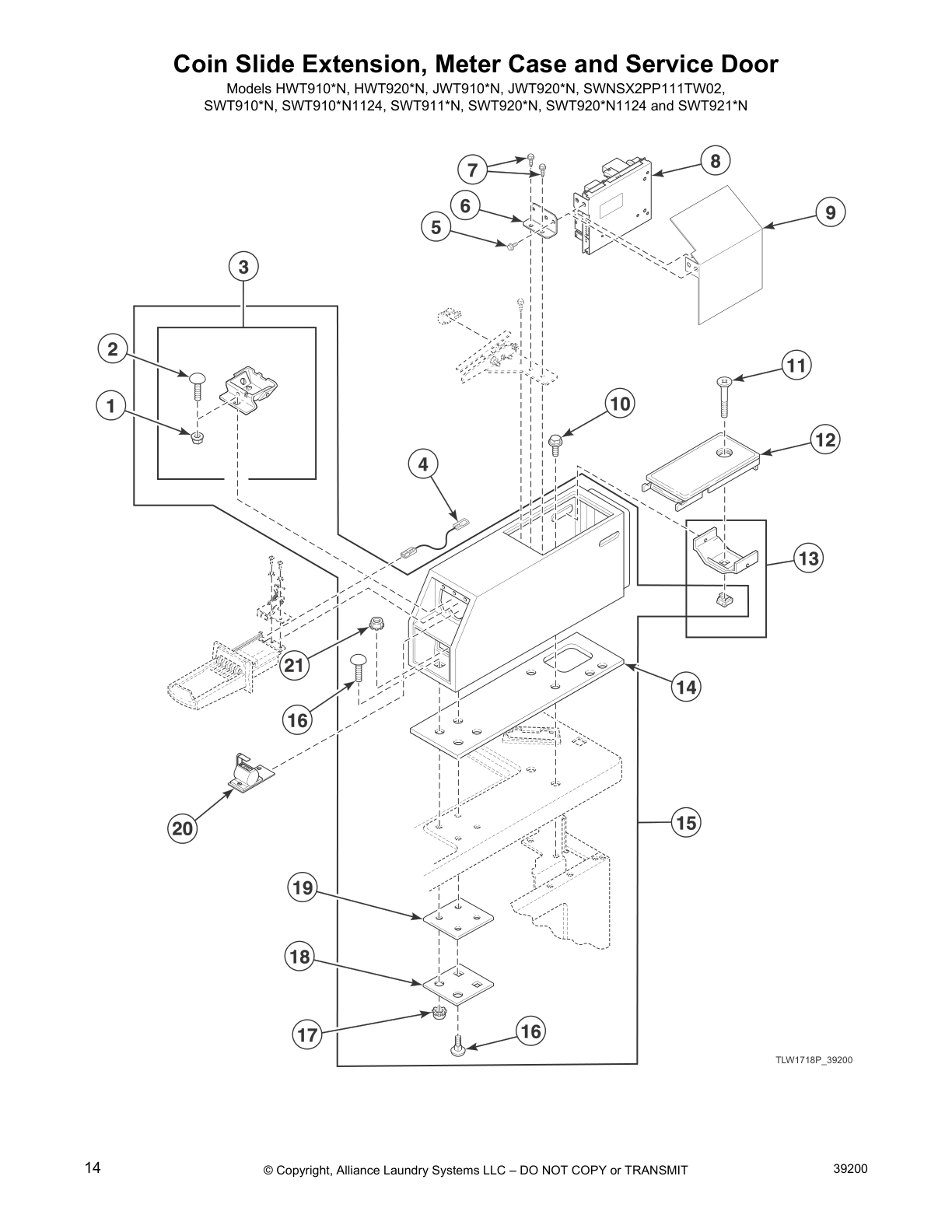

Coin Slide Extension, Meter Case and Service Door

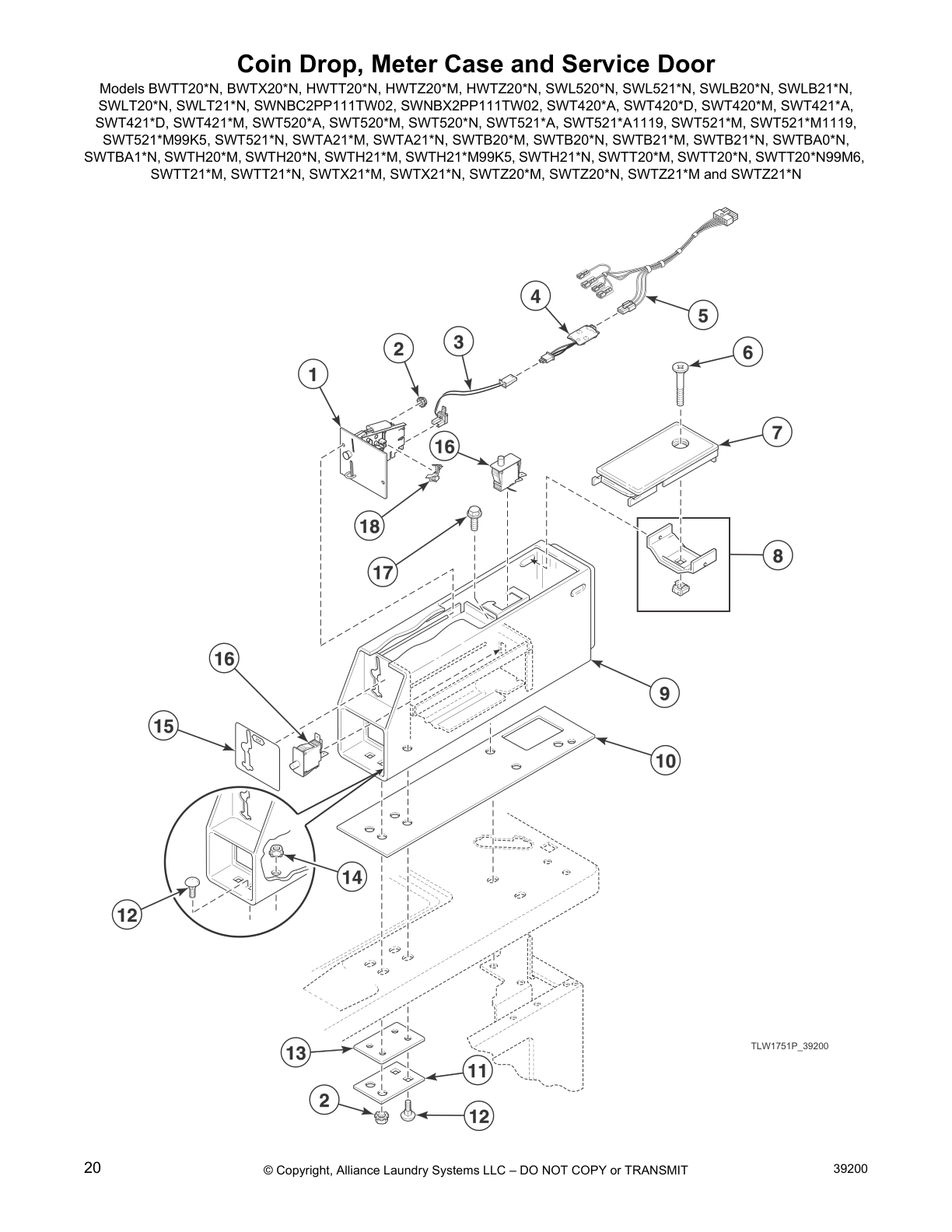

Coin Drop, Meter Case and Service Door

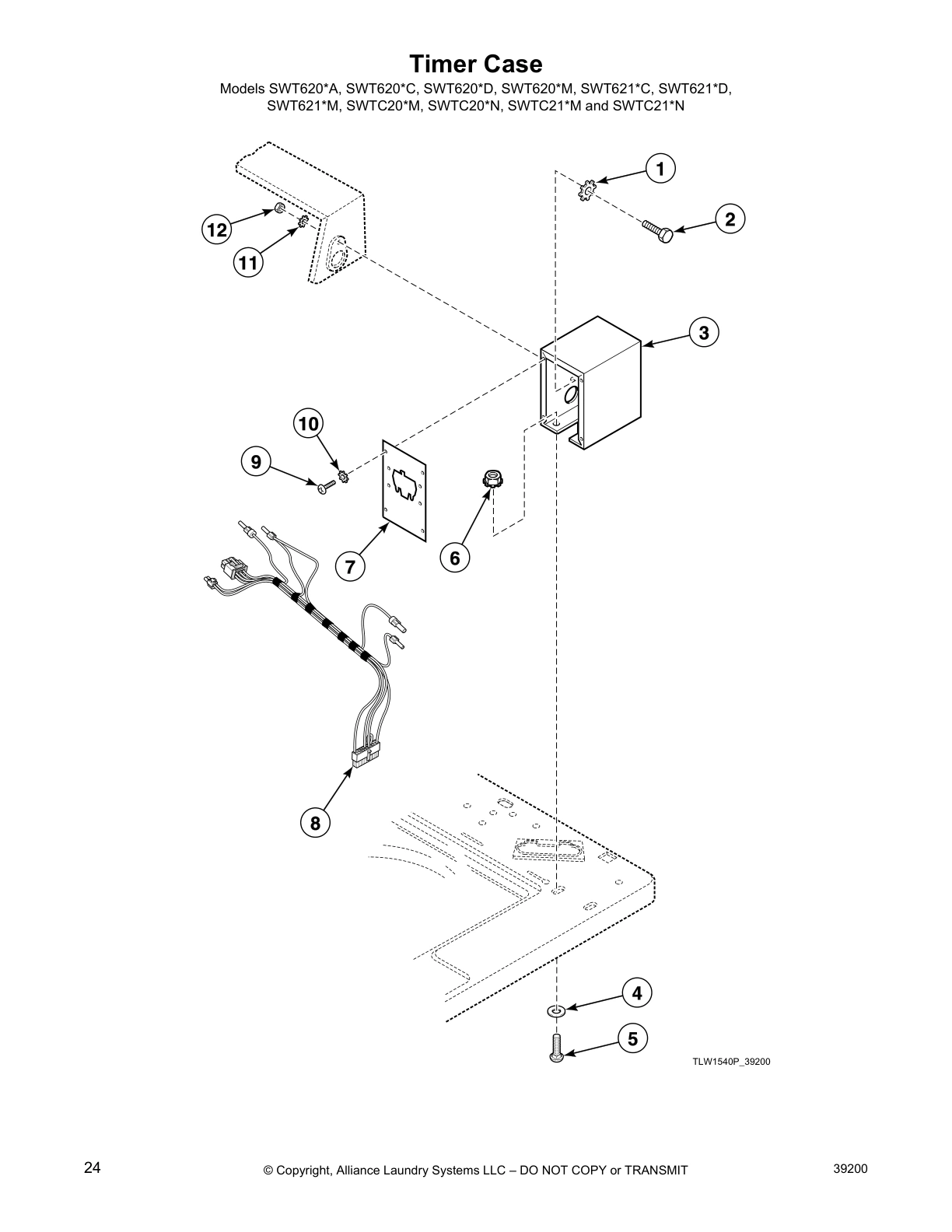

Timer Case

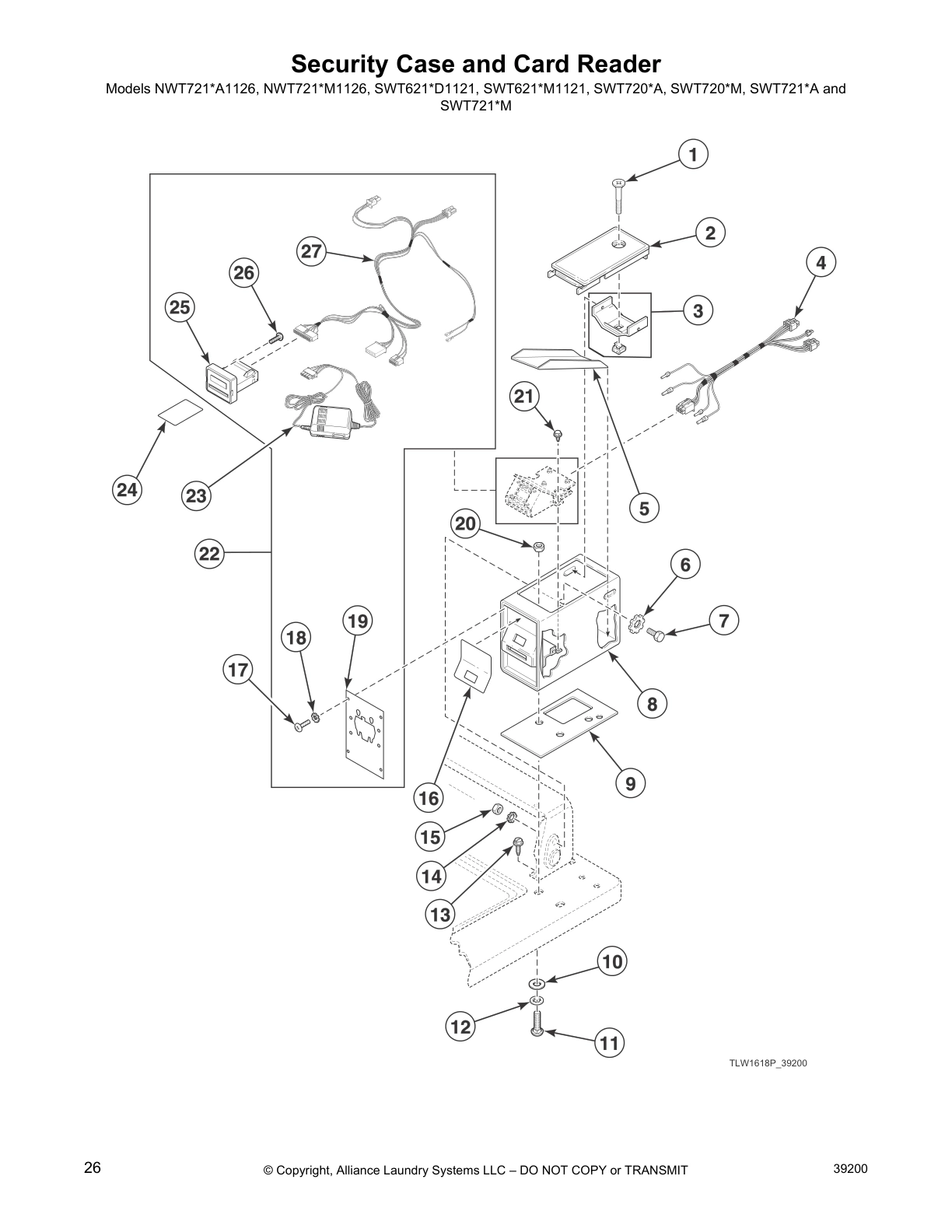

Security Case and Card Reader

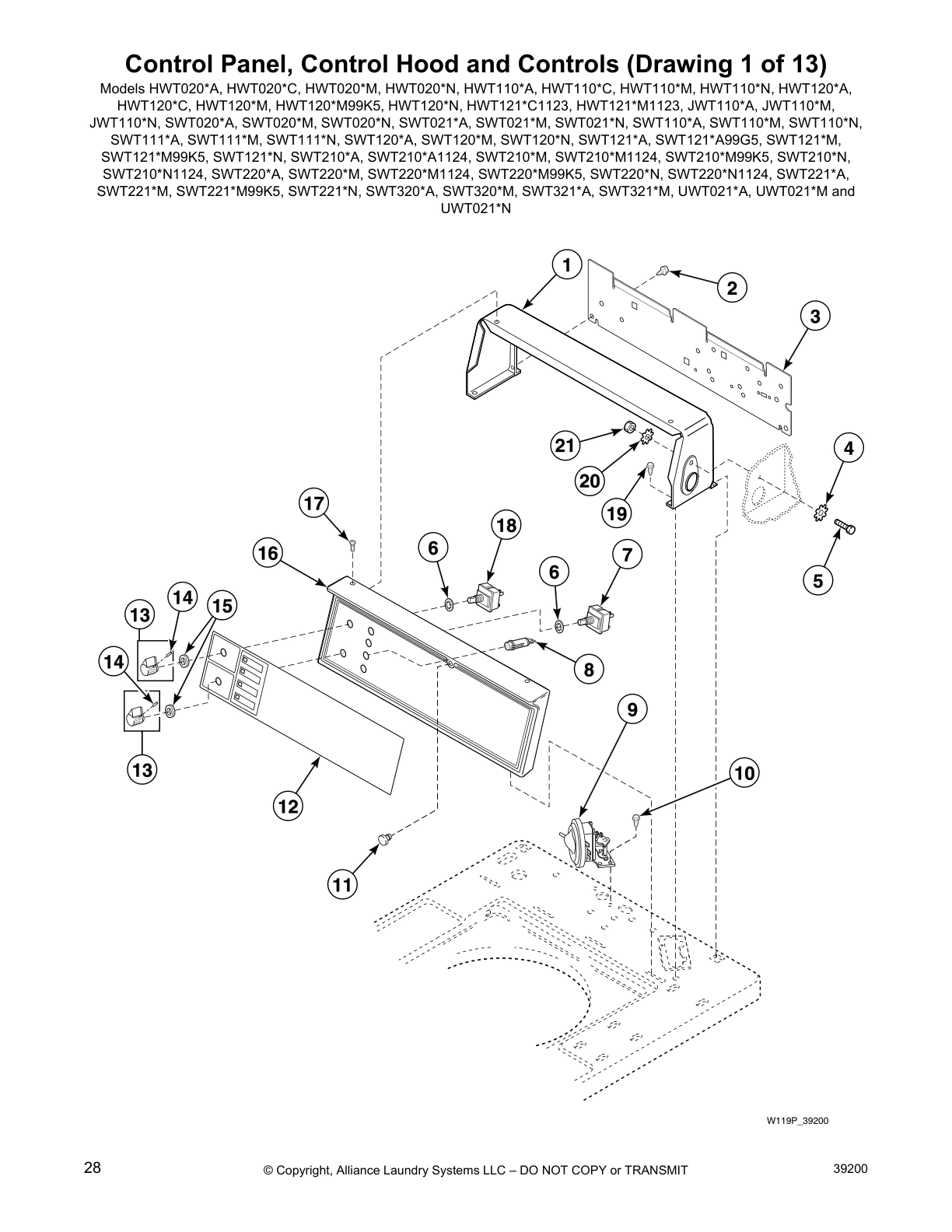

Control Panel, Control Hood and Controls (Drawing 1 of 13)

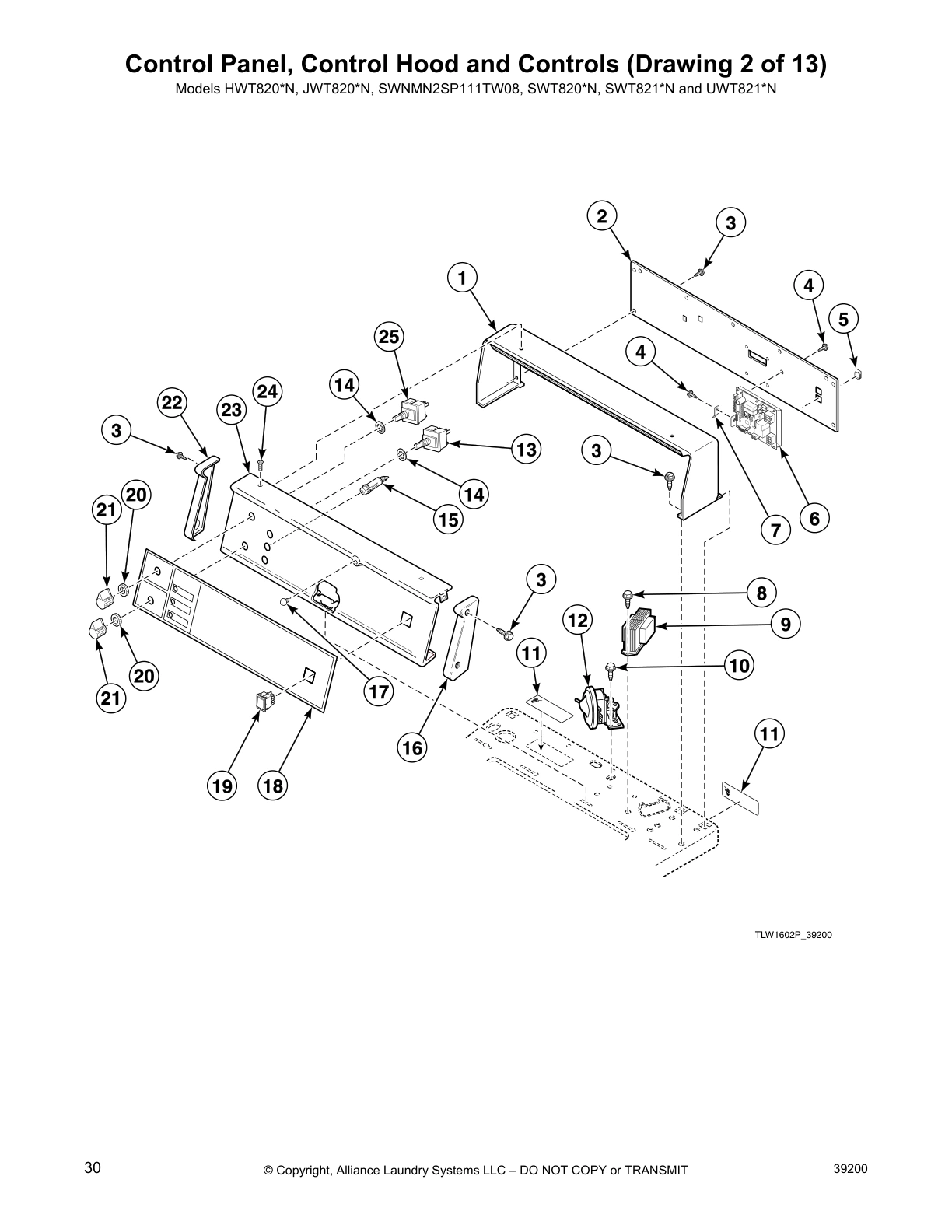

Control Panel, Control Hood and Controls (Drawing 2 of 13)

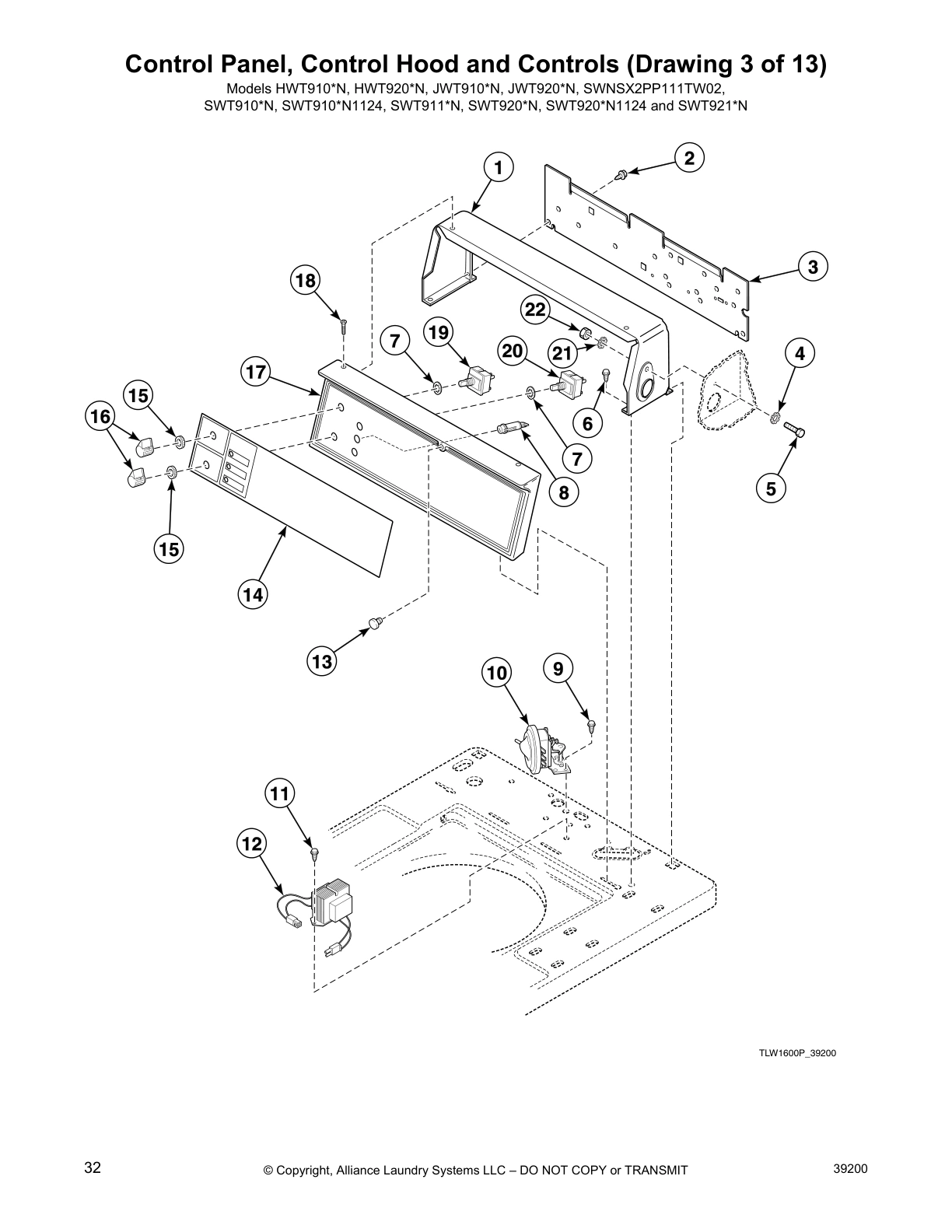

Control Panel, Control Hood and Controls (Drawing 3 of 13)

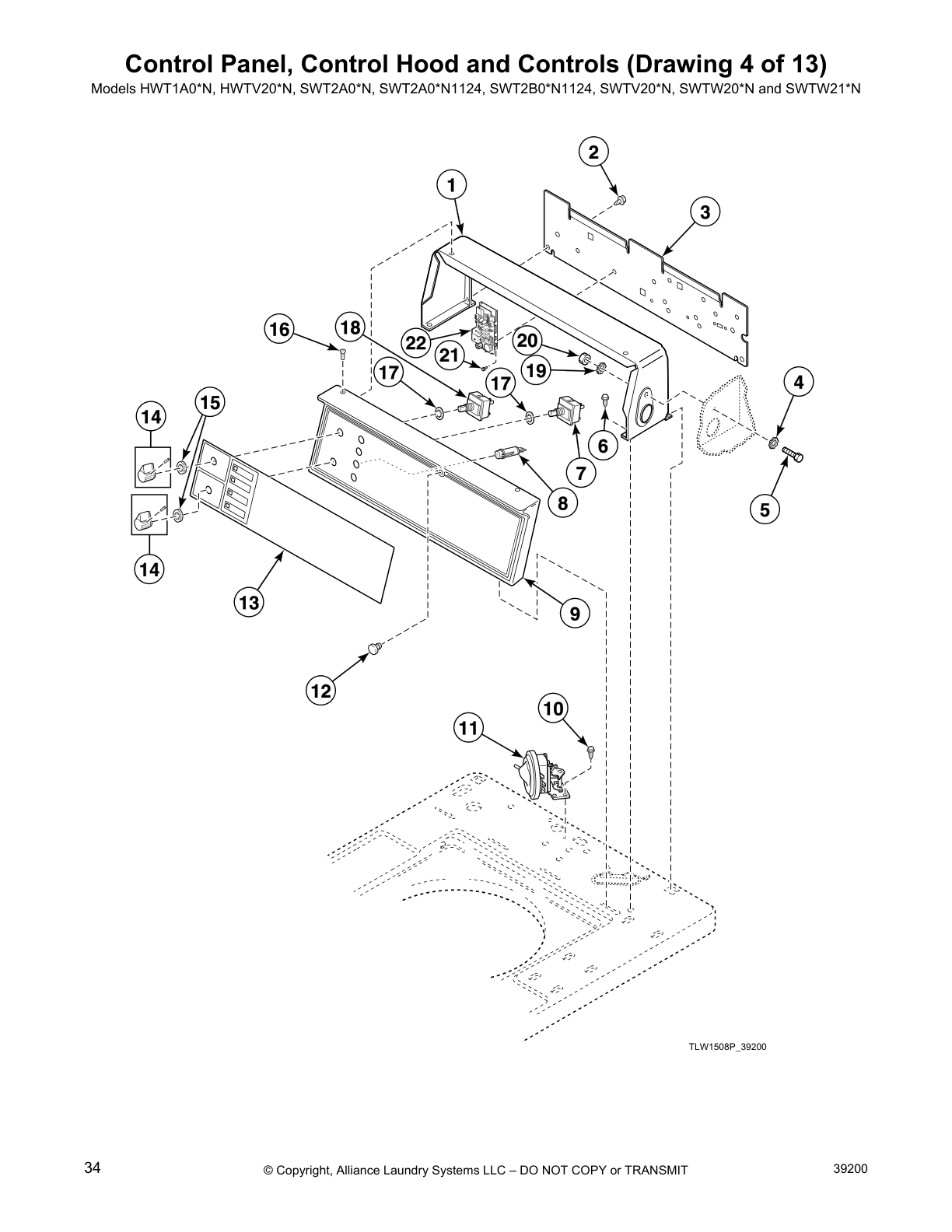

Control Panel, Control Hood and Controls (Drawing 4 of 13)

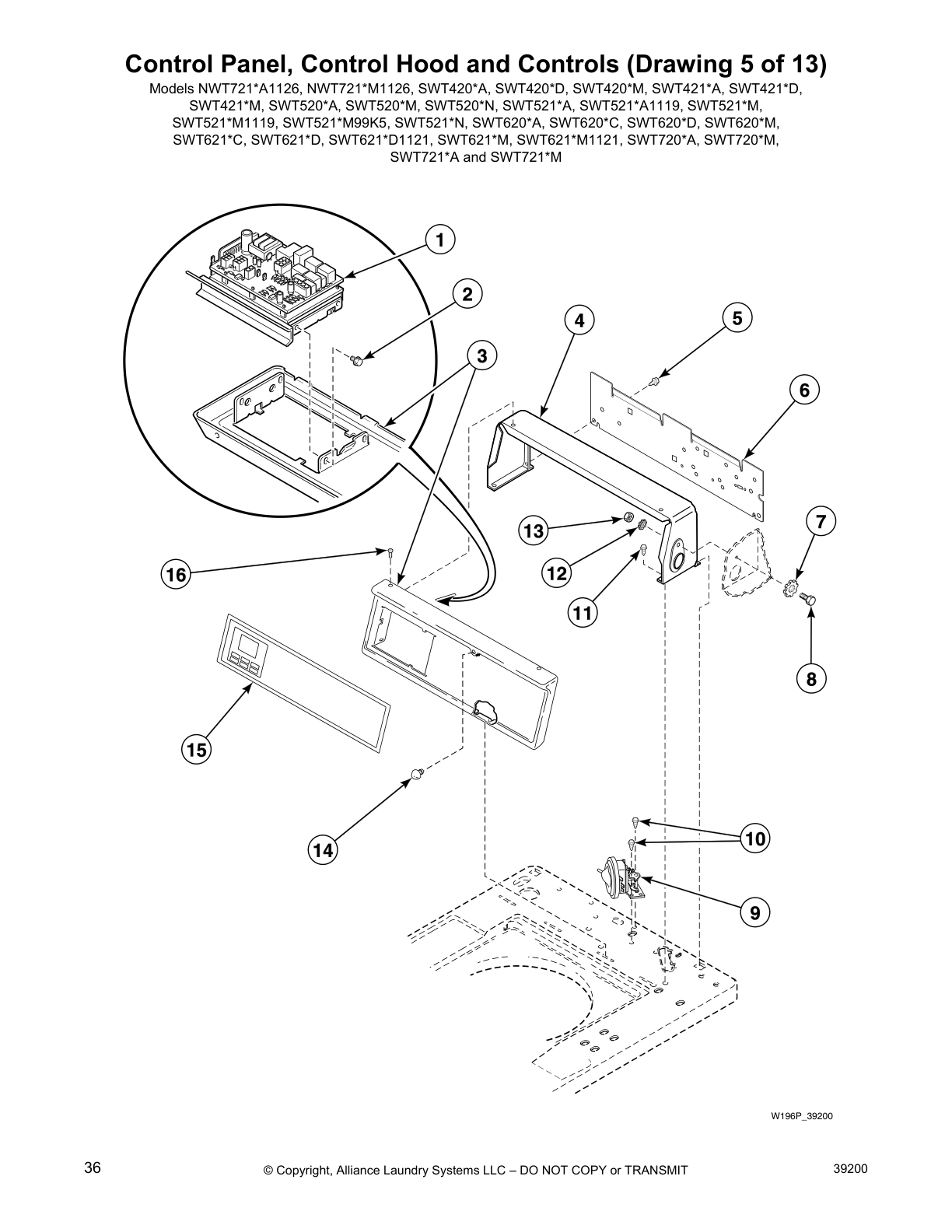

Control Panel, Control Hood and Controls (Drawing 5 of 13)

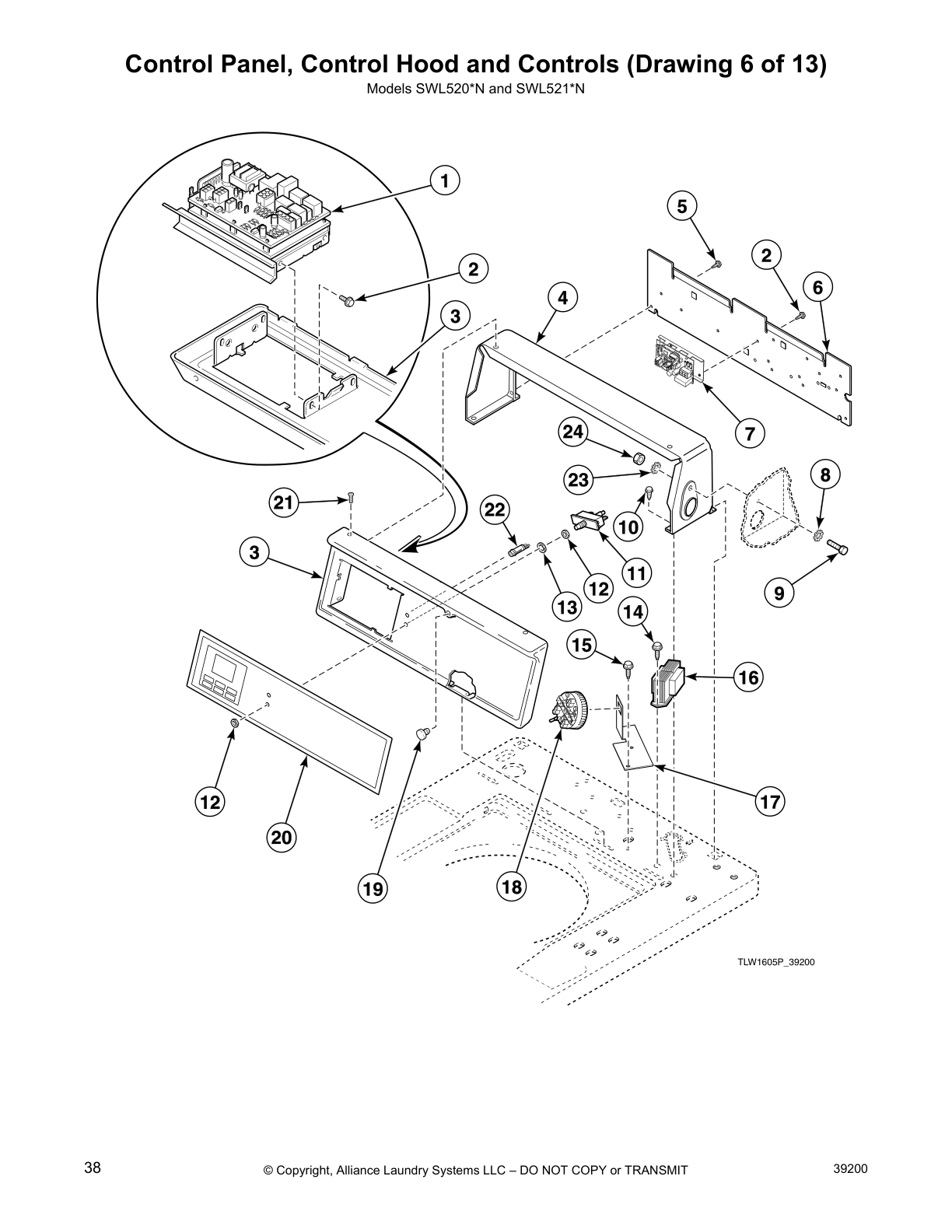

Control Panel, Control Hood and Controls (Drawing 6 of 13)

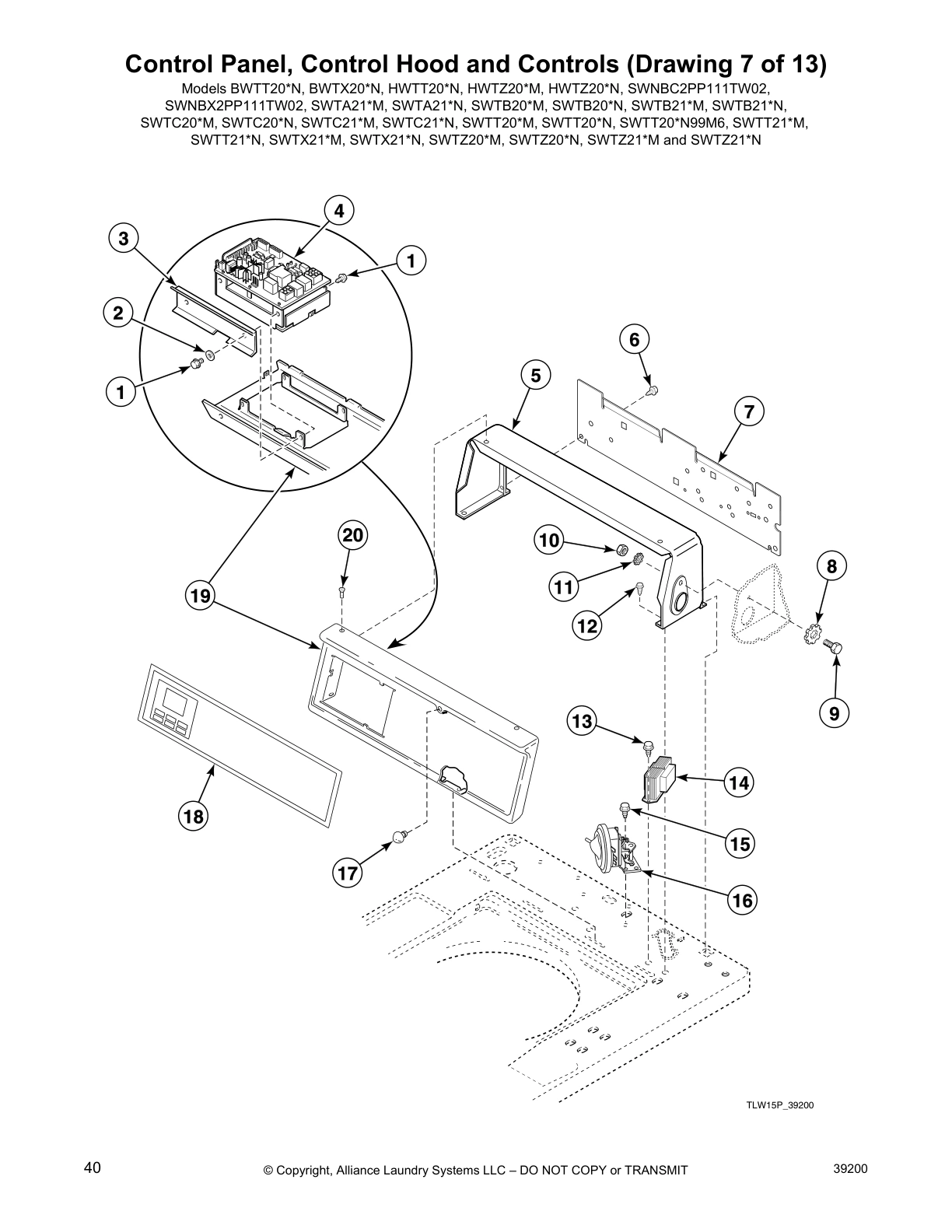

Control Panel, Control Hood and Controls (Drawing 7 of 13)

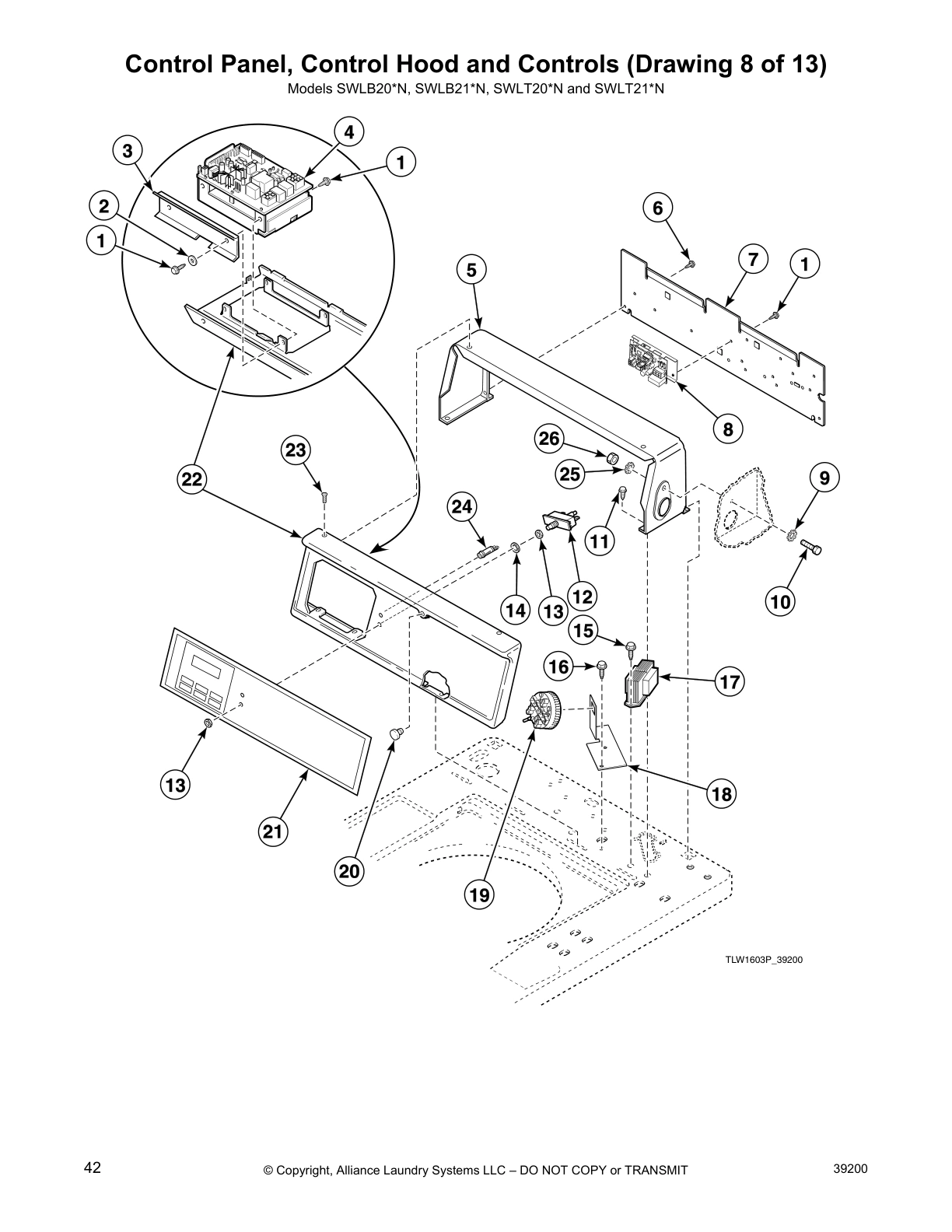

Control Panel, Control Hood and Controls (Drawing 8 of 13)

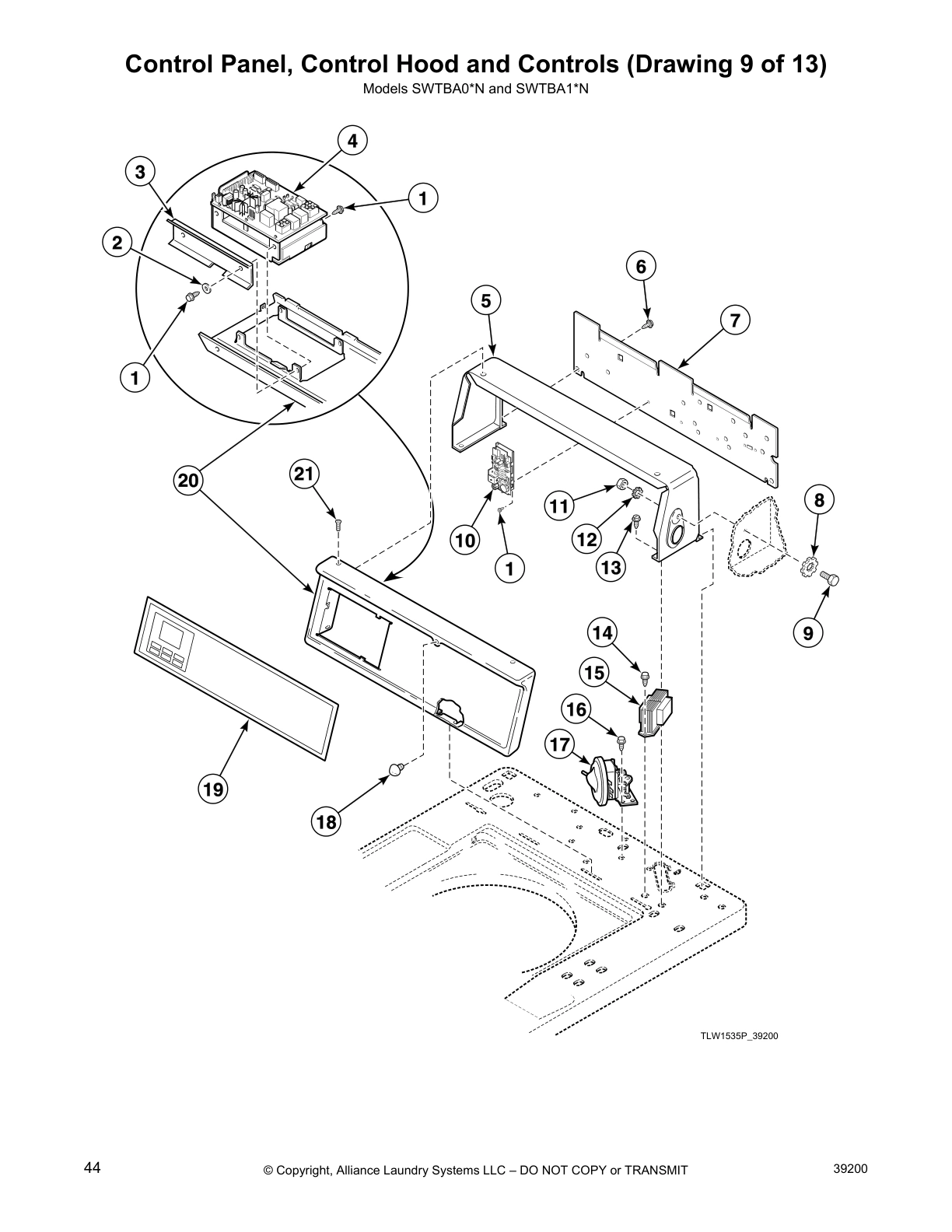

Control Panel, Control Hood and Controls (Drawing 9 of 13)

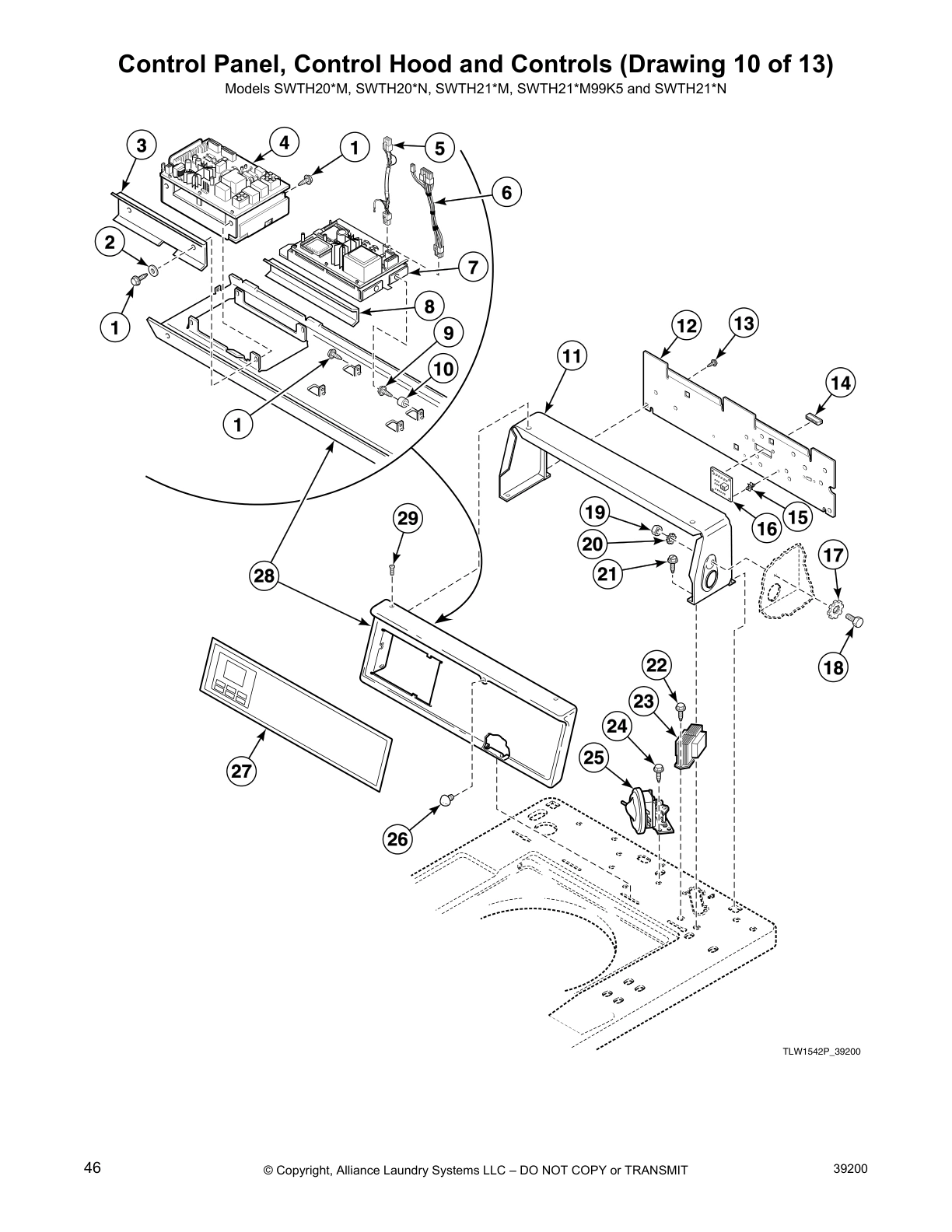

Control Panel, Control Hood and Controls (Drawing 10 of 13)

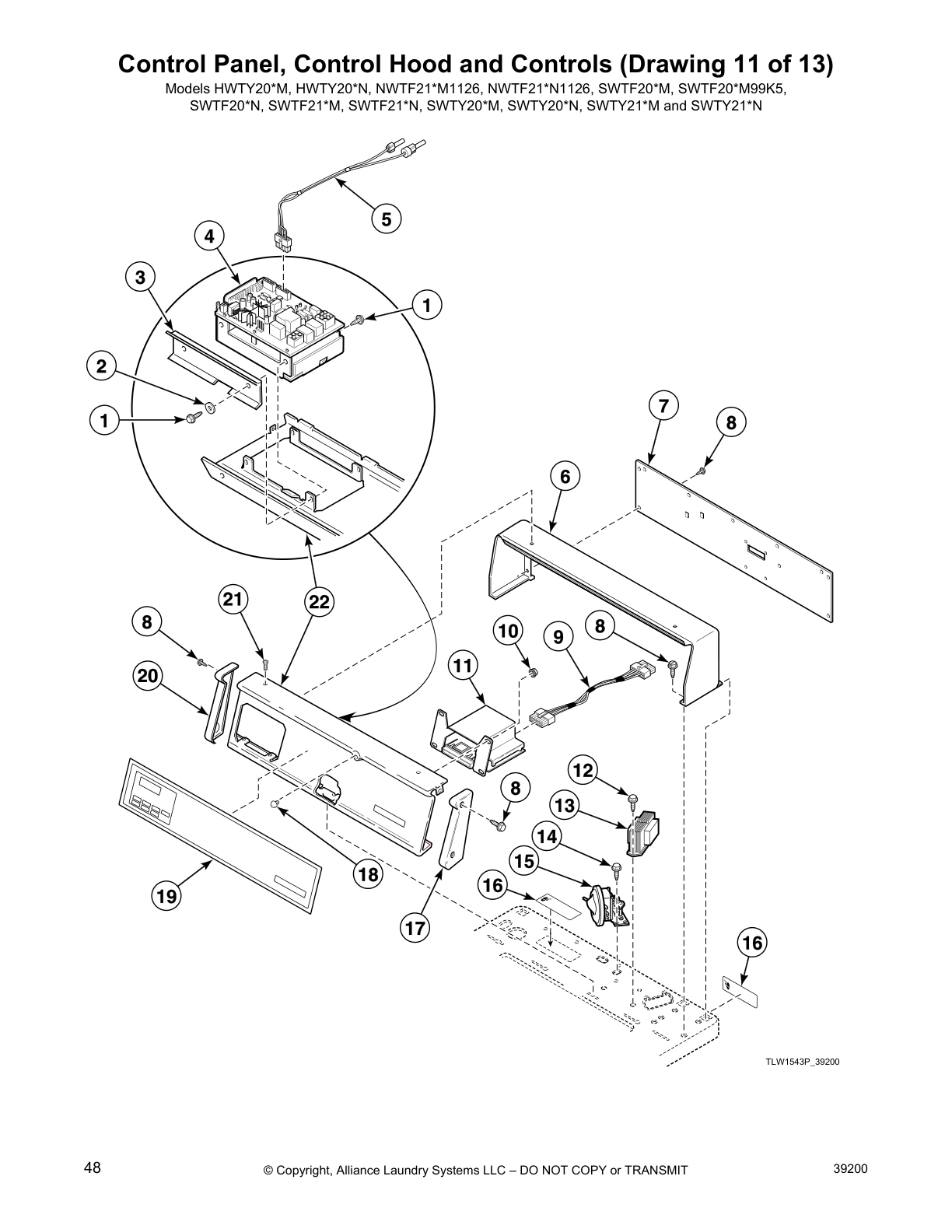

Control Panel, Control Hood and Controls (Drawing 11 of 13)
Control Panel, Control Hood and Controls (Drawing 12 of 13)

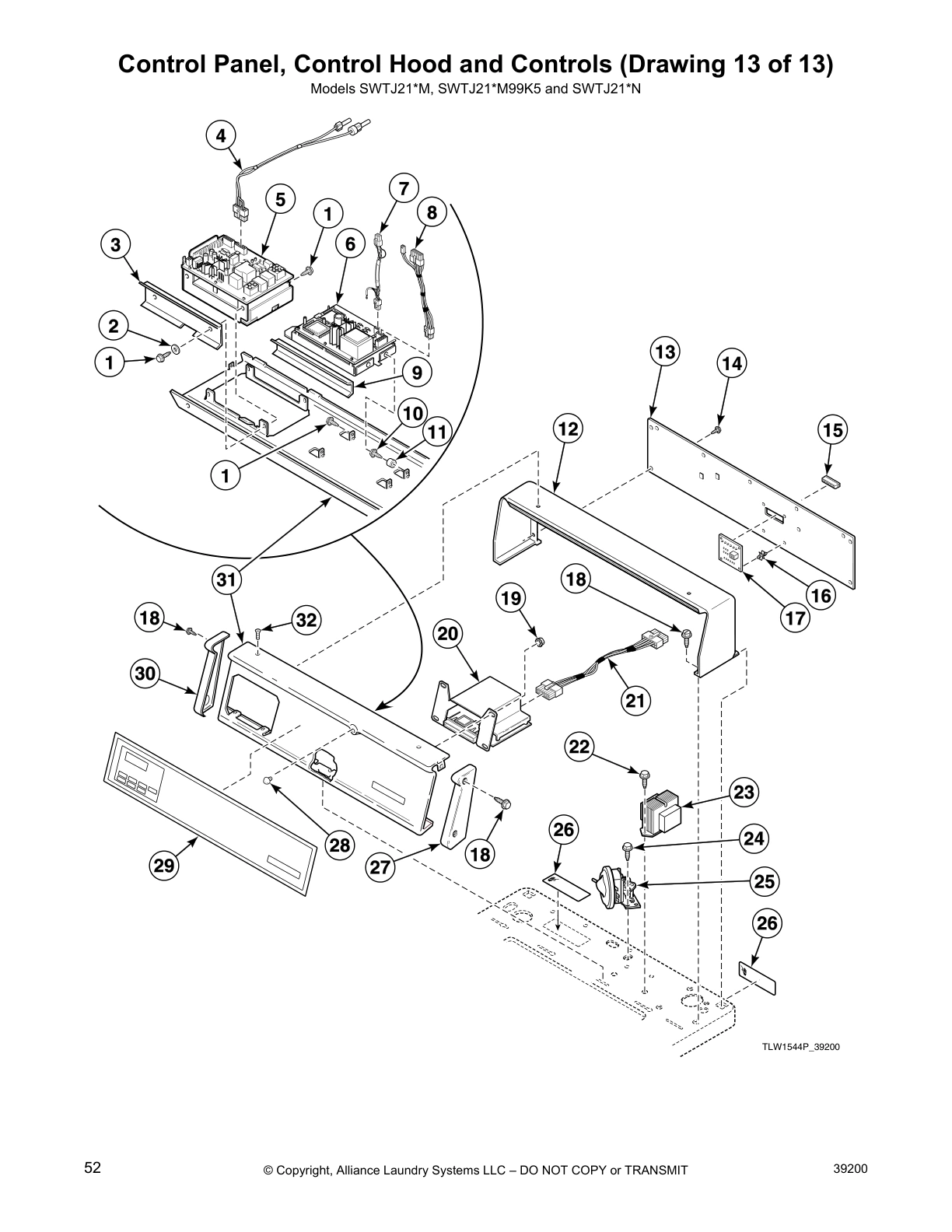

Control Panel, Control Hood and Controls (Drawing 13 of 13)

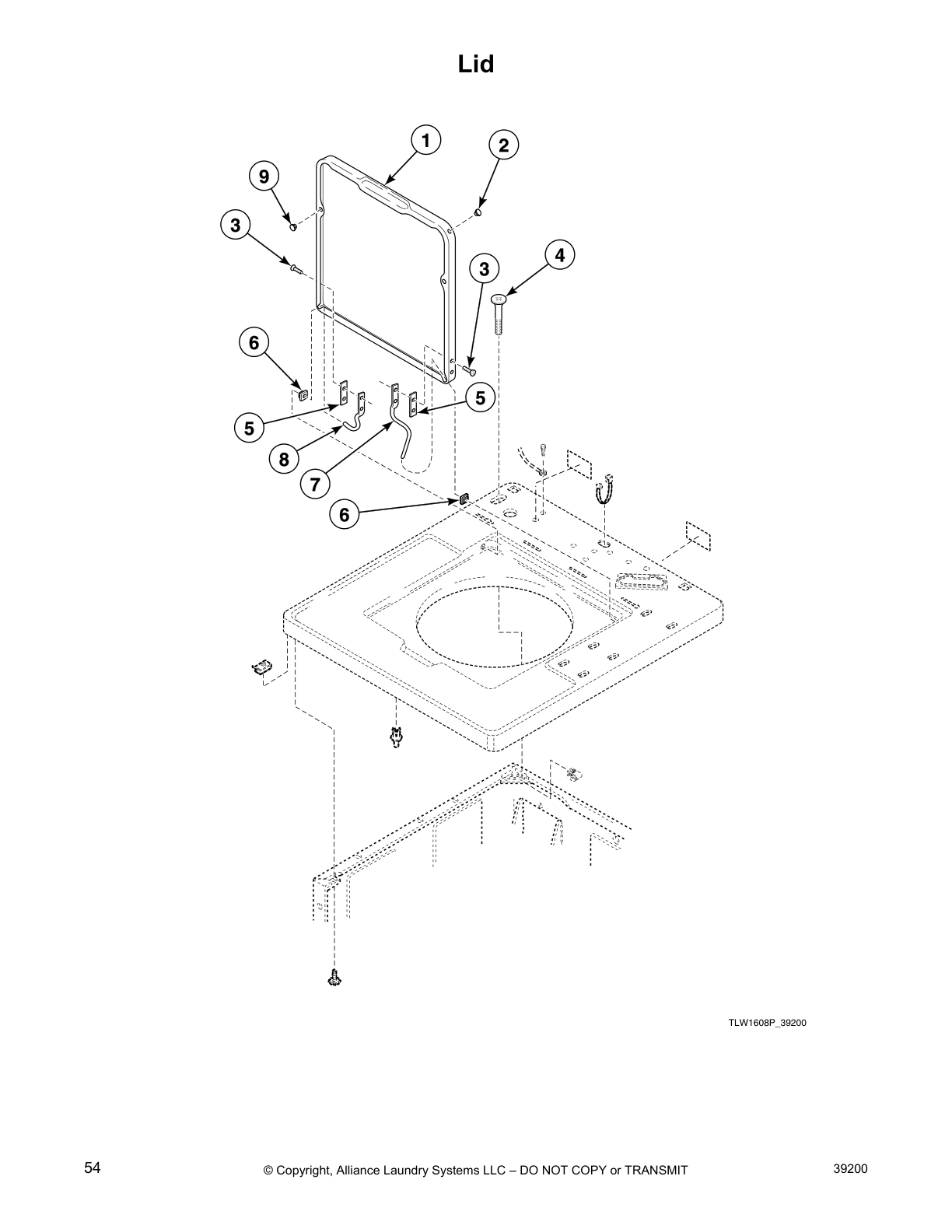

Lid

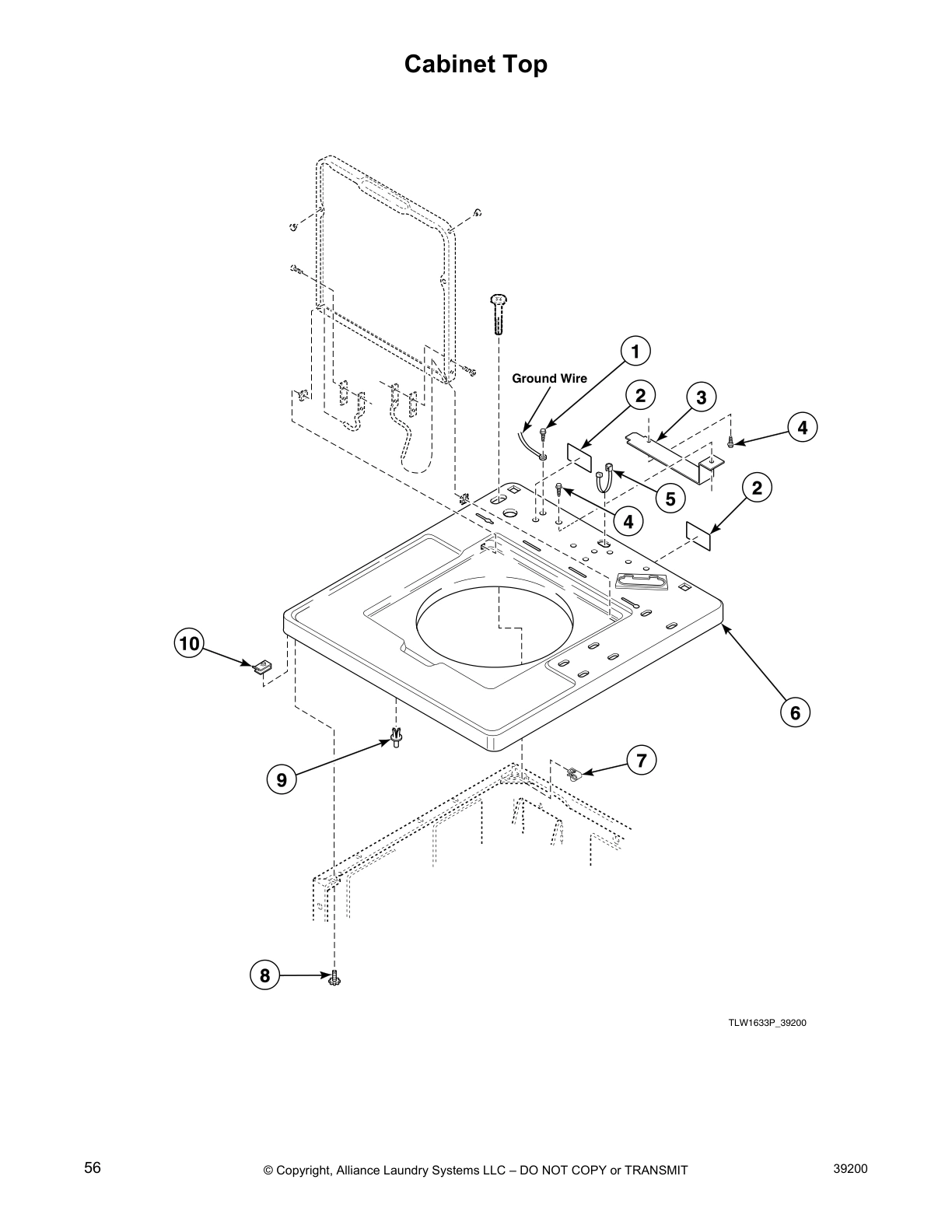

Cabinet Top
Lid Switch

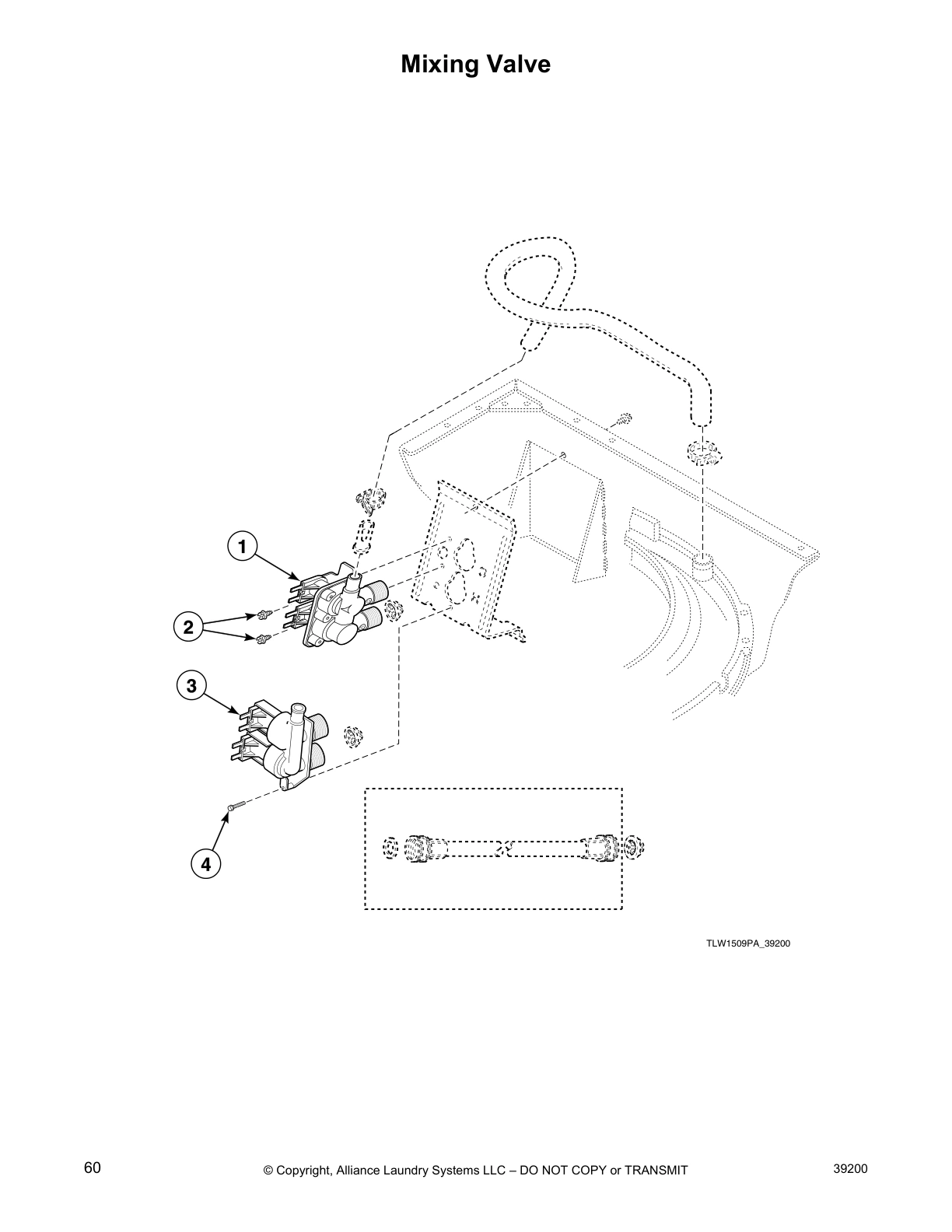

Mixing Valve

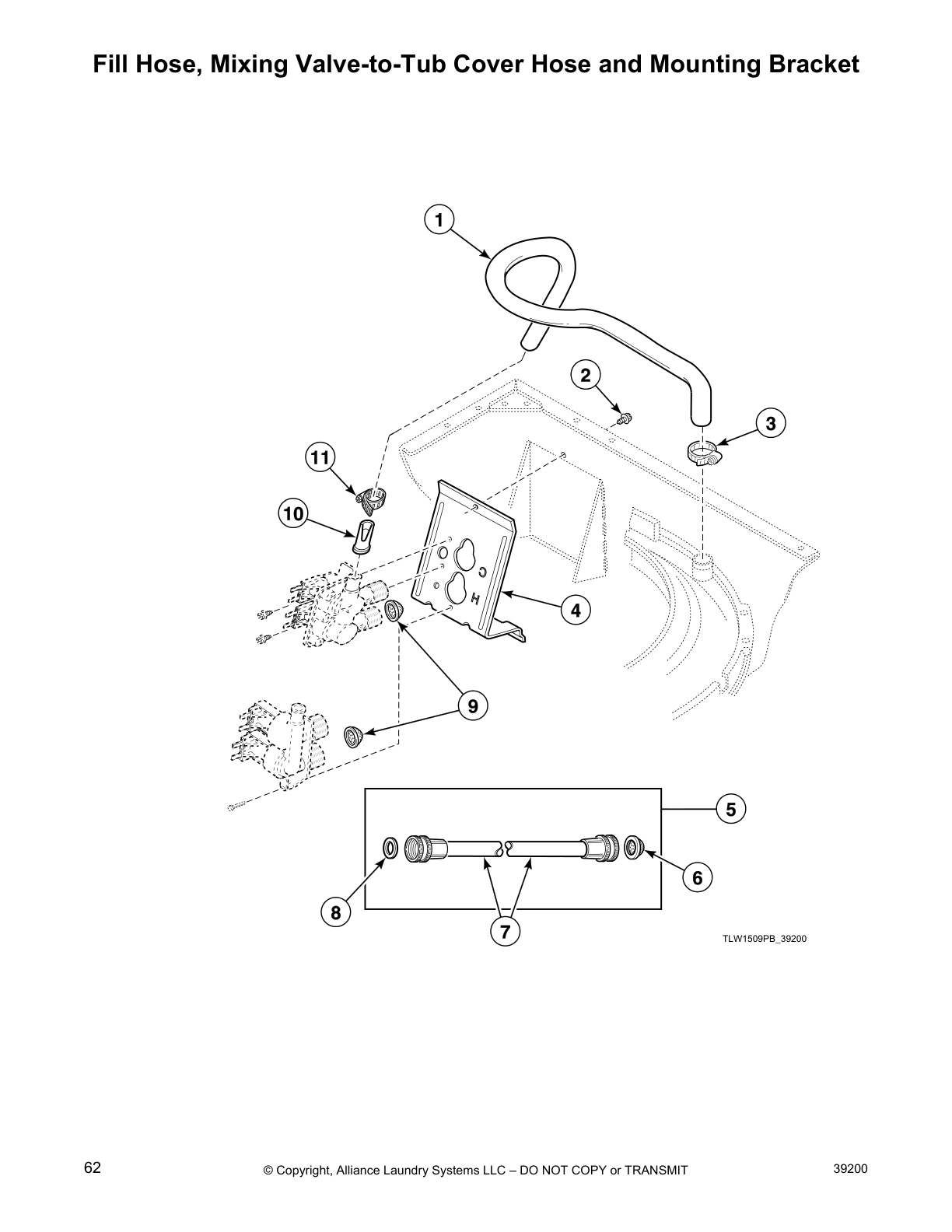

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket

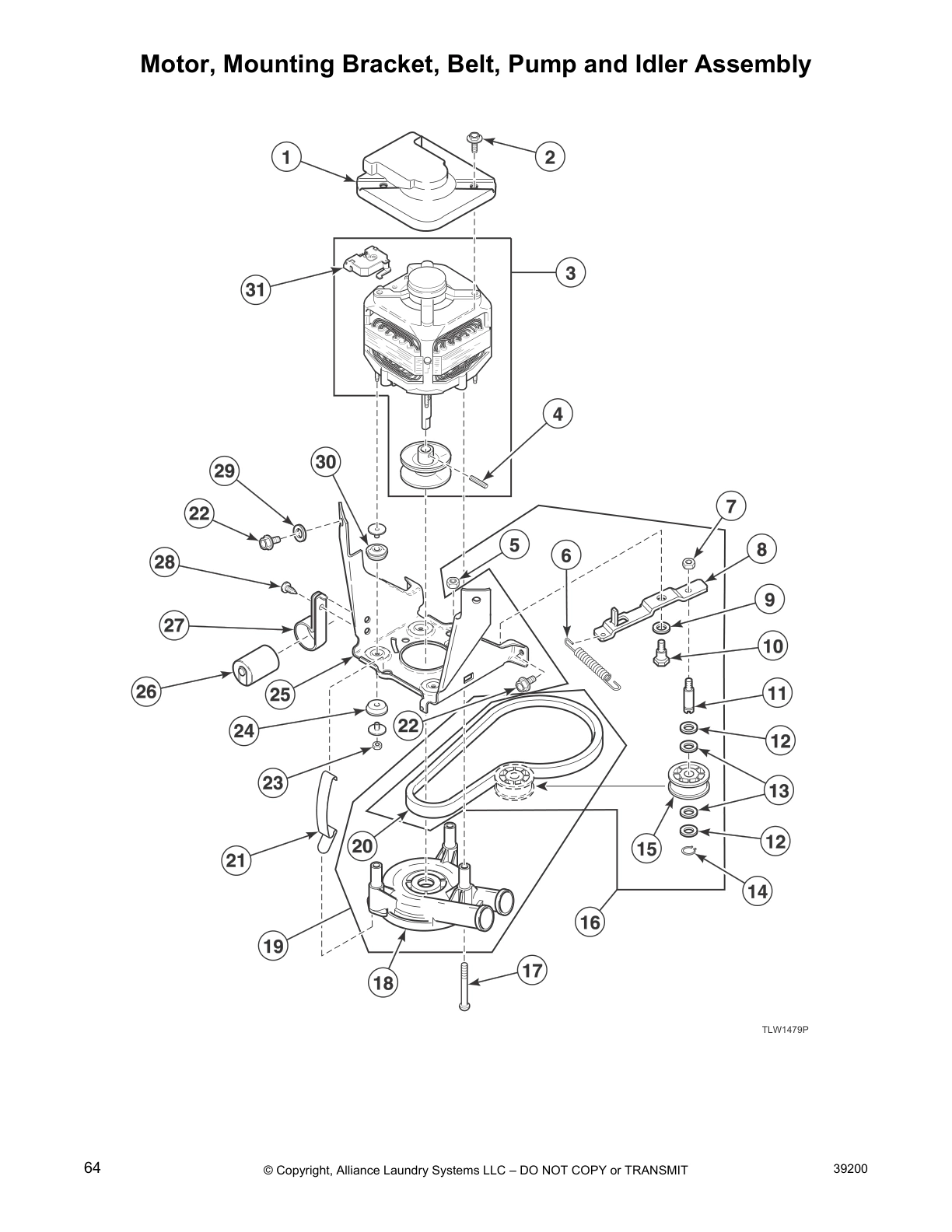

Motor, Mounting Bracket, Belt, Pump and Idler Assembly

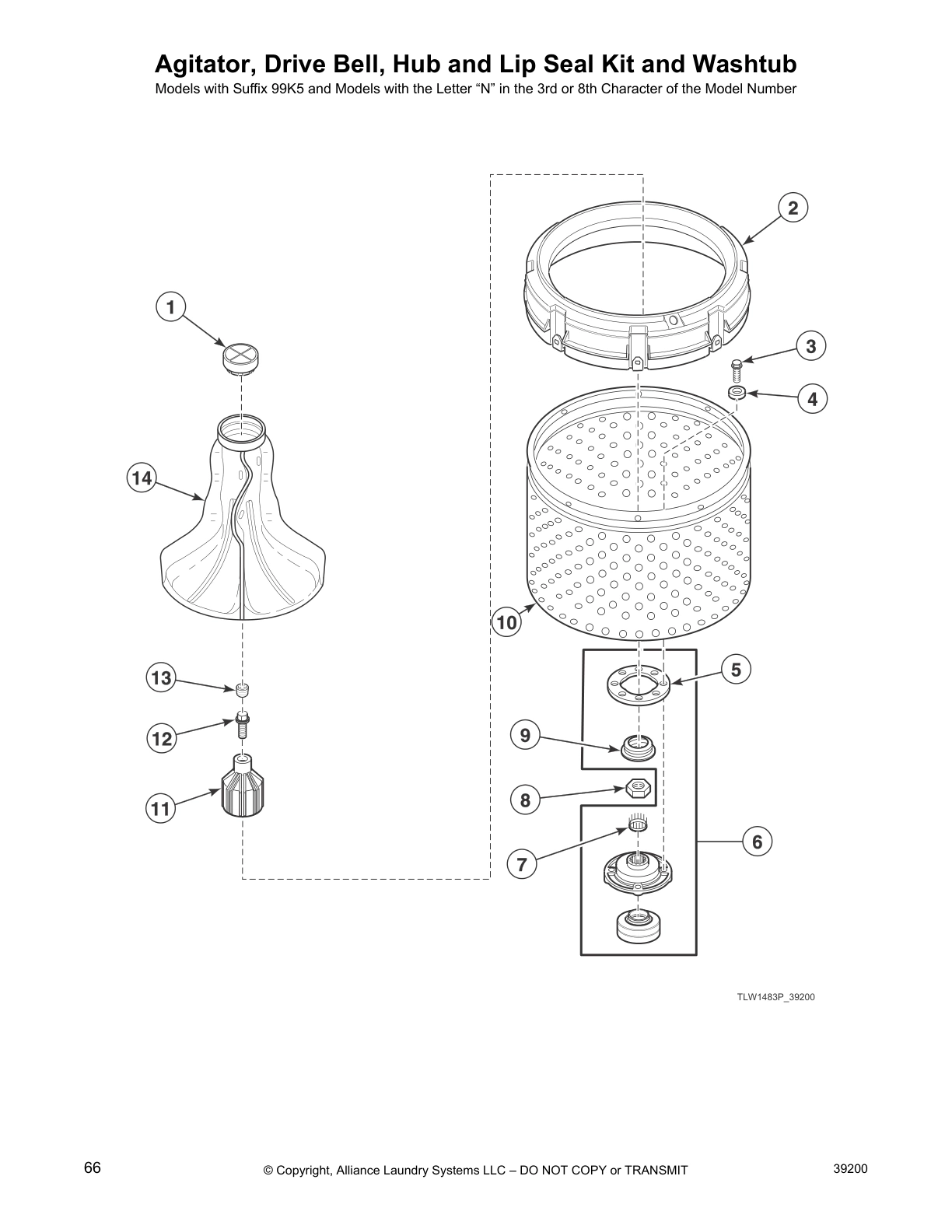

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

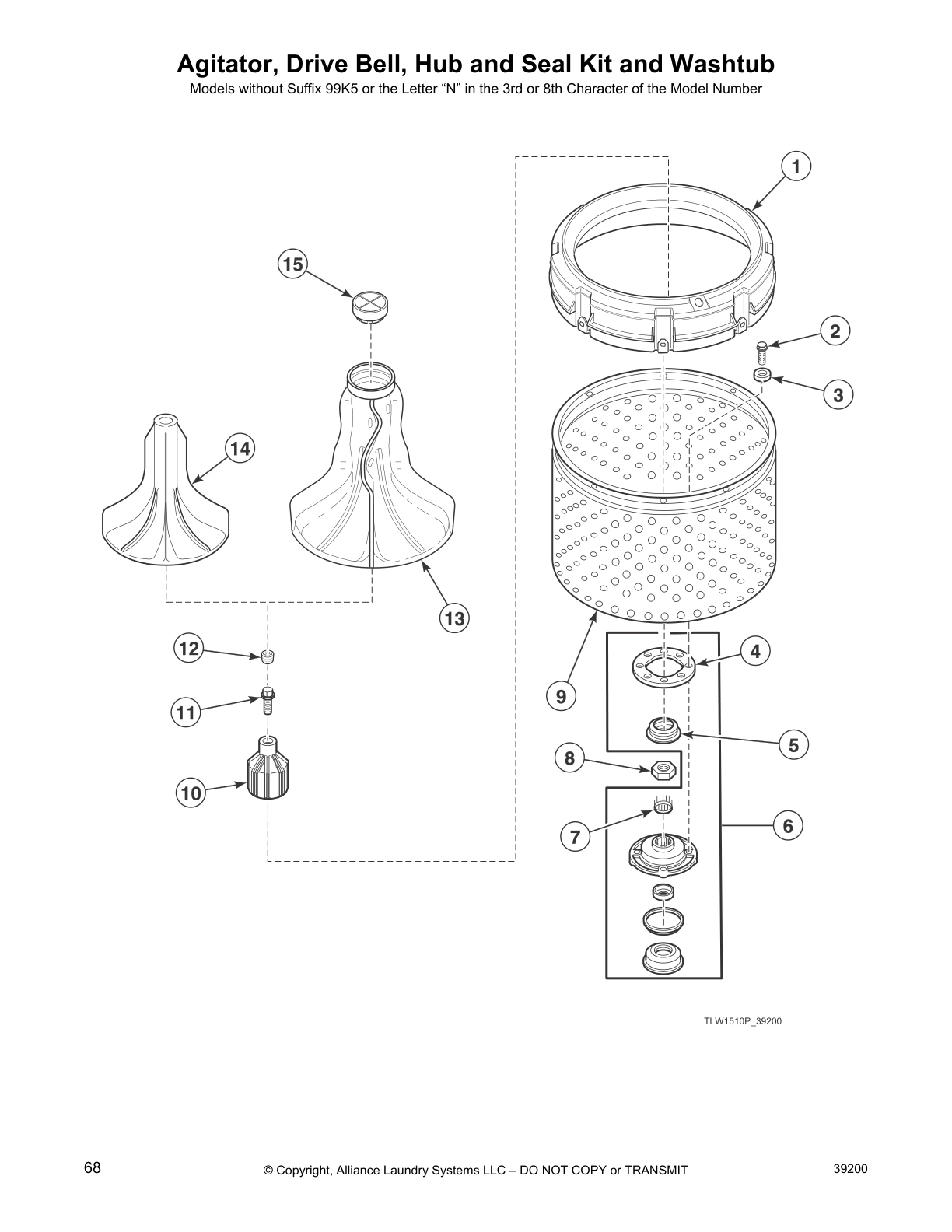

Agitator, Drive Bell, Hub and Seal Kit and Washtub

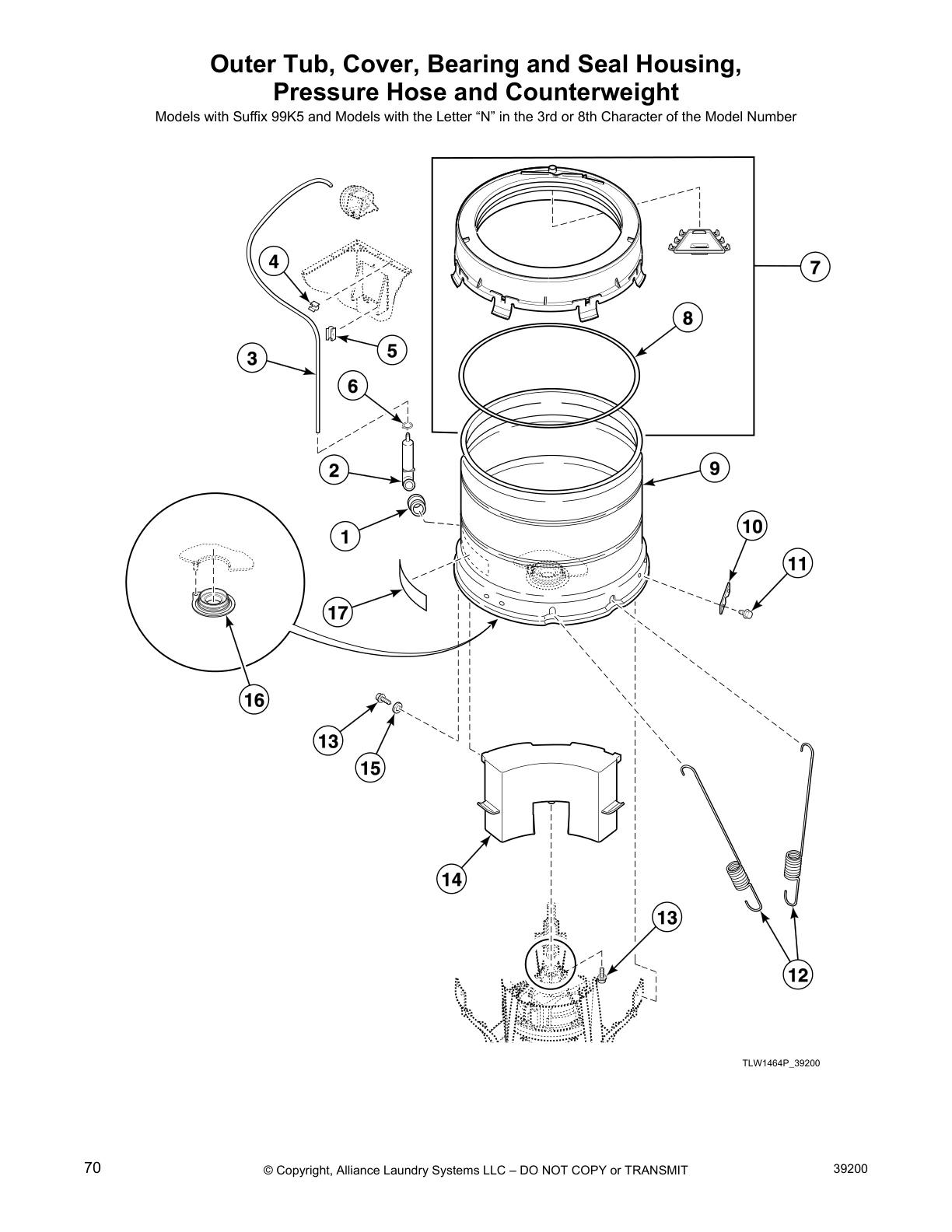

Outer Tub, Cover, Bearing and Seal Housing,
Pressure Hose and Counterweight

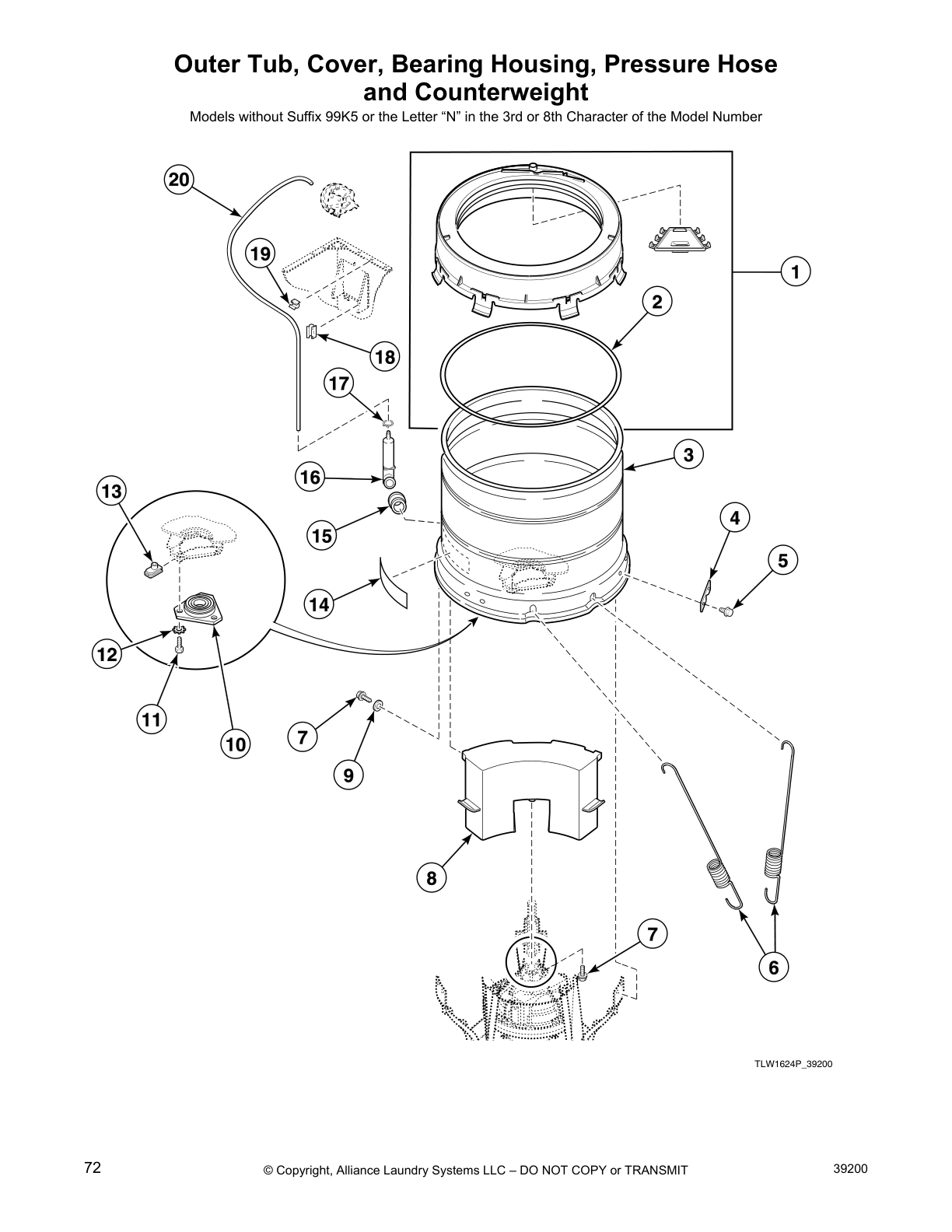

Outer Tub, Cover, Bearing Housing, Pressure Hose
and Counterweight

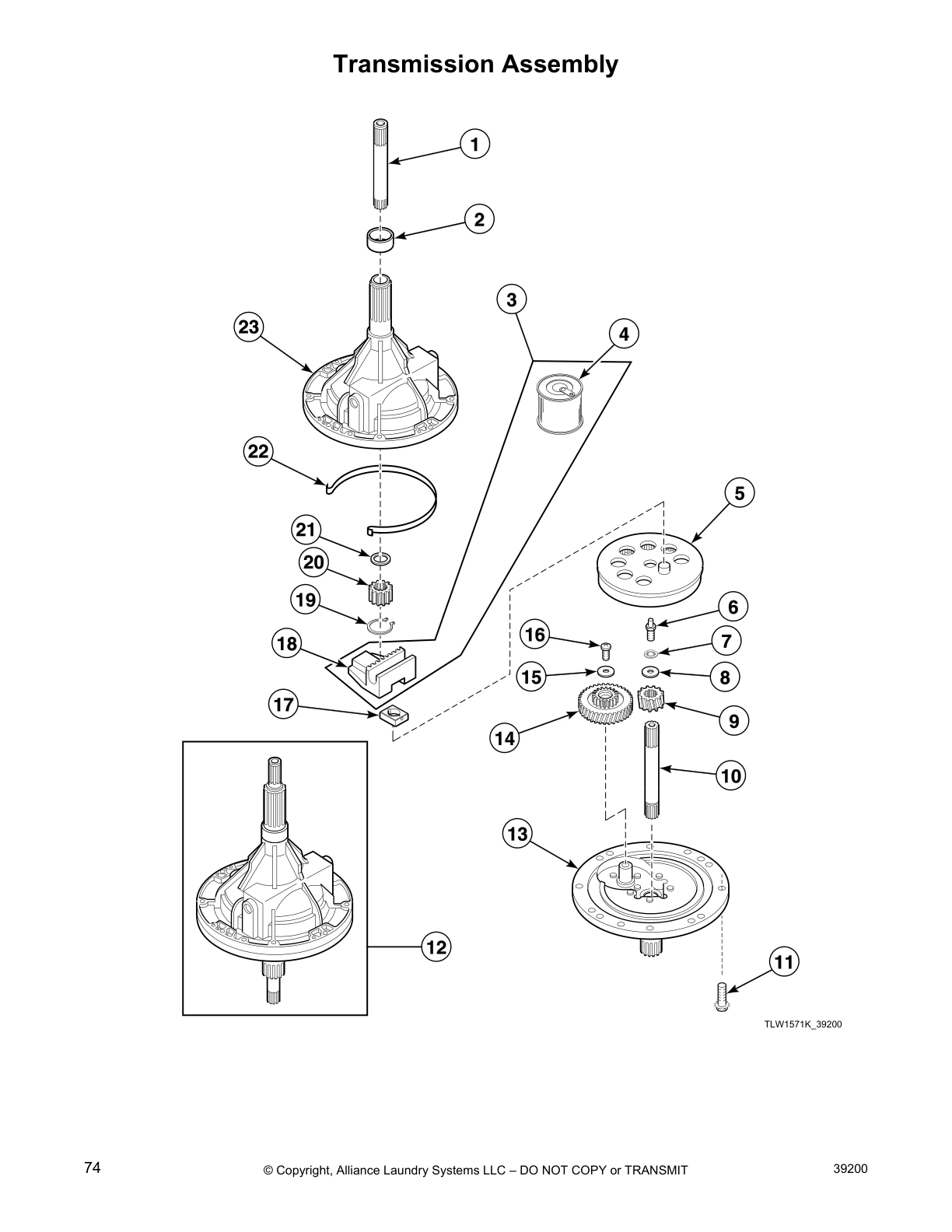

Transmission Assembly

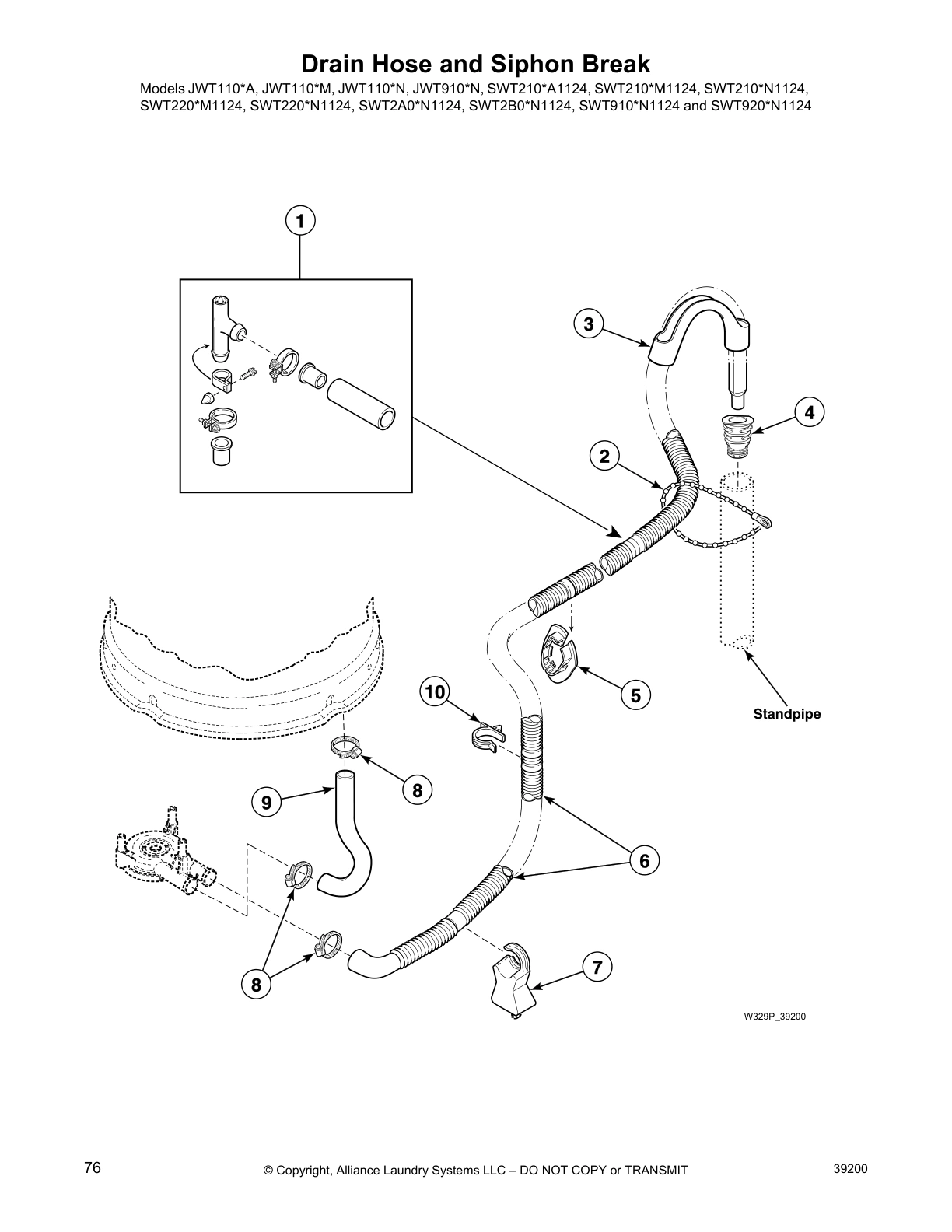

Drain Hose and Siphon Break

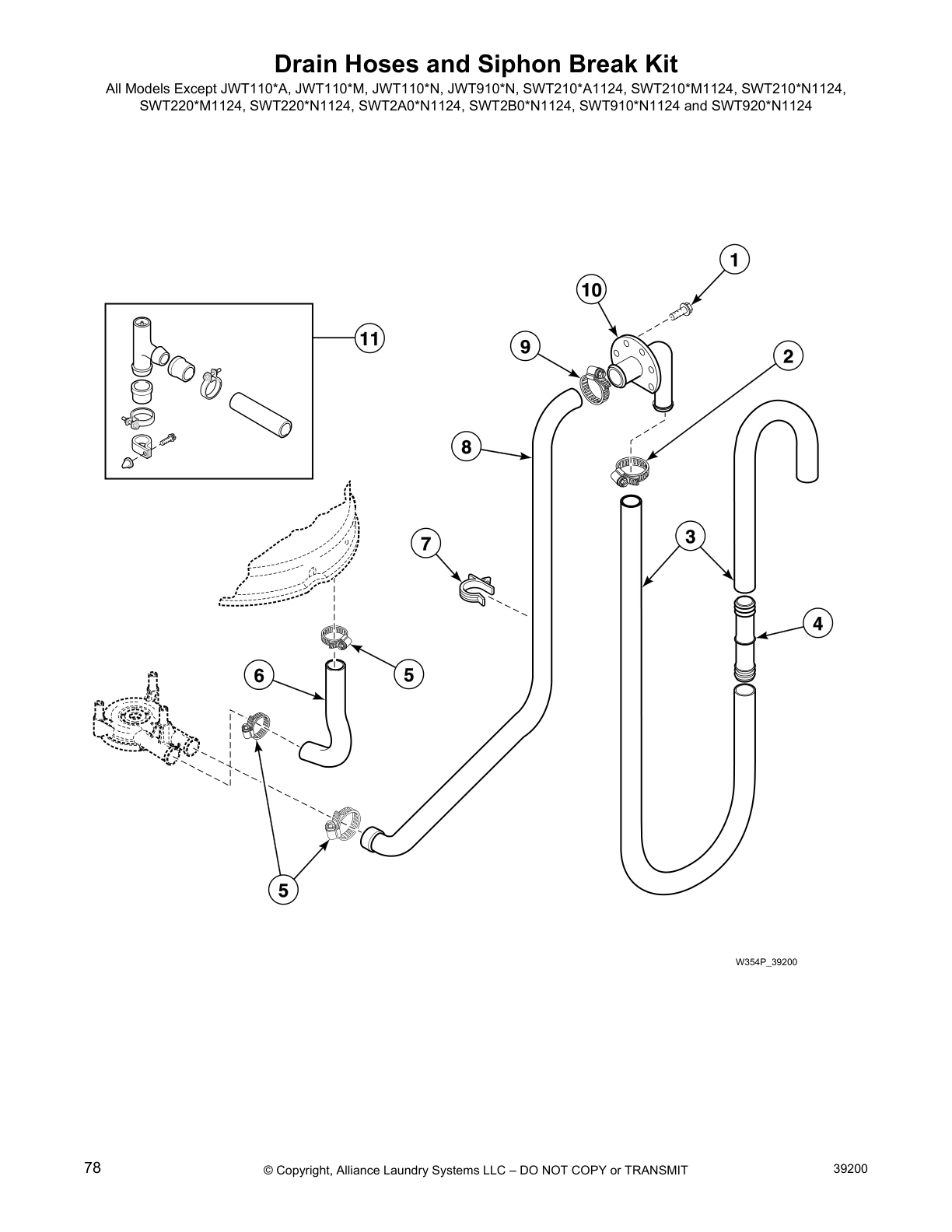

Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley

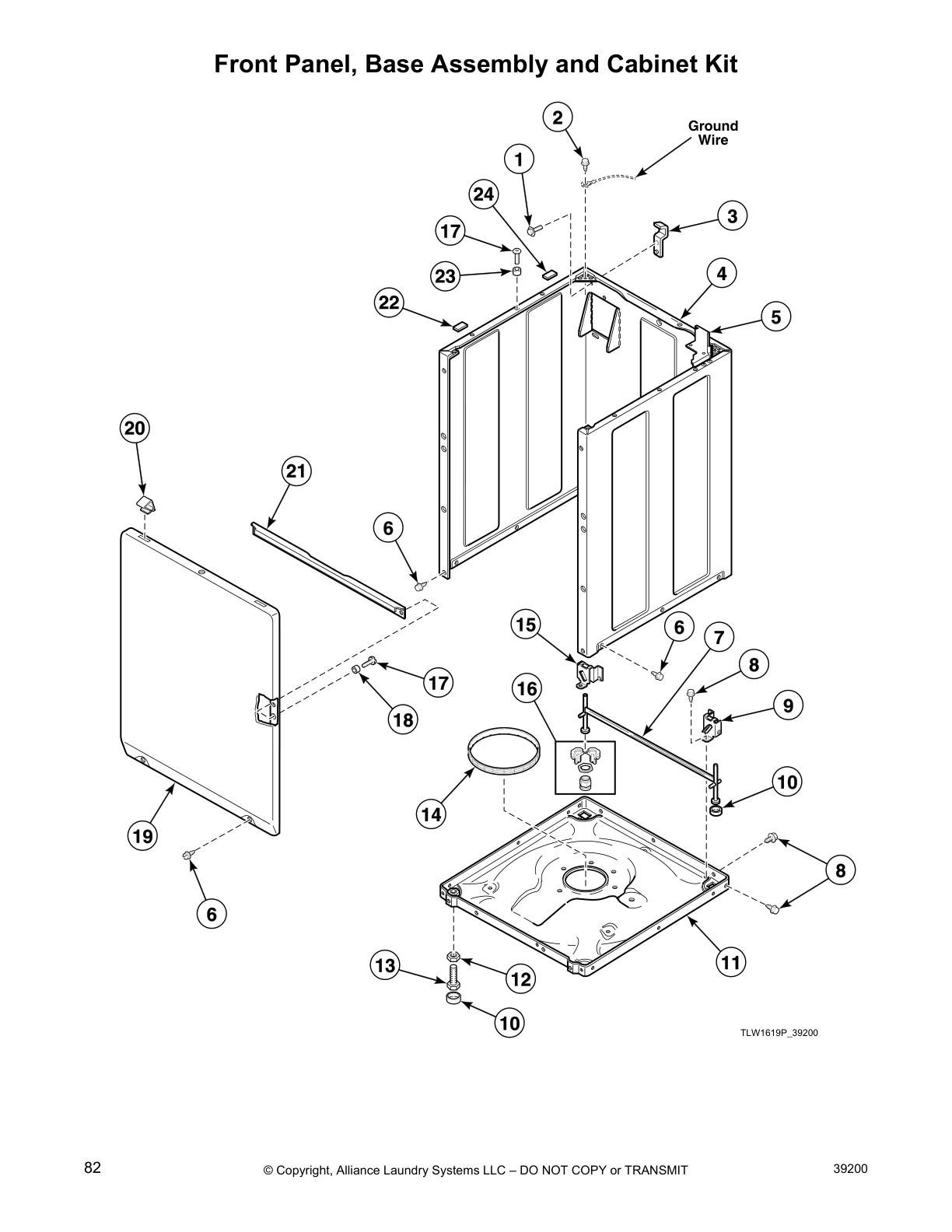

Front Panel, Base Assembly and Cabinet Kit

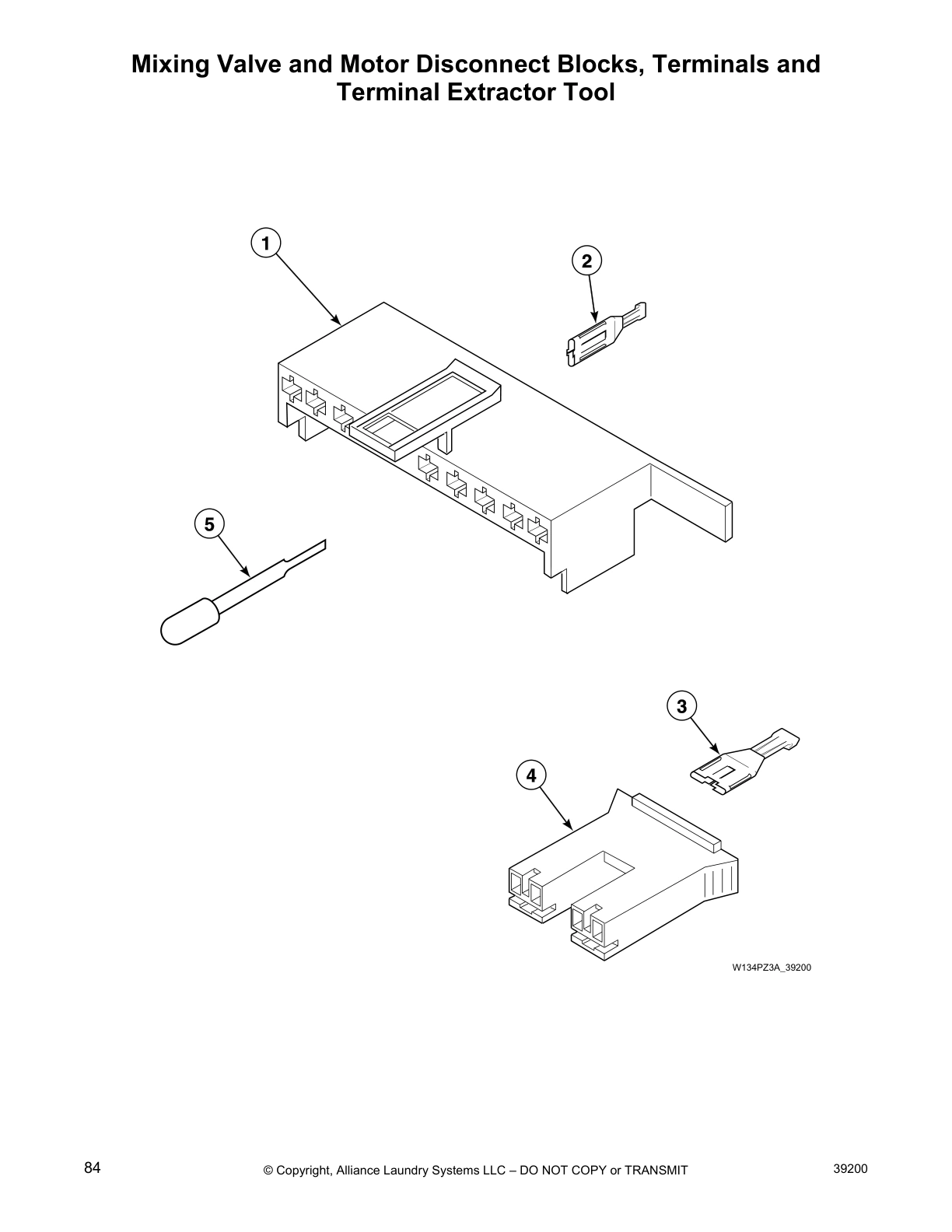

Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool

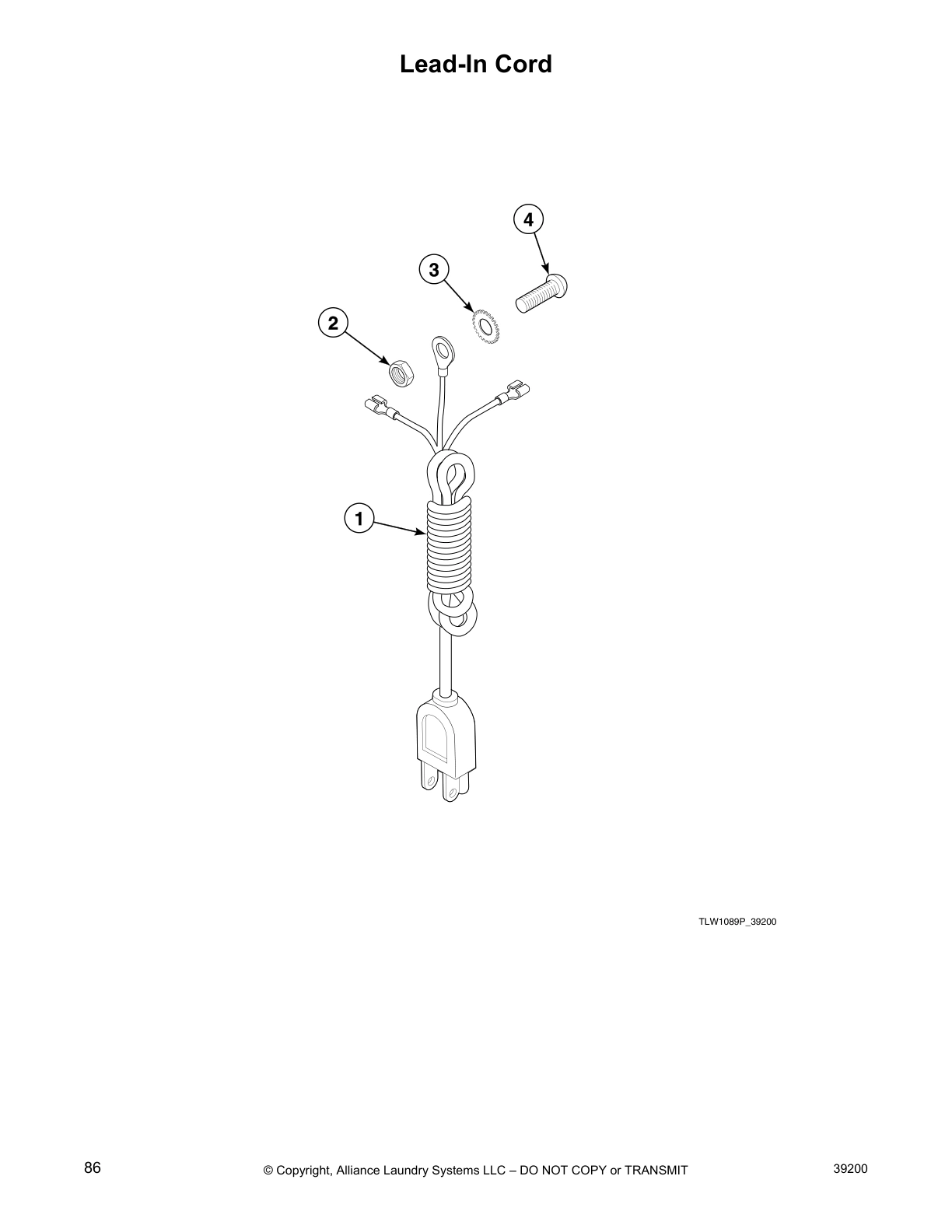

Lead-In Cord

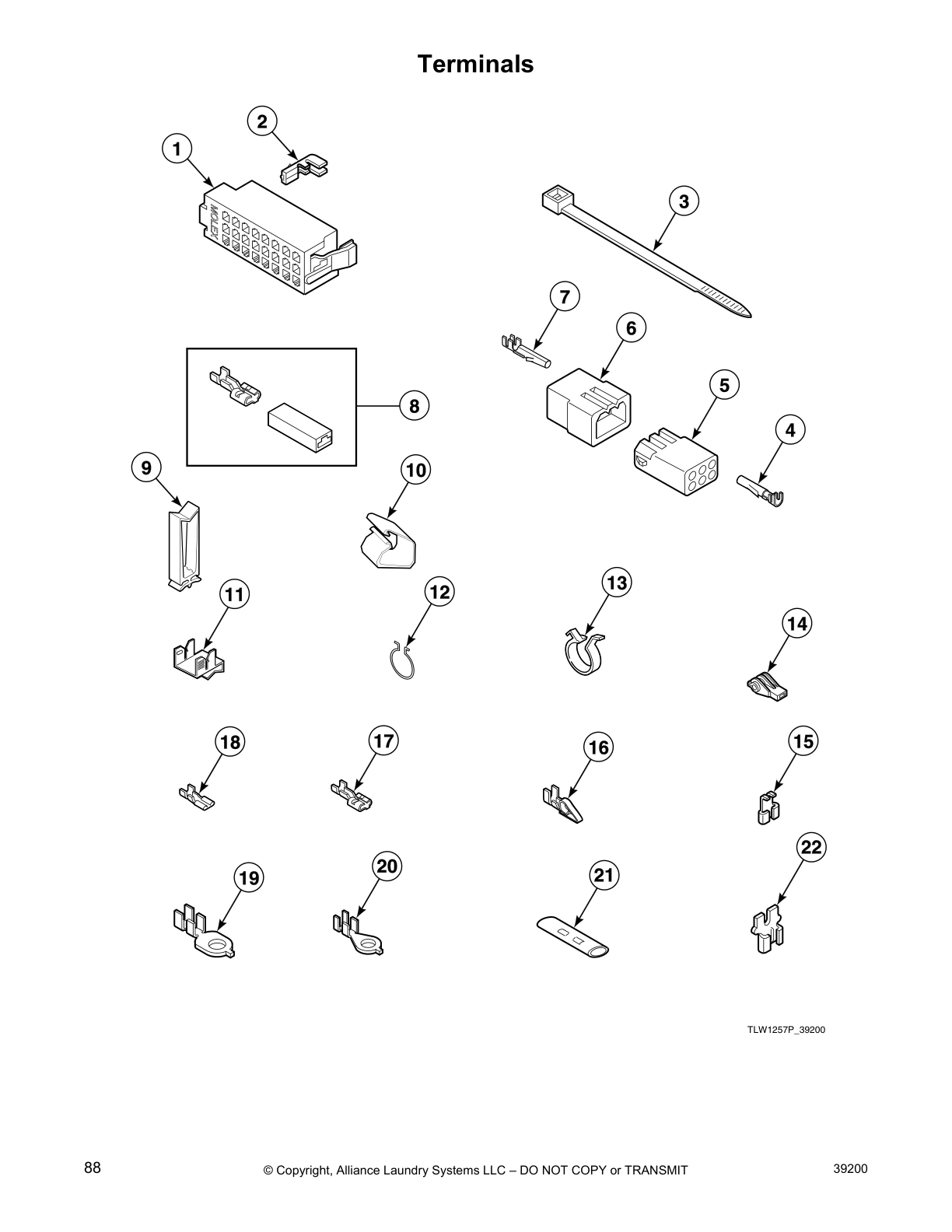

Terminals

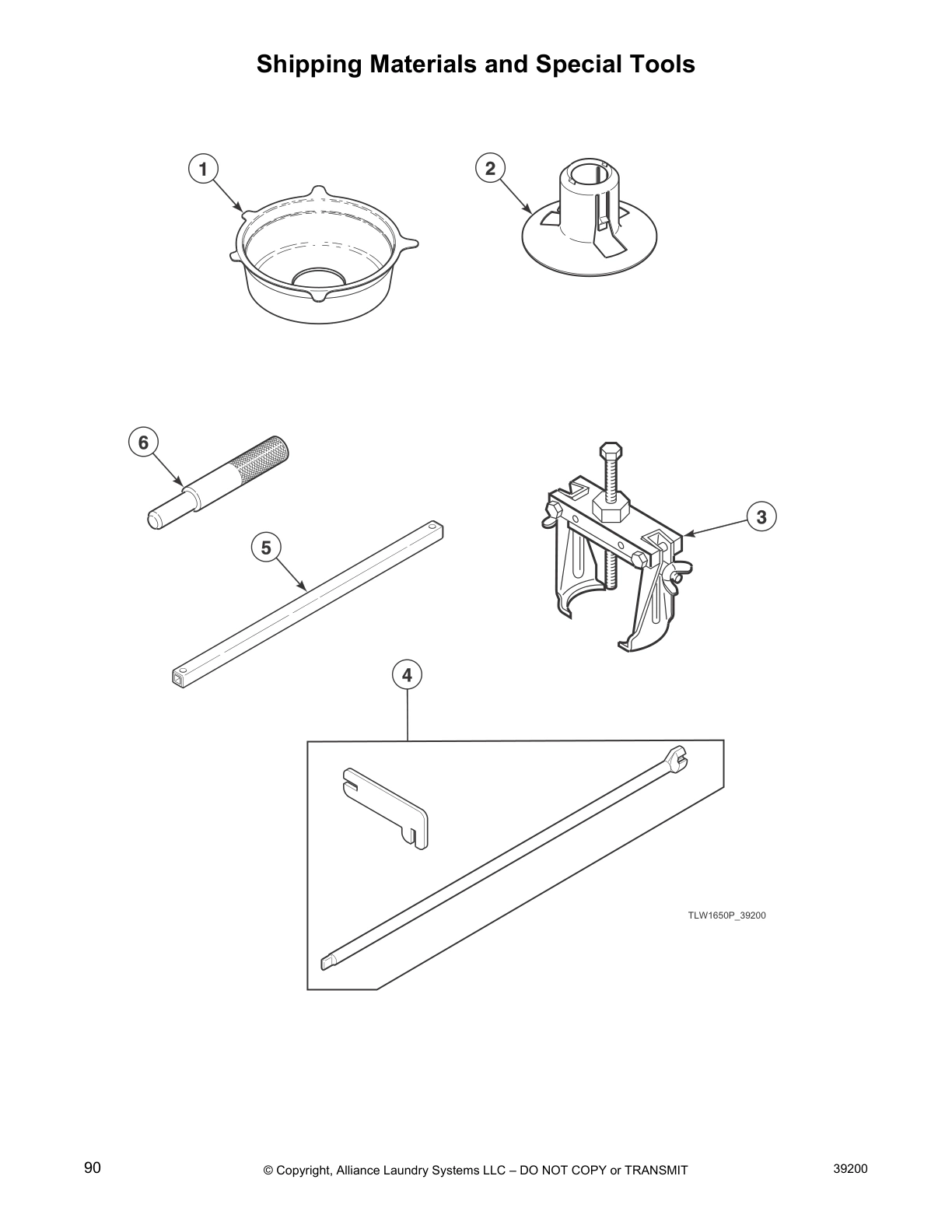

Shipping Materials and Special Tools

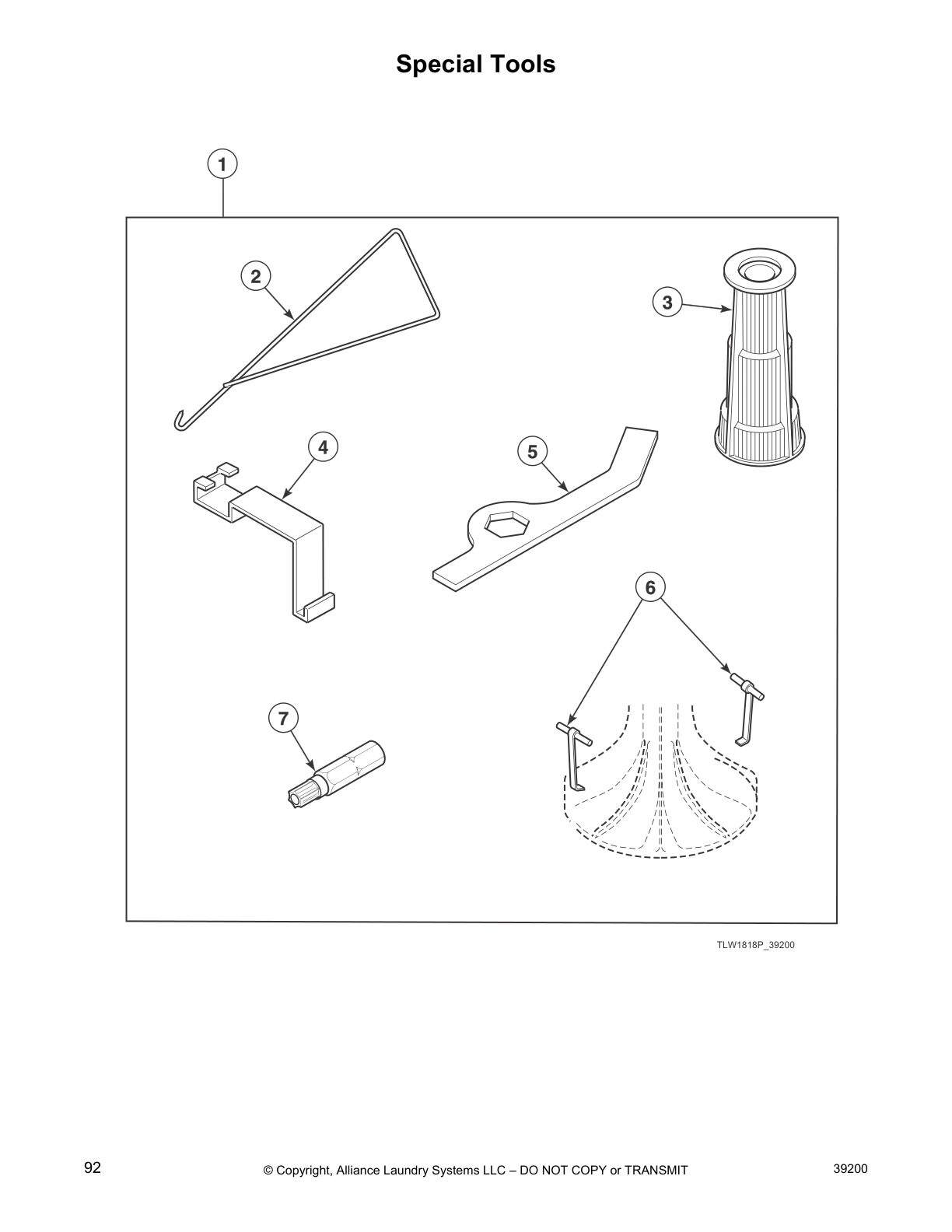

Special Tools

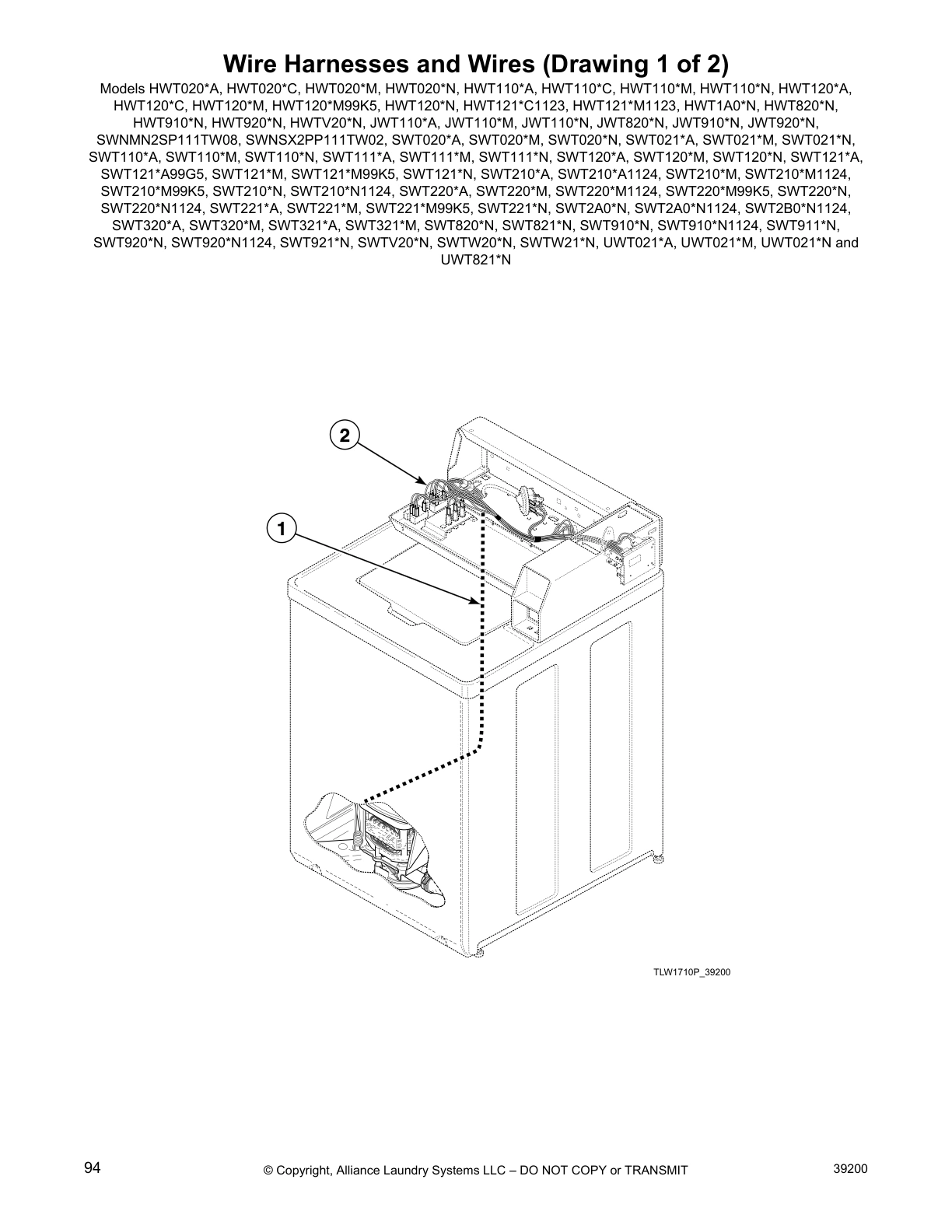

Wire Harnesses and Wires (Drawing 1 of 2)

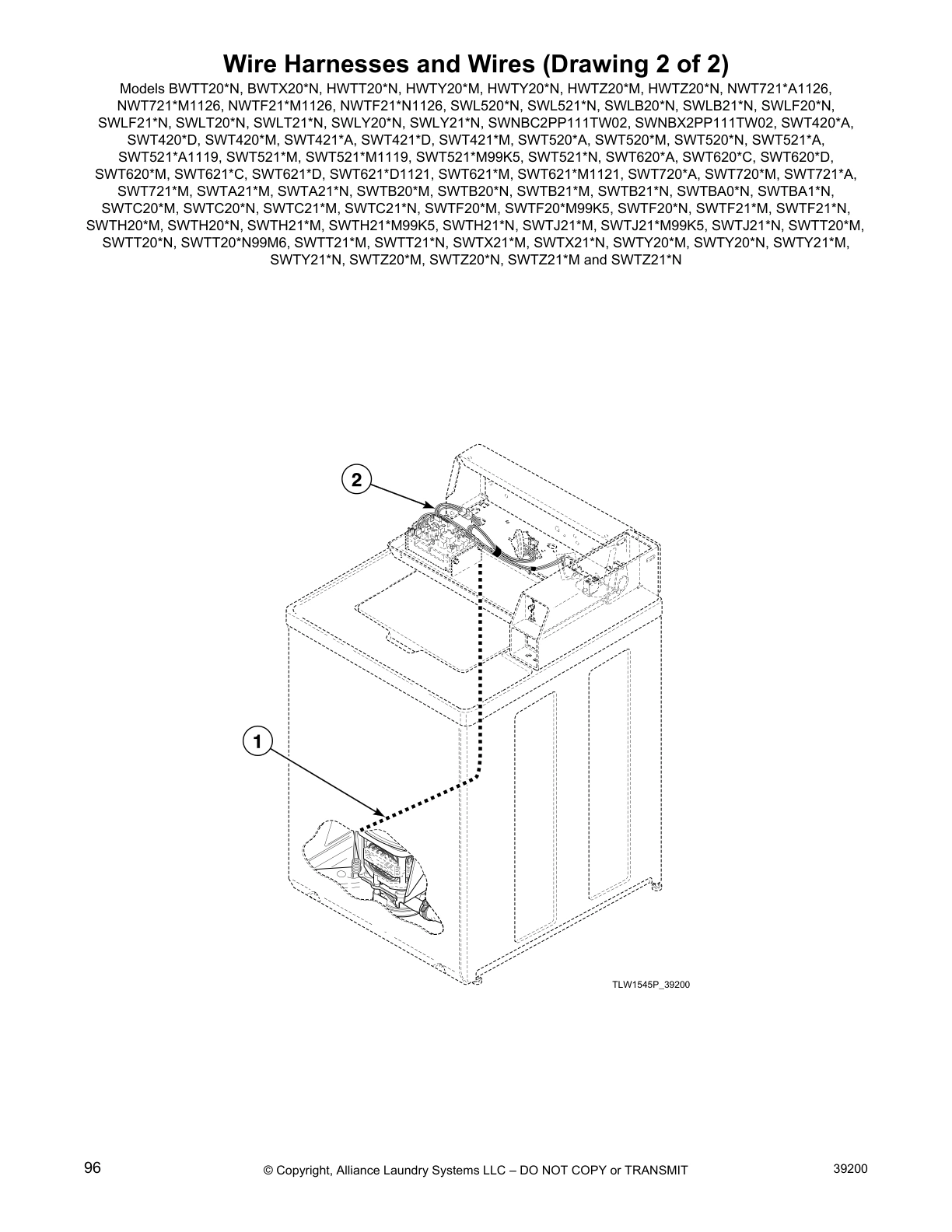

Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen SWT521*N Washer
