Model Speed Queen SWLB20*N Washer – Common Parts & Diagrams

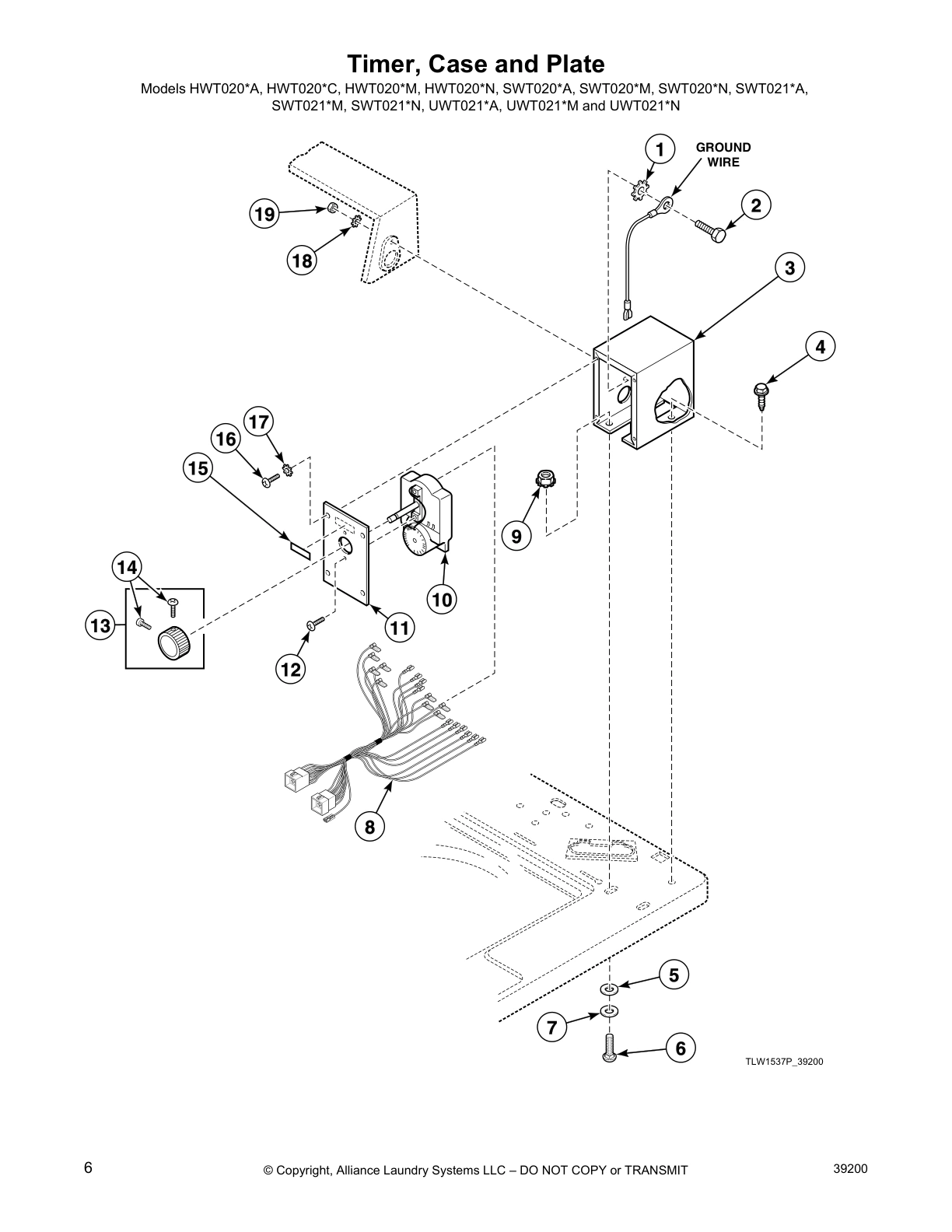

Timer, Case and Plate
Coin Slide Meter Case and Service Door
Coin Slide Extension, Meter Case and Service Door
Coin Drop, Meter Case and Service Door
Electronic Coin Drop
Timer Case
Security Case and Card Reader
Control Panel, Control Hood and Controls (Drawing 1 of 13)
Control Panel, Control Hood and Controls (Drawing 2 of 13)
Control Panel, Control Hood and Controls (Drawing 3 of 13)
Control Panel, Control Hood and Controls (Drawing 4 of 13)
Control Panel, Control Hood and Controls (Drawing 5 of 13)
Control Panel, Control Hood and Controls (Drawing 6 of 13)
Control Panel, Control Hood and Controls (Drawing 7 of 13)
Control Panel, Control Hood and Controls (Drawing 8 of 13)
Control Panel, Control Hood and Controls (Drawing 9 of 13)
Control Panel, Control Hood and Controls (Drawing 10 of 13)
Control Panel, Control Hood and Controls (Drawing 11 of 13)
Control Panel, Control Hood and Controls (Drawing 12 of 13)
Control Panel, Control Hood and Controls (Drawing 13 of 13)
Lid
Cabinet Top
Lid Switch
Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mounting Bracket
Motor, Mounting Bracket, Belt, Pump and Idler Assembly
Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Agitator, Drive Bell, Hub and Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing,
Pressure Hose and Counterweight
Outer Tub, Cover, Bearing Housing, Pressure Hose
and Counterweight
Transmission Assembly
Drain Hose and Siphon Break
Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Front Panel, Base Assembly and Cabinet Kit
Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool
Lead-In Cord
Terminals
Shipping Materials and Special Tools
Special Tools
Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen SWLB20*N Washer
1
Balance Ring Assembly SPQ 39836 Contact Us For Availability
12
Meter Case Gasket SPQ 70441601P Contact Us For Availability
NI
Mixing Valve Kit SPQ RB150001 Contact Us For Availability
× ![]()
