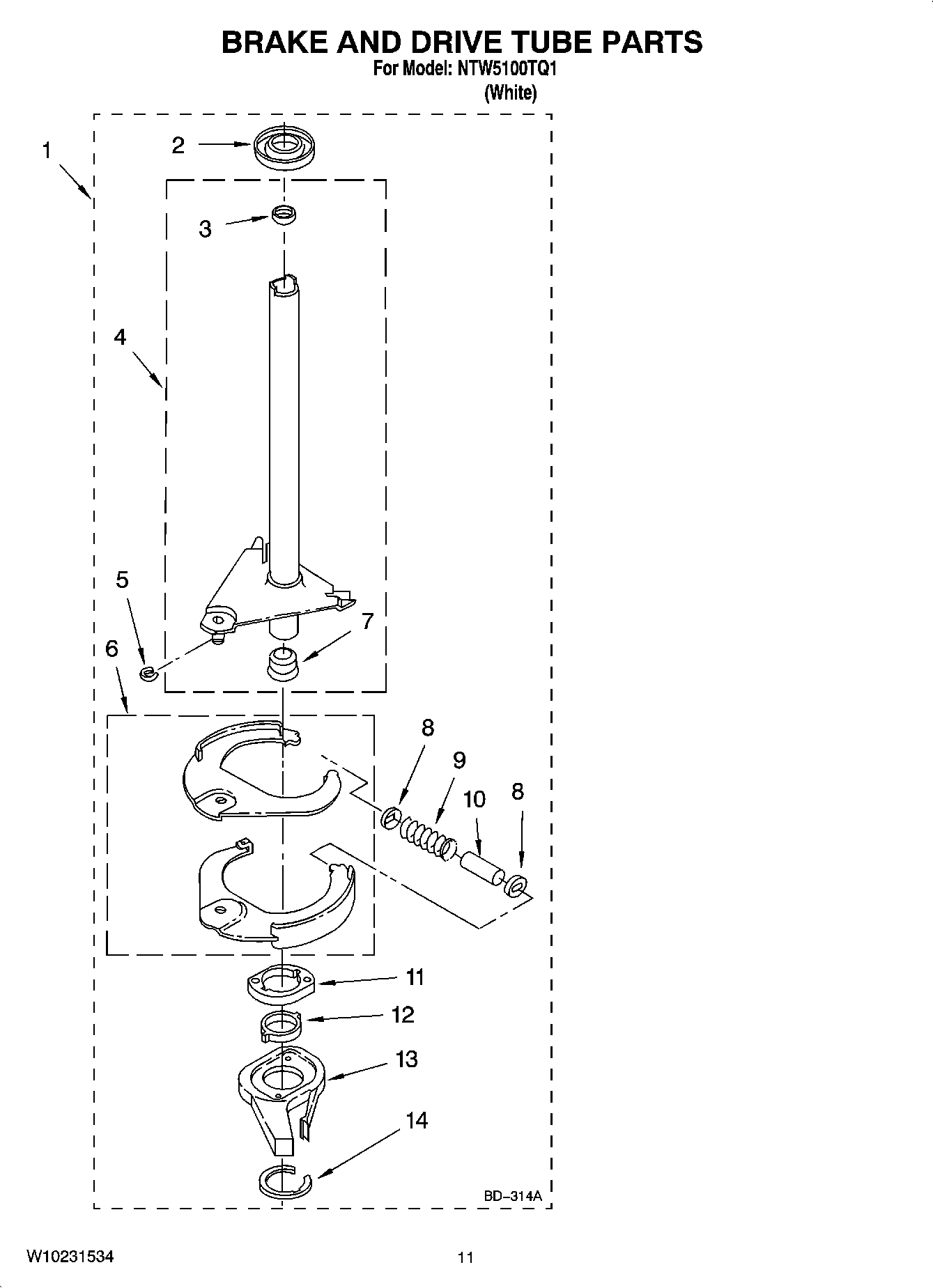

Model Whirlpool NTW5100TQ1 WASHER – Common Parts &amp; Diagrams

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

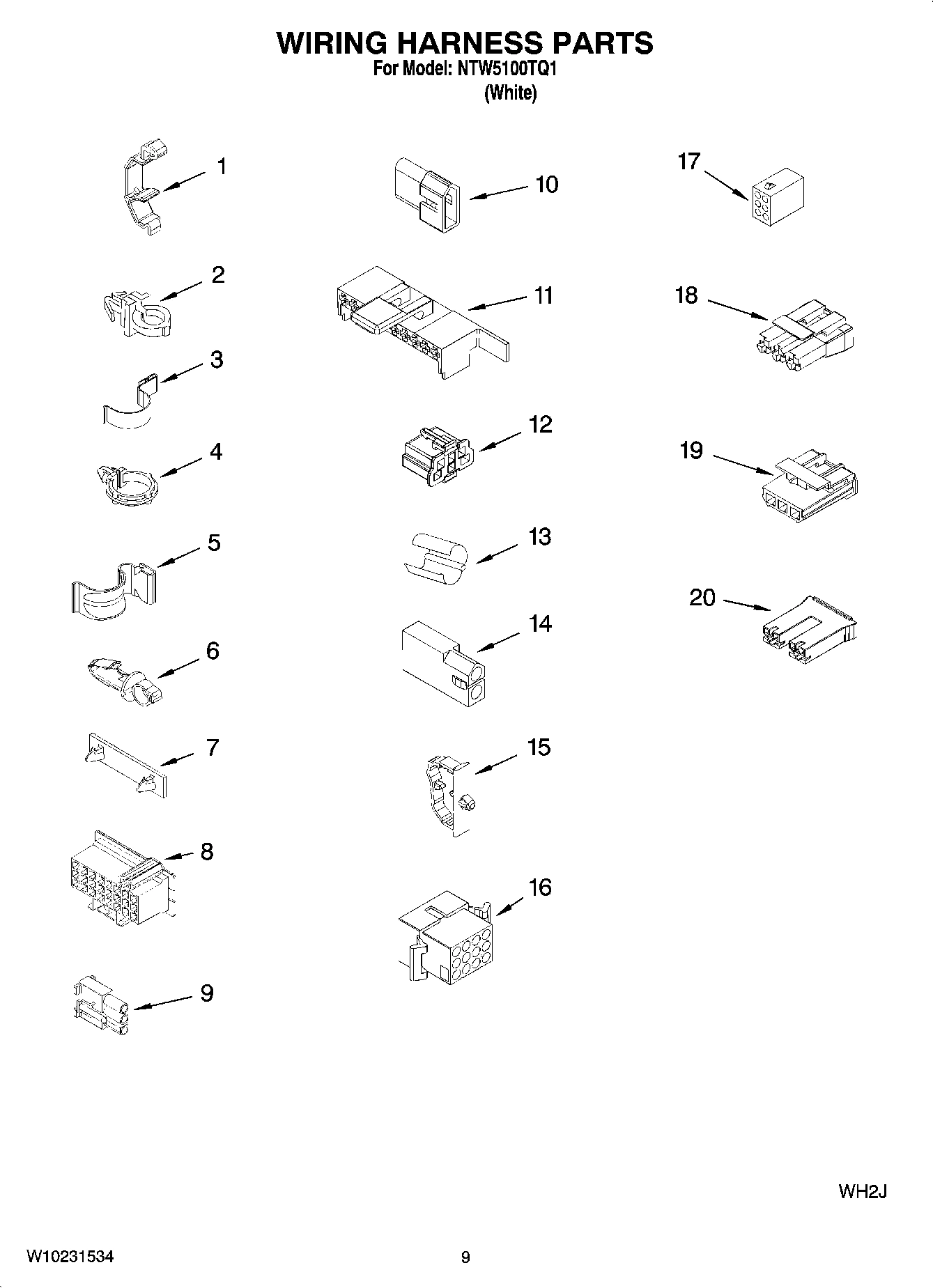

Harness, Wiring (For Detail See Pages 9 & 10) WPL W10071410 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $6.02

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $19.32

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $7.81

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $6.02

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

4

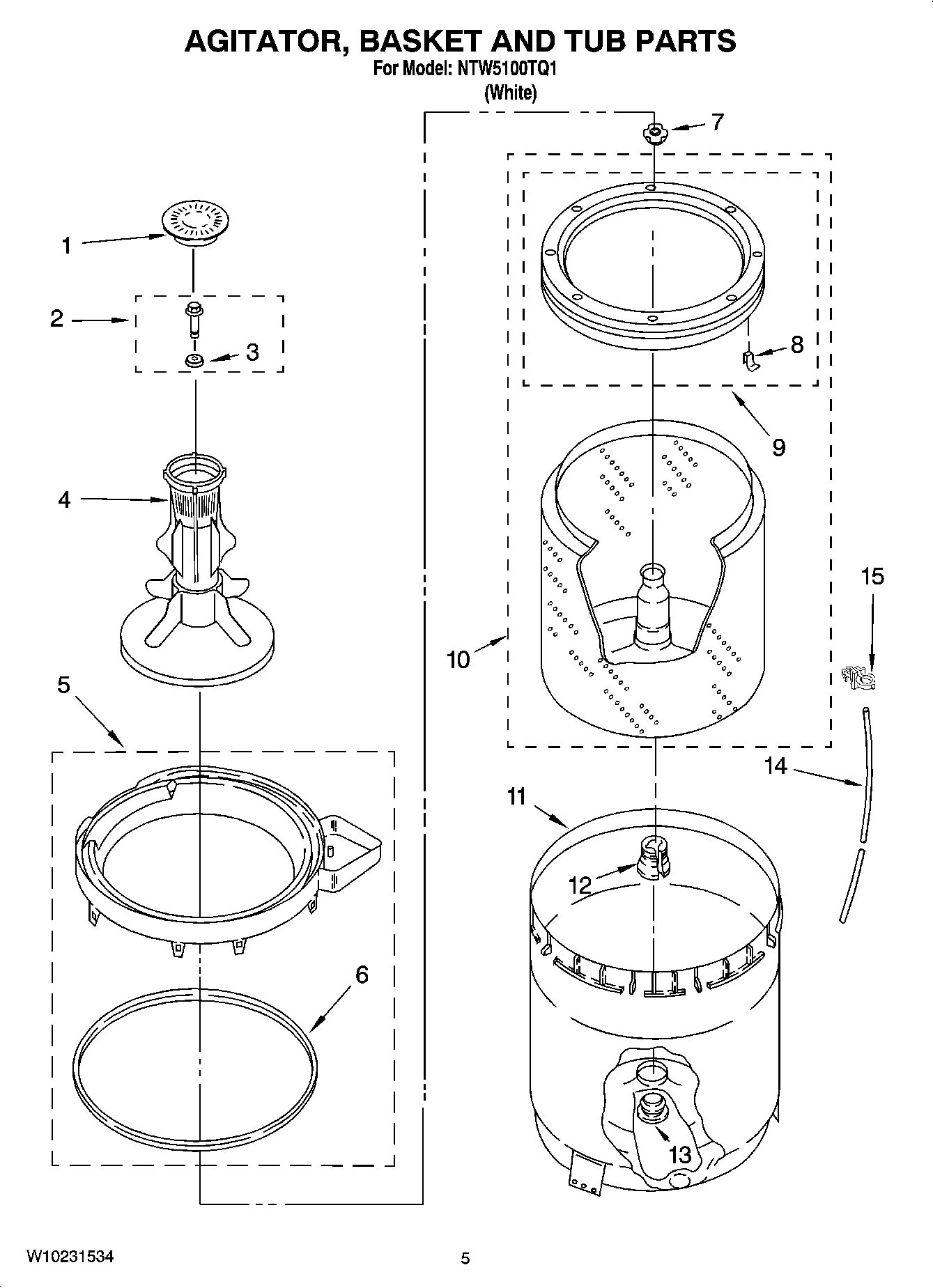

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $88.07

5

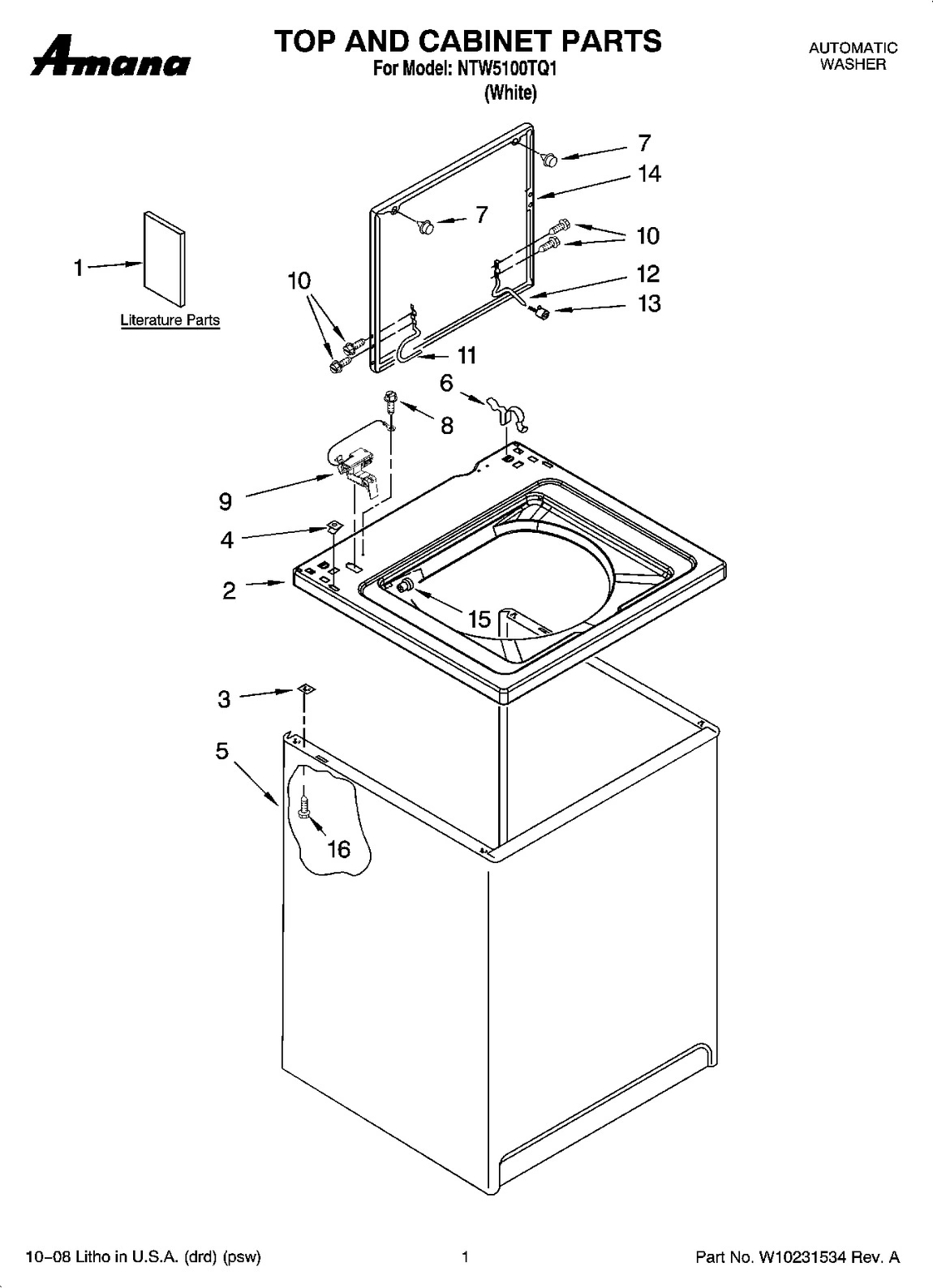

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip In Stock WPL WP90016 $7.16

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $63.12

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $4.37

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

9

WP8546681 Whirlpool Timer Backorder WPL WP8546681 $288.87

9

Balance Ring WPL 3956205 Contact Us For Availability

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.89

10

Plug, Terminal (3-Way) WPL 353424 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

Tub WPL 63125 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $14.98

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

13

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $5.30

15

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $209.89

16

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.82

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $5.02

17

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

18

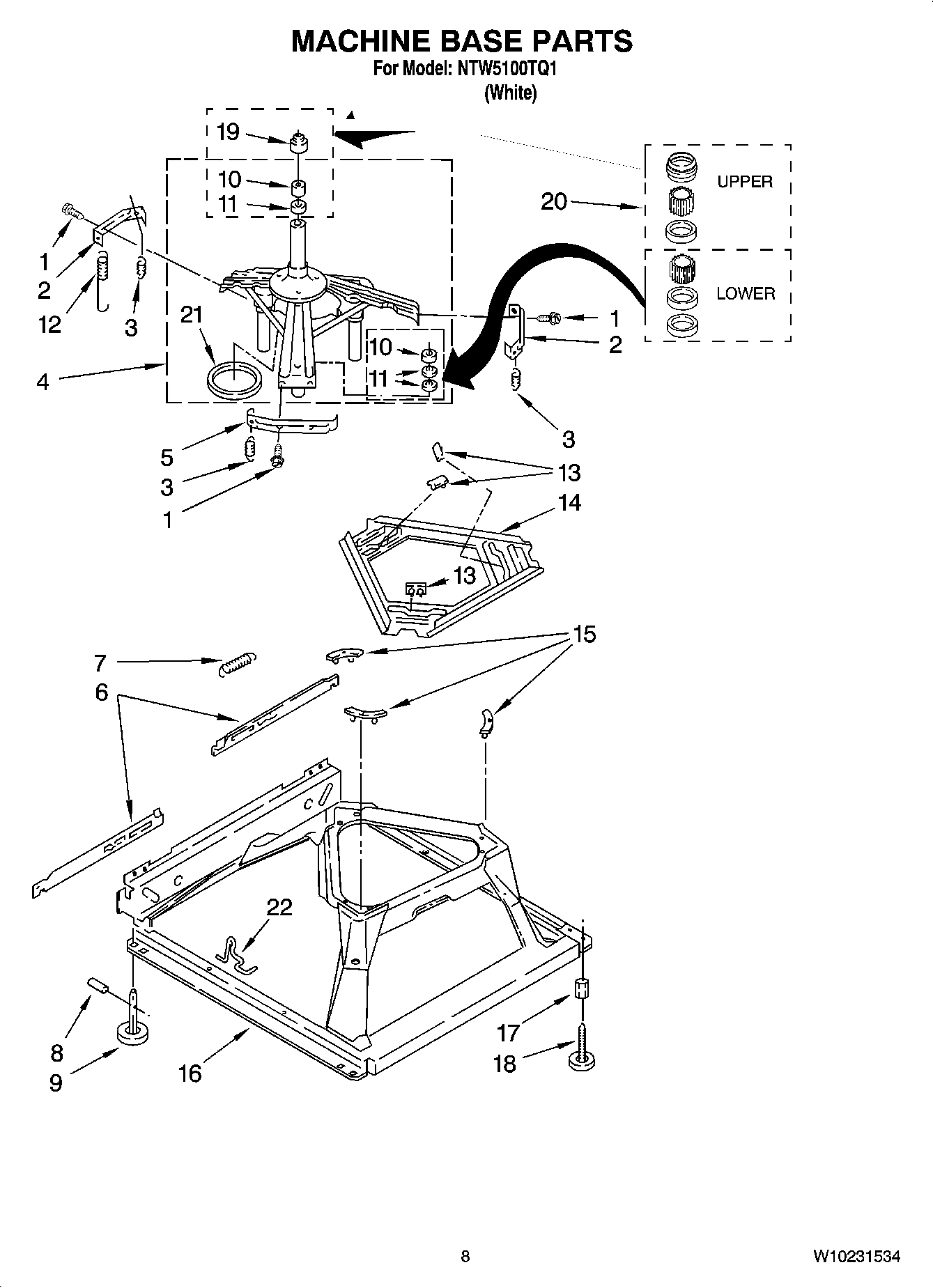

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

18

WPW10113122 Whirlpool Water Valve Backorder WPL WPW10113122 $150.27

19

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

19

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $87.10

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

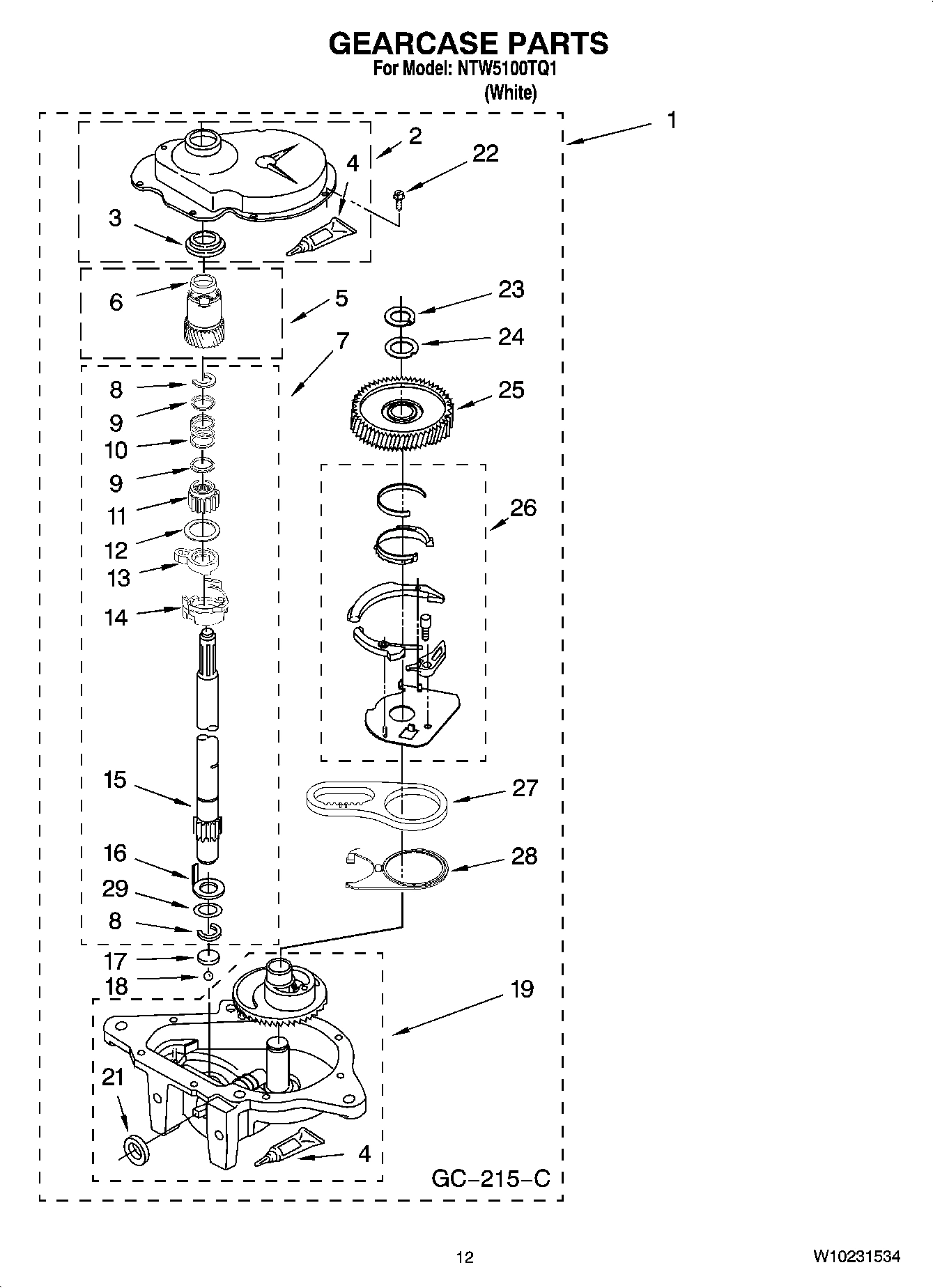

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $44.00

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

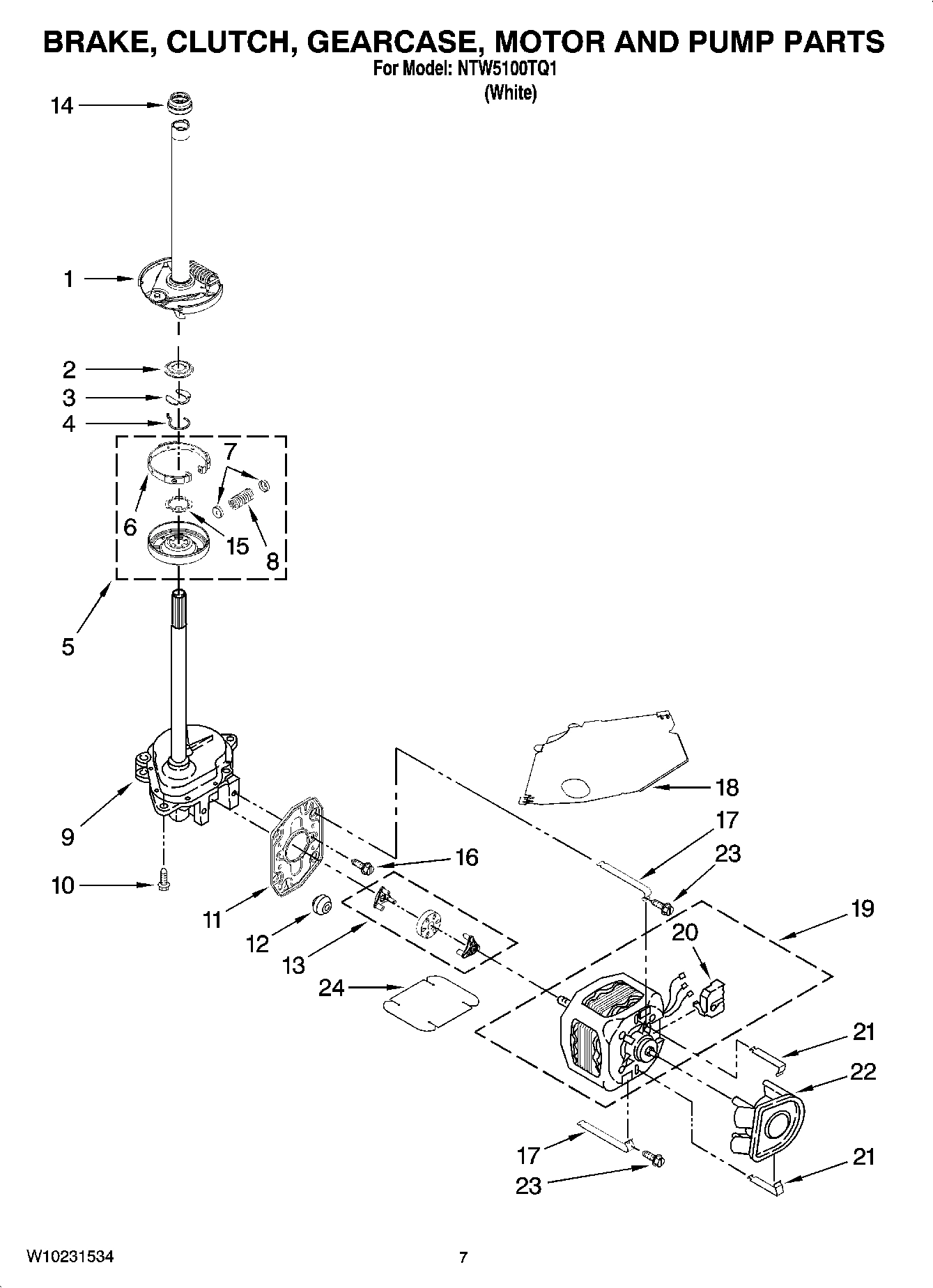

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $43.64

25

Cap, End (R.H.) WPL 8271359 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $46.83

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

27

Clamp, Hose WPL 8541667 Contact Us For Availability

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $60.82

29

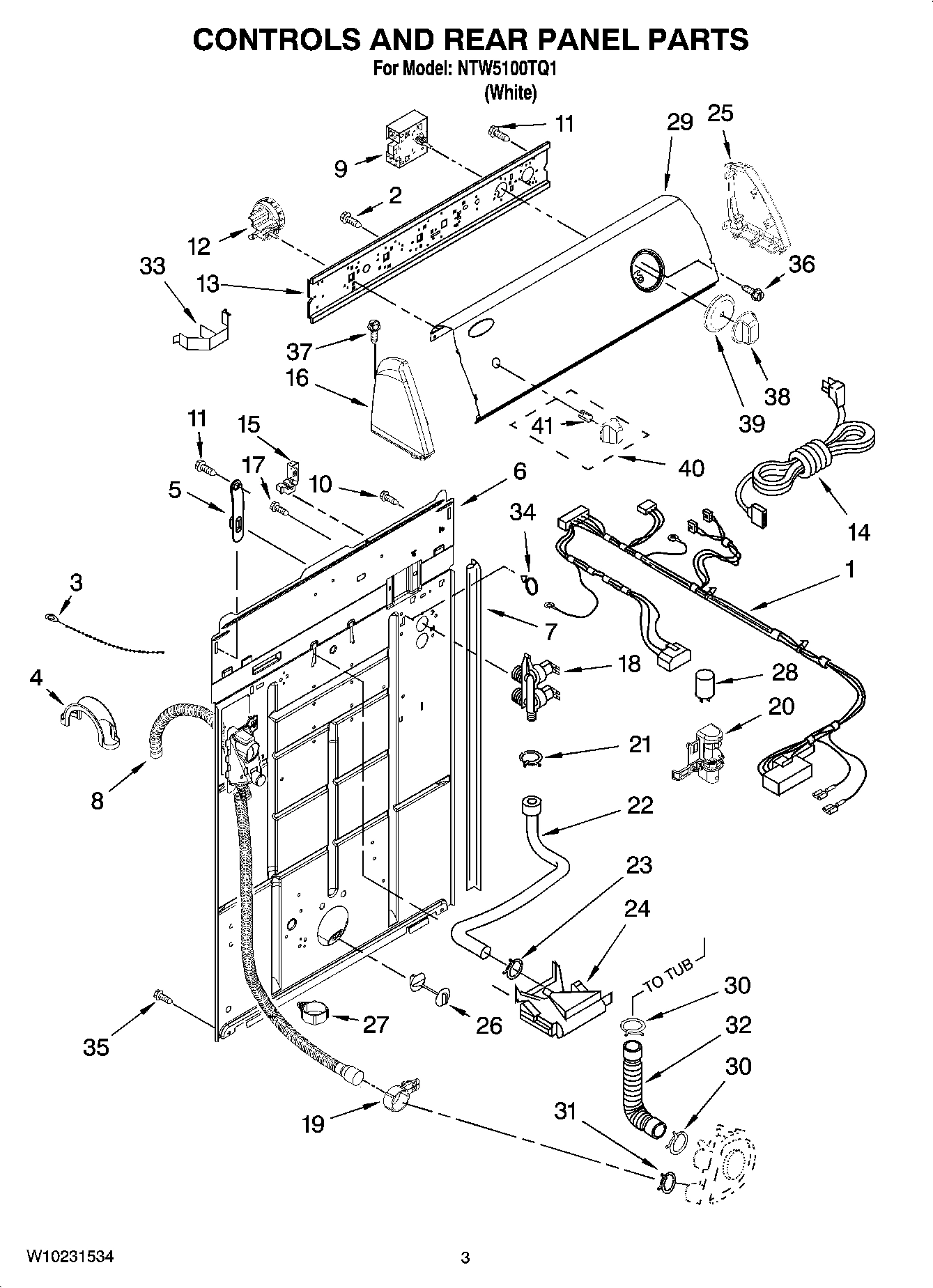

Panel, Console WPL W10182637 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $16.92

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

34

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

38

W10110045 Whirlpool Knob Backorder WPL W10110045 $64.09

39

Dial, Timer WPL W10110046 Contact Us For Availability

40

WPW10110047 Whirlpool Knob Backorder WPL WPW10110047 $40.41

41

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

285448A Whirlpool Washer In Stock WPL 285448A $5.65

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $6.47

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.83

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.78

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $30.41

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $36.37

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $23.09

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $29.68

8212656RP Whirlpool Fill Hose In Stock WPL 8212656RP $33.59

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
