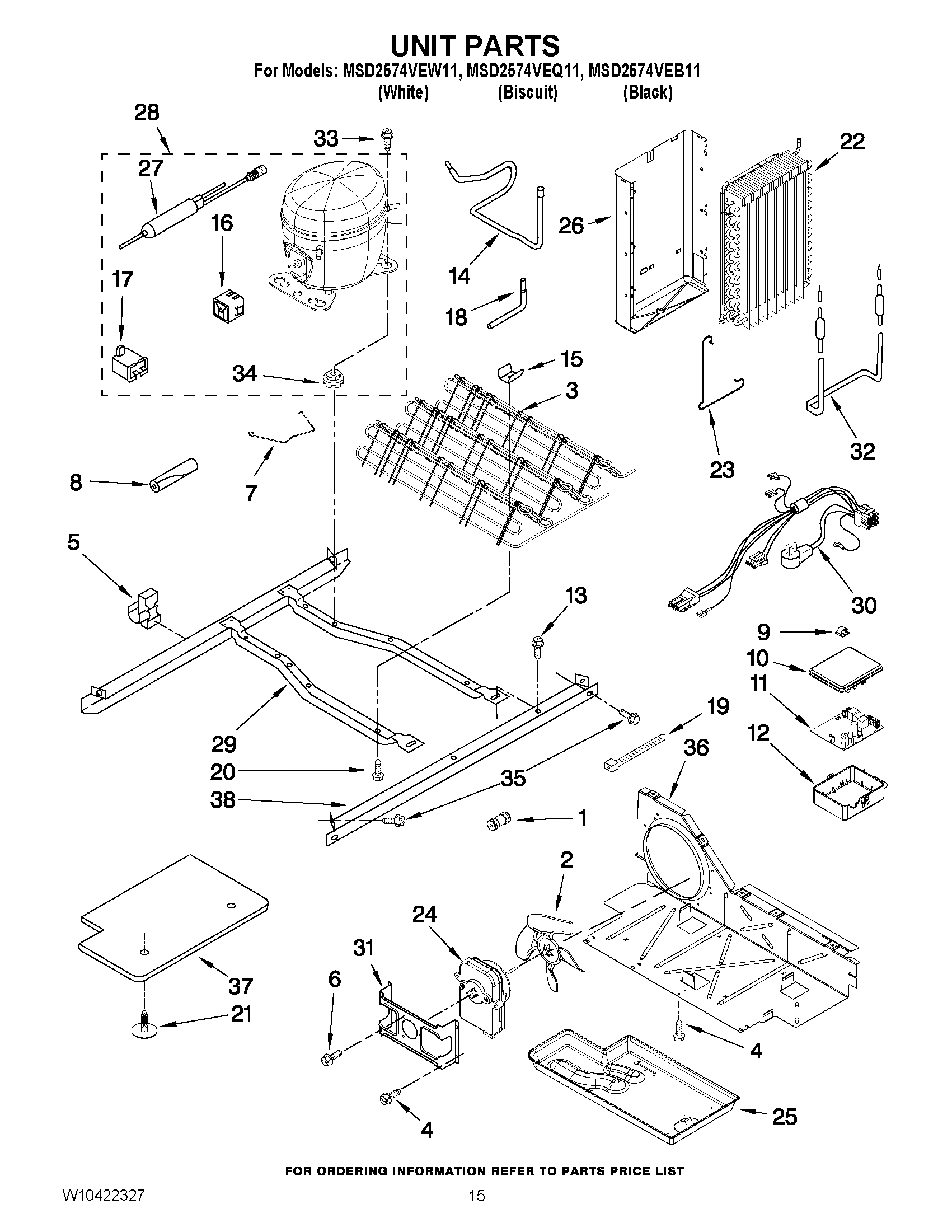

Model Whirlpool MSD2574VEW11 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10334458 Whirlpool Refrigerator Connector In Stock WPL WPW10334458 $14.46

1

BRACKET, MOTOR WPL W10304376 Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.51

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $85.63

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.47

2

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $66.98

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.70

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $52.72

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $131.60

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $110.99

3

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $52.12

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $117.53

4

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.66

4

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $35.32

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $32.25

4

MOTOR, ICE DOOR WPL W10174787 Contact Us For Availability

5

W10177781 Whirlpool Refrigerator Air Duct Backorder WPL W10177781 $74.13

5

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $22.02

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $66.48

5

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $6.02

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $54.99

6

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

6

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $107.55

6

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $73.41

6

Support, Ice Door WPL 2328018 Contact Us For Availability

7

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

7

W11643622 Whirlpool Wire Harness Backorder WPL W11643622 $16.14

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $42.04

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $14.90

7

HANDLE (WHITE) WPL W10295712 Contact Us For Availability

7

HANDLE (BLACK) WPL W10296255 Contact Us For Availability

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $78.64

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

Tray Assembly (Black) WPL W10192687 Contact Us For Availability

8

Tray Assembly (White) WPL W10192669 Contact Us For Availability

9

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $53.58

9

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $6.79

9

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $6.93

9

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $142.00

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $67.28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

Electronic Control (Core) WPL W10144584 Contact Us For Availability

ELEC. CONTROL WPL W10259858 Contact Us For Availability

BRACKET, DOOR STOP (BISCUIT) WPL W10185570 Contact Us For Availability

Bracket, Door Stop (White) WPL 2321218W Contact Us For Availability

BRACKET, DOOR STOP (BLACK) WPL W10185571 Contact Us For Availability

Light Lens WPL 2212340 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

W11084324 Whirlpool Refrigerator Wire Harness Backorder WPL W11084324 $78.26

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

HINGE TOP FC WPL W10287685 Contact Us For Availability

Screw WPL W10191952 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $61.31

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $61.30

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $171.15

Pad (White) WPL W10176456 Contact Us For Availability

Pad (Biscuit) WPL W10178766 Contact Us For Availability

Pad (Black) WPL W10176455 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

HINGE, TOP RC WPL W10287684 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $87.65

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $97.31

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Pivot Arm WPL 2161306 Contact Us For Availability

TUBE, SUCTION WPL 2205765 Contact Us For Availability

15

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

15

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $61.38

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $79.39

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $130.22

WPW10276341 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10276341 $160.08

Washer, Plain WPL W10189660 Contact Us For Availability

17

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

17

SHELF, WIRE WPL W10318946 Contact Us For Availability

18

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

18

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

ARM-SHUT In Stock WPL W11807379 $43.00

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $43.54

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

20

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $15.52

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $6.02

22

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $264.08

22

Grille (Black) WPL W10168144 Contact Us For Availability

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

23

Clamp WPL 2161324 Contact Us For Availability

24

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

24

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $88.99

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

25

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $97.53

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

28

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $95.11

28

TUBE, FILTER INLET WPL W10281289 Contact Us For Availability

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $32.02

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

32

W11427433 Whirlpool Cover Backorder WPL W11427433 $73.61

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $36.30

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

36

Air Baffle WPL W10163483 Contact Us For Availability

38

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $105.27

40

DOOR CLOSER LOWER CAM (FC) WPL 2223751 Contact Us For Availability

100

WPW10300022 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10300022 $182.10

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT. GRAPHITE) WPL 8171358 Contact Us For Availability
