Model Maytag MLG24PNAGW4 GAS DRYER – Common Parts & Diagrams

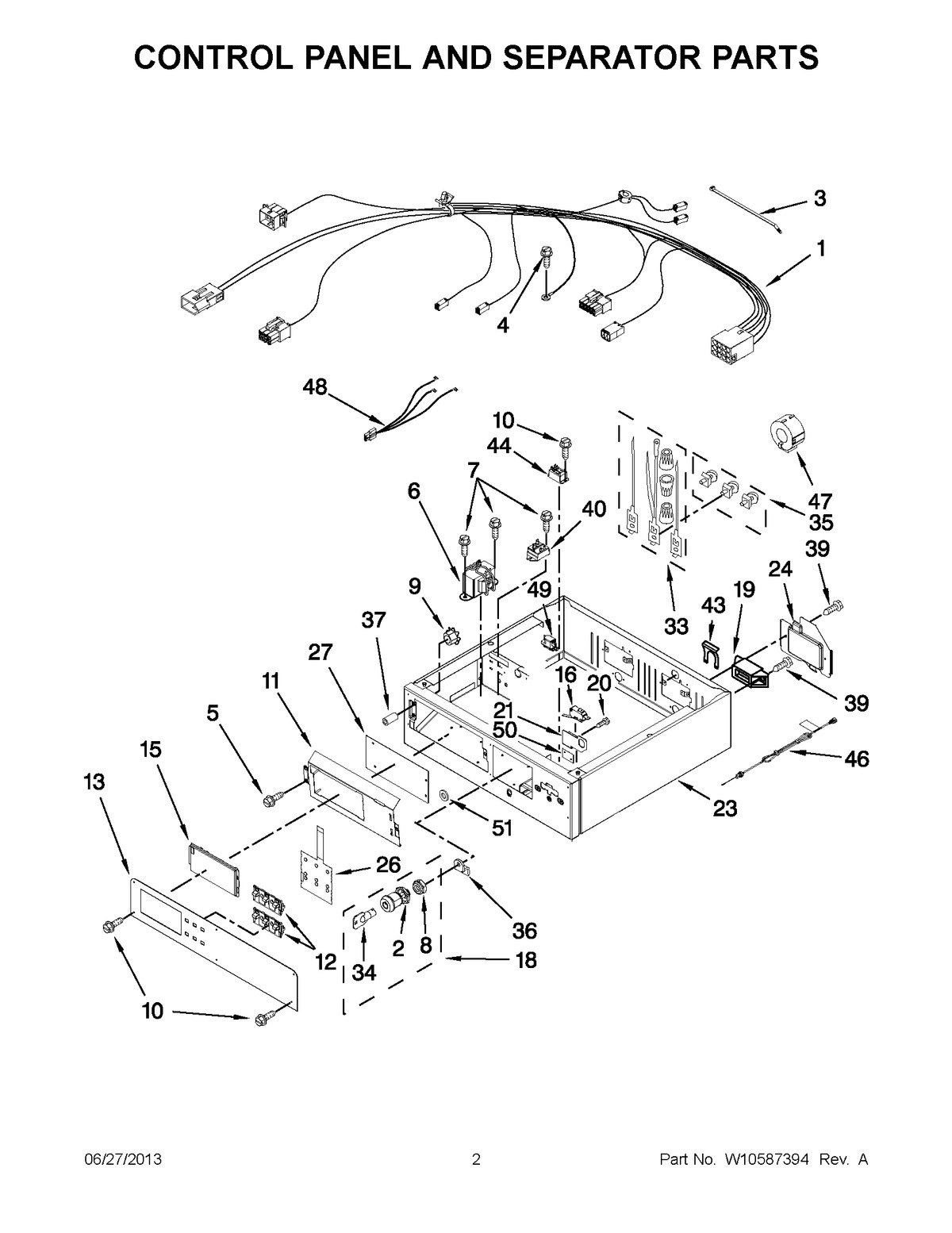

01 - CONTROL PANEL AND SEPARATOR PARTS

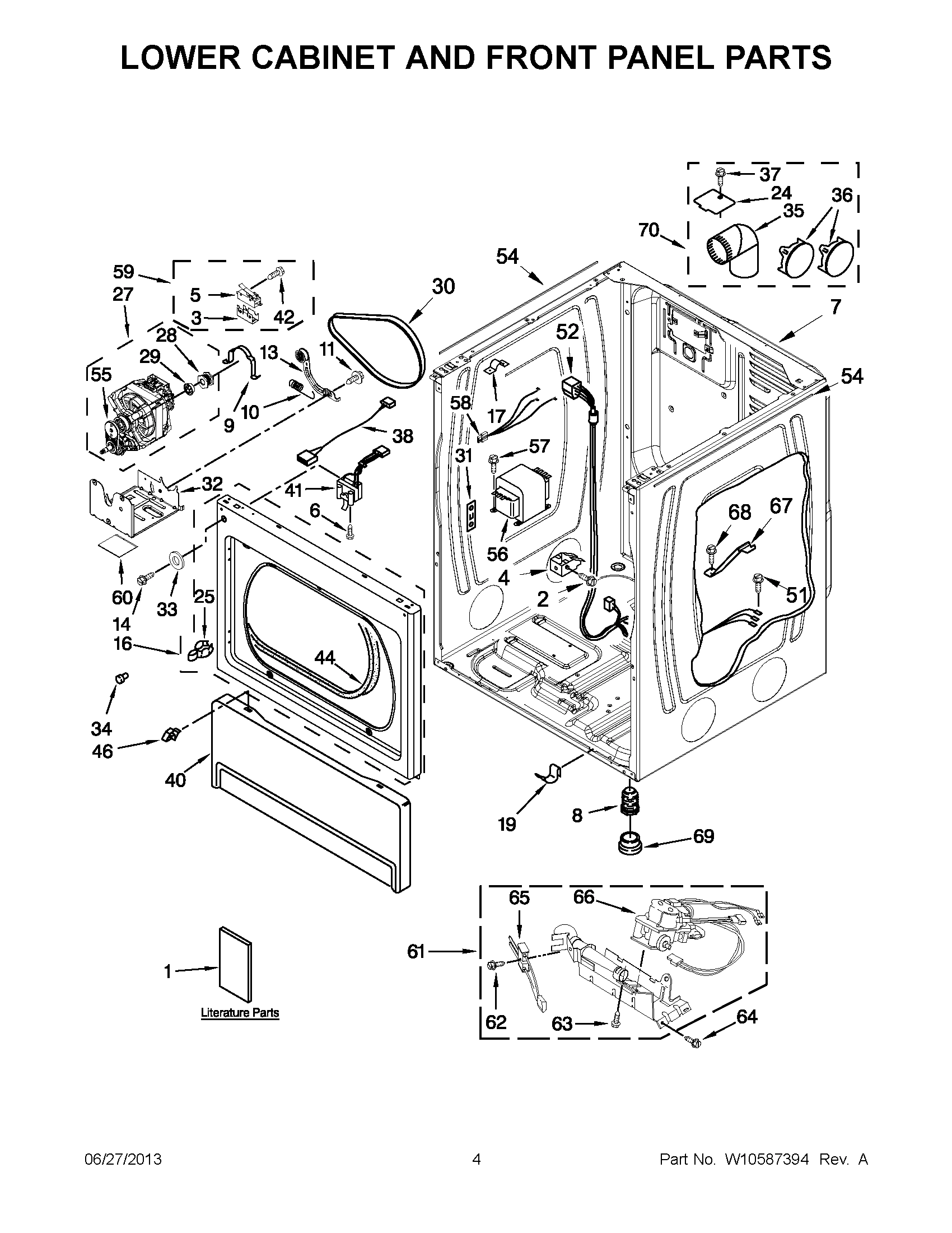

02 - LOWER CABINET AND FRONT PANEL PARTS

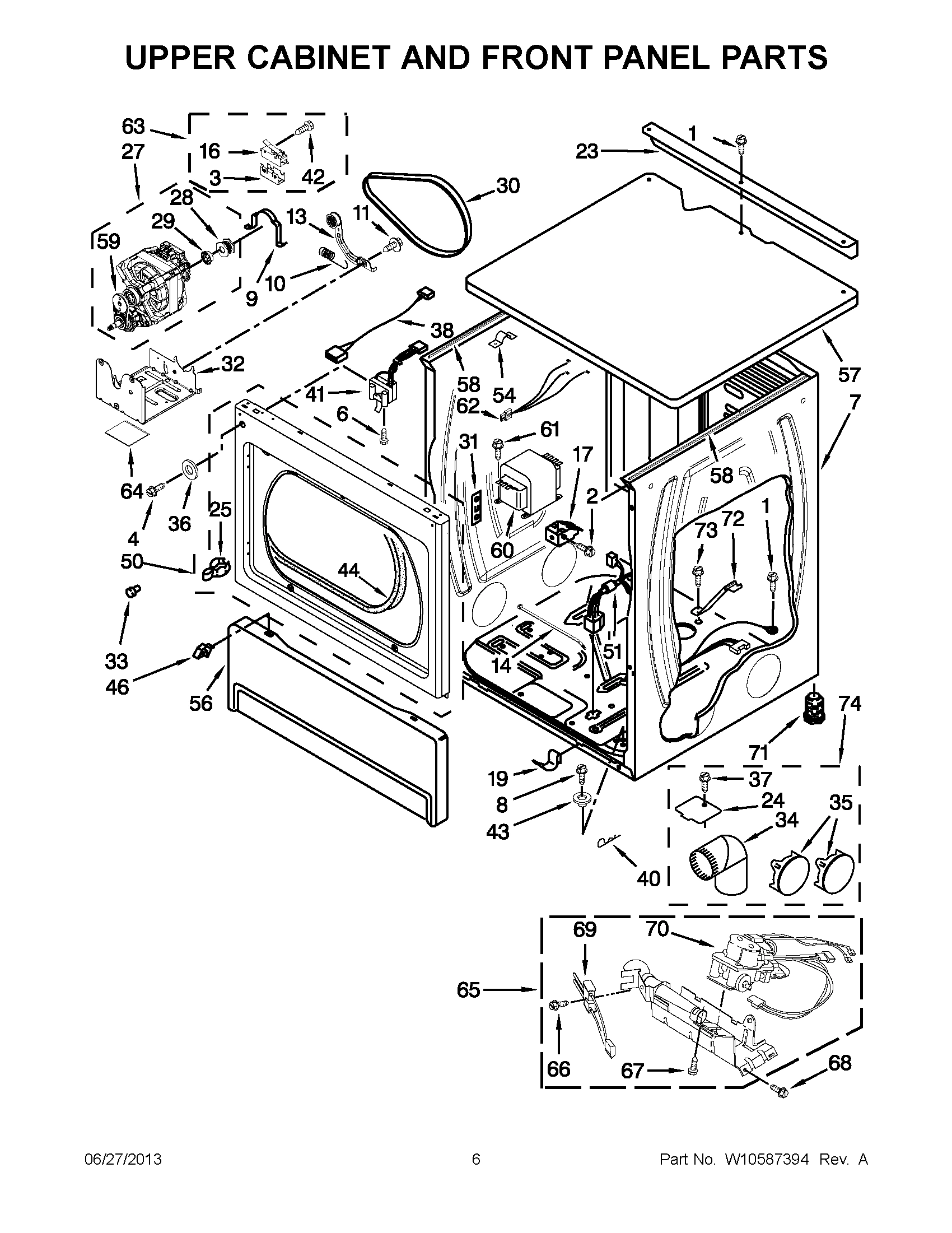

03 - UPPER CABINET AND FRONT PANEL PARTS

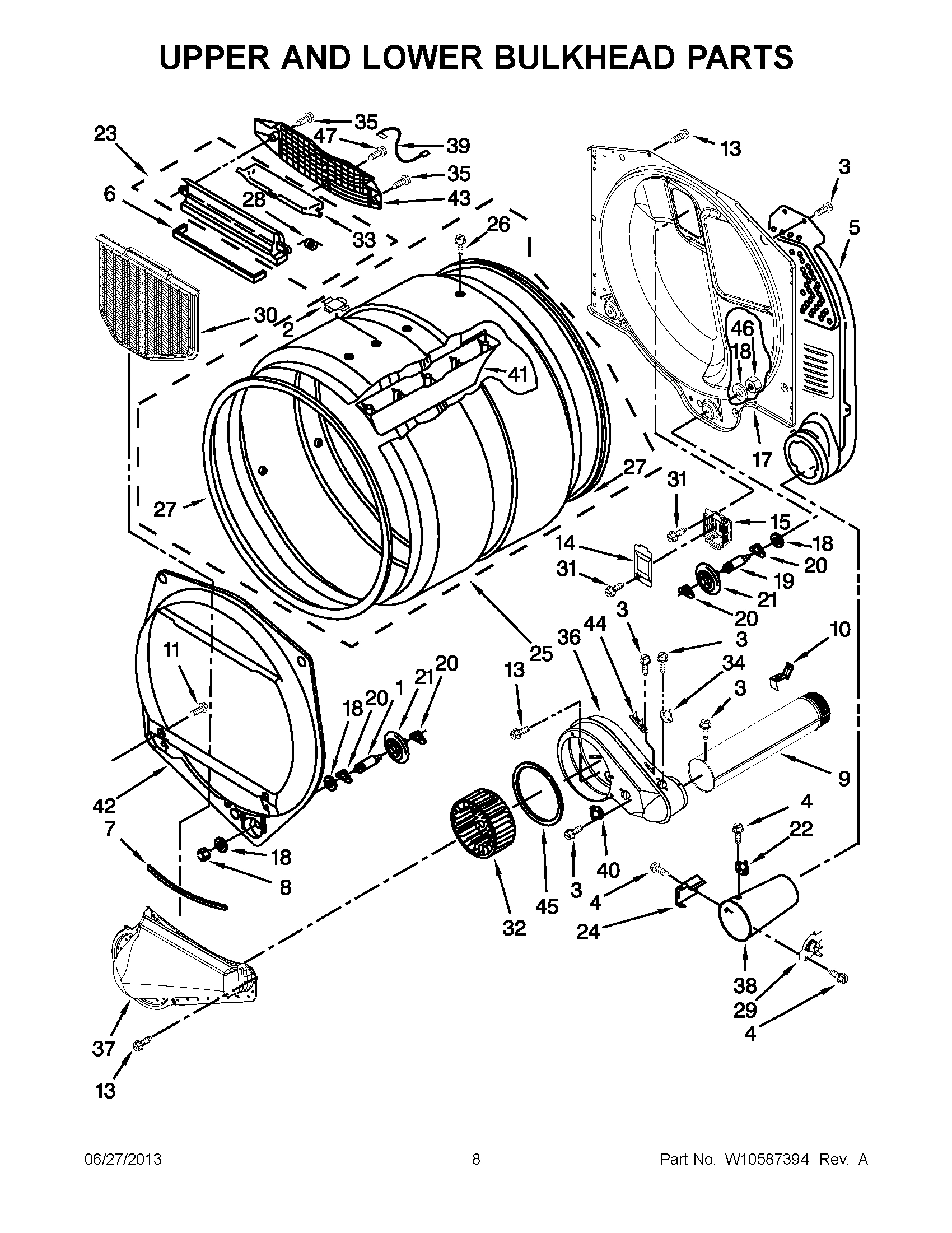

04 - UPPER AND LOWER BULKHEAD PARTS

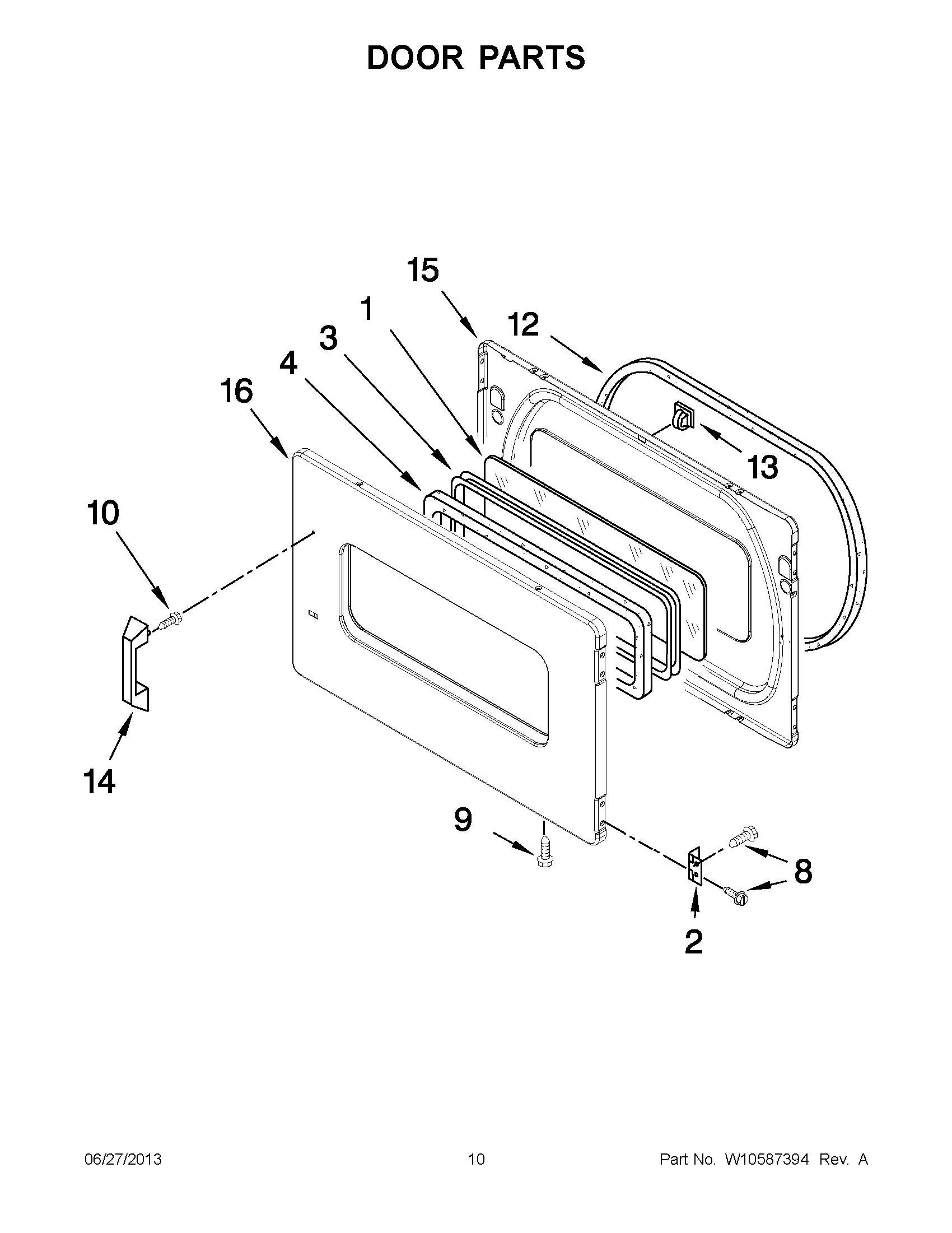

05 - DOOR PARTS

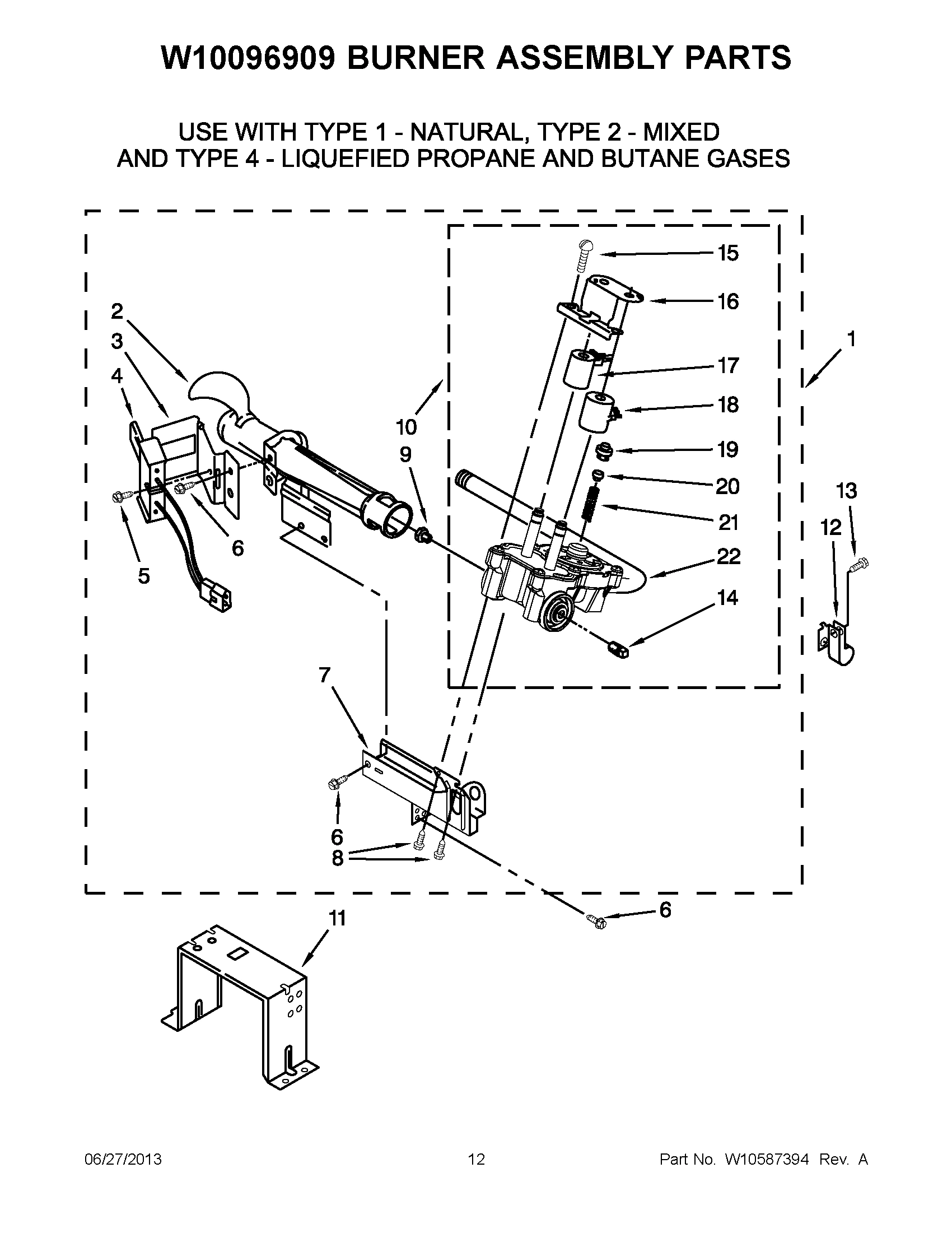

06 - W10096909 BURNER ASSEMBLY PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MLG24PNAGW4 GAS DRYER
1
MAY W10169700 MAY W10169700 Contact Us For Availability
1
MAY W10184546 MAY W10184546 Contact Us For Availability
1
MAY W10184555 MAY W10184555 Contact Us For Availability
1
BURNER ASSEMBLY 50 HZ. (TYPE 1 AND 2) MAY W10096909 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
WINDOW MAY 3392918 Contact Us For Availability
2
NUT, HEX MAY W10139762 Contact Us For Availability
2
SCREW MAY 3391915 Contact Us For Availability
2
CAP, PLUG MAY W10128544 Contact Us For Availability
2
ASSEMBLY, HINGE AND PIN MAY W10279703 Contact Us For Availability
2
MAY 688617 MAY 688617 Contact Us For Availability
3
Screw MAY 8533971 Contact Us For Availability
3
MAY 8564011 MAY 8564011 Contact Us For Availability
3
MAY 3392914 MAY 3392914 Contact Us For Availability
3
MAY 694298 MAY 694298 Contact Us For Availability
4
MAY 8533974 MAY 8533974 Contact Us For Availability
4
MAY 3400077 MAY 3400077 Contact Us For Availability
4
MAY 686590 MAY 686590 Contact Us For Availability
4
SCREW MAY 90767 Contact Us For Availability
4
MAY 3392915 MAY 3392915 Contact Us For Availability
5
MAY W10140652 MAY W10140652 Contact Us For Availability
5
SCREW MAY 3393909 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 3394346 Contact Us For Availability
6
MAY W10237957 MAY W10237957 Contact Us For Availability
6
SCREW MAY 697773 Contact Us For Availability
6
SCREW MAY 343641 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
MAY 3389871 MAY 3389871 Contact Us For Availability
8
NUT, HEX MAY W10177242 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
SCREW MAY 3387057 Contact Us For Availability
8
BOLT, SECURITY MAY 3400523 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
SCREW MAY W10080300 Contact Us For Availability
9
NUT MAY W10139046 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10121167 MAY W10121167 Contact Us For Availability
9
MAY 342055 MAY 342055 Contact Us For Availability
9
ORIFICE, BURNER (TYPE 1 (NATURAL)) MAY 234660 Contact Us For Availability
9
MAY 234868 MAY 234868 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
VALVE, GAS 50 HZ. (COMPLETE) MAY 8281918 Contact Us For Availability
10
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
10
Screw MAY 9742177 Contact Us For Availability
11
MAY W10163677 MAY W10163677 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
SCREW MAY 3357011 Contact Us For Availability
11
MAY 3389889 MAY 3389889 Contact Us For Availability
12
BUTTON, PUSH MAY W10131113 Contact Us For Availability
12
MAY 3390735 MAY 3390735 Contact Us For Availability
12
Bracket, Gas Pipe MAY 3978776 Contact Us For Availability
13
SCREW MAY 3390647 Contact Us For Availability
13
MAY W10135193 MAY W10135193 Contact Us For Availability
13
ASSEMBLY, IDLER MAY W10344192 Contact Us For Availability
13
Screw MAY 489463 Contact Us For Availability
13
ASSEMBLY, DOOR CATCH MAY 3392538 Contact Us For Availability
14
MAY 8529895 MAY 8529895 Contact Us For Availability
14
MAY 3402841 MAY 3402841 Contact Us For Availability
14
MAY W10213202 MAY W10213202 Contact Us For Availability
14
MAY W10295523 MAY W10295523 Contact Us For Availability
15
MAY W10133268 MAY W10133268 Contact Us For Availability
15
MAY 8578825 MAY 8578825 Contact Us For Availability
15
MAY W10323063 MAY W10323063 Contact Us For Availability
15
SCREW, COIL MAY 694421 Contact Us For Availability
16
MAY W10133281 MAY W10133281 Contact Us For Availability
16
ASSEMBLY, SWITCH & ACTUATOR MAY W10410873 Contact Us For Availability
16
MAY W10322548 MAY W10322548 Contact Us For Availability
16
MAY 694538 MAY 694538 Contact Us For Availability
17
Clip, Front Panel MAY 3391846 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
17
COIL, 50 HZ. MAY 695297 Contact Us For Availability
18
ASSEMBLY, LOCK ACCESS DOOR MAY W10133264 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
18
COIL, 50 HZ. (SPLIT) MAY 695298 Contact Us For Availability
19
MAY 3397659 MAY 3397659 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
19
MAY 694424 MAY 694424 Contact Us For Availability
20
MAY 3400408 MAY 3400408 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
20
MAY 694423 MAY 694423 Contact Us For Availability
21
MAY W10160652 MAY W10160652 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY 694422 MAY 694422 Contact Us For Availability
22
THERMOSTAT, HIGH LIMIT MAY W10206703 Contact Us For Availability
22
MAY W10097610 MAY W10097610 Contact Us For Availability
23
MAY W10165714 MAY W10165714 Contact Us For Availability
23
MAY 3979115 MAY 3979115 Contact Us For Availability
23
ASSEMBLY, OUTLET HOUSING MAY W10181928 Contact Us For Availability
24
Cover, Terminal Block MAY 3396795 Contact Us For Availability
24
MAY 3394331 MAY 3394331 Contact Us For Availability
24
MAY 338906 MAY 338906 Contact Us For Availability
25
MAY 696144 MAY 696144 Contact Us For Availability
25
MAY W10545922 MAY W10545922 Contact Us For Availability
26
MAY W10133278 MAY W10133278 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10167611 MAY W10167611 Contact Us For Availability
27
ASSEMBLY, MOTOR 50 HZ. MAY W10289662 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10167237 MAY W10167237 Contact Us For Availability
28
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
29
MAY 3393657 MAY 3393657 Contact Us For Availability
29
CUT-OFF, THERMAL MAY W10181549 Contact Us For Availability
30
MAY W10131172 MAY W10131172 Contact Us For Availability
30
MAY W10596627 MAY W10596627 Contact Us For Availability
31
Clip, Door Hinge MAY 3390902 Contact Us For Availability
32
MAY W10135695 MAY W10135695 Contact Us For Availability
32
MAY W10349492 MAY W10349492 Contact Us For Availability
33
MAY 279318 MAY 279318 Contact Us For Availability
33
MAY 693152 MAY 693152 Contact Us For Availability
33
MAY W10181925 MAY W10181925 Contact Us For Availability
34
Key, Access Door MAY W10140858 Contact Us For Availability
34
ELBOW (4``) MAY 279731 Contact Us For Availability
34
THERMOSTAT, CYCLING (140F) MAY W10194158 Contact Us For Availability
35
MAY 279393 MAY 279393 Contact Us For Availability
35
MULTIVENT PLUG (WHITE) MAY 49252 Contact Us For Availability
35
SCREW MAY 3387230 Contact Us For Availability
36
MAY W10233256 MAY W10233256 Contact Us For Availability
36
MAY W10223794 MAY W10223794 Contact Us For Availability
36
MAY W10119255 MAY W10119255 Contact Us For Availability
37
Standoff, Circuit Board MAY W10133514 Contact Us For Availability
37
MAY 488729 MAY 488729 Contact Us For Availability
37
ASSEMBLY, LINT DUCT MAY W10286419 Contact Us For Availability
38
MAY W10231861 MAY W10231861 Contact Us For Availability
38
MAY 8573824 MAY 8573824 Contact Us For Availability
39
JUMPER, WIRE MAY 3401707 Contact Us For Availability
40
MAY W10133335 MAY W10133335 Contact Us For Availability
40
MAY W10117347 MAY W10117347 Contact Us For Availability
40
THERMOSTAT, ELECTRONIC (155F) MAY W10206206 Contact Us For Availability
41
MAY W10237959 MAY W10237959 Contact Us For Availability
41
Baffle, Drum MAY 697693 Contact Us For Availability
42
ASSEMBLY, SCREW AND INSULATOR MAY 3400934 Contact Us For Availability
42
MAY 697557 MAY 697557 Contact Us For Availability
43
MAY 694415 MAY 694415 Contact Us For Availability
43
MAY 3389233 MAY 3389233 Contact Us For Availability
43
MAY W10181926 MAY W10181926 Contact Us For Availability
44
MAY W10258680 MAY W10258680 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
45
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
46
CORD-POWER MAY W10476824 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
46
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
47
MAY 3407172 MAY 3407172 Contact Us For Availability
47
SCREW MAY 695240 Contact Us For Availability
48
MAY W10111027 MAY W10111027 Contact Us For Availability
49
MAY W10189038 MAY W10189038 Contact Us For Availability
50
MAY W10151156 MAY W10151156 Contact Us For Availability
50
UPPER FRONT PANEL MAY W10234293 Contact Us For Availability
51
MAY 2006252 MAY 2006252 Contact Us For Availability
51
MAY W10386322 MAY W10386322 Contact Us For Availability
52
MAY W10386323 MAY W10386323 Contact Us For Availability
54
Clip MAY 98997 Contact Us For Availability
56
MAY 697215 MAY 697215 Contact Us For Availability
57
TOP (WHITE) MAY 3389351 Contact Us For Availability
58
Seal, Foam MAY 8318396 Contact Us For Availability
59
BELT, DRIVE (BLOWER WHEEL) MAY 3405160 Contact Us For Availability
60
MAY 3977633 MAY 3977633 Contact Us For Availability
61
SCREW MAY 3400000 Contact Us For Availability
62
JUMPER, TRANSFORMER MAY W10190549 Contact Us For Availability
63
ASSEMBLY, SWITCH MAY W10259136 Contact Us For Availability
64
MOTOR, SOUND PAD MAY W10212660 Contact Us For Availability
69
MAY 3391943 MAY 3391943 Contact Us For Availability
71
FOOT, DRYER PLASTIC MAY 689172 Contact Us For Availability
72
MAY W10181903 MAY W10181903 Contact Us For Availability
73
Screw MAY 693995 Contact Us For Availability
74
MAY 279818 MAY 279818 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
AUSTRAILIAN MAY W10476818 Contact Us For Availability
NI
MAY W10476820 MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
CONVERSION KIT, LP MAY W10233219 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, SECURITY MAY 285875 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
MAY 4392067 MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
× ![]()
