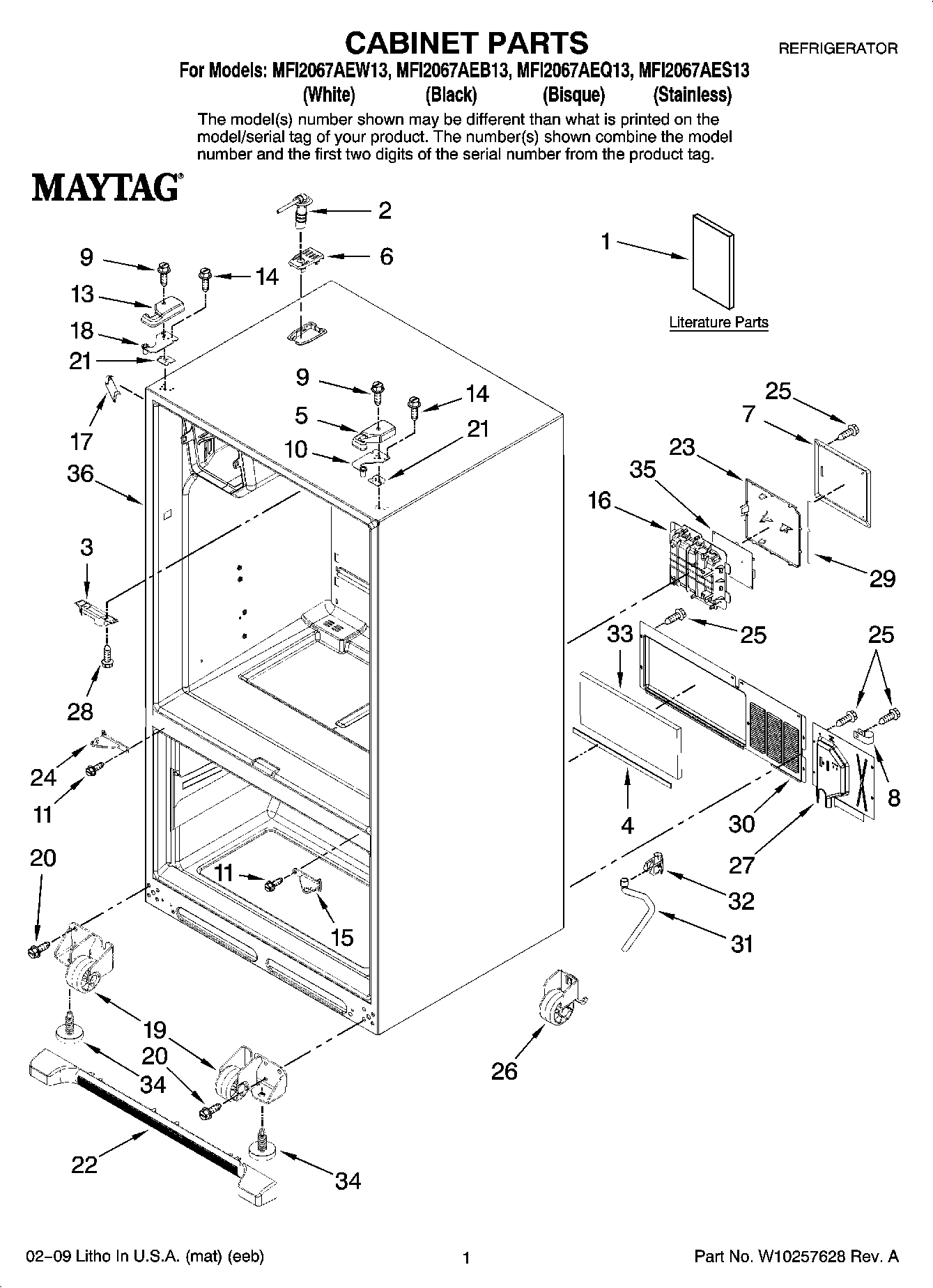

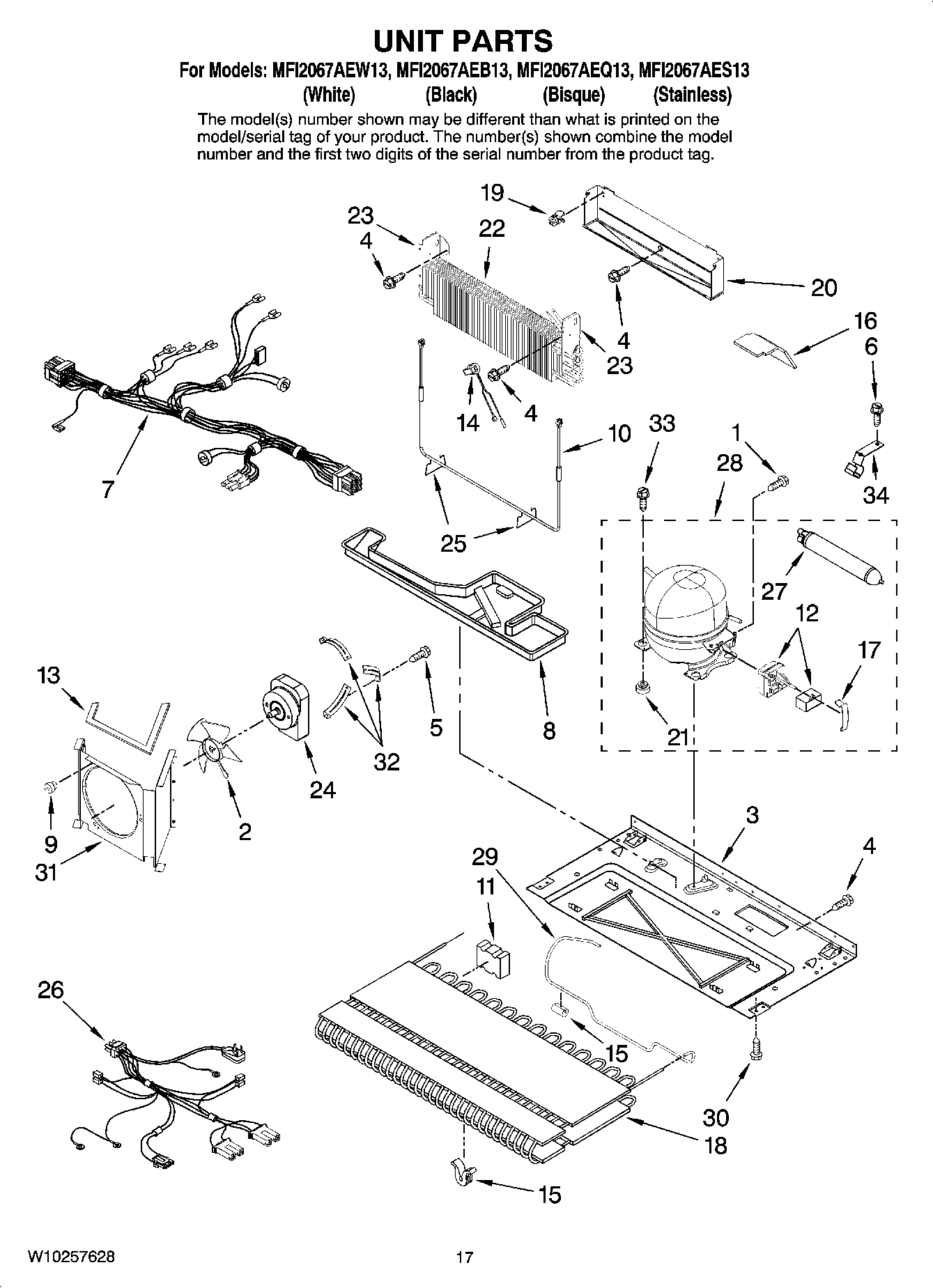

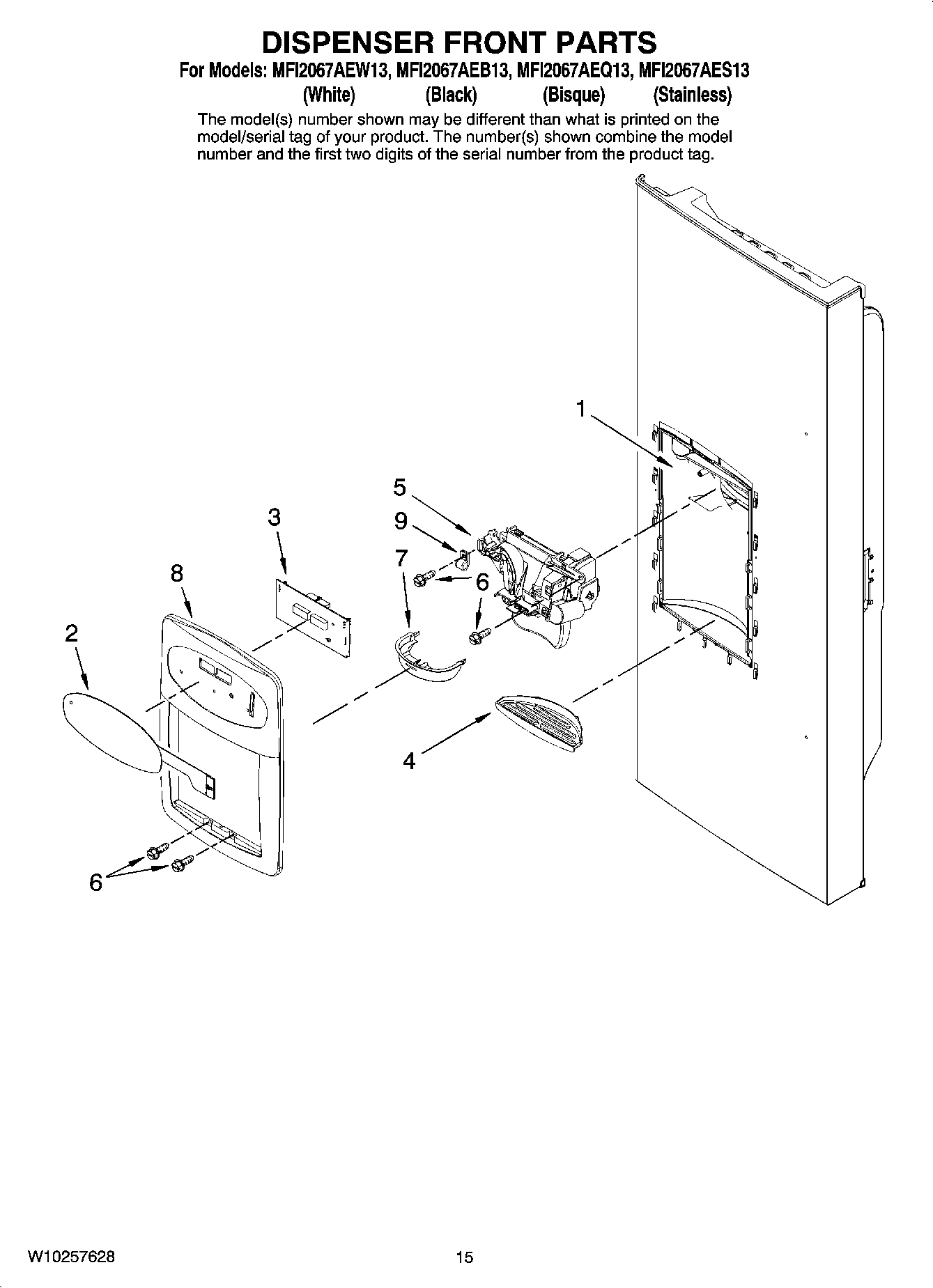

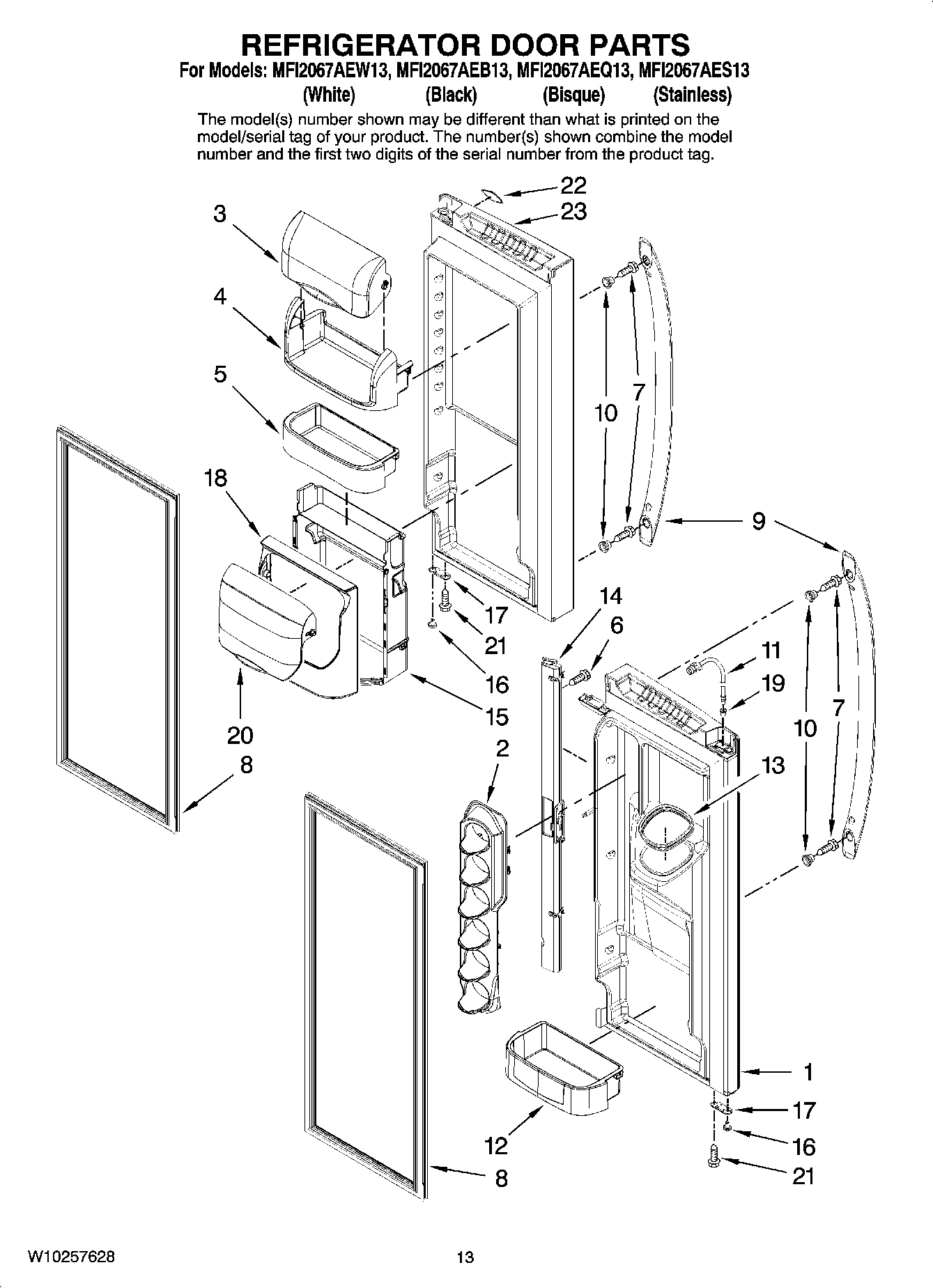

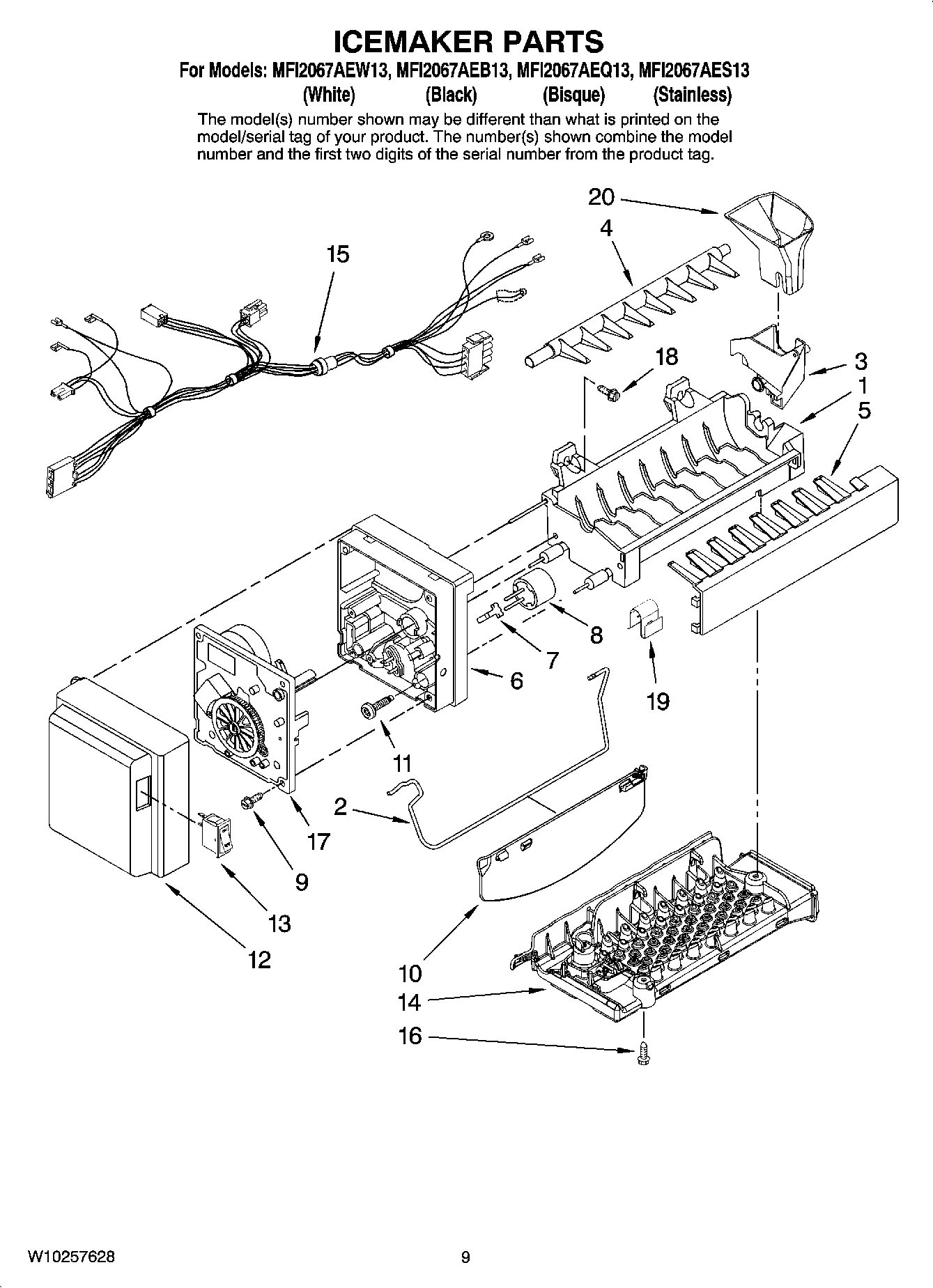

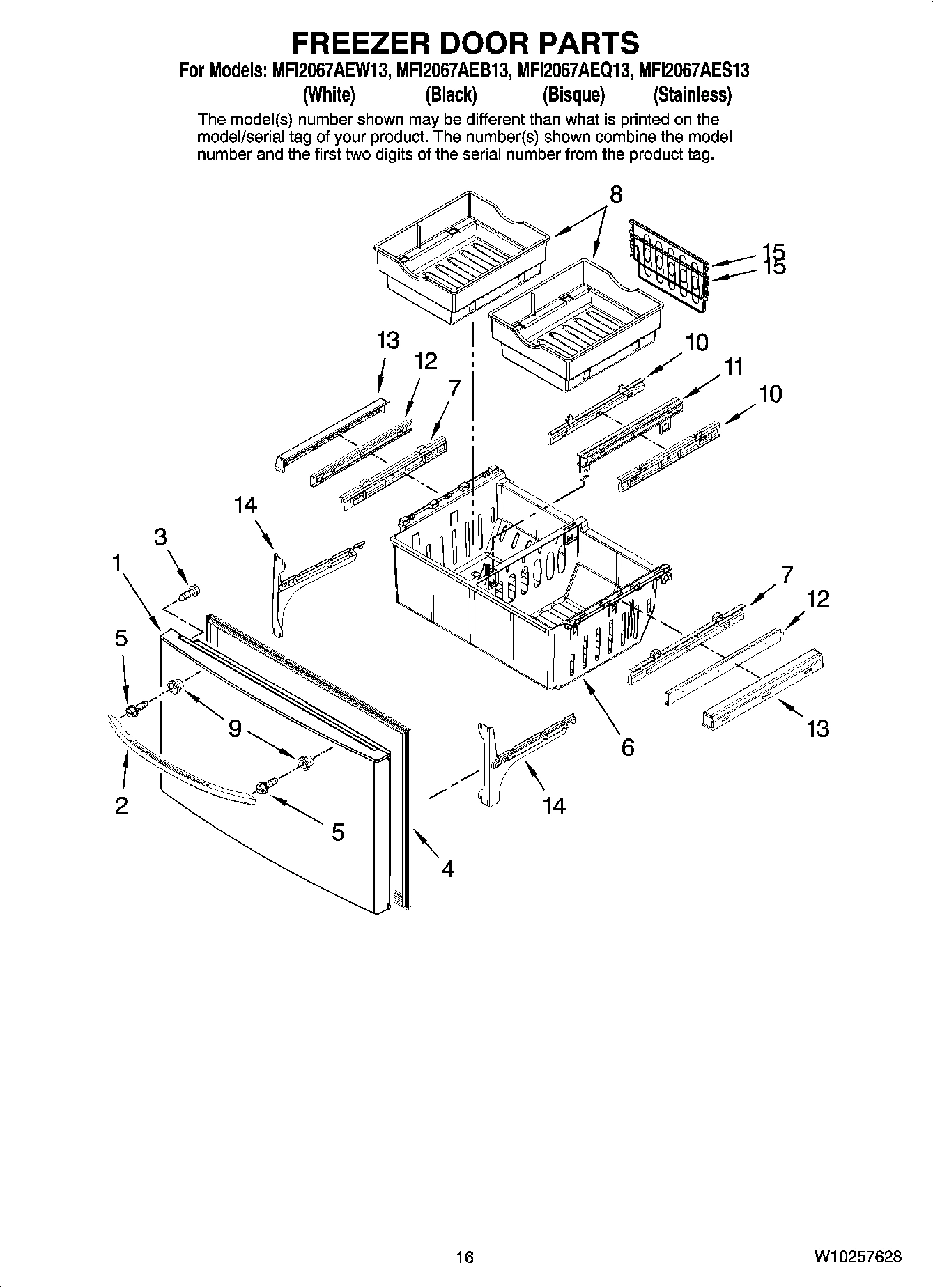

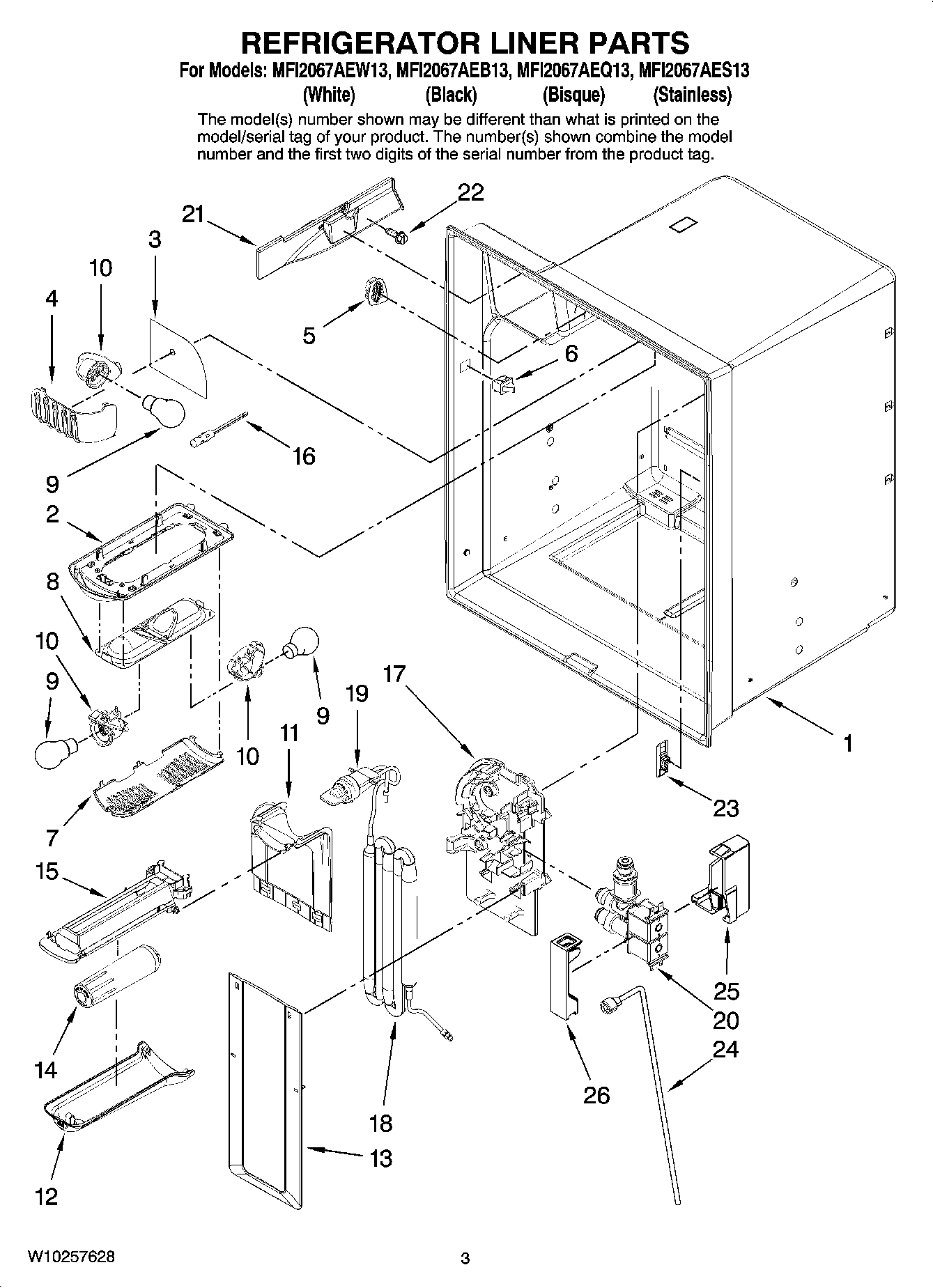

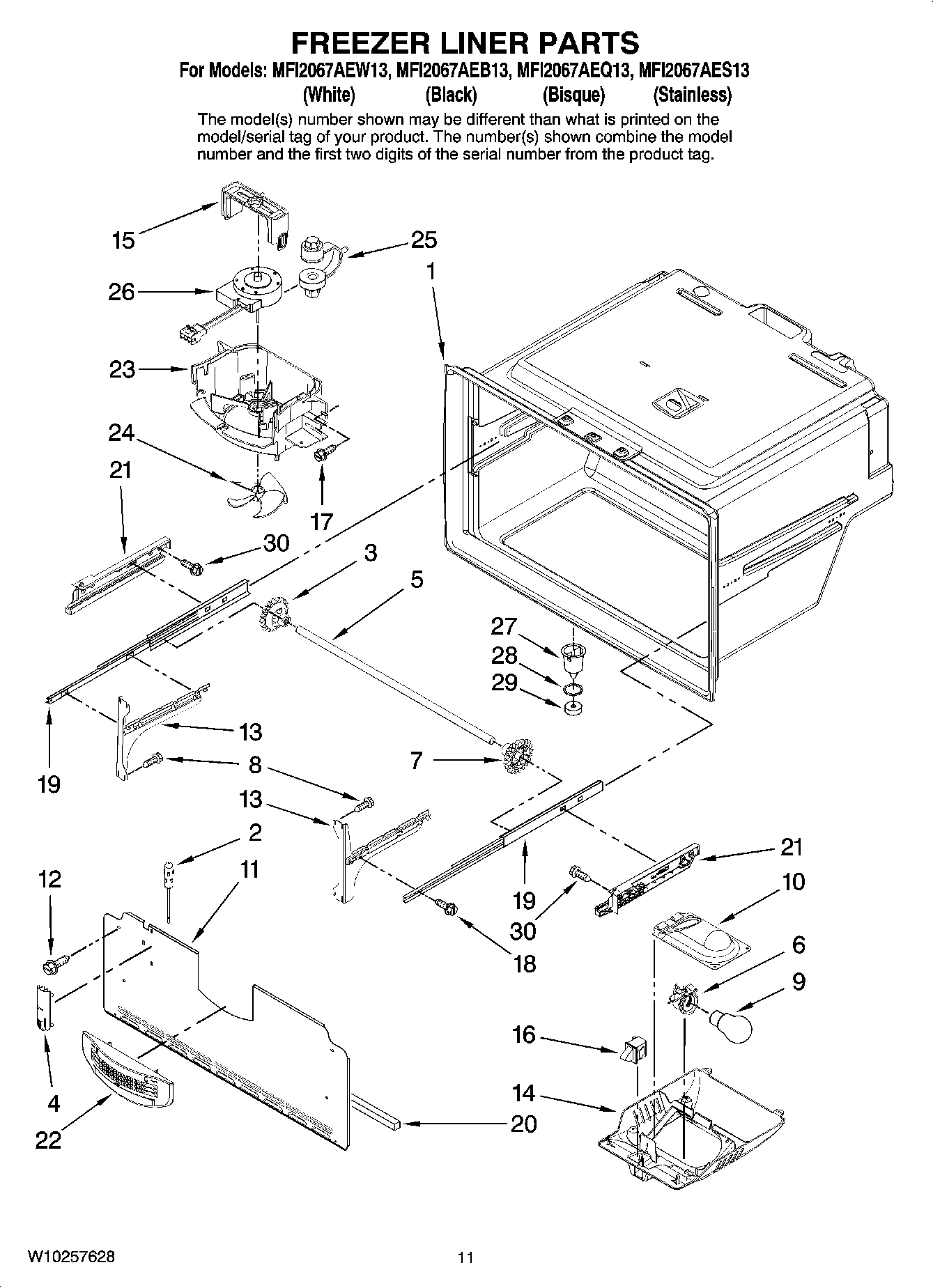

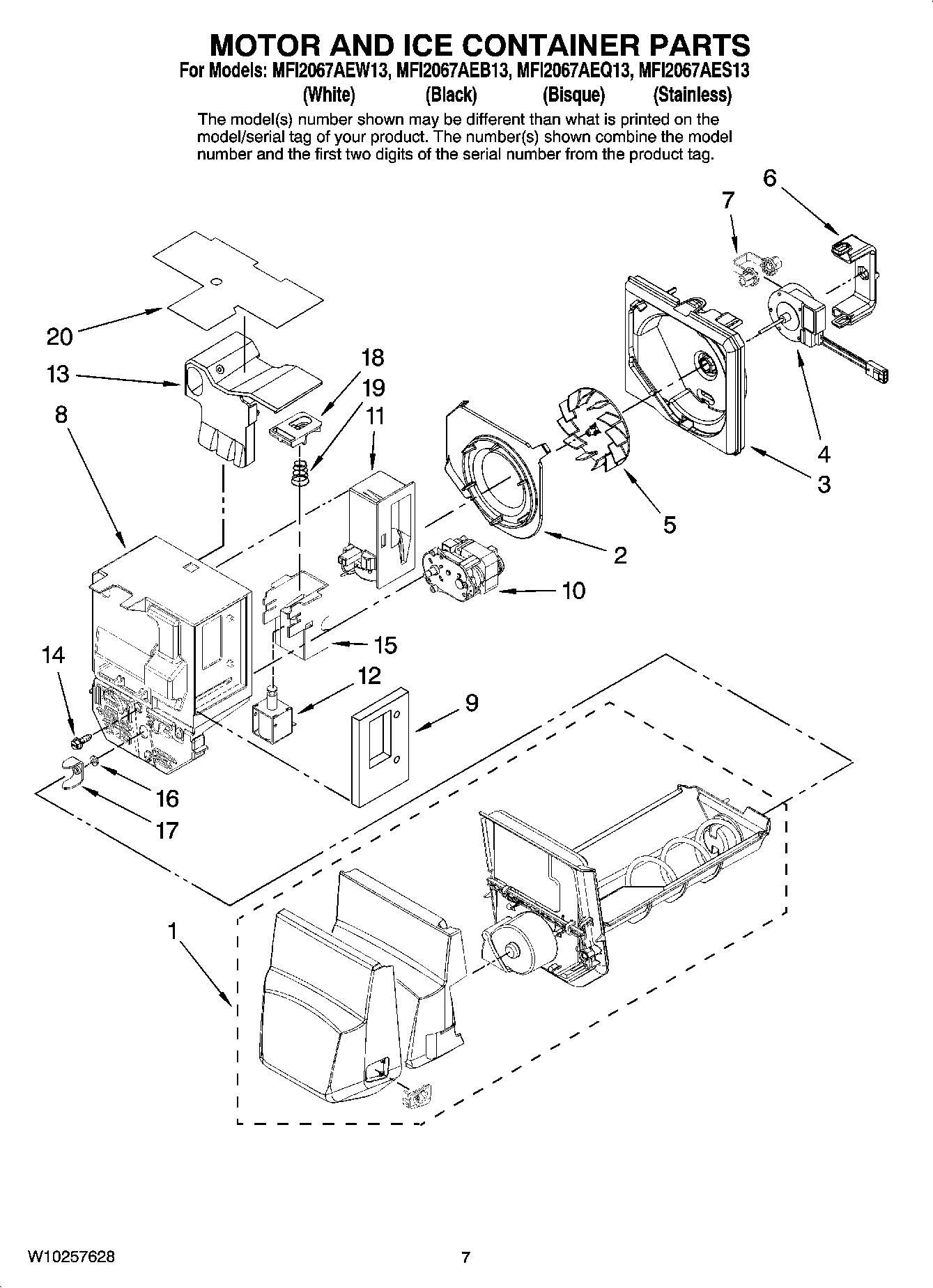

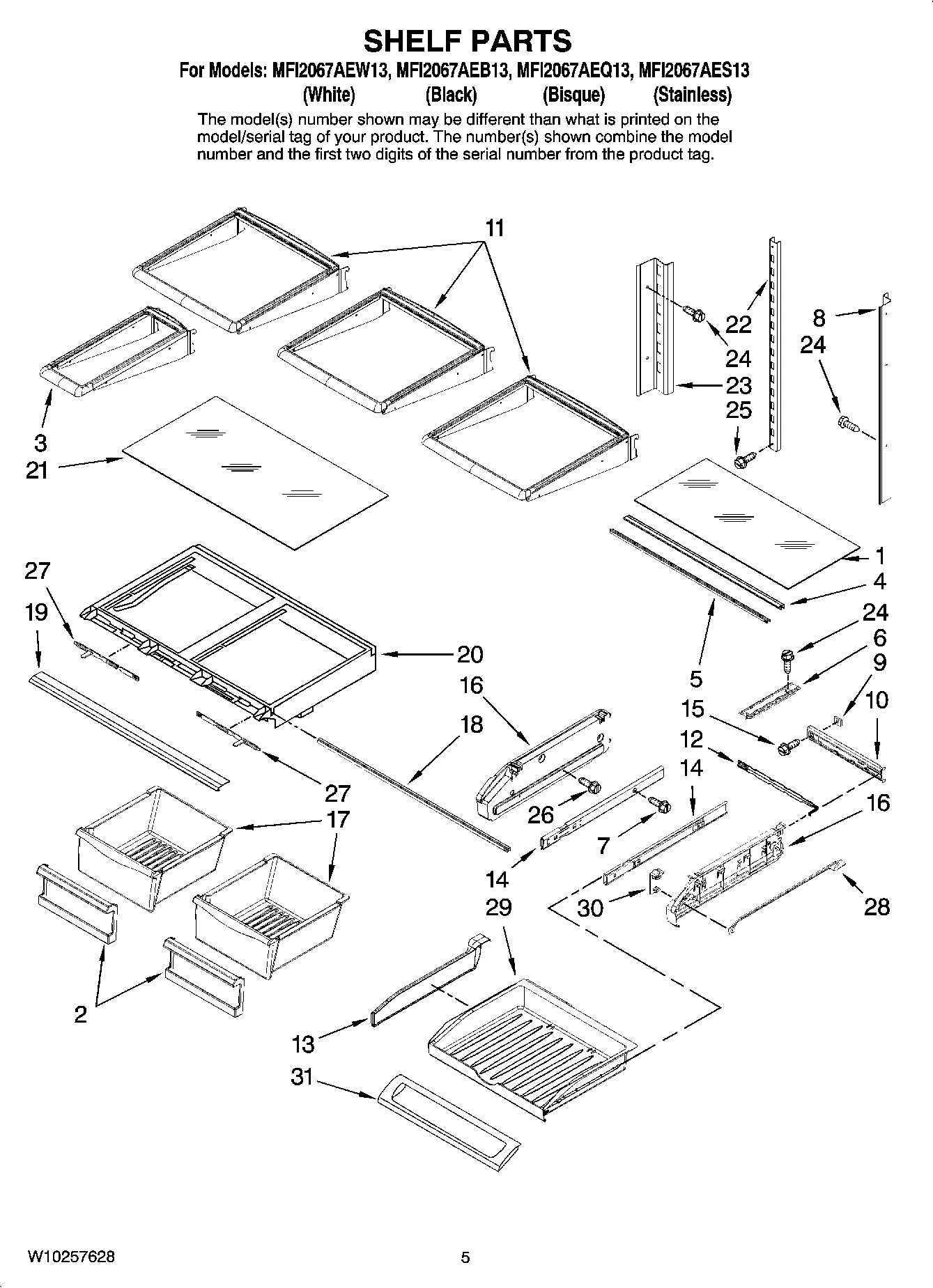

Model Maytag MFI2067AES13 REFRIGERATOR – Common Parts &amp; Diagrams

1

MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability

1

Door, Left (Stainless) MAY W10162823 Contact Us For Availability

1

MAY W10173928 MAY W10173928 Contact Us For Availability

1

MAY W10174149 MAY W10174149 Contact Us For Availability

1

MAY W10174213 MAY W10174213 Contact Us For Availability

1

Freezer Door (Stainless) MAY W10162858 Contact Us For Availability

1

MAY W10173929 MAY W10173929 Contact Us For Availability

1

MAY W10174150 MAY W10174150 Contact Us For Availability

1

MAY W10174214 MAY W10174214 Contact Us For Availability

1

MAY 67006433 MAY 67006433 Contact Us For Availability

2

67007105 Whirlpool Refrigerator Black Door Ha Backorder WPL 67007105 $167.69

2

W10772349 Whirlpool Refrigerator Electronic C Backorder WPL W10772349 $210.33

2

W10775847 Whirlpool Refrigerator Electronic C Backorder WPL W10775847 $247.07

2

W11221359 Whirlpool Refrigerator Electronic C In Stock WPL W11221359 $244.05

2

W11415785 Whirlpool Refrigerator Water Fill T In Stock WPL W11415785 $42.37

2

WP67005923 Whirlpool Refrigerator Front Cover Backorder WPL WP67005923 $37.31

2

Handle, Door (White) MAY 67007107 Contact Us For Availability

2

MAY W10121282 MAY W10121282 Contact Us For Availability

2

MAY W10175514 MAY W10175514 Contact Us For Availability

2

MAY 67006311 MAY 67006311 Contact Us For Availability

2

MAY 67007106 MAY 67007106 Contact Us For Availability

2

MAY W10138763 MAY W10138763 Contact Us For Availability

2

MAY W10162928 MAY W10162928 Contact Us For Availability

3

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $14.93

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.51

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $48.62

3

MAY W10121281 MAY W10121281 Contact Us For Availability

3

Cup, Fill MAY 628515 Contact Us For Availability

3

MAY 12457108 MAY 12457108 Contact Us For Availability

4

WP12999301B Whirlpool Drip Tray Grille In Stock WPL WP12999301B $9.43

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $106.83

4

MAY W10162697 MAY W10162697 Contact Us For Availability

4

Screw MAY 67006425 Contact Us For Availability

4

MAY 627843 MAY 627843 Contact Us For Availability

4

MAY 67006394 MAY 67006394 Contact Us For Availability

4

MAY 67006440 MAY 67006440 Contact Us For Availability

4

MAY W10162895 MAY W10162895 Contact Us For Availability

4

MAY W10162897 MAY W10162897 Contact Us For Availability

5

67005958 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67005958 $13.67

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $18.69

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.86

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

5

WP67005956 Whirlpool Refrigerator Cover Backorder WPL WP67005956 $18.78

5

WP67006313 Whirlpool Refrigerator Chiller Buc Backorder WPL WP67006313 $49.01

5

MAY W10123444 MAY W10123444 Contact Us For Availability

5

MAY 2182124 MAY 2182124 Contact Us For Availability

5

MAY 13005701B MAY 13005701B Contact Us For Availability

5

MAY 13005701Q MAY 13005701Q Contact Us For Availability

5

MAY 13005701W MAY 13005701W Contact Us For Availability

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $3.22

6

MAY 67006400 MAY 67006400 Contact Us For Availability

6

MAY W10165970 MAY W10165970 Contact Us For Availability

6

Supoort, Housing MAY 2194712 Contact Us For Availability

6

MAY Y12570701 MAY Y12570701 Contact Us For Availability

6

MAY 67006981 MAY 67006981 Contact Us For Availability

6

MAY 67006737 MAY 67006737 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $48.39

7

MAY W10151687 MAY W10151687 Contact Us For Availability

7

MAY 2315522 MAY 2315522 Contact Us For Availability

7

MAY 67006979 MAY 67006979 Contact Us For Availability

7

Harness, Evap Heater MAY W10119239 Contact Us For Availability

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $161.52

8

Facade, Dispenser (Black) MAY 67006288 Contact Us For Availability

8

MAY W10187440 MAY W10187440 Contact Us For Availability

8

Thermostat (Also Order 542369 Cement) MAY 627985 Contact Us For Availability

8

MAY W10162891 MAY W10162891 Contact Us For Availability

8

MAY W10162893 MAY W10162893 Contact Us For Availability

8

MAY 67006289 MAY 67006289 Contact Us For Availability

8

MAY 67006290 MAY 67006290 Contact Us For Availability

8

MAY W10184227 MAY W10184227 Contact Us For Availability

9

13004701W Whirlpool Refrigerator Handle Backorder WPL 13004701W $158.52

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $16.76

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

9

MAY 61004743 MAY 61004743 Contact Us For Availability

9

MAY 67006341 MAY 67006341 Contact Us For Availability

9

Screw (3) MAY 489464 Contact Us For Availability

9

Handle, Door (Black) MAY 67006115 Contact Us For Availability

9

MAY 67006982 MAY 67006982 Contact Us For Availability

9

Handle, Door (Stainless) MAY W10136871 Contact Us For Availability

9

MAY M0108106 MAY M0108106 Contact Us For Availability

67006342 Whirlpool Refrigerator Auger Motor Backorder WPL 67006342 $209.54

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

MAY 67001035 MAY 67001035 Contact Us For Availability

MAY W10121440 MAY W10121440 Contact Us For Availability

MAY W10184223 MAY W10184223 Contact Us For Availability

MAY W10162932 MAY W10162932 Contact Us For Availability

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $86.87

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.22

MAY W10127427 MAY W10127427 Contact Us For Availability

Screw (2) MAY 8533917 Contact Us For Availability

MAY 67006383 MAY 67006383 Contact Us For Availability

MAY 12969702 MAY 12969702 Contact Us For Availability

MAY 12933001 MAY 12933001 Contact Us For Availability

67006310 Whirlpool Refrigerator Door Bucket G Backorder WPL 67006310 $63.84

67006344 Whirlpool Refrigerator Solenoid Backorder WPL 67006344 $96.56

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $75.16

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $59.06

MAY W10121444 MAY W10121444 Contact Us For Availability

MAY 12925102 MAY 12925102 Contact Us For Availability

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $131.19

W10337647 Whirlpool Refrigerator Cover Backorder WPL W10337647 $15.34

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $19.01

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $19.81

MAY W10118612 MAY W10118612 Contact Us For Availability

MAY 2313326 MAY 2313326 Contact Us For Availability

MAY 67007116 MAY 67007116 Contact Us For Availability

MAY 67007117 MAY 67007117 Contact Us For Availability

Glide, Drawer(2) MAY 67007026 Contact Us For Availability

MAY W10121269 MAY W10121269 Contact Us For Availability

Bracket, Door Slide (Left) MAY W10119064 Contact Us For Availability

Bracket, Door Slide (Right) MAY W10119295 Contact Us For Availability

MAY 67006423 MAY 67006423 Contact Us For Availability

MAY W10164404 MAY W10164404 Contact Us For Availability

MAY W10164405 MAY W10164405 Contact Us For Availability

MAY W10164406 MAY W10164406 Contact Us For Availability

MAY 67006387 MAY 67006387 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $33.34

W11712696 Whirlpool Clip Backorder WPL W11712696 $7.53

MAY 67007111 MAY 67007111 Contact Us For Availability

MAY W10123395 MAY W10123395 Contact Us For Availability

MAY 67006373 MAY 67006373 Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $22.89

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $32.08

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $37.68

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

WP67006390 Whirlpool Refrigerator High Voltag In Stock WPL WP67006390 $101.68

MAY 67006346 MAY 67006346 Contact Us For Availability

PAD-ACOUSTIC MAY 12820504 Contact Us For Availability

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $12.24

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $102.12

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

MAY 63052-1 MAY 63052-1 Contact Us For Availability

Module Assy MAY 626678 Contact Us For Availability

Stop, Door (Bisque) MAY 12968202Q Contact Us For Availability

MAY 12968202W MAY 12968202W Contact Us For Availability

MAY 67007052 MAY 67007052 Contact Us For Availability

W11266639 Whirlpool Refrigerator Chiller Backorder WPL W11266639 $153.08

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $245.73

MAY 12227304WD MAY 12227304WD Contact Us For Availability

MAY 67006347 MAY 67006347 Contact Us For Availability

Screw (3) MAY 489276 Contact Us For Availability

MAY 67006769 MAY 67006769 Contact Us For Availability

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $10.77

WPW10231485 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231485 $46.34

MAY 12664501 MAY 12664501 Contact Us For Availability

MAY 67006348 MAY 67006348 Contact Us For Availability

Clip MAY 628379 Contact Us For Availability

MAY W10180420 MAY W10180420 Contact Us For Availability

MAY 10623002 MAY 10623002 Contact Us For Availability

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $123.71

WP67006185 Whirlpool Refrigerator Crisper Fra In Stock WPL WP67006185 $127.05

WP67006312 Whirlpool Chiller Door In Stock WPL WP67006312 $49.52

MAY W10142628 MAY W10142628 Contact Us For Availability

MAY W10121434 MAY W10121434 Contact Us For Availability

MAY 67003731 MAY 67003731 Contact Us For Availability

MAY 12225403WD MAY 12225403WD Contact Us For Availability

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $16.76

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $133.16

Screw MAY 67006473 Contact Us For Availability

MAY W10184173 MAY W10184173 Contact Us For Availability

MAY W10184175 MAY W10184175 Contact Us For Availability

2324038 Whirlpool Refrigerator Nameplate Backorder WPL 2324038 $47.85

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $55.85

MAY 67006358 MAY 67006358 Contact Us For Availability

MAY W10184230 MAY W10184230 Contact Us For Availability

MAY 67006354 MAY 67006354 Contact Us For Availability

MAY 67006424 MAY 67006424 Contact Us For Availability

MAY W10160123 MAY W10160123 Contact Us For Availability

MAY W10160126 MAY W10160126 Contact Us For Availability

MAY W10160129 MAY W10160129 Contact Us For Availability

MAY W10160132 MAY W10160132 Contact Us For Availability

Dam (Left Side) MAY 12963002SP Contact Us For Availability

Dam (Right Side) MAY 12963102SP Contact Us For Availability

24

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $52.98

24

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $61.73

24

MAY 67004432 MAY 67004432 Contact Us For Availability

25

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $12.17

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

25

W11676465 Whirlpool Grommet Backorder WPL W11676465 $6.89

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $12.24

MAY 67006415 MAY 67006415 Contact Us For Availability

MAY W10162809 MAY W10162809 Contact Us For Availability

Harness, Unit with Power Cord MAY 13060201 Contact Us For Availability

27

MAY 67005864 MAY 67005864 Contact Us For Availability

27

MAY D7753903 MAY D7753903 Contact Us For Availability

27

Drier MAY W10143759 Contact Us For Availability

28

MAY 67003794 MAY 67003794 Contact Us For Availability

28

SEAL, O RING MAY M0500703 Contact Us For Availability

28

Compressor (Includes Items 12,17,21,& 27) MAY 67005565 Contact Us For Availability

29

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $76.29

29

GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability

29

MAY 67004700 MAY 67004700 Contact Us For Availability

30

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $14.27

30

MAY 67006406 MAY 67006406 Contact Us For Availability

30

MAY 67006573 MAY 67006573 Contact Us For Availability

31

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $131.33

31

MAY W10162963 MAY W10162963 Contact Us For Availability

32

MAY 67004953 MAY 67004953 Contact Us For Availability

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

33

Screw (3) MAY 12846902 Contact Us For Availability

34

MAY 10547003 MAY 10547003 Contact Us For Availability

100

Icemaker Assy MAY W10122533 Contact Us For Availability

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

MAY 67007112 MAY 67007112 Contact Us For Availability

MAY 876764 MAY 876764 Contact Us For Availability

VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability

Valve, Access (5/16``) MAY 978026 Contact Us For Availability

VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability

Valve, Access (1/2``) MAY 978028 Contact Us For Availability

Valve, Access (5/8``) MAY 978029 Contact Us For Availability

Valve, Access (3/4``) MAY 978030 Contact Us For Availability

MAY 1117510 MAY 1117510 Contact Us For Availability

Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability

SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability

Enamel, White (13 Oz. Spray Can) MAY 350930 Contact Us For Availability

MAY 350939 MAY 350939 Contact Us For Availability

Primer, White (13 Oz. Spray Can) MAY 350942 Contact Us For Availability

MAY 479502 MAY 479502 Contact Us For Availability

MAY 503695 MAY 503695 Contact Us For Availability

MAY 505587 MAY 505587 Contact Us For Availability

MAY 542638 MAY 542638 Contact Us For Availability

MAY 542639 MAY 542639 Contact Us For Availability

MAY 606755 MAY 606755 Contact Us For Availability

Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability

Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability

MAY 799340 MAY 799340 Contact Us For Availability

Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability

MAY 833938 MAY 833938 Contact Us For Availability

MAY 876029 MAY 876029 Contact Us For Availability

MAY 876305 MAY 876305 Contact Us For Availability

MAY 876370 MAY 876370 Contact Us For Availability

MAY 978941 MAY 978941 Contact Us For Availability
