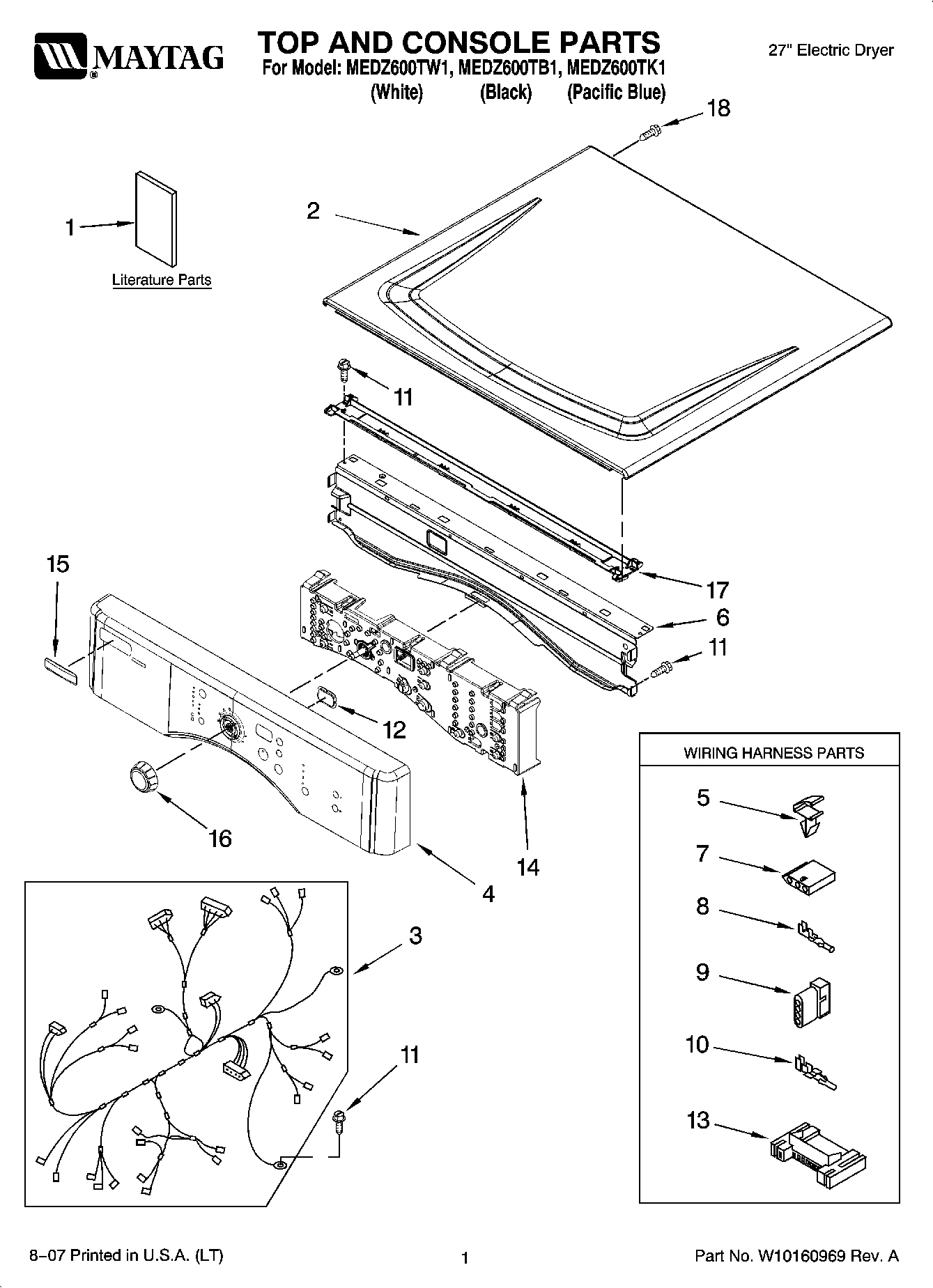

Model Whirlpool MEDZ600TK1 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

Use & Care Guide WPL W10112937 Contact Us For Availability

1

Tech Sheet WPL W10117402 Contact Us For Availability

1

Guide, Quick Start WPL W10117403 Contact Us For Availability

2

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $209.52

2

Top (Black) WPL W10129703 Contact Us For Availability

2

Top (Pacific Blue) WPL W10140767 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Harness, Main WPL W10110972 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.06

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Illus. 15.) (White) WPL W10117389 Contact Us For Availability

4

Panel, Console (Includes Illus. 15.) (Black) WPL W10117393 Contact Us For Availability

4

Panel, Console (Includes Illus. 15.) (Pacific WPL W10119034 Contact Us For Availability

5

3400618 Whirlpool Screw Backorder WPL 3400618 $4.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.56

6

WP8565237 Whirlpool Bracket Assembly Backorder WPL WP8565237 $128.73

7

Connector Sensor WPL 353424 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.42

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $5.02

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

12

Lens, Display WPL W10117387 Contact Us For Availability

13

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

14

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $111.58

14

Assembly, User Interface WPL W10117417 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

W10203949 Whirlpool Medallion Backorder WPL W10203949 $49.98

W11706993 Whirlpool Seal Backorder WPL W11706993 $16.14

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WPW10119050 Whirlpool Knob Backorder WPL WPW10119050 $41.02

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

17

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $4.82

17

WPW10266747 Whirlpool Channel Backorder WPL WPW10266747 $49.63

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.82

18

Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $48.79

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

22

8565083 Whirlpool Ramp Assembly Backorder WPL 8565083 $67.96

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $99.21

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $58.65

24

8529007 Whirlpool Plug Backorder WPL 8529007 $55.15

25

W10865330 Whirlpool Drum In Stock WPL W10865330 $194.93

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $5.02

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $40.24

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

30

WPW10112954 Whirlpool Belt In Stock WPL WPW10112954 $23.09

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $40.02

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $64.16

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $5.02

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.53

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.39

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $50.46

38

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $33.02

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $55.62

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $133.28

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $118.53

46

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $4.82

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $47.66

47

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $76.95

48

WPL W10111606 WPL W10111606 Contact Us For Availability

49

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

50

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.65

52

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

53

W10852390 Whirlpool Drum Baffle Backorder WPL W10852390 $96.57

54

8565061 Whirlpool Bulkhead Assembly Backorder WPL 8565061 $161.64

55

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

56

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

57

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $28.98

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

PAINT, TOUCH-UP (1/2oz.) (Blue) WPL 4396816 Contact Us For Availability
