Model Whirlpool MDG27MNAAW GAS DRYER – Common Parts & Diagrams
06 - GAS VALVE

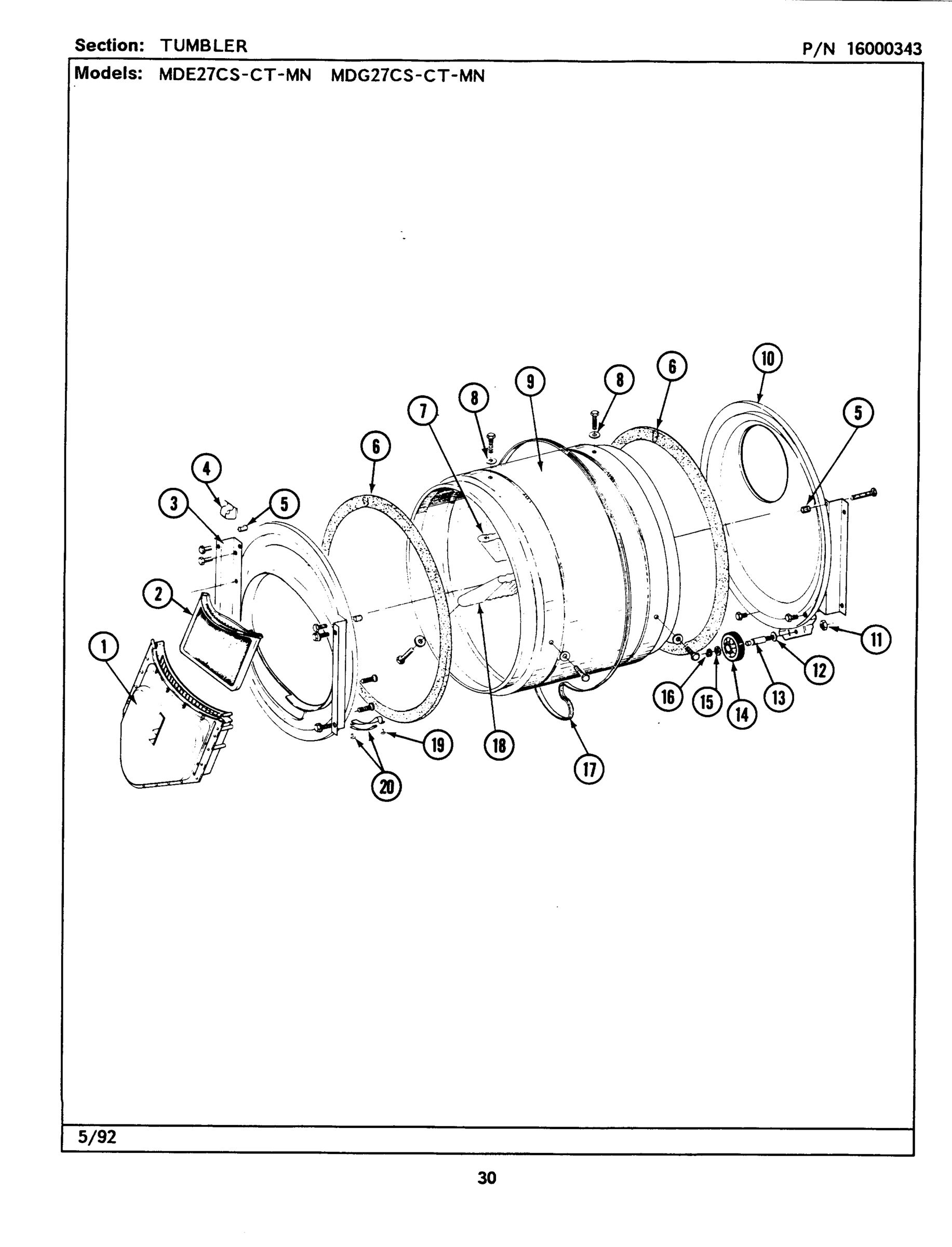

05 - TUMBLER

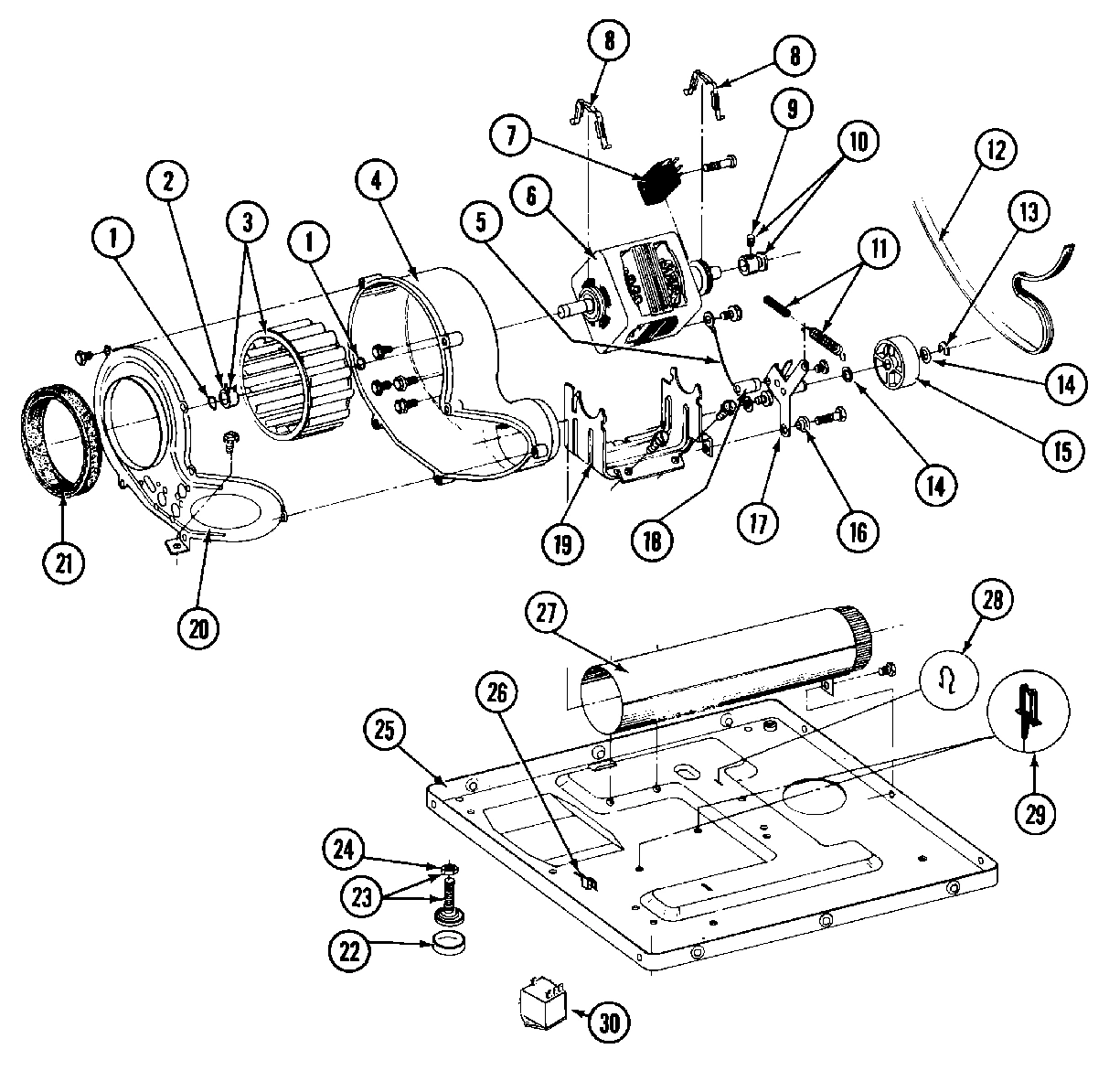

07 - MOTOR, BLOWER & BASE FRAME

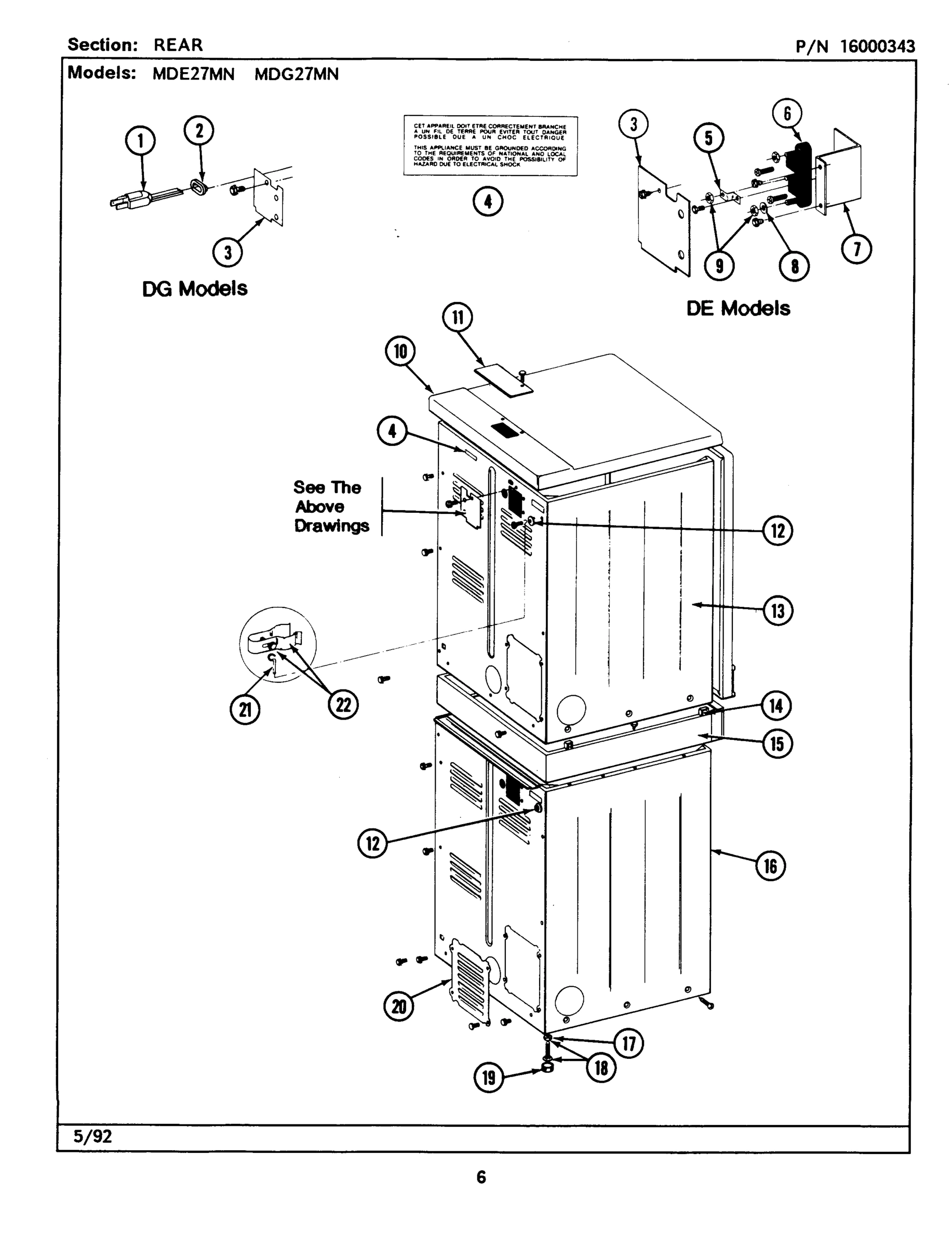

02 - REAR

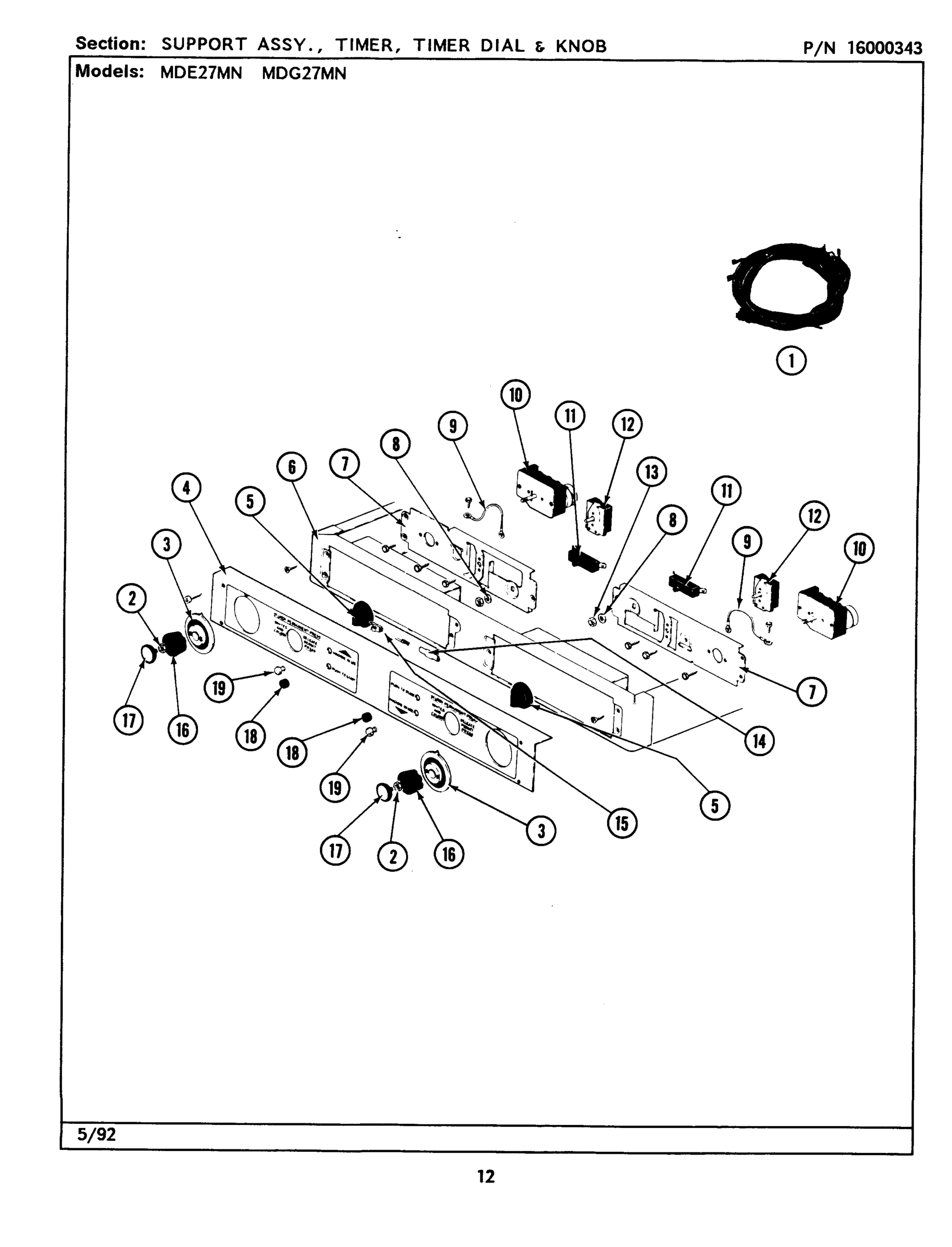

03 - SUPPORT ASSY., TIMER, TIMER DIAL & KNOB

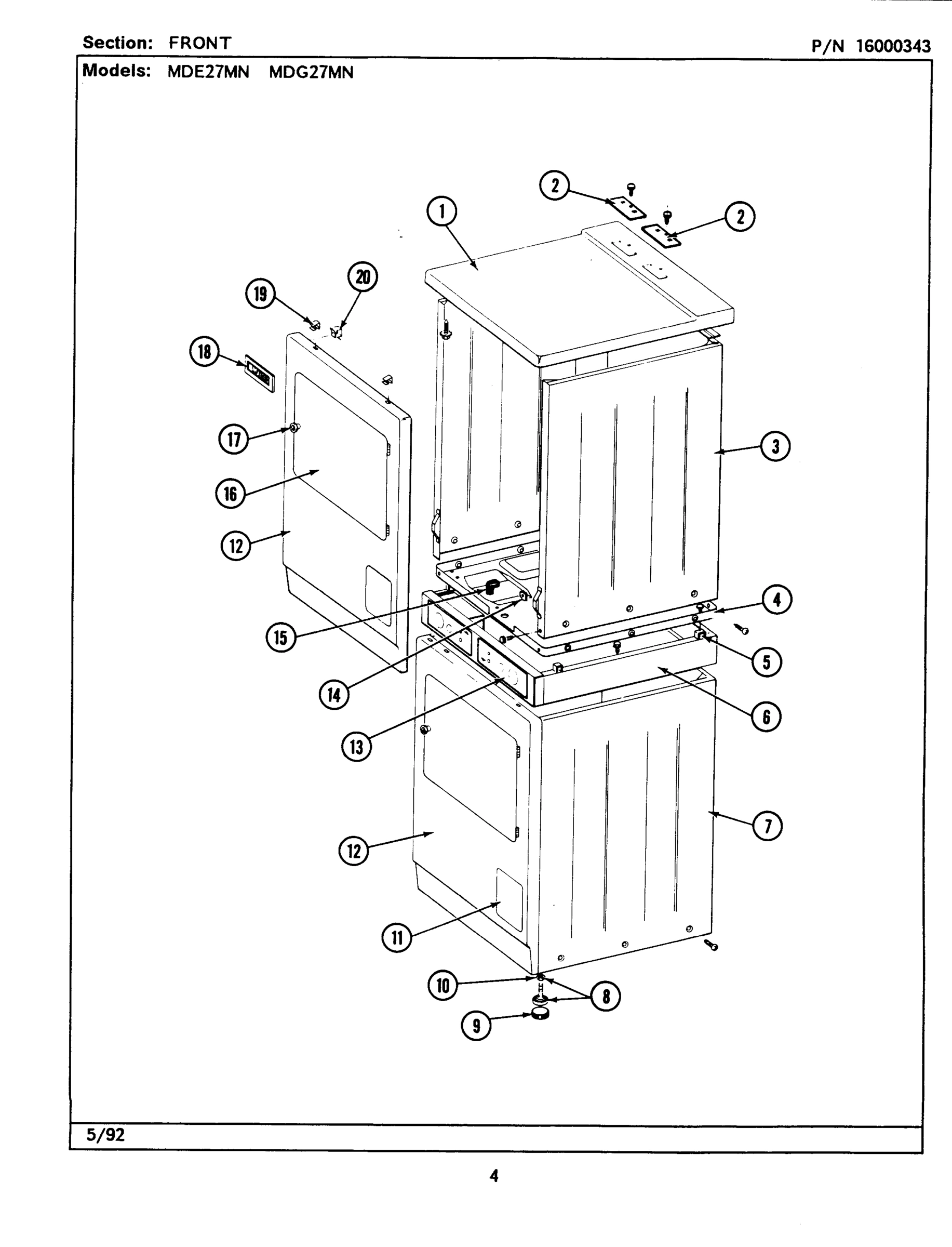

01 - FRONT

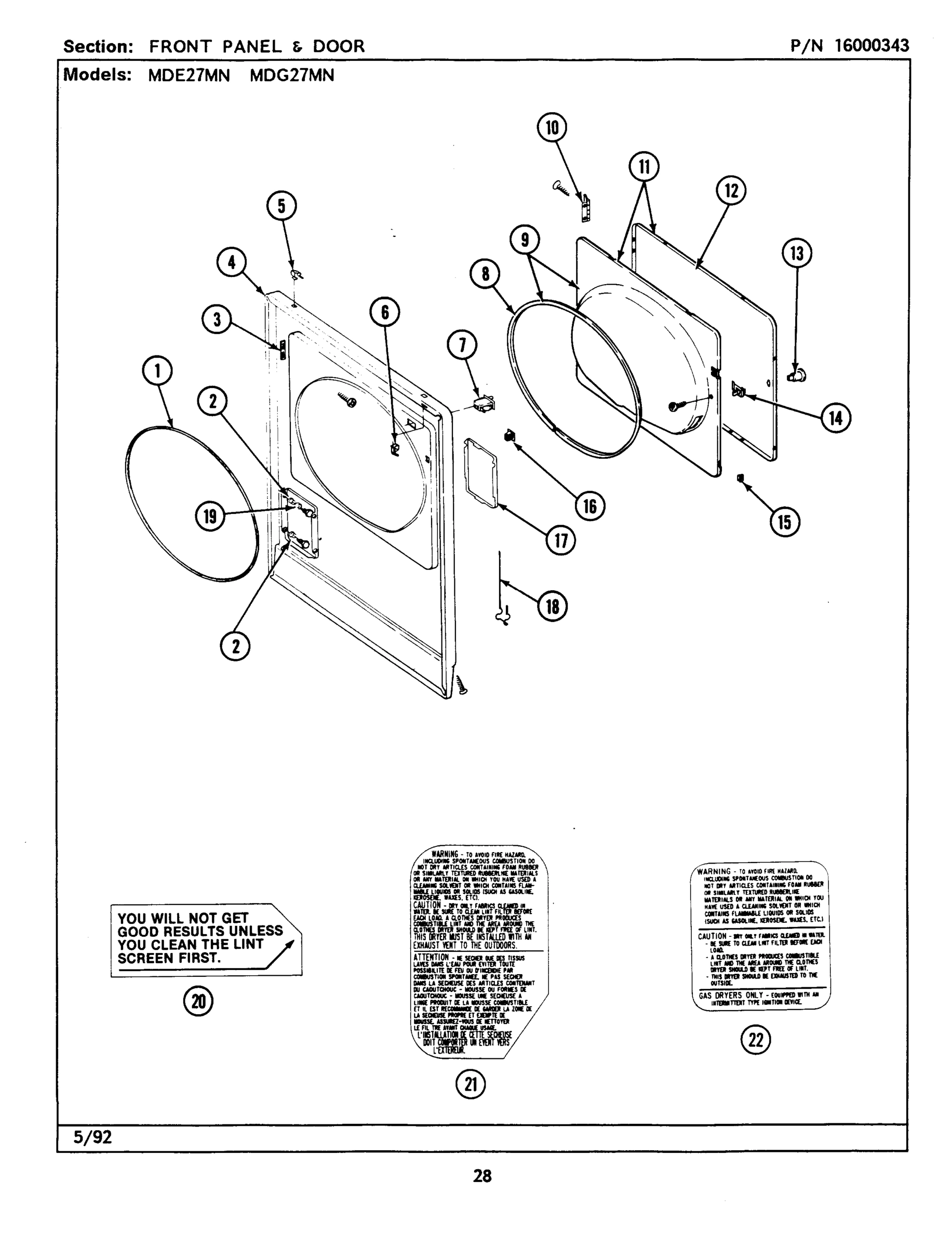

04 - FRONT PANEL & DOOR

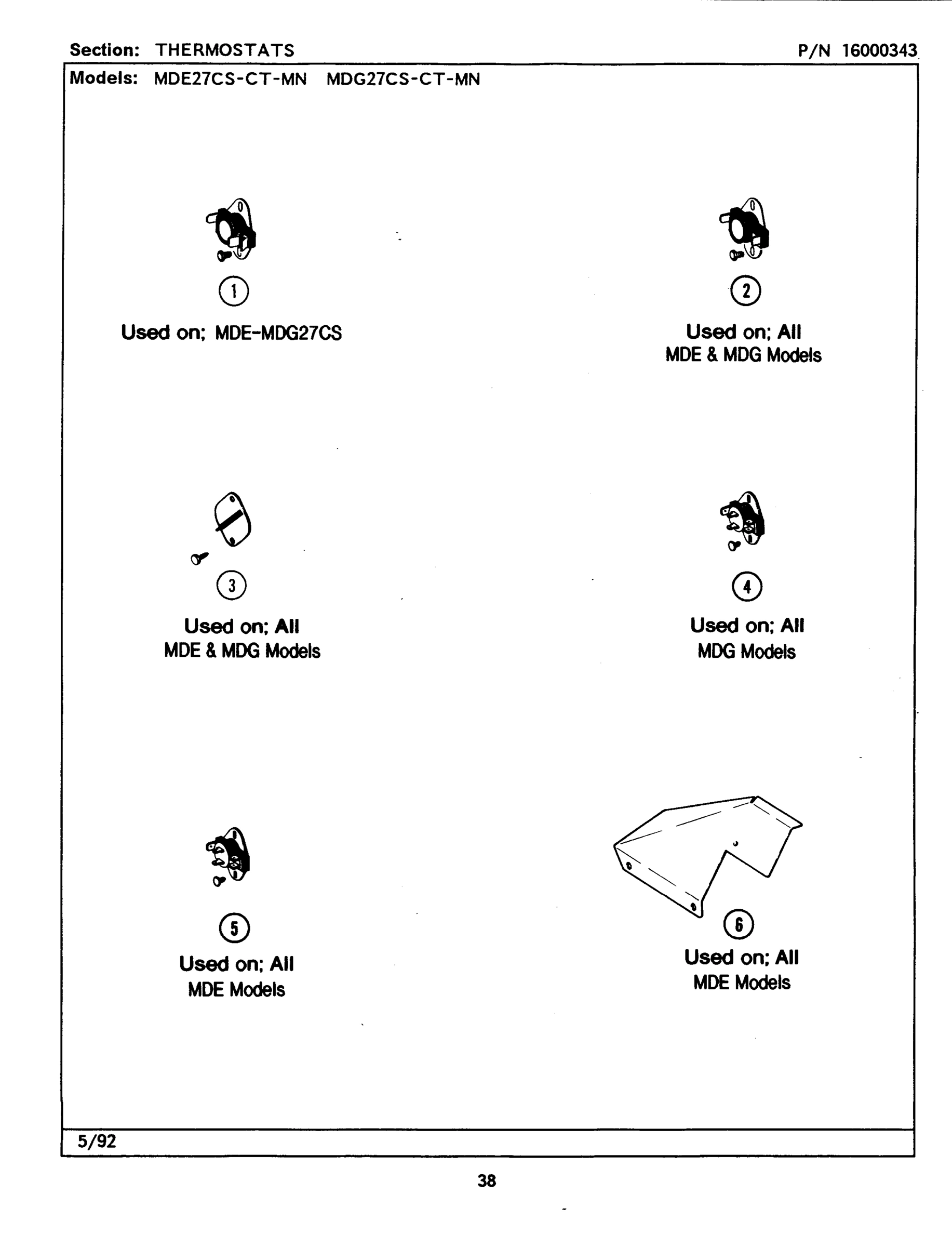

08 - THERMOSTATS
Common parts from model Whirlpool MDG27MNAAW GAS DRYER
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
POWER CORD WPL 302521 Contact Us For Availability
001
TOP COVER ASSY. (WHITE) WPL 307104 Contact Us For Availability
001
(UPPER) WPL 308366 Contact Us For Availability
001
(LOWER) WPL 308370 Contact Us For Availability
001
(LOWER) WPL 308515 Contact Us For Availability
001
(LOWER) WPL Y307387 Contact Us For Availability
001
SEAL WPL 314937 Contact Us For Availability
001
PART NOT USED WPL Y303225 Contact Us For Availability
002
LINT SCREEN WPL 307108 Contact Us For Availability
002
CORD HOLDER WPL 211881 Contact Us For Availability
003
TUMBLER FRONT W/SEAL WPL 307109 Contact Us For Availability
003
TERMINAL COVER WPL Y312905 Contact Us For Availability
003
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
FASTENER WPL Y313907 Contact Us For Availability
004
BLOWER HOUSING WPL Y312893 Contact Us For Availability
004
BASE ASSY., UPPER WPL Y307482 Contact Us For Availability
004
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
004
SCREW & FASTENER ASSY. WPL 212949 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMPERATURE WPL 306966 Contact Us For Availability
005
GROUND WIRE WPL 901220 Contact Us For Availability
005
PART NOT USED WPL Y312184 Contact Us For Availability
005
FASTENER WPL 310933 Contact Us For Availability
005
KNOB WPL 205663 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
006
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
006
PART NOT USED WPL Y313561 Contact Us For Availability
006
SCREW WPL Y310632 Contact Us For Availability
006
CLIP WPL Y310376 Contact Us For Availability
006
PART NOT USED WPL 400008 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
007
PART NOT USED WPL Y312904 Contact Us For Availability
007
SCREW WPL 910186 Contact Us For Availability
007
SCREW WPL 314663 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
SEAL, DOOR WPL 314935 Contact Us For Availability
009
SCREW, IGNITER WPL 304971 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES WPL 314802 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY WPL Y053241 Contact Us For Availability
009
GROUND WIRE WPL 205810 Contact Us For Availability
009
INNER DOOR W/GASKET WPL Y308070 Contact Us For Availability
010
TUMBLER BACK W/SEAL WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW WPL Y305185 Contact Us For Availability
010
TIMER RPR WPL Y307296 Contact Us For Availability
010
HINGE WPL 307099 Contact Us For Availability
010
SCREW WPL Y314062 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG WPL Y303945 Contact Us For Availability
011
DOOR ASSY COMPLETE W/O HINGES WPL 308062 Contact Us For Availability
012
SWITCH, CYCLE WPL 307253 Contact Us For Availability
013
HEX NUT WPL Y312706 Contact Us For Availability
014
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
014
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
015
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
015
STRAIN RELIEF WPL 314522 Contact Us For Availability
015
CLIP WPL Y313910 Contact Us For Availability
017
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
018
KNURLED NUT WPL Y312702 Contact Us For Availability
018
LATCH, ACCESS DOOR WPL Y314025 Contact Us For Availability
019
RUBBER SLEEVE WPL 312369 Contact Us For Availability
020
DUCT, INLET ASSY. WPL 307119 Contact Us For Availability
020
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
020
ACCESS COVER WPL Y312951 Contact Us For Availability
020
INSTRUCTION DECAL WPL Y313340 Contact Us For Availability
021
GROUND CLAMP WPL 301548 Contact Us For Availability
021
SCREW WPL 313122 Contact Us For Availability
021
INSTRUCTION DECAL WPL 314941 Contact Us For Availability
022
INSTRUCTION LABEL WPL NLA Contact Us For Availability
023
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
023
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
024
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
025
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
027
EXHAUST DUCT PIPE WPL Y303442 Contact Us For Availability
028
HARNESS SPRING WPL 410490 Contact Us For Availability
029
WIRE RETAINER WPL Y313262 Contact Us For Availability
030
PART NOT USED WPL 307928 Contact Us For Availability
× ![]()
