Model Whirlpool MDG26MNAAG GAS DRYER – Common Parts & Diagrams
01 - FRONT VIEW

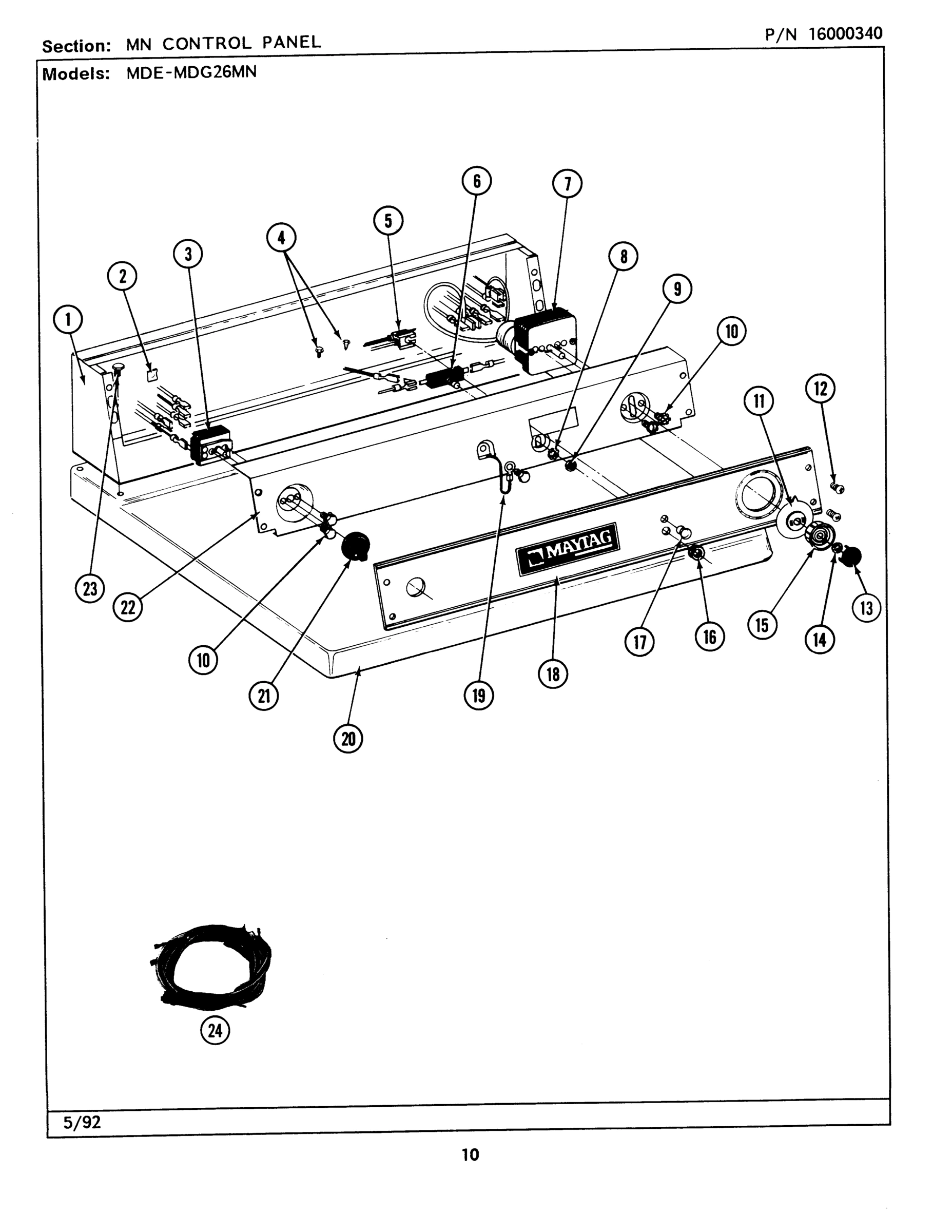

03 - CONTROL PANEL (MN)

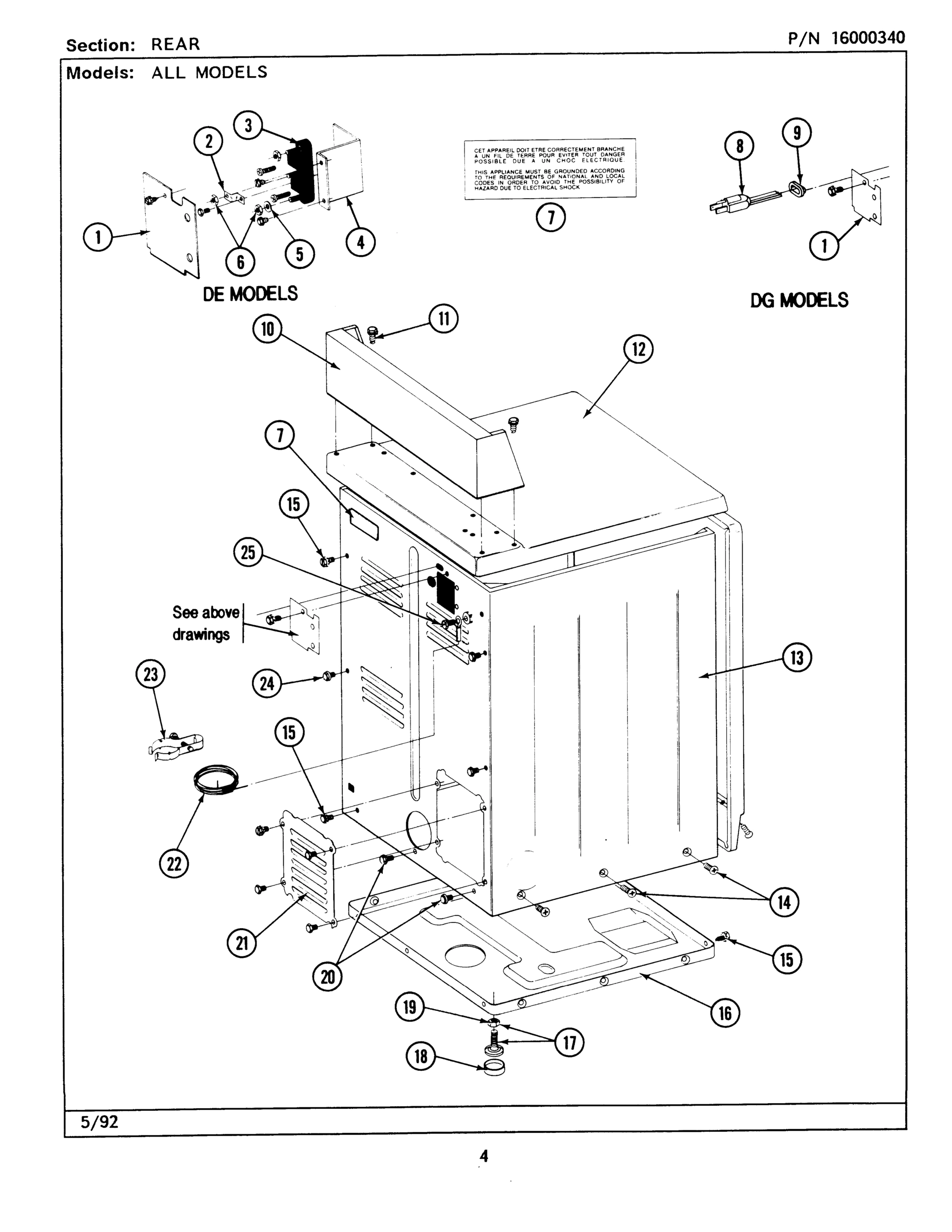

02 - REAR VIEW

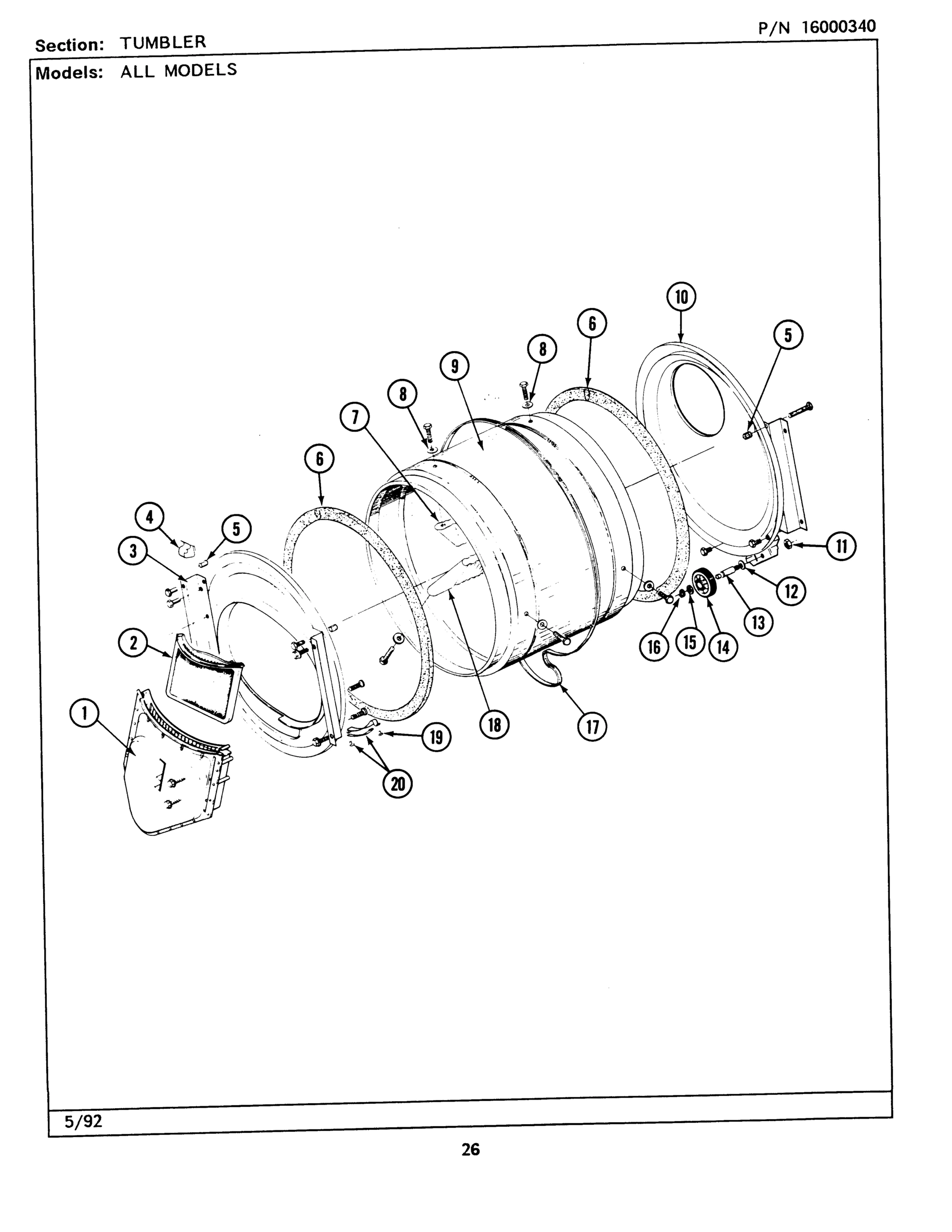

05 - TUMBLER

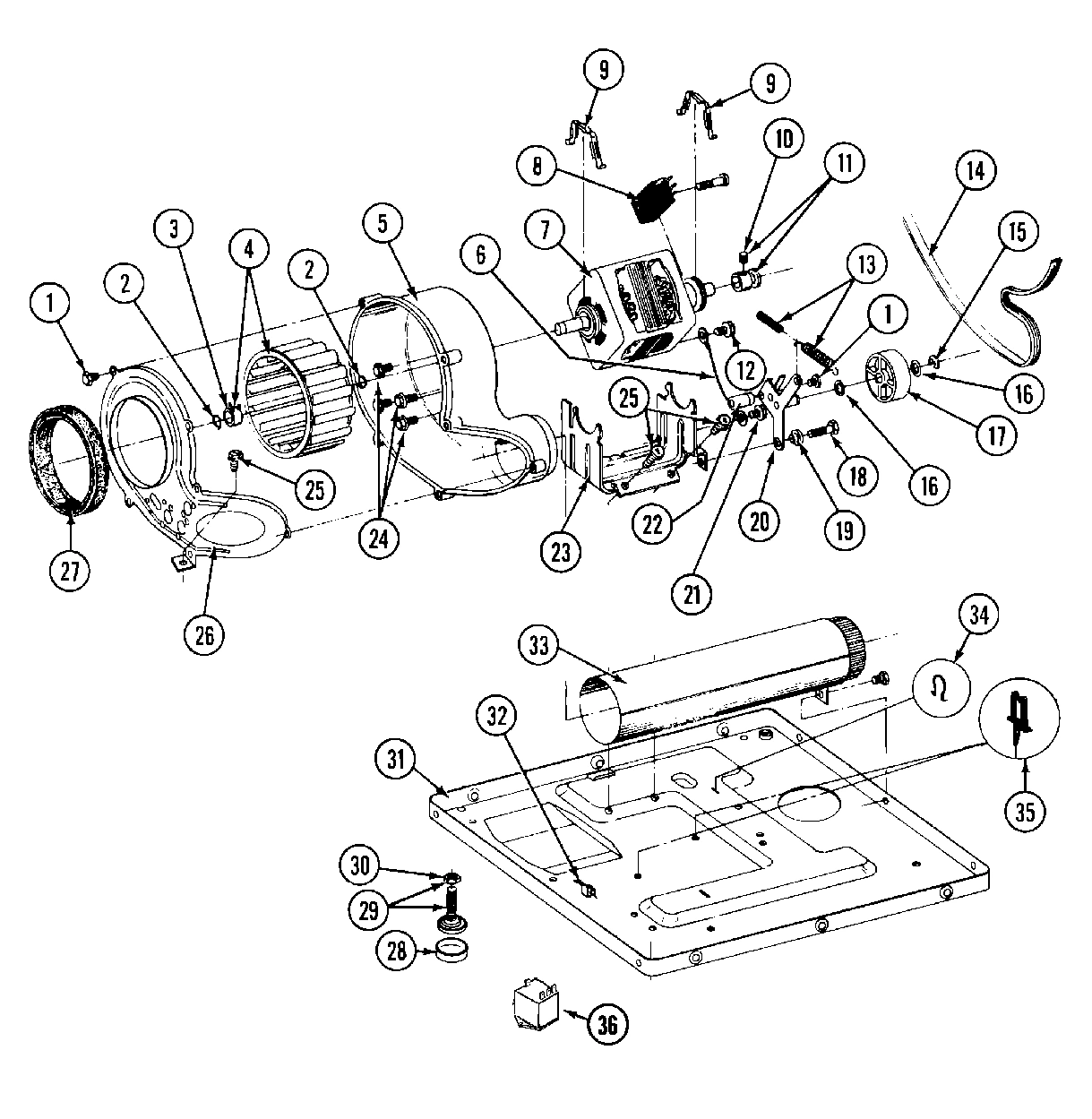

07 - MOTOR DRIVE, BLOWER & BASE FRAME

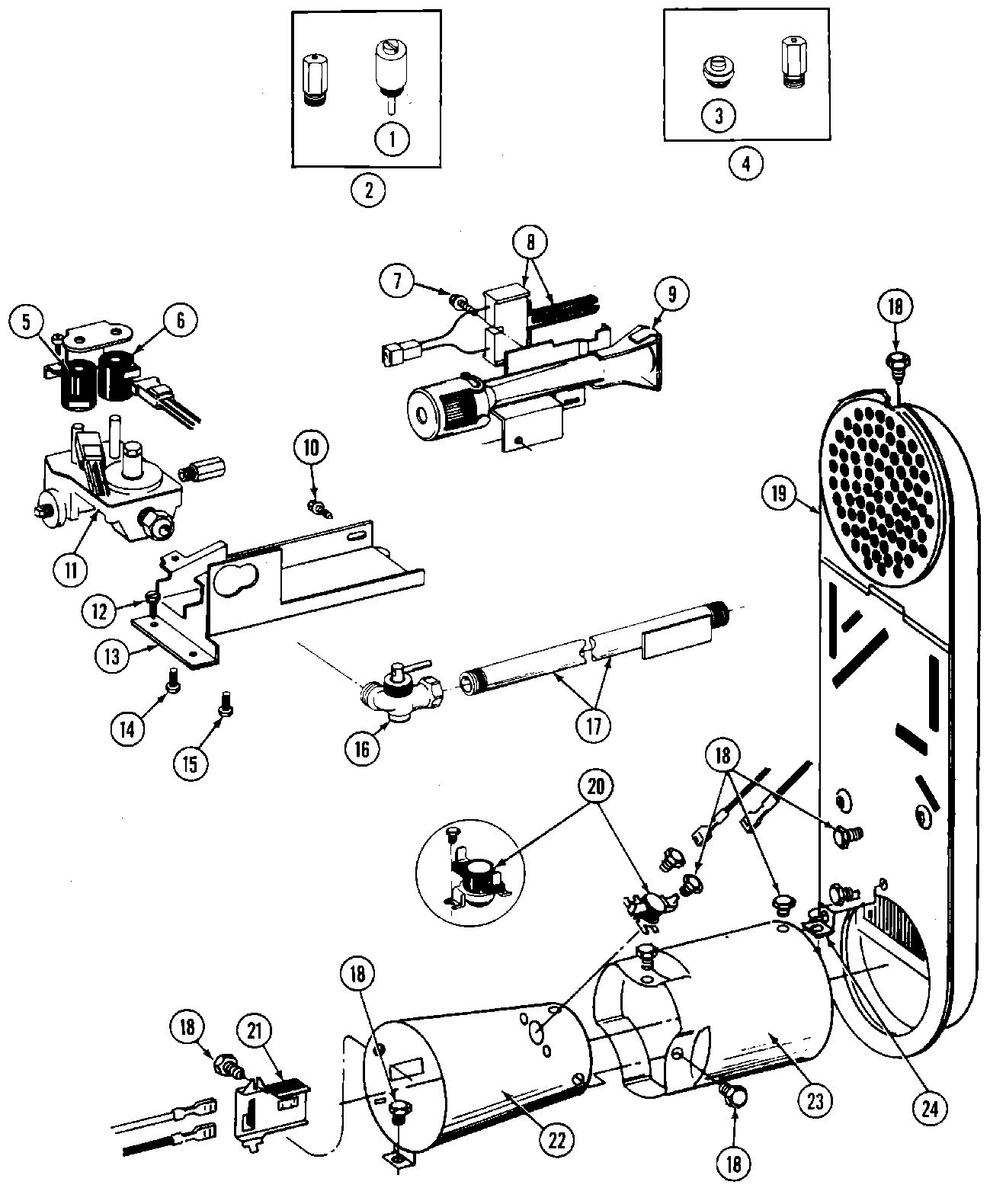

06 - GAS VALVE
08 - THERMOSTATS

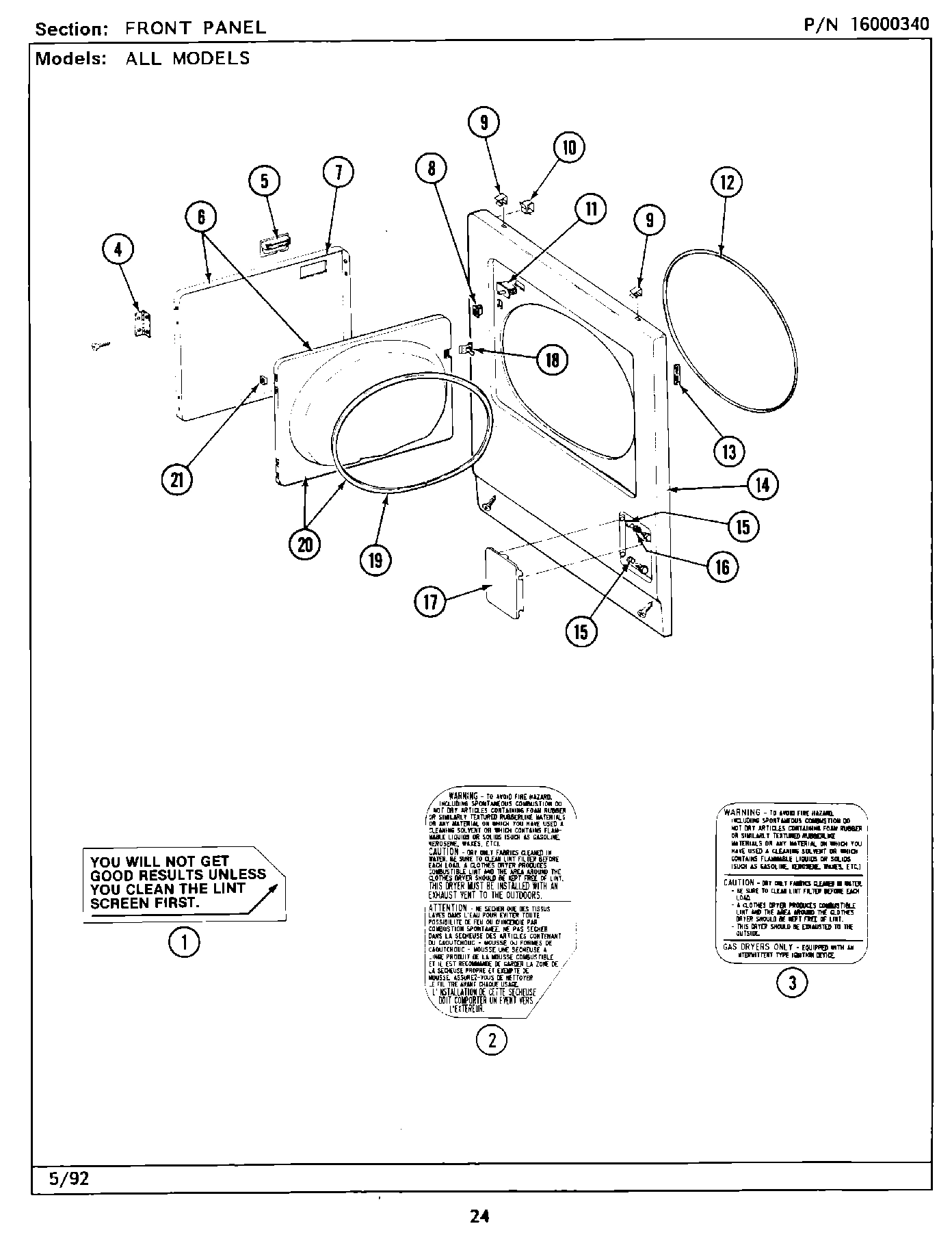

04 - FRONT PANEL
Common parts from model Whirlpool MDG26MNAAG GAS DRYER
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
PLUG, BLOCKING (LP REGULATOR) WPL 306184 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
002
FASTENER WPL 215003 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G WPL 306056 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
PART NOT USED WPL 314942 Contact Us For Availability
004
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
004
BRACKET, TERMINAL BLOCK (DE MODELS ONLY-PART WPL Y312904 Contact Us For Availability
004
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
005
HANDLE (WHT) WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP (PART NOT USED-DE ONLY WPL 306967 Contact Us For Availability
006
SCREW (PART NOT USED-DE ONLY) WPL Y310632 Contact Us For Availability
006
WIRE, GROUND WPL 901220 Contact Us For Availability
006
COVER, THERMOSTAT PART NOT USED (MDE ONLY) WPL 315122 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
007
TIMER WPL 305214 Contact Us For Availability
007
TIMER MOTOR RPR WPL Y304585 Contact Us For Availability
007
LABEL, ELECTRICAL INSTR. WPL 214519 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
SCREW WPL 304971 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
008
POWER CORD WPL 302521 Contact Us For Availability
008
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
No.3-3358-8 & 3-3358-9 WPL 306207 Contact Us For Availability
008
SWITCH, MOTOR PRODUCTION No.3-3358-2, 3-3358- WPL Y303877 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
009
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
009
GROMMET, CORD WPL 211881 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
011
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
011
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
012
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
012
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
012
SCREW----NA WPL Y313561 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
013
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
(ALM) WPL 307998L Contact Us For Availability
015
SCREW WPL 212949 Contact Us For Availability
016
KNURLED NUT WPL Y312702 Contact Us For Availability
016
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
016
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
ACCESS DOOR (WHT) WPL NLA Contact Us For Availability
017
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
CONTROL PANEL COMMERCIAL DRYER WPL 314909 Contact Us For Availability
019
WIRE, GROUND WPL 205810 Contact Us For Availability
019
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
019
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
TOP COVER ASSY. (WHT) WPL 307104 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
022
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
022
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
024
HARNESS, WIRE WPL 308510 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
026
COVER, BLOWER WPL 314778 Contact Us For Availability
031
BASE ASSY. WPL Y303361 Contact Us For Availability
033
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
034
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
035
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
036
PART NOT USED WPL 306199 Contact Us For Availability
× ![]()
