Model Whirlpool LHI9801W2 GAS DRYER – Common Parts & Diagrams

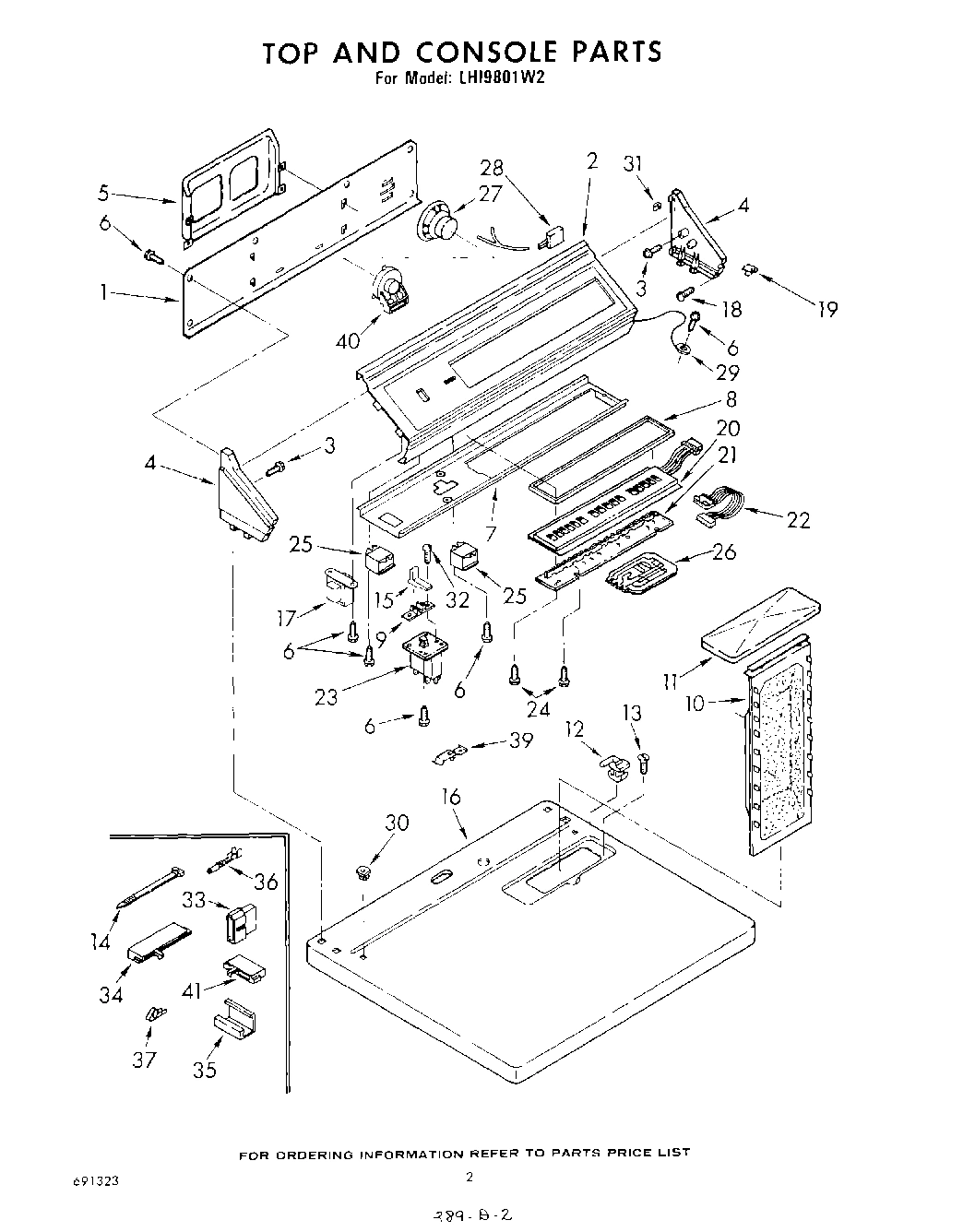

02 - TOP AND CONSOLE , LIT/OPTIONAL

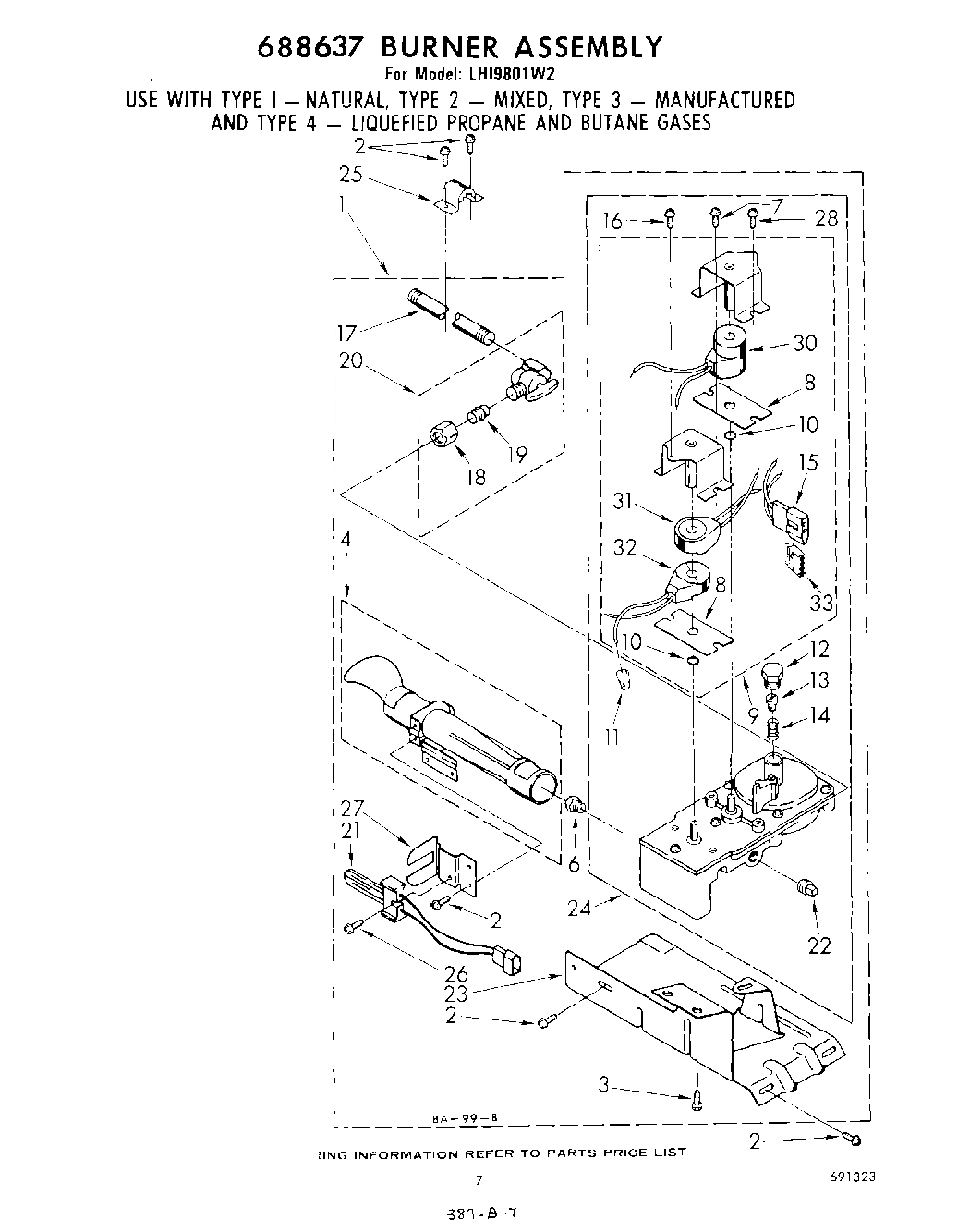

05 - 688637 BURNER

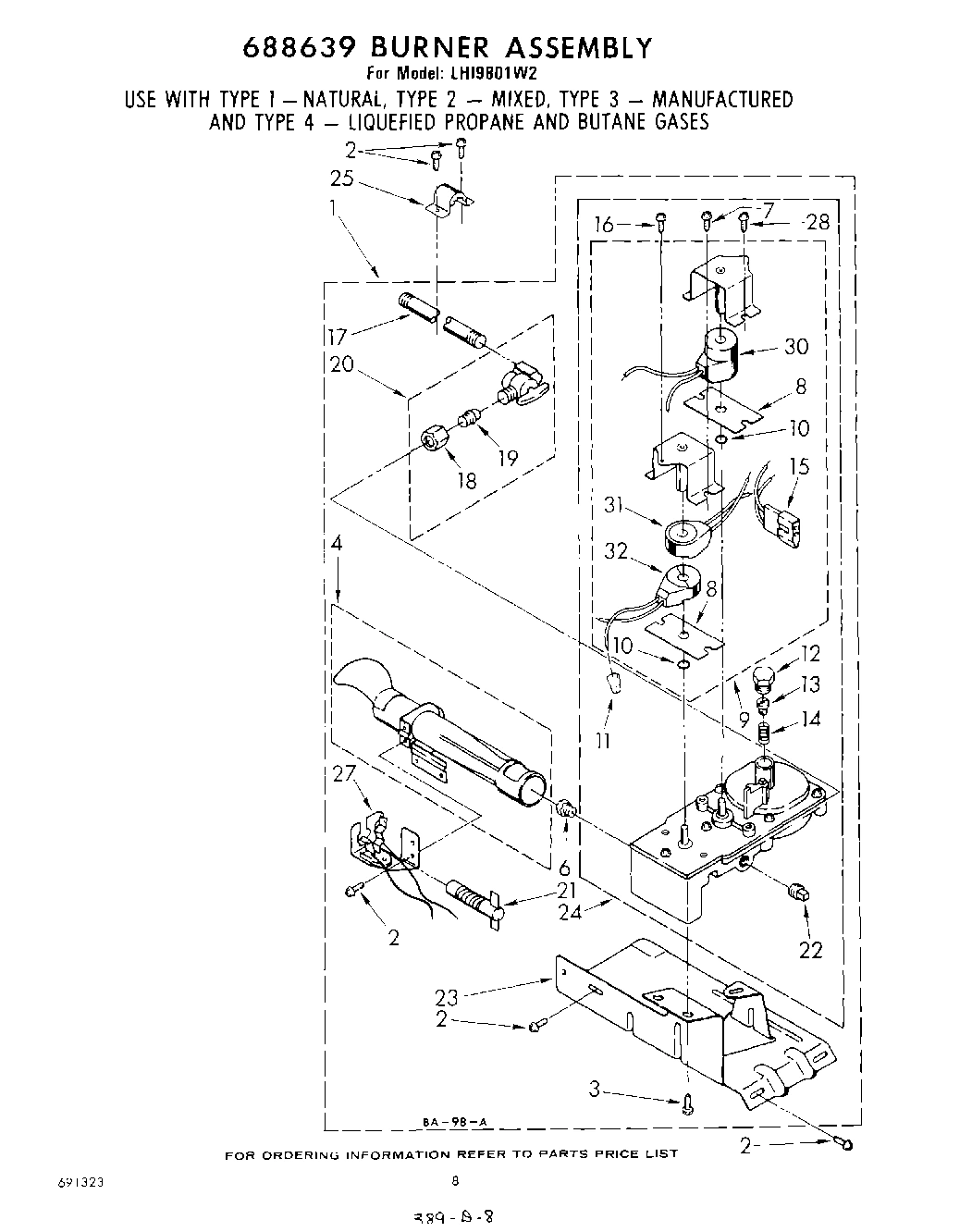

06 - 688639 BURNER

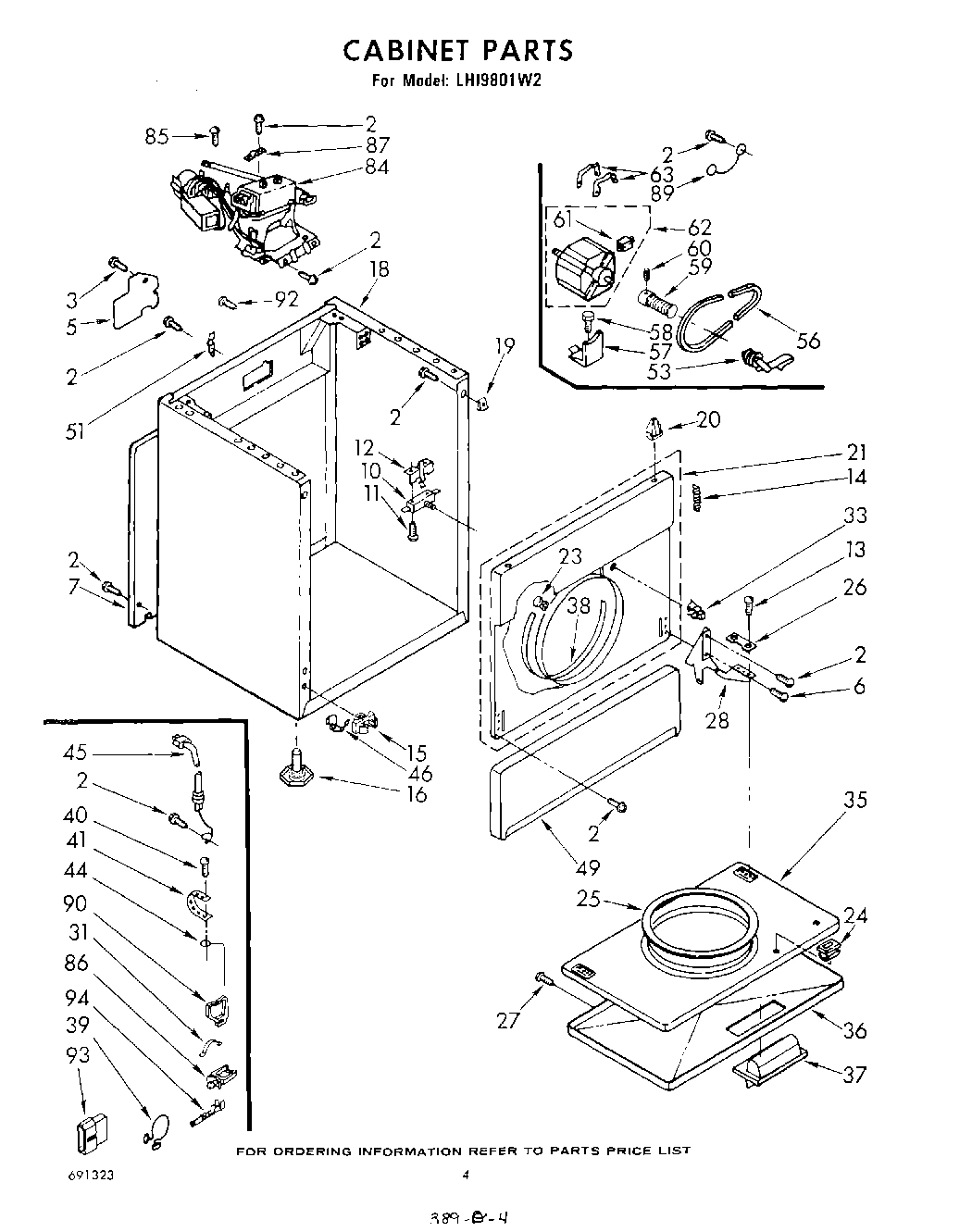

03 - CABINET

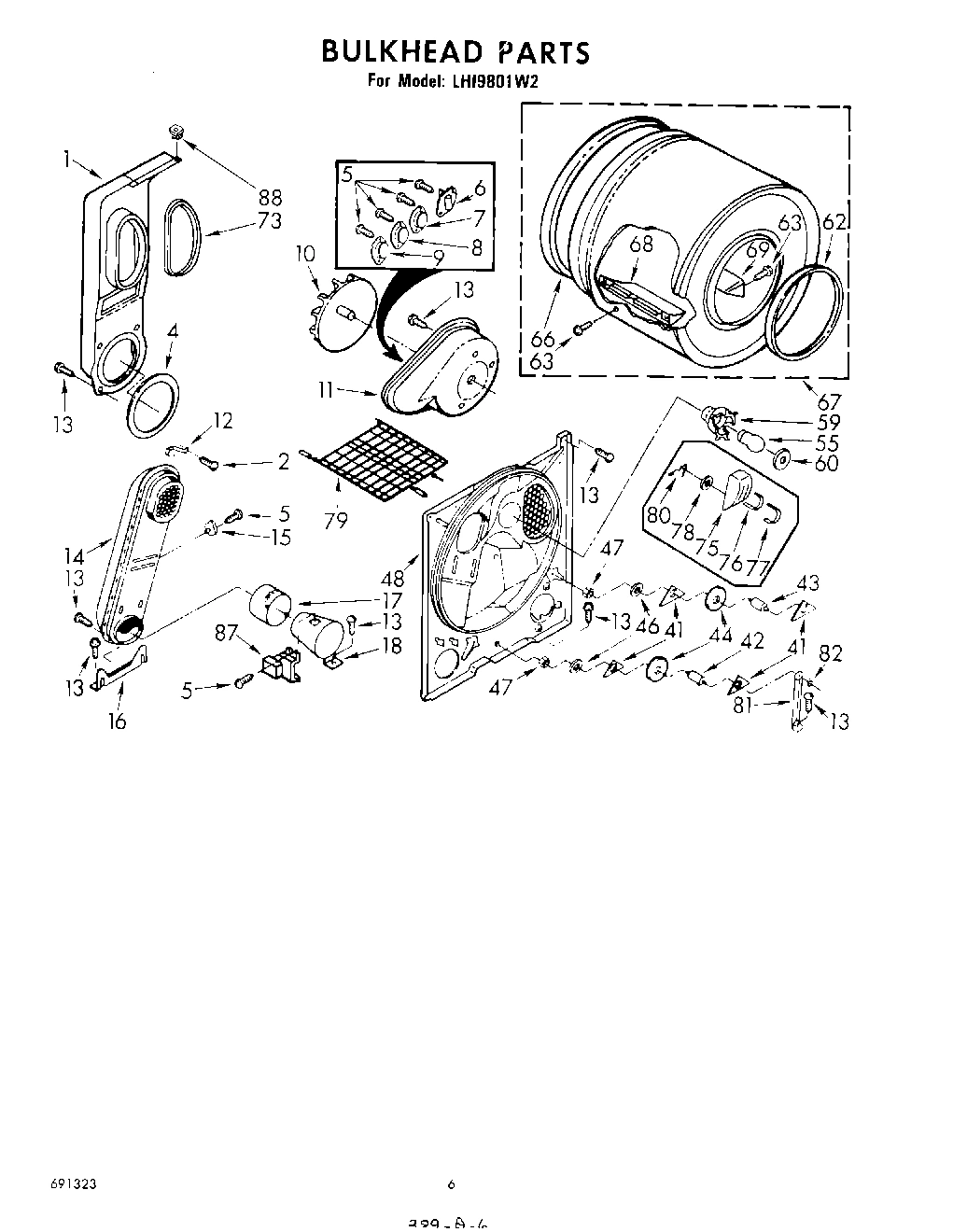

04 - BULKHEAD
Common parts from model Whirlpool LHI9801W2 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
6
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
6
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
6
Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability
7
Panel, Rear WPL 348364 Contact Us For Availability
8
Plate (2) WPL 338869 Contact Us For Availability
9
BURNER-GAS WPL 685947 Contact Us For Availability
9
Operating Thermostat, 140~F (60~C) WPL 690031 Contact Us For Availability
10
Ring, ``O`` (2) WPL 296302 Contact Us For Availability
10
Switch, Door WPL 691361 Contact Us For Availability
11
Connector, Wire (3) WPL 340140 Contact Us For Availability
11
Housing, Blower WPL 348493 Contact Us For Availability
12
Screw, Leak Limiter WPL 338868 Contact Us For Availability
13
Screw, Regulator Adjustment WPL 99996 Contact Us For Availability
14
Spring, Regulator WPL 339226 Contact Us For Availability
14
Spring, Door (2) WPL 237979 Contact Us For Availability
15
High Limit Thermostat, 205~F (96~C) (Alternat WPL 341196 Contact Us For Availability
15
Clip, Toe Panel (2) WPL 690625 Contact Us For Availability
15
High Limit Thermostat, 205~F (96~C) (Alternat WPL 338471 Contact Us For Availability
16
Screw, 6-20 x 5/16 WPL 98487 Contact Us For Availability
16
Support, Heater Box WPL 348484 Contact Us For Availability
17
Transformer WPL 60996 Contact Us For Availability
17
Pipe, Gas Supply WPL 233273 Contact Us For Availability
18
Nut, Compression WPL 233076 Contact Us For Availability
18
Screw, 8-18 (2) WPL 358225 Contact Us For Availability
18
Cabinet (White) WPL 690841 Contact Us For Availability
18
Cabinet (Almond) WPL 690842 Contact Us For Availability
18
Cabinet (Coffee) WPL 690843 Contact Us For Availability
18
Cabinet (New Avocado) WPL 690844 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690845 Contact Us For Availability
19
Stop, Push-In (2) WPL 358472 Contact Us For Availability
20
Module, Touch WPL 691347 Contact Us For Availability
20
Shut-Off Valve & Union Assembly WPL 345062 Contact Us For Availability
21
Display Assembly WPL 60985 Contact Us For Availability
21
Upper Front Panel Assembly (White) WPL 337969 Contact Us For Availability
21
Upper Front Panel Assembly (Almond) WPL 689334 Contact Us For Availability
21
Panel Assembly, Upper Front (Coffee) WPL 689335 Contact Us For Availability
21
Upper Front Panel Assembly (New Avocado) WPL 689336 Contact Us For Availability
21
Upper Front Panel Assembly (Golden Harvest) WPL 689337 Contact Us For Availability
22
Harness, Display WPL 690092 Contact Us For Availability
23
Relay, Start-To-Stop WPL 691359 Contact Us For Availability
23
Baseplate WPL 338455 Contact Us For Availability
24
Screw, 8-18 x 1/2 (6) WPL 690756 Contact Us For Availability
24
BURNER-GAS WPL 688631 Contact Us For Availability
24
Valve Assembly, 60 Hz. WPL 688616 Contact Us For Availability
25
Power Relay WPL 691360 Contact Us For Availability
26
Microcomputer Assembly WPL 60952 Contact Us For Availability
27
Speaker WPL 60336 Contact Us For Availability
27
Screw, 6-18 x 1/2 WPL 689791 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Speaker, Harness WPL 328158 Contact Us For Availability
28
Screw, 8-32 x 5/8 (2) WPL 340182 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Nut, Push WPL 358473 Contact Us For Availability
30
Coil Assembly (Main) WPL 348376 Contact Us For Availability
31
WPL 689559 WPL 689559 Contact Us For Availability
31
Coil Assembly (Hold) WPL 348375 Contact Us For Availability
32
Coil Assembly (Assist) WPL 348374 Contact Us For Availability
33
WPL 342529 WPL 342529 Contact Us For Availability
33
Receptacle, 2 Way WPL 717252 Contact Us For Availability
34
WPL 60447 WPL 60447 Contact Us For Availability
35
WPL 60719 WPL 60719 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Coffee) WPL 689259 Contact Us For Availability
35
Door, Rear (New Avocado) WPL 689260 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Coffee) WPL 689331 Contact Us For Availability
36
Door, Front (New Avocado) WPL 689332 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
37
WPL 60279 WPL 60279 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Coffee) WPL 690267 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability
39
WPL 357144 WPL 357144 Contact Us For Availability
39
Clamp, Harn WPL 690987 Contact Us For Availability
40
WPL 359188 WPL 359188 Contact Us For Availability
40
WPL 132848 WPL 132848 Contact Us For Availability
41
WPL 230083 WPL 230083 Contact Us For Availability
41
WPL 261886 WPL 261886 Contact Us For Availability
41
WPL 261888 WPL 261888 Contact Us For Availability
41
WPL 261890 WPL 261890 Contact Us For Availability
41
WPL 339896 WPL 339896 Contact Us For Availability
41
WPL 340704 WPL 340704 Contact Us For Availability
41
WPL 350941 WPL 350941 Contact Us For Availability
41
WPL 60671 WPL 60671 Contact Us For Availability
41
WPL 688644 WPL 688644 Contact Us For Availability
41
WPL 688898 WPL 688898 Contact Us For Availability
41
WPL 691255 WPL 691255 Contact Us For Availability
41
WPL 691323 WPL 691323 Contact Us For Availability
41
WPL 691351 WPL 691351 Contact Us For Availability
41
WPL 72108 WPL 72108 Contact Us For Availability
41
WPL 799351 WPL 799351 Contact Us For Availability
41
WPL 22965 WPL 22965 Contact Us For Availability
44
WPL 364089 WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685817 Contact Us For Availability
49
WPL 337833 WPL 337833 Contact Us For Availability
49
WPL 689246 WPL 689246 Contact Us For Availability
49
WPL 689247 WPL 689247 Contact Us For Availability
49
WPL 689248 WPL 689248 Contact Us For Availability
49
WPL 689249 WPL 689249 Contact Us For Availability
59
WPL 348946 WPL 348946 Contact Us For Availability
59
Socket Assembly WPL 691034 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
60
Lens, Drum Light WPL 341165 Contact Us For Availability
61
WPL 298699 WPL 298699 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
67
Drum Assembly WPL 347875 Contact Us For Availability
68
Baffle, Drum (Long) (2) WPL 347892 Contact Us For Availability
69
Baffle, Drum (Short) (1) WPL 348868 Contact Us For Availability
79
Dry Rack Assembly WPL 687834 Contact Us For Availability
84
WPL 688637 WPL 688637 Contact Us For Availability
84
WPL 688639 WPL 688639 Contact Us For Availability
84
WPL 279243 WPL 279243 Contact Us For Availability
85
WPL 343826 WPL 343826 Contact Us For Availability
89
WPL 690236 WPL 690236 Contact Us For Availability
90
WPL 688412 WPL 688412 Contact Us For Availability
93
WPL 353425 WPL 353425 Contact Us For Availability
× ![]()
