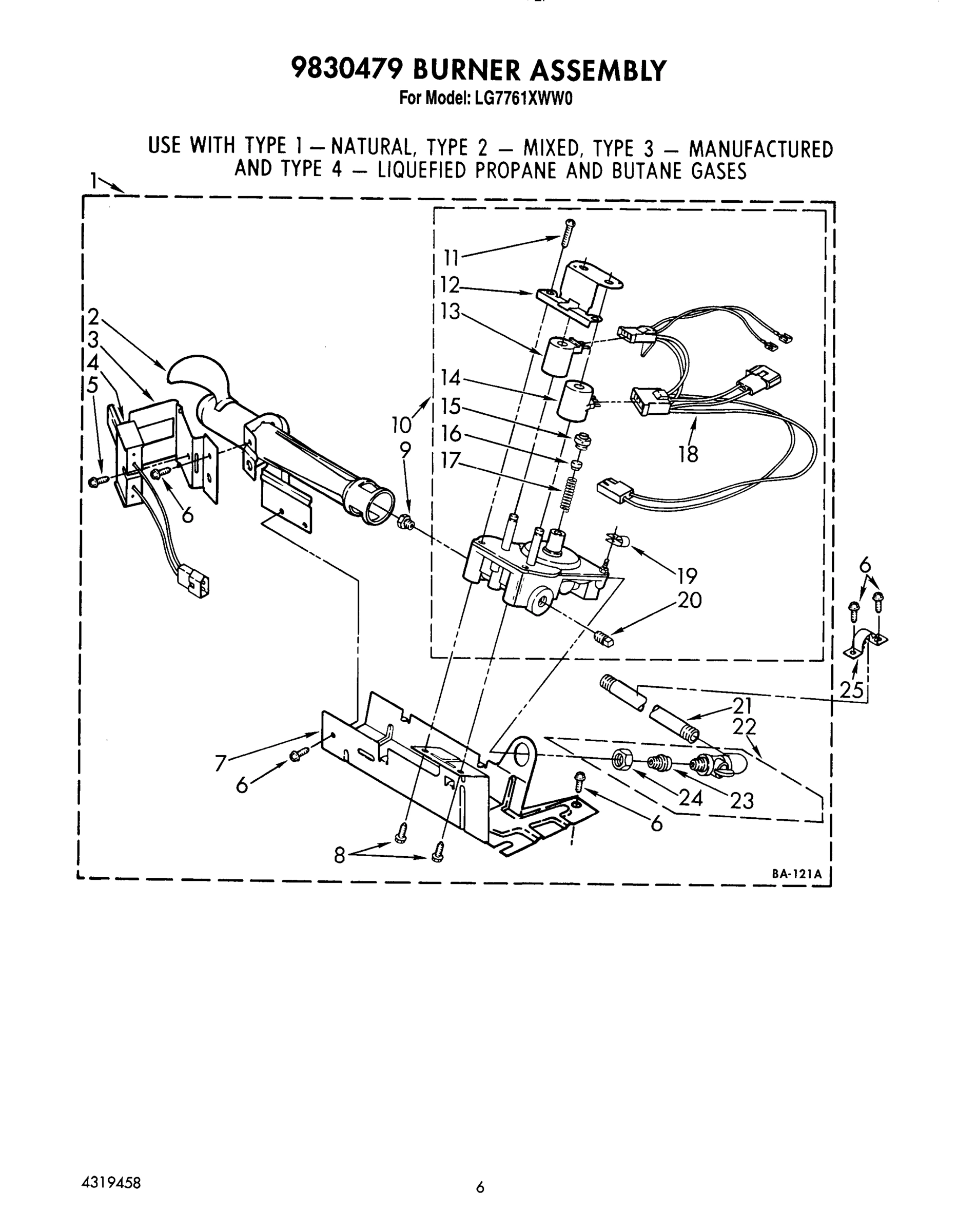

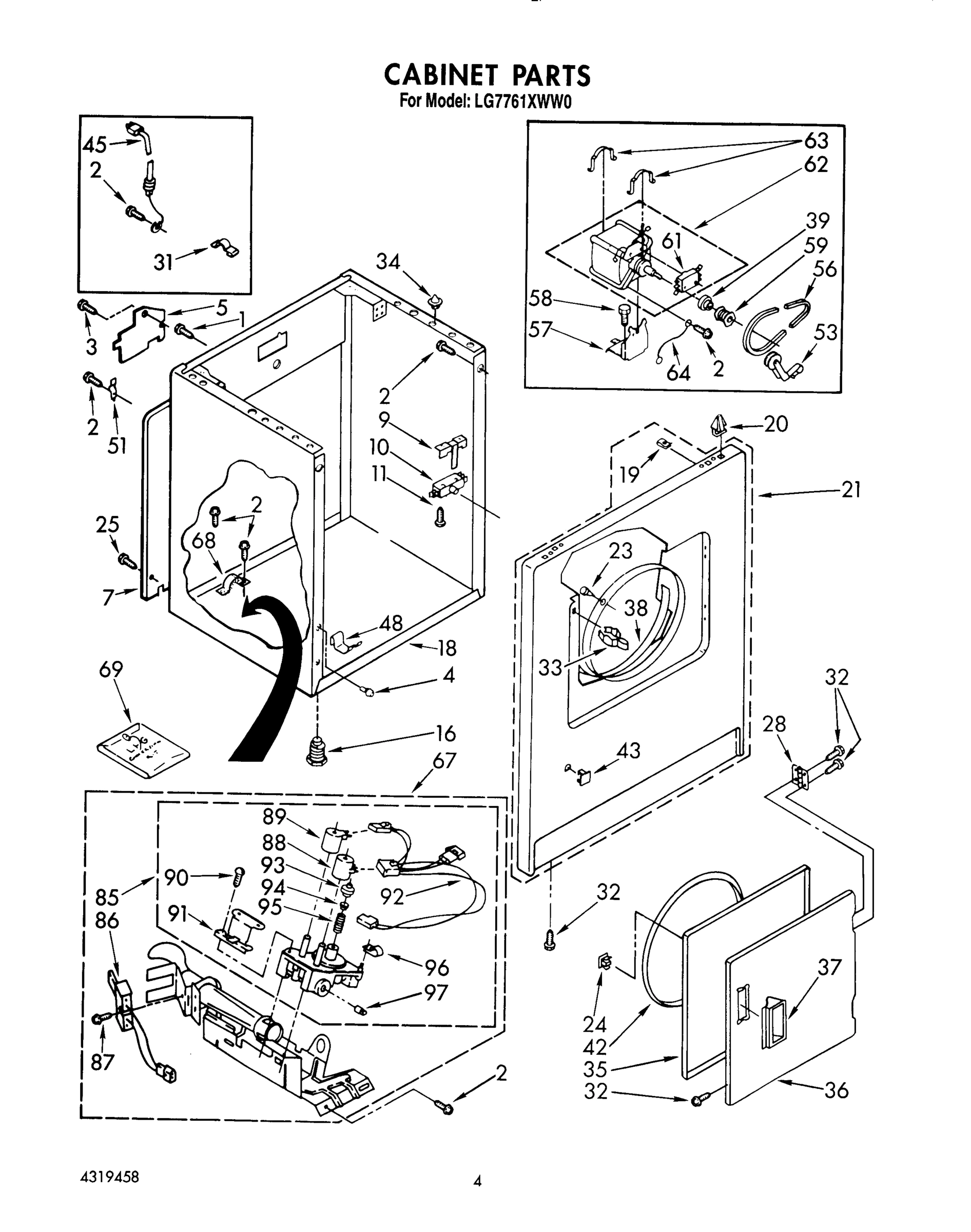

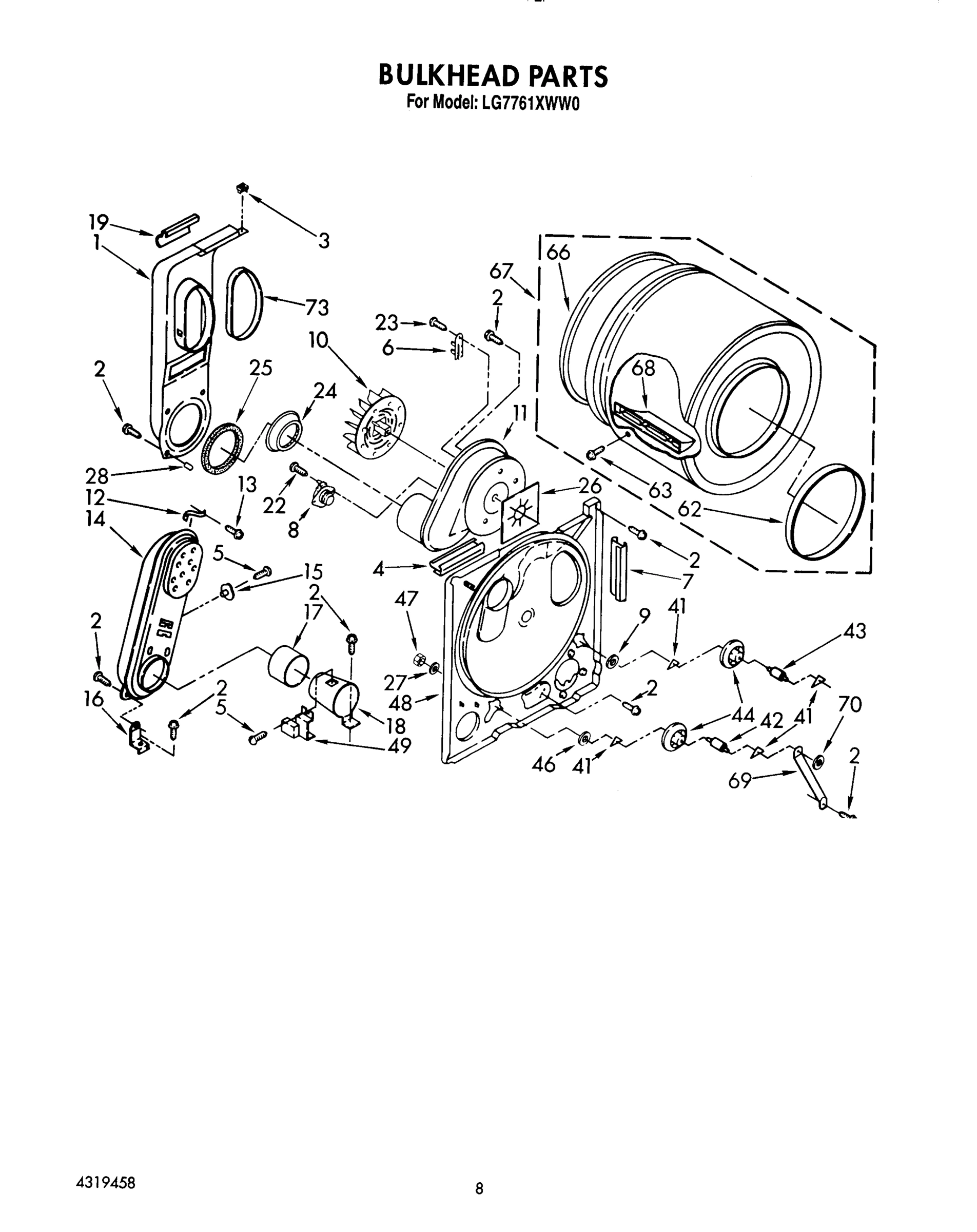

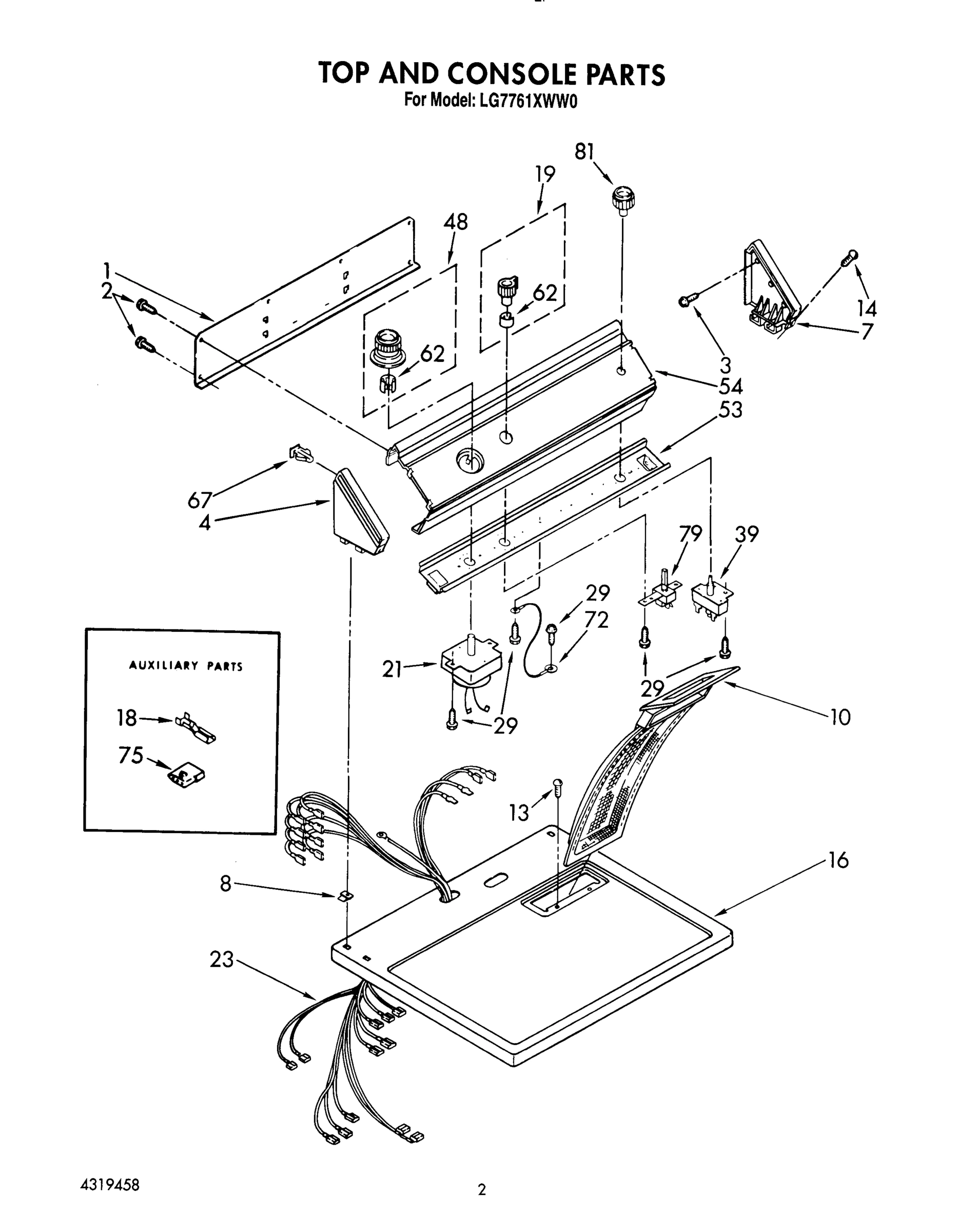

Model Whirlpool LG7761XWN0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

3

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

7

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

7

Base, Burner WPL 694669 Contact Us For Availability

7

Panel, Rear WPL 348364 Contact Us For Availability

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

9

Orifice, Burner (Type 1) WPL 3394361 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

WPW10717210 Whirlpool Dryer Lint Screen Filte In Stock WPL WPW10717210 $32.99

11

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

14

Screw, End Cap To Top WPL 64211 Contact Us For Availability

15

(Alt.) WPL 341196 Contact Us For Availability

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

16

Top (White) WPL 4319449 Contact Us For Availability

16

Top (Almond) WPL 4319450 Contact Us For Availability

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

18

Cabinet (White) WPL 4319451 Contact Us For Availability

18

Cabinet (Almond) WPL 4319452 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Control Knob, Temperature WPL 386635 Contact Us For Availability

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

Timer Assembly, 60 Hz. WPL 3391650 Contact Us For Availability

Pipe, Gas Supply WPL 233273 Contact Us For Availability

Upper Front Panel (White) WPL 4319470 Contact Us For Availability

Upper Front Panel (Almond) WPL 4319471 Contact Us For Availability

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

23

Harness, Wiring WPL 3393992 Contact Us For Availability

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

25

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

28

WPW10362431 Whirlpool Hinge Assembly Backorder WPL WPW10362431 $4.82

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

34

Locator, Top WPL 98669 Contact Us For Availability

35

Door, Rear WPL 4319460 Contact Us For Availability

36

Door, Front (White) WPL 4319461 Contact Us For Availability

36

Door, Front (Almond) WPL 4319462 Contact Us For Availability

37

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $59.99

37

Handle, Door (Almond) WPL 4319334 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

(Alt.) WPL 346364 Contact Us For Availability

Switch, Push-To-Start WPL 660936 Contact Us For Availability

(Alt.) WPL 692021 Contact Us For Availability

42

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $77.54

43

Plug, Front Panel (White) WPL 3394975 Contact Us For Availability

43

Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

48

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 3394060 Contact Us For Availability

54

Panel, Control WPL 9830439 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394509 Whirlpool Bearing Ring In Stock WPL WP3394509 $80.86

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

64

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

67

Burner Assembly 60 Hz. (Alternate) (Refer To WPL 9830479 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

69

Kit, Conversion (Type 1 To Type 3) WPL 279243 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability

79

Switch, Temperature WPL 694720 Contact Us For Availability

81

Knob, Push-To-Start WPL 3387894 Contact Us For Availability

85

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

86

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

87

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

88

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

90

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

91

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

92

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

96

WPL 694510 WPL 694510 Contact Us For Availability

97

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58
