Model Whirlpool LG5601XMW0 GAS DRYER – Common Parts & Diagrams
04 - 694670 BURNER ASSEMBLY

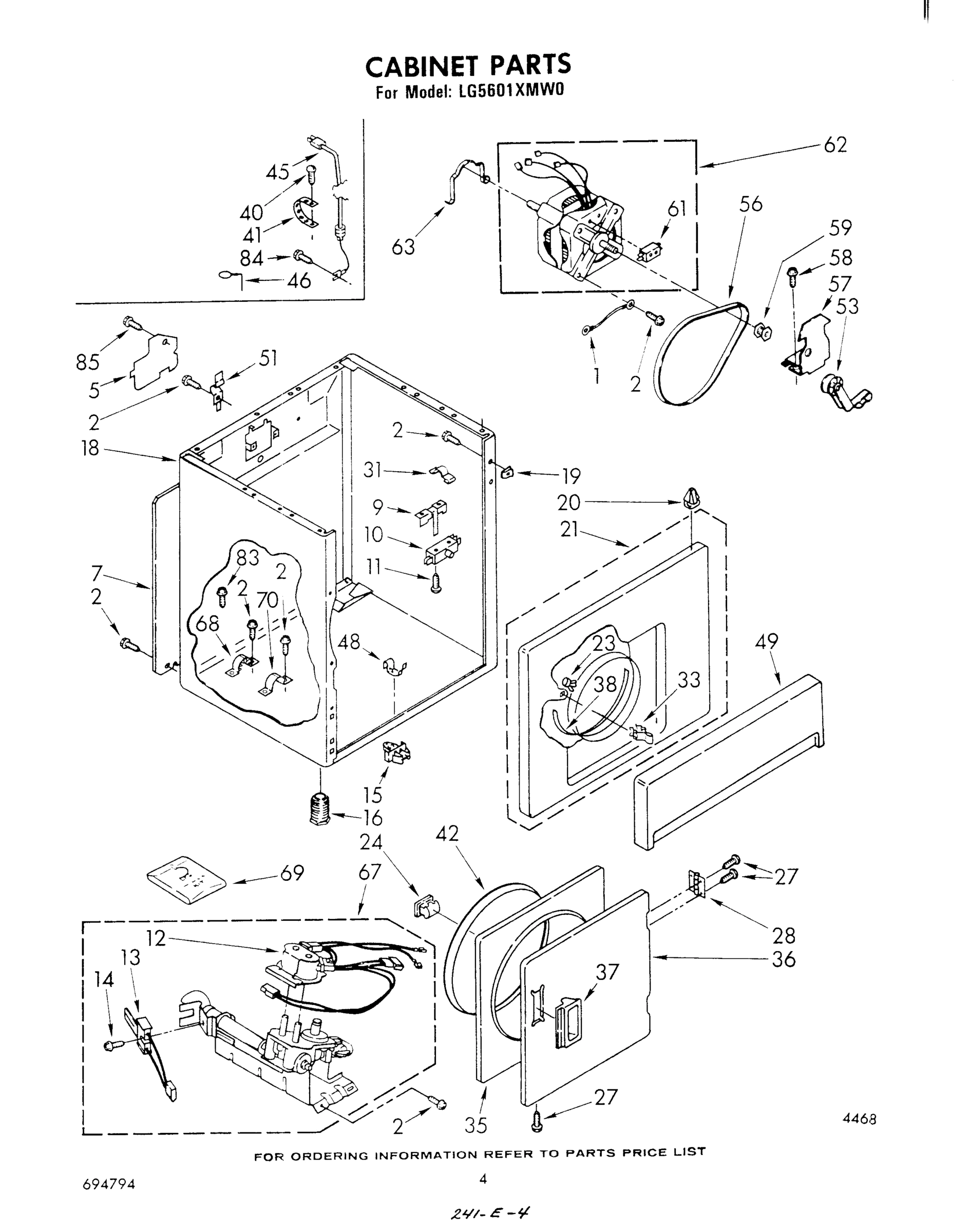

03 - CABINET

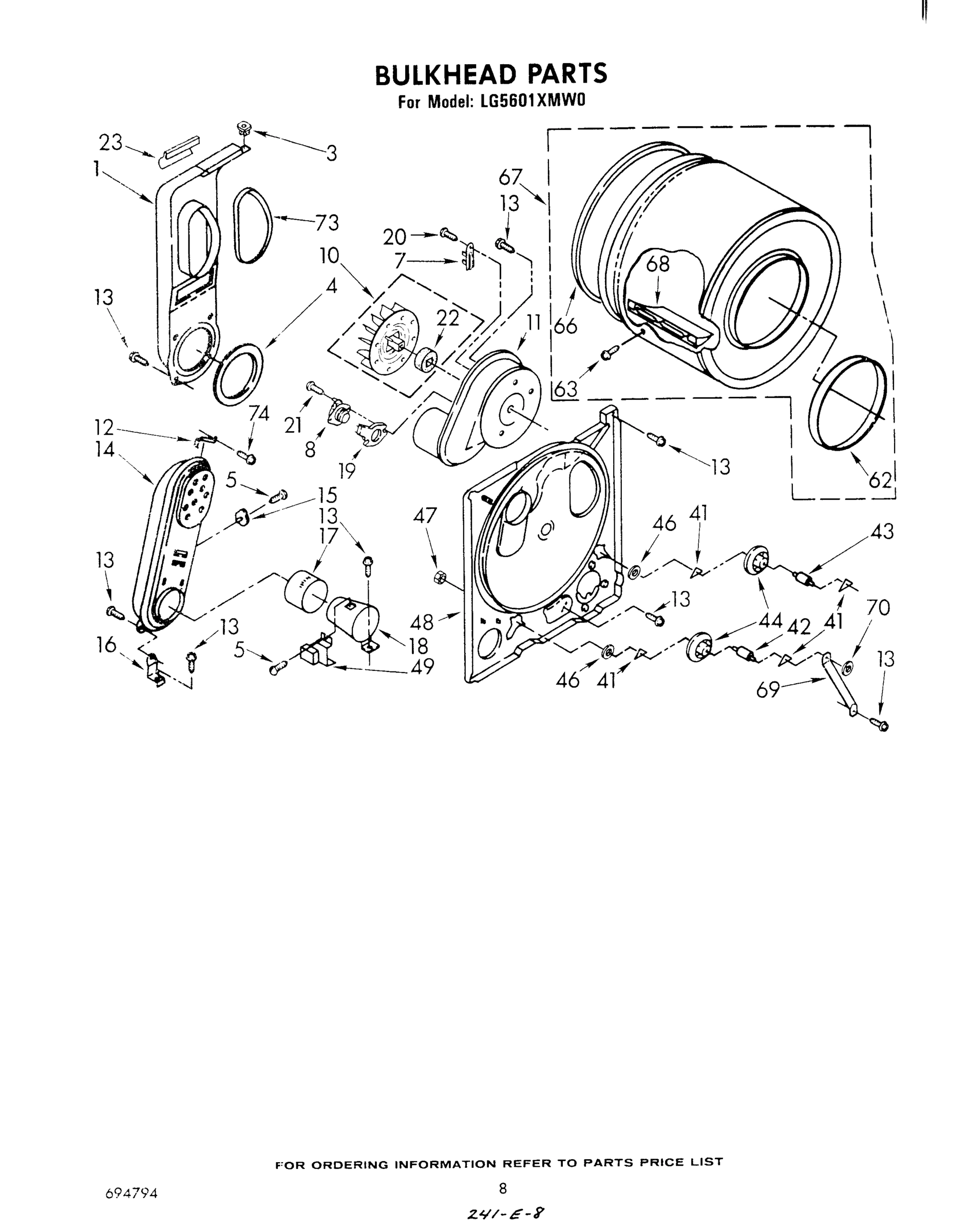

05 - BULKHEAD

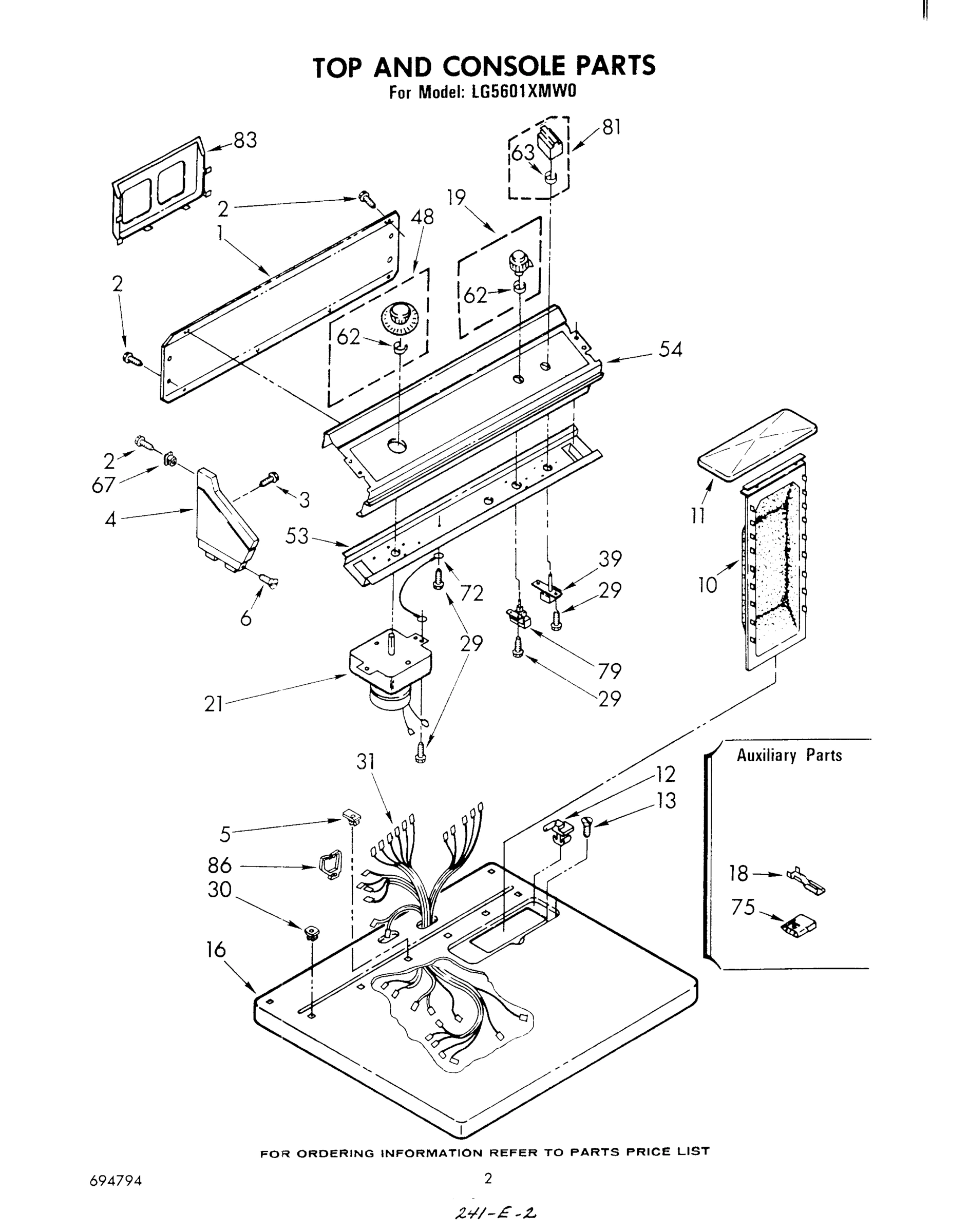

02 - TOP AND CONSOLE , LITERATURE AND OPTIONAL
Common parts from model Whirlpool LG5601XMW0 GAS DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
End Cap L.H. (White) WPL 375305 Contact Us For Availability
4
End Cap L.H. (White) WPL 375309 Contact Us For Availability
4
End Cap L.H. (Almond) WPL 375313 Contact Us For Availability
4
End Cap L.H. (Almond) WPL 375315 Contact Us For Availability
4
End Cap L.H. (Golden Harvest End Cap R.H.) WPL 375318 Contact Us For Availability
4
End Cap L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
5
Stop, Push-In (2) WPL 358472 Contact Us For Availability
6
Screw, 8-18 WPL 358225 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
15
Thermostat, 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability
15
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
16
Support, Heater Box (2) WPL 337445 Contact Us For Availability
16
Lint Chute To Top (White) WPL 688479 Contact Us For Availability
16
Lint Chute To Top (Almond) WPL 689449 Contact Us For Availability
16
Lint Chute To Top (Golden Harvest) WPL 689452 Contact Us For Availability
18
Cabinet (White) WPL 690847 Contact Us For Availability
18
Cabinet (Almond) WPL 690848 Contact Us For Availability
18
Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability
19
Thermostat, Heater WPL 61298 Contact Us For Availability
19
Control Knob Assembly WPL 690292 Contact Us For Availability
21
Upper Front Panel (White) WPL 693202 Contact Us For Availability
21
Upper Front Panel (Almond) WPL 693203 Contact Us For Availability
21
Upper Front Panel (Golden Harvest) WPL 693206 Contact Us For Availability
21
Timer Assembly, 60 Hz. WPL 687950 Contact Us For Availability
22
Seal, Blower WPL 694630 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
31
Harness, Wiring WPL 694750 Contact Us For Availability
36
Door, Front (Almond) WPL 689314 Contact Us For Availability
36
Door Front (Golden Harvest) WPL 689319 Contact Us For Availability
37
Handle, Door (Almond) WPL 689306 Contact Us For Availability
37
Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
39
Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability
40
Screw, 10-24 x 1 WPL 132848 Contact Us For Availability
41
Strap, Ground WPL 22965 Contact Us For Availability
46
Wire, Ground WPL 364089 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
48
Timer Knob Assembly WPL 690201 Contact Us For Availability
49
Panel, Toe (White) WPL 237035 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689537 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689539 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 691679 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
63
Clip WPL 90015 Contact Us For Availability
67
WPL 694670 WPL 694670 Contact Us For Availability
67
Nut, Push-In (4) WPL 694055 Contact Us For Availability
69
WPL 279243 WPL 279243 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
70
WPL 695885 WPL 695885 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability
79
Switch, Rotary (Temperature Selector) WPL 694720 Contact Us For Availability
81
Button, Push-To-Start WPL 689857 Contact Us For Availability
83
WPL 343826 WPL 343826 Contact Us For Availability
83
Rack, Literature WPL 357645 Contact Us For Availability
86
Golden Harvest WPL 261890 Contact Us For Availability
86
Lev WPL 350941 Contact Us For Availability
86
WPL 688412 WPL 688412 Contact Us For Availability
86
WPL 691277 WPL 691277 Contact Us For Availability
86
WPL 693849 WPL 693849 Contact Us For Availability
86
WPL 694344 WPL 694344 Contact Us For Availability
86
WPL 694794 WPL 694794 Contact Us For Availability
86
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
