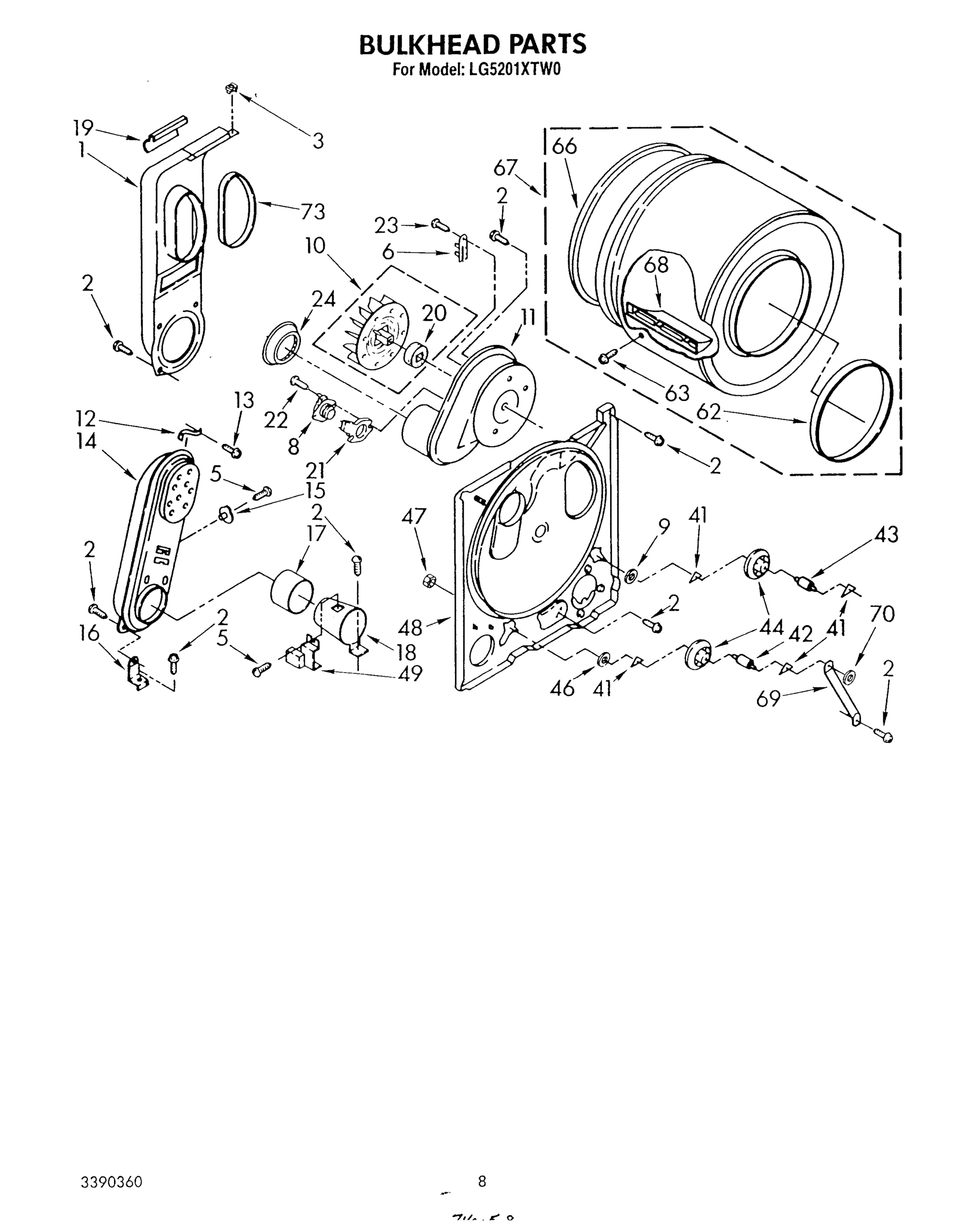

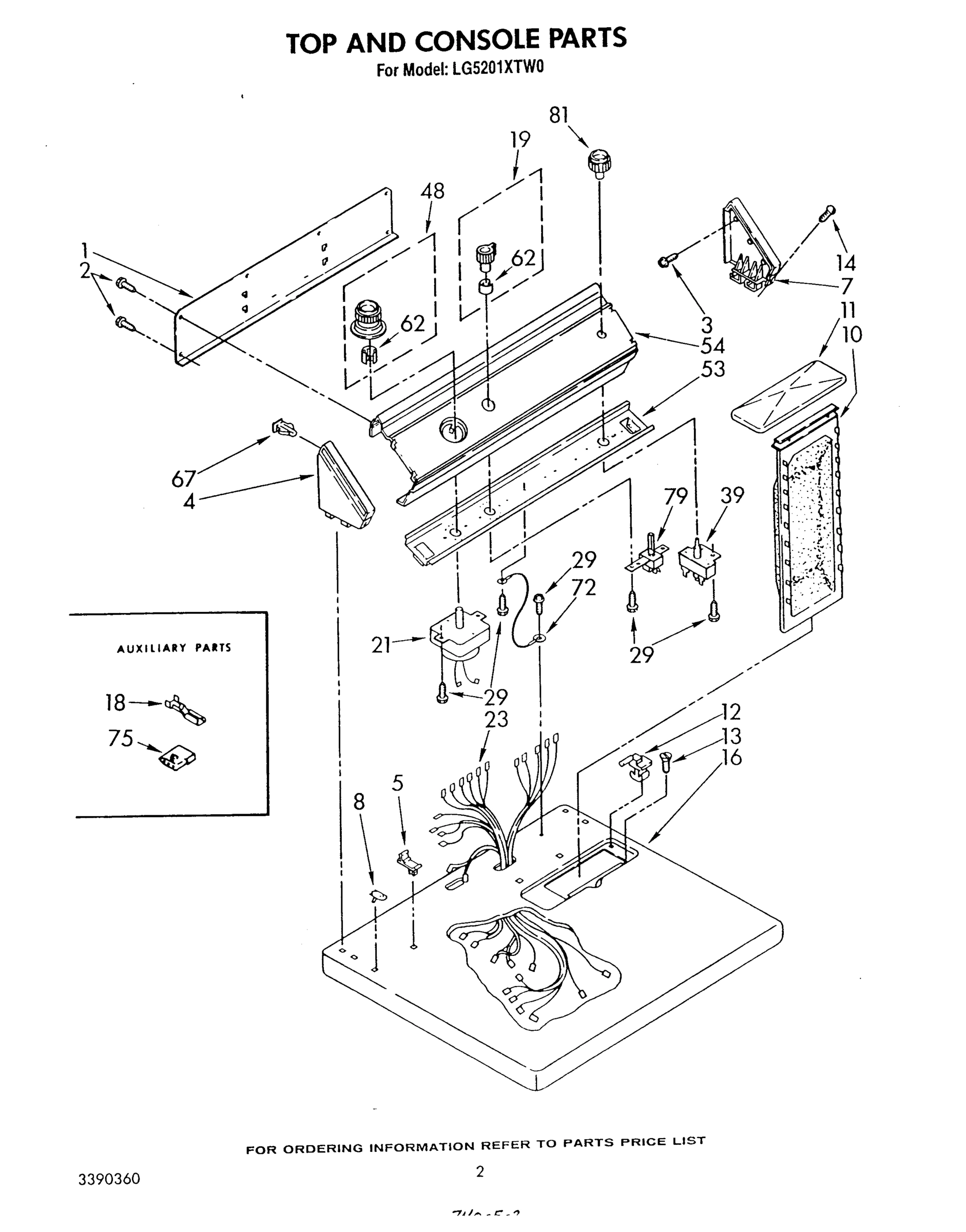

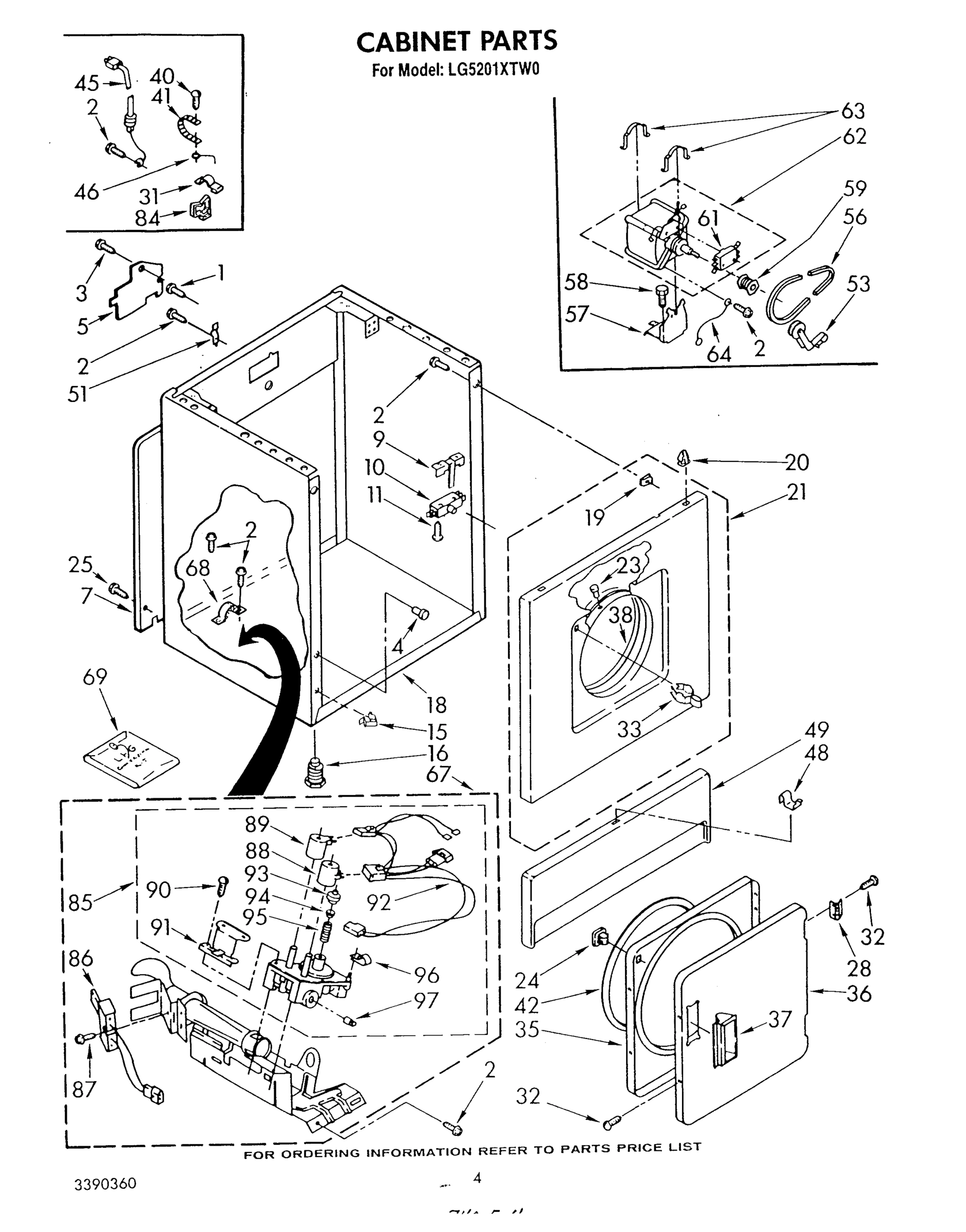

Model Whirlpool LG5201XTW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3389442 WPL LIT3389442 Contact Us For Availability

WPL LIT3390215 WPL LIT3390215 Contact Us For Availability

WPL LIT3390360 WPL LIT3390360 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

WPL LIT693849 WPL LIT693849 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $197.13

1

Panel, Rear Console WPL 386367 Contact Us For Availability

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

98460 Whirlpool Nut Backorder WPL 98460 $8.89

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

4

Cap, End (L.H.) WPL 63790 Contact Us For Availability

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

5

Stop, Push-In (2) WPL 358472 Contact Us For Availability

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

7

Cap , End (R.H.) WPL 63796 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

14

Screw, End Cap To Top WPL 64211 Contact Us For Availability

15

Thermostat, 205oF (96oC) 338471 (Alt.) 341196 WPL 660036 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

19

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Control Knob, Temperature WPL 386635 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

21

Heater, Thermostat WPL 61894 Contact Us For Availability

21

Timer Assembly, 60 Hz. WPL 3387479 Contact Us For Availability

22

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

23

Harness, Wiring WPL 694690 Contact Us For Availability

24

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

24

Nut, Compression WPL 233076 Contact Us For Availability

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

32

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

33

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

35

280077 Whirlpool Door Backorder WPL 280077 $116.66

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695214 Contact Us For Availability

Door, Front (Platinum) WPL 695215 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

Handle, Door (Almond) WPL 689308 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689586 Contact Us For Availability

Handle, Door (Platinum) WPL 695284 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

Switch, Push-To-Start 346364 (Alt.) 692021 (A WPL 660936 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

Strap, Ground WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

Wire, Ground (60 Hz.) WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

48

Bulkhead WPL 685775 Contact Us For Availability

48

Timer Knob Assembly WPL 3387900 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

Panel, Toe (White) WPL 692427 Contact Us For Availability

Panel, Toe (Almond) WPL 692428 Contact Us For Availability

Panel, Toe (Golden Harvest) WPL 692431 Contact Us For Availability

Panel, Toe (Toast WPL 695142 Contact Us For Availability

WPL 695143 WPL 695143 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 3387986 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

Clip, Push-On (4) WPL 689559 Contact Us For Availability

67

WPL 694670 WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

69

WPL 279243 WPL 279243 Contact Us For Availability

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability

79

Switch, Temperature WPL 694720 Contact Us For Availability

81

Knob, Push-To-Start WPL 3387894 Contact Us For Availability

84

WPL 688412 WPL 688412 Contact Us For Availability

85

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

86

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

87

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

88

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

90

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

91

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

92

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

93

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

94

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

95

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

96

WPL 694510 WPL 694510 Contact Us For Availability

97

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58
