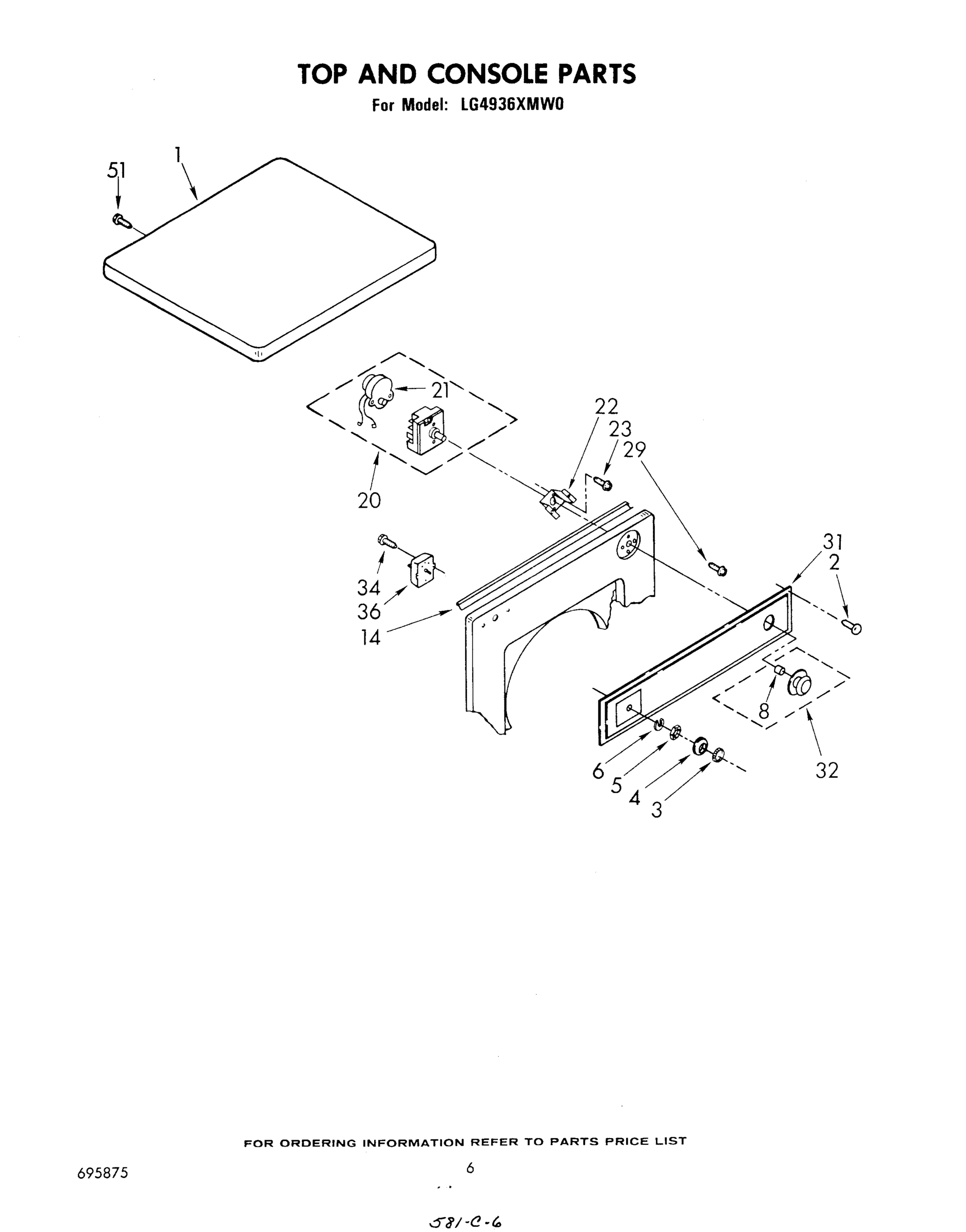

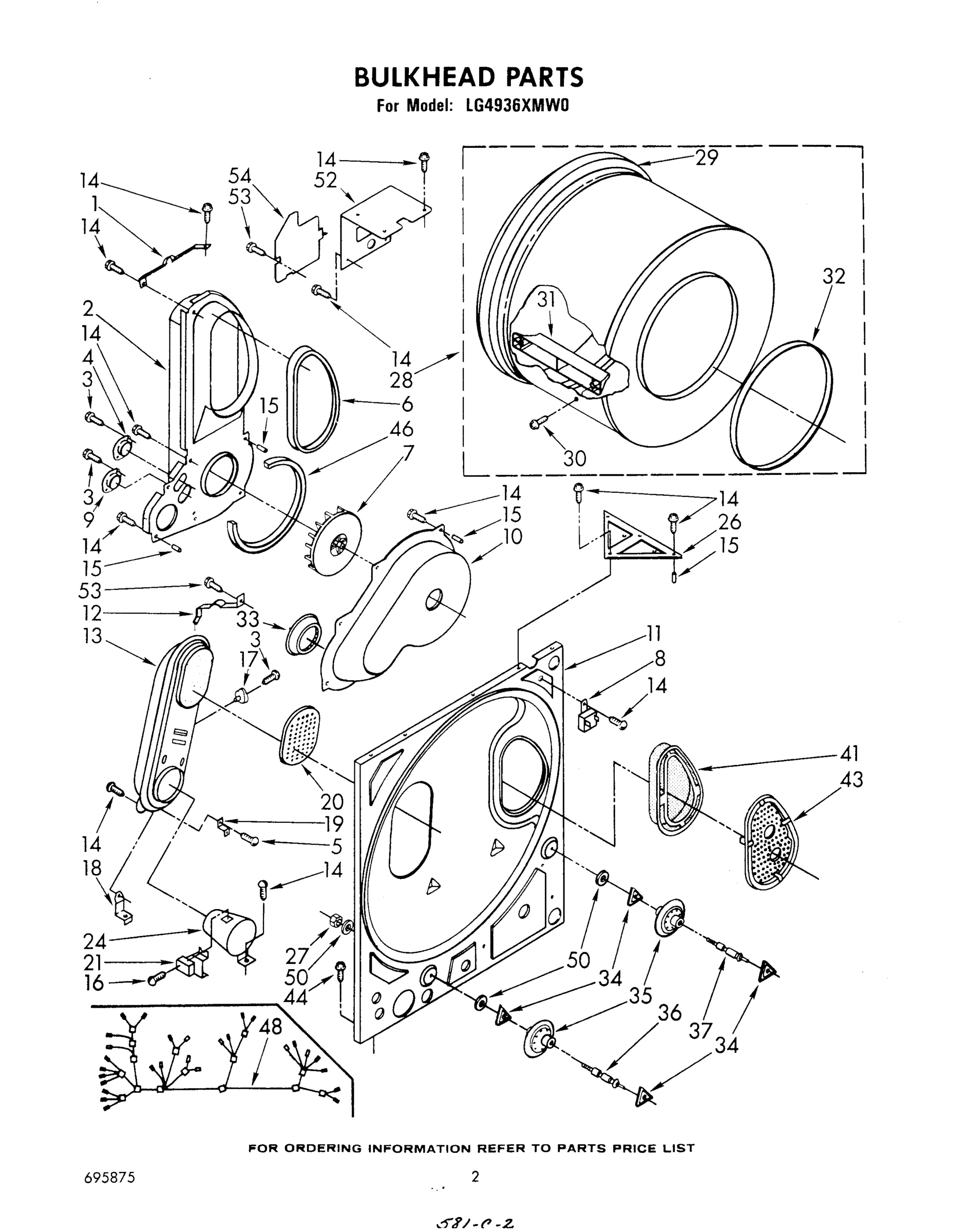

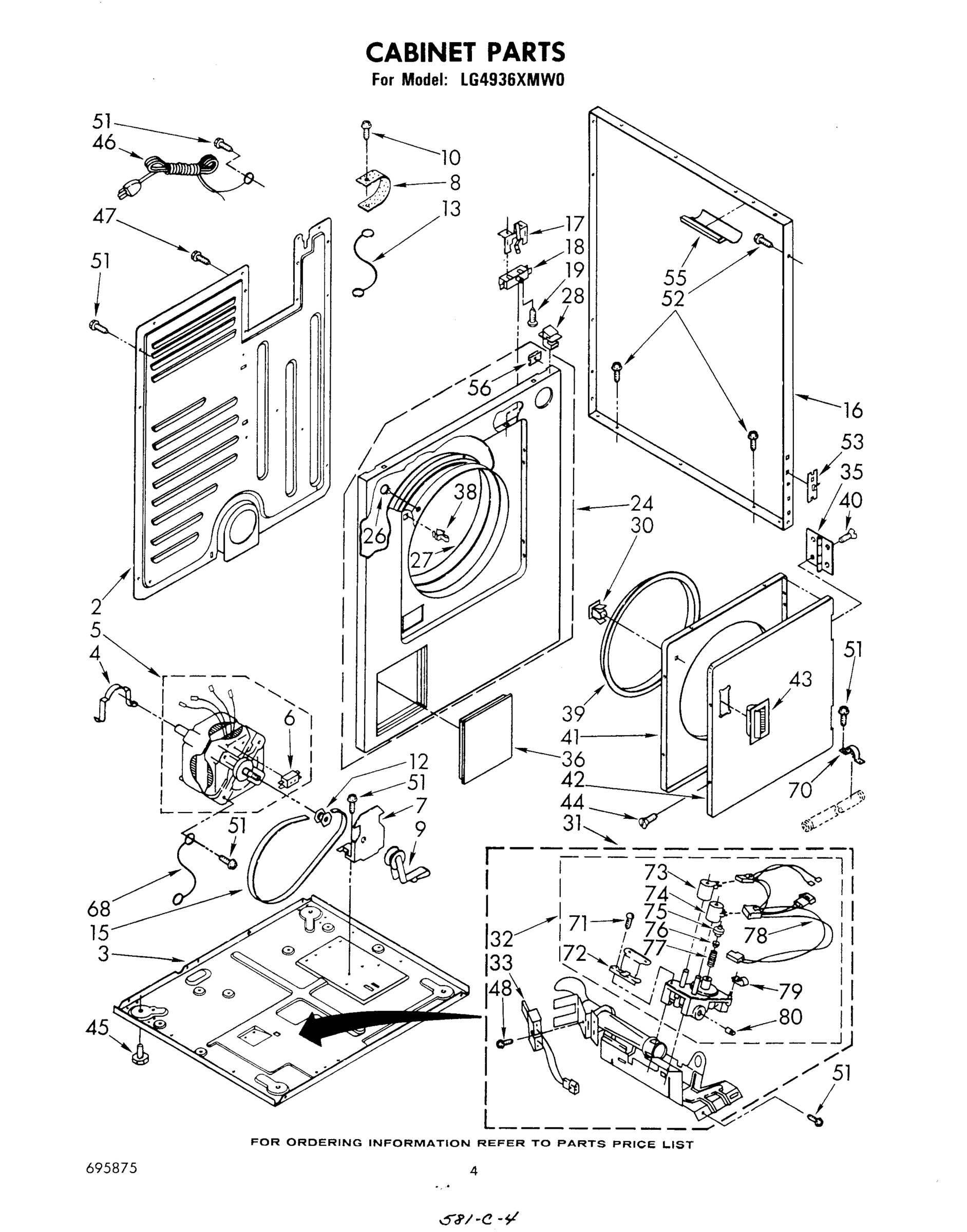

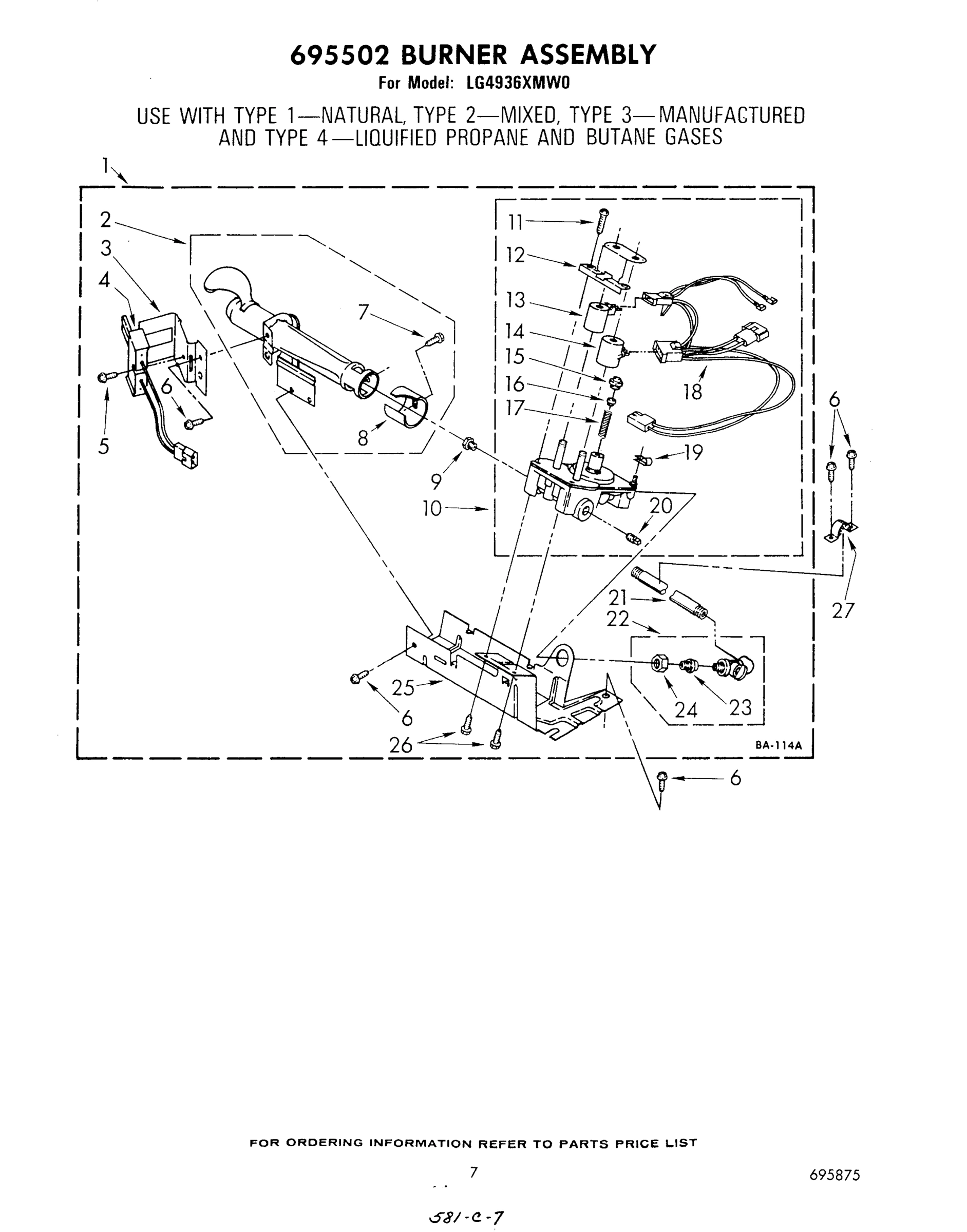

Model Whirlpool LG4936XMW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

345703 Whirlpool White Maintop Backorder WPL 345703 $164.55

1

Top (Almond) WPL 689250 Contact Us For Availability

1

Top (Golden Harvest) WPL 689253 Contact Us For Availability

1

Top (Toast) WPL 695190 Contact Us For Availability

1

Top (Platinum) WPL 695191 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

Panel, Rear WPL 349641 Contact Us For Availability

2

Rivet, Plastic (4) WPL 694024 Contact Us For Availability

3

WP348726 Whirlpool Base Assembly Backorder WPL WP348726 $178.67

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Nut, Knurled WPL 688041 Contact Us For Availability

4

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

4

Ring, Trim WPL 345530 Contact Us For Availability

5

Nut, Hex WPL 90891 Contact Us For Availability

6

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

6

Lockwasher WPL 688193 Contact Us For Availability

7

696541 Whirlpool Base Backorder WPL 696541 $60.36

7

Screw, Tapping WPL 98611 Contact Us For Availability

8

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

8

Shutter, Air WPL 688630 Contact Us For Availability

8

Strap, Ground WPL 22965 Contact Us For Availability

9

WP234822 Whirlpool Gas Orifice Backorder WPL WP234822 $18.30

9

WP347743 Whirlpool Gas Orifice Backorder WPL WP347743 $35.88

9

WP347744 Whirlpool Gas Orifice Backorder WPL WP347744 $54.59

9

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

9

Orifice, Burner (Type 3) WPL 234660 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 296301 Contact Us For Availability

10

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

12

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $55.99

13

Wire, Ground WPL 364089 Contact Us For Availability

14

Protector Support WPL 686769 Contact Us For Availability

15

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $32.46

Panel, Side (2) (White) WPL 348705 Contact Us For Availability

Panel, Side (2) (Almond) WPL 689445 Contact Us For Availability

Panel, Side (2) (Golden Harvest) WPL 689448 Contact Us For Availability

Panel, Side (2) (Toast) WPL 695194 Contact Us For Availability

Panel, Side (2) (Platinum) WPL 695195 Contact Us For Availability

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

18

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.82

18

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

19

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

19

Spacer, Heater Box WPL 347641 Contact Us For Availability

20

345335 Whirlpool Cover In Stock WPL 345335 $70.35

20

Timer, 60 Hz. WPL 690621 Contact Us For Availability

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

21

Pipe, Gas Supply WPL 695501 Contact Us For Availability

21

(Timer Motor Not Serviceable) WPL ARI117792A Contact Us For Availability

22

348171 Whirlpool Bracket Backorder WPL 348171 $53.09

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

Nut, Compression WPL 233076 Contact Us For Availability

Front Panel (White) WPL 696938 Contact Us For Availability

Front Panel (Almond) WPL 696939 Contact Us For Availability

Front Panel (Golden Harvest) WPL 696940 Contact Us For Availability

Front Panel (Toast) WPL 696941 Contact Us For Availability

Front Panel (Platinum (When Ordering Any Of T WPL 696942 Contact Us For Availability

25

Base, Burner WPL 694669 Contact Us For Availability

26

279220 Whirlpool Clip In Stock WPL 279220 $18.99

26

345325 Whirlpool Gusset Backorder WPL 345325 $57.37

27

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

27

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

27

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.99

28

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $68.99

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

30

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

30

Screw, 11-16 x 7/8 (6) WPL 690372 Contact Us For Availability

31

BAFFLE-DRM WPL 685207 Contact Us For Availability

31

Burner, Complete (Refer to Page 7 For Further WPL 695502 Contact Us For Availability

31

Panel, Control WPL 694034 Contact Us For Availability

32

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

32

Timer Knob & Skirt Assembly WPL 694048 Contact Us For Availability

33

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

33

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

34

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

35

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

Door, Access (White) WPL 693039 Contact Us For Availability

Door, Access (Almond) WPL 693040 Contact Us For Availability

Door, Access (Golden Harvest) WPL 693043 Contact Us For Availability

Door, Access (Toast) WPL 695372 Contact Us For Availability

Door, Access (Platinum) WPL 695373 Contact Us For Availability

Switch, Push-To-Start WPL 689038 Contact Us For Availability

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

39

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

41

280077 Whirlpool Door Backorder WPL 280077 $116.66

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $47.98

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front WPL 695214 Contact Us For Availability

WPL 695215 WPL 695215 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

WPL 689306 WPL 689306 Contact Us For Availability

WPL 689584 WPL 689584 Contact Us For Availability

WPL 695286 WPL 695286 Contact Us For Availability

44

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

45

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

46

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

Seal, Duct To Scroll WPL 345685 Contact Us For Availability

48

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

48

Harness, Wiring WPL 696735 Contact Us For Availability

50

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

51

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

52

279304 Whirlpool Block Terminal Backorder WPL 279304 $121.76

52

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

53

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

54

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

55

WPL 686767 WPL 686767 Contact Us For Availability

56

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

68

WPL 687261 WPL 687261 Contact Us For Availability

70

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

71

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

72

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

74

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

75

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

76

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

77

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

78

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

79

WPL 694510 WPL 694510 Contact Us For Availability

80

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58
