Whirlpool LG4931XTN1 GAS DRYER

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

View on Model

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

View on Model

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

View on Model

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

View on Model

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

View on Model

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

View on Model

Leveler (Thinner) WPL 350941 Contact Us For Availability

View on Model

Almond (Uncut) WPL 978883 Contact Us For Availability

View on Model

Instructions, Installation WPL LIT3389592 Contact Us For Availability

View on Model

Use & Care Guide WPL LIT3391349 Contact Us For Availability

View on Model

WPL LIT3391427 WPL LIT3391427 Contact Us For Availability

View on Model

WPL LIT4319413 WPL LIT4319413 Contact Us For Availability

View on Model

1

345396 Whirlpool Clip Backorder WPL 345396 $50.76

View on Model

1

345703 Whirlpool White Maintop Backorder WPL 345703 $164.55

View on Model

1

Top (Almond) WPL 4319405 Contact Us For Availability

View on Model

1

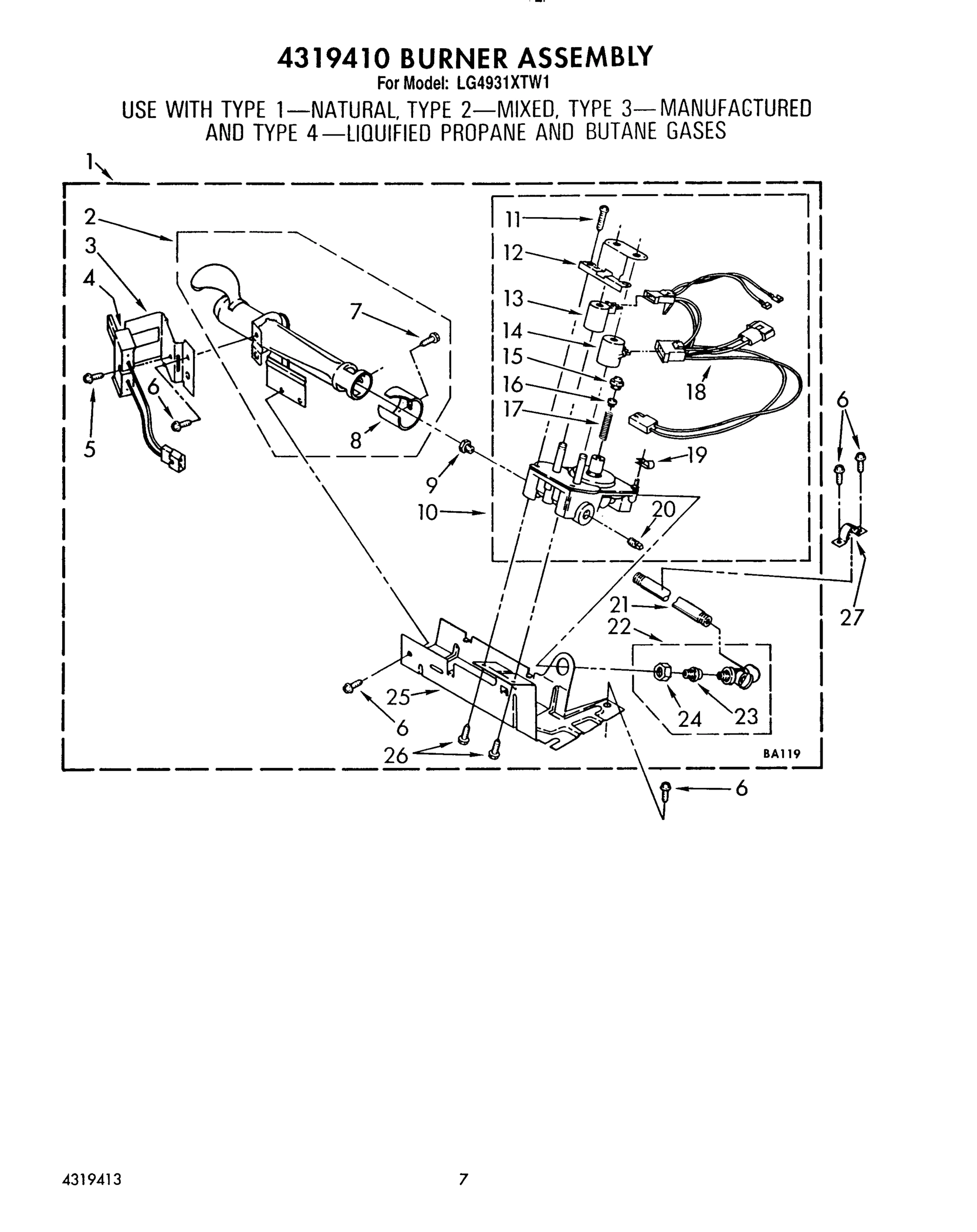

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 4319410 Contact Us For Availability

View on Model

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

View on Model

2

Rivet, Plastic (4) WPL 307563 Contact Us For Availability

View on Model

2

Air Duct Assembly WPL 696545 Contact Us For Availability

View on Model

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

View on Model

3

Nut, Knurled WPL 688041 Contact Us For Availability

View on Model

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

View on Model

4

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

View on Model

4

Ring, Trim WPL 345530 Contact Us For Availability

View on Model

5

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $56.94

View on Model

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

View on Model

5

Nut, Hex WPL 90891 Contact Us For Availability

View on Model

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

View on Model

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

View on Model

6

Lockwasher WPL 688193 Contact Us For Availability

View on Model

7

696541 Whirlpool Base Backorder WPL 696541 $60.36

View on Model

7

WP696426 Whirlpool Wheel In Stock WPL WP696426 $48.64

View on Model

7

Screw, Tapping WPL 98611 Contact Us For Availability

View on Model

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

View on Model

8

Shutter, Air WPL 688630 Contact Us For Availability

View on Model

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

View on Model

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

View on Model

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

View on Model

9

Washer, Support WPL 339492 Contact Us For Availability

View on Model

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

View on Model

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

View on Model

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

View on Model

10

696419 Whirlpool Housing Backorder WPL 696419 $91.36

View on Model

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

View on Model

11

Bulkhead WPL 4319404 Contact Us For Availability

View on Model

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

View on Model

13

Box, Heater WPL 346952 Contact Us For Availability

View on Model

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

View on Model

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

View on Model

14

Protector Support WPL 686769 Contact Us For Availability

View on Model

15

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

View on Model

16

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

View on Model

17

Thermostat, Heater Box 205~F (96.1~C) WPL 660036 Contact Us For Availability

View on Model

18

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.82

View on Model

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

View on Model

19

Clip, Harness WPL 694510 Contact Us For Availability

View on Model

19

Spacer, Heater Box WPL 347641 Contact Us For Availability

View on Model

20

345335 Whirlpool Cover In Stock WPL 345335 $70.35

View on Model

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

View on Model

20

Timer, 60 Hz. WPL 690621 Contact Us For Availability

View on Model

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

View on Model

21

(Timer Motor Not Serviceable) WPL ARI117788A Contact Us For Availability

View on Model

21

Pipe, Gas Supply WPL 695501 Contact Us For Availability

View on Model

22

348171 Whirlpool Bracket Backorder WPL 348171 $53.09

View on Model

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

View on Model

23

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

View on Model

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

View on Model

24

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

View on Model

24

Nut, Compression WPL 233076 Contact Us For Availability

View on Model

26

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

View on Model

26

Gusset (2) WPL 4319384 Contact Us For Availability

View on Model

27

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

View on Model

27

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

View on Model

27

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

View on Model

27

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

View on Model

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.99

View on Model

28

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

View on Model

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $68.99

View on Model

30

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.98

View on Model

30

Screw, 11-16 x 7/8 (6) WPL 690372 Contact Us For Availability

View on Model

31

Panel, Control WPL 696452 Contact Us For Availability

View on Model

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

View on Model

32

Timer Knob & Skirt Assembly WPL 696350 Contact Us For Availability

View on Model

33

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

View on Model

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

View on Model

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

View on Model

36

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

View on Model

36

Switch, Push-To-Start WPL 689038 Contact Us For Availability

View on Model

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

View on Model

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $47.98

View on Model

41

Door, Rear WPL 4319397 Contact Us For Availability

View on Model

42

Door, Front (White) WPL 4319327 Contact Us For Availability

View on Model

42

Door, Front (Almond) WPL 4319333 Contact Us For Availability

View on Model

43

WP3405184 Whirlpool White Door Handle In Stock WPL WP3405184 $59.99

View on Model

43

Handle, Door (Almond) WPL 4319334 Contact Us For Availability

View on Model

44

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

View on Model

44

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

View on Model

45

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

View on Model

46

Cord, Power WPL 4319379 Contact Us For Availability

View on Model

46

Seal, Duct To Scroll WPL 696658 Contact Us For Availability

View on Model

48

Harness, Wiring WPL 4319419 Contact Us For Availability

View on Model

50

Washer, Support (4) WPL 4319307 Contact Us For Availability

View on Model

53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

View on Model

55

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

View on Model

55

Protector, Support (7``) WPL 686767 Contact Us For Availability

View on Model

56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

View on Model

56

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

View on Model

68

Wire, Ground (Motor) WPL 4319390 Contact Us For Availability

View on Model

75

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

View on Model

76

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

View on Model

77

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

View on Model

Model Whirlpool LG4931XTN1 GAS DRYER – Common Parts & Diagrams

Common parts from model Whirlpool LG4931XTN1 GAS DRYER
