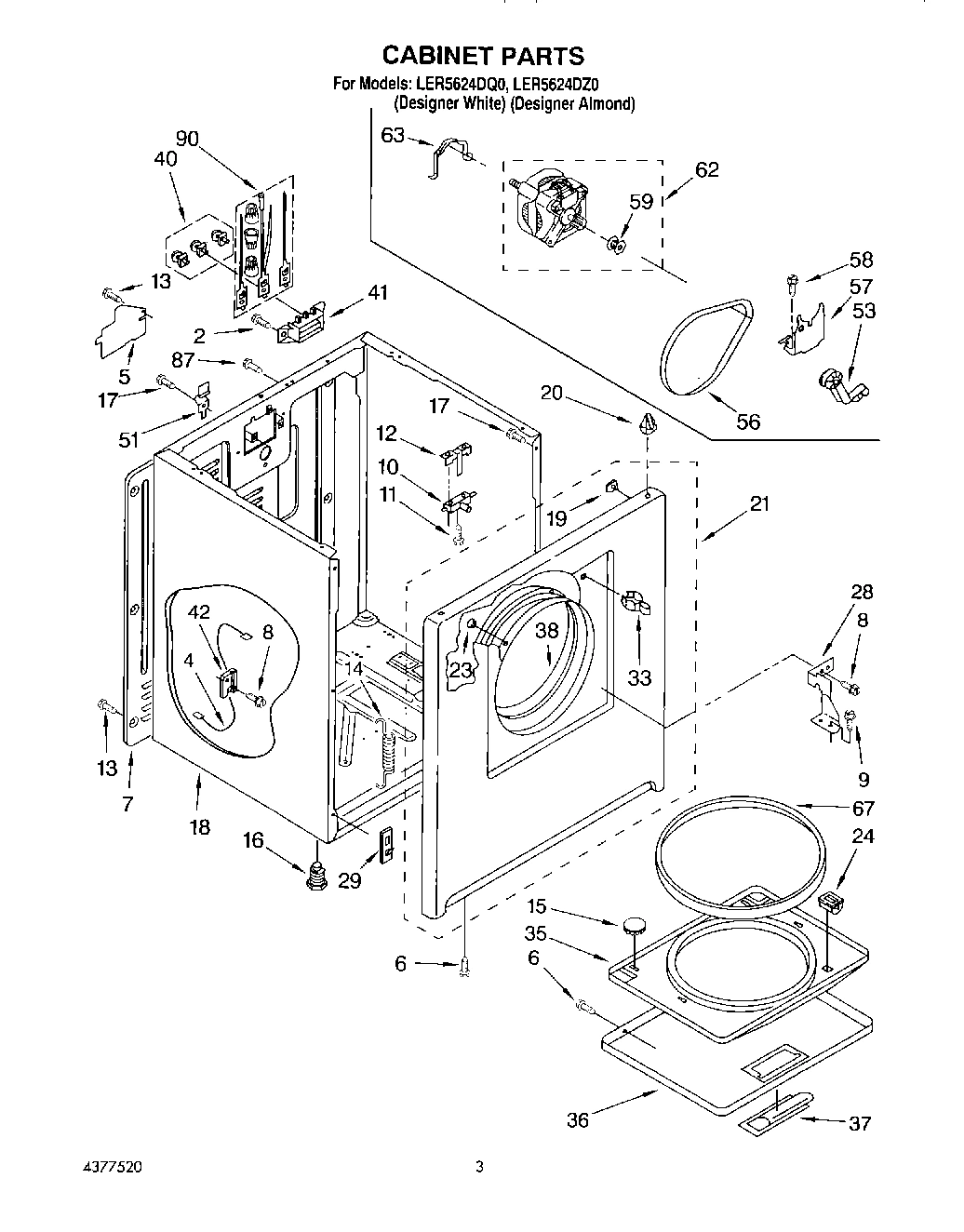

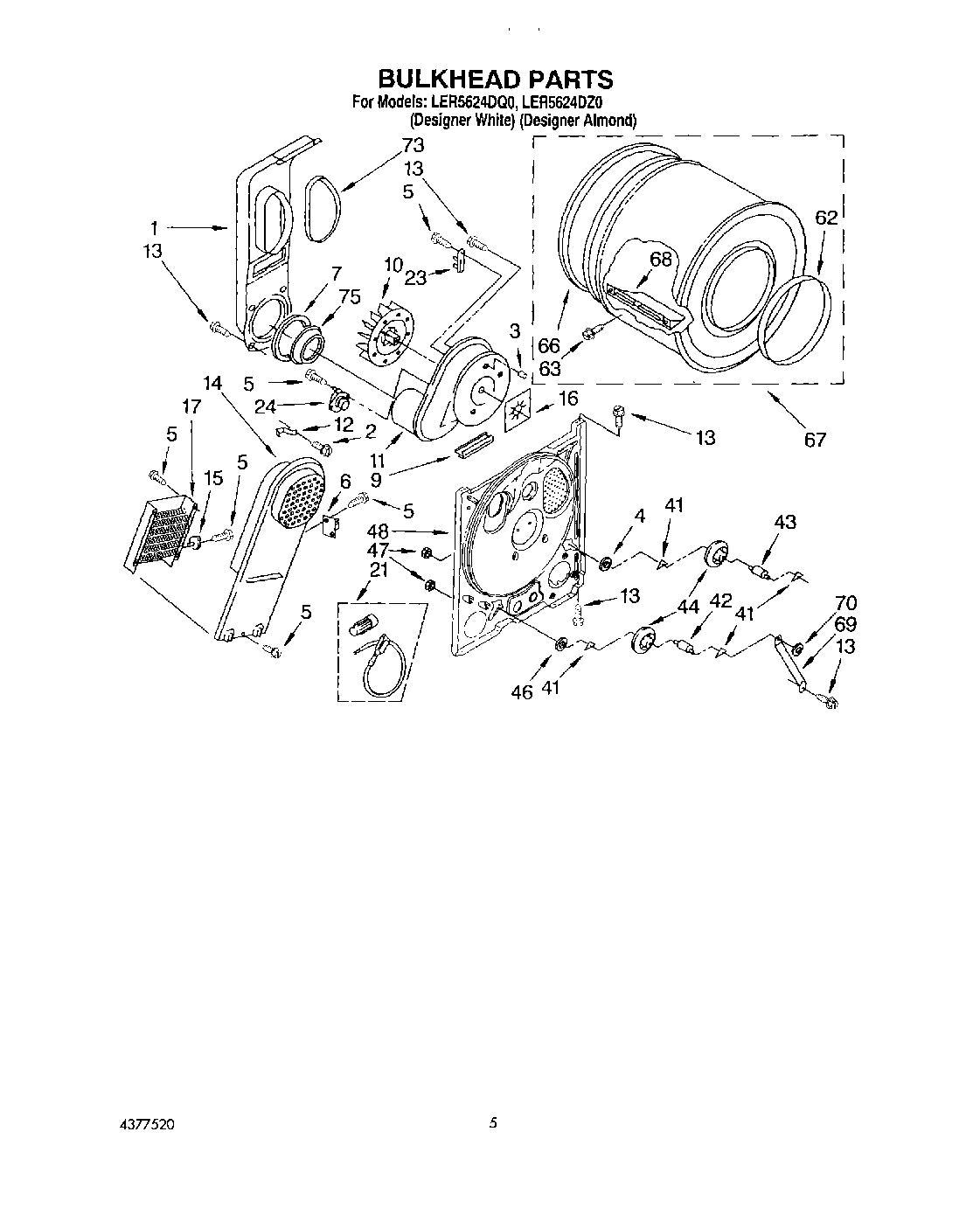

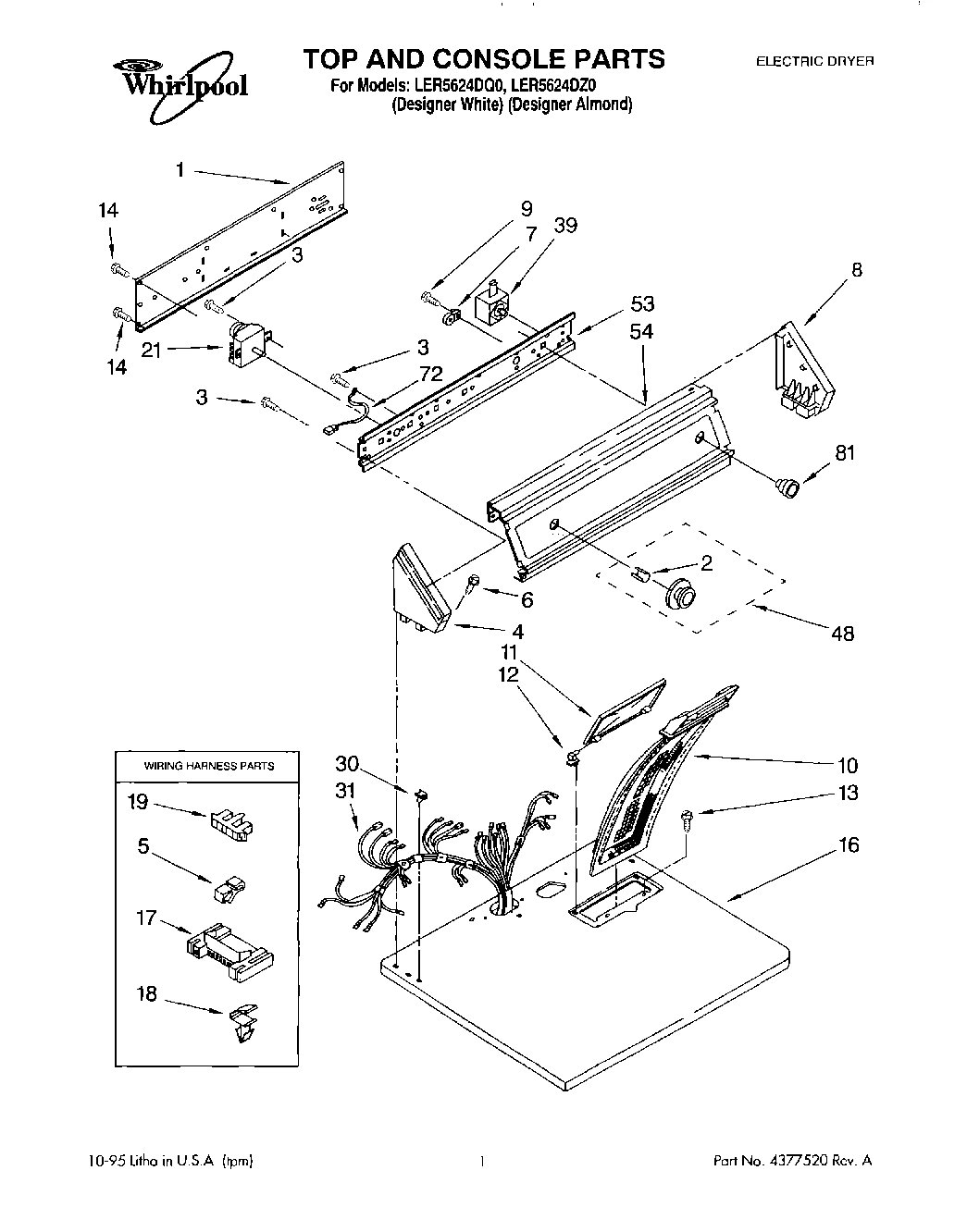

Model Whirlpool LER5624DZ0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

279505 Whirlpool Chute Backorder WPL 279505 $197.13

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

2

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

3

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

4

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

4

Cable, Door (2) WPL 230131 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

6

279816 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279816 $44.99

7

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

9

686889 Whirlpool Pad Backorder WPL 686889 $14.02

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

11

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

11

Housing, Blower WPL 695081 Contact Us For Availability

279771 Whirlpool Clip Backorder WPL 279771 $9.33

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

13

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

14

WP337186 Whirlpool Door Spring In Stock WPL WP337186 $4.99

14

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

14

WP8541818 Whirlpool Box In Stock WPL WP8541818 $188.99

15

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $51.83

15

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

Top (White) WPL 3396022 Contact Us For Availability

Top (Almond) WPL 3396023 Contact Us For Availability

Seal, Blower Shaft WPL 3392123 Contact Us For Availability

17

279838 Whirlpool Dryer Heating Element 5400W In Stock WPL 279838 $70.99

17

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

18

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Connector, Timer WPL 3397269 Contact Us For Availability

21

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

21

WP3976568 Whirlpool Timer In Stock WPL WP3976568 $229.84

23

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

24

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

28

WP238460 Whirlpool Hinge In Stock WPL WP238460 $4.99

28

Hinge, Door (R.H.) WPL 238456 Contact Us For Availability

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

31

Harness, Wiring WPL 3399653 Contact Us For Availability

39

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $42.99

40

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

42

GUIDE WPL 337182 Contact Us For Availability

42

Guide, Cable (R.H.) WPL 337183 Contact Us For Availability

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

48

3957753 Whirlpool Knob Backorder WPL 3957753 $43.19

48

WP3957752 Whirlpool Knob Backorder WPL WP3957752 $37.23

48

Bulkhead WPL 3397264 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 3396293 Contact Us For Availability

54

Panel, Control (White) WPL 3403654 Contact Us For Availability

54

Panel, Control (Almond) WPL 3403670 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

63

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

81

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $48.56

90

279318 Whirlpool Terminal In Stock WPL 279318 $46.99
