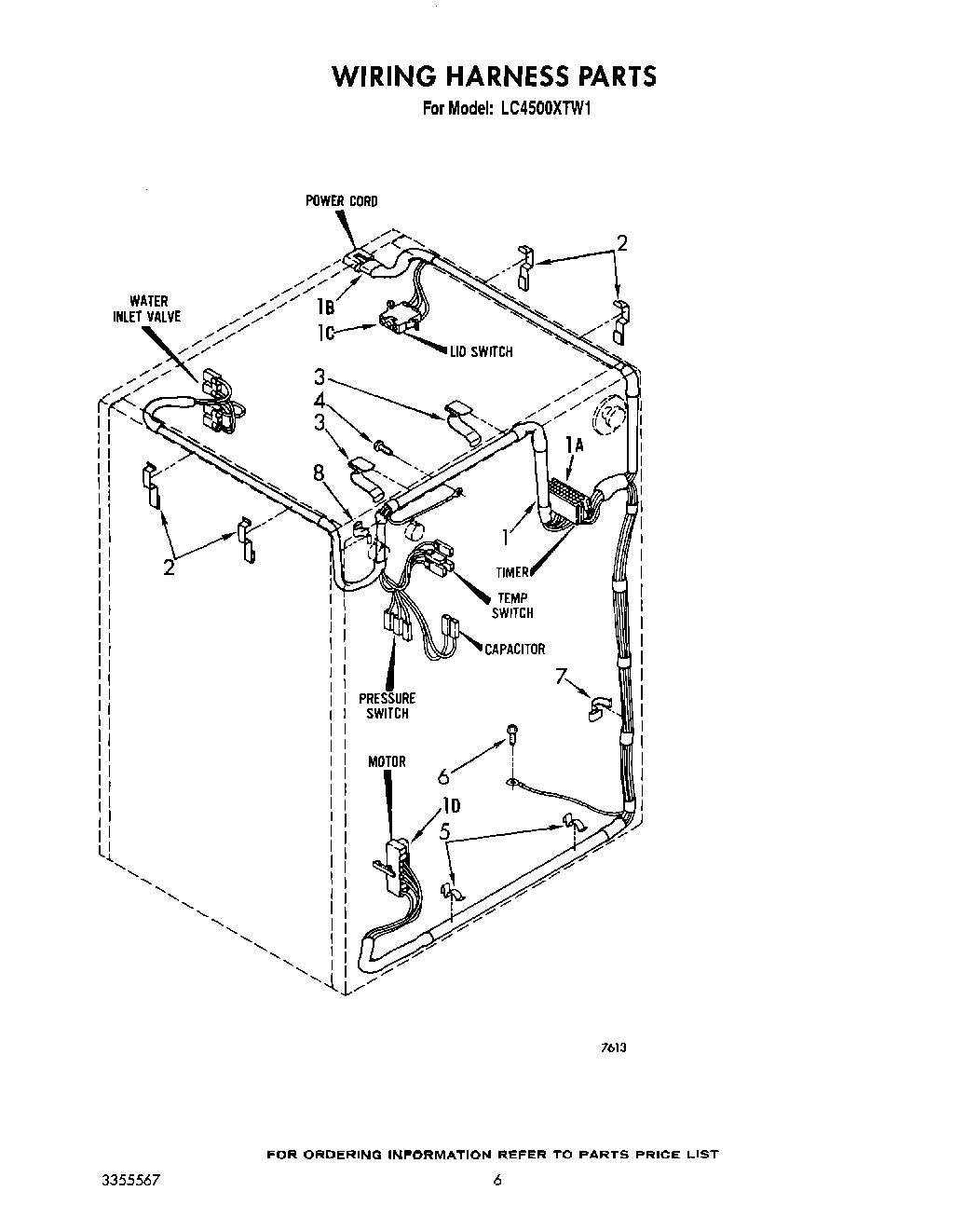

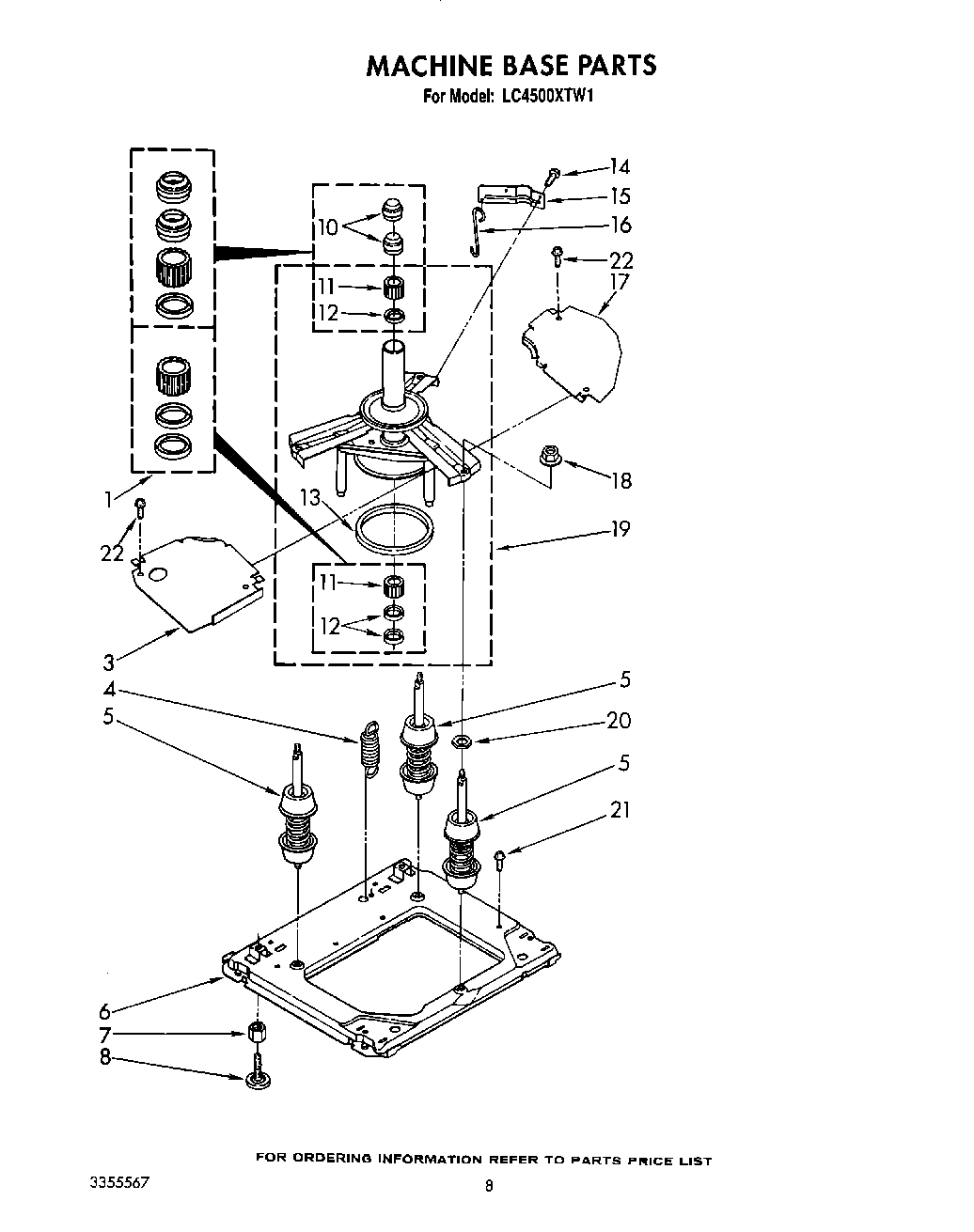

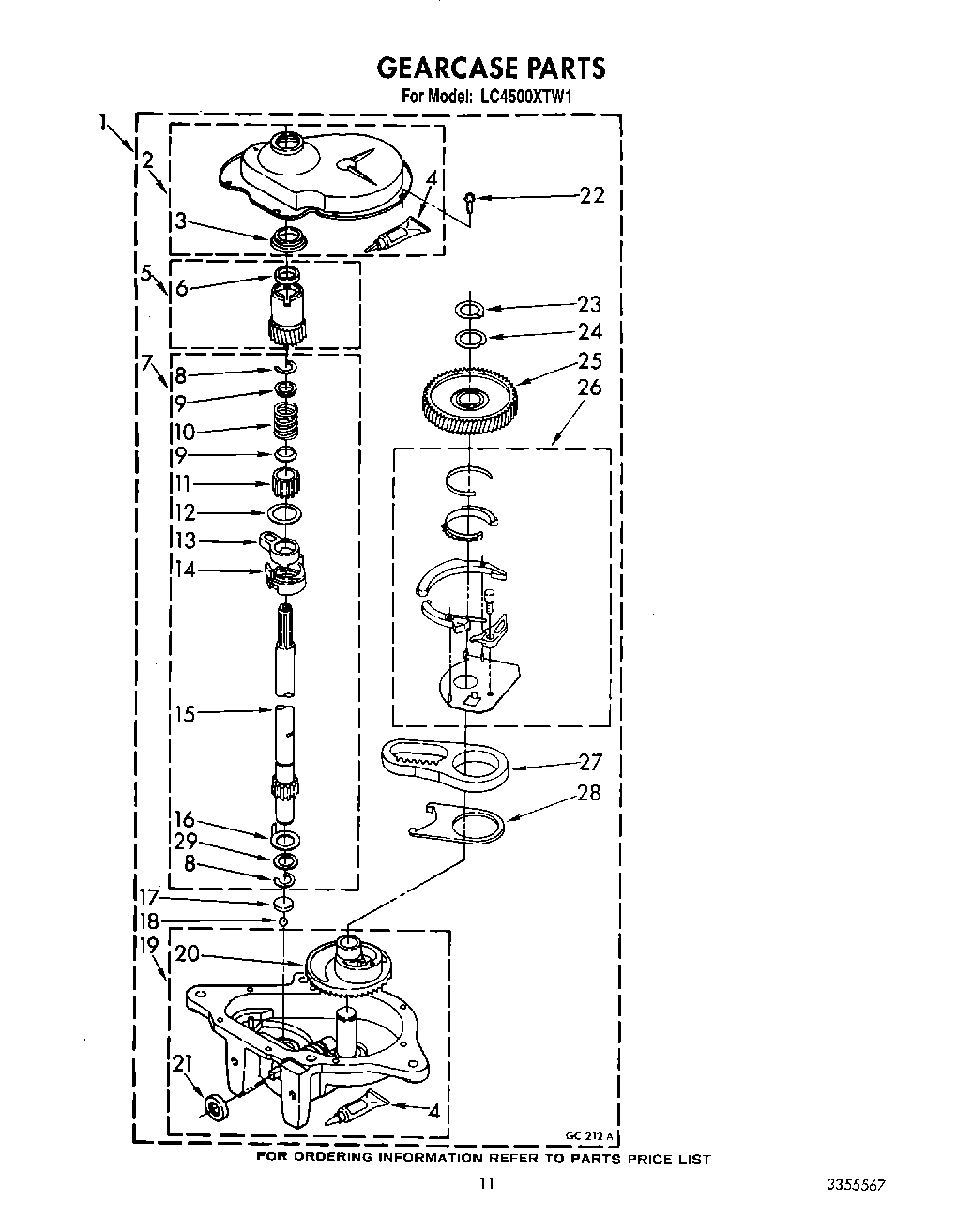

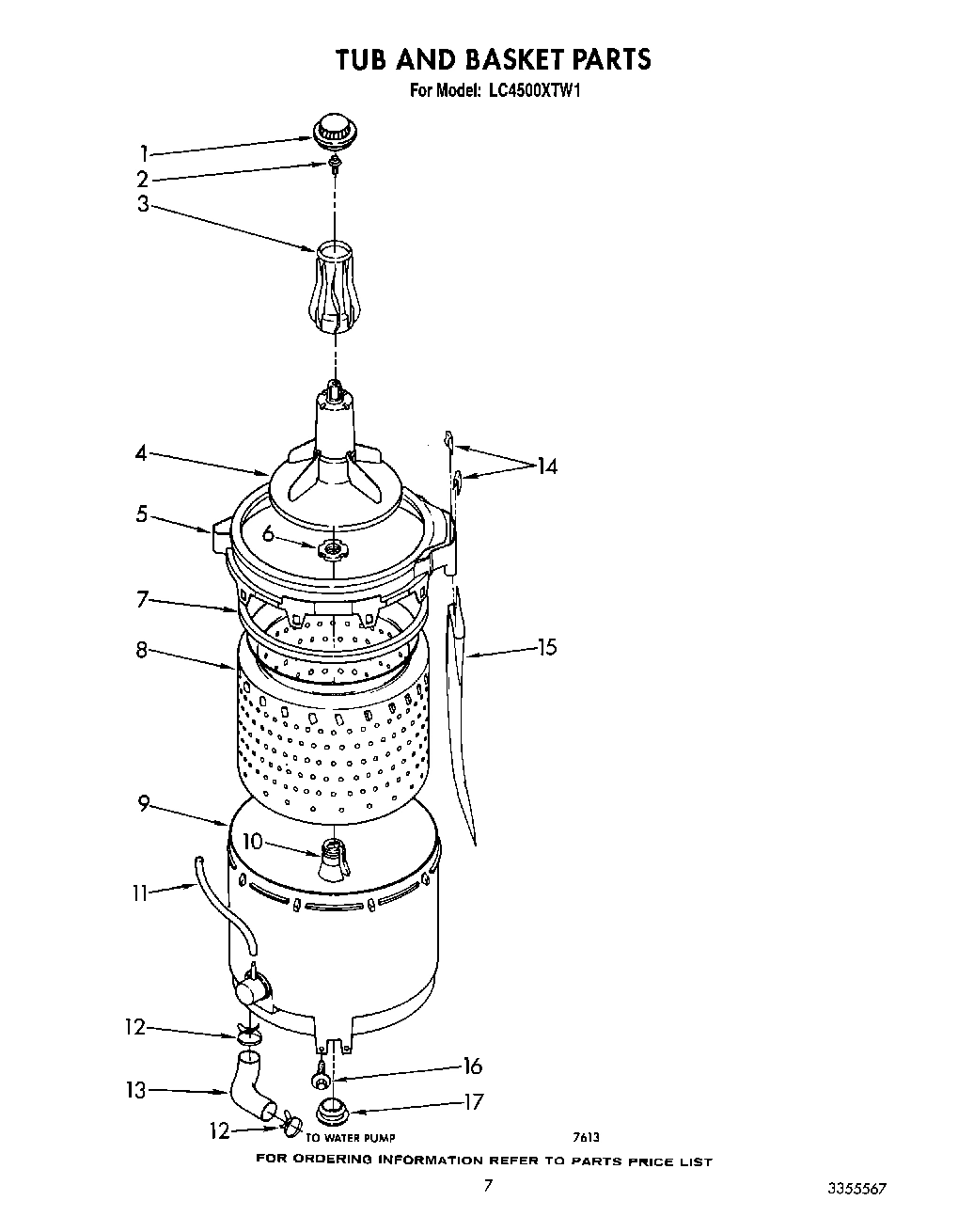

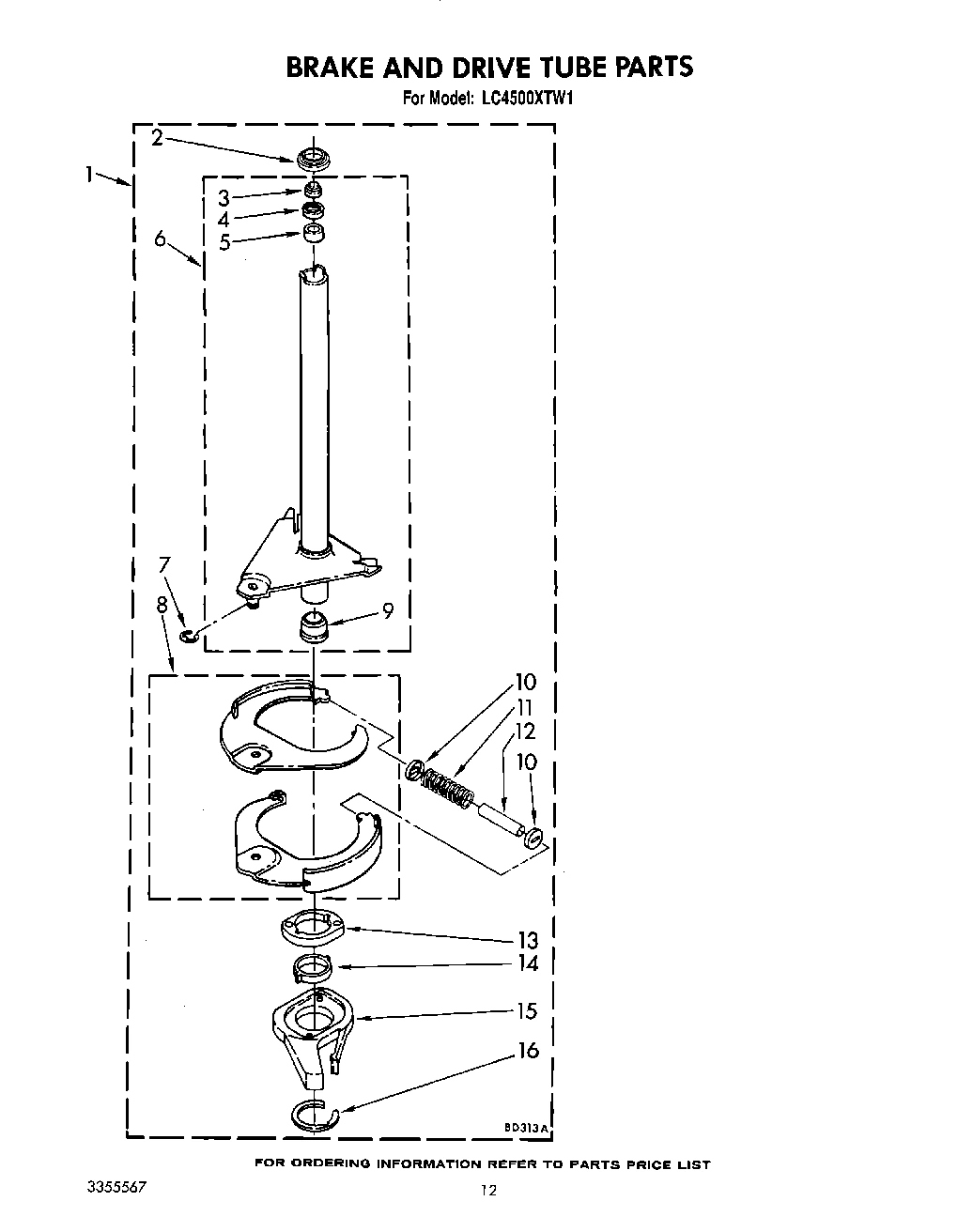

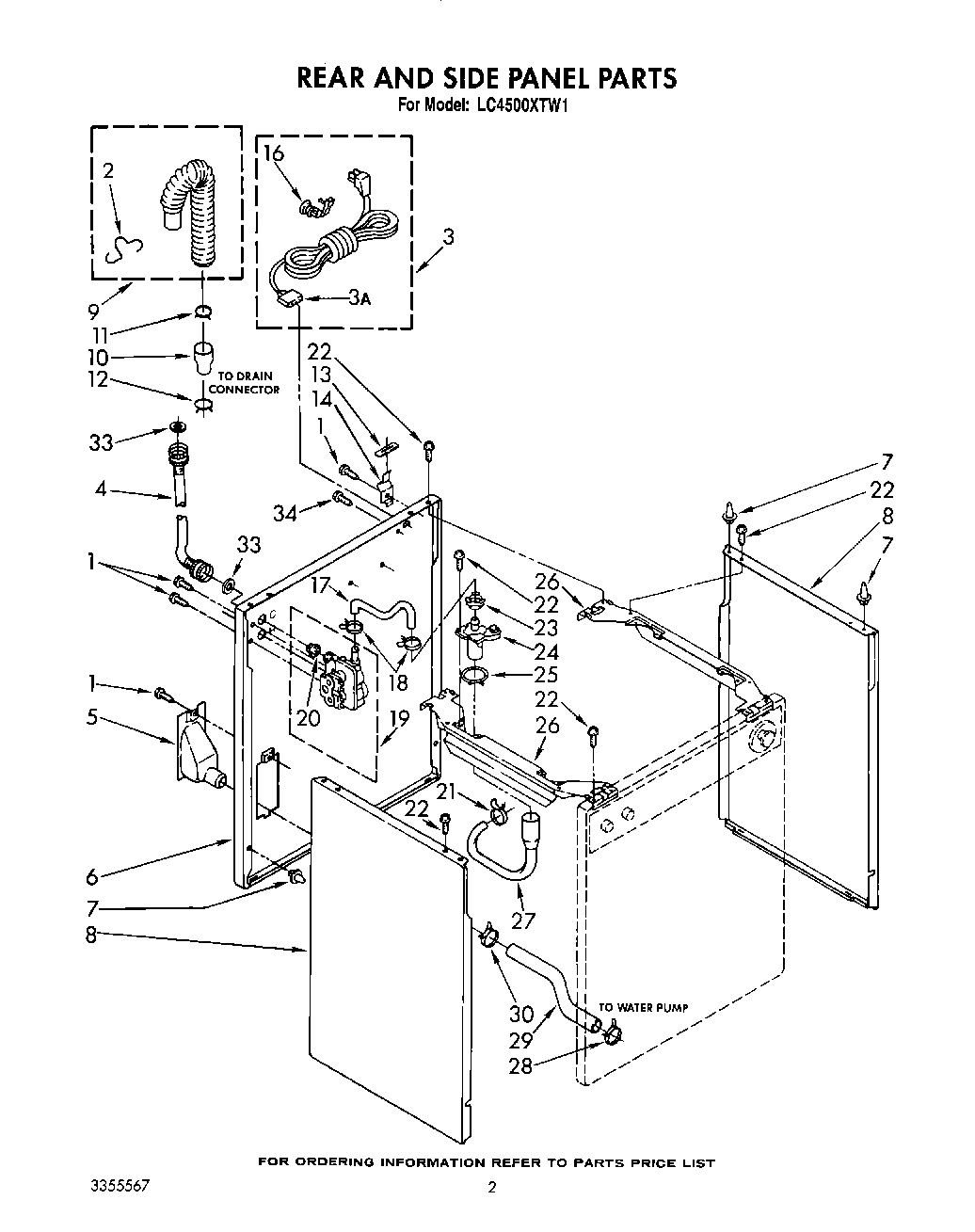

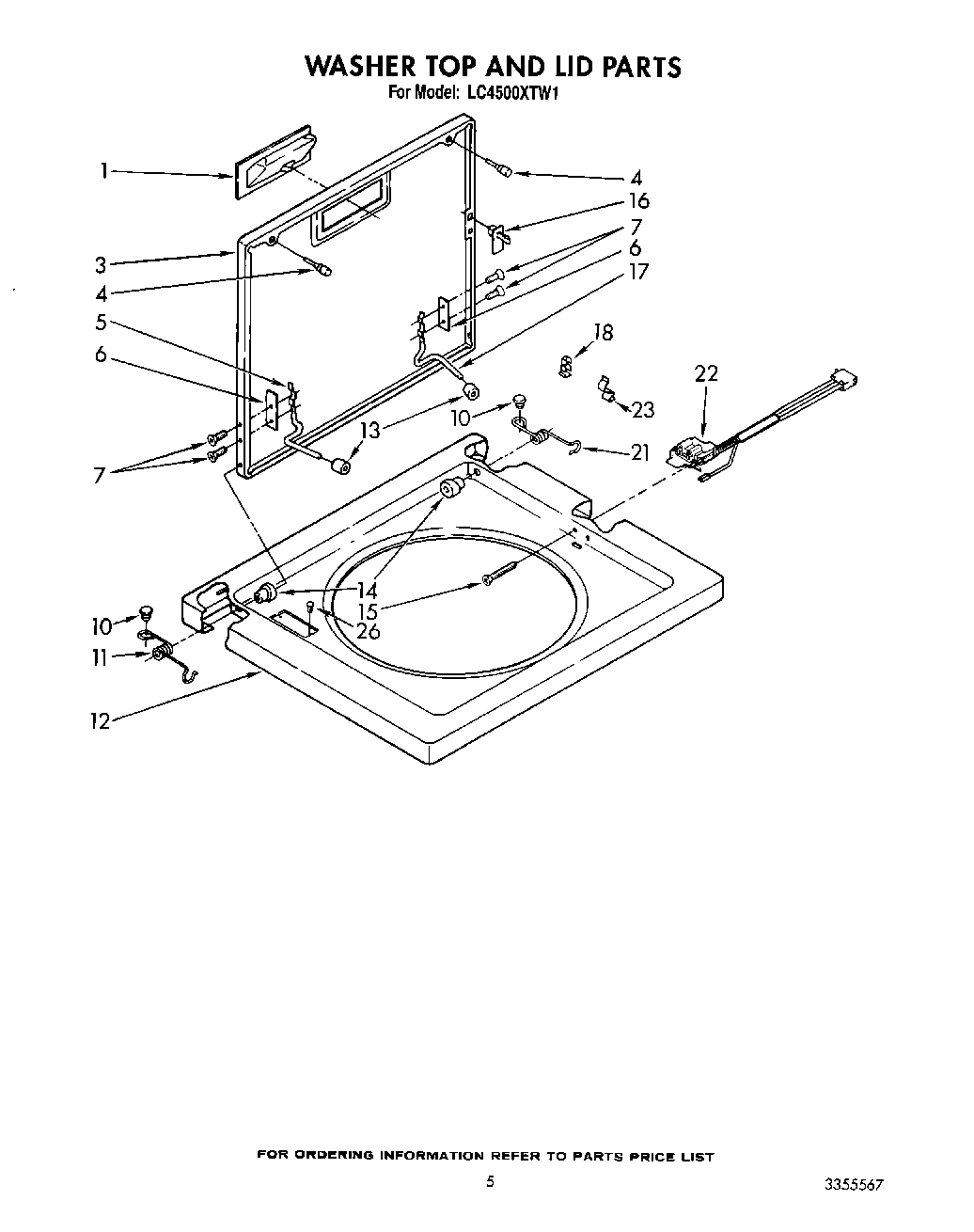

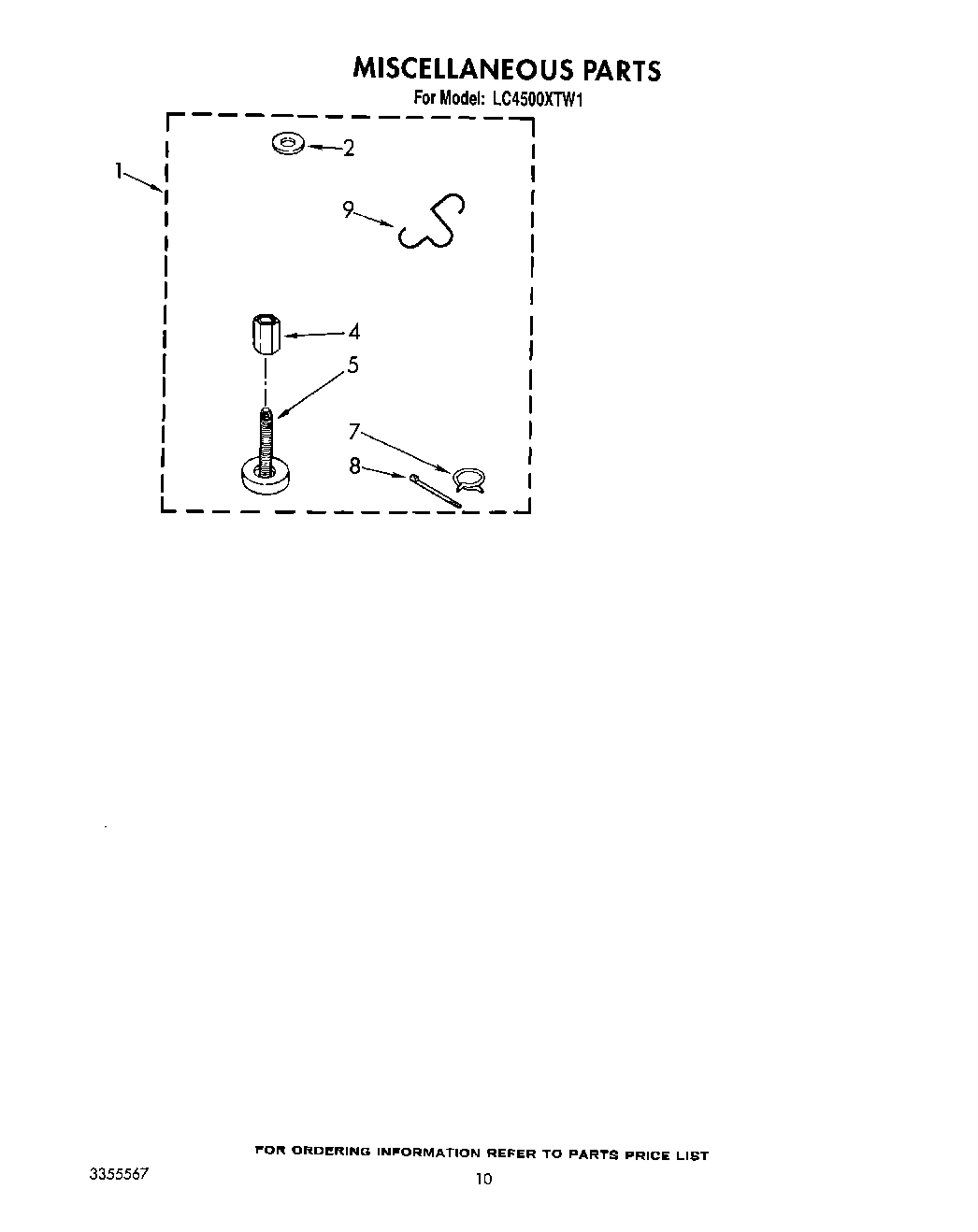

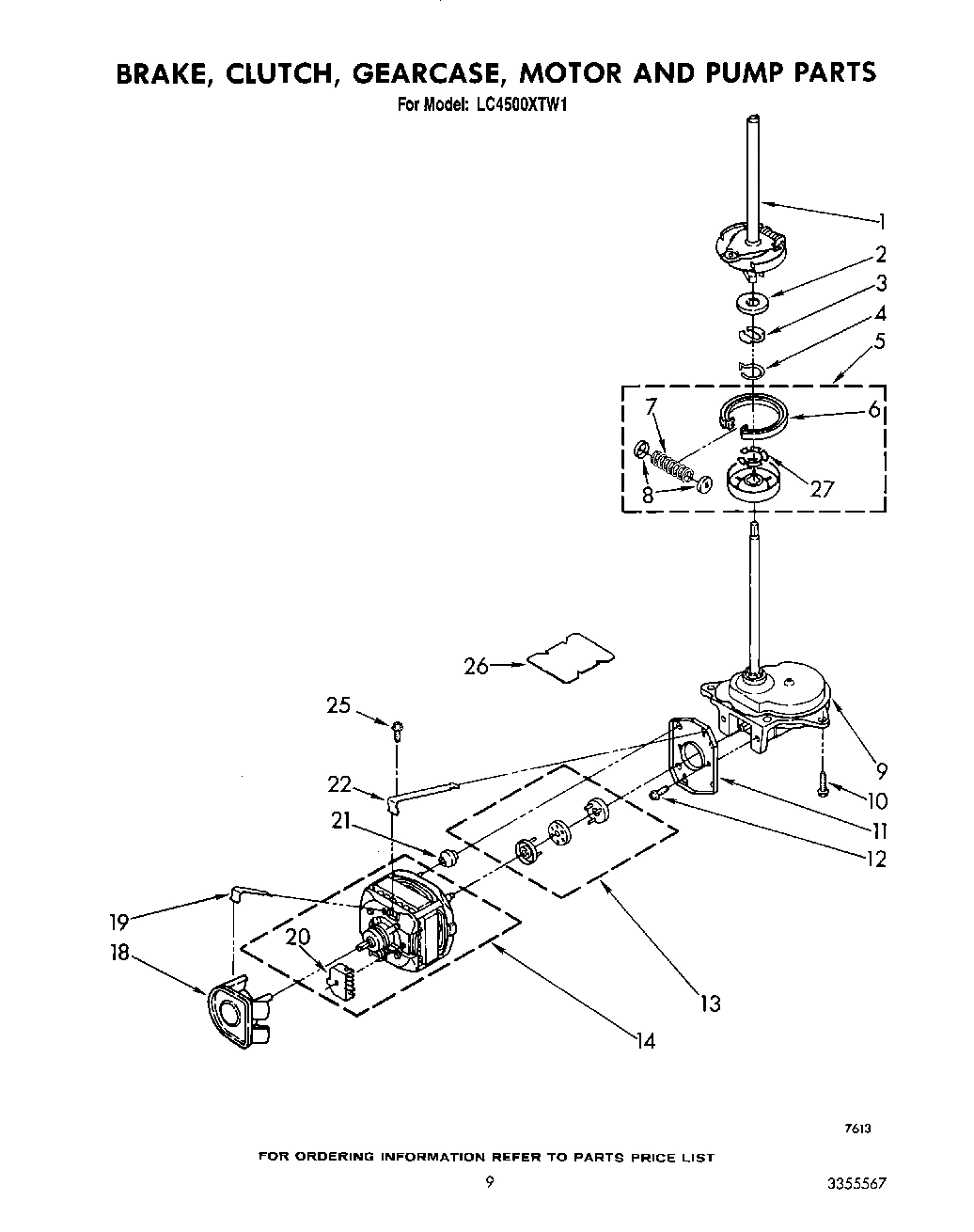

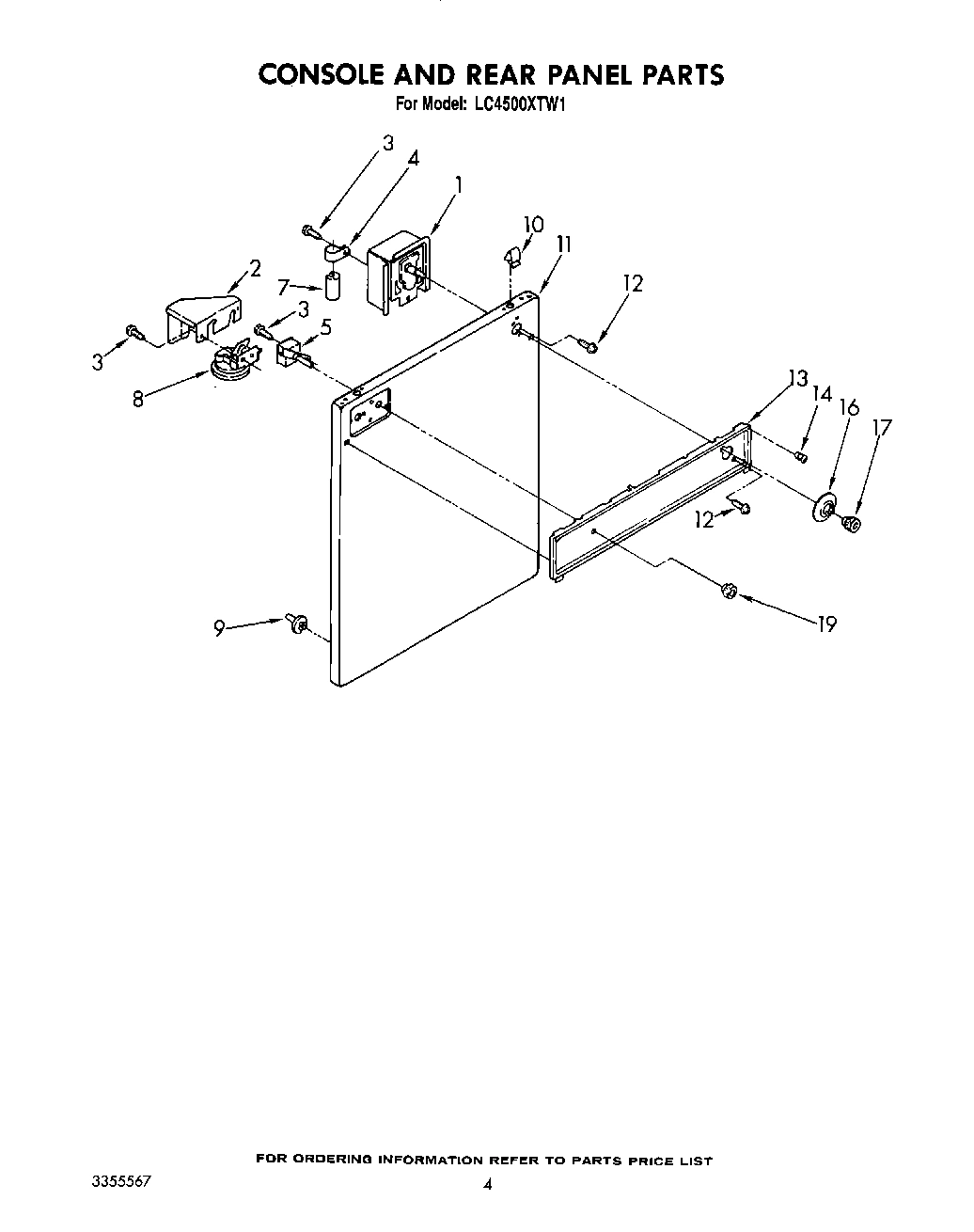

Model Whirlpool LC4500XTG1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Laundry WPL LIT3351410 Contact Us For Availability

Guide, Use And Care WPL LIT3351548 Contact Us For Availability

List, Repair Parts WPL LIT3355567 Contact Us For Availability

Label, Energy Guide WPL LIT3356178 Contact Us For Availability

Instructions, Installation WPL LIT3356740 Contact Us For Availability

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

1

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

1

353424 Whirlpool Connector Backorder WPL 353424 $14.02

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

1

Timer, 60 Hz. (Serviced Only As A Complete As WPL 3347793 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3356717 Contact Us For Availability

1

Handle, Lid (Almond) WPL 379885 Contact Us For Availability

1

Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability

1

Handle, Lid (White) WPL 379889 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63840 Whirlpool Filter In Stock WPL WP63840 $148.99

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Lid (White Model) WPL 3348018 Contact Us For Availability

3

Lid (Almond Model) WPL 3348019 Contact Us For Availability

3

Lid (Golden Harvest) WPL 3348022 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

4

80011 Whirlpool Washer Lid Bumper Kit of 2 In Stock WPL 80011 $8.71

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $121.51

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $57.89

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Tub Ring & Gasket (Includes Illus. 7, 14 & 15 WPL 64175 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

7

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $17.57

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

8

Basket WPL 3351985 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Tub WPL 63782 Contact Us For Availability

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

Screw, 5/16-24 x 3/16 (3) (Gearcase To Tub Su WPL 62735 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Plug, Button (2) WPL 54690 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP63748 Whirlpool Spring Backorder WPL WP63748 $4.82

Spring, Lid (L.H.) (Includes Illus. 10) WPL 384463 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP384693 Whirlpool Top Backorder WPL WP384693 $188.97

Top (Almond Model) WPL 384210 Contact Us For Availability

Top (Golden Harvest) WPL 384213 Contact Us For Availability

280120 Whirlpool Hose Backorder WPL 280120 $24.55

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

356398 Whirlpool Tube Backorder WPL 356398 $54.56

63636 Whirlpool Bracket Backorder WPL 63636 $30.61

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

Shaft, Agitator WPL 389231 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Screw & Washer (Tub Mounting) (4) WPL 98005 Contact Us For Availability

17

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

17

384459 Whirlpool Hinge Backorder WPL 384459 $58.28

17

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

18

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

18

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

19

W10863713 Whirlpool Support In Stock WPL W10863713 $288.78

19

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

19

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

20

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

20

Gear, Main Drive WPL 62528 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Spring, Lid (R.H.) (Includes Illus. 10) WPL 384462 Contact Us For Availability

60001022 Whirlpool Oven Screw Backorder WPL 60001022 $39.77

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3355805 Whirlpool Lid Switch Backorder WPL WP3355805 $79.07

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

23

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

23

Ring, Retaining WPL 95082 Contact Us For Availability

24

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $7.99

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

Brace, Tie (2) WPL 3351017 Contact Us For Availability

Rivet, Serial Nameplate (2) WPL 354239 Contact Us For Availability

27

Hose, Siphon Break WPL 386933 Contact Us For Availability

27

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Hose, Pump Drain WPL 386930 Contact Us For Availability

33

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

34

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91
