Model Whirlpool LBR4121JQ2 Automatic Washer – Common Parts &amp; Diagrams

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $5.30

1

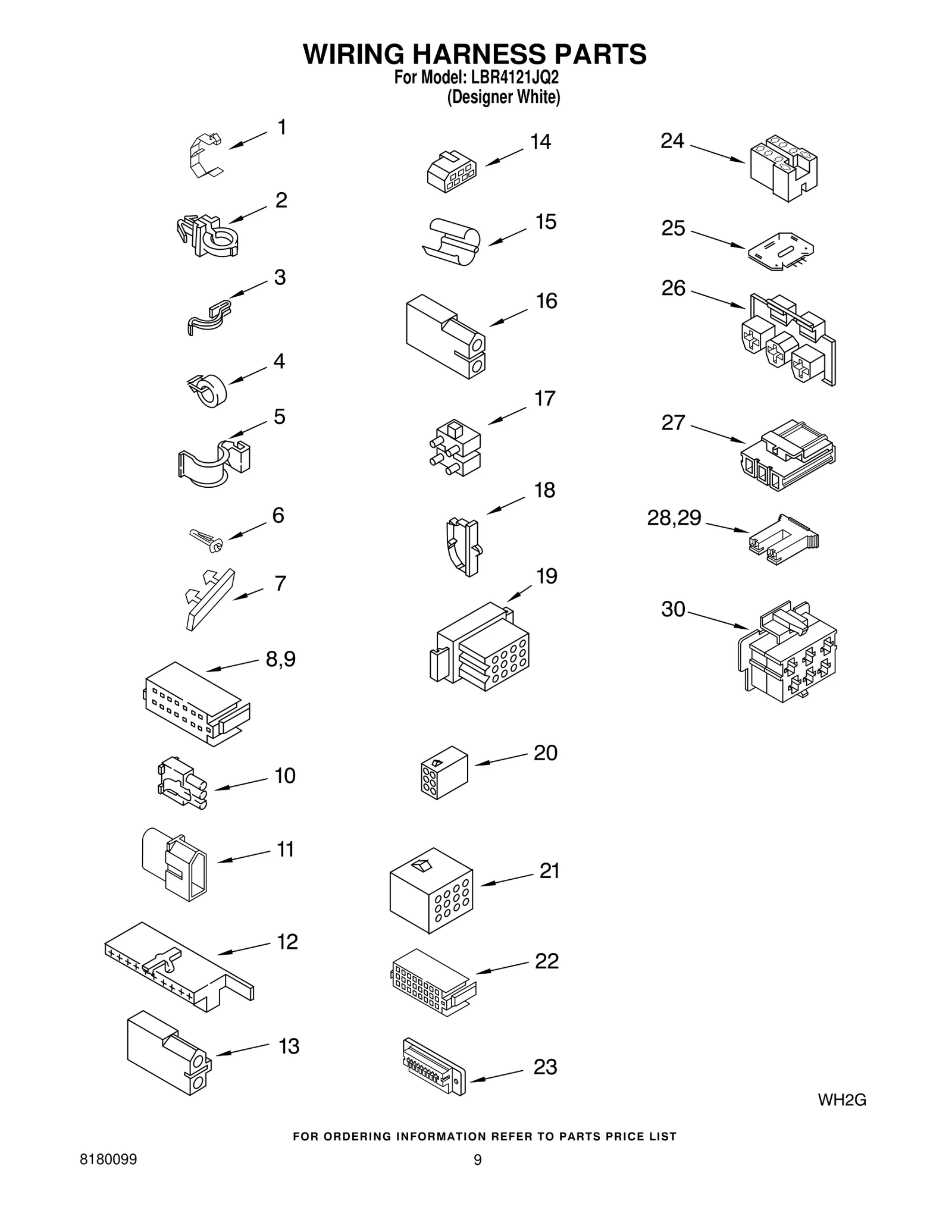

Clip, Harness WPL 3349557 Contact Us For Availability

1

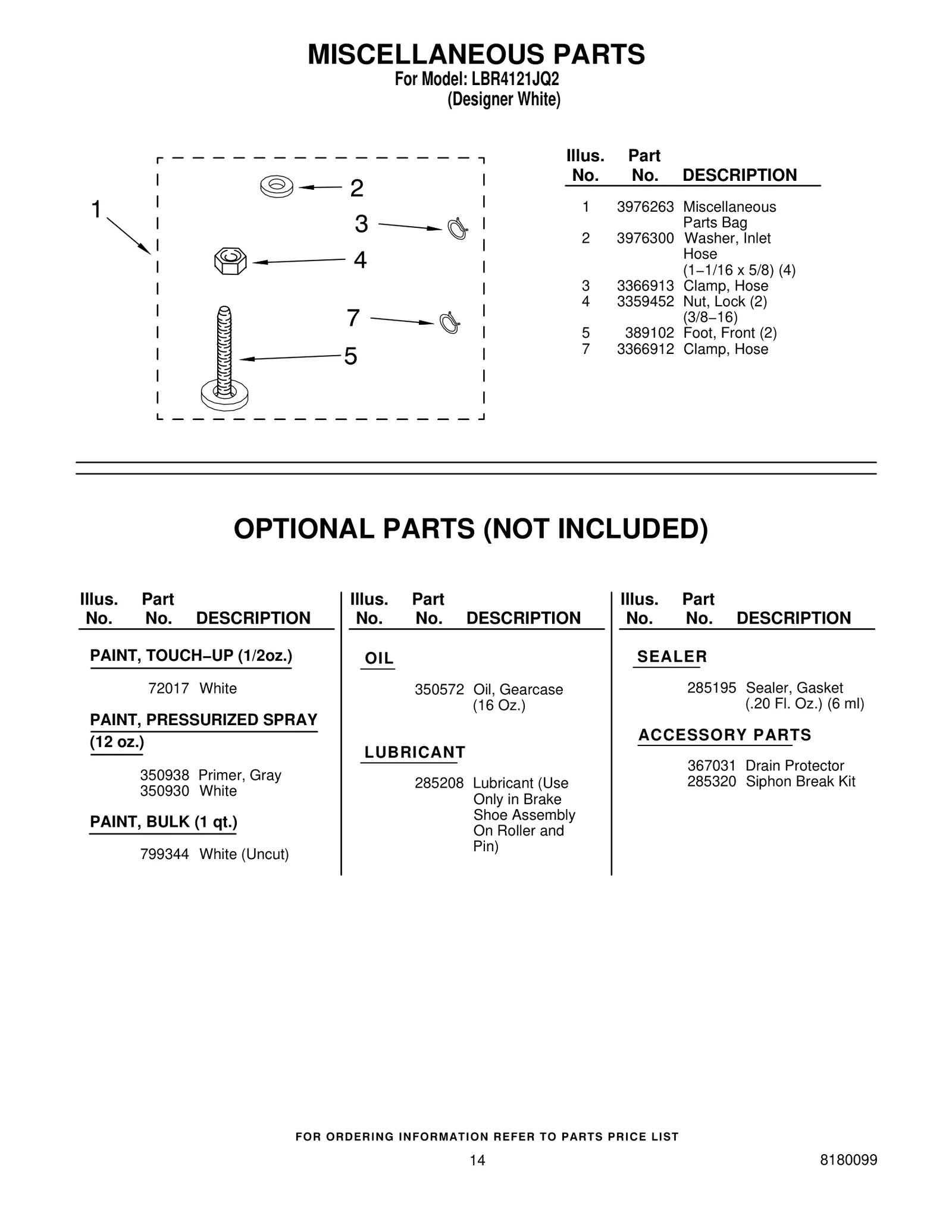

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

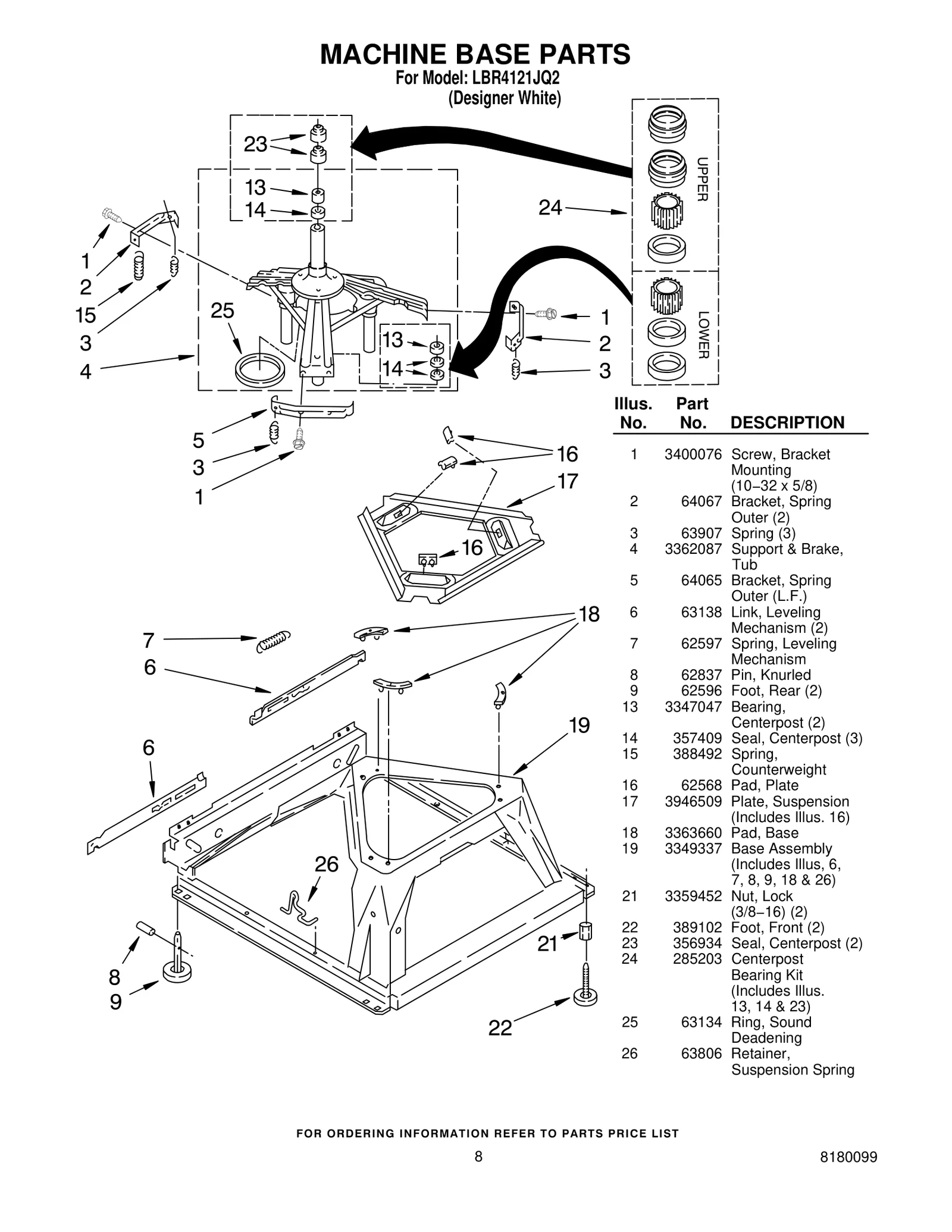

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

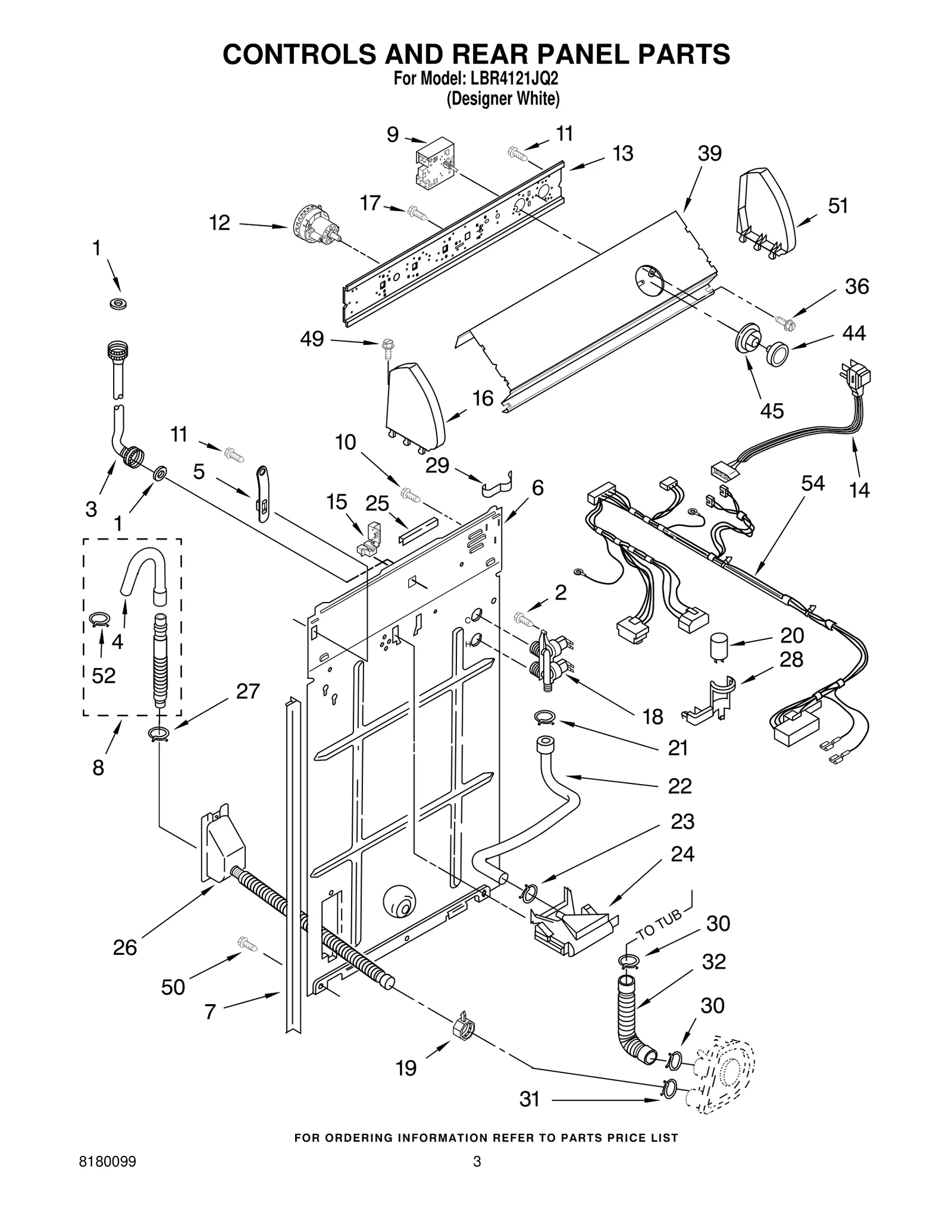

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

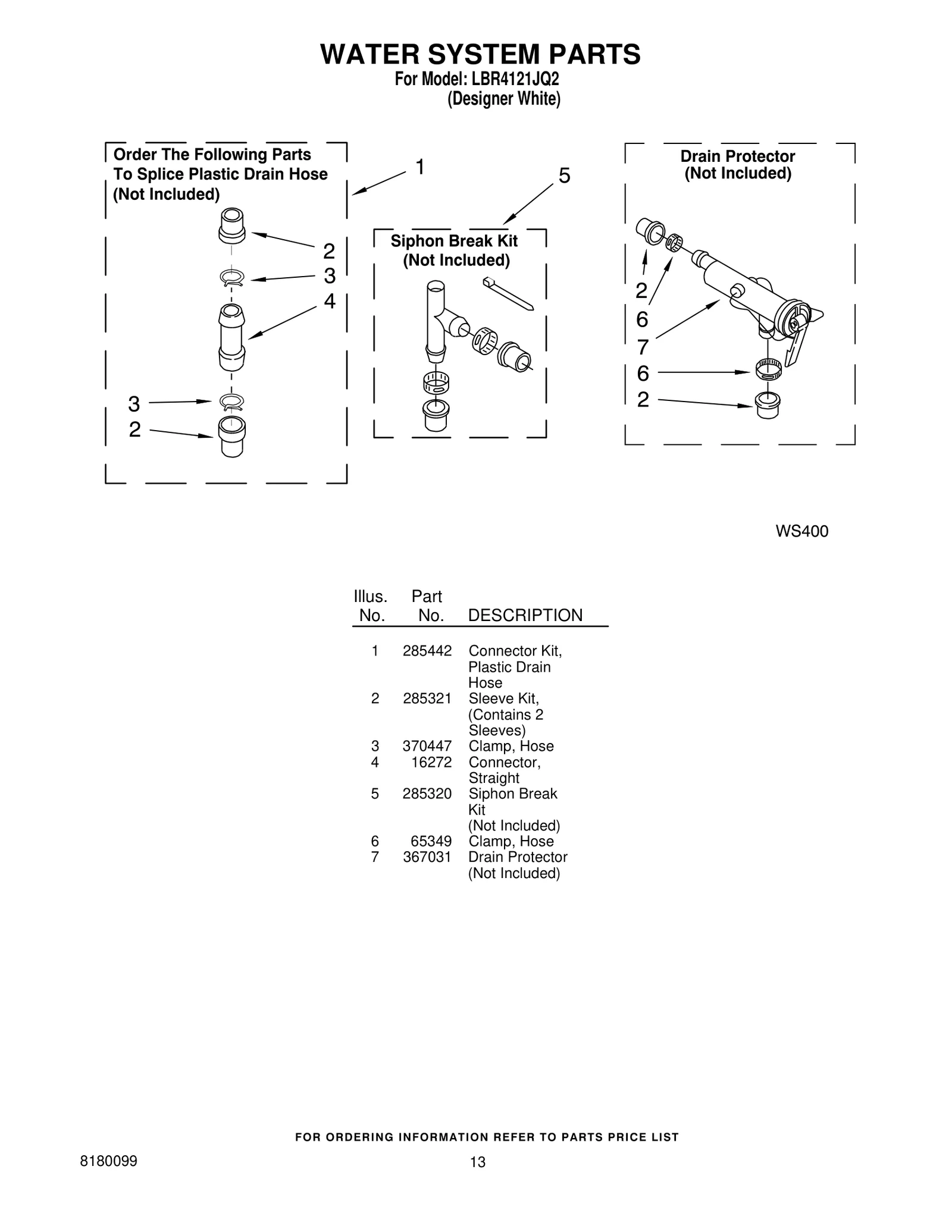

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

7

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

7

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $4.02

7

White (Uncut) OIL WPL 799344 Contact Us For Availability

7

Lubricant (Use Only in Brake Shoe Assembly On WPL 285208 Contact Us For Availability

7

Drain Protector WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect WPL 352090 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

Timer, Control (Motor Not A Service Part) WPL 3951166 Contact Us For Availability

10

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

11

Plug, Terminal WPL 353424 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

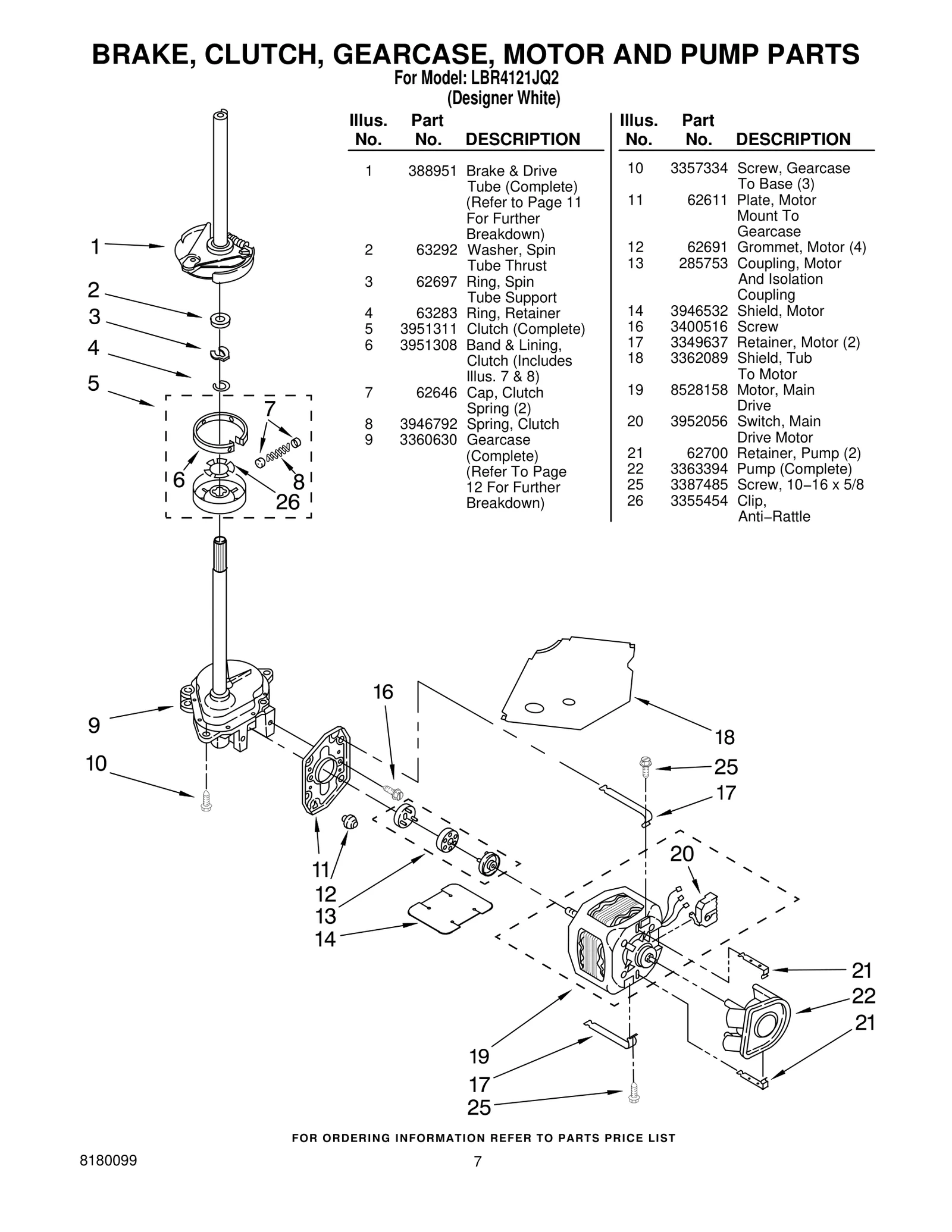

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

Block, Disconnect (Use Term. 94613 Or 94614.) WPL 3348075 Contact Us For Availability

14

Tub WPL 63125 Contact Us For Availability

14

Block, Disconnect WPL 3347243 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Protector WPL 63523 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

Connector WPL 717252 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal WPL 387566 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

18

Clip, Harness WPL 3352944 Contact Us For Availability

19

Clamp, Hose WPL 3976395 No Longer Available

19

Block, Disconnect WPL 3390423 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Receptacle WPL 3347730 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

Plug, Terminal (Use Term. 94613 Or 94614.) WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Timer, Block Disconnect (Black) (Amp) WPL 3369366 Contact Us For Availability

23

Connector, Etc WPL 3349494 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

Connector, Relay WPL 60687 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

E.T.C. Control WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $12.98

27

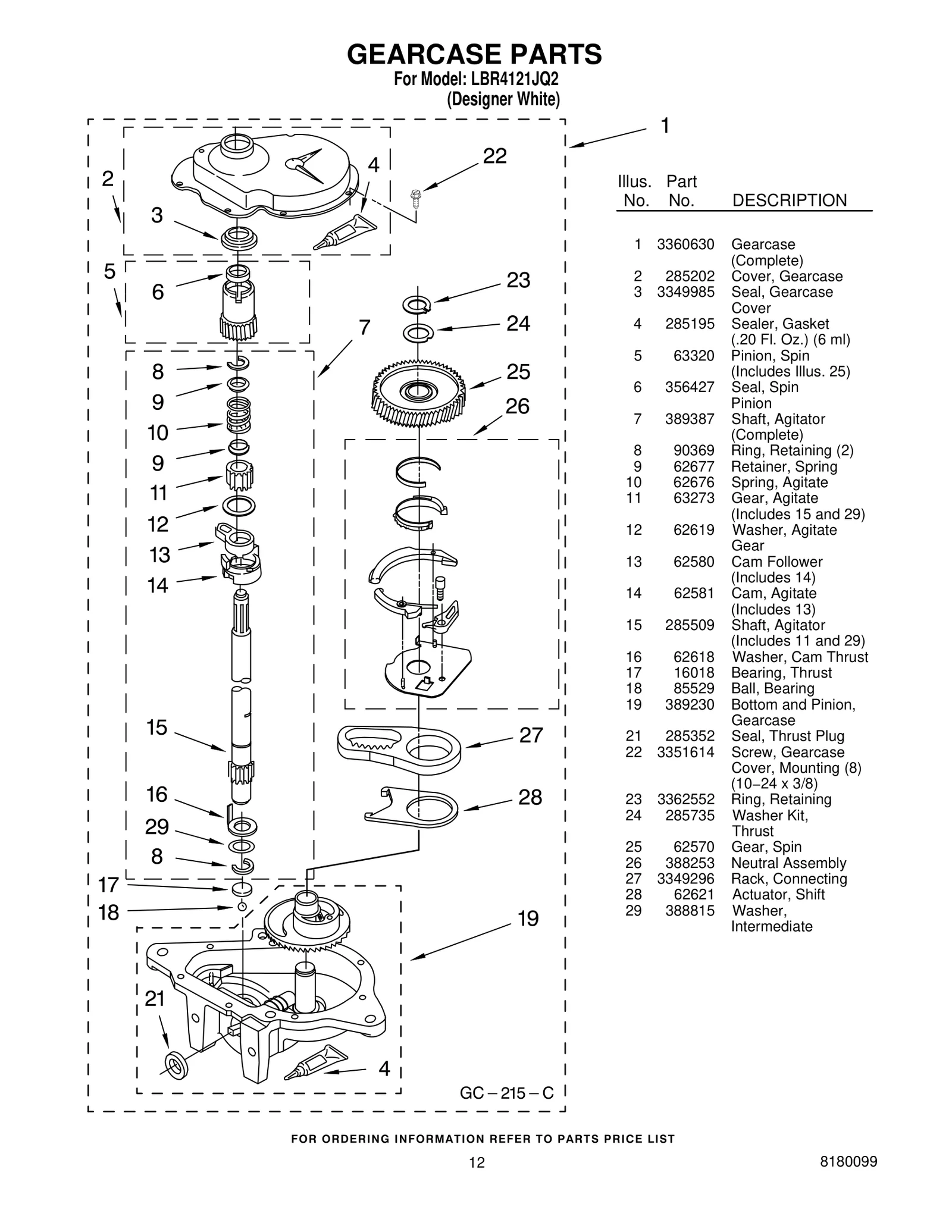

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

27

Connector (T.P.A) (Use Term.3948619 OR 394862 WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Block, Connector WPL 3354925 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Block, Connector WPL 3354926 Contact Us For Availability

30

Connector (T.P.A.) (Use Term.3948619 OR 39486 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82
