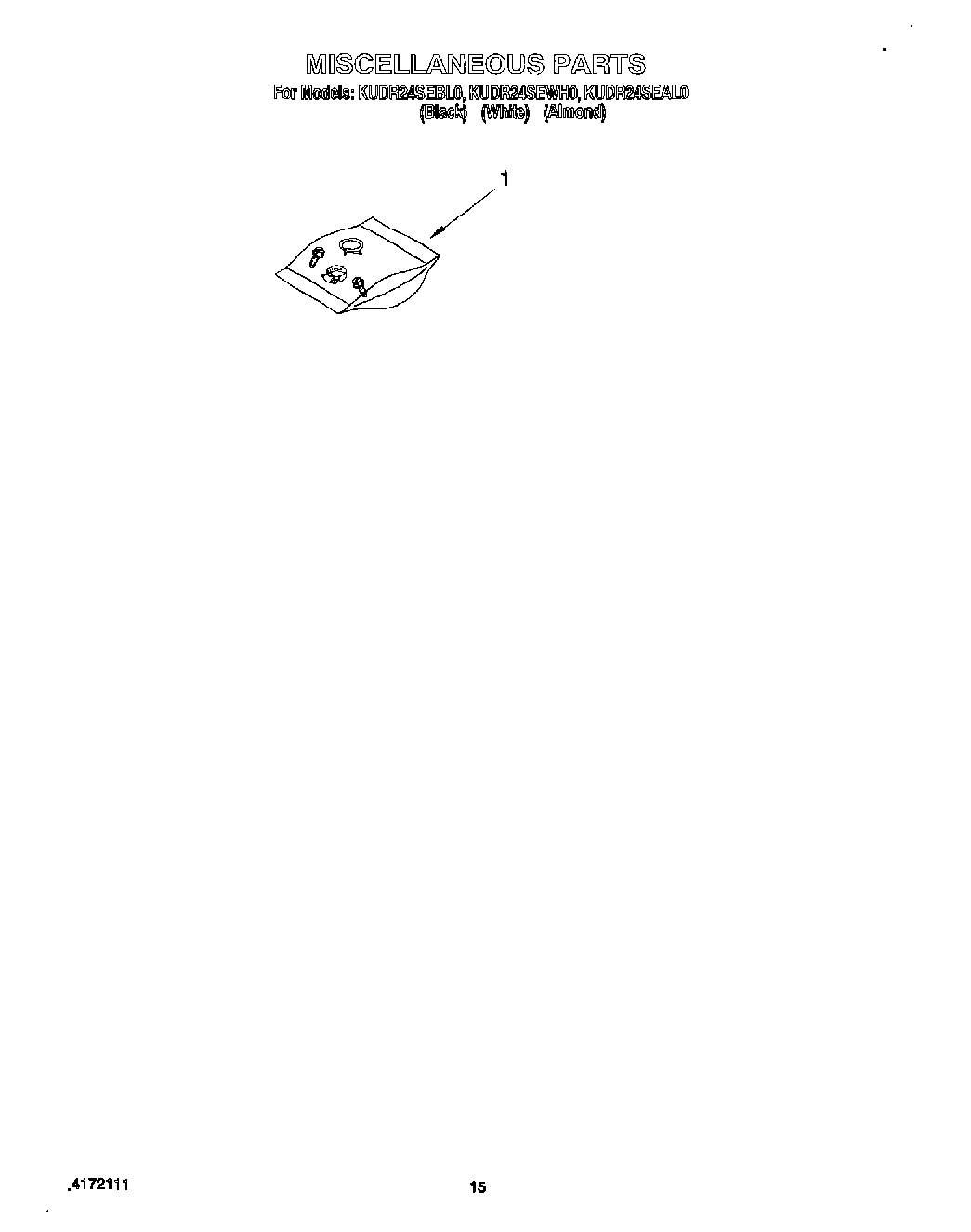

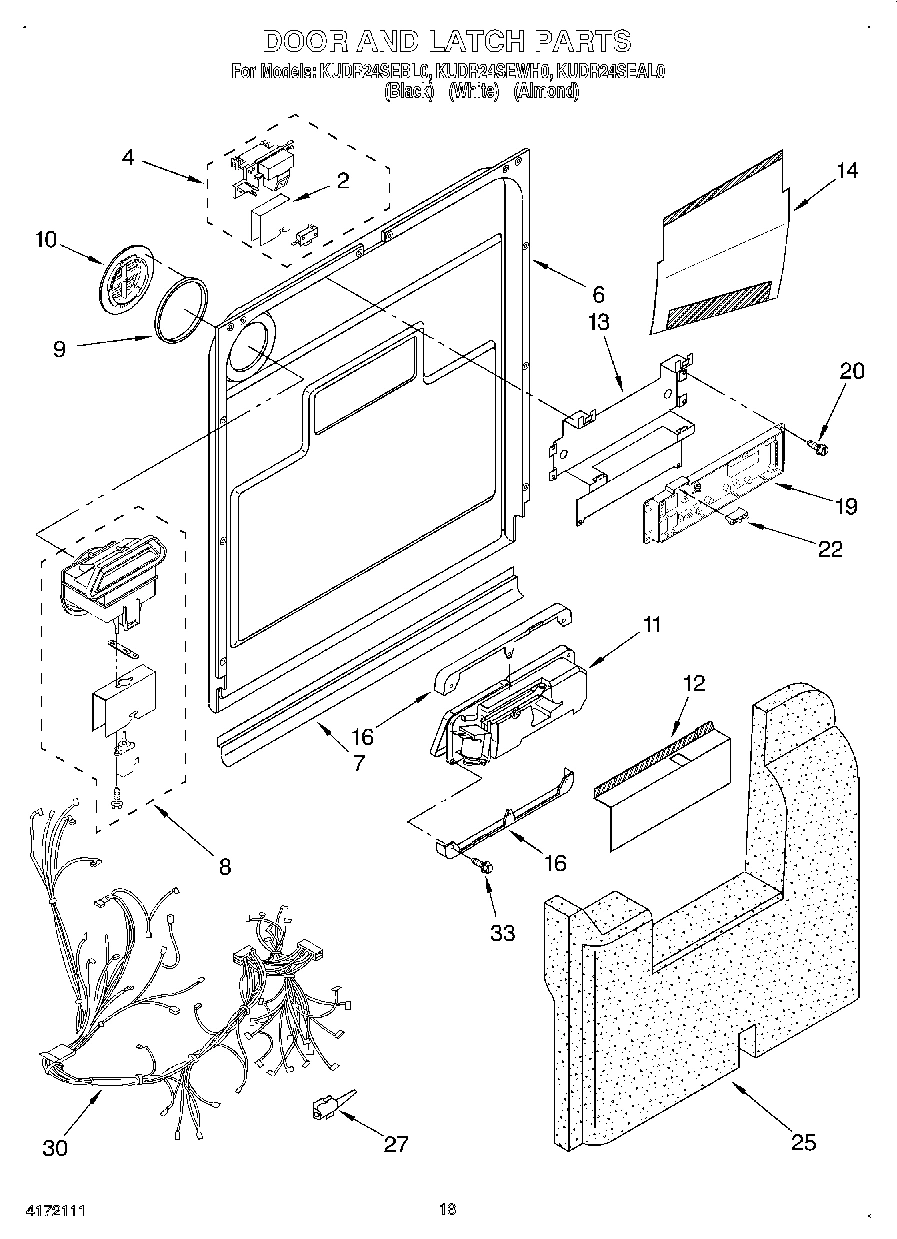

Model Whirlpool KUDR24SEWH0 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.99

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $36.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

1

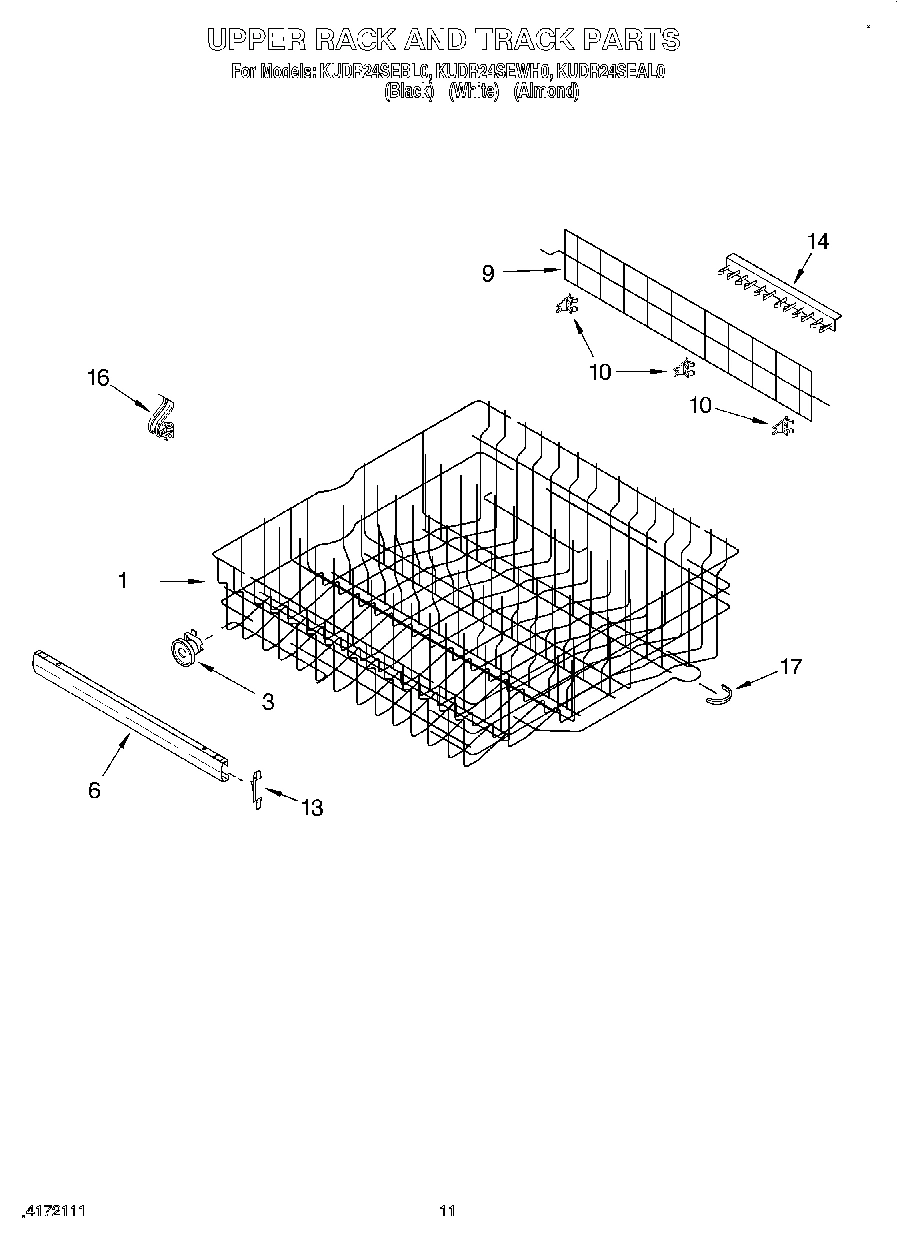

WPW10253040 Whirlpool Dishwasher Dish Rack In Stock WPL WPW10253040 $286.99

1

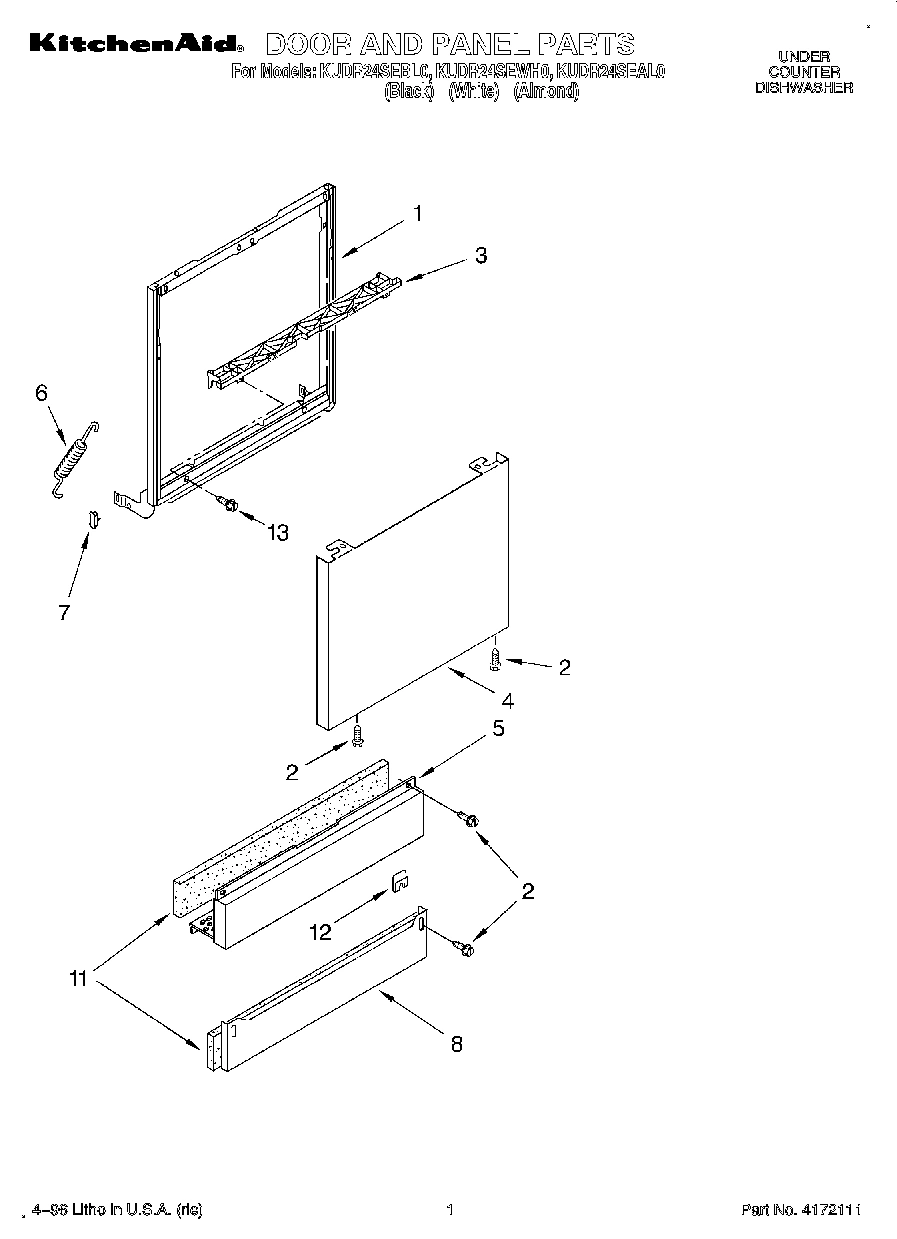

Door Frame WPL 9743028 Contact Us For Availability

1

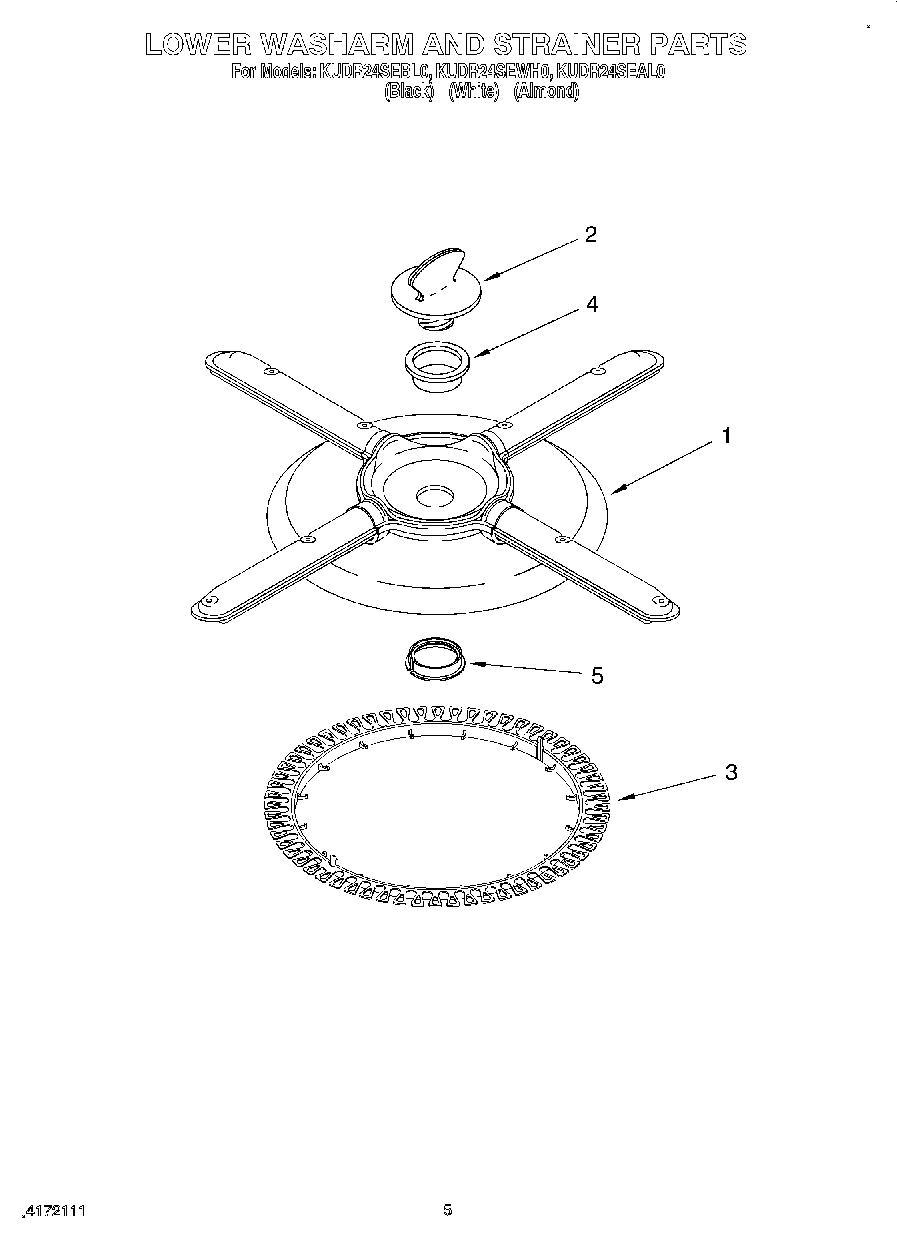

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

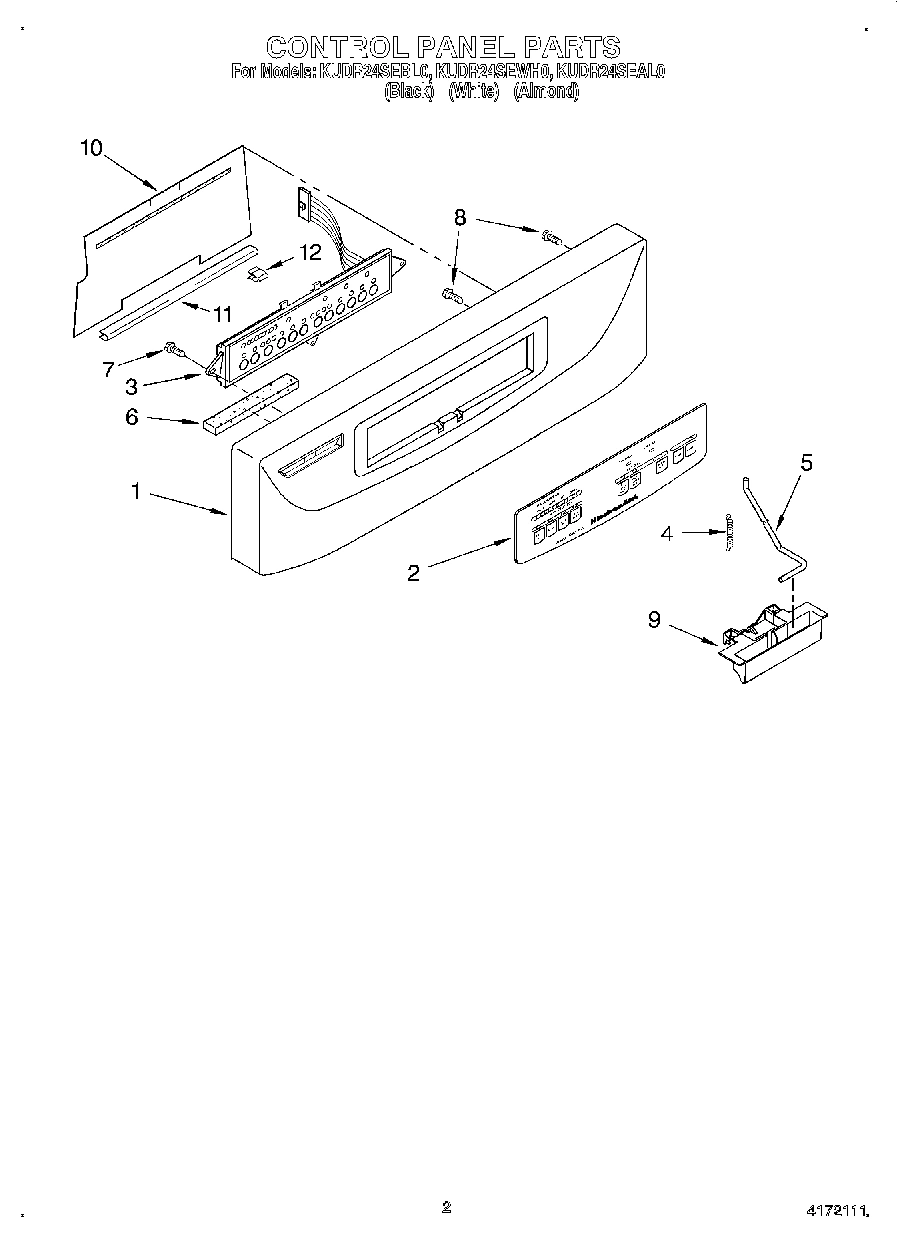

Console (Also Order Item 2) (Black Model) WPL 9743340 Contact Us For Availability

1

Console (Also Order Item 2) (White Model) WPL 9743341 Contact Us For Availability

1

Console (Also Order Item 2) (Almond Model) WPL 9743342 Contact Us For Availability

1

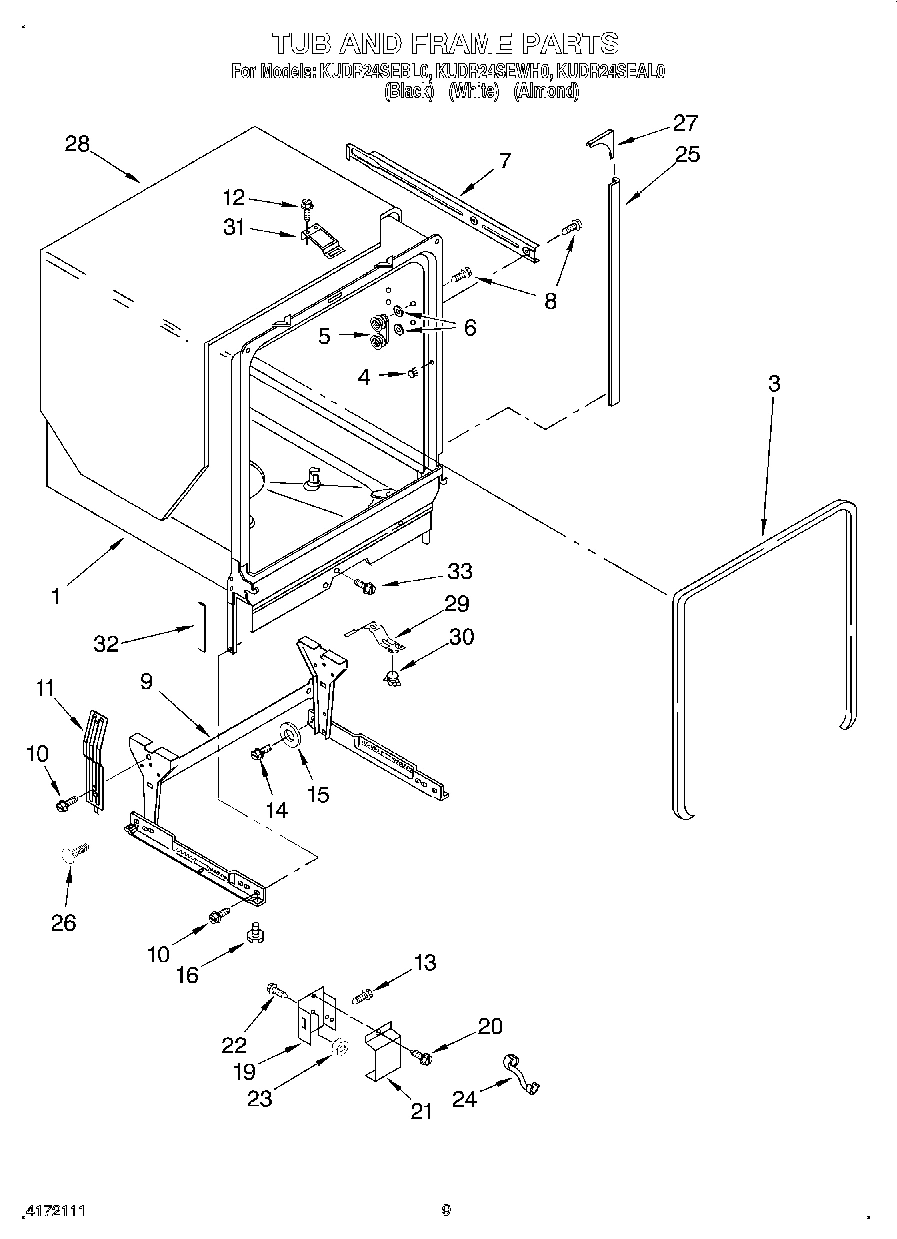

Tub Assembly WPL 9742605 Contact Us For Availability

1

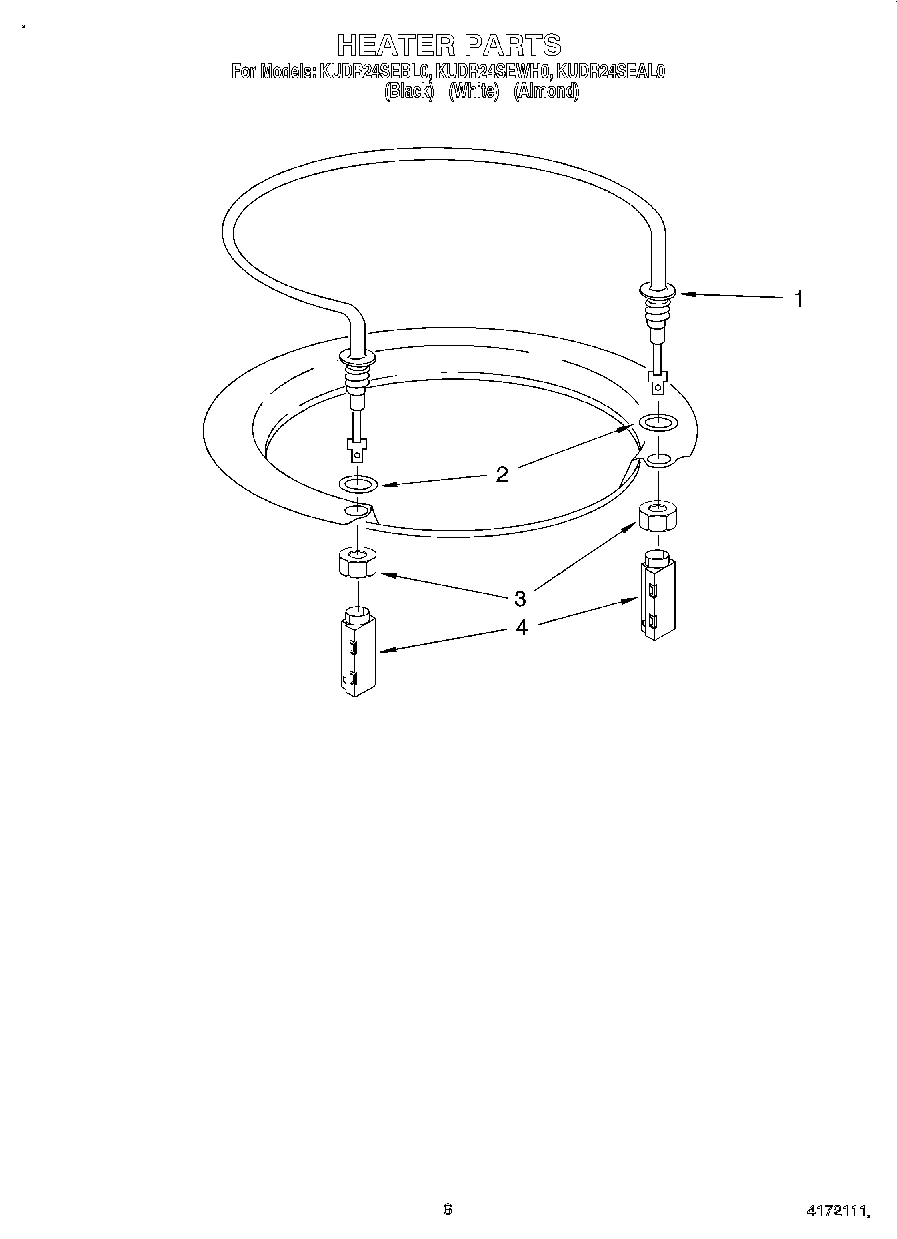

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.52

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.91

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $4.75

2

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $4.82

2

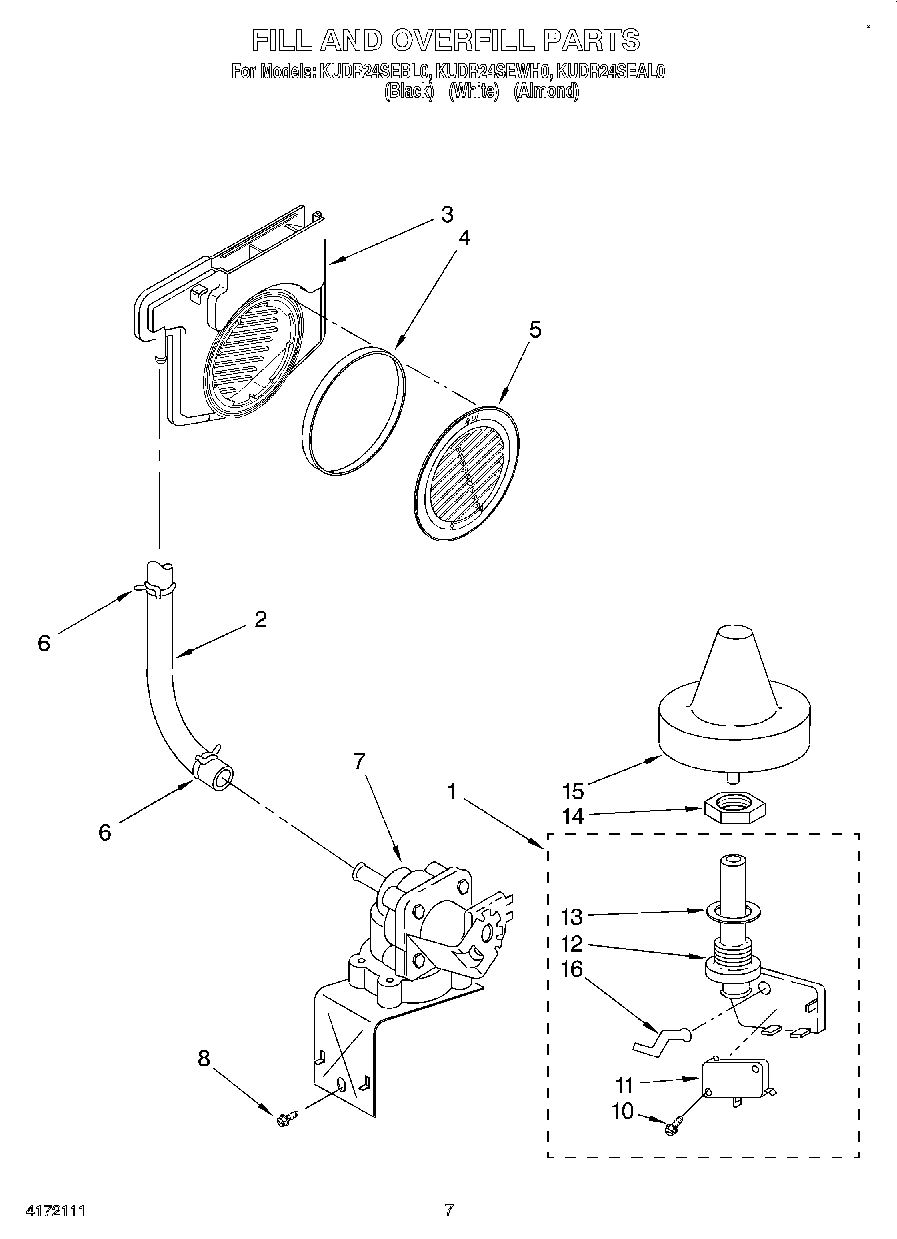

Hose, Inlet WPL 9742727 Contact Us For Availability

2

Insert (Black Model) WPL 9743372 Contact Us For Availability

2

Insert (White Model) WPL 9743373 Contact Us For Availability

2

Insert (Almond Model) WPL 9743374 Contact Us For Availability

3

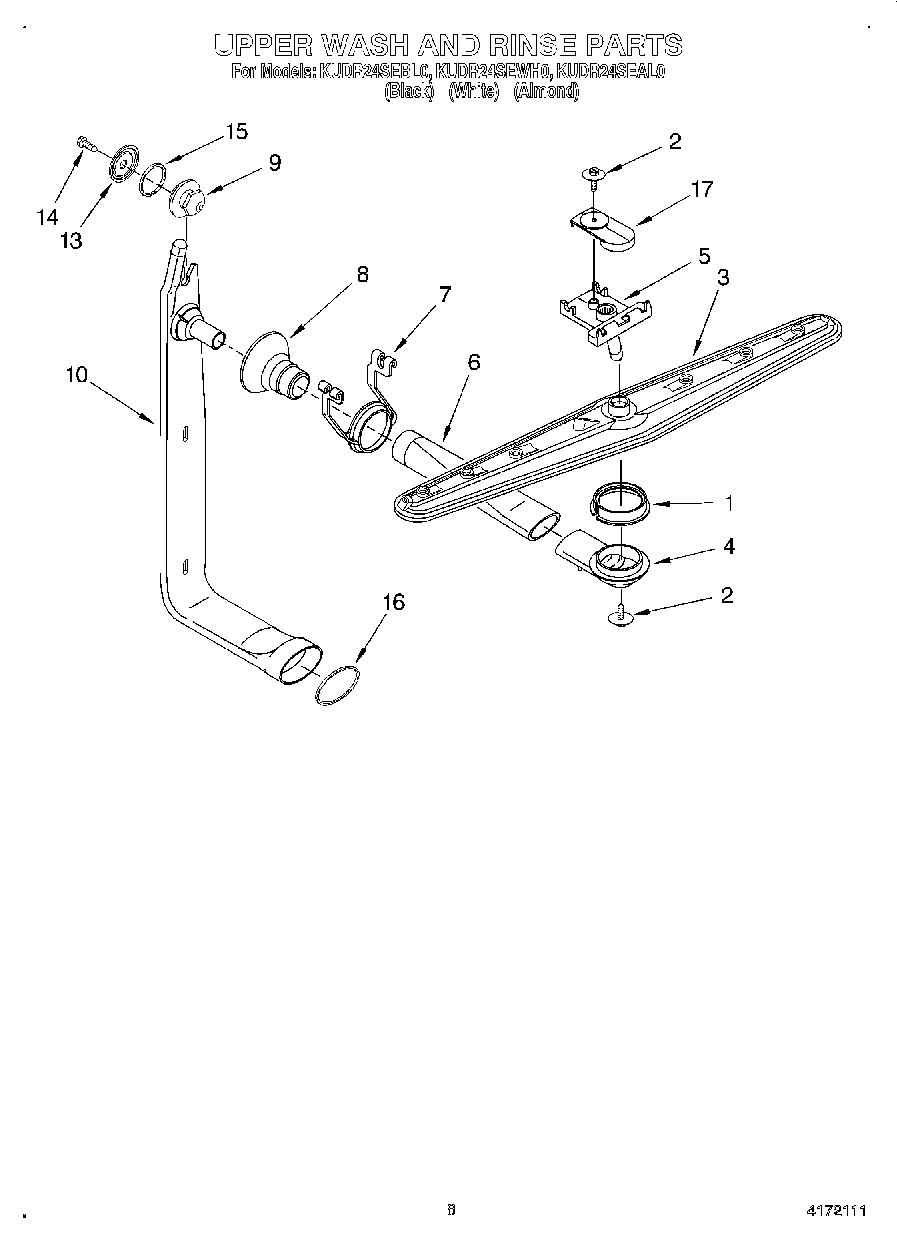

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $32.84

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $98.99

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $8.80

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

3

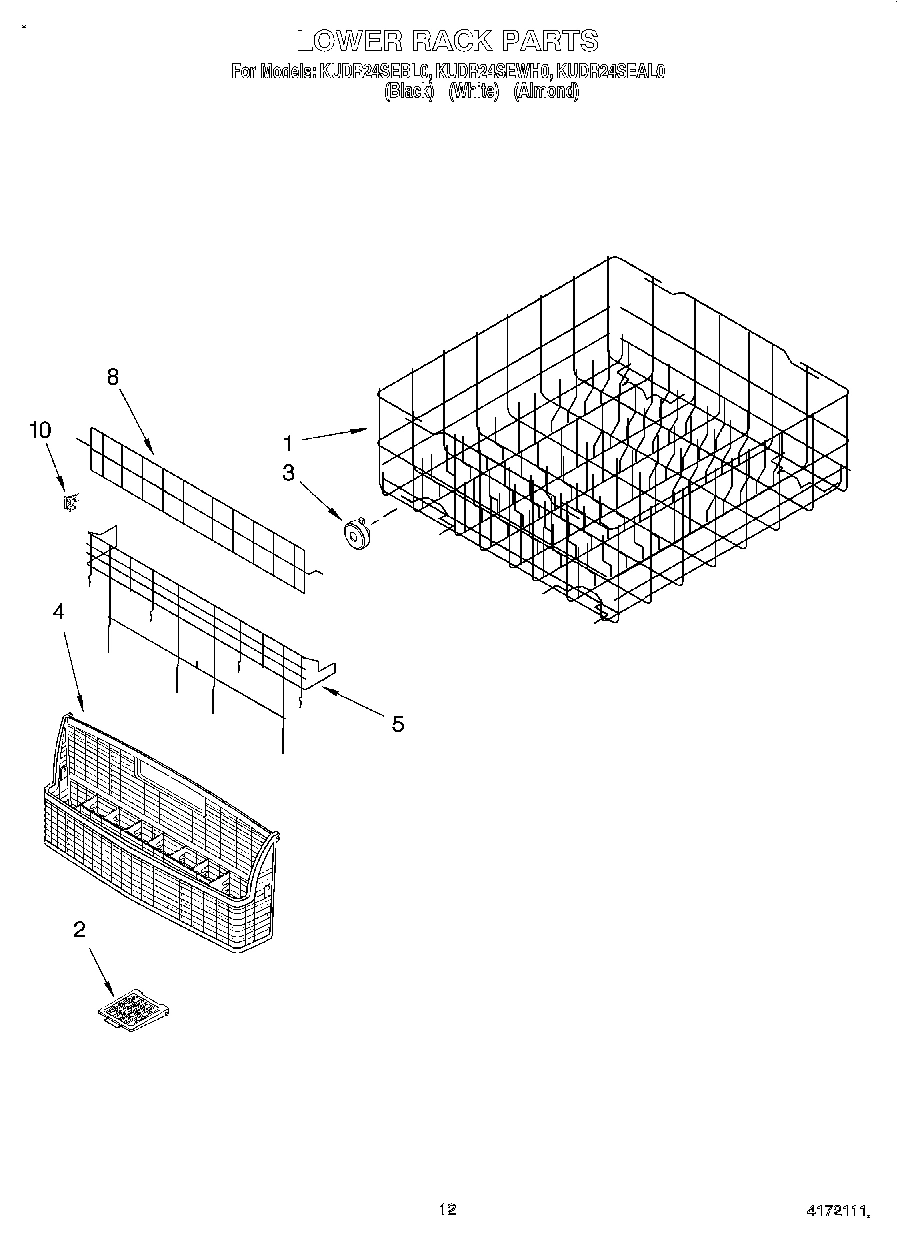

Wheel Assembly (2) Lower Rack (8) WPL 9743007 Contact Us For Availability

3

Switch, Panel (User Interface) WPL 9743242 Contact Us For Availability

3

Stiffener, Door WPL 9742964 Contact Us For Availability

3

Strainer (Coarse) WPL 9742646 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $6.37

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $13.99

4

Gasket WPL 9742787 Contact Us For Availability

4

Spring, Handle WPL 9743350 Contact Us For Availability

4

Panel Front (Black Model) WPL 9743212 Contact Us For Availability

4

Panel Front (White Model) WPL 9743213 Contact Us For Availability

4

Panel Front (Almond Model) WPL 9743214 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $11.74

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $4.49

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Link, Handle WPL 9743351 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743167 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743168 Contact Us For Availability

5

Access Panel & Clip Assembly (Includes Items WPL 9743169 Contact Us For Availability

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $63.60

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $8.99

6

WP9743986 Whirlpool Spring In Stock WPL WP9743986 $17.70

6

Sponge, Vent WPL 9743412 Contact Us For Availability

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742625 Contact Us For Availability

7

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $56.99

7

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $4.82

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.62

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $22.85

7

WP719929 Whirlpool Dishwasher Check Ball Backorder WPL WP719929 $6.64

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $97.42

8

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.91

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

8

Toe Panel (Includes Item 11) (Almond Model) WPL 9742872 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle In Stock WPL WP9743903 $90.98

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Cupshelf WPL 3377419 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $6.99

Feed Tube Assembly WPL 9742950 Contact Us For Availability

Barrier, Display WPL 9743440 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $230.50

Retainer, Barrier WPL 9743444 Contact Us For Availability

Insulation WPL 3382404 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Clip, Retainer WPL 9743442 Contact Us For Availability

Shield, Dispenser WPL 9743450 Contact Us For Availability

Clip, Grounding WPL 3378123 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal In Stock WPL WP302711 $24.03

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

Washer WPL 9743475 Contact Us For Availability

Stop, Track (4) WPL 9743472 Contact Us For Availability

Bracket, Controls WPL 9742623 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

Shield, Control WPL 9742963 Contact Us For Availability

Screw (2) WPL 3370389 Contact Us For Availability

15

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

15

Wheel, Leg WPL 302819 Contact Us For Availability

15

Gasket, Connector WPL 9743474 Contact Us For Availability

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $57.34

Gasket, Pump WPL 717000 Contact Us For Availability

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Lever, Overflow Switch WPL 4171116 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $9.99

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

19

Control Electronic WPL 9742617 Contact Us For Availability

19

Box, Terminal WPL 3370292 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

20

Screw WPL 3369138 Contact Us For Availability

21

Cover, Terminal Box WPL 300068 Contact Us For Availability

22

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $4.82

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $4.67

23

Cover, Drain (Also Order Item 30 & 40) See No WPL 3376845 Contact Us For Availability

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Sound Absorber WPL 9743026 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $17.99

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.13

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.77

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $39.26

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.99

30

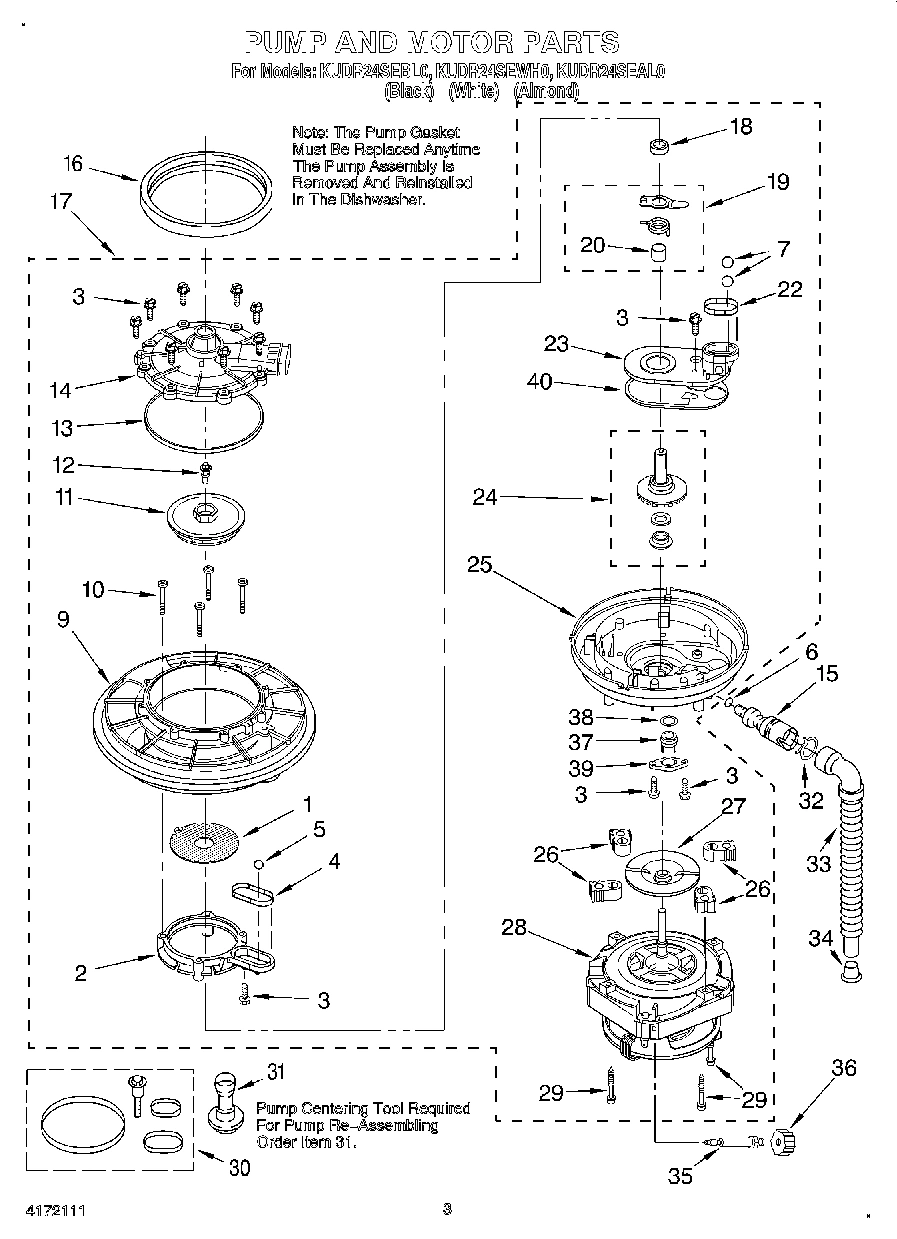

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness Main WPL 9743462 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.88

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $6.55

38

Seal, O-Ring WPL 3376723 Contact Us For Availability

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.82
