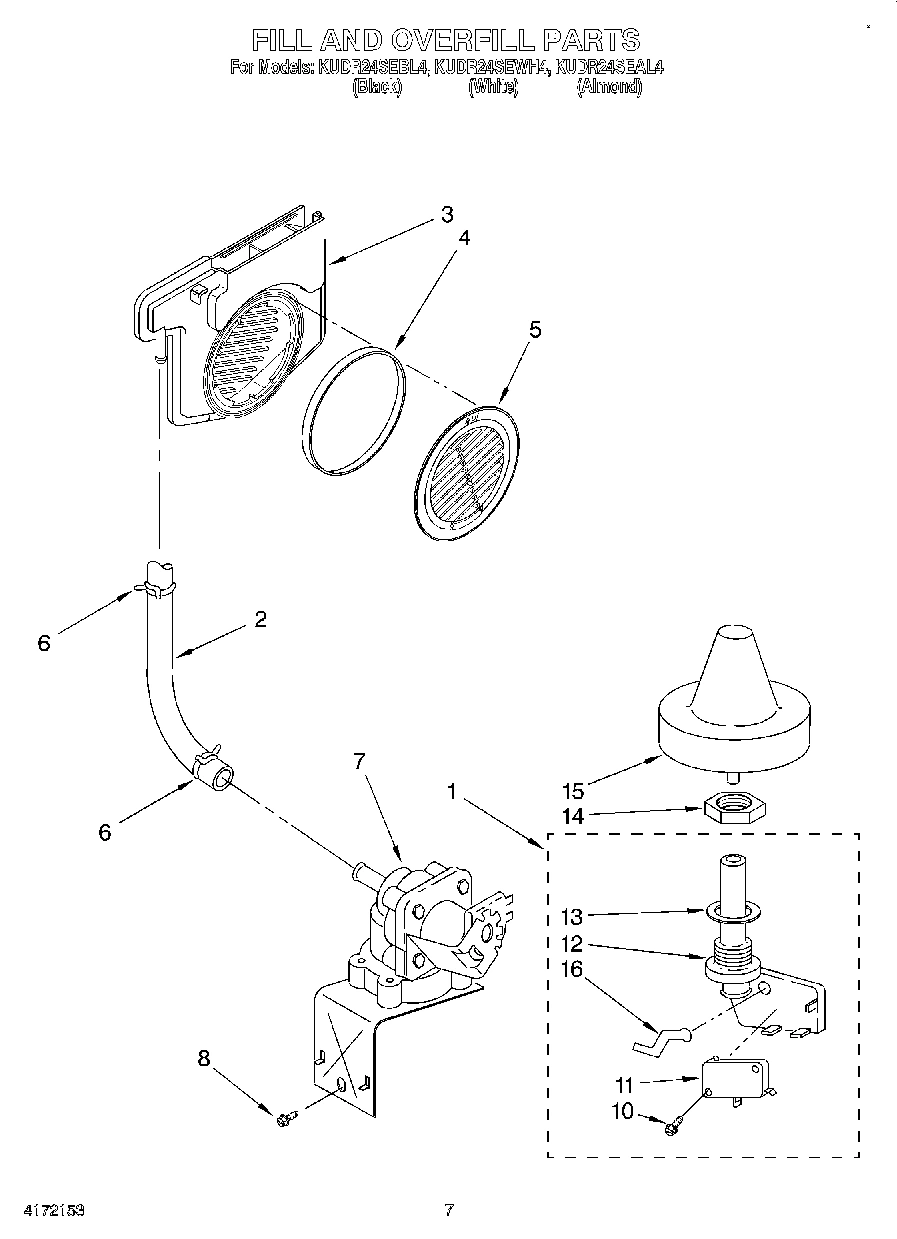

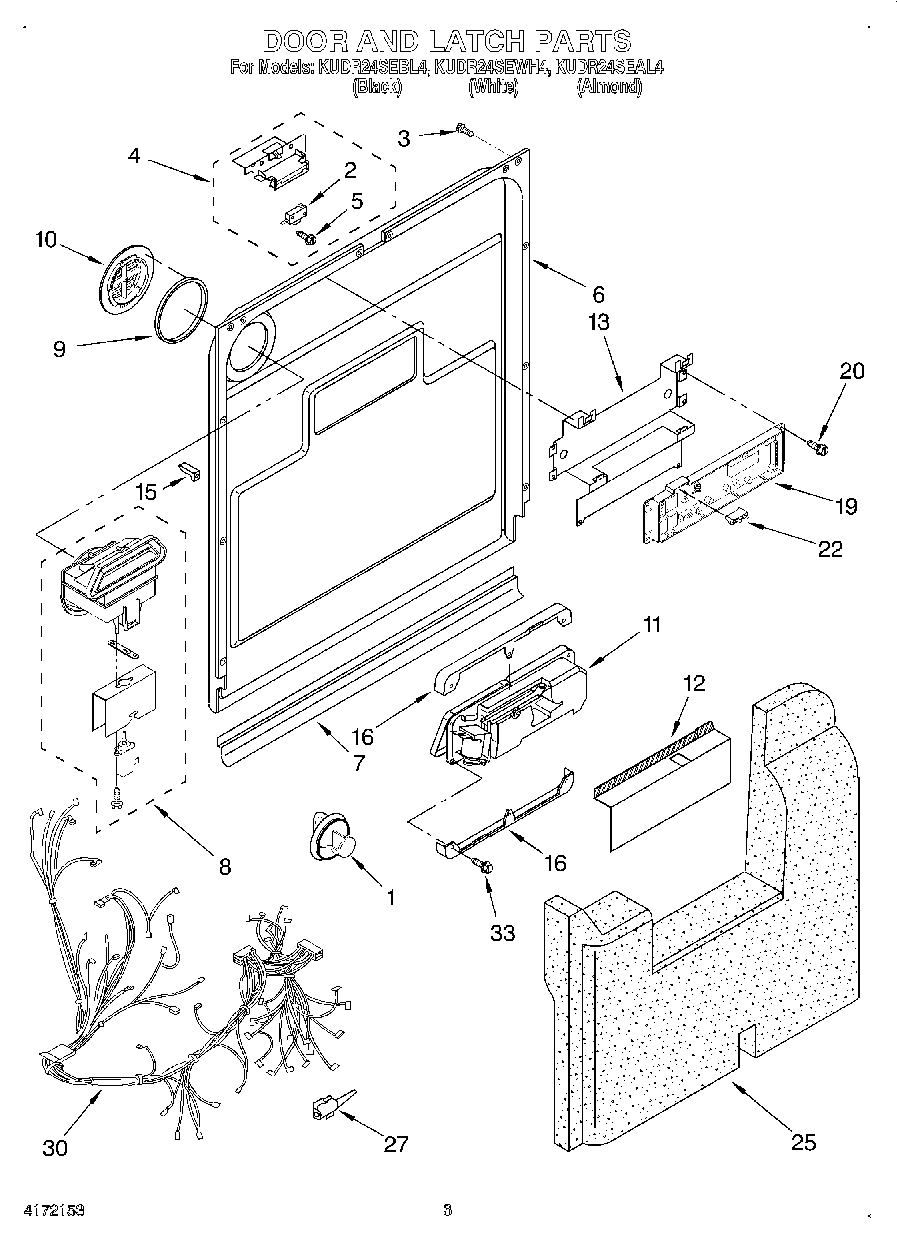

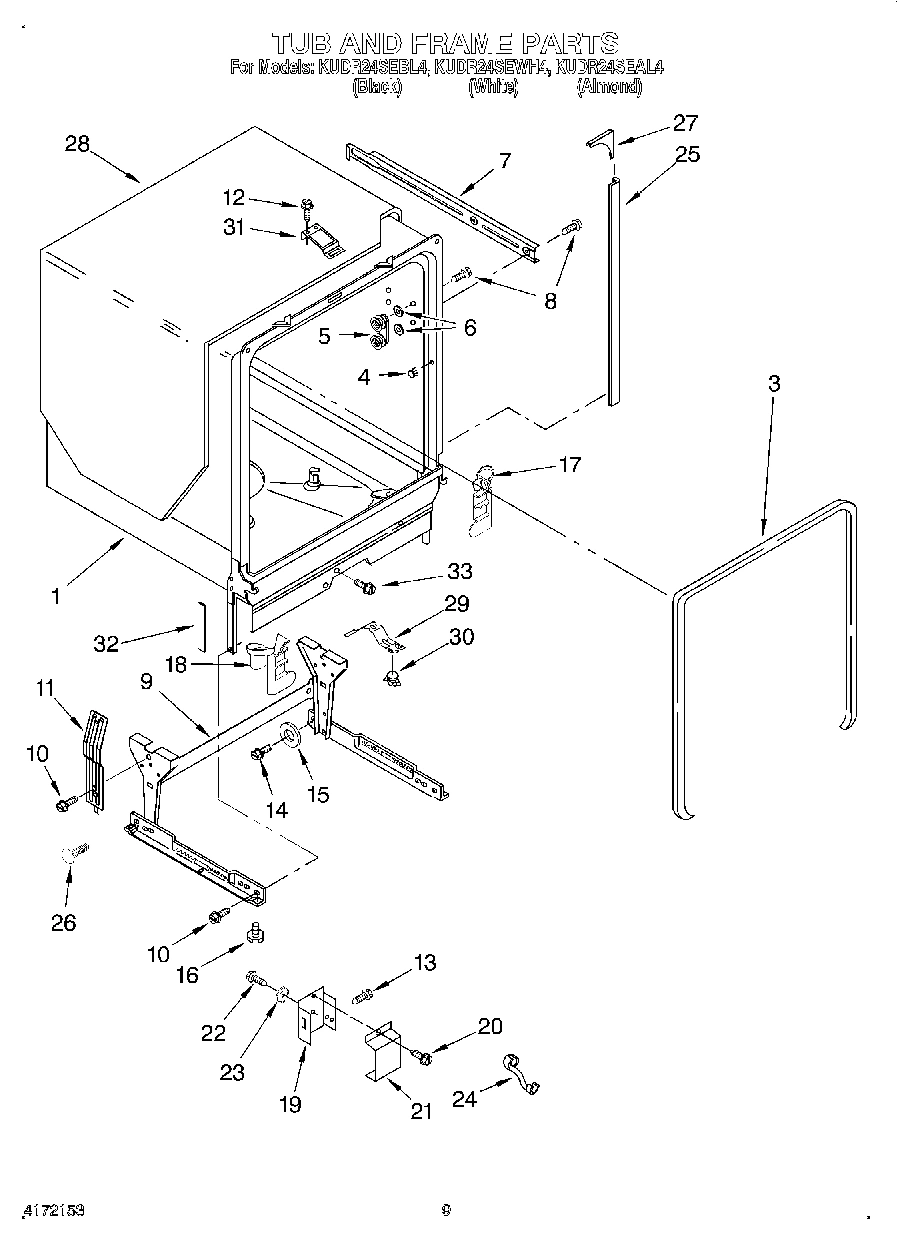

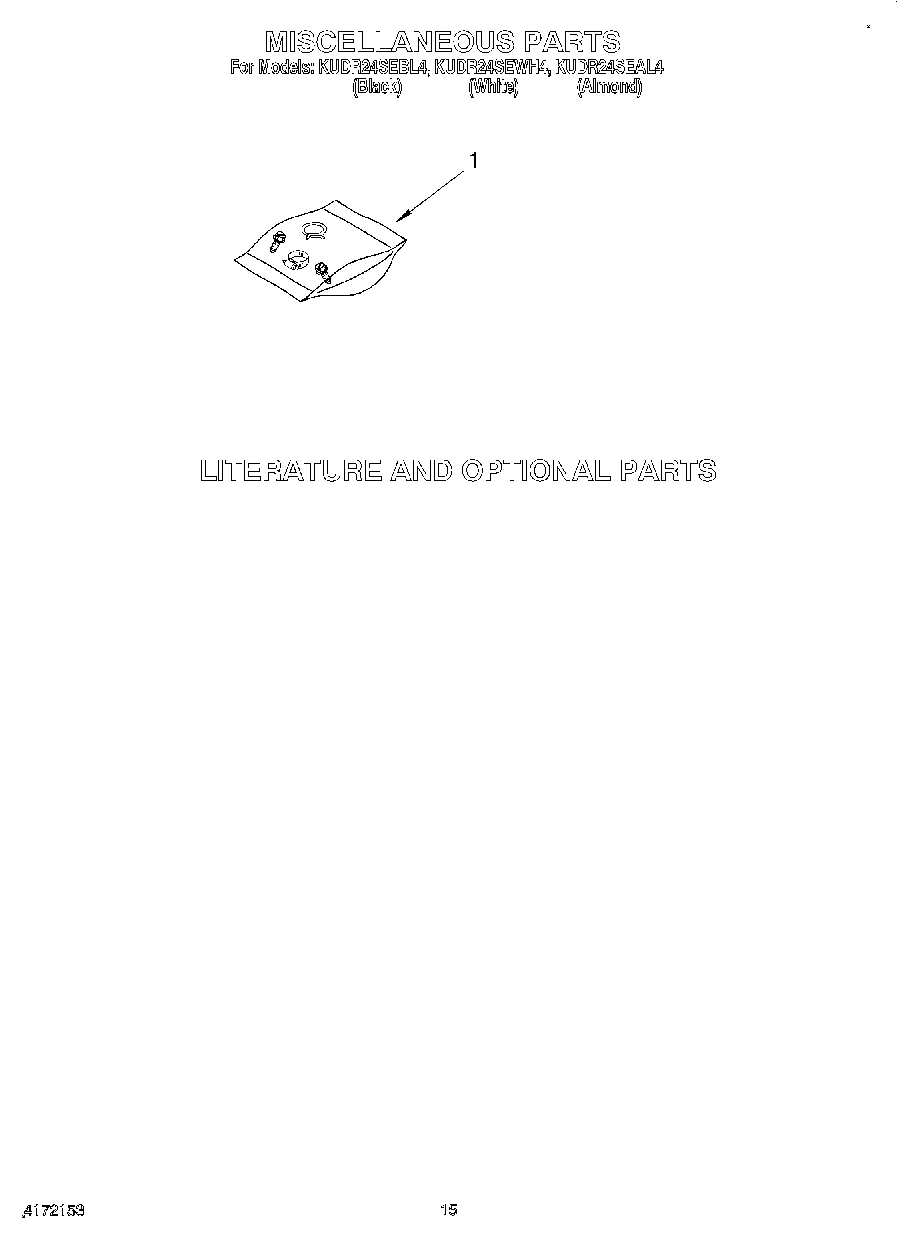

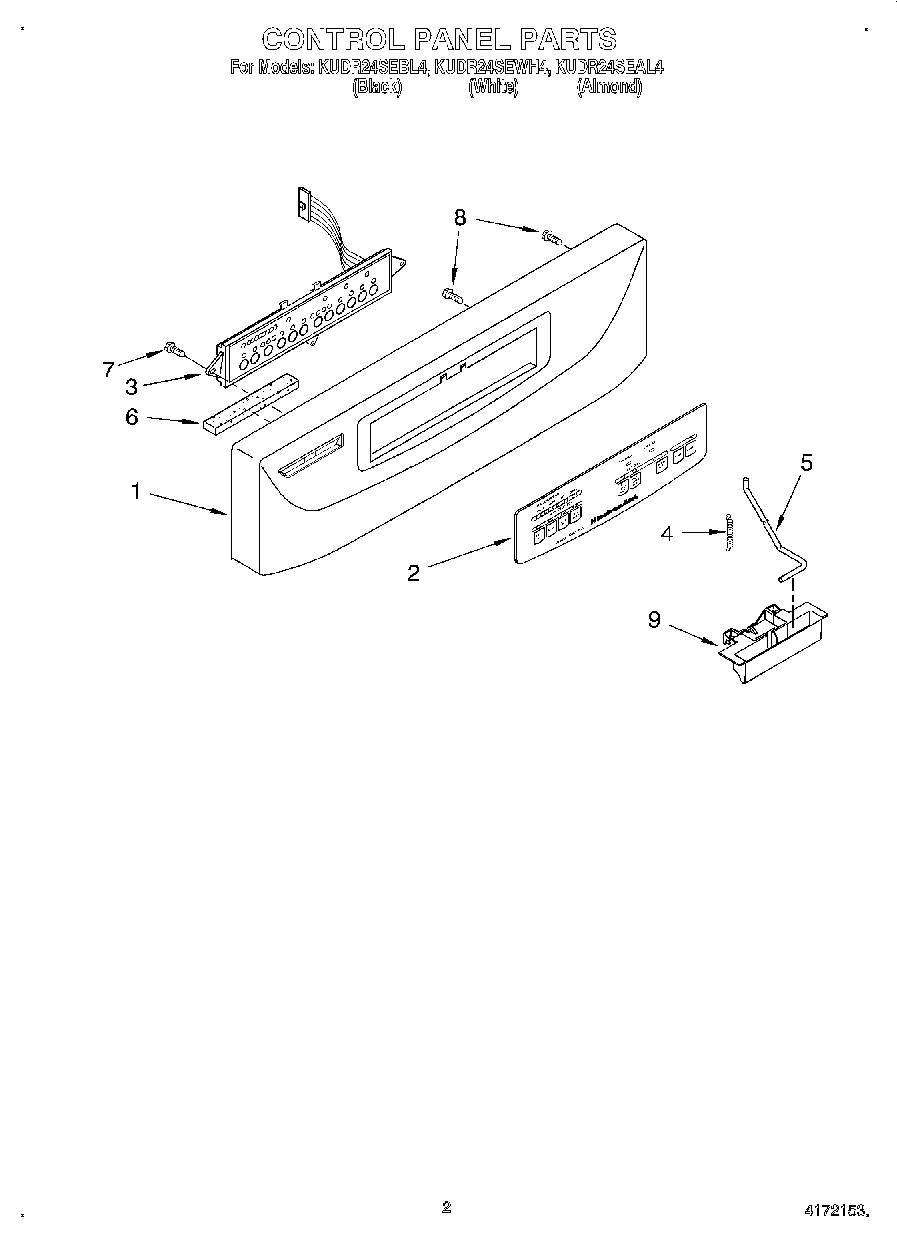

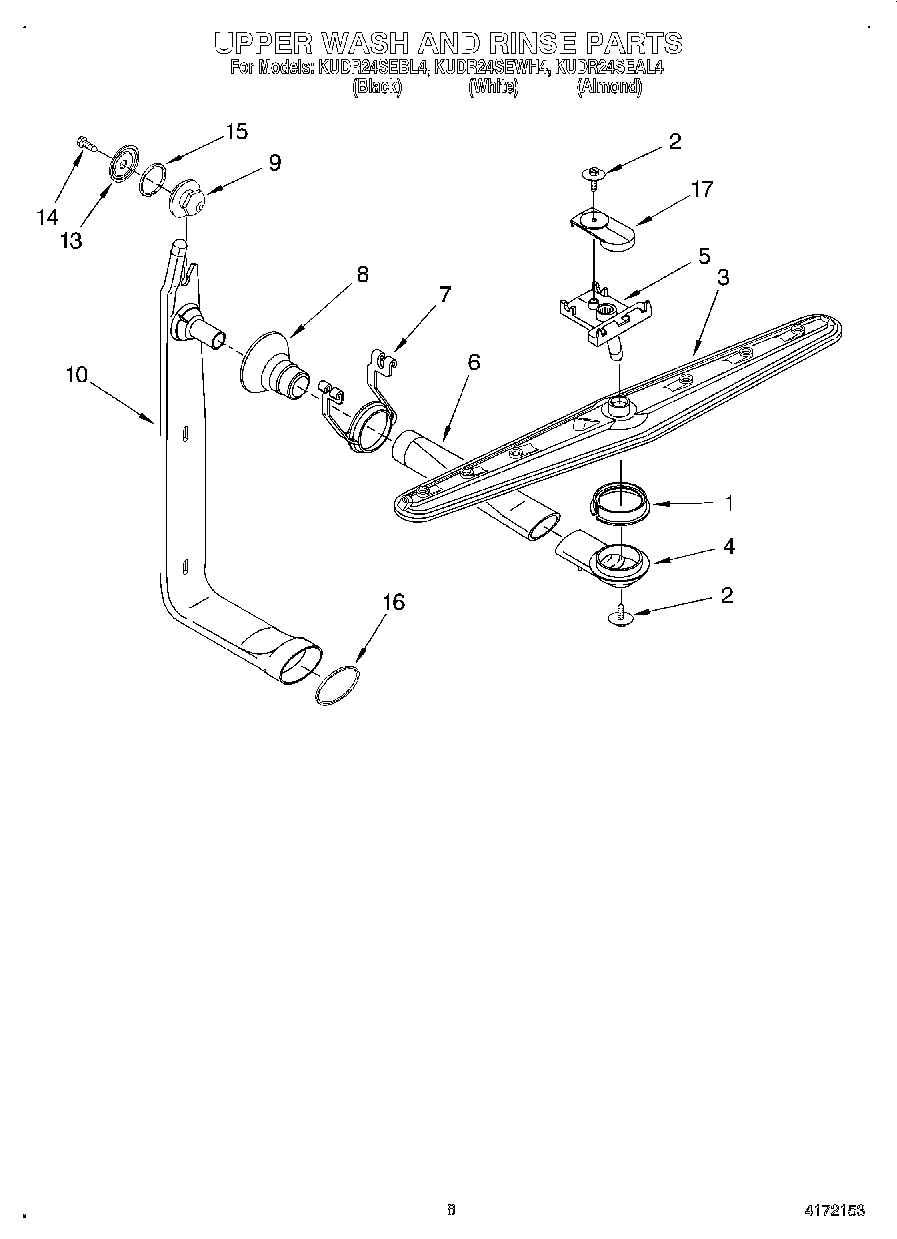

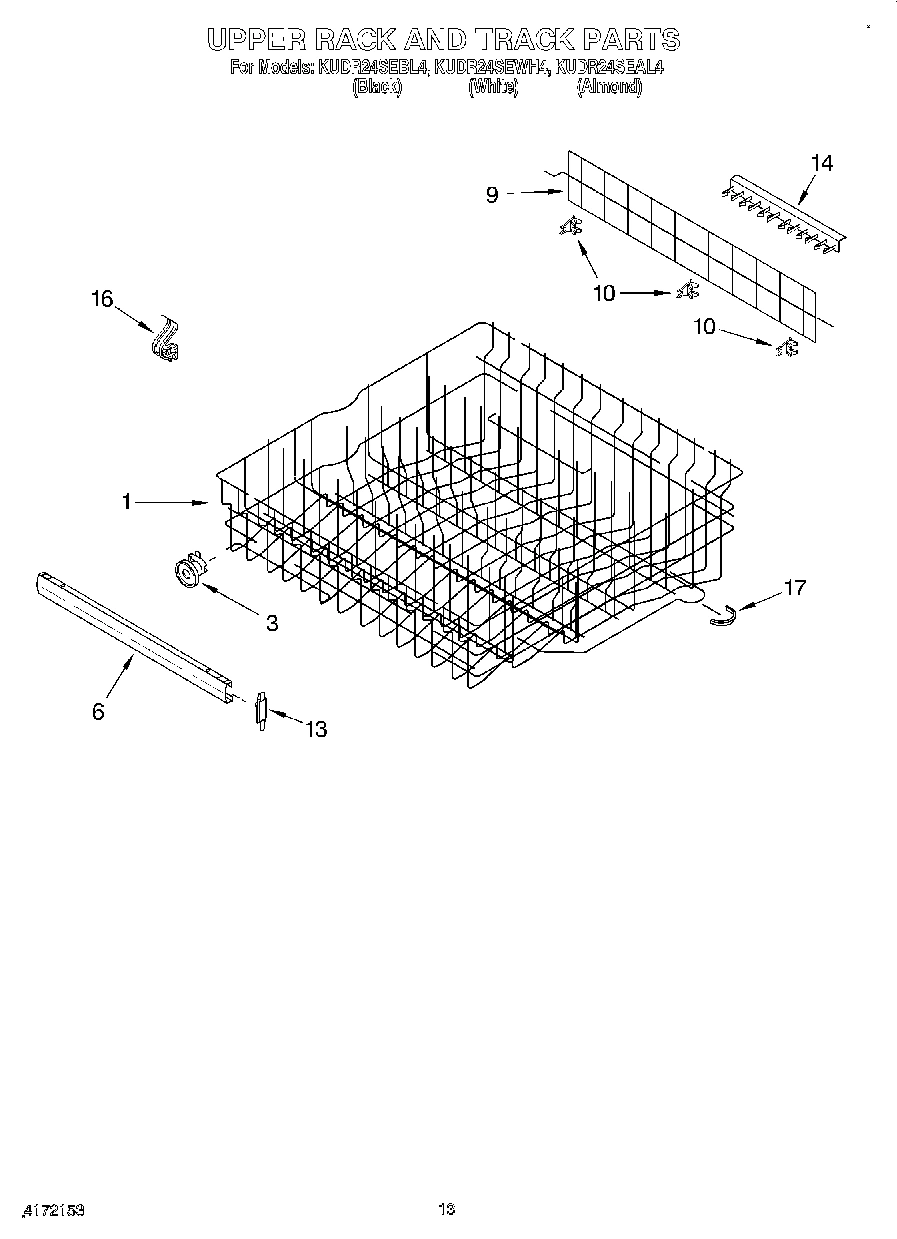

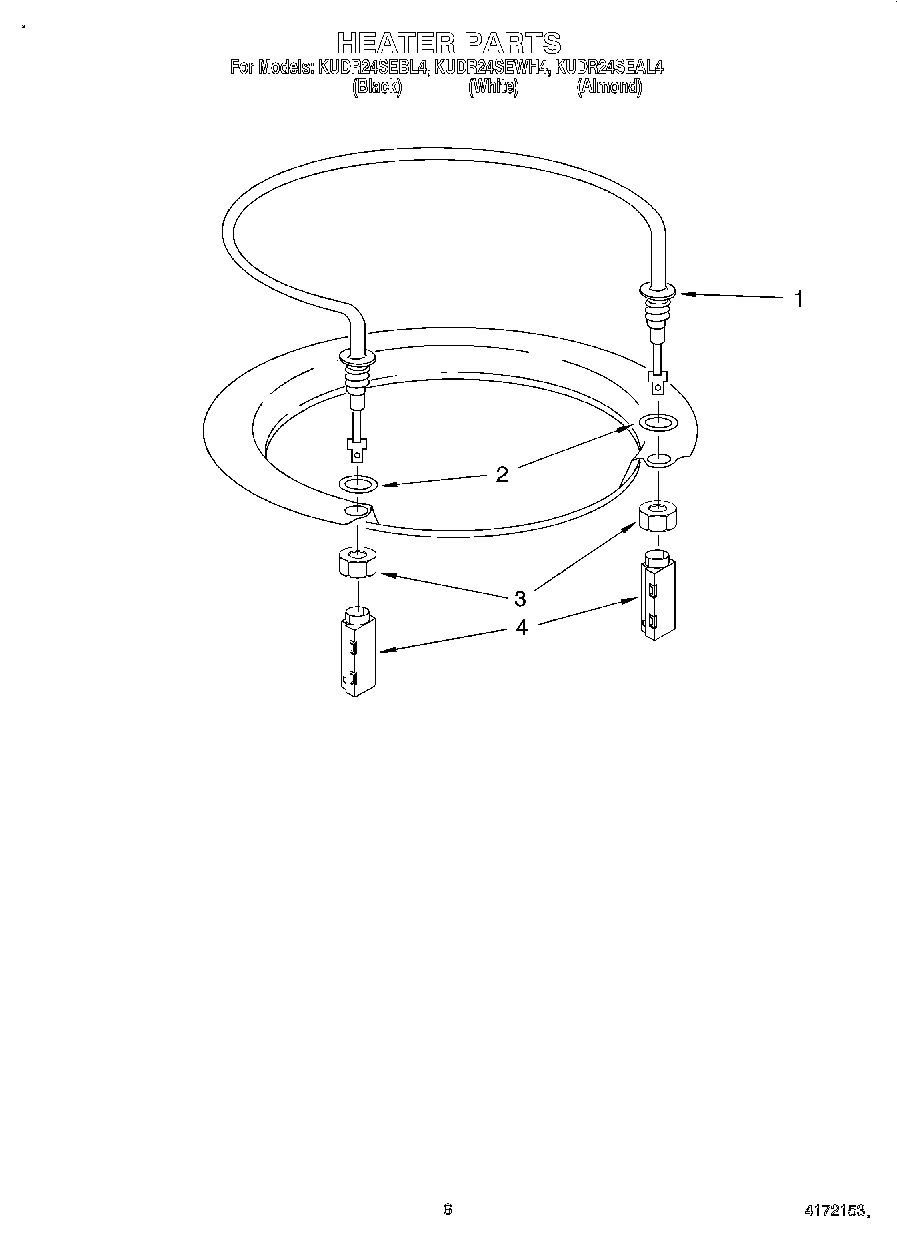

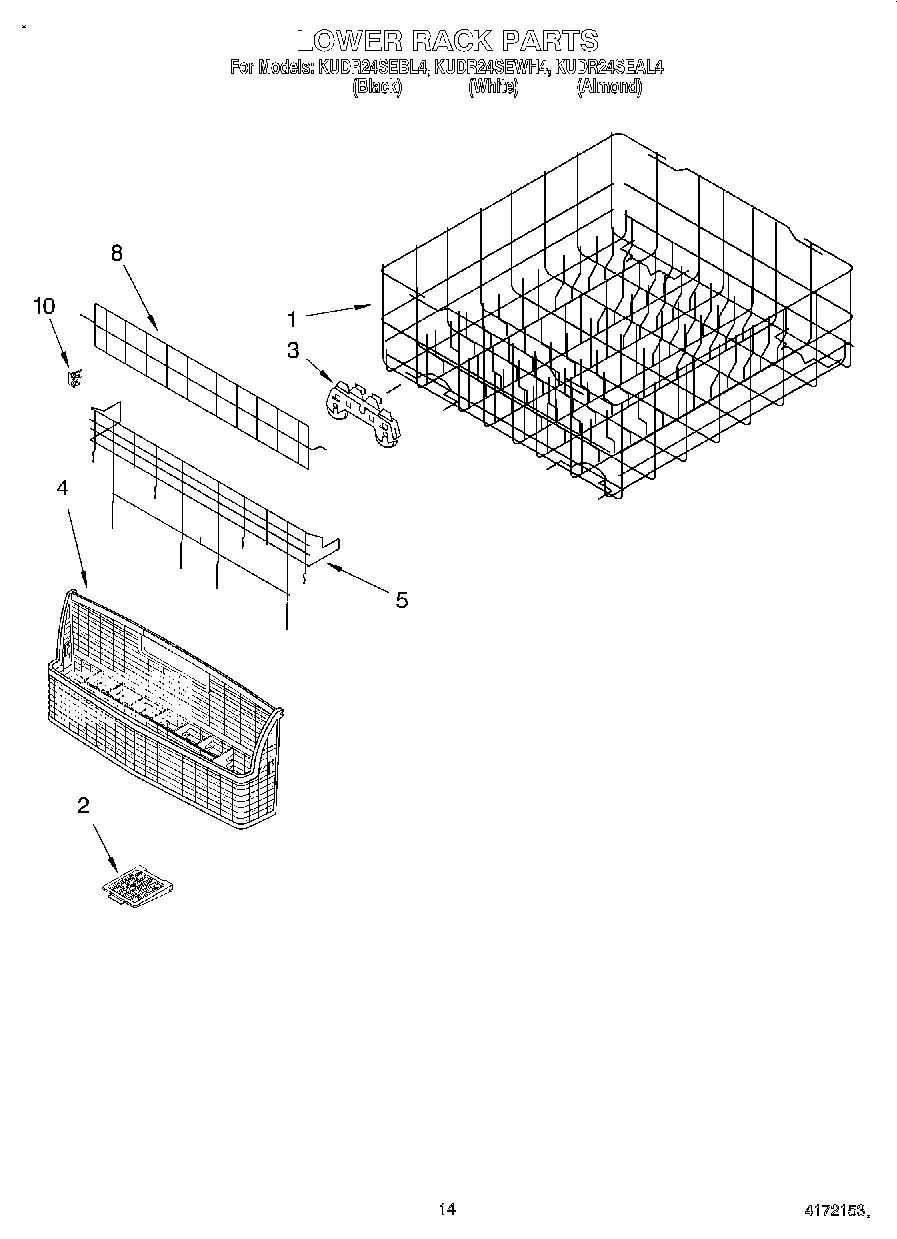

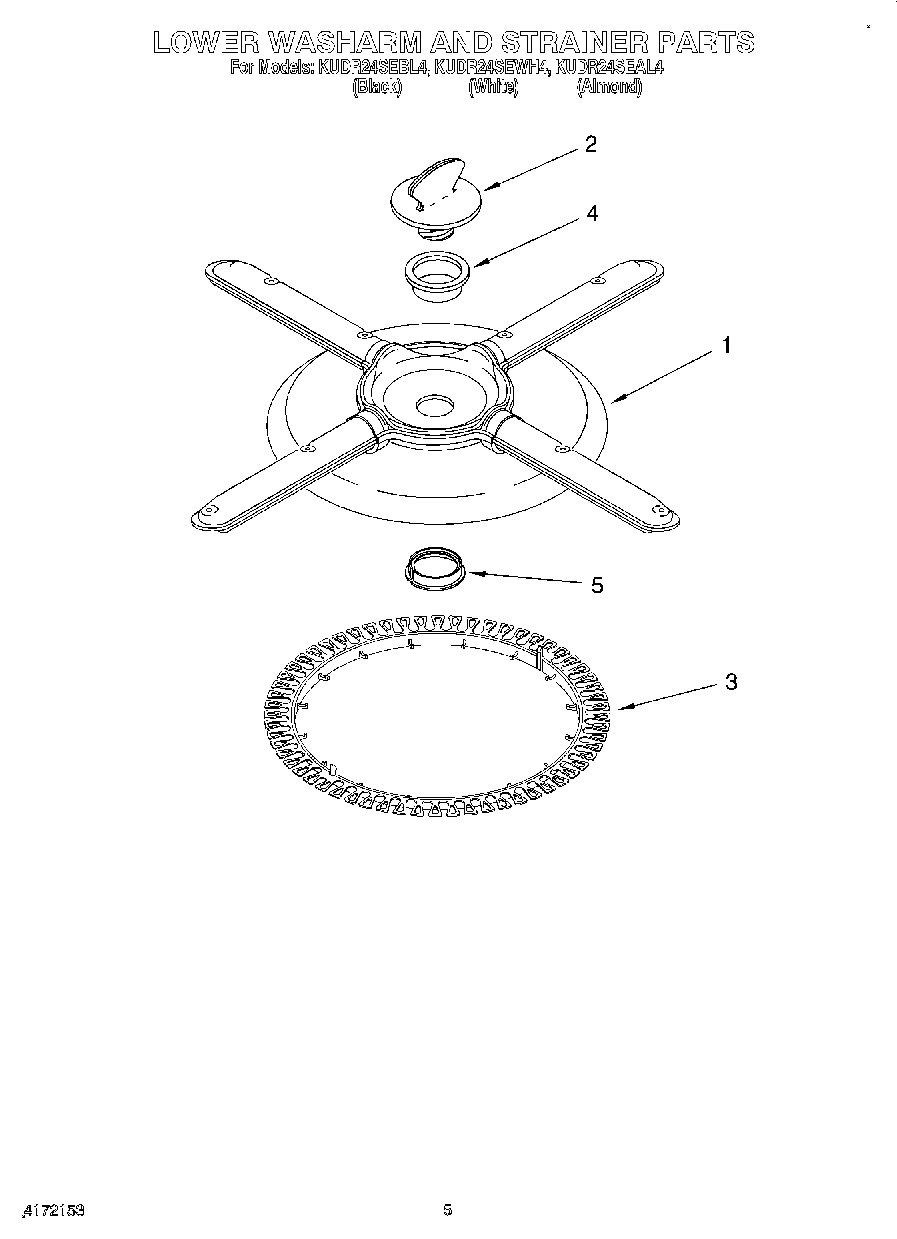

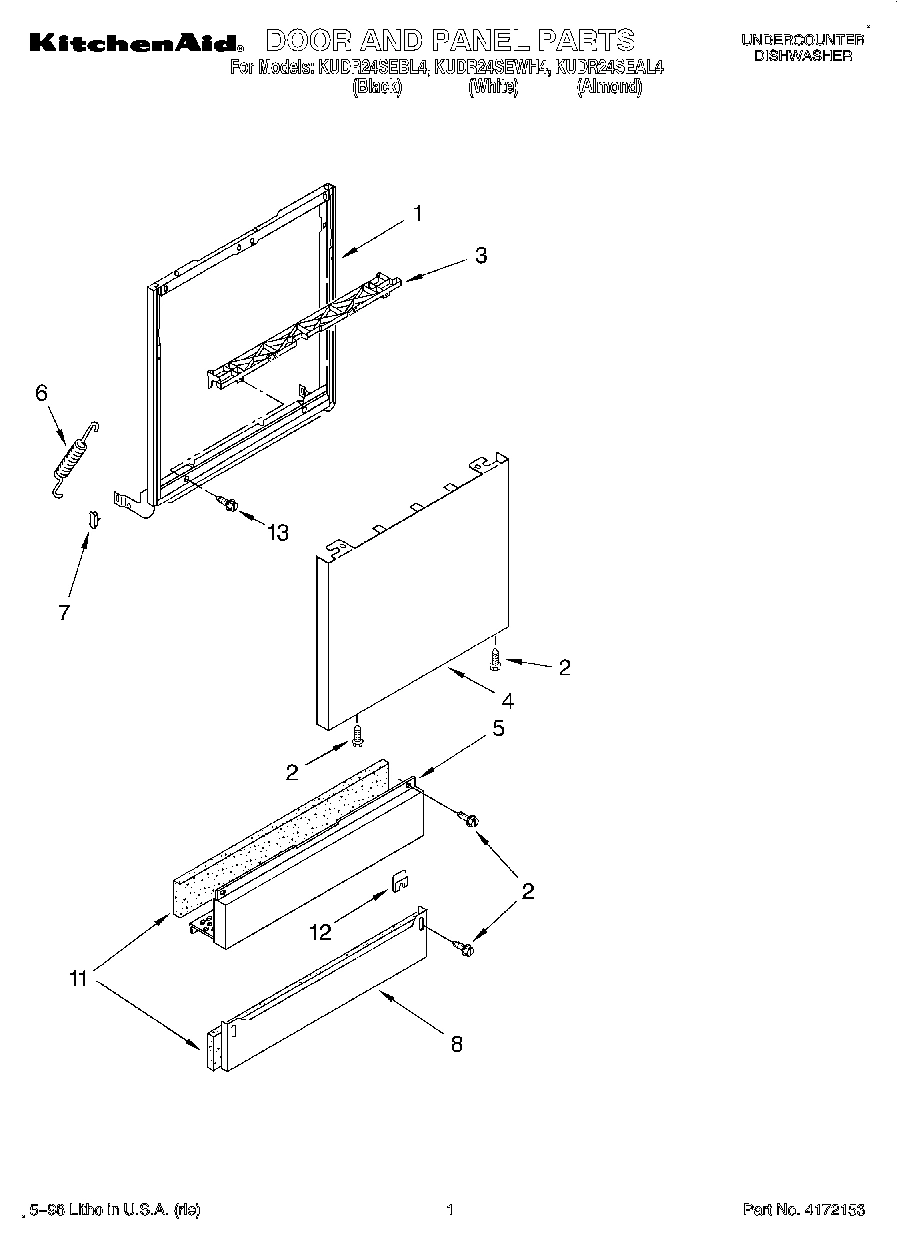

Model Whirlpool KUDR24SEBL4 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $11.62

4378968 Whirlpool Dishwasher Mounting Bracket Backorder WPL 4378968 $35.87

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

1

W10134647 Whirlpool Lower Dish Rack Backorder WPL W10134647 $262.67

1

WP9743028 Whirlpool Dishwasher Frame Backorder WPL WP9743028 $84.87

1

WPW10253040 Whirlpool Dishwasher Dish Rack Backorder WPL WPW10253040 $274.56

1

Cap, Dispenser WPL 9743399 Contact Us For Availability

1

Console (Also order Item No.2) (White Model) WPL 9743592 Contact Us For Availability

1

Console (Also Order Item 2) (Black Model) WPL 9743591 Contact Us For Availability

1

Wash Arm Assembly WPL 9742947 Contact Us For Availability

1

Heater Element Assembly (Also Includes Item 2 WPL 9743495 Contact Us For Availability

1

Tub Assembly WPL 9743798 Contact Us For Availability

2

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.07

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

2

WP9742727 Whirlpool Dishwasher Fill Hose Backorder WPL WP9742727 $8.46

2

WP9742945 Whirlpool Spray Arm Nut In Stock WPL WP9742945 $4.30

2

Cover, Silverware Basket WPL 9743044 Contact Us For Availability

2

Switch WPL 3369325 Contact Us For Availability

3

WP8268807 Whirlpool Dishwasher Upper Wheel In Stock WPL WP8268807 $6.87

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $3.22

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $3.46

3

Door Seal WPL 9743590 Contact Us For Availability

3

Switch, Panel (User Interface) WPL 9743242 Contact Us For Availability

3

Wheel & Transport Assembly WPL 8051252 Contact Us For Availability

3

Nut, Heater Element WPL 9743039 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.67

4

WP9742946 Whirlpool Dishwasher Spray Arm Bear In Stock WPL WP9742946 $13.98

4

WP9743573 Whirlpool Dishwasher Spring Backorder WPL WP9743573 $4.77

4

Gasket WPL 9742787 Contact Us For Availability

4

Panel Front (White Model) WPL 3379376 Contact Us For Availability

4

Panel Front (Black Model) WPL 3379375 Contact Us For Availability

4

Basket, Silverware WPL 9742853 Contact Us For Availability

4

Latch Assembly (Includes Item 2) WPL 9743978 Contact Us For Availability

4

Pod, Terminal Heater WPL 9743166 Contact Us For Availability

4

Plug Tub (2) WPL 9742788 Contact Us For Availability

5

WP3376846 Whirlpool Seal In Stock WPL WP3376846 $5.31

5

WP8539324 Whirlpool Dishwasher Upper Spray Ar In Stock WPL WP8539324 $4.04

5

Link, Handle WPL 9743572 Contact Us For Availability

5

Wheel & Mount Assembly (Also Order Item 6) WPL 9743468 Contact Us For Availability

5

Extension, Side Wall WPL 9743536 Contact Us For Availability

5

Screw WPL 4159424 Contact Us For Availability

6

675808 Whirlpool Dishwasher Middle Spray Arm In Stock WPL 675808 $21.51

6

WP3385089 Whirlpool Track In Stock WPL WP3385089 $44.96

6

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $4.09

6

WP9743986 Whirlpool Spring Backorder WPL WP9743986 $11.37

6

Inner Door Mastic Assembly (Also Includes Ite WPL 9742353 Contact Us For Availability

7

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $6.90

7

WP3378186 Whirlpool Dishwasher Holder In Stock WPL WP3378186 $12.30

7

WP719929 Whirlpool Dishwasher Check Ball In Stock WPL WP719929 $5.67

7

Tub Stiffener WPL 3378056 Contact Us For Availability

8

WP3379920 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379920 $93.03

8

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $84.06

8

WPW10349488 Whirlpool Screw In Stock WPL WPW10349488 $3.22

8

Toe Panel (Includes Item 11) (Almond Model) WPL 9742862 Contact Us For Availability

8

Vent Assembly (Also Order Item 9) WPL 9742770 Contact Us For Availability

9

WP9743903 Whirlpool Dishwasher Handle Backorder WPL WP9743903 $61.13

9

Gasket, Vent WPL 9742782 Contact Us For Availability

9

Filter Assembly WPL 9742968 Contact Us For Availability

9

Connector (Includes Items 13, 14 & 15) WPL 9743473 Contact Us For Availability

9

Cupshelf WPL 3377419 Contact Us For Availability

9

Rear Support Assembly WPL 9743149 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

WP9743019 Whirlpool Dishwasher Clip In Stock WPL WP9743019 $4.59

Feed Tube Assembly WPL 9742950 Contact Us For Availability

Deflector, Vent (Also Order Item 9) WPL 9742780 Contact Us For Availability

WP9743413 Whirlpool Dishwasher Switch Backorder WPL WP9743413 $16.85

WPW10616003 Whirlpool Dishwasher Dispenser As Backorder WPL WPW10616003 $185.56

Insulation WPL 9743825 Contact Us For Availability

Connector Tub To Brace WPL 9742610 Contact Us For Availability

12

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

12

Clip, Grounding WPL 3378123 Contact Us For Availability

12

Shield, Dispenser WPL 9743450 Contact Us For Availability

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $16.06

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

WP3379941 Whirlpool Dishwasher Stop Backorder WPL WP3379941 $40.98

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

Washer WPL 9743475 Contact Us For Availability

Bracket, Controls WPL 9742623 Contact Us For Availability

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $4.19

Screw (2) WPL 3370389 Contact Us For Availability

Holder, Stemware (2) WPL 3377604 Contact Us For Availability

WP302819 Whirlpool Dishwasher Wheel Backorder WPL WP302819 $4.19

Float & Retainer Assembly WPL 9743070 Contact Us For Availability

Gasket, Connector WPL 9743474 Contact Us For Availability

Guide, Door WPL 9743487 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $30.06

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $33.34

Seal, Tube WPL 9742953 Contact Us For Availability

Clip, No Flip (4) WPL 3377464 Contact Us For Availability

Bracket, Dispenser (2) WPL 9743486 Contact Us For Availability

17

4172127 Whirlpool Dishwasher Bottom Door Seal In Stock WPL 4172127 $30.06

17

WP8268812 Whirlpool Dishwasher Mounting Assem In Stock WPL WP8268812 $8.13

17

Protector, Sprayarm Guard WPL 9742999 Contact Us For Availability

19

Control, Electronic WPL 3380945 Contact Us For Availability

19

Terminal Box WPL 3378131 Contact Us For Availability

20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

20

Screw WPL 3369138 Contact Us For Availability

21

300068 Whirlpool Dishwasher Cover Assembly Backorder WPL 300068 $18.40

22

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $3.22

22

Fuse Thermal Electronic WPL 9743451 Contact Us For Availability

23

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $3.22

24

Relief, Strain WPL 3370307 Contact Us For Availability

25

Sound Absorber WPL 9742397 Contact Us For Availability

25

Trim Strip, Tub WPL 9743460 Contact Us For Availability

26

WP304666 Whirlpool Dishwasher Retainer In Stock WPL WP304666 $9.66

27

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $10.04

27

Corner Trim, Tub WPL 9742789 Contact Us For Availability

28

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $17.32

29

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $49.31

30

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $17.67

30

Pump Seal Kit (Includes Items 4, 12, 13 & 22) WPL 675703 Contact Us For Availability

30

Wiring Harness Main WPL 9743820 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

31

Strike, Latch WPL 9742722 Contact Us For Availability

32

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

32

Pad, Friction WPL 9743406 Contact Us For Availability

33

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $58.43

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

33

Screw (6) WPL 3400700 Contact Us For Availability

34

3371748 Whirlpool Dishwasher Cap Backorder WPL 3371748 $6.87

38

WP3376723 Whirlpool Dishwasher Seal Backorder WPL WP3376723 $6.13

40

WP9740674 Whirlpool Dishwasher Gasket Backorder WPL WP9740674 $4.19
