Model Whirlpool KSUP25QDAL01 – Common Parts & Diagrams

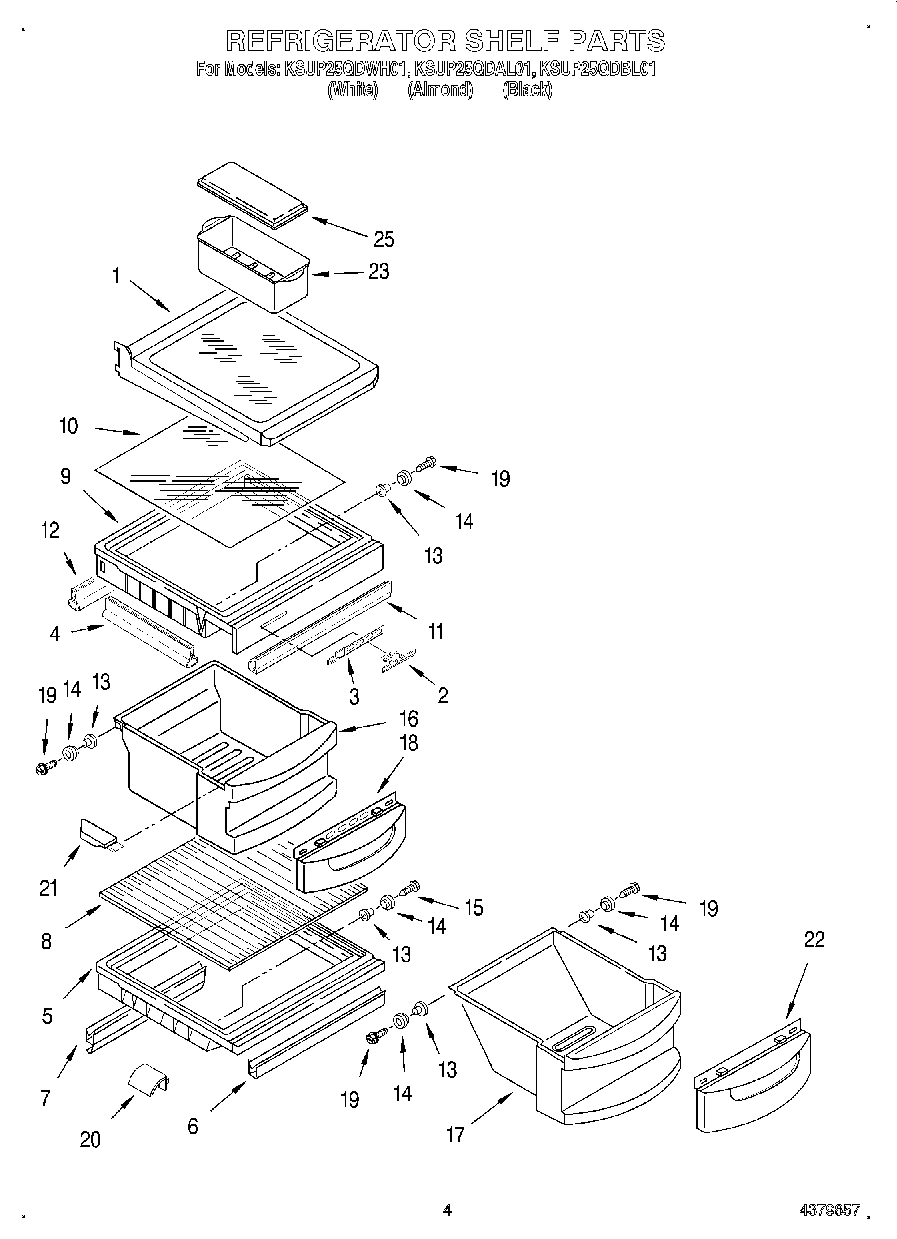

03 - REFRIGERATOR SHELF

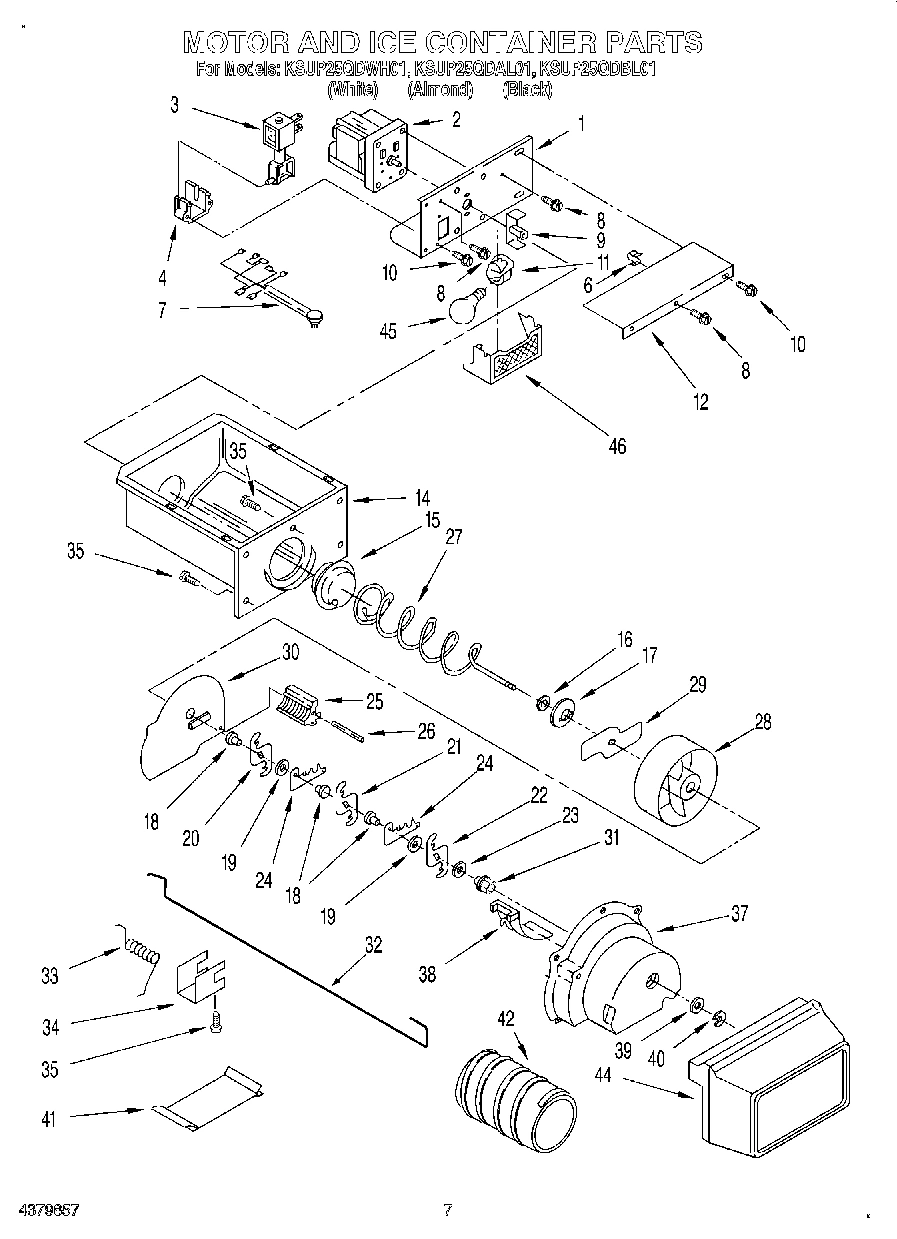

05 - MOTOR AND ICE CONTAINER

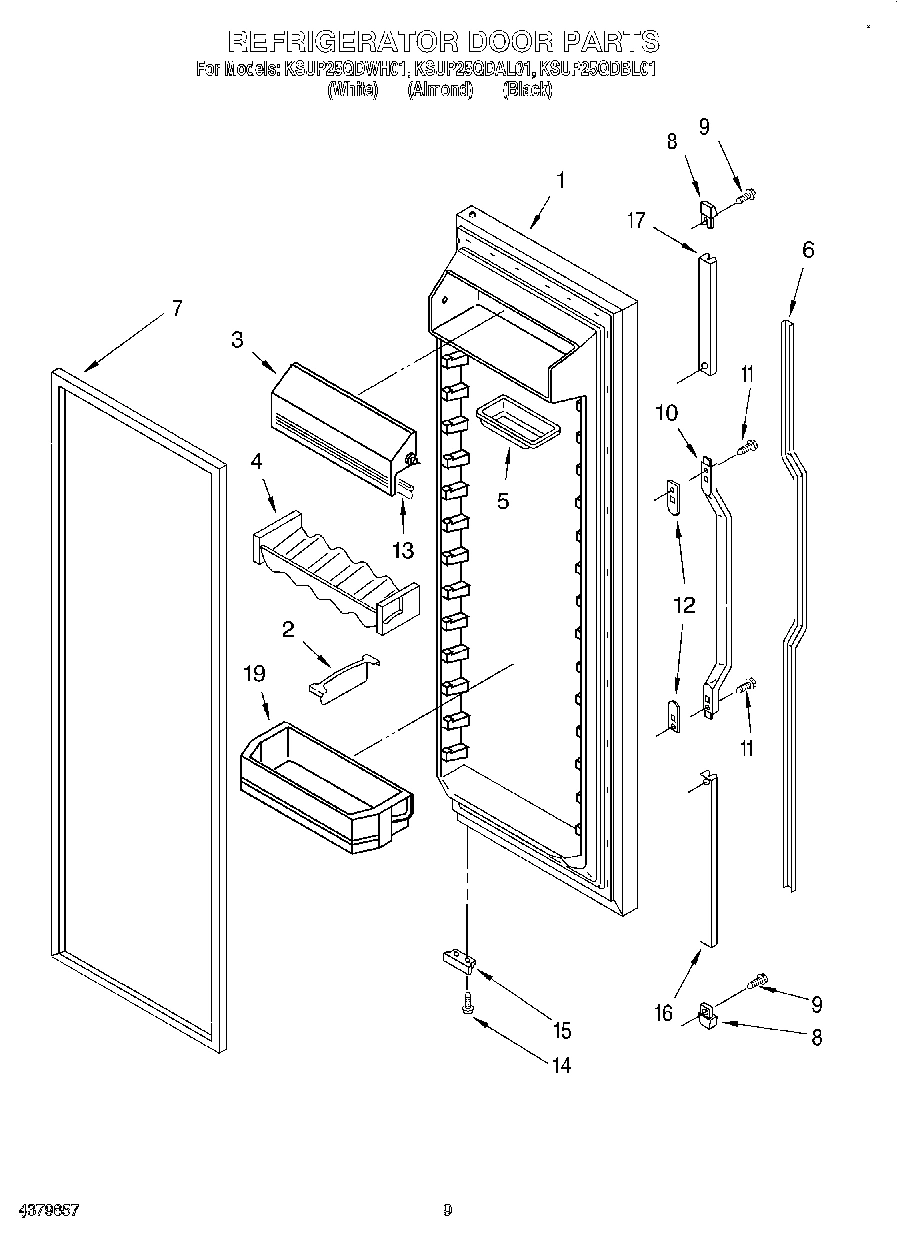

06 - REFRIGERATOR DOOR

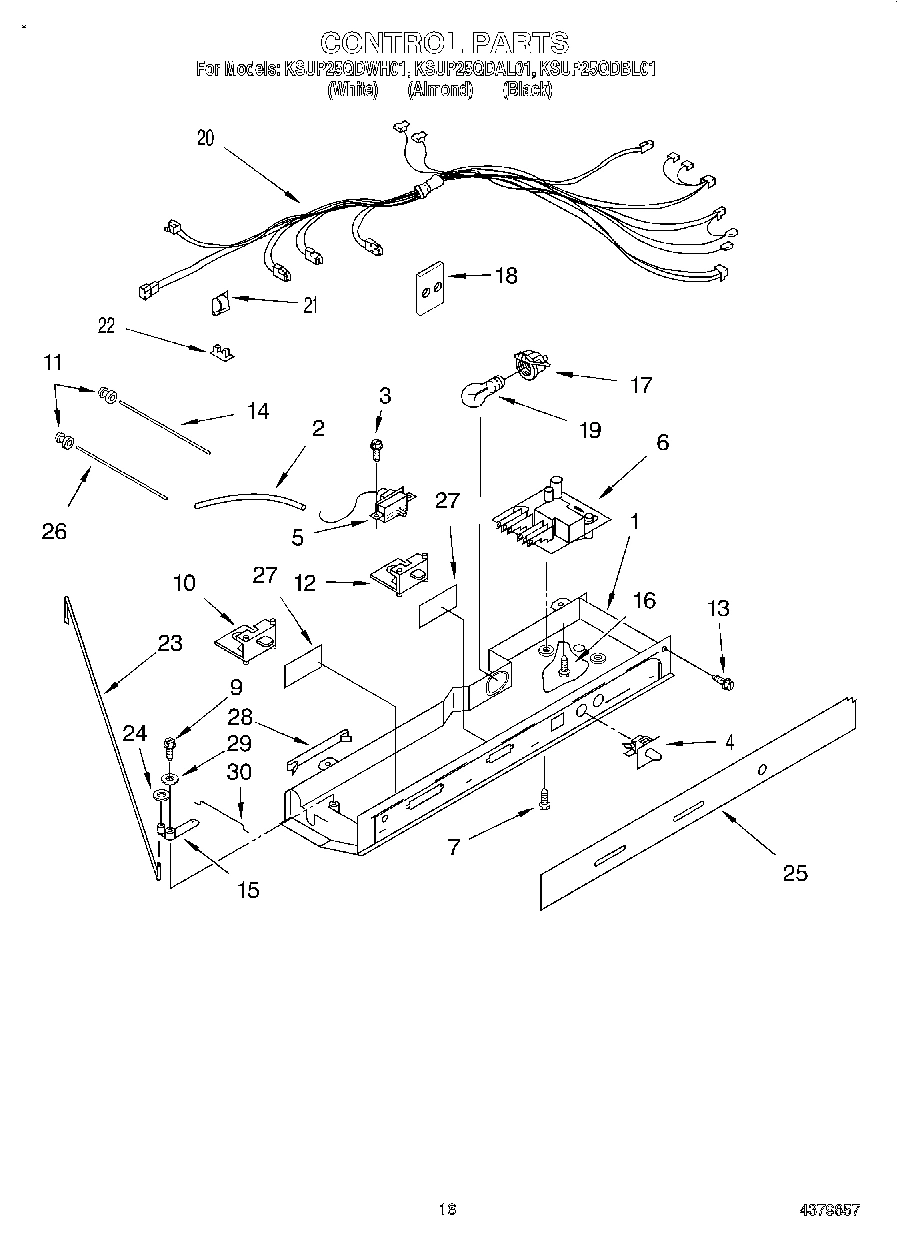

10 - CONTROL

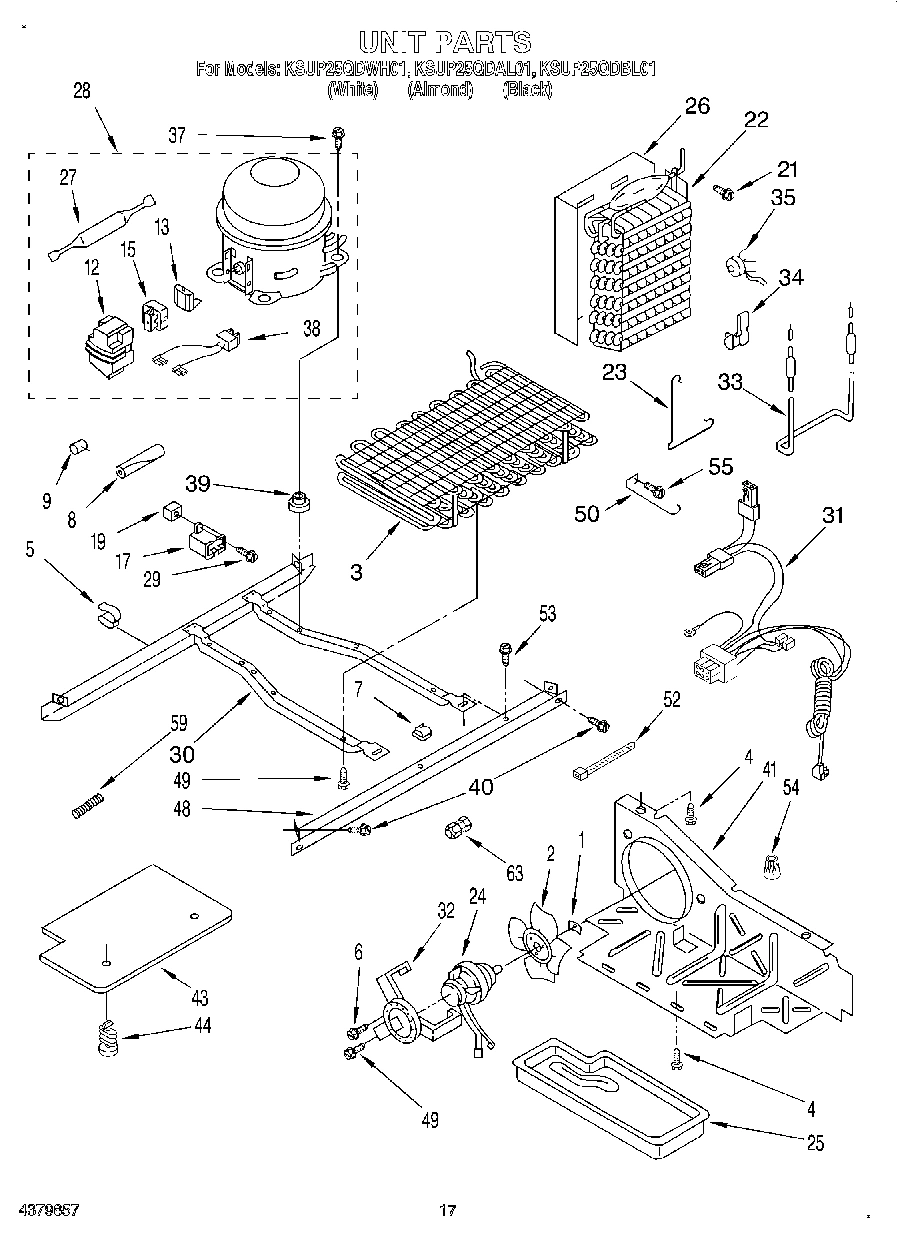

11 - UNIT
12 - ICEMAKER, LIT/OPTIONAL

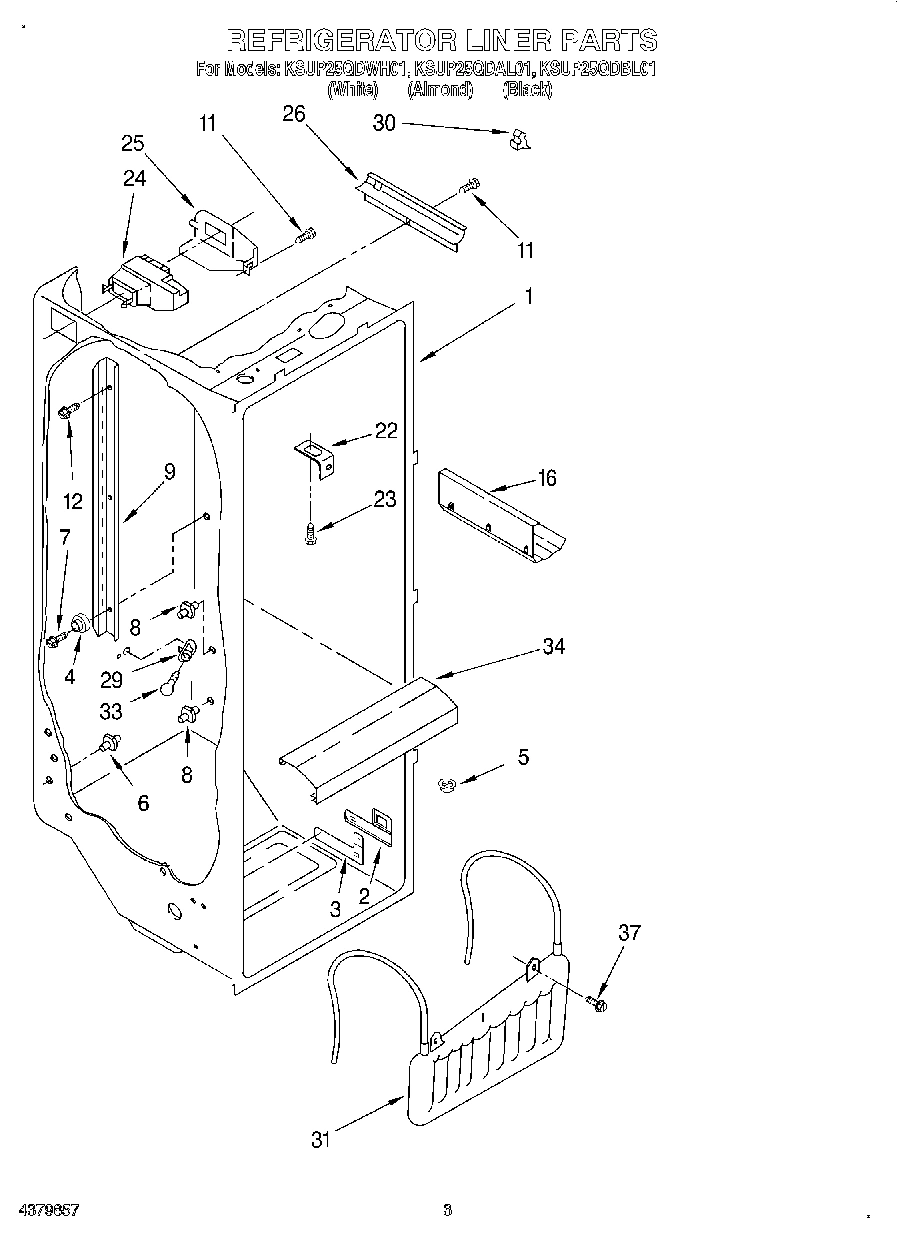

02 - REFRIGERATOR LINER

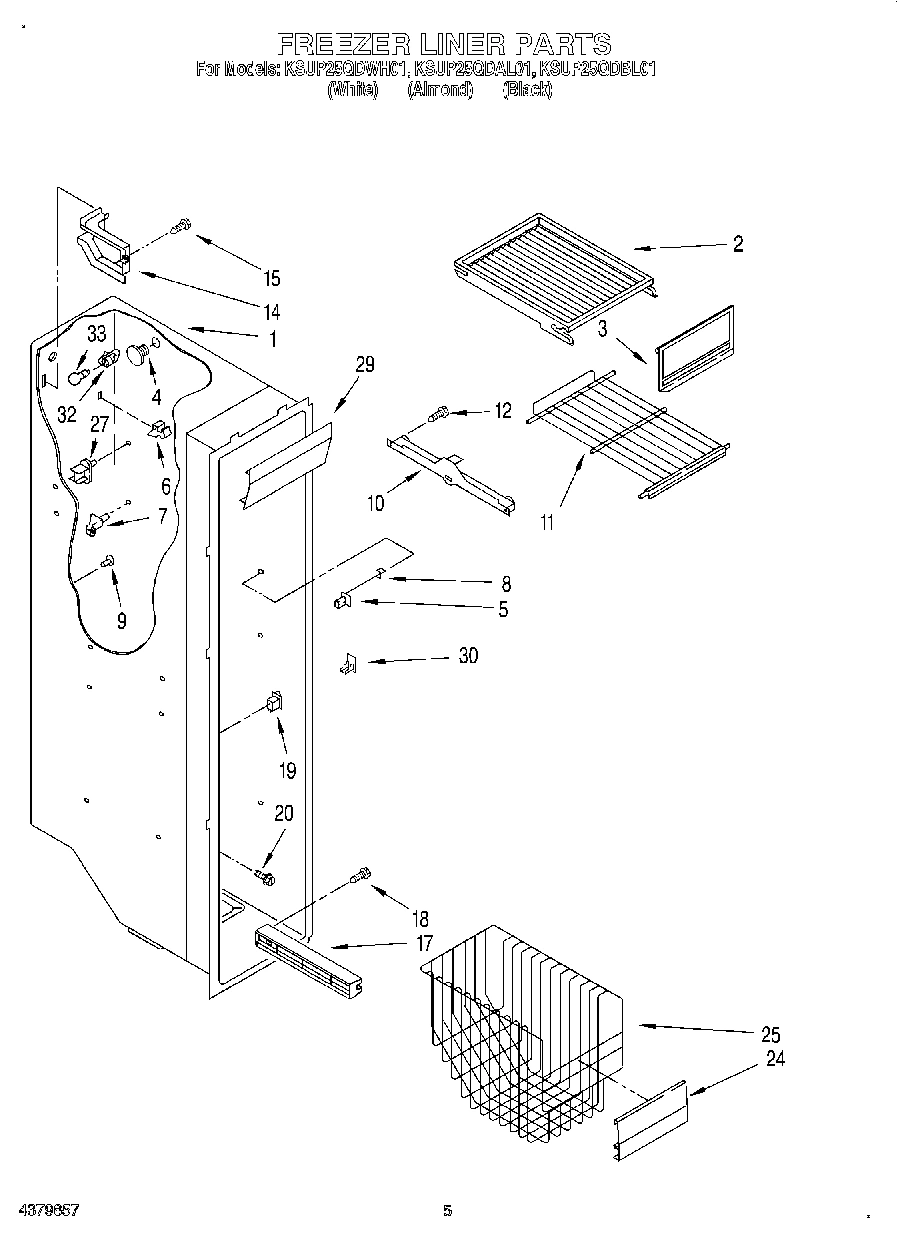

04 - FREEZER LINER

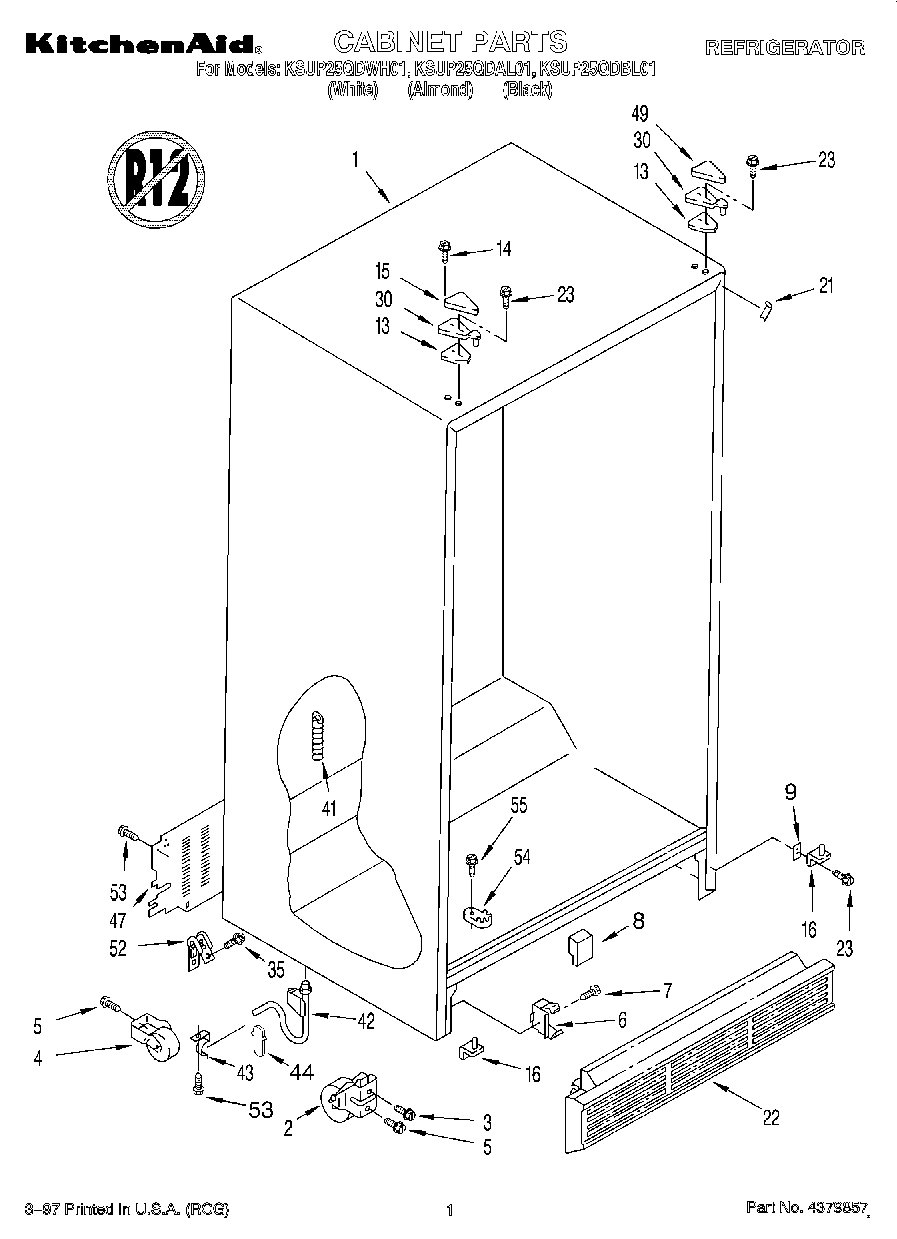

01 - CABINET

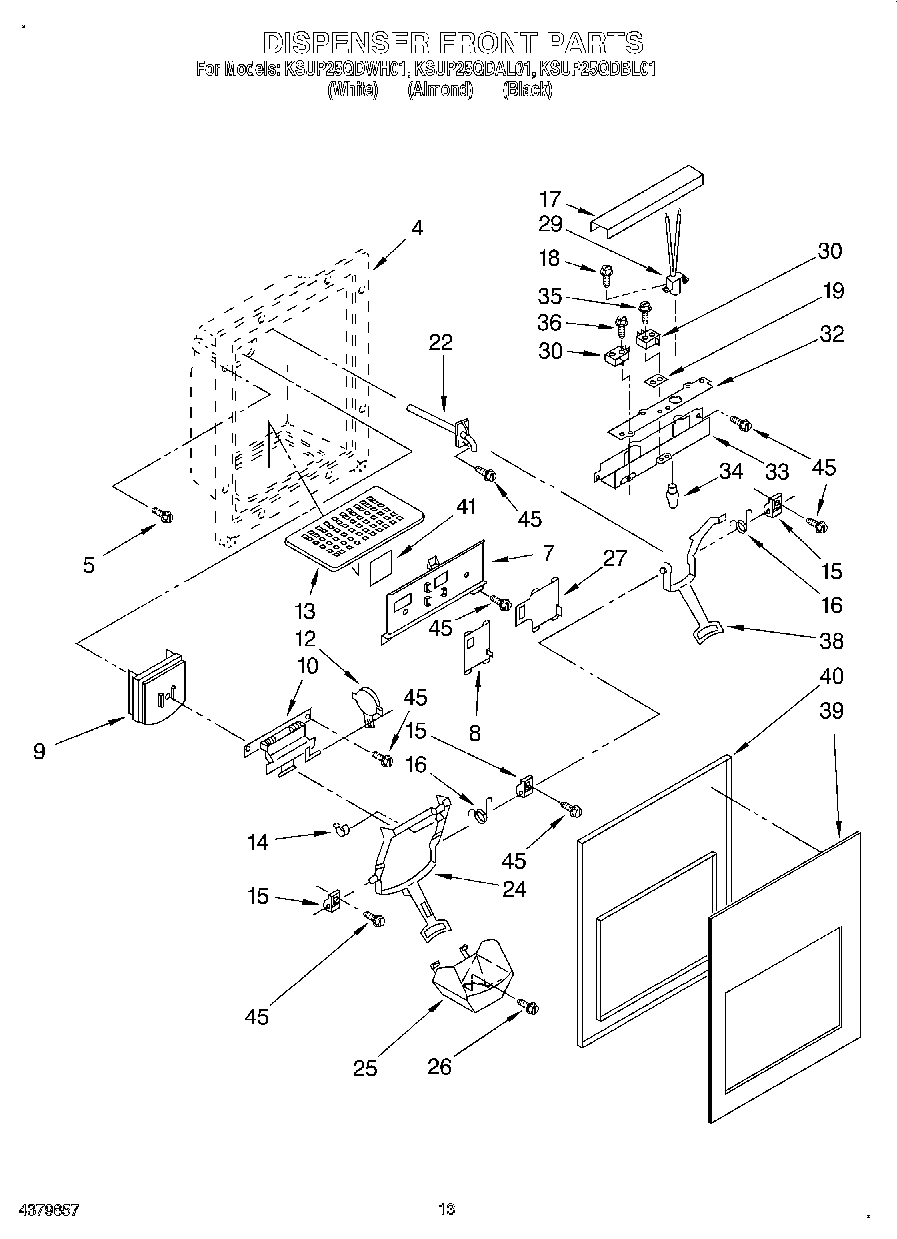

08 - DISPENSER FRONT

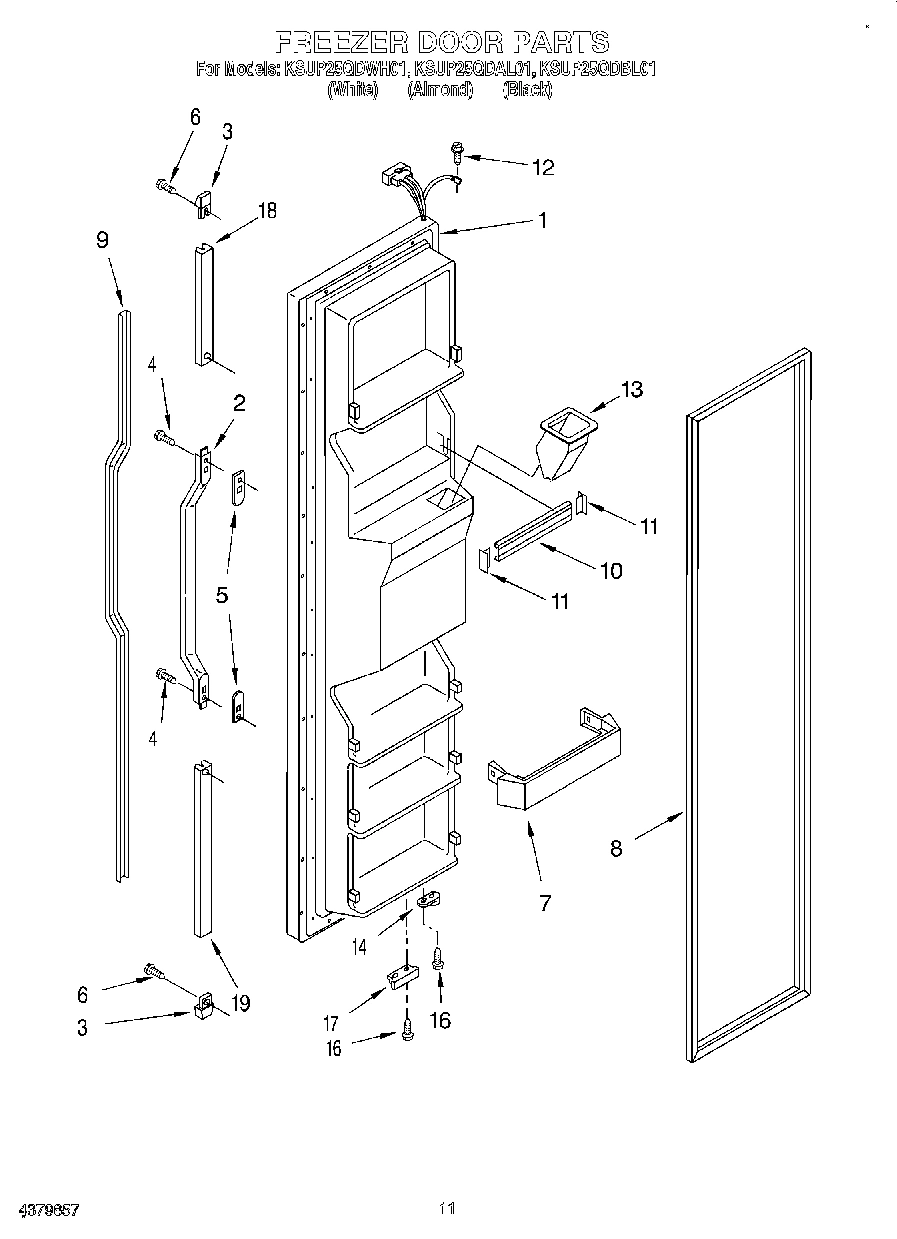

07 - FREEZER DOOR

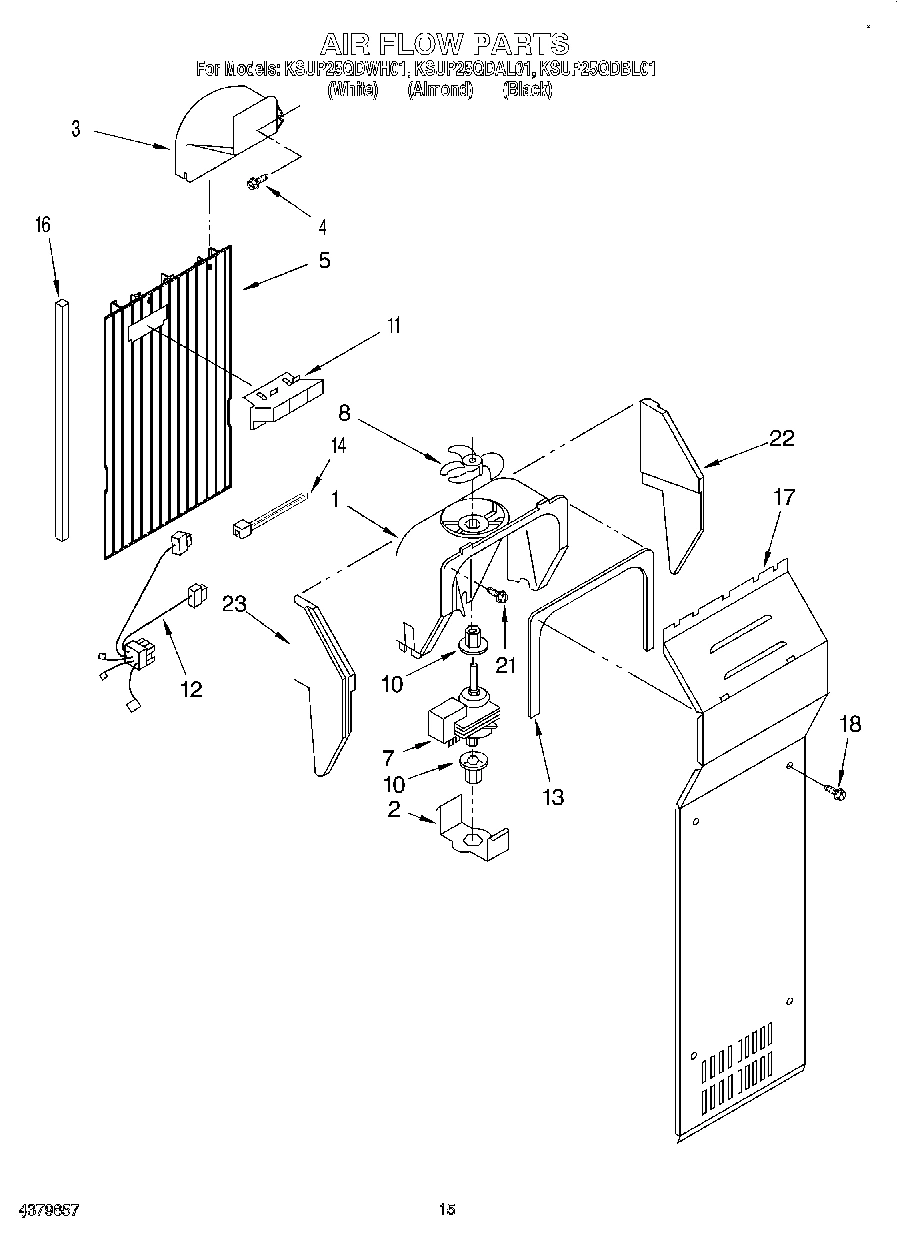

09 - AIR FLOW
Common parts from model Whirlpool KSUP25QDAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2176077 WPL LIT2176077 Contact Us For Availability
WPL LIT2180080 WPL LIT2180080 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107980A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI107981A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI107979A Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179924 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179925 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2179926 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle Assembly WPL 1107215 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) WPL 1107341 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI107982A Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
5
Spacer, Handle WPL 1107651 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Screw WPL 487559 Contact Us For Availability
7
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171996 Contact Us For Availability
9
Insert, Handle (White) WPL 1117948 Contact Us For Availability
9
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
9
Insert, Handle (Black) WPL 2180118 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Shelf (2) WPL 2174268 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Relay (See Overload) WPL ARI107983A Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 2171777 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 2171778 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
17
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Retainer, Insert WPL 1107243 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Retainer, Insert WPL 1117952 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Basket, Lower WPL 2171701 Contact Us For Availability
25
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
27
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2181709 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw (6) WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2174314 Contact Us For Availability
39
Insert, Cover (Black) WPL 2174315 Contact Us For Availability
39
Insert, Cover (White) WPL 2174316 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Co WPL 2174292 Contact Us For Availability
40
WPL 2174293 WPL 2174293 Contact Us For Availability
40
WPL 2174294 WPL 2174294 Contact Us For Availability
41
WPL 2147172 WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncu WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
