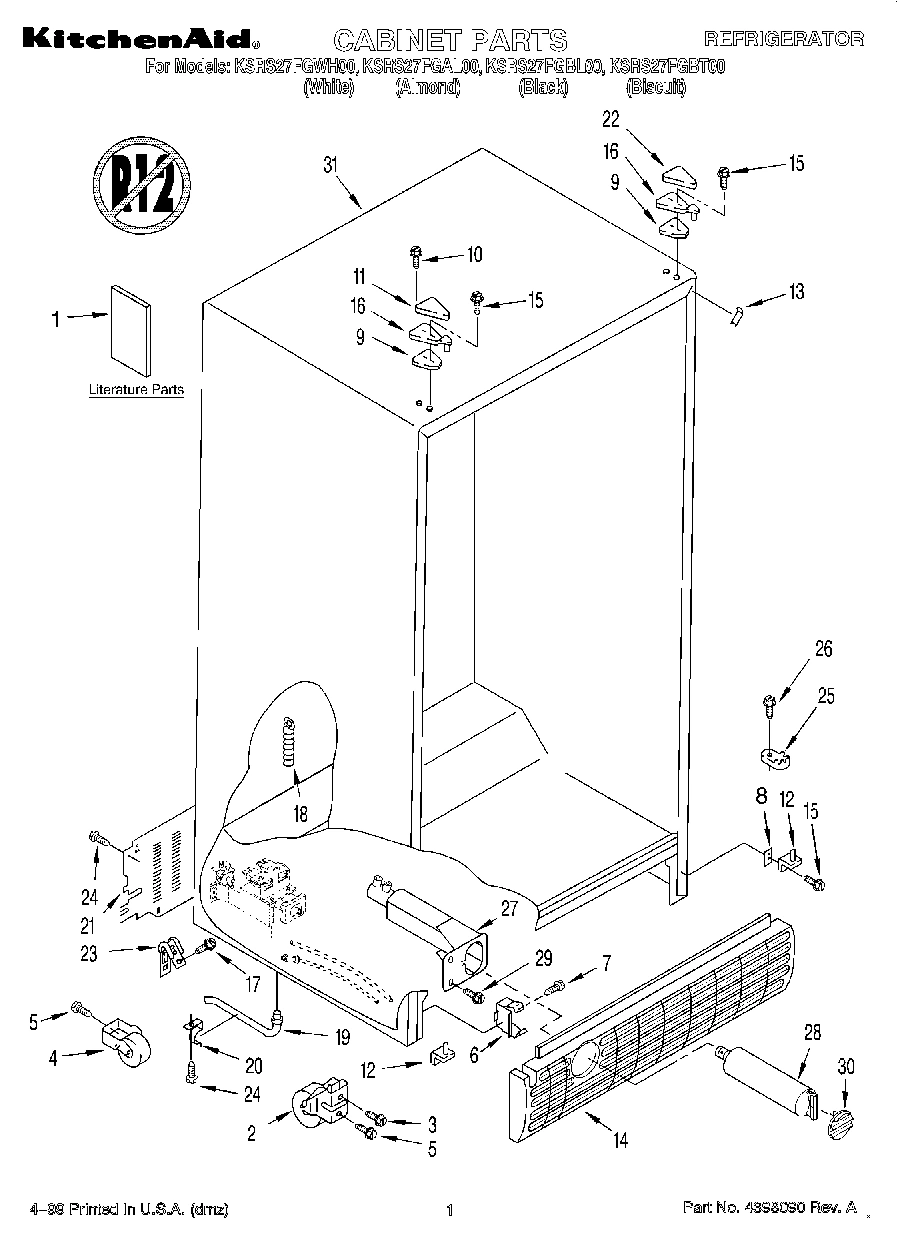

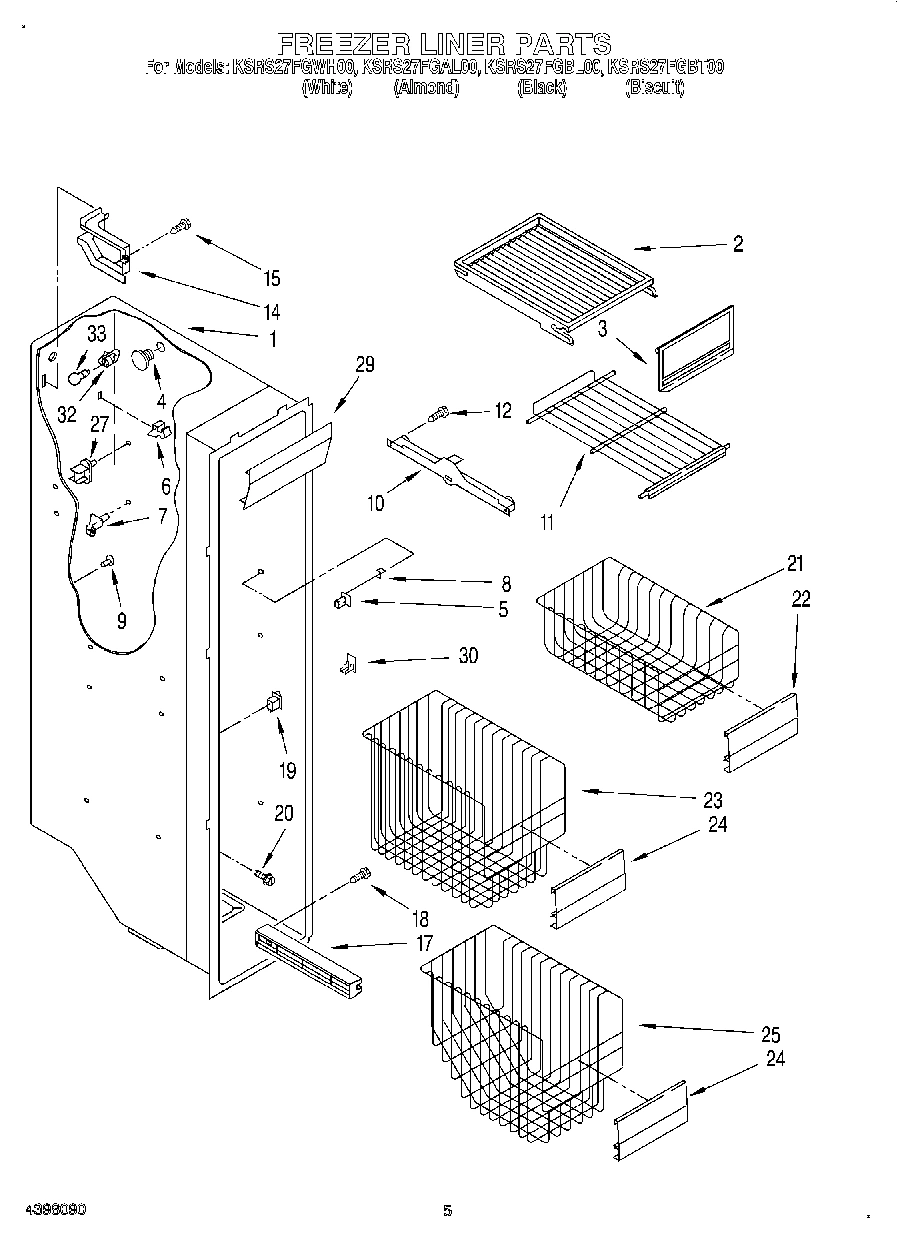

Model Whirlpool KSRS27FGBT00 REFRIGERATOR – Common Parts &amp; Diagrams

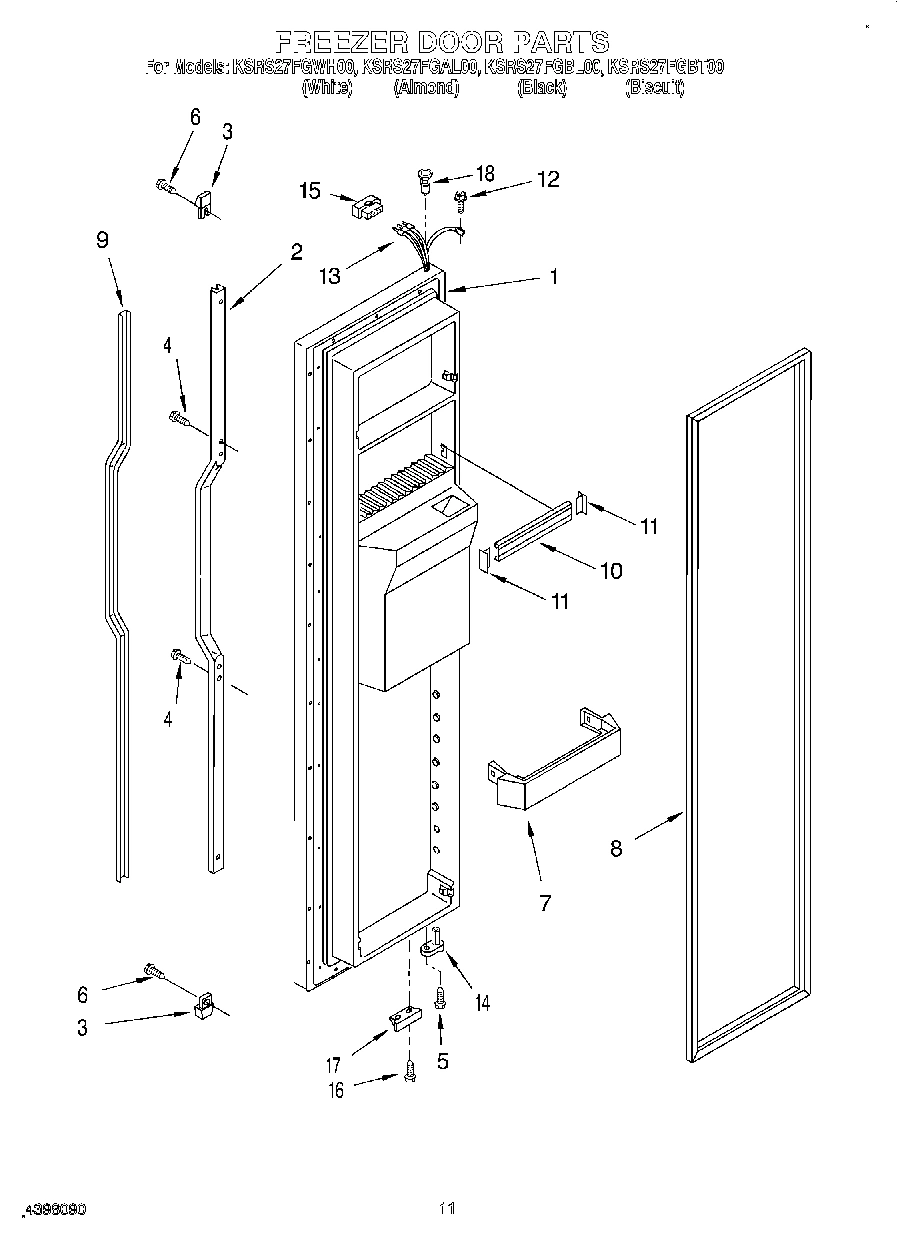

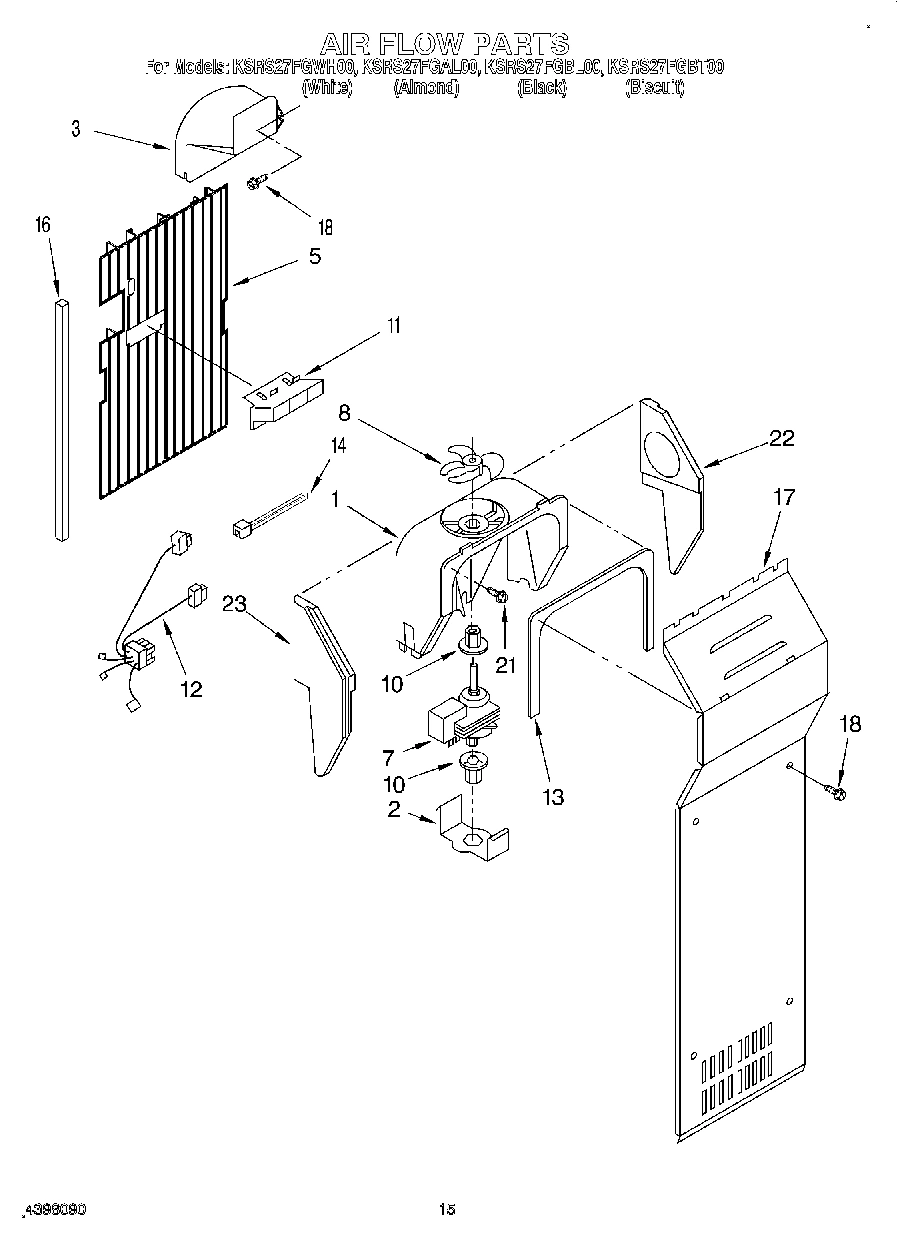

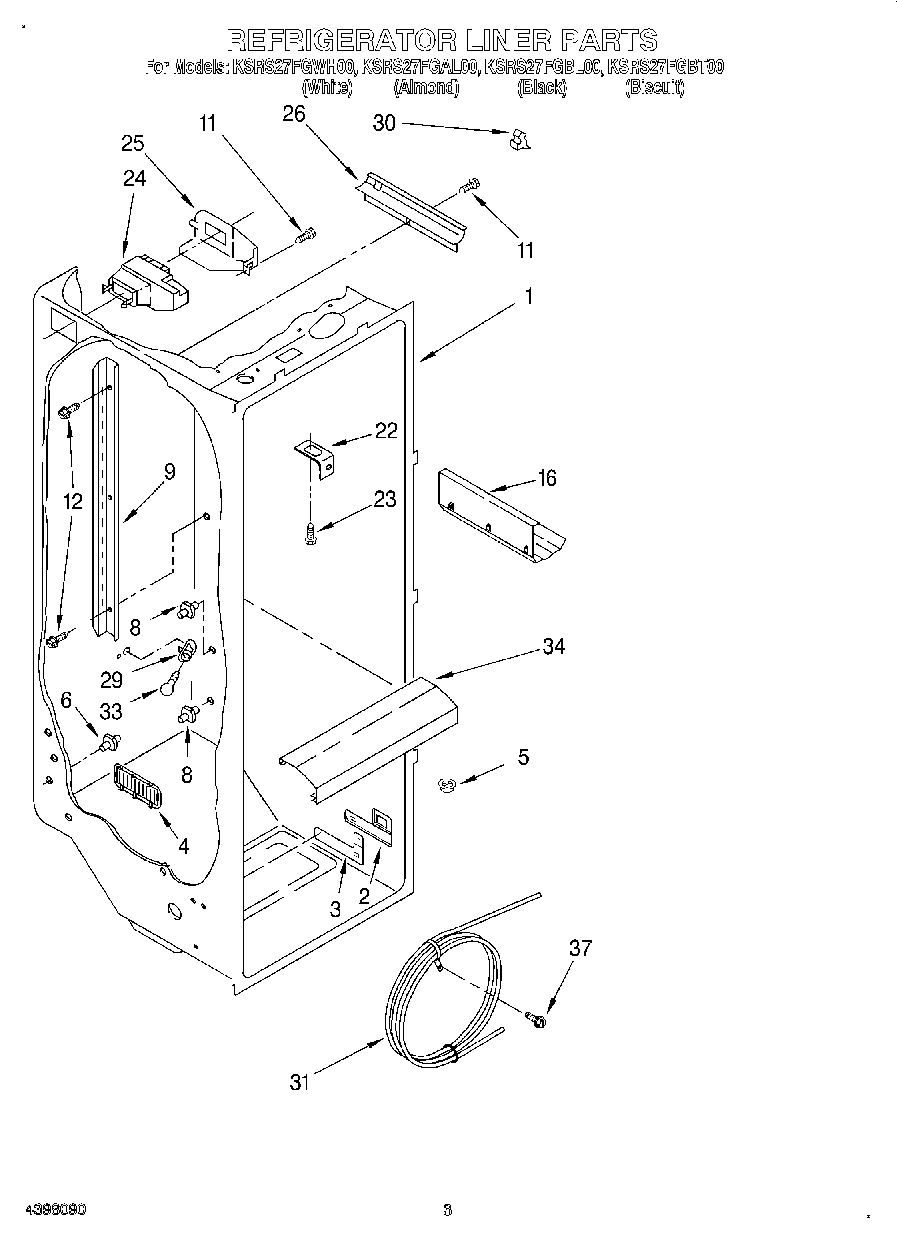

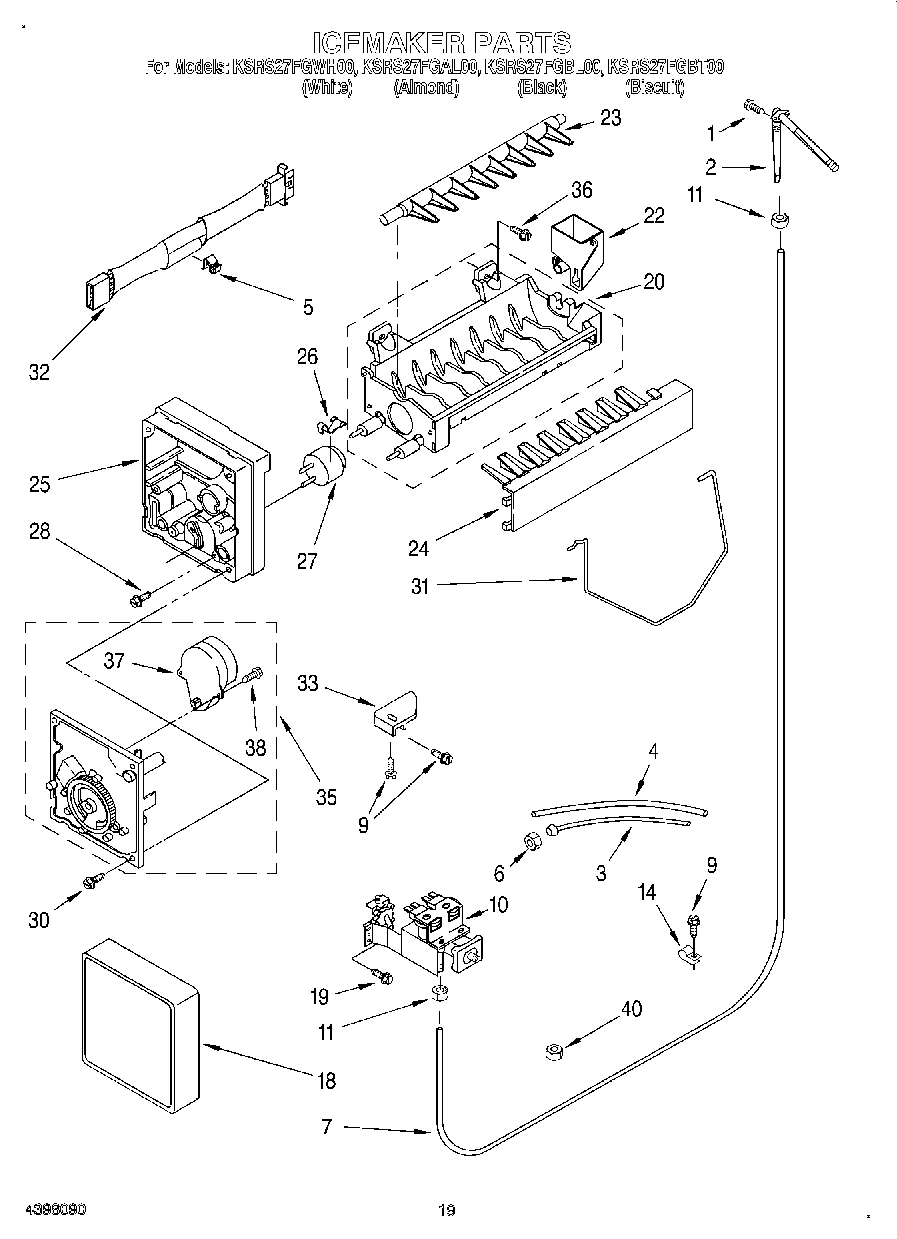

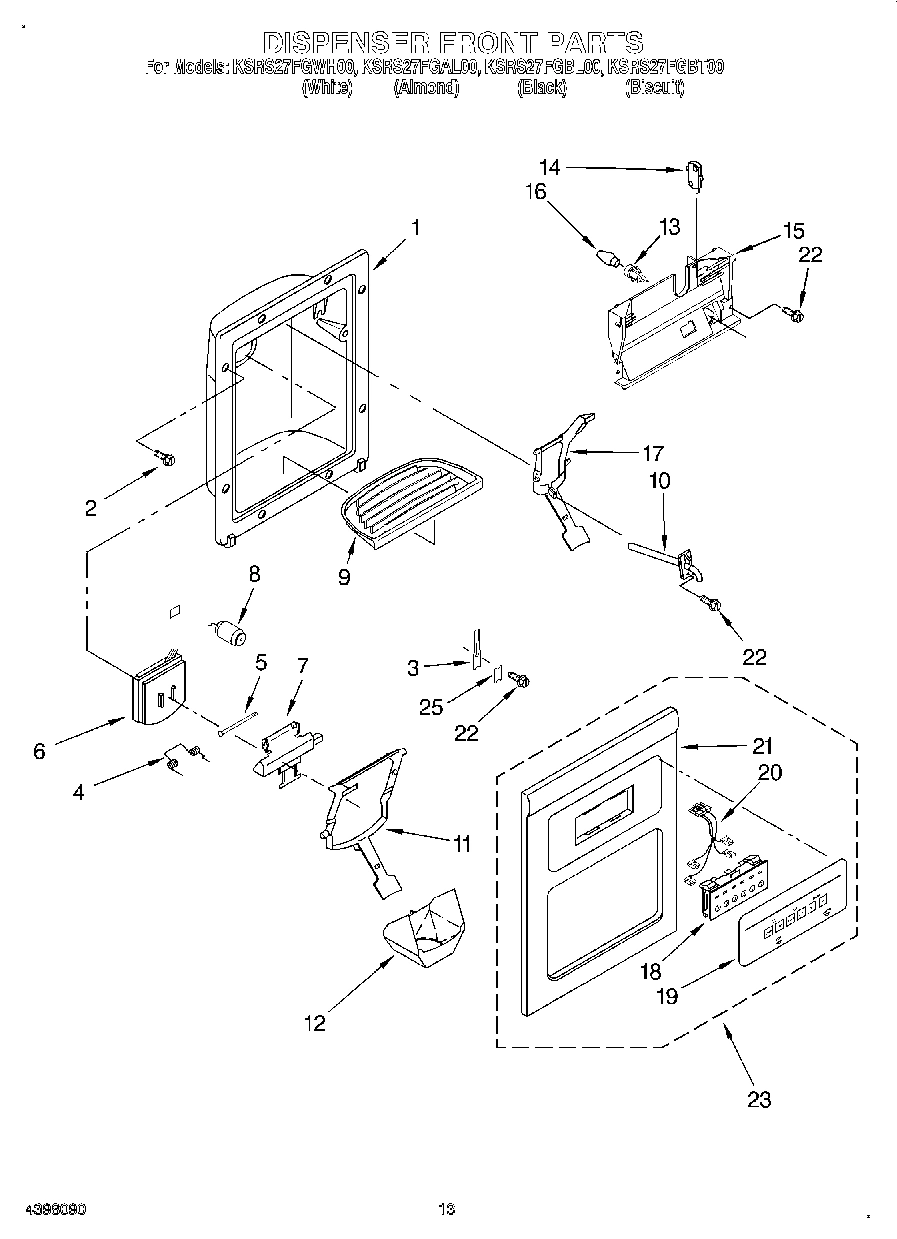

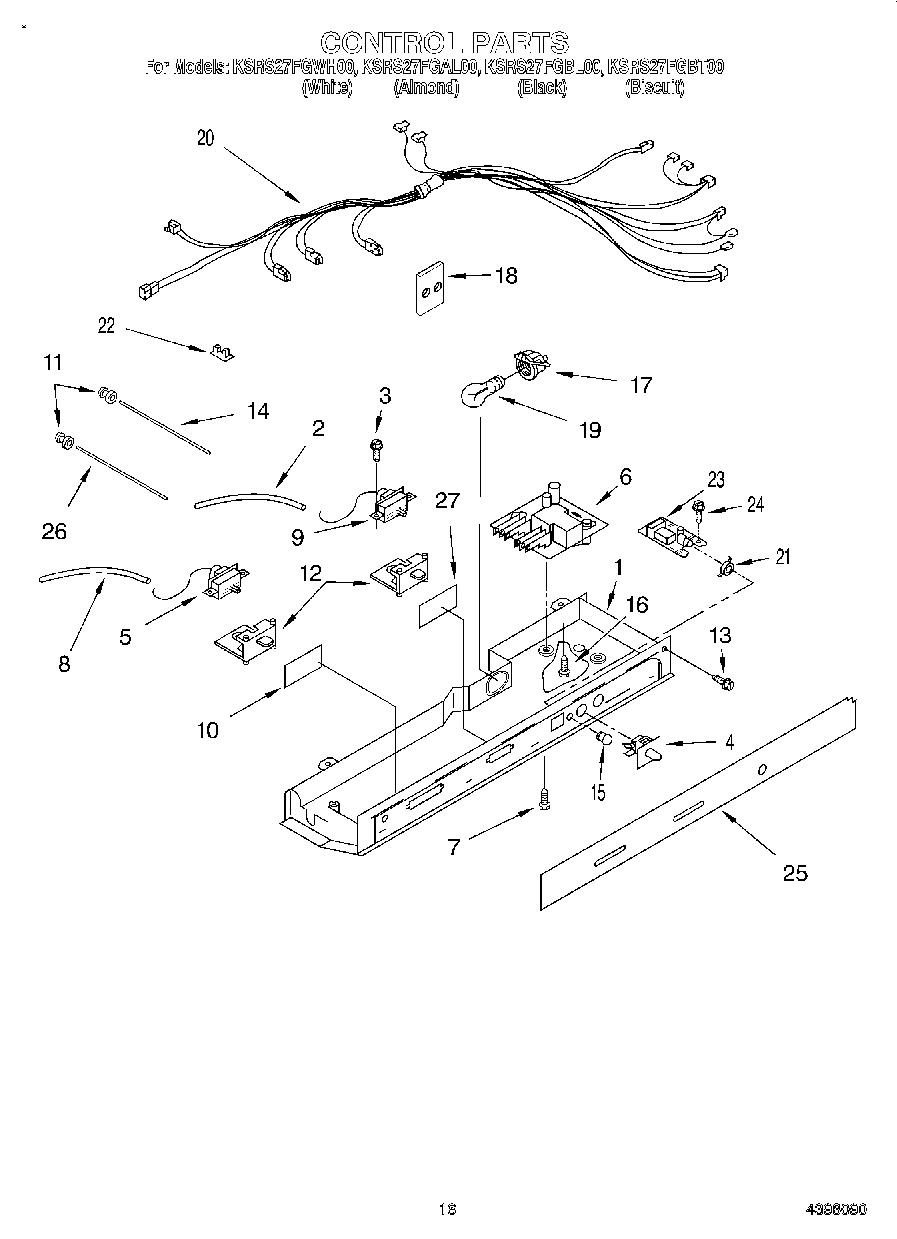

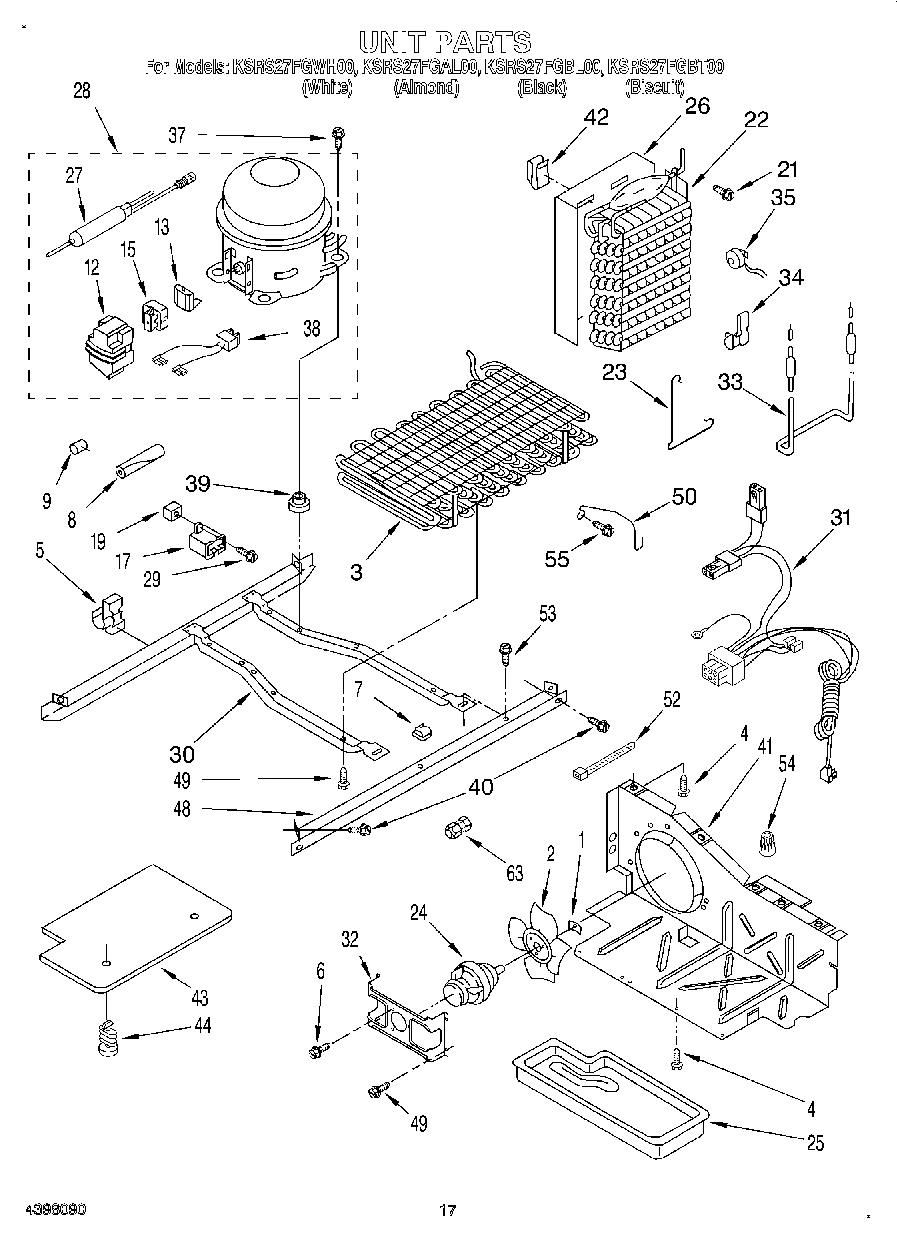

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2200139 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2200278 Contact Us For Availability

1

Energy Label WPL LIT2203998 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

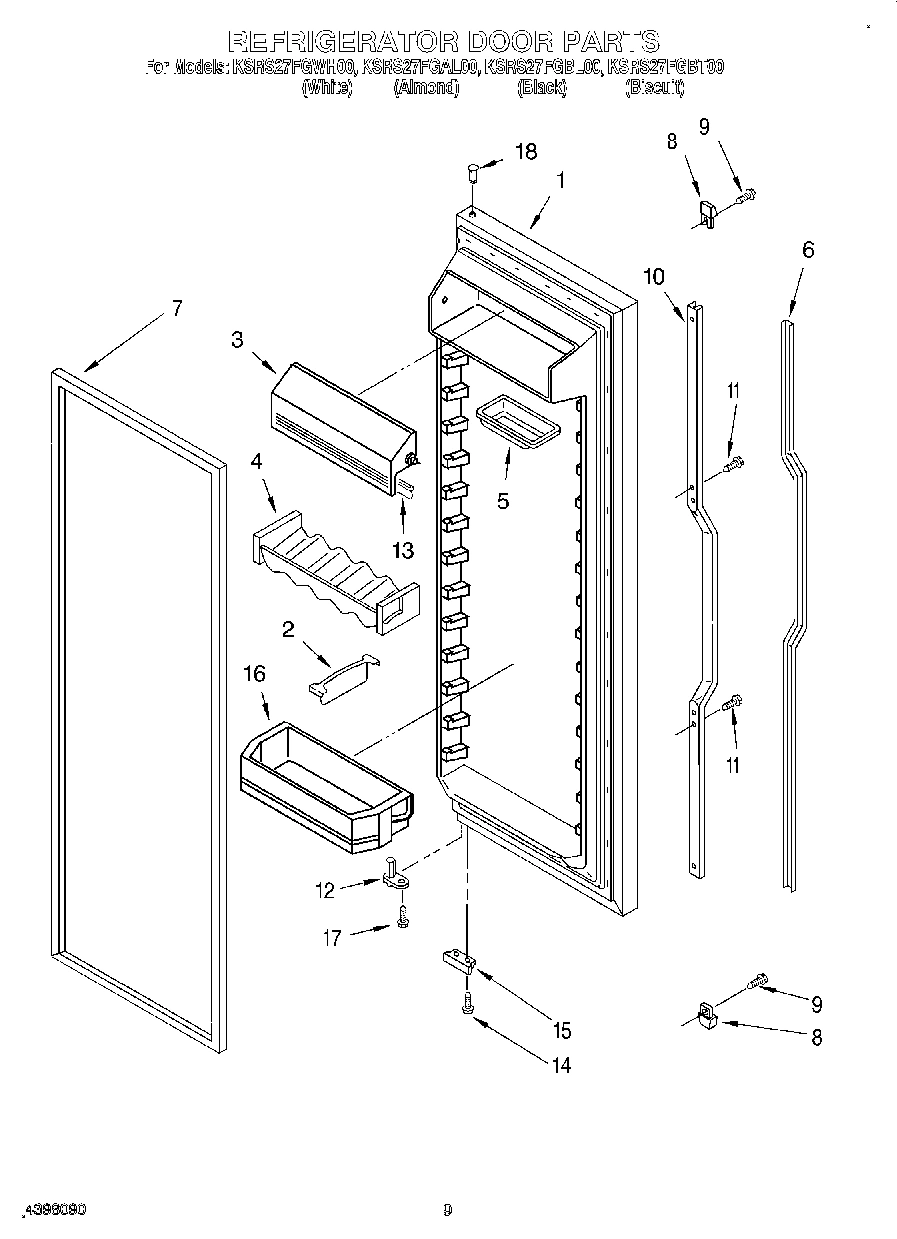

Refrigerator Door (Includes No.7) (Black) WPL 2194236B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Almond) WPL 2194236N Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2194236T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194236W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI103250A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

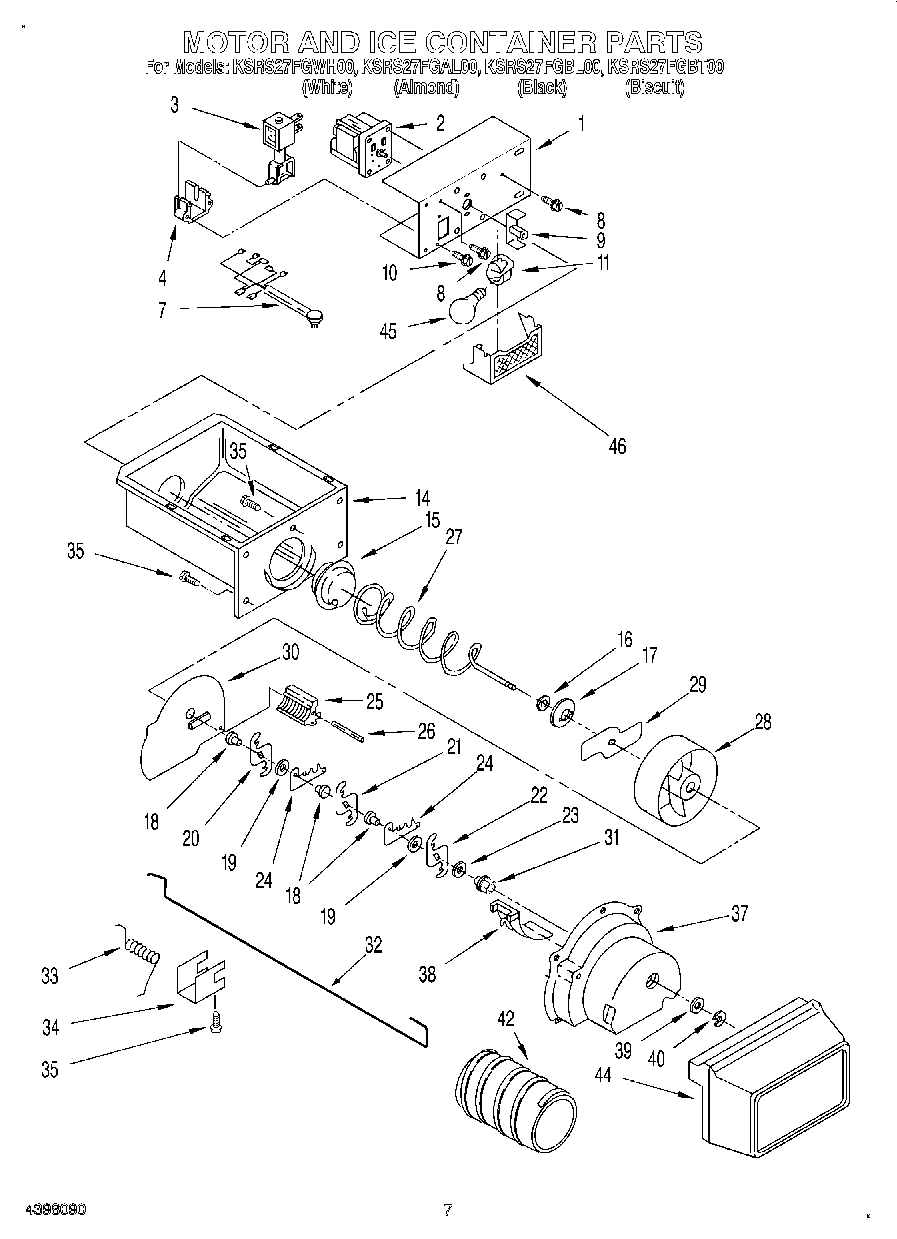

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $234.92

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $156.18

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $239.48

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Insert, Handle (White) WPL 2173825 Contact Us For Availability

6

Insert, Handle (Almond) WPL 2173828 Contact Us For Availability

6

Insert, Handle (Black) WPL 2173829 Contact Us For Availability

6

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

Clip, Tube WPL 2200079 Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

End Cap, Handle (Black) WPL 2194778B Contact Us For Availability

8

End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability

8

End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $53.99

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (2) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

Screw WPL 489284 Contact Us For Availability

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

Retainer, Insert (Almomd) WPL 2194777N Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Black) WPL 2151694 Contact Us For Availability

Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $91.78

NLA:SCREW Backorder WPL WPW10141645 $4.82

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $78.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Grille (Almond) WPL 2198468N Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Relay WPL 2183454 Contact Us For Availability

Bracket, Door Stop WPL 2155331 Contact Us For Availability

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

Shelf Bin (4) WPL 2171062 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

Window, Crisper WPL 2174076 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

Screw Grommet WPL 509812 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2186515B Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2186515N Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2186515T Contact Us For Availability

Overlay, Front Cover (White) WPL 2186515W Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

20

Control Box Harness WPL 2200109 Contact Us For Availability

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Front Cover, Housing (Not Available, Order No WPL ARI103251A Contact Us For Availability

Retainer, Light Lens WPL 2200097 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Evaporator WPL 2164519 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511N Contact Us For Availability

Front Cover Assembly (Include WPL 2186511T Contact Us For Availability

WPL 2186511W WPL 2186511W Contact Us For Availability

P.C. Board Filter Indicator WPL 2200098 Contact Us For Availability

24

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

Tray, Evaporator WPL 1110674 Contact Us For Availability

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

Heat Shield WPL 2149294 Contact Us For Availability

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

27

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

27

Window WPL 2172941 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

28

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

28

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

29

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

Cap, Water Filter (Almond) WPL 2186884N Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

Unit, Harness WPL 2194749 Contact Us For Availability

31

Cabinet (Not A Serviceable Part) WPL ARI103247A Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2174436 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2182058 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
