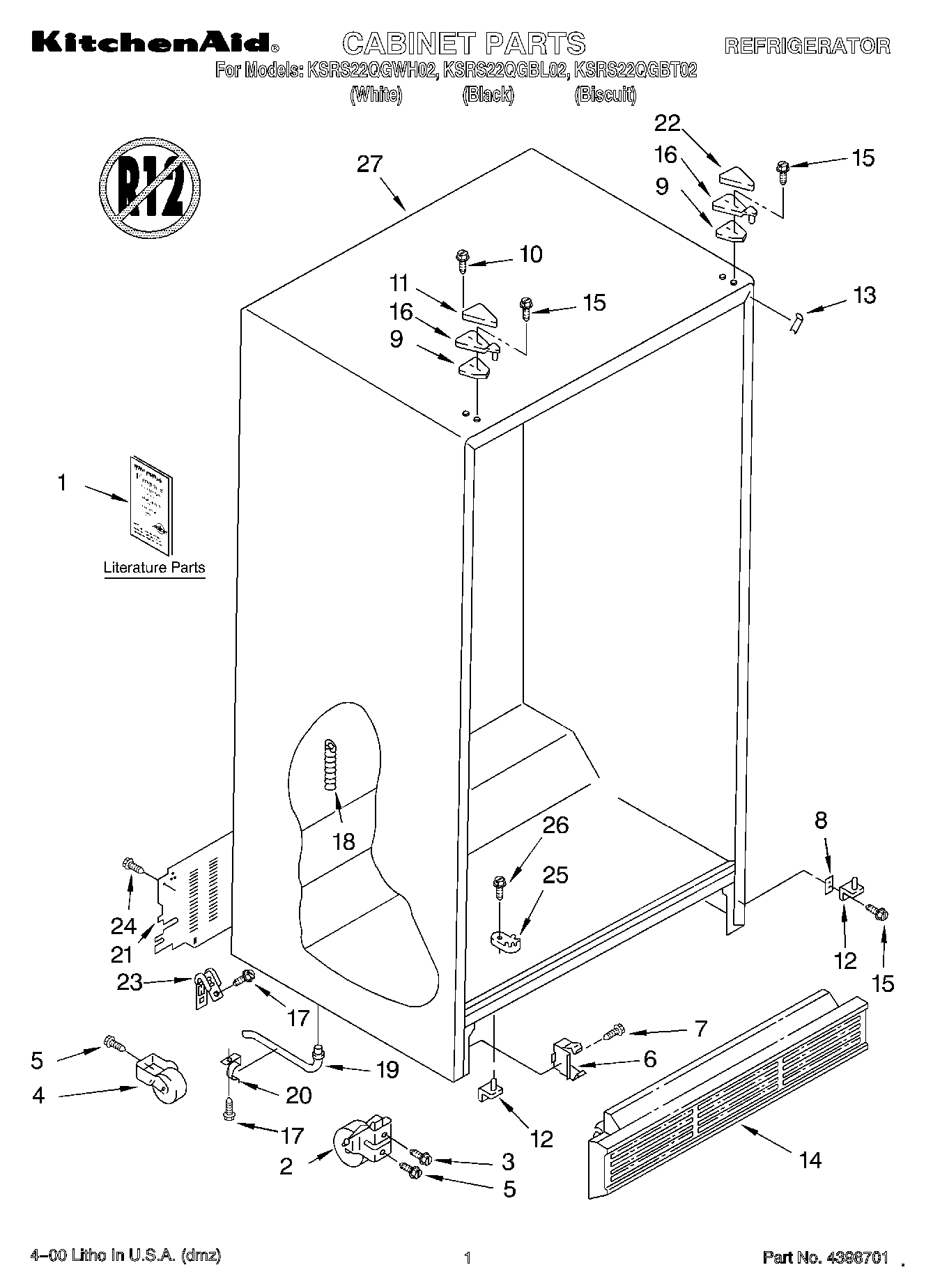

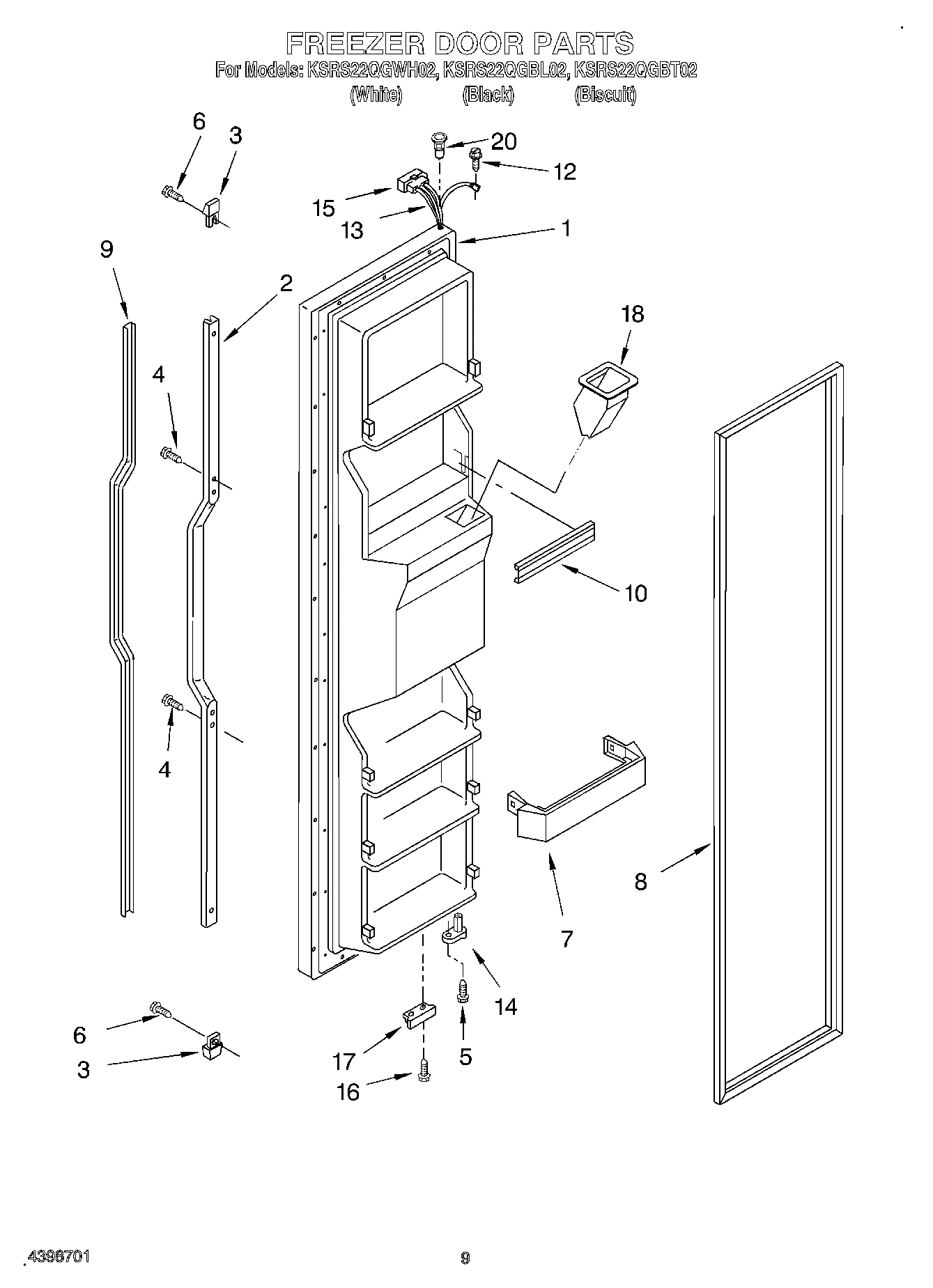

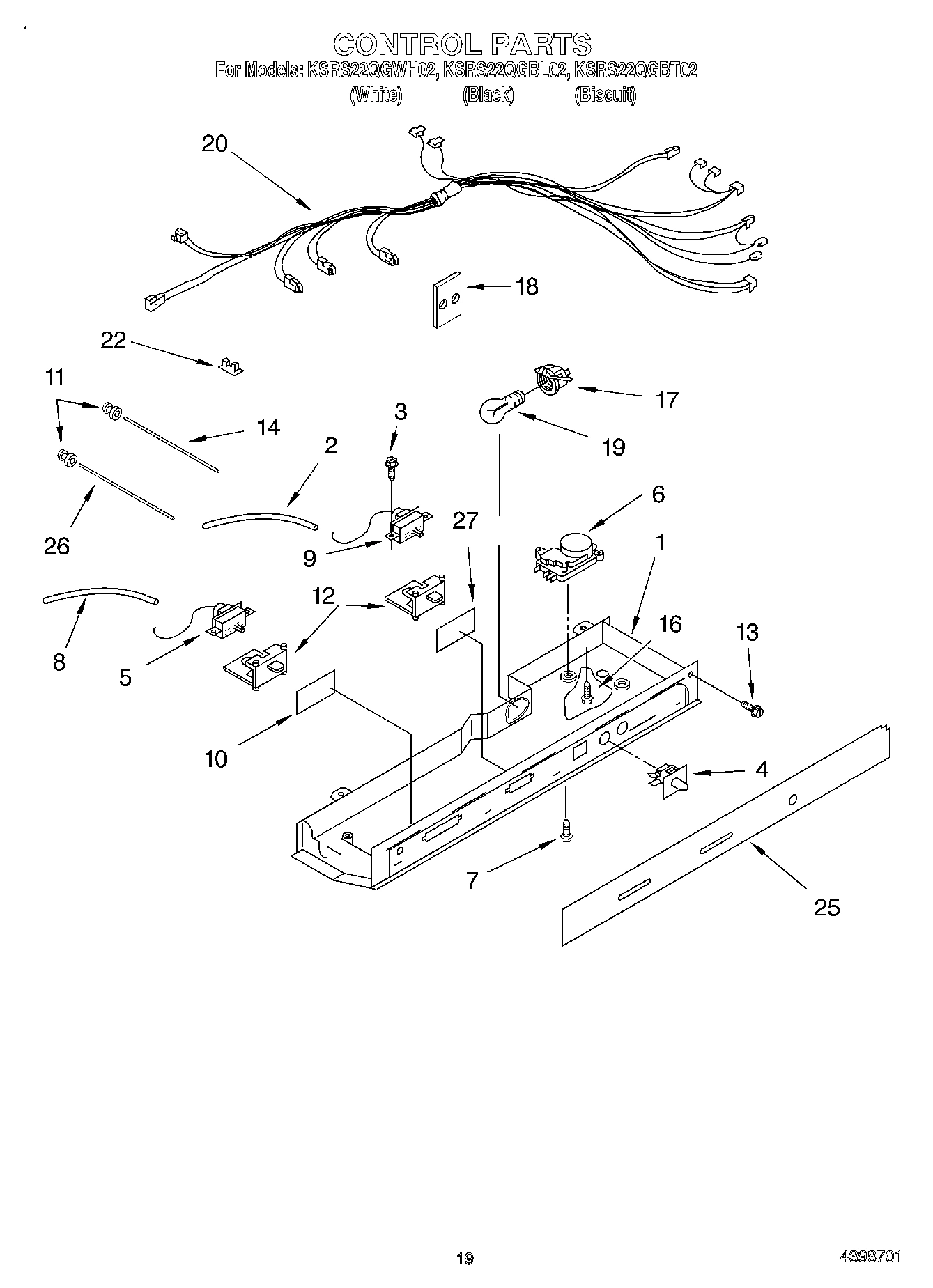

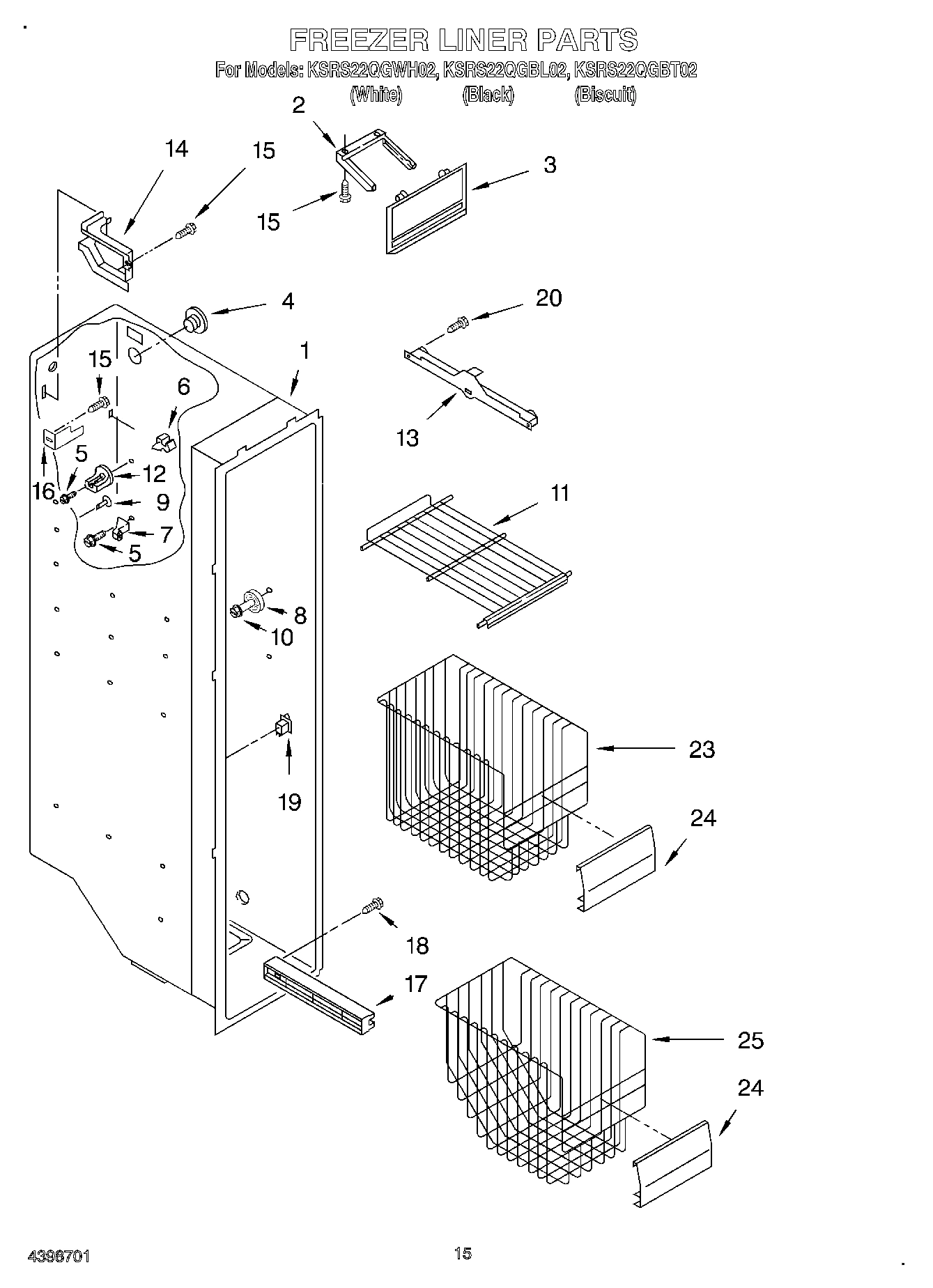

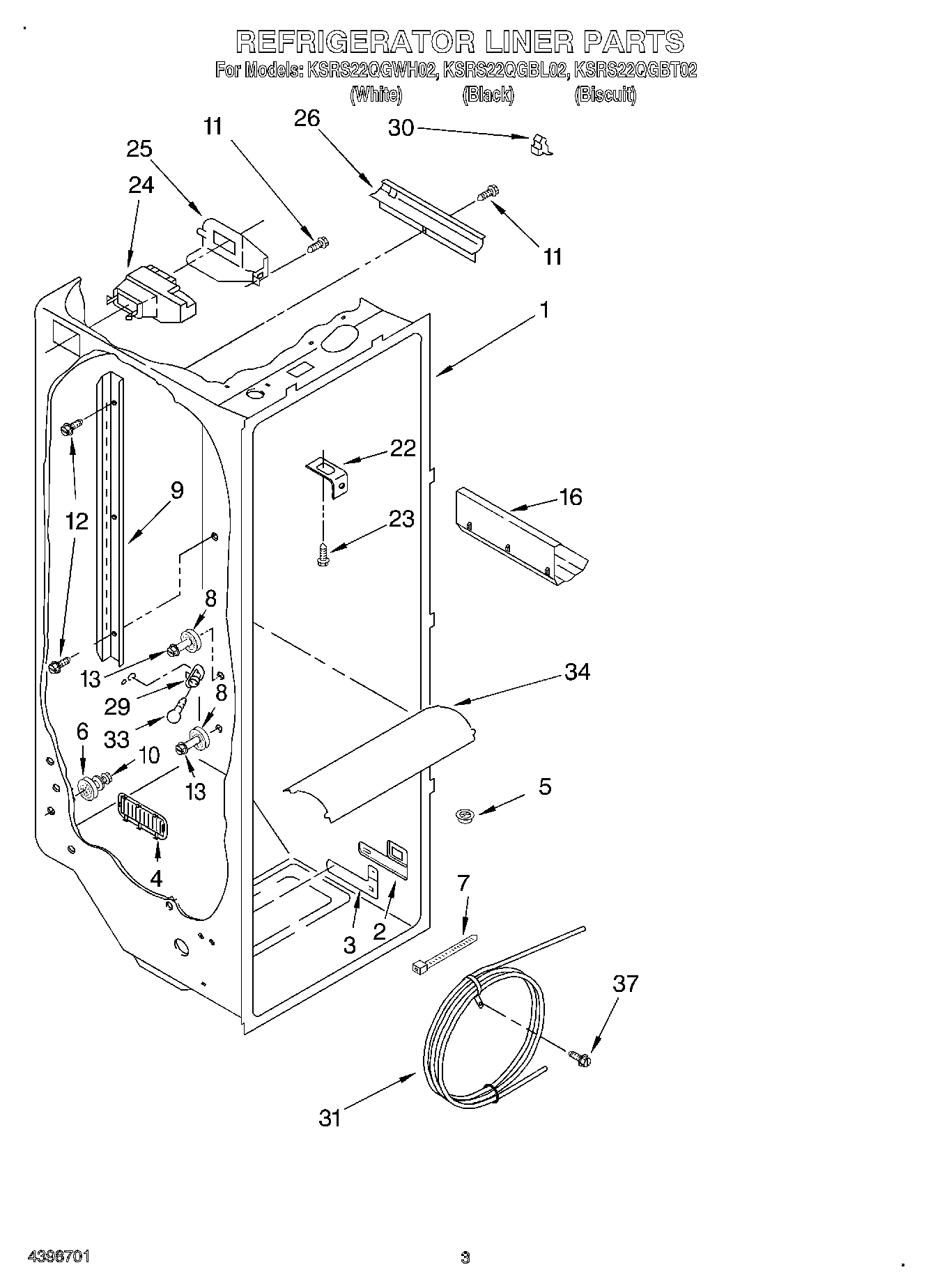

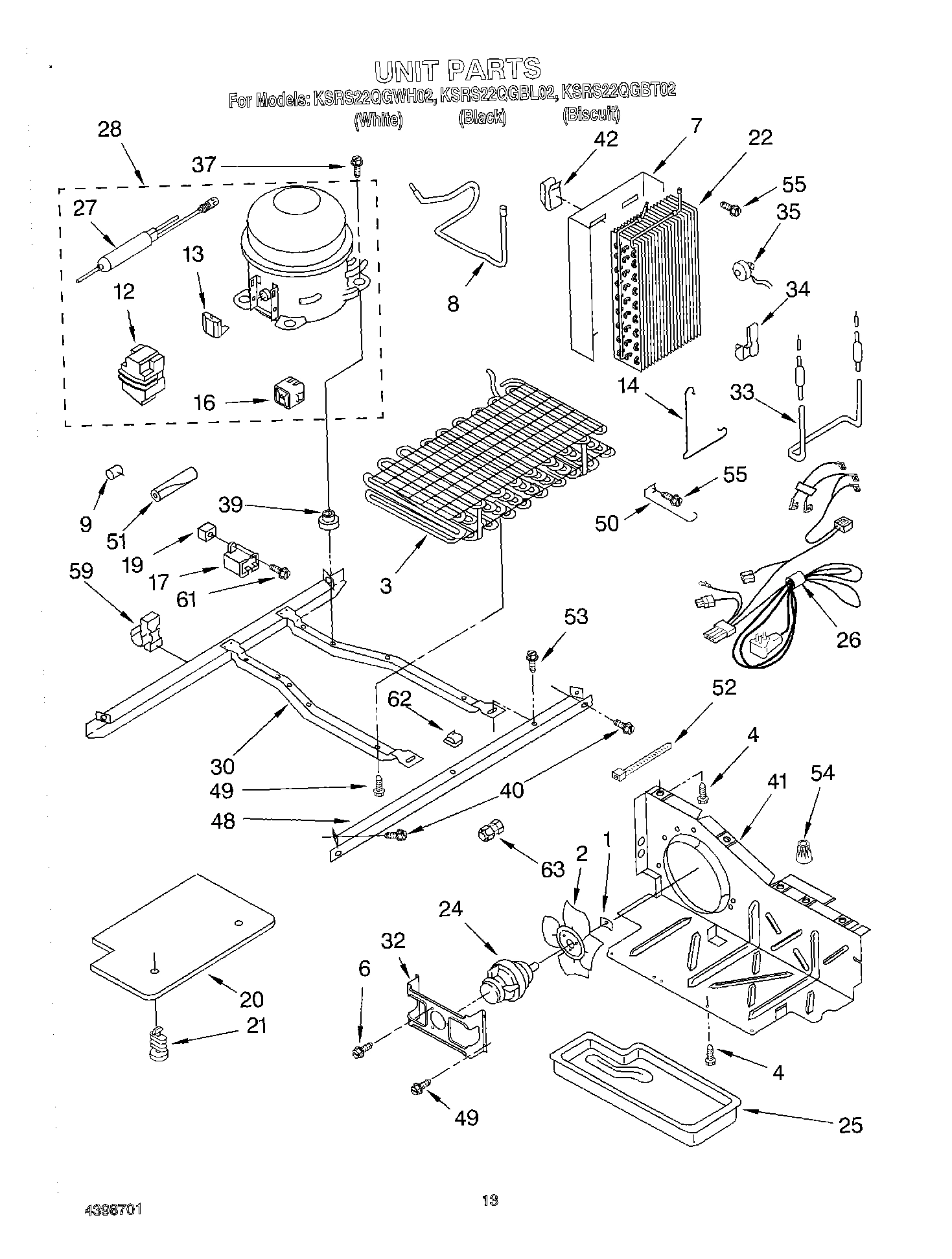

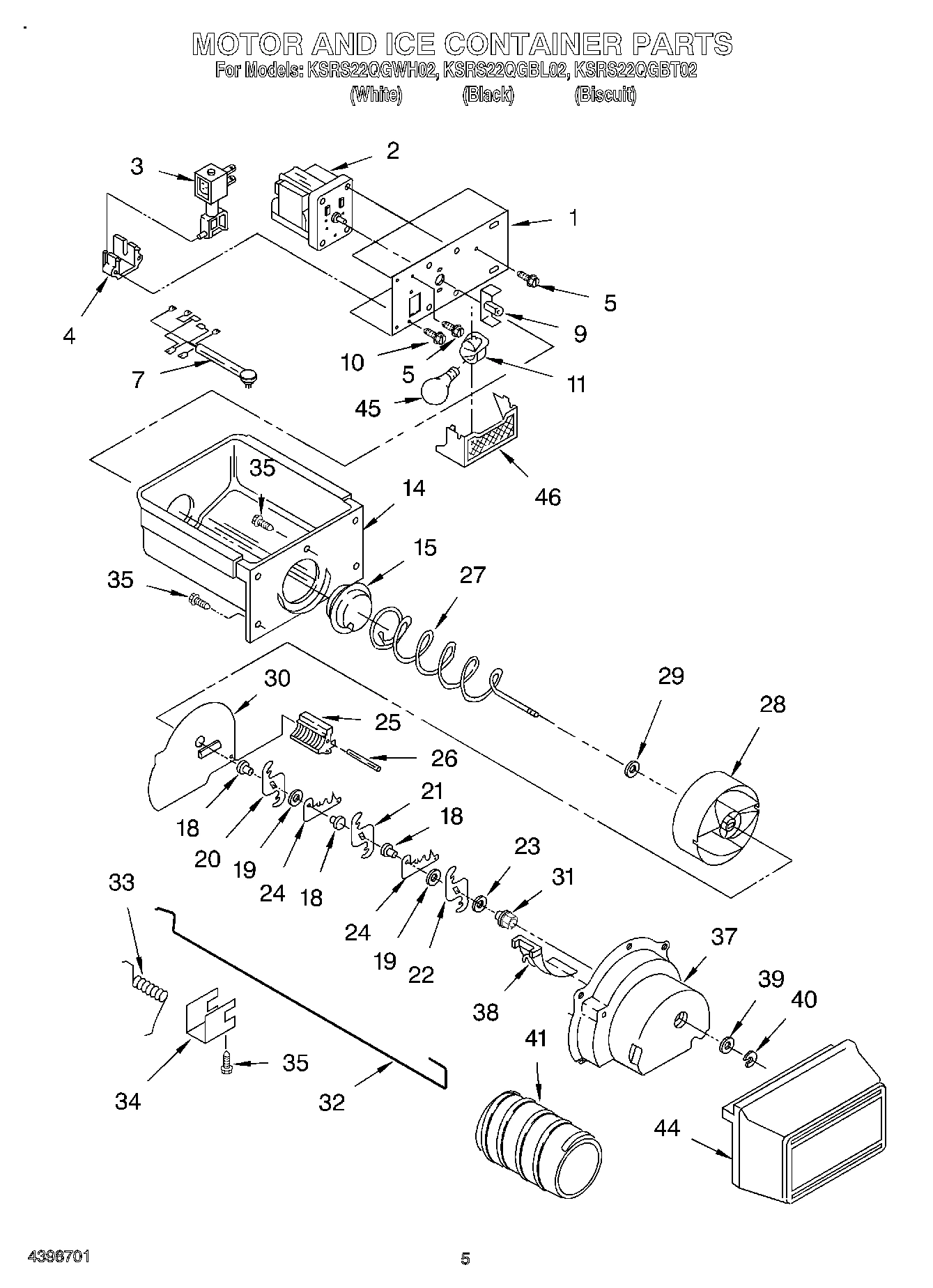

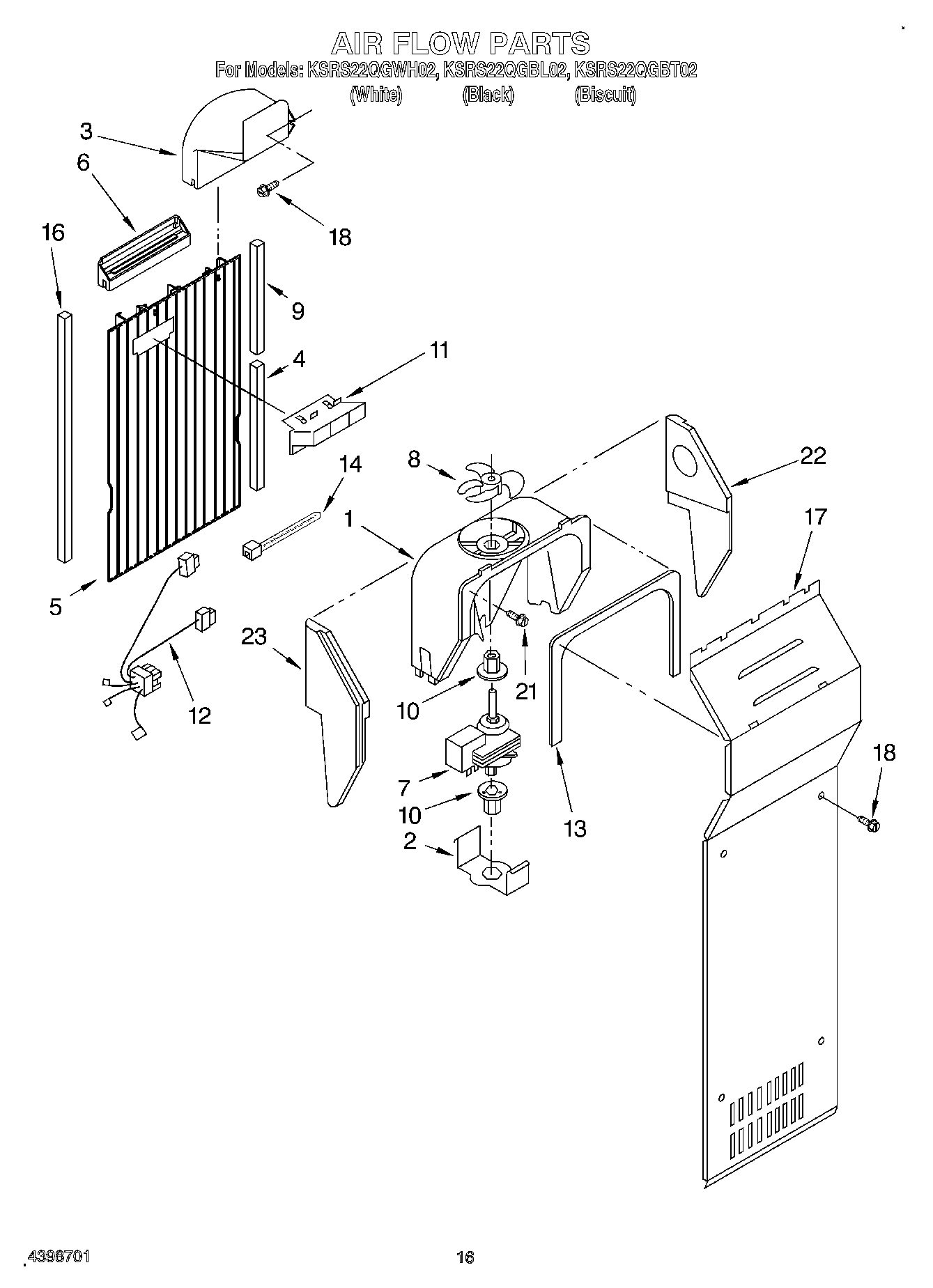

Model Whirlpool KSRS22QGWH02 – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

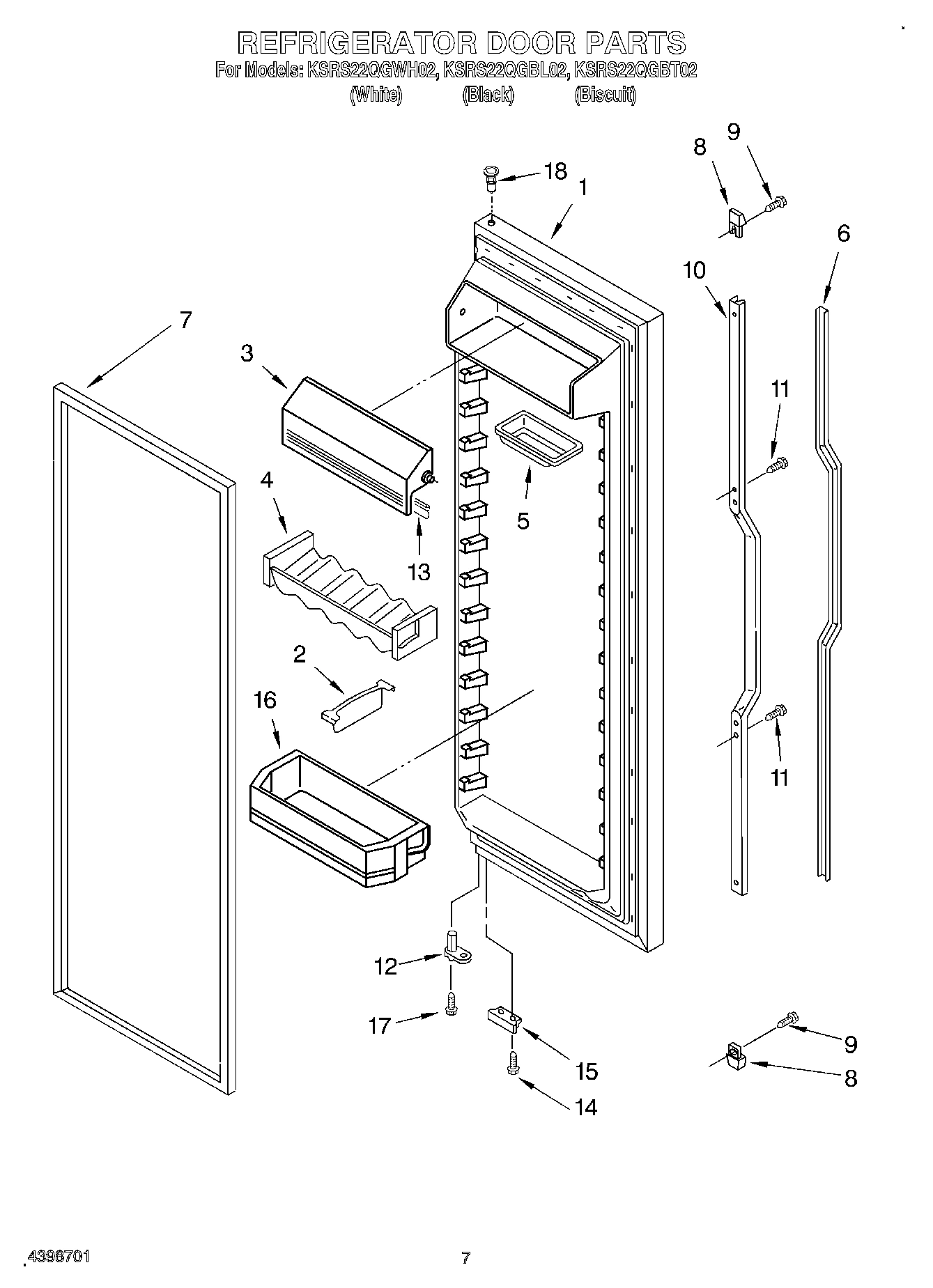

Refrigerator Door (Includes No.7) (Biscuit) WPL 2194200T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2198267 Contact Us For Availability

1

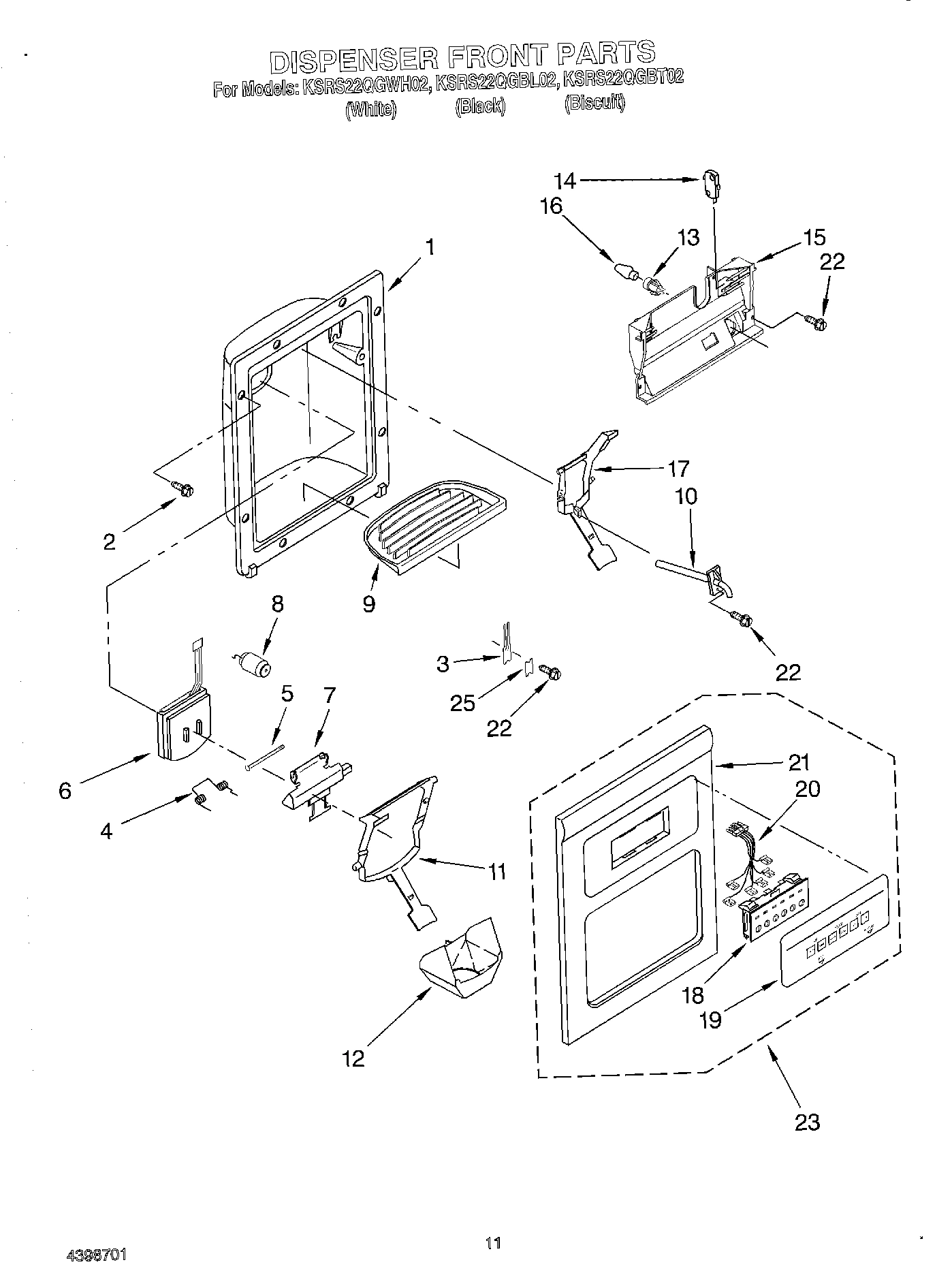

Housing, Dispenser (Not a Serviceable Part) WPL ARI101055A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI101054A Contact Us For Availability

1

Bracket, Motor WPL 2183728 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $234.92

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Load Lock WPL 2195497 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $156.18

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability

6

Insert, Handle (White) WPL 2173830 Contact Us For Availability

6

Insert, Handle (Black) WPL 2173832 Contact Us For Availability

6

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $134.99

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $242.52

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

End Cap, Handle (Black) WPL 2194778B Contact Us For Availability

8

End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $53.99

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.85

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Grille, Overflow (White) WPL 2180323 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2186860 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2181796 Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

Retainer, Insert (Black) WPL 2194776B Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2194776T Contact Us For Availability

Retainer, Insert (White) WPL 2194776W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Stud, Rear WPL 2196207 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $134.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

Shelf Bin (4) WPL 2171063 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Bracket, Door Stop WPL 2195950 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Plaque, Front Cover (White) WPL 2180365 Contact Us For Availability

Plaque, Front Cover (Black) WPL 2180367 Contact Us For Availability

Plaque, Front Cover (Biscuit) WPL 2204293T Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Harness, Control Box WPL 2186813 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

Front Cover, Housing (Not Available, Order No WPL ARI101056A Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Front Cover Assembly (Includes Items 18, 19, WPL 2180393 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2180395 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2204294T Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

24

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $243.56

24

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

Escutcheon, Control Box WPL 2161486 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $125.84

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $270.67

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI101053A Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

Enamel, Biscuit (13 Oz. Spray Can) WPL 439290 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM E WPL 799833 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.82

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $84.14

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

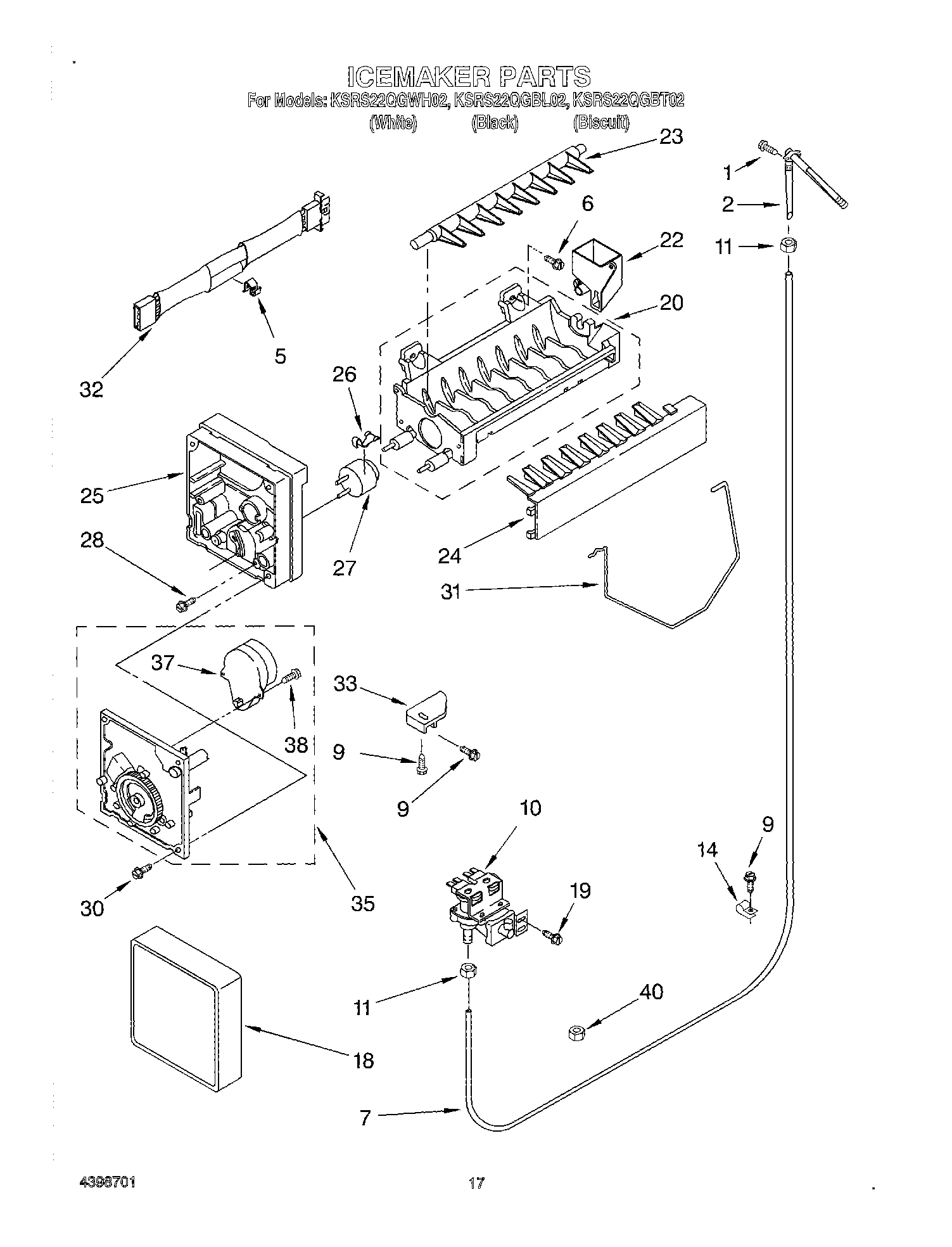

NI

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
