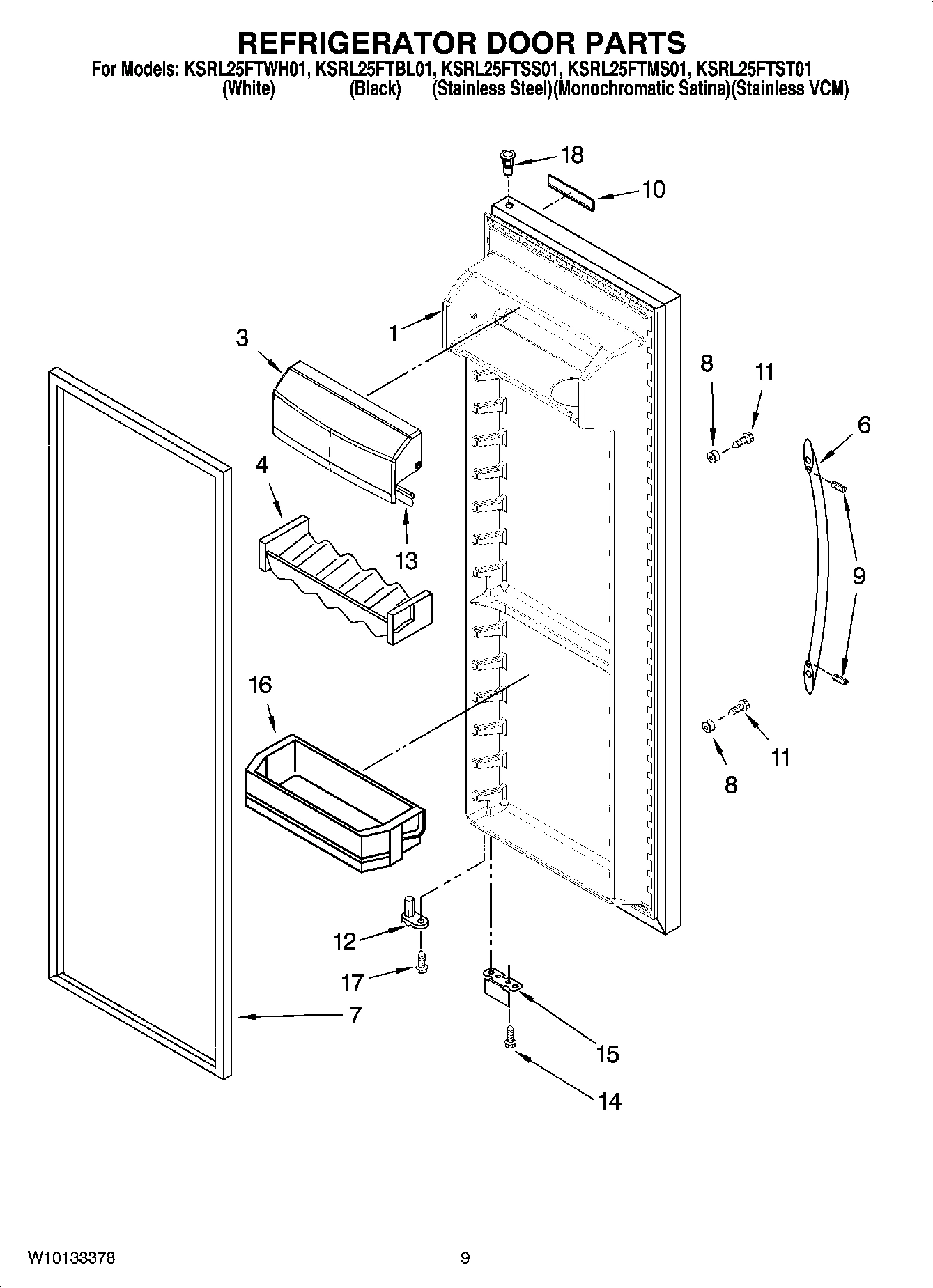

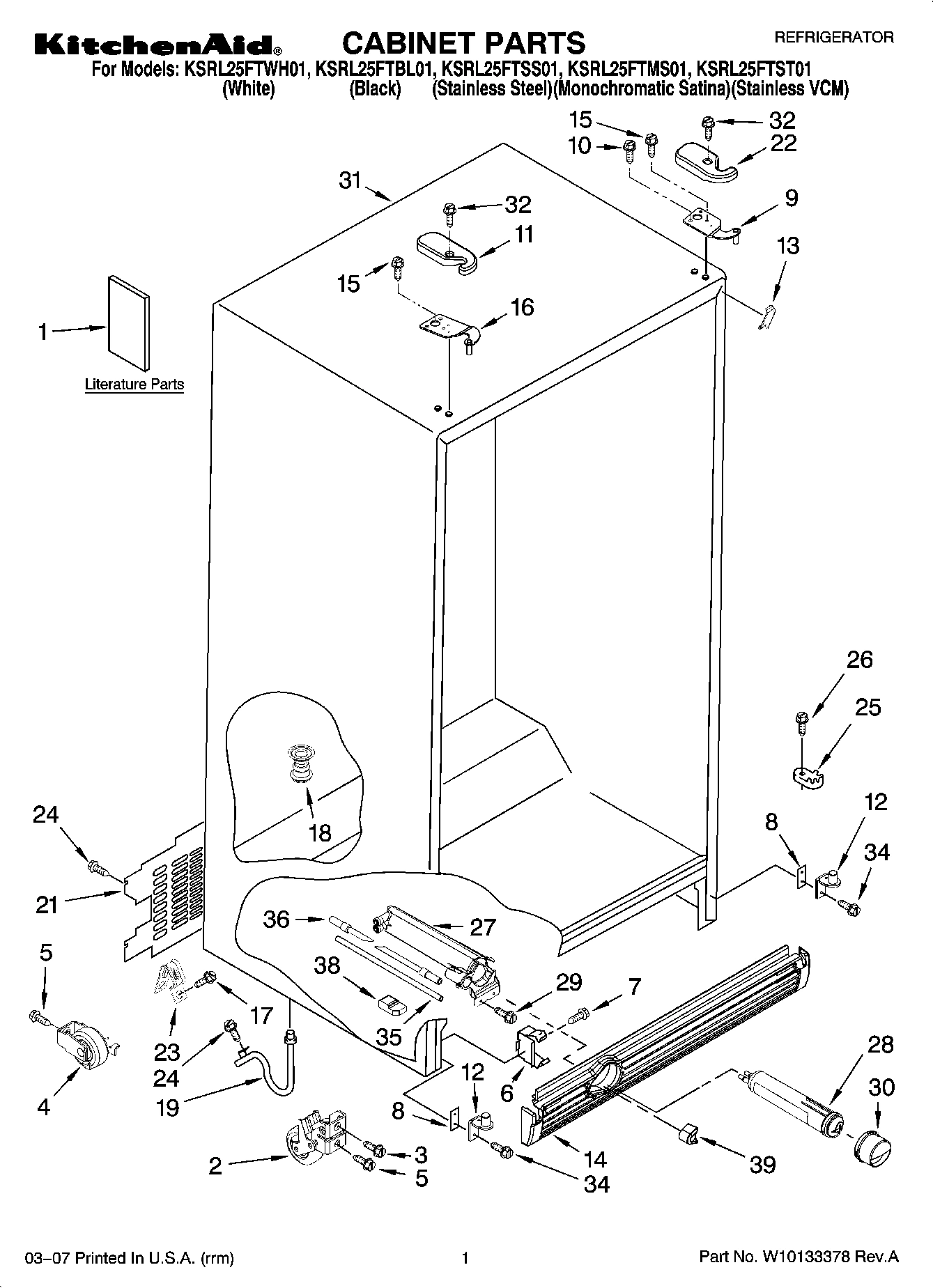

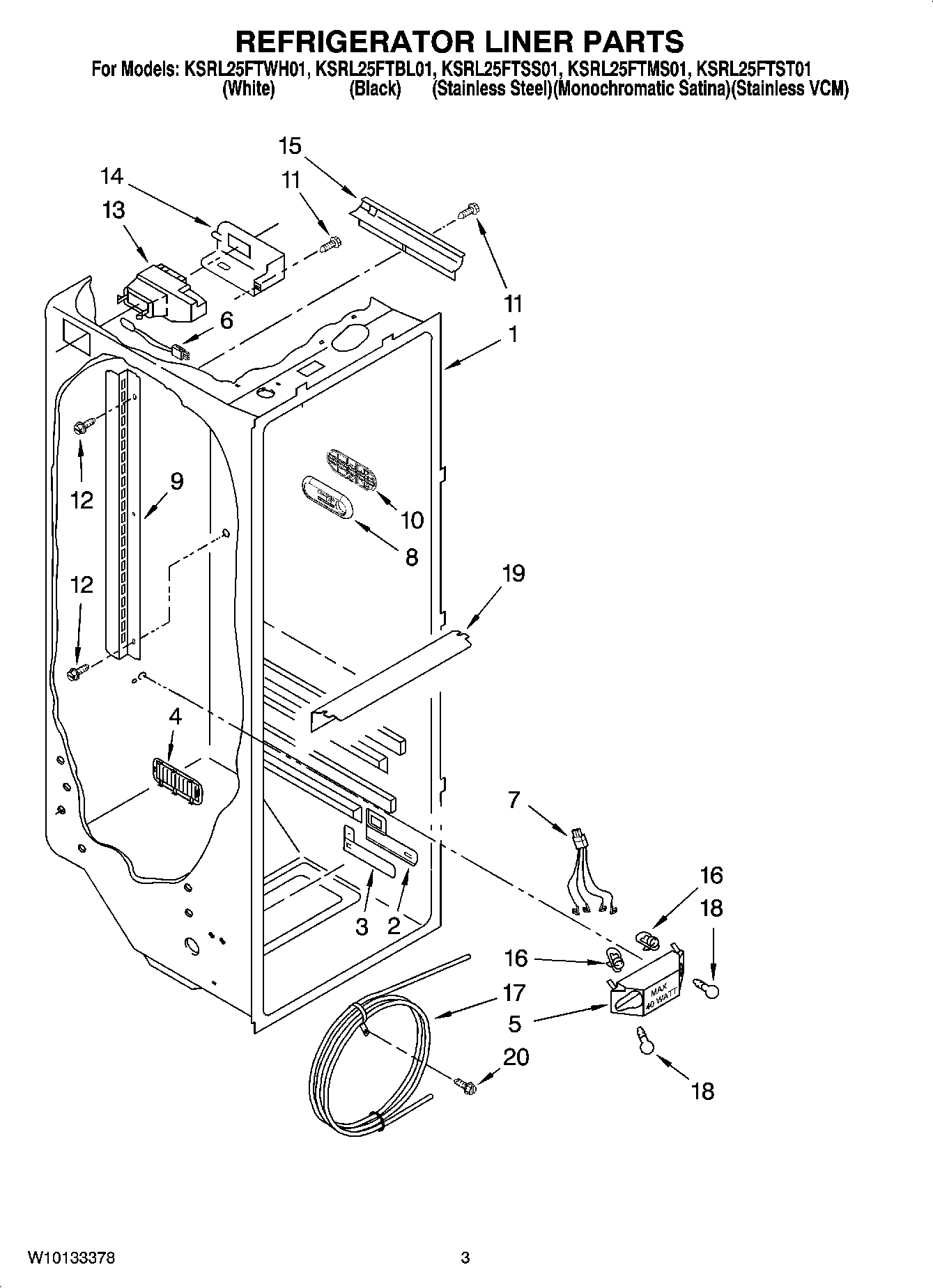

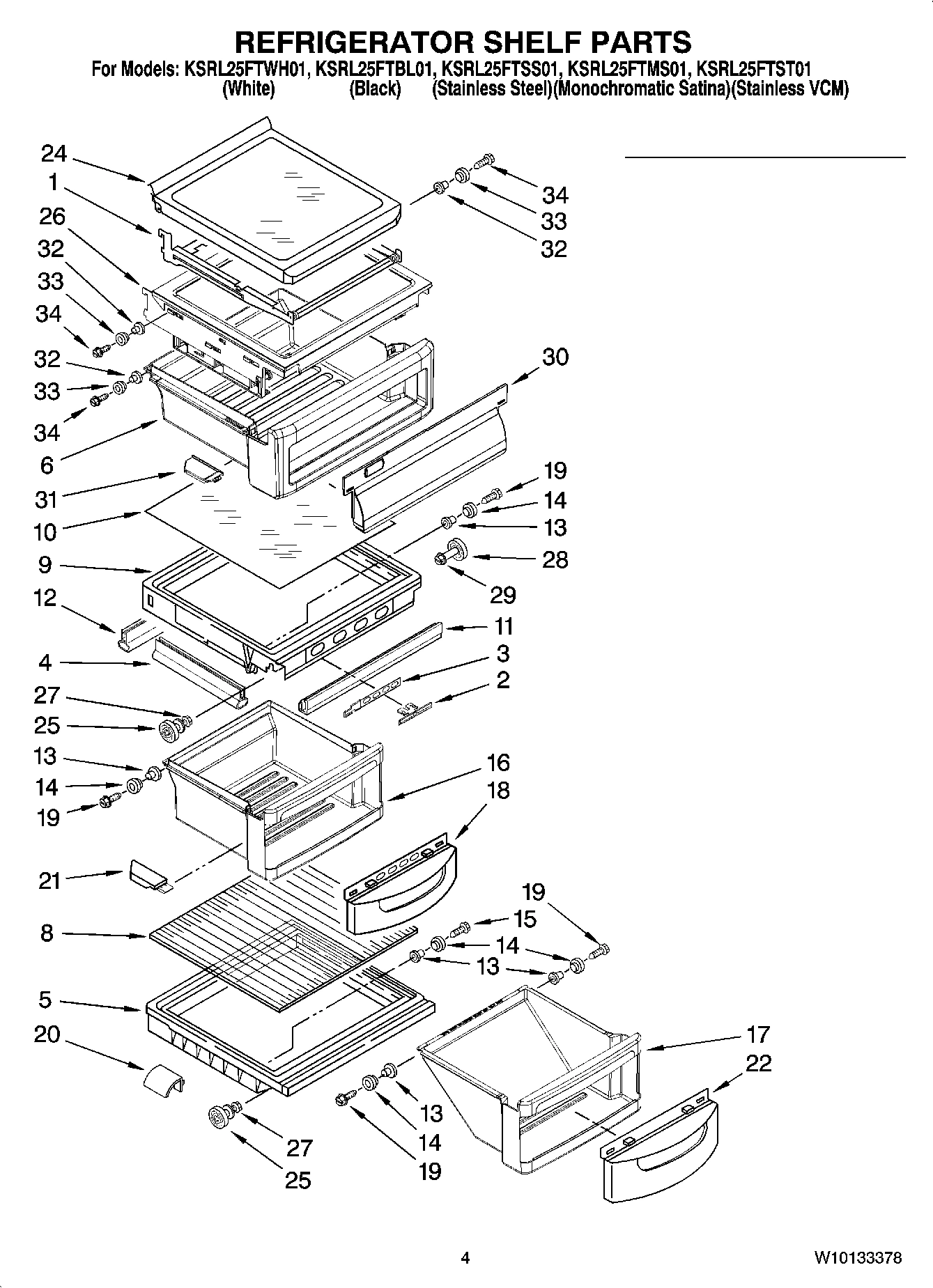

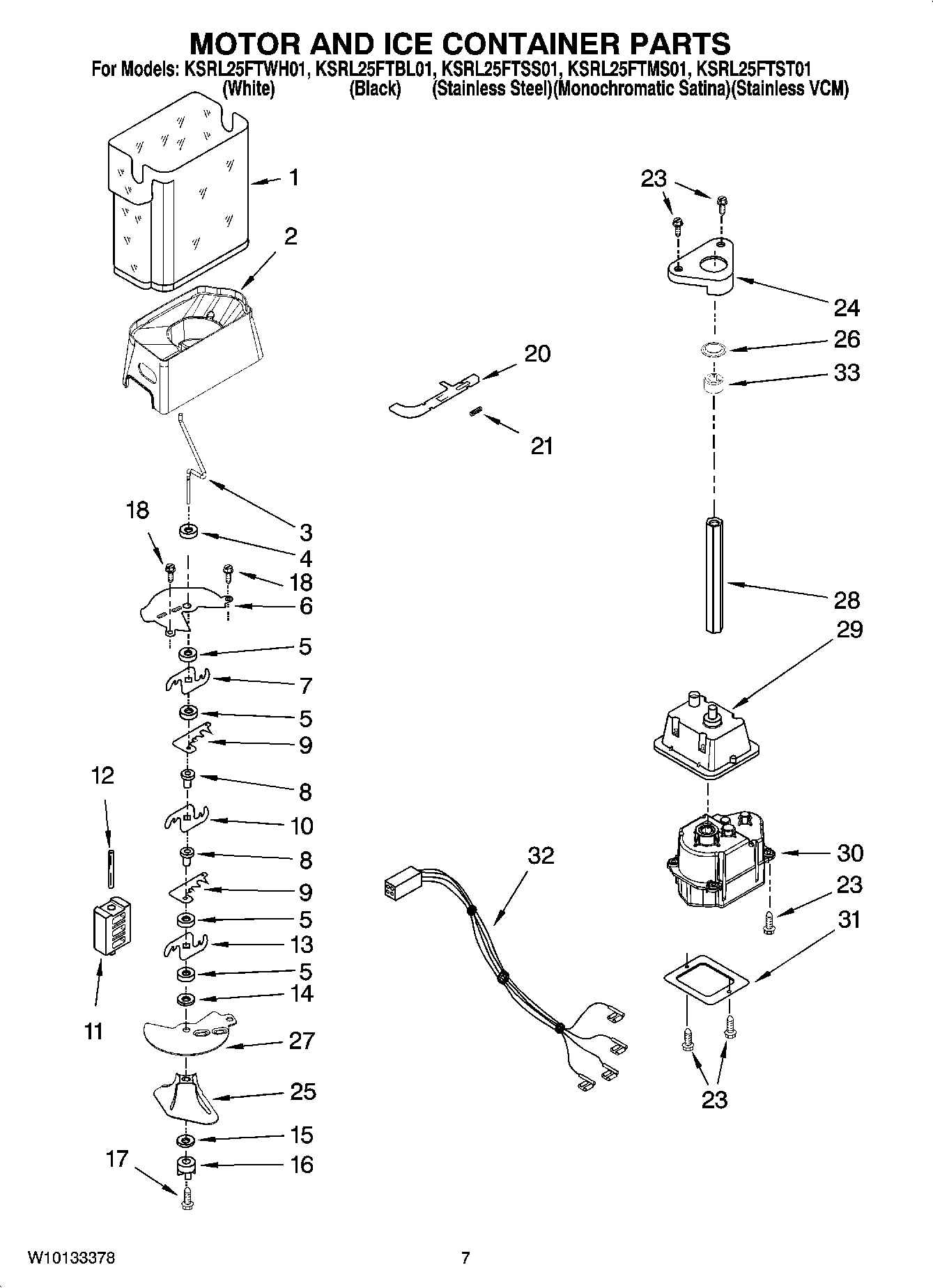

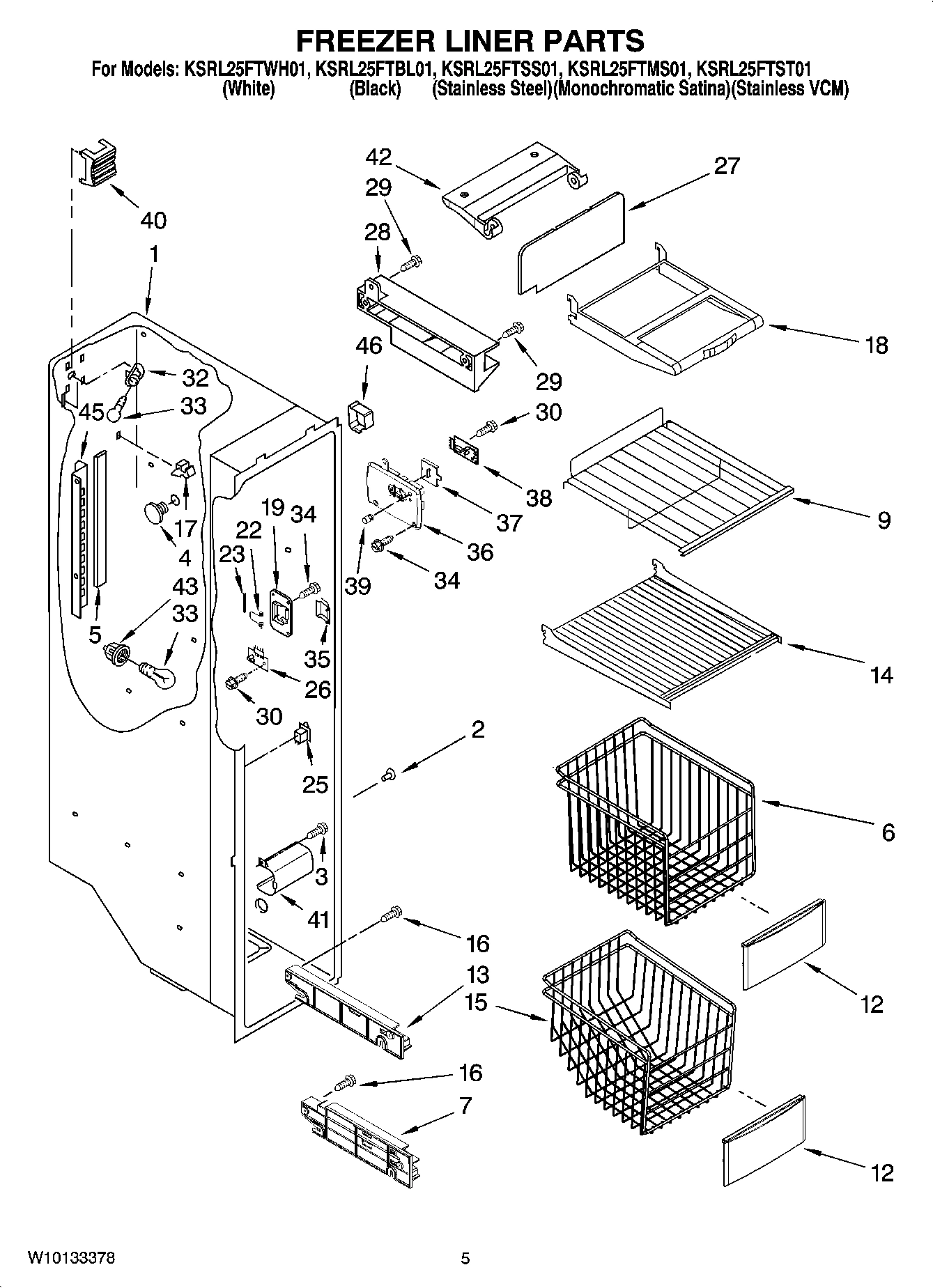

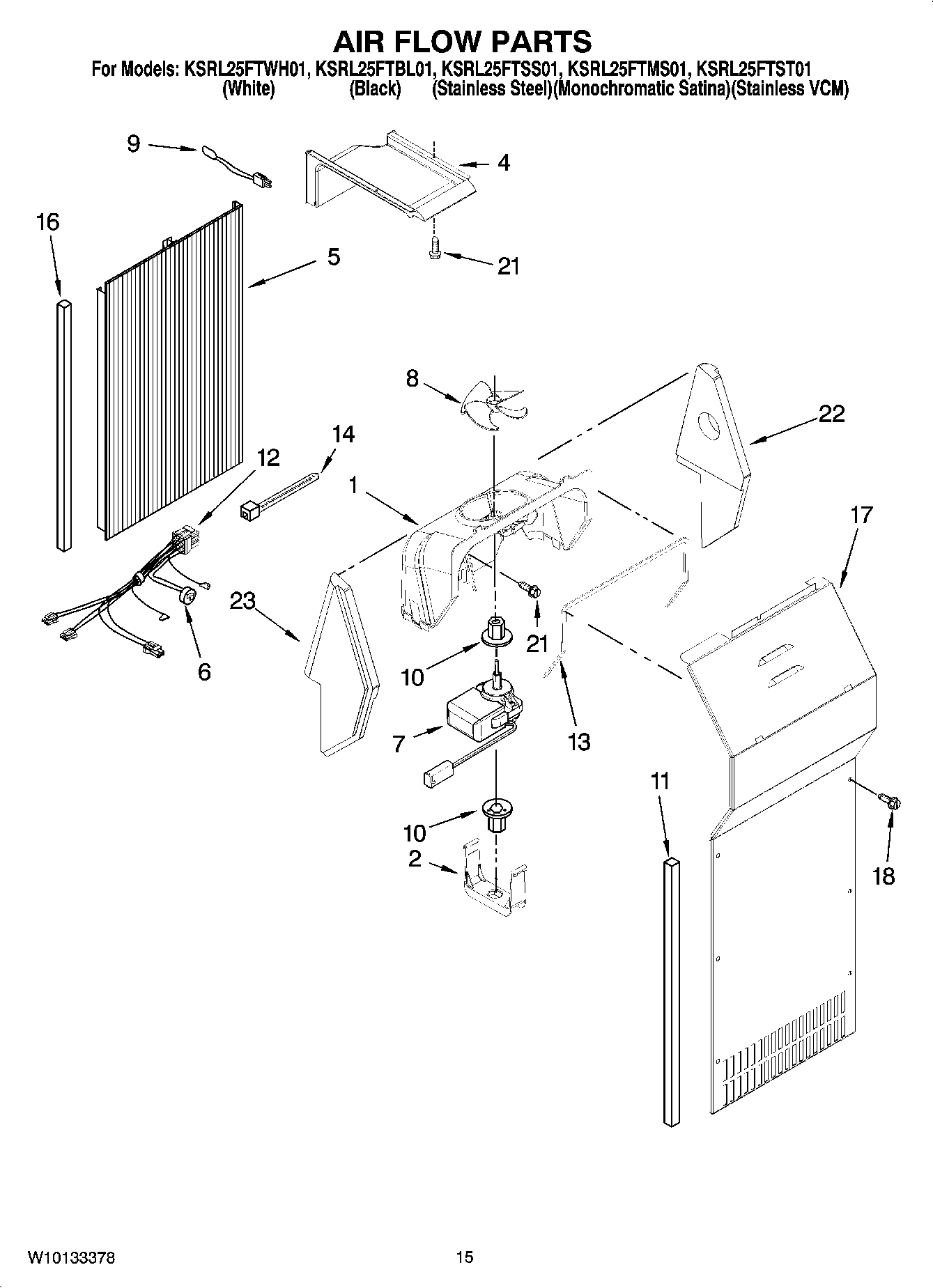

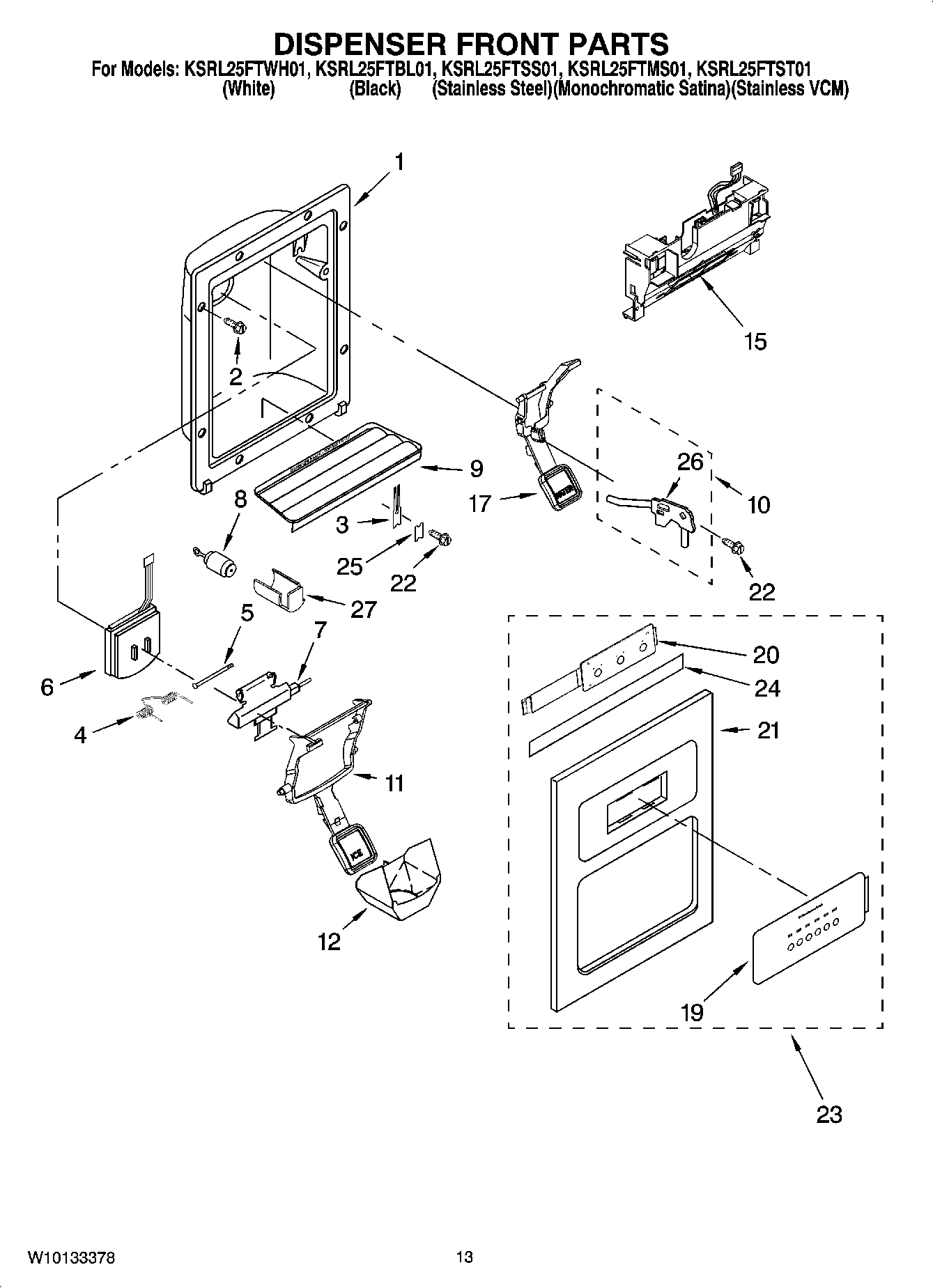

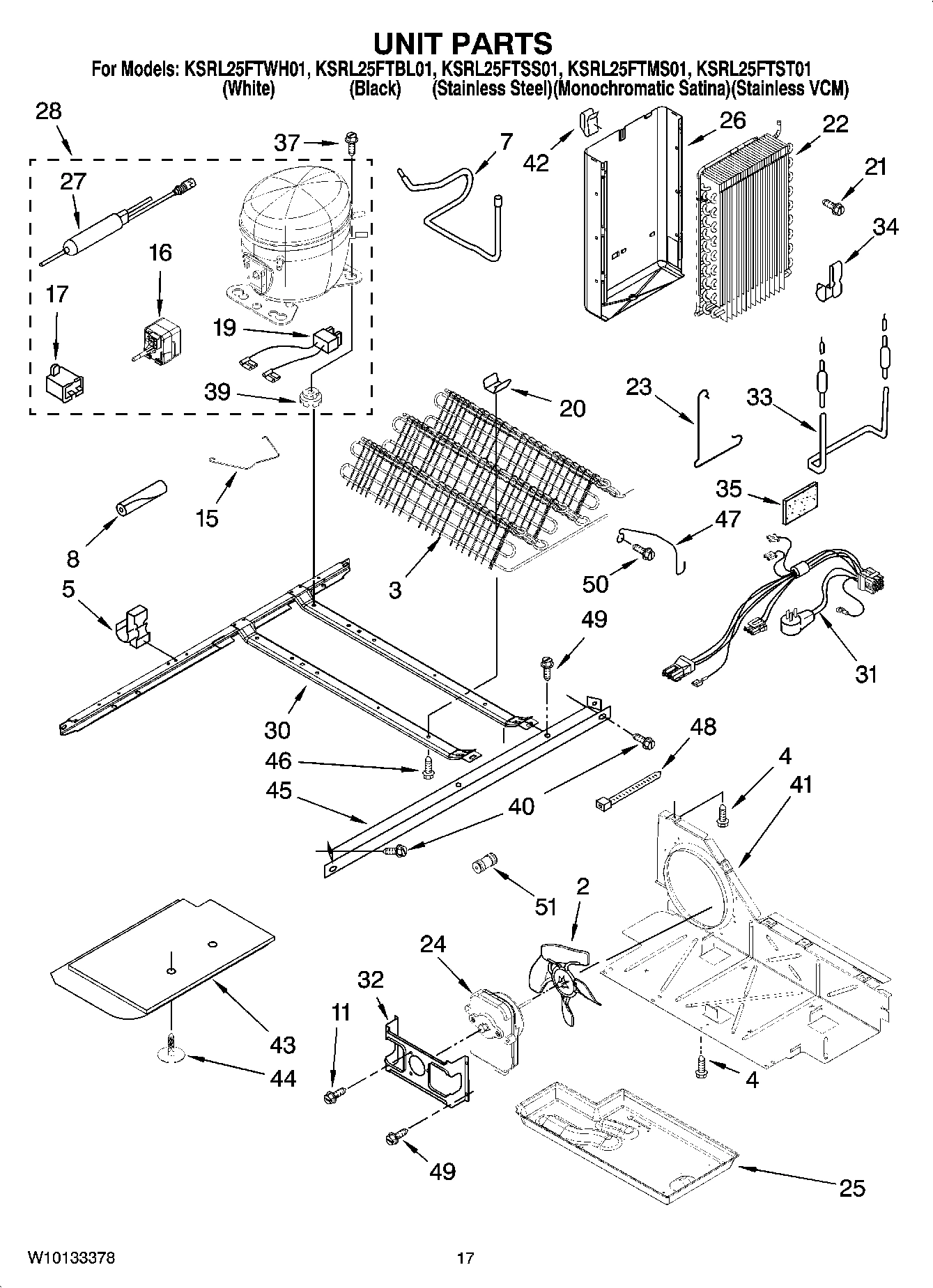

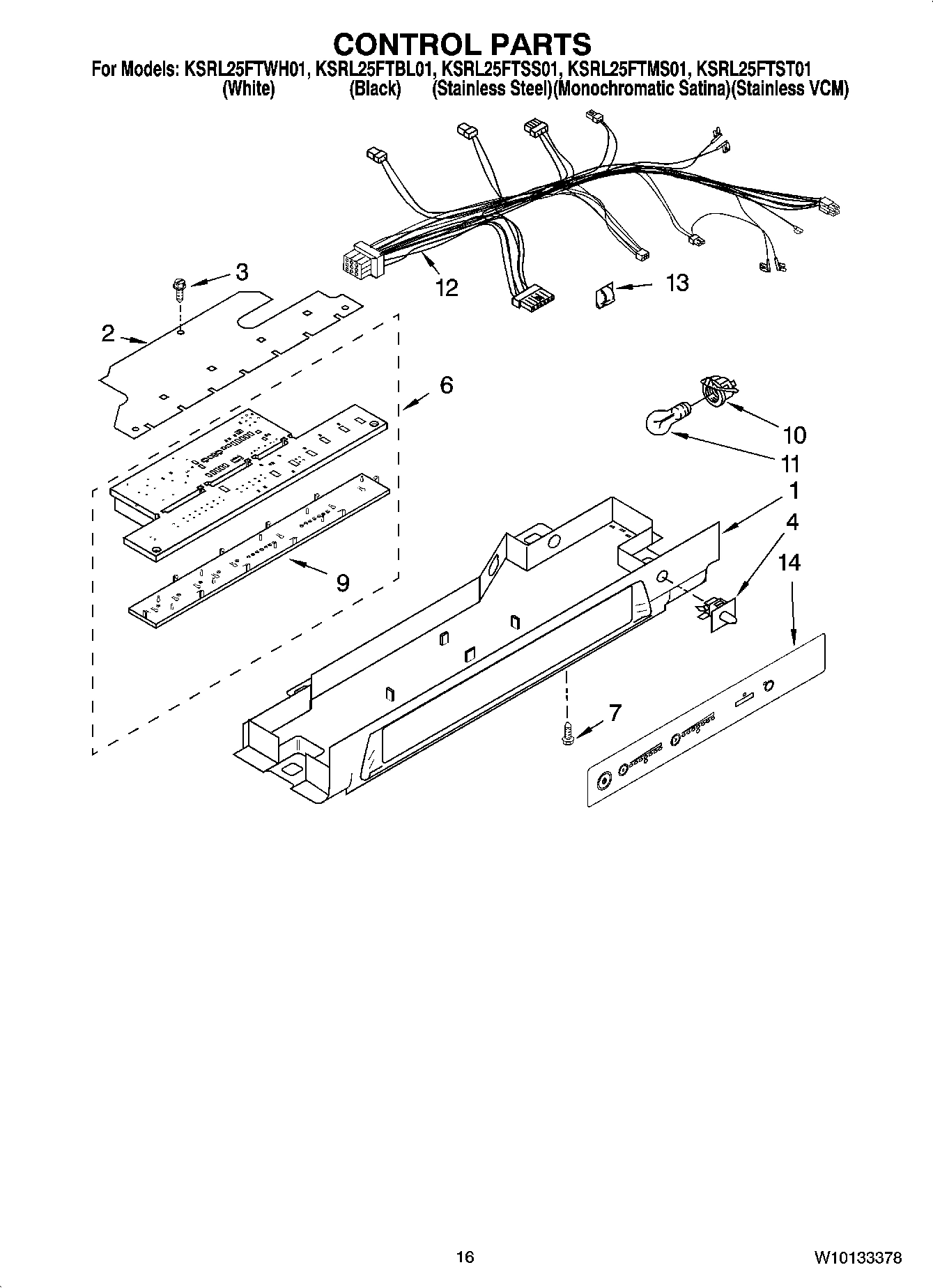

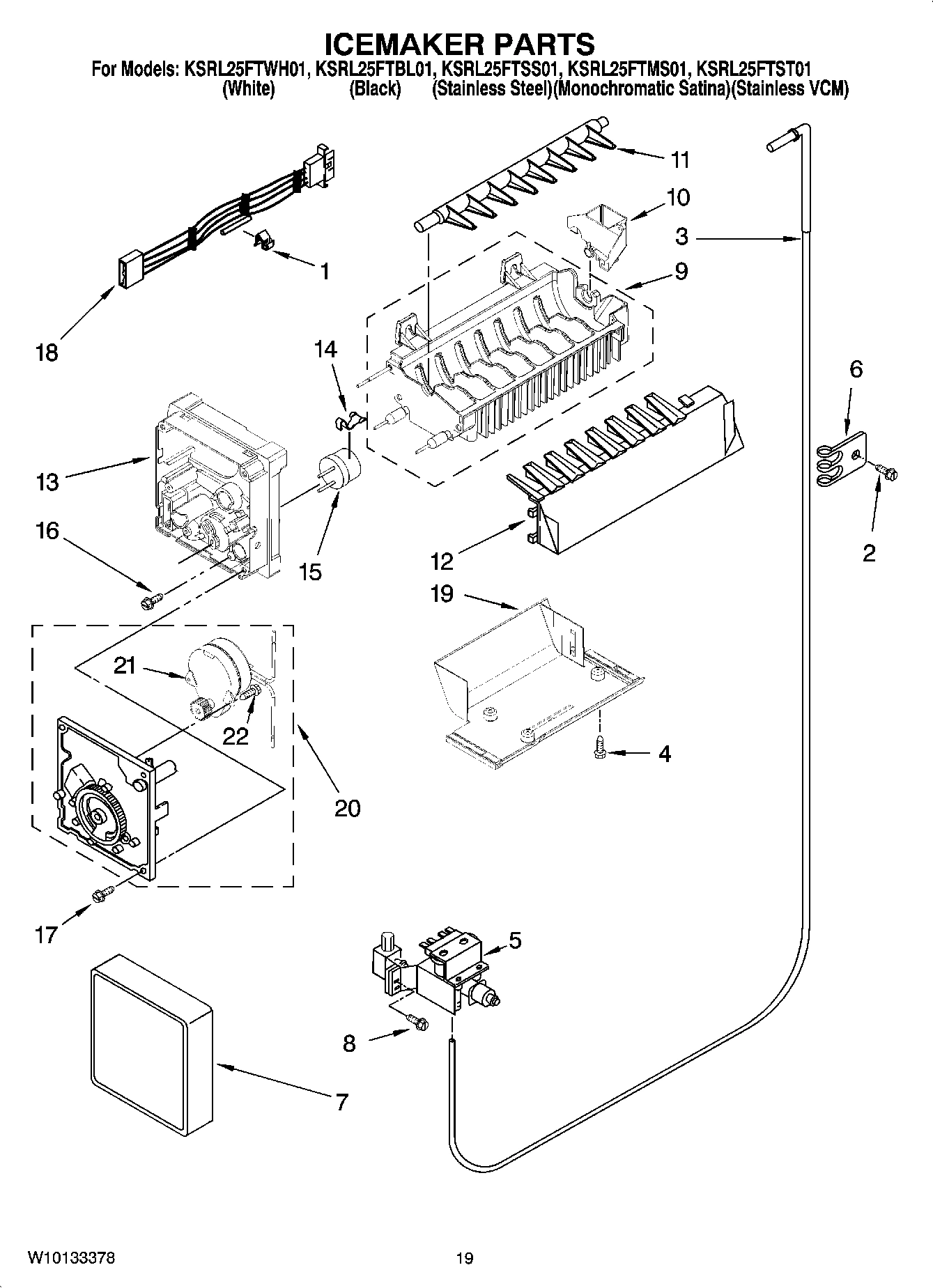

Model Whirlpool KSRL25FTWH01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2301270 Contact Us For Availability

1

Use & Care Guide WPL 2315184 Contact Us For Availability

1

Energy Guide WPL 2326221 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI99410A5 Contact Us For Availability

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2254628 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $130.99

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $71.47

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

6

Handle (Black) WPL 2319727B Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Electronic Control WPL 2321724 Contact Us For Availability

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $244.60

7

Shelf Bin (3) WPL 2171070K Contact Us For Availability

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $58.43

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

W11106297 Whirlpool Refrigerator Grille Backorder WPL W11106297 $85.17

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $6.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

Nameplate (Grey) WPL W10046610 Contact Us For Availability

2203407AP Whirlpool Refrigerator Cover Backorder WPL 2203407AP $70.47

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Apollo Gray) WPL 2180261AP Contact Us For Availability

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $38.71

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Harness, Fan Evaporator (Includes 6) WPL 2310238 Contact Us For Availability

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL 2315169 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $97.20

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $110.82

Grille (Apollo Gray) WPL 2303292AP Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Bracket, Control WPL 2323002 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $73.99

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Lever, Water Dispenser (Apollo Gray) WPL 2180270AP Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

Thimble-Top (For Stainless Steel and Monochro WPL 2301049 Contact Us For Availability

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

Tube, Extension WPL 2304937 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI99411A9 Contact Us For Availability

20

LED Display (Not Available Order 23) WPL ARI99412A5 Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI99413A1 Contact Us For Availability

2203408AP Whirlpool Refrigerator Cover Backorder WPL 2203408AP $67.47

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Front Cover Assembly (Includes Items 19, 20, WPL 2318947B Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20, WPL 2318947US Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20, WPL 2318947W Contact Us For Availability

24

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $17.07

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

24

NLA:SCREW Backorder WPL WPW10141645 $4.82

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

26

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

27

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

27

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $70.97

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

28

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $44.99

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.99

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.99

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI99407A8 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

33

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

38

Block, Housing Support WPL 2260519 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $51.99

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

45

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $59.85

46

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

47

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $58.57

48

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

49

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

50

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI99415A6 Contact Us For Availability

REFRIGERANT CHARGE 5.00 oz. (R-134A) WPL ARI99416A2 Contact Us For Availability

100

Ice Container (Complete) WPL 2317273 Contact Us For Availability
